Hoshizaki KM-61BAH Manuel utilisateur
㪥㫆㪅
㪤㪇㪇㪍㪄㪊㪇㪊㪏
㪠㪪㪪㪬㪜㪛㪑
㪡㪬㪣㪅㩷㪈㪍㪃㩷㪉㪇㪇㪎
㪩㪜㪭㪠㪪㪜㪛㪑㩷
㪤㪘㪰㩷㩷㪏㪃㩷㩷㪉㪇㪇㪏
㪪㪜㪩㪭㪠㪚㪜㩷㪠㪥㪝㪦㪩㪤㪘㪫㪠㪦㪥
㩷㪑㩷㪄㪄㪄
MODEL KM-61BAH
㪪㪄㪈㩷㩷㩷㪡㪬㪣㪅㩷㪉㪇㪇㪎
㪪㪄㪉㩷㩷㩷㪪㪜㪧㪅㩷㪉㪇㪇㪎
㪪㪄㪊㩷㩷㩷㪦㪚㪫㪅㩷㪉㪇㪇㪎
㪫㪄㪇㩷㩷㩷㪡㪘㪥㪅㩷㪉㪇㪇㪏
㪫㪄㪈㩷㩷㩷㪤㪘㪰㩷㩷㪉㪇㪇㪏
HOSHIZAKI
CRESCENT CUBER
PARTS LIST
i
HA
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitritrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
K-0
Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.
"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.
Designates significant part changes within the same year. Base is 0 and this number advances for
each change.
Example: P-1
"P" indicates 2004.
"1" indicates the first significant part change for 2004.
MARKS LOCATED UNDER THE AUXILIARY CODE
- = Part deleted.
x = Part deleted and replaced by "o"part.
o = New part in place of "x" part.
ST = Phillips Truss Head Machine Screw
SP = Phillips Pan Head Machine Screw
SF = Phillips Flat Head Machine Screw
SS = Phillips Pan Head Machine Screw with Split Lock Washer
SW = Phillips Pan Head Machine Screw with Split Lock Washer
and Flat Washer
T1 = Phillips Truss Head Tapping Screw (Correspond to Type A)
T2 = Phillips Truss Head Tapping Screw (Correspond to Type B)
T3 = Phillips Truss Head Tapping Screw (Correspond to Type C)
FT = Phillips Truss Head Tapping Screw (Special)
BH = Hexagon Head Bolt
BC =
BS = Hexagon Bolt with Split Washer
BW = Hexagon Bolt with Split Washer and Flat Washer
BF = Hexagon Flange Bolt
BR = Cross-Recessed Hexagon Head Bolt
BRW = Cross-Recessed Hexagon Head Bolt with Split Lock Washer
and Flat Washer
WL = Split Lock Washer
WT = External Tooth Washer
WF = Flat Washer
WS = Spring Washer
NH = Hexagon Nut
NF = Hexagon Flange Nut
NC = Hexagon Cap Nut
NS = Square Nut
NW = Wing Nut
Ex. S T 0 3 0 8 S (Phillips Truss Head Machine Screw,
3×8,made of stainless steel)
Material None:Plated Steel
Length (mm) S: Stainless Steel
Nominal Diameter (mm) B: Brass
Form of Head P: Plastic
Description
(Note) Second character is numerical except the list.
Ex: S1,S2,B3 etc.
And abbreviations and names are shown under the illustration.
FASTENER ABBREVIATION LIST
ⅱ
Socket Head Cap Screw
KK
1
HA
S-1,S-
2
S-3,T-
0
T-1
B ICE MAKING MECHANISM ASSY 118491A01 1 1 1

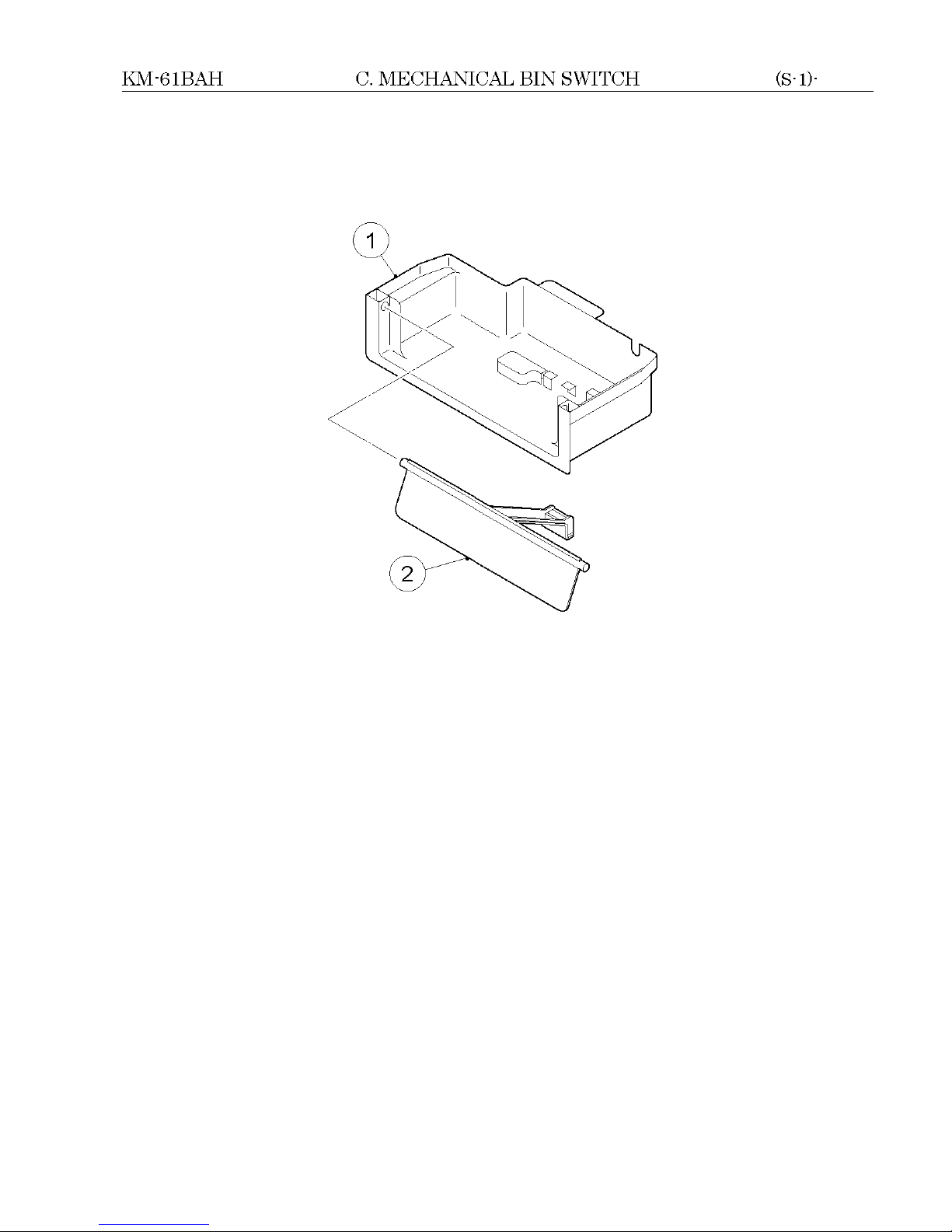

C MECHANICAL BIN SWITCH 369003A01 1 1 -
371148
㪘
01 1
D WATER CIRCUIT ASSY 253738A01 1 -
253738A02 1 1
E REFRIGERATION CIRCUIT 118494A01 1 1 1
F CONTROL BOX ASSY 252005A05 1 1 1
G LABEL LOCATION 254312S01 1 1 1
K ACCESSORIES 1 1 1
1 BODY ASSY 118004G01 1 1 1
2 FRONT FRAME 250744-01 1 1 1
3 RAIL (L) 117628-01 1 1 1
4 RAIL (R) 117629-01 1 1 1
5 AIR GUARD 470302-01 1 1 1
6 GROMMET-PIPE (C) EPDM (BLACK) 470311-01 1 1 1
7 GROMMET-PIPE (B) EPDM (BLACK) 470310-01 1 1 1
8 GROMMET-PIPE (A) EPDM (BLACK) 470309-01 1 1 1
9 FRONT PANEL 369029G01 1 1 1
10 COLLAR 471009P01 4 4 4
11 LOUVER 117636-01 1 1 1
12 AIR FILTER 250728G01 1 1 1
15 COVER - PIPE 368305-01 1 1 1
16 REAR COVER 368311-01 1 1 1
17 REAR PANEL 370654M02 1 1 1
18 POWER SUPPLY CORD
KP-30B SJT#16AWG
P00004-01 1 1 1
19 BUSHING SR-7K-2 420472-02 1 1 1
20 SEAL - FILM 472471P01 1 1 1
21 CLAMP 427902-02 4 4 4
22 TWIST HOLDER P00424-01 1 1 1
REQ'D NUMBER
MODEL
: KM-61BAH
TITLE

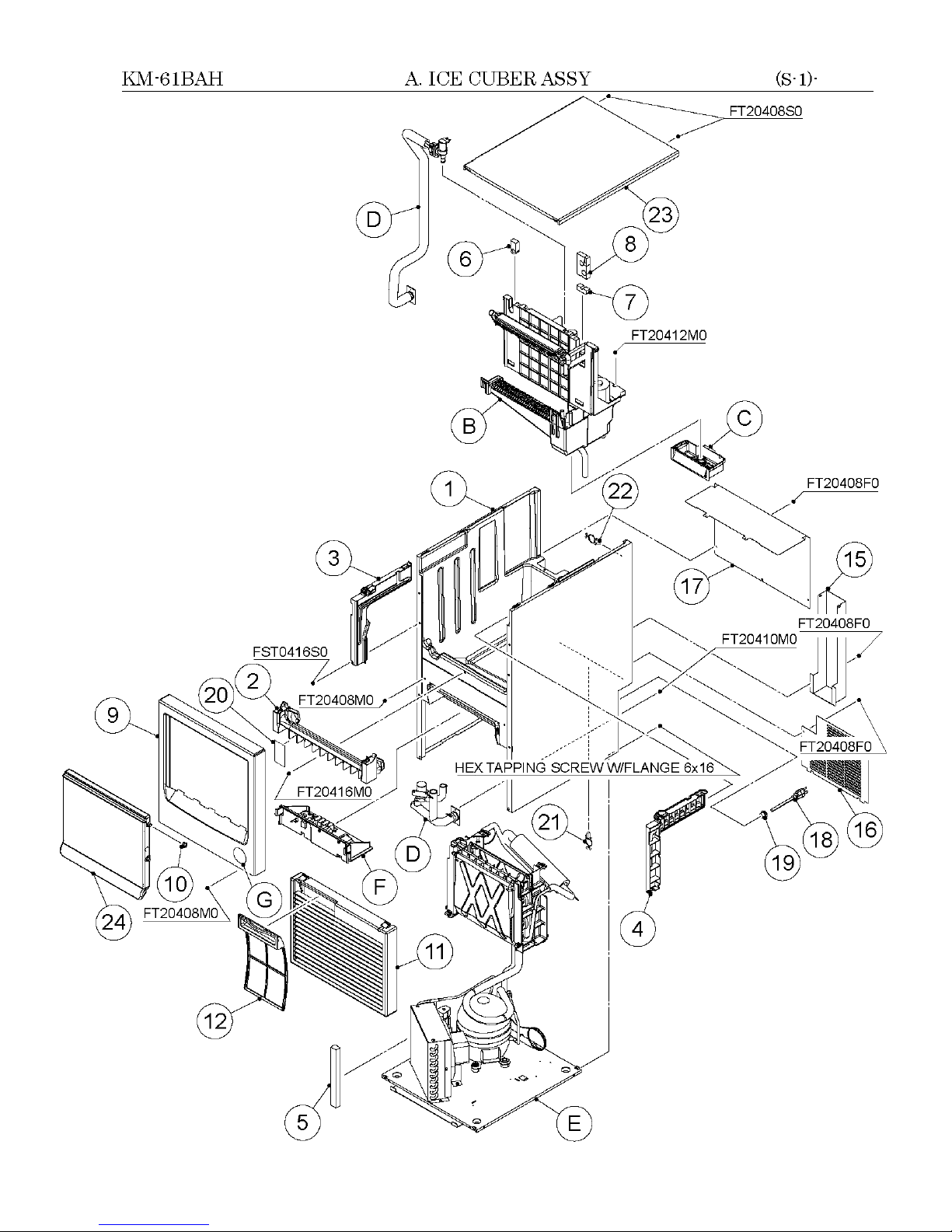

: A. ICE CUBER ASSY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL NUMBER
PART
NUMBER
2
HA
S-1,S-
2
S-3,T-
0
T-1
REQ'D NUMBER
MODEL
: KM-61BAH
TITLE
: A. ICE CUBER ASSY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL NUMBER
PART
NUMBER
23 TOP PANEL ASSY 369005A08 1 1 1
24 DOOR 369051G02 1 1 1
3
4
HA
S-1,S-
2
S-3,T-
0
T-1
1 WATER TANK 117637-01 1 1 1
2 FLOAT SWITCH 4A3624-02 1 1 1
3 PUMP MOTOR PV-0511BHZ2 P00467-01 1 1 1
4 ELBOW 417703-01 1 1 1
5 CUBE GUIDE (A) 250742-01 2 2 2
6 BRACKET - ICE MAKING 117630-01 1 1 1
7 INSULATION - MECHANISM (A) 368342-01 1 1 1
8 INSULATION - MECHANISM (B) 368343-01 1 1 1
9 SOLENOID VALVE
DSVP12N-2NSX-120A-
L3SR
4A3722-01 1 1 1
10 WATER SUPPLY PIPE (A) 470306-01 1 1 1
11 ELBOW 470303-01 1 1 1
12 BYPASS PIPE 470308-01 1 1 1
13 WATER SUPPLY PIPE (B) 470307-01 1 1 1
14 TEE 470312-01 1 1 1
15 WATER SUPPLY TUBE 250743-02 1 1 1
16 SPRAY GUIDE 252052P02 1 1 1
17 SPRAY TUBE 250746-02 1 1 1
18 SPRAY TUBE CAP 3A2645-01 1 1 1
19 HOSE CLAMP 427443-04 2 2 2
20 HOSE CLAMP 427443-05 1 1 1
21 HOSE CLAMP 427443-06 1 1 1
22 SILICONE HOSE
L=300 14 DIA x 18 DIA
H11418300 1 1 1
(CLEAR)
23 SILICONE HOSE
L=30 14 DIA x 18 DIA
H11418030 3 3 3
(CLEAR)
24 CABLE TIE CV-100 7920-0002 8 8 8
25 HOSE CLAMP 427443-07 1 1 1
26 ORIFICE 4Y4194P01 1 1 1
27 INSULATION/MECHANISM (C) 3Y2516Z01 1 1 1
28 INSULATION/MECHANISM (D) 3Y2517Z01 1 1 1
REQ'D NUMBER
MODEL
: KM-61BAH
TITLE

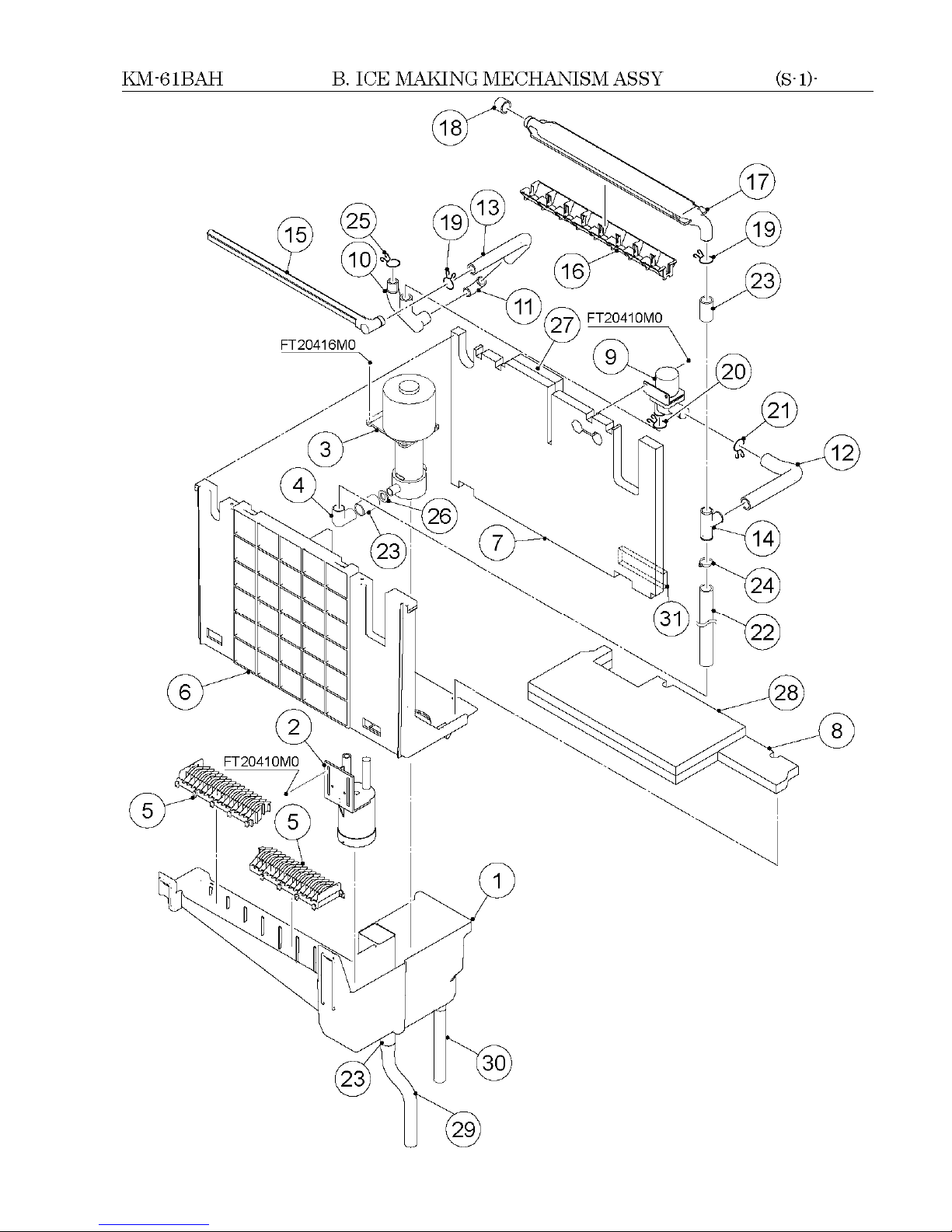

: B. ICE MAKING MECHANISM ASSY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL NUMBER
PART
NUMBER
5
HA
S-1,S-
2
S-3,T-
0
T-1
REQ'D NUMBER
MODEL
: KM-61BAH
TITLE
: B. ICE MAKING MECHANISM ASSY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL NUMBER
PART
NUMBER
29 PIPE/OVERFLOW 369038P01 1 1 1
30 SILICONE HOSE
L=150 14 DIA x 18 DIA
H11418150 1 1 1
(CLEAR)
31 INSULATION - PUMP 472395Z01 1 1 1
6
7
