HOSHIZAKI

SELF-CONTAINED CUBER

MODEL

PARTS LIST

NO: 71142

IM-51BAE

IM-51BAE-B

ISSUED: MARCH10,1999

REVISED: MAY 30, 2000

Auxiliary Codes

IM-51BAE J-0 Jan.1999

K-0 Apr.2000

IM-51BAE-B K-0 Dec. 1999

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

P FE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 A-1 in the same auxiliary code.

"A" is the first in alphabetical

order. So, "A" indicates "2001".

Ex.3 A-2

Each time a part is changed (non-interchangeably)

in a year, this number advances.

IM-51BAE, BAE-B A. ICE CUBER ASSEMBLY J-0, K-0

MODEL: IM-51BAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER J-0 K-0

B REFRIGERATION CIRCUIT - 1H1877A01 1 1

CICE MAKING MECHANISM

ASSEMBLY

- 1H1875A01 1 1

C1 TRUSS HEAD SCREW 4X12, SS 7C32-0412 4 4

D CONTROL BOX ASSEMBLY - 2H3893A01 1 1

D1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4 4

E DOOR ASSY - 2H3894A01 1 1

F WATER CIRCUIT ASSEMBLY - 2H3897A01 1 1

G LABEL LOCATION - 3X2348A01 1 1

1 UNIT FRAME GS 1H1872G01 1 1

1a HEX T2 SCREW 6X16 7B03-0616 4 4

1b TOOTH WASHER 6, SS 7R22-0600 2 2

2 TOP PANEL PP 1H1861G01 1 1

3 FRONT PANEL PP 2H3896G01 1 1

3a TRUSS HEAD SCREW 4X10, SS 7C32-0410 2 2

3b WASHER 4, NYLON 7W23-0400 2 2

4 HINGE (R) SS 4X6424-01 1 1

5 HINGE (L) SS 4X6425-01 1 1

5a HEX BOLT 5X16, SS 7B02-0516 4 4

6 LOUVER PP 1H1859-01 1 1

6a TRUSS HEAD SCREW 4X40, SS 7C32-0440 2 2

7 AIR FILTER PP 2H3857G01 1 1

8 COVER – LOUVER PP 3X2230-01 1 1

9 REAR PANEL GS 3X2353-01 1 1

9a T2 SCREW 4X8 7P31-0408 3 3

10 COVER – PIPE GS 3X2354-01 1 1

10a T2 SCREW 4X8 7P31-0408 4 4

11 DRAIN PAN ABS 2H3858-01 1 1

12 THUMBSCREW ABS 4H3270G01 2 2

13 DRAIN TUBE SI.R 4H2585-01 1 1

MODEL: IM-51BAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER J-0 K-0

14 DRAIN PIPE ABS 4X6426-01 1 1

15 SLOPE ABS 3X2355-01 1 1

16 INSULATION –BIN PE 4X6427-01 1 1

17 COVER –BIN EPDM 3X2232-01 1 1

18 INSULATION –UNIT PE 4X6430-01 1 1

AEC-30 440894-01 1 x119 POWER SUPPLY CORD

- 4A1773-01 o1

20 BUSHING SR-71C-2 420472-02 1 1

21 BRACKET –CORD GS 4X6601-01 1 1

21a T2 SCREW 4X8 7P31-0408 2 2

21b TOOTH WASHER 4 7R21-0400 2 2

22 TOGGLE SWITCH - 443119-01 1 1

23 BRACKET –SW GS 4X6422-01 1 1

23a TRUSS HEAD SCREW 4X8 7C31-0408 1 1

23b T2 SCREW 4X8 7P31-0408 1 1

24 SPACER (A) SS 4X6851-01 1 1

25 SPACER (B) SS 4X6851-02 1 1

26 CAP - 4A1937-01 1 1

MODEL: IM-51BAE-B TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER K-0

B REFRIGERATION CIRCUIT - 1H1877A01 1

CICE MAKING MECHANISM

ASSEMBLY

- 1H1875A01 1

C1 TRUSS HEAD SCREW 4X12, SS 7C32-0412 4

D CONTROL BOX ASSEMBLY - 2H3893A01 1

D1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4

E DOOR ASSY - 2H3894A02 1

F WATER CIRCUIT ASSEMBLY - 2H3897A01 1

G LABEL LOCATION - 3X2348A02 1

1 UNIT FRAME GS 1H1872G01 1

1a HEX T2 SCREW 6X16 7B03-0616 4

1b TOOTH WASHER 6, SS 7R22-0600 2

2 TOP PANEL PP 1H1861G02 1

3 FRONT PANEL PP 2H3896G02 1

3a TRUSS HEAD SCREW 4X10, SS 7C32-0410 2

3b WASHER 4, NYLON 7W23-0400 2

4 HINGE (R) SS 4X6424-01 1

5 HINGE (L) SS 4X6425-01 1

5a HEX BOLT 5X16, SS 7B02-0516 4

6 LOUVER PP 1H1859-02 1

6a TRUSS HEAD SCREW 4X40, SS 7C32-0440 2

7 AIR FILTER PP 2H3857G02 1

8 COVER –LOUVER PP 3X2230-02 1

9 REAR PANEL GS 3X2353-01 1

9a T2 SCREW 4X8 7P31-0408 3

10 COVER –PIPE GS 3X2354-01 1

10a T2 SCREW 4X8 7P31-0408 4

11 DRAIN PAN ABS 2H3858-01 1

12 THUMBSCREW ABS 4H3270G01 2

13 DRAIN TUBE SI.R 4H2585-01 1

MODEL: IM-51BAE-B TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER K-0

14 DRAIN PIPE ABS 4X6426-01 1

15 SLOPE ABS 3X2355-01 1

16 INSULATION –BIN PE 4X6427-01 1

17 COVER –BIN EPDM 3X2232-01 1

18 INSULATION –UNIT PE 4X6430-01 1

19 POWER SUPPLY CORD - 4A1773-01 1

20 BUSHING SR-71C-2 420472-02 1

21 BRACKET –CORD GS 4X6601-01 1

21a T2 SCREW 4X8 7P31-0408 2

21b TOOTH WASHER 4 7R21-0400 2

22 TOGGLE SWITCH - 443119-01 1

23 BRACKET –SW GS 4X6422-01 1

23a TRUSS HEAD SCREW 4X8 7C31-0408 1

23b T2 SCREW 4X8 7P31-0408 1

24 SPACER (A) SS 4X6851-01 1

25 SPACER (B) SS 4X6851-02 1

26 CAP - 4A1937-01 1

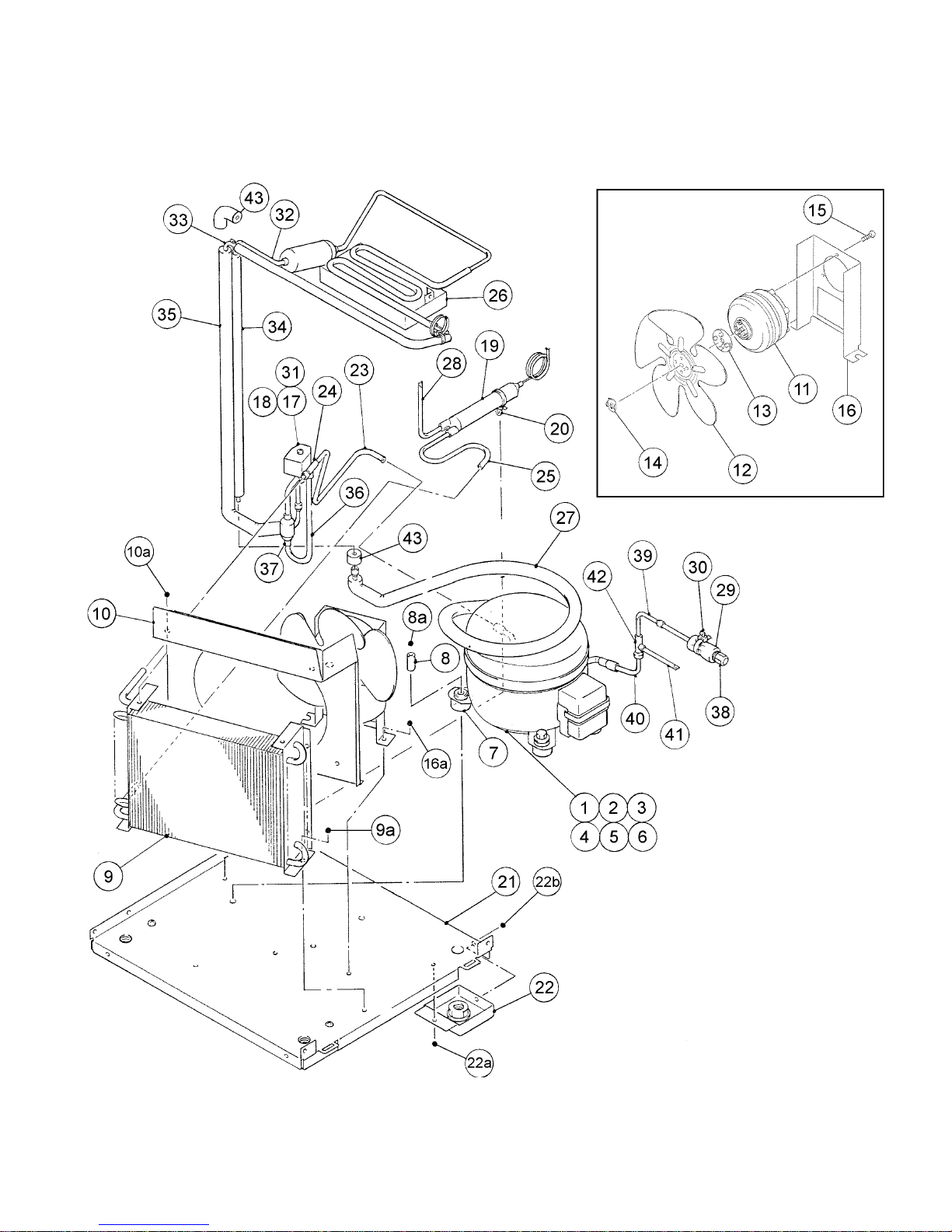

IM-51BAE, BAE-B B. REFRIGERATIONASSEMBLY J-0, K-0

MODEL: IM-51BAE TITLE:B. REFRIGERATION ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER J-0 K-0

1 COMPRESSOR QA51K13GAU6 455942-01 1 1

2PTCRELAY MM8-5CDP4M7 456252-01 1 1

3 MOTOR PROTECTOR MM3-38ECA 456254-01 1 1

4 PROTECTOR COVER PC 456255-01 1 1

5 CLAMP - 438846-01 1 1

6 CLIP - 438847-01 1 1

7 RUBBER GROMMET EPT RUBBER 438844-01 4 4

8 GROMMET SLEEVE - 431907-01 4 4

8a BOLT - 448834-01 4 4

9 CONDENSER –AIR COOLED - 3X2356-01 1 1

9a TRUSS HEAD SCREW 4X6 7C31-0406 2 2

10 SHROUD GS 2H3898-01 1 1

10a T2 SCREW 4X8 7P31-0408 4 4

11 FAN MOTOR SPBB4ER1 440916-01 1 1

12 FAN BLADE FV800CCW(



200) 455943-01 1 1

13 WASHER -435983-01 1 1

NUT - 435982-01 1 x114

HEX NUT - 4A1345-01 o1

15 SCREW - 436863-01 3 3

16 BRACKET-FAN MOTOR GS 4X6429-01 1 1

5X10, SS 7B0230510 2 x216a HEX BOLT SW

5X10 7B0130510 o2

17 VALVE BODY 24 440351-01 1 1

18 COIL VALVE ADS-24HD-3 440354-01 1 1

19 DRIER KC-7861 444792-01 1 1

20 TIE T30RSF 436156-01 2 2

21 BASE GS 2H3899G01 1 1

22 MOUNT LEG GS 4X6428G01 4 4

TRUSS HEAD SCREW 4X8, SS 7C32-0408 4 x422a

T2 SCREW 4X8, SS 7P32-0408 o4
