Hoshizaki KM-515MAH Manuel utilisateur
Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Models
KM-515MAH
KM-515MWH
KM-515MRH
Modular Crescent Cuber
Hoshizaki America, Inc.
Number: 71274
Issued: 1-28-2008
Revised: 7-10-2008
PARTS LIST
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
Material Abbreviations ........................................................................................................... 4
A. Ice Cuber Assembly .......................................................................................................... 5
KM-515MAH ..................................................................................................................... 5
KM-515MWH ..................................................................................................................... 7
KM-515MRH ..................................................................................................................... 9
B. Refrigeration Circuit ........................................................................................................ 11
KM-515MAH .................................................................................................................... 11
KM-515MWH ................................................................................................................... 15
KM-515MRH ................................................................................................................... 19
C. Water Circuit ................................................................................................................... 3
D. Control Box Assembly ..................................................................................................... 6
E. Label Location ................................................................................................................. 8
KM-515MAH .................................................................................................................... 8
KM-515MWH ................................................................................................................... 30
KM-515MRH ................................................................................................................... 3
F. Front Panel Assembly ..................................................................................................... 34
G. Top Panel Assembly ...................................................................................................... 35
H. Pump Motor Assembly .................................................................................................... 36
J. Control Assembly ............................................................................................................. 37
K. Accessories & Packaging ................................................................................................ 38
3
Auxiliary Codes
KM-515MAH S-0 October 007
T-0 April 008
KM-515MWH S-0 November 007
T-0 February 008
KM-515MRH S-0 October 007
T-0 May 008
Auxiliary Code Breakdown
K-0
Designates the year. "K" indicates the year 000. Years progress or regress in alphabetical order.
"J" is 1999, "L" is 001, "M" is 00, and so on. The letters "I" and "O" were skipped.
Designates signicant part changes within the same year for this model. Base is 0 and this number
advances for each change.
Example: P-1
"P" indicates 004.
"1" indicates the rst signicant part change for 004.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered
separately.
4
Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrauoroethylene = Teon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
5
A. Ice Cuber Assembly
KM-515MAH
S-0, T-0
For Thermostat, see
"D. Control Box Assembly"
B
C
E
1
4
5
8
3
11
13
1
17
9
16
1
DD1
15 15a
66a
77a
19 19a
a
a
3b
33a
14 14a
0
G
F
F1
10
4
18
6
Title: A. Ice Cuber Assembly Model: KM-515MAH
Index
No. Description
Material or
Model Number Part Number
Required Number
S-0
T-0
B Refrigeration Circuit - 1A1406A01 1
C Water Circuit - 1A083A05 1
D Control Box Assembly - A4374A01 1
D1 T Screw 4×8 7P31-0408 4
E Label Location - 3A4597A01 1
F Front Panel Assembly SS A3767G01 1
F1 Truss Head Screw 4×8, SS 7C3-0408 1
G Top Panel Assembly SS 3A3878A01 1
1 Evaporator Case - 1A0579G06 1
Base - A146G1 1
a FT Screw 4×8 7F31-0408 7
3 Frame - 3A503G01 1
3a Truss Head Screw 4×8, SS 7C3-0408 1
3b Truss Head Screw 4×5, SS 7C3-045
4 Square Washer BRASS 433537-0 1
5 Screw-Grounding BRASS 433304-0 1
6 Top Frame GS 3A3741-01 1
6a T Screw 4×8 7P31-0408 4
7 Side Frame GS 3A78-01 1
7a T Screw 4×8 7P31-0408
8 Bulb Holder - 3A3903-01 1
9 Strap - 435487-01 1
10 Thumbscrew SS, ABS 415949G10 1
11 Base Cover SS 3155G01 1
1 Top Insulation PP 15730G01 1
13 Front Insulation PP 15731G01 1
14 Side Panel (R) SS A117G01 1
14a T Screw 4×8, SS 7P3-0408 1
15 Control Box Cover GS 3A476-01 1
15a T Screw 4×8 7P31-0408 1
16 Air Filter (A) ABS A06G01
17 Louver (A) ABS 1A0547-01
18 Push Retainer - 4A414-01 6
19 Barrier GS 4A036-01 1
19a T Screw 4×8 7P31-0408
0 Silicone Hose L=380 7730I381 1
1 Gasket L=554 4A0808L0 1
Barrier-Insulation GS 4A1167-01 1
a T Screw 4×8 7P31-0408
3 Thumbscrew SS, ABS 415949G11
4 Capillary Ring - 45307-01 1
7

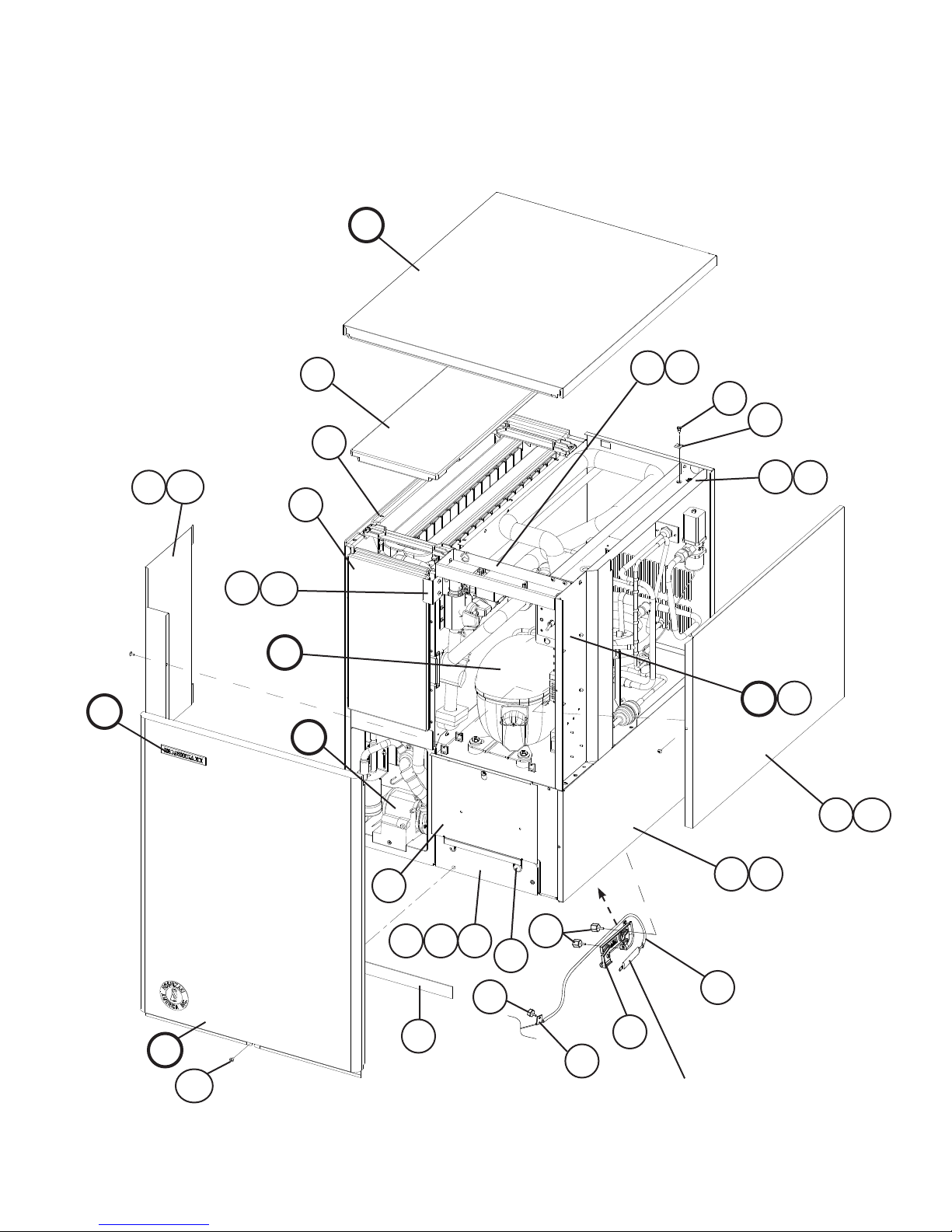

A. Ice Cuber Assembly
KM-515MWH
S-0, T-0
For Thermostat, see
"D. Control Box Assembly"
B
C
E
1
13
1
9
5
4
11
8
10
16
DD1
a
33a 3b
66a
77a
14 14a
17 17a
15 15a
F1
F
G
18
19
0
8
Title: A. Ice Cuber Assembly Model: KM-515MWH
Index
No. Description
Material or
Model Number Part Number
Required Number
S-0
T-0
B Refrigeration Circuit - 1A1408A01 1
C Water Circuit - 1A083A05 1
D Control Box Assembly - A4374A0 1
D1 T Screw 4×8 7P31-0408 4
E Label Location - 3A4598A01 1
F Front Panel Assembly SS A150G01 1
F1 Truss Head Screw 4×8, SS 7C3-0408 1
G Top Panel Assembly SS 3A3878A01 1
1 Evaporator Case - 1A0579G06 1
Base - A146G17 1
a FT Screw 4×8 7F31-0408 7
3 Frame - 3A503G01 1
3a Truss Head Screw 4×8, SS 7C3-0408 1
3b Truss Head Screw 4×5, SS 7C3-045
4 Square Washer BRASS 433537-0 1
5 Screw-Grounding BRASS 433304-0 1
6 Top Frame GS 3A3741-01 1
6a T Screw 4×8 7P31-0408 4
7 Side Frame GS 3A78-01 1
7a T Screw 4×8 7P31-0408
8 Bulb Holder - 3A3903-01 1
9 Silicone Hose L=380 7730I381 1
10 Thumbscrew SS, ABS 415949G10 1
11 Base Cover SS 3155G01 1
1 Top Insulation PP 15730G01 1
13 Front Insulation PP 15731G01 1
14 Side Panel (R) SS A117G01 1
14a T Screw 4×8, SS 7P3-0408 1
15 Control Box Cover GS 3A476-01 1
15a T Screw 4×8 7P31-0408 1
16 Gasket L=554 4A0808L0 1
17 Barrier-Insulation GS 4A1167-01 1
17a T Screw 4×8 7P31-0408
18 Strap - 435487-01 1
19 Thumbscrew SS, ABS 415949G11
0 Capillary Ring - 45307-01 1
9

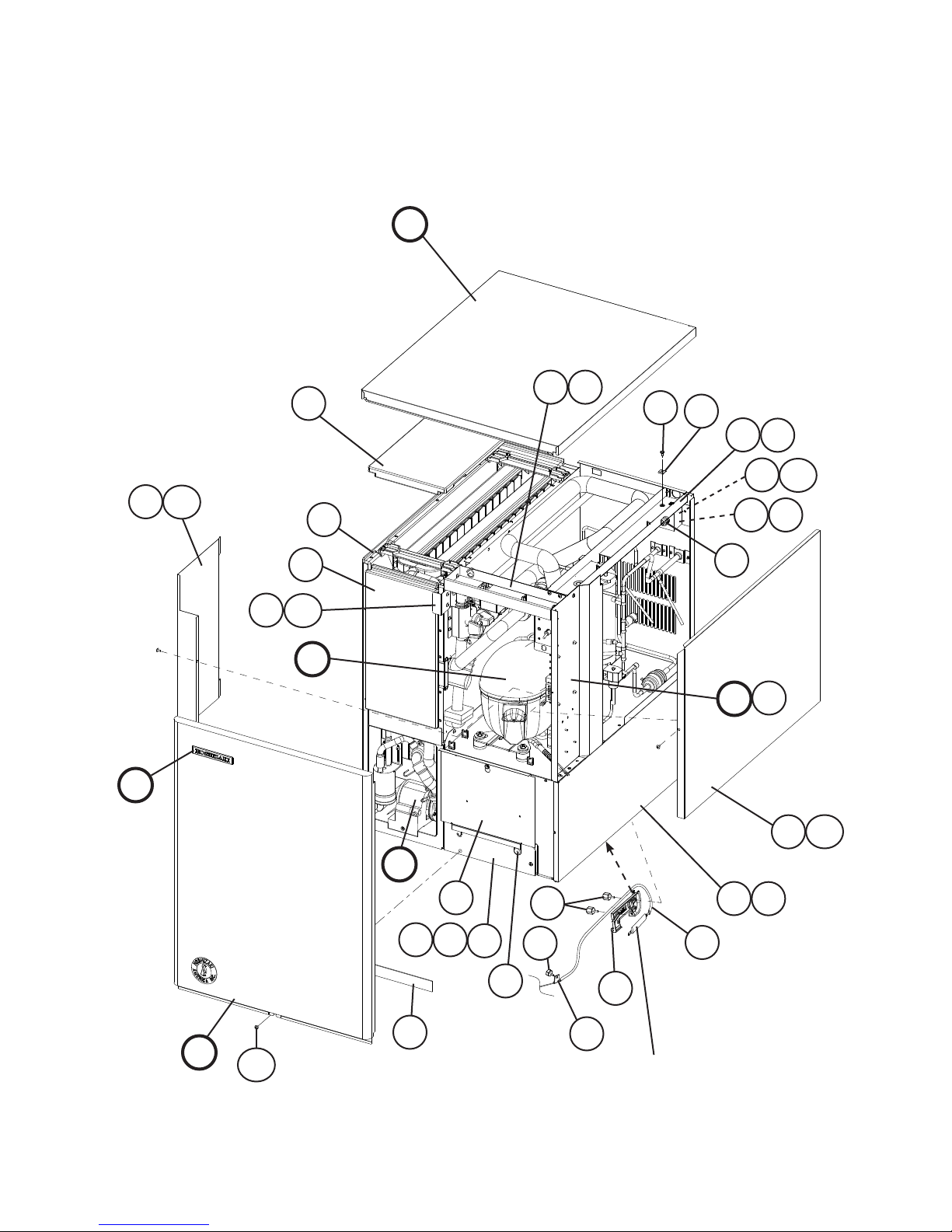

A. Ice Cuber Assembly
KM-515MRH
S-0, T-0
For Thermostat, see
"D. Control Box Assembly"
B
C
E
16
1
13
1 4
5
11
10
8
9
17
66a
19 19a
DD1
a
33a 3b
77a
14 14a
F1
15 15a
18 18a
G
F
0
1
54
10
Title: A. Ice Cuber Assembly Model: KM-515MRH
Index
No. Description
Material or
Model Number Part Number
Required Number
S-0
T-0
B Refrigeration Circuit - 1A1410A01 1
C Water Circuit - 1A083A05 1
D Control Box Assembly - A4374A0 1
D1 T Screw 4×8 7P31-0408 4
E Label Location - 3A4599A01 1
F Front Panel Assembly SS A150G01 1
F1 Truss Head Screw 4×8, SS 7C3-0408 1
G Top Panel Assembly SS 3A3878A01 1
1 Evaporator Case - 1A0579G06 1
Base - A146G14 1
a FT Screw 4×8 7F31-0408 7
3 Frame - 3A503G01 1
3a Truss Head Screw 4×8, SS 7C3-0408 1
3b Truss Head Screw 4×5, SS 7C3-045
4 Square Washer BRASS 433537-0
5 Screw-Grounding BRASS 433304-0
6 Top Frame GS 3A3741-01 1
6a T Screw 4×8 7P31-0408 4
7 Side Frame GS 3A78-01 1
7a T Screw 4×8 7P31-0408
8 Bulb Holder - 3A3903-01 1
9 Strap - 435487-01 1
10 Thumbscrew SS, ABS 415949G10 1
11 Base Cover SS 3155G01 1
1 Top Insulation PP 15730G01 1
13 Front Insulation PP 15731G01 1
14 Side Panel (R) SS A117G01 1
14a T Screw 4×8, SS 7P3-0408 1
15 Control Box Cover - 3A476-01 1
15a T Screw 4×8 7P31-0408 1
16 Gasket L=554 4A0808L0 1
17 Silicone Hose L=380 7730I381 1
18 Junction Box Cover GS 433410-01 1
18a T Screw 4×8 7P31-0408 1
19 Barrier-Insulation GS 4A1167-01 1
19a T Screw 4×8 7P31-0408
0 Bushing SR-30-1 4047-03 1
1 Thumbscrew SS, ABS 415949G11
Capillary Ring - 45307-01 1
