Hoshizaki KM-501MAH Manuel utilisateur

Hoshizaki

“A Superior Degree

of Reliability”

www.hoshizaki.com

Models

KM-501MAH

KM-501MWH

KM-501MRH

Modular Crescent Cuber

Hoshizaki America, Inc.

Number: 71254

Issued: 5-26-2006

PARTS LIST

CONTENTS

Auxiliary Codes ...................................................................................................................... 3

Note About Ordering Parts .................................................................................................... 3

Material Abbreviations ........................................................................................................... 4

A. Ice Cuber Assembly .......................................................................................................... 5

KM-501MAH ..................................................................................................................... 5

KM-501MWH ..................................................................................................................... 7

KM-501MRH ..................................................................................................................... 9

B. Refrigeration Circuit ......................................................................................................... 11

KM-501MAH .................................................................................................................... 11

KM-501MWH ................................................................................................................... 15

KM-501MRH ................................................................................................................... 19

C. Water Circuit .................................................................................................................... 23

KM-501MAH, KM-501MWH, KM-501MRH ..................................................................... 23

D. Control Box Assembly ..................................................................................................... 26

KM-501MAH, KM-501MWH, KM-501MRH ..................................................................... 26

E. Label Location ................................................................................................................. 28

KM-501MAH .................................................................................................................... 28

KM-501MWH ................................................................................................................... 30

KM-501MRH ................................................................................................................... 32

F. Pump Motor Assembly ..................................................................................................... 34

KM-501MAH, KM-501MWH, KM-501MRH ..................................................................... 34

G. Control Assembly ............................................................................................................ 35

KM-501MAH, KM-501MWH, KM-501MRH ..................................................................... 35

H. Accessories ..................................................................................................................... 36

KM-501MAH, KM-501MWH, KM-501MRH ..................................................................... 36

Auxiliary Codes

KM-501MAH R-1 January 2006

KM-501MWH R-1 January 2006

KM-501MRH R-1 January 2006

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally

must be ordered separately.

Material Abbreviations

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetraﬂuoroethylene = Teﬂon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

K-0

Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.

"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.

Designates signiﬁcant part changes within the same year for this model. Base is 0 and this number

advances for each change.

Example: P-1

"P" indicates 2004.

"1" indicates the ﬁrst signiﬁcant part change for 2004.

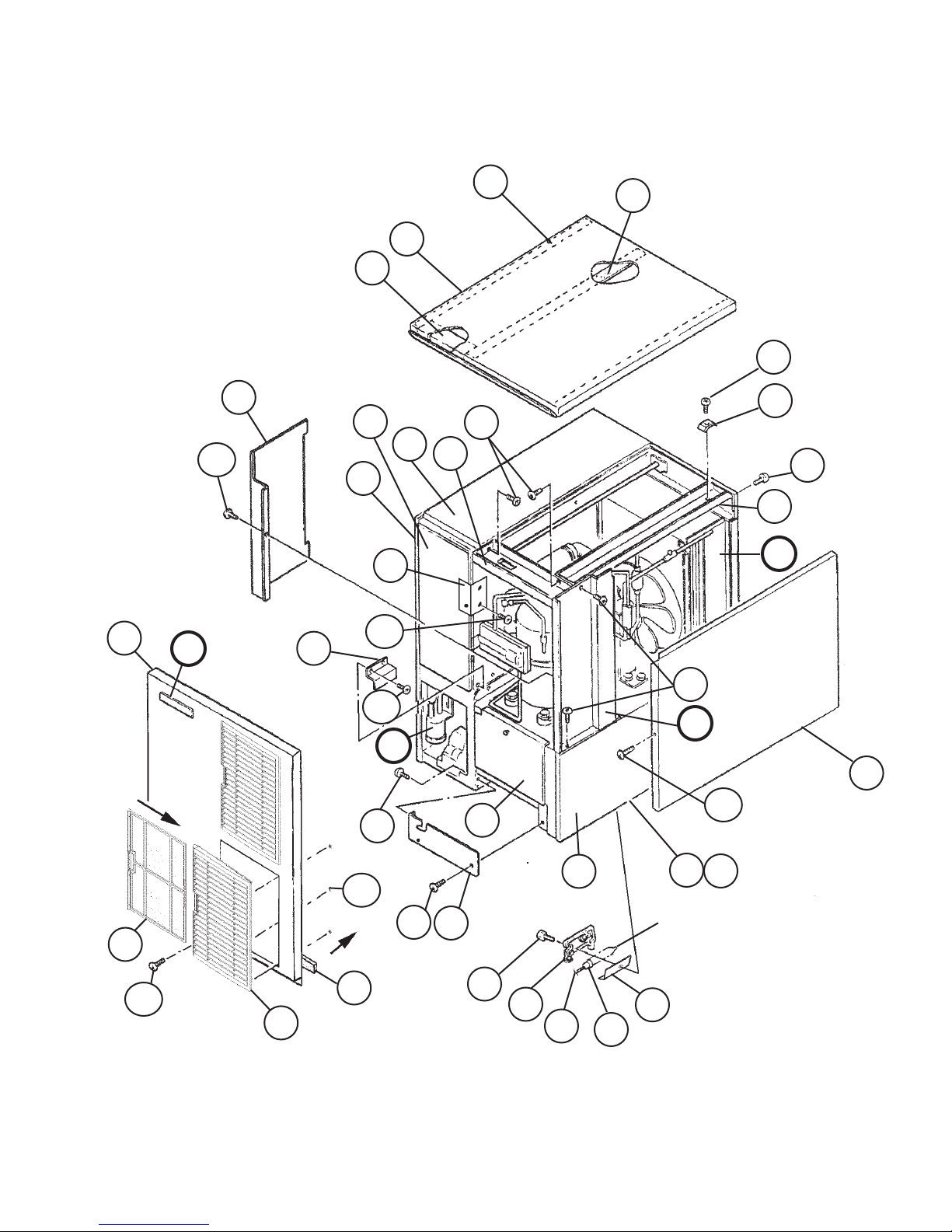

A. Ice Cuber Assembly

KM-501MAH

R-1

For Thermostat, see

Control Assembly

17a

21 25

15a

18a

27a

14a

16a

Title: A. Ice Cuber Assembly Model: KM-501MAH

Index

No. Description

Material or

Model Number Part Number

Required Number

R-1

B Refrigeration Circuit - 1A0420A06 1

C Water Circuit HS-1204 1A0283A05 1

D Control Box Assembly - 2A2538A01 1

D1 T2 Screw 4×8 7P31-0408 4

E Label Location - 3A3996A01 1

1 Evap. Case HS-1010 1A0579G01 1

2 Base - 2A2146G06 1

2a FT Screw 4×8 7F31-0408 7

3 Frame - 3A2503G01 1

3a Truss Head Screw 4×8, SS 7C32-0408 1

3b Truss Head Screw 4×25, SS 7C32-0425 2

4 Square Washer BRASS 433537-02 1

5 Screw - Grounding BRASS 433304-02 1

6 Top Frame GS 332443-01 1

6a T2 Screw 4×8 7P31-0408 4

7 Side Frame GS 3A2782-01 1

7a T2 Screw 4×8 7P31-0408 2

8 Bulb Holder - 328919-01 1

9 Spacer - 443545-01 2

10 Thumbscrew SS, ABS 415949G10 2

11 Base Cover SS 321525G01 1

12 Top Insulation PP 215730G01 1

13 Front Insulation PP 215731G01 1

14 Side Panel (R) SS 2A2117G01 1

14a T2 Screw 4×8, SS 7P32-0408 1

15 Control Box Cover GS 3A2476-01 1

15a T2 Screw 4×8 7P31-0408 1

16 Front Panel SS 2A2244G02 1

16a Truss Head Screw SS, 4×8 7C32-0408 1

17 Louver (A) ABS 1A0547-01 2

17a Push Retainer - 4A2414-01 6

18 Barrier GS 4A0362-01 1

18a T2 Screw 4×8 7P31-0408 2

19 Deﬂector - 4A1951-01 1

20 Top Panel SS

(3A1890A01)

2A2133-01 1

21 Gasket PVC

(3A1890A01)

427014-04 2

22 Insulation PE FOAM

(3A1890A01)

438012-01 1

23 Air Filter (A) ABS 2A2062G01 2

24 Gasket L=554 4A0808L02 1

25 Gasket (A) (3A1890A01) 324859-03 1

26 Side Panel (R) – Base SS 2A2147-01 1

27 Barrier - Insulation GS 4A1167-01 1

27a T2 Screw 4×8 7P31-0408 2

28 Silicone Hose L = 390 7730I3812 1

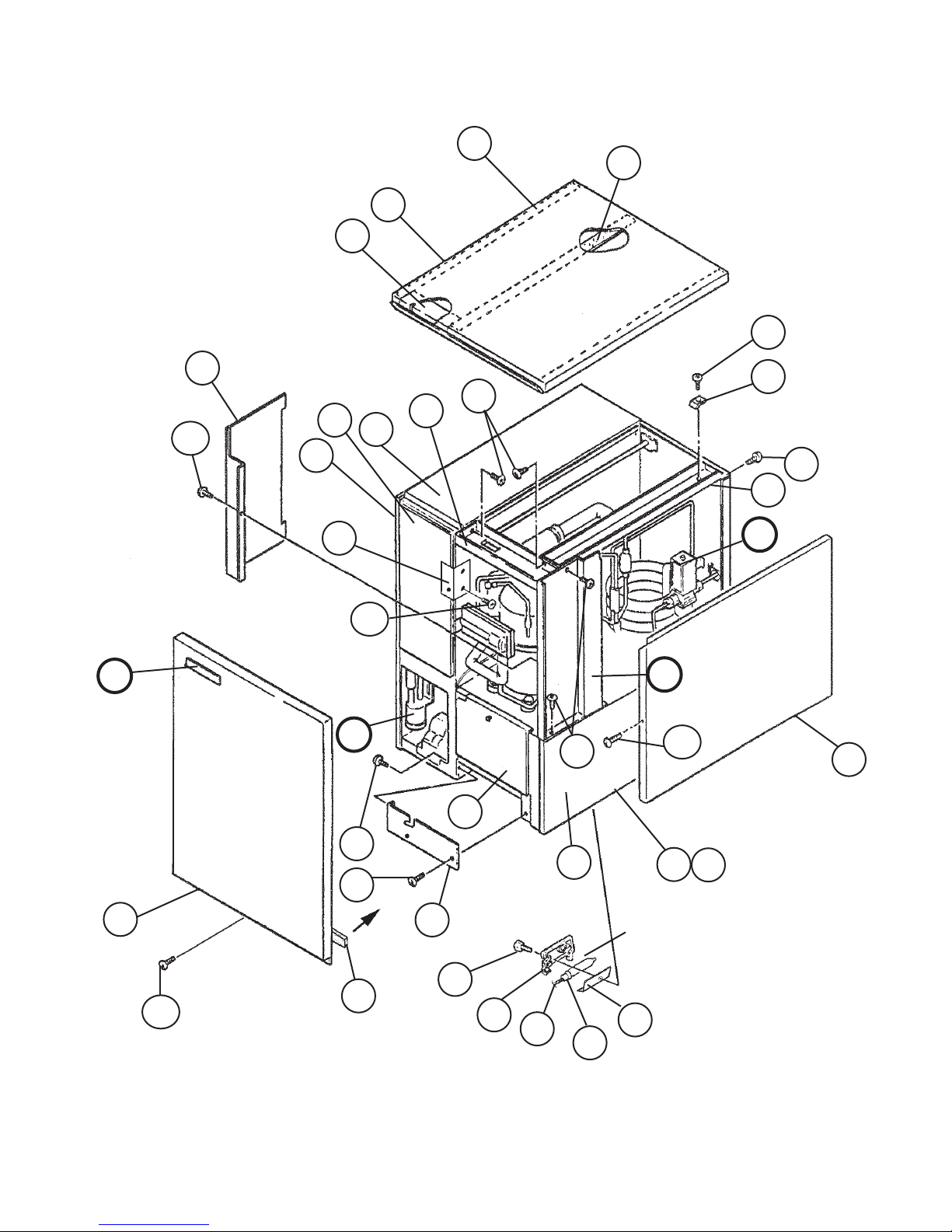

A. Ice Cuber Assembly

KM-501MWH

R-1

For Thermostat, see

Control Assembly

13 12

14a

23a

15a

16a

Title: A. Ice Cuber Assembly Model: KM-501MWH

Index

No. Description

Material or

Model Number Part Number

Required Number

R-1

B Refrigeration Circuit 1A0680A03 1

C Water Circuit HS-1204 1A0283A05 1

D Control Box Assembly - 2A2538A02 1

D1 T2 Screw 4×8 7P31-0408 4

E Label Location - 3A3997A01 1

1 Evap. Case HS-1010 1A0579G01 1

2 Base - 2A2146G09 1

2a FT Screw 4×8 7F31-0408 7

3 Frame - 3A2503G01 1

3a Truss Head Screw 4×8, SS 7C32-0408 1

3b Truss Head Screw 4×25, SS 7C32-0425 2

4 Square Washer BRASS 433537-02 1

5 Screw - Grounding BRASS 433304-02 1

6 Top Frame GS 332443-01 1

6a T2 Screw 4×8 7P31-0408 4

7 Side Frame GS 3A2782-01 1

7a T2 Screw 4×8 7P31-0408 2

8 Bulb Holder - 328919-01 1

9 Spacer - 443545-01 2

10 Thumbscrew SS, ABS 415949G10 2

11 Base Cover SS 321525G01 1

12 Top Insulation PP 215730G01 1

13 Front Insulation PP 215731G01 1

14 Side Panel (R) SS 2A2117G01 1

14a T2 Screw 4×8, SS 7P32-0408 1

15 Control Box Cover GS 3A2476-01 1

15a T2 Screw 4×8 7P31-0408 1

16 Front Panel SS 2A2150G01 1

16a Truss Head Screw 33, 4×8 7C32-0408 1

17 Gasket L=554 4A0808L02 1

18 Gasket (A) (3A1890A01) 324859-03 1

19 Top Panel SS,

(3A1890A01)

2A2133-01 1

20 Gasket PVC,

(3A1890A01)

427014-04 2

21 Insulation PE FOAM,

(3A1890A01)

438012-01 1

22 Side Panel (R) – Base SS 2A2147-01 1

23 Barrier – Insulation GS 4A1167-01 1

23a T2 Screw 4×8 7P31-0408 2

24 Deﬂector - 4A1951-01 1

25 Silicone Hose L = 390 7730I3812 1

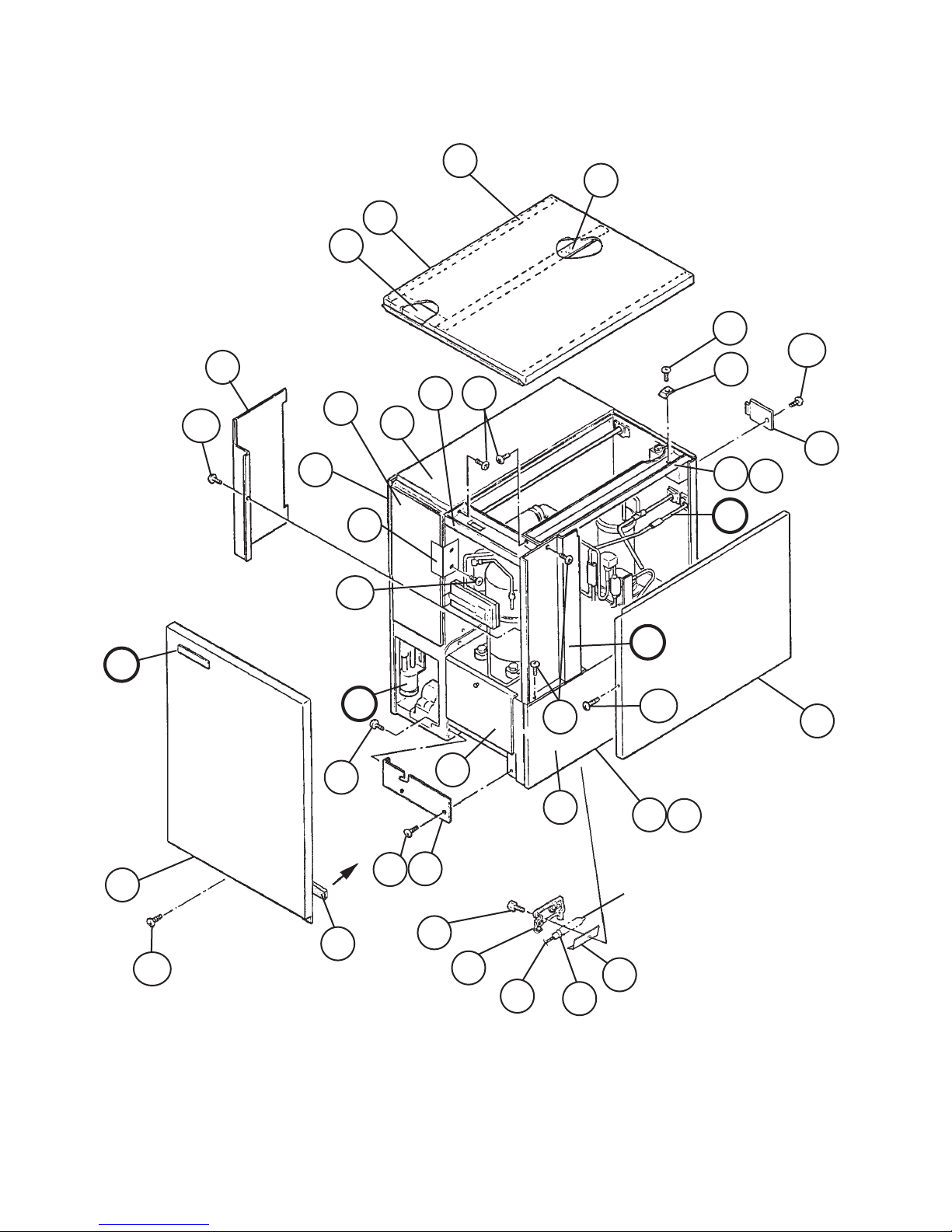

A. Ice Cuber Assembly

KM-501MRH

R-1

For Thermostat, see

Control Assembly

13 12

24 2

25a

14a

16a

15a

23a

Title: A. Ice Cuber Assembly Model: KM-501MRH

Index

No. Description

Material or

Model Number Part Number

Required Number

R-1

B Refrigeration Circuit - 1A0422A03 1

C Water Circuit HS-1204 1A0283A05 1

D Control Box Assembly - 2A2538A02 1

D1 T2 Screw 4×8 7P31-0408 4

E Label Location - 3A3998A01 1

1 Evap. Case HS-1010 1A0579G01 1

2 Base - 2A2146G07 1

2a FT Screw 4×8 7F31-0408 7

3 Frame - 3A2503G01 1

3a Truss Head Screw 4×8, SS 7C32-0408 1

3b Truss Head Screw 4×25, SS 7C32-0425 2

4 Square Washer BRASS 433537-02 1

5 Screw - Grounding BRASS 433304-02 1

6 Top Frame GS 332443-01 1

6a T2 Screw 4×8 7P31-0408 4

7 Side Frame GS 3A2782-01 1

7a T2 Screw 4×8 7P31-0408 2

8 Bulb Holder - 328919-01 1

9 Spacer - 443545-01 2

10 Thumbscrew SS, ABS 415949G10 2

11 Base Cover SS 321525G01 1

12 Top Insulation PP 215730G01 1

13 Front Insulation PP 215731G01 1

14 Side Panel (R) SS 2A2117G01 1

14a T2 Screw 4×8, SS 7P32-0408 1

15 Control Box Cover - 3A2476-01 1

15a T2 Screw 4×8 7P31-0408 1

16 Front Panel SS 2A2150G01 1

16a Truss Head Screw SS, 4×8 7C32-0408 1

17 Deﬂector - 4A1951-01 1

18 Gasket L=554 4A0808L02 1

19 Gasket (A) (3A1890A01) 324859-03 1

20 Top Panel SS,

(3A1890A01)

2A2133-01 1

21 Gasket PVC,

(3A1890A01)

427014-04 2

22 Insulation PE FOAM,

(3A1890A01)

438012-01 1

23 Junction Box Cover GS 433410-01 1

23a T2 Screw 4×8 7P31-0408 1

24 Side Panel (R) – Base SS 2A2147-01 1

25 Barrier – Insulation GS 4A1167-01 1

25a T2 Screw 4×8 7P31-0408 2

26 Silicone Hose L = 390 7730I3812 1
