Hoshizaki KML-600MAF Manuel utilisateur

NO.

ISSUED: 71145

OCT.12,1999

MODEL

KML-600MAF

KML-600MWF

KML-600MRF

HOSHIZAKI

MODULAR CRESCENT CUBER

(FINAL) PARTS LIST

REVISED: AUG.2,2002

KML-600MAF

J-0 APRIL 1999

K-0 JAN. 2000

L-0 DEC. 2000

KML-600MWF

J-0 MAY 1999

K-0 DEC. 1999

L-0 JAN. 2001

KML-600MRF

J-0 JUNE 1999

K-0 DEC. 1999

L-0 FEB. 2001

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide=Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PIFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = VinylNitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanizedsteel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARYCODE

Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.

year. x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000". o = New part for "x"

Ex.2 L-0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L-1Each time a part is changed non-interchangeably,

in a year, this number advances.

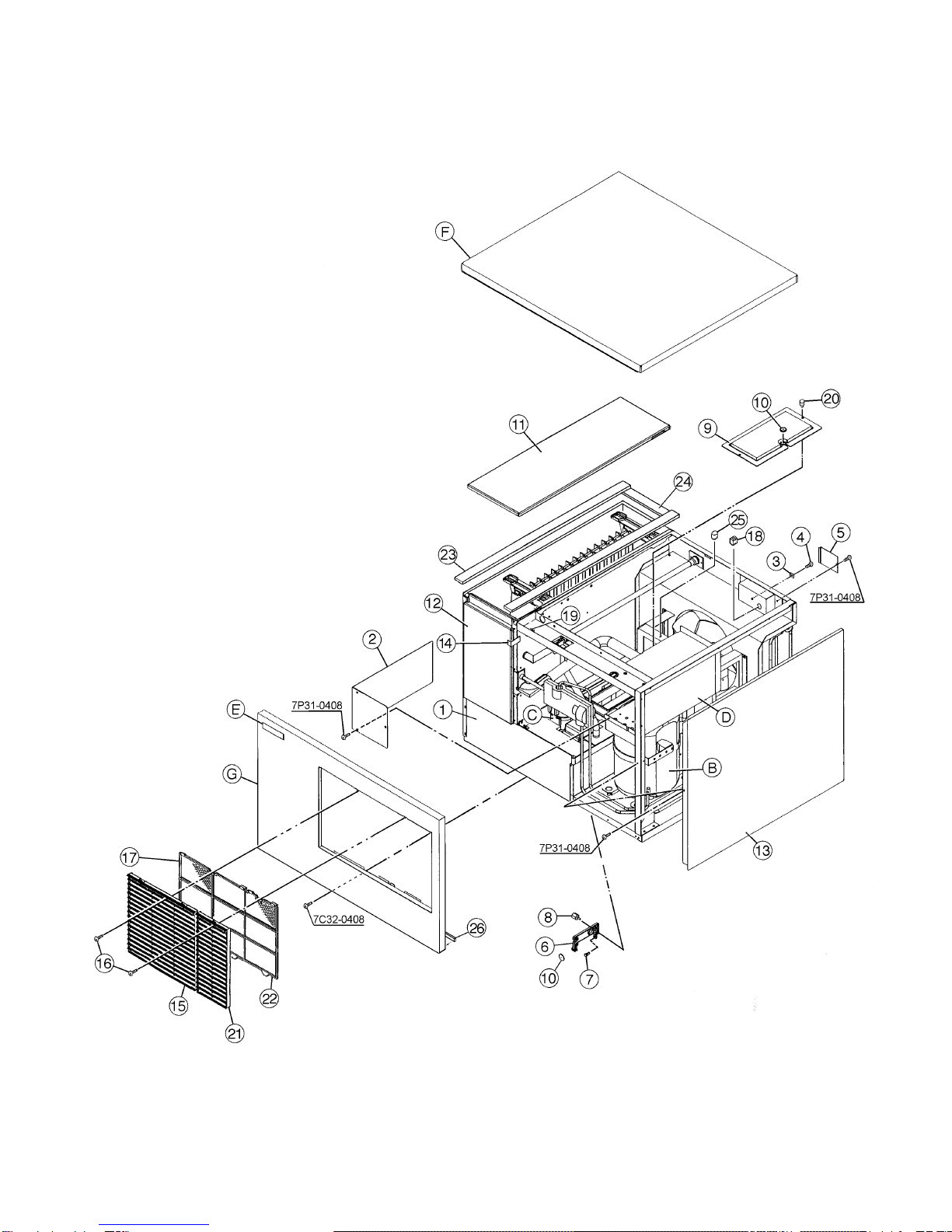

KML-600MAF A. ICE CUBER ASSEMBLY J-0, K-0, L-0

MODEL: KML-600MAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIREDNUMBER

NUMBER J-0 K-0 L-0

B REFRIGERATION CIRCUIT - 1A0280A01 1 1 1

C WATER CIRCUIT HS-1202 2A1195A02 1 1 1

D CONTROL BOX ASSEMBLY HS-1106 2A0657A09 1 1 1

T2 SCREW 4 X 8 7P31-0408 3 3 3

E LABEL LOCATION - 3A1077A01 1 1 1

F TOP PANEL ASSEMBLY - 3A0674A01 1 1 1

G FRONT PANEL - 3A1083A01 1 1 1

TRUSS HEAD SCREW 4 X 8, SS 7C32-0408 1 1 1

1 EVAPORATOR CASE HS-1007 2A1179G02 1 1 1

2 CONTROL BOX COVER GS 3A0594-01 1 1 1

T2 SCREW 4 X 8 7P31-0408 3 3 3

3 SQUARE WASHER BRASS 433537-02 1 1 1

4 SCREW - GROUNDING BRASS 433304-02 1 1 1

5 JUNCTION BOX COVER GS 433410-01 1 1 1

T2 SCREW 4 X 8 7P31-0408 1 1 1

6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1 1 1

7 SPACER PE 443545-01 1 1 1

8 THUMBSCREW SS, ABS 415949G03 2 2 2

9 BIN CONTROL COVER GS 3A0664G01 1 1 1

10 CAPILLARY RING EP RUBBER 425307-01 2 2 2

11 TOP INSULATION PP 215730G01 1 1 1

12 FRONT INSULATION PP 2A0664G02 1 1 1

13 SIDE PANEL (R) SS 2A1198G01 1 1 1

T2 SCREW 4 X 8, SS 7P32-0408 1 1 1

14 BARRIER - INSULATION GS 4A1167-01 1 1 1

T2 SCREW 4 X 8 7P31-0408 2 2 2

15 LOUVER (B) ABS 103121-05 1 1 1

16 TAPPING SCREW (BLACK) STEEL, 4 X 8 433954-01 2 2 2

MODEL: KML-600MAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIREDNUMBER

NUMBER J-0 K-0 L-0

17 AIR FILTER (B) ABS 208283G03 1 1 1

18 BUSHING SR-30-1 420472-03 1 1 1

19 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2

20 THUMBSCREW SS, ABS 415949G04 2 2 2

21 LOUVER (C) ABS 103122-03 1 1 1

22 AIR FILTER (C) ABS 208284G01 1 1 1

23 GASKET L=655 4A0808L02 2 2 2

24 GASKET L=190 4A0808L02 1 1 1

25 BUSHING OCB-625 428394-01 1 1 1

26 GASKET L=762 4A0808L02 1 1

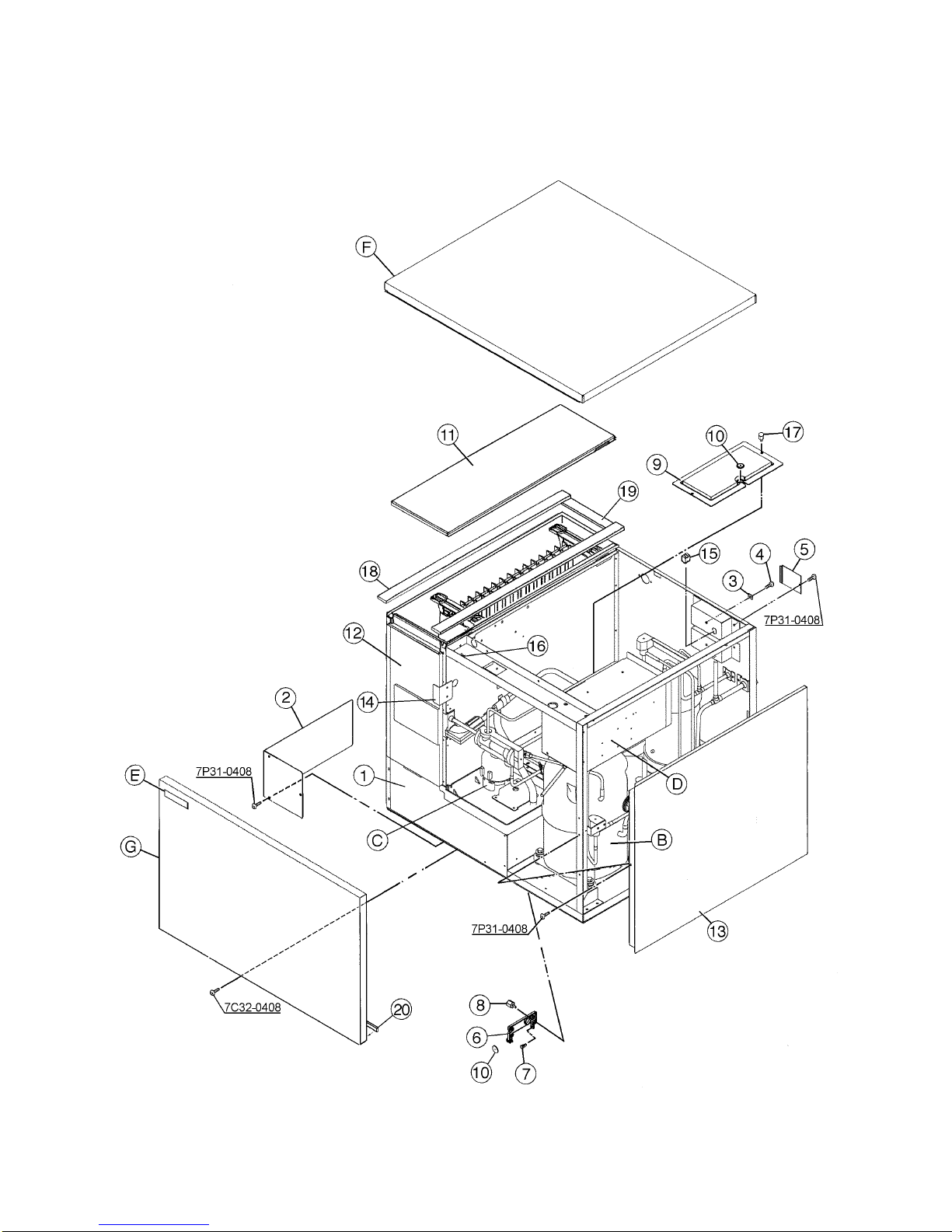

KML-600MWF A. ICE CUBER ASSEMBLY J-0, K-0, L-0

MODEL: KML-600MWF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-0 K-0 L-0

B REFRIGERATION CIRCUIT - 1A0300A01 1 1 1

C WATER CIRCUIT HS-1202 2A1195A02 1 1 1

D CONTROL BOX ASSEMBLY HS-1107 2A0657A10 1 1 1

T2 SCREW 4 X 8 7P31-0408 3 3 3

E LABEL LOCATION - 3A1079A01 1 1 1

F TOP PANEL ASSEMBLY - 3A0674A01 1 1 1

G FRONT PANEL - 3A1083A02 1 1 1

TRUSS HEAD SCREW 4 X 8, SS 7C32-0408 1 1 1

1 EVAPORATOR CASE HS-1007 2A1179G02 1 1 1

2 CONTROL BOX COVER GS 3A0594-01 1 1 1

T2 SCREW 4 X 8 7P31-0408 3 3 3

3 SQUARE WASHER BRASS 433537-02 1 1 1

4 SCREW - GROUNDING BRASS 433304-02 1 1 1

5 JUNCTION BOX COVER GS 433410-01 1 1 1

T2 SCREW 4 X 8 7P31-0408 1 1 1

6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1 1 1

7 SPACER PE 443545-01 1 1 1

8 THUMBSCREW SS, ABS 415949G03 2 2 2

9 BIN CONTROL COVER GS 3A0664G01 1 1 1

10 CAPILLARY RING EP RUBBER 425307-01 2 2 2

11 TOP INSULATION PP 215730G01 1 1 1

12 FRONT INSULATION PP 2A0664G02 1 1 1

13 SIDE PANEL (R) SS 2A1198G01 1 1 1

T2 SCREW 4 X 8, SS 7P32-0408 1 1 1

14 BARRIER - INSULATION GS 4A1167-01 1 1 1

T2 SCREW 4 X 8, SS 7P32-0408 2 2 2

15 BUSHING SR-30-1 420472-03 1 1 1

MODEL: KML-600MWF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-0 K-0 L-0

16 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2

17 THUMBSCREW SS, ABS 415949G04 2 2 2

18 GASKET L=655 4A0808L02 2 2 2

19 GASKET L=190 4A0808L02 1 1 1

20 GASKET L=762 4A0808L02 1 1

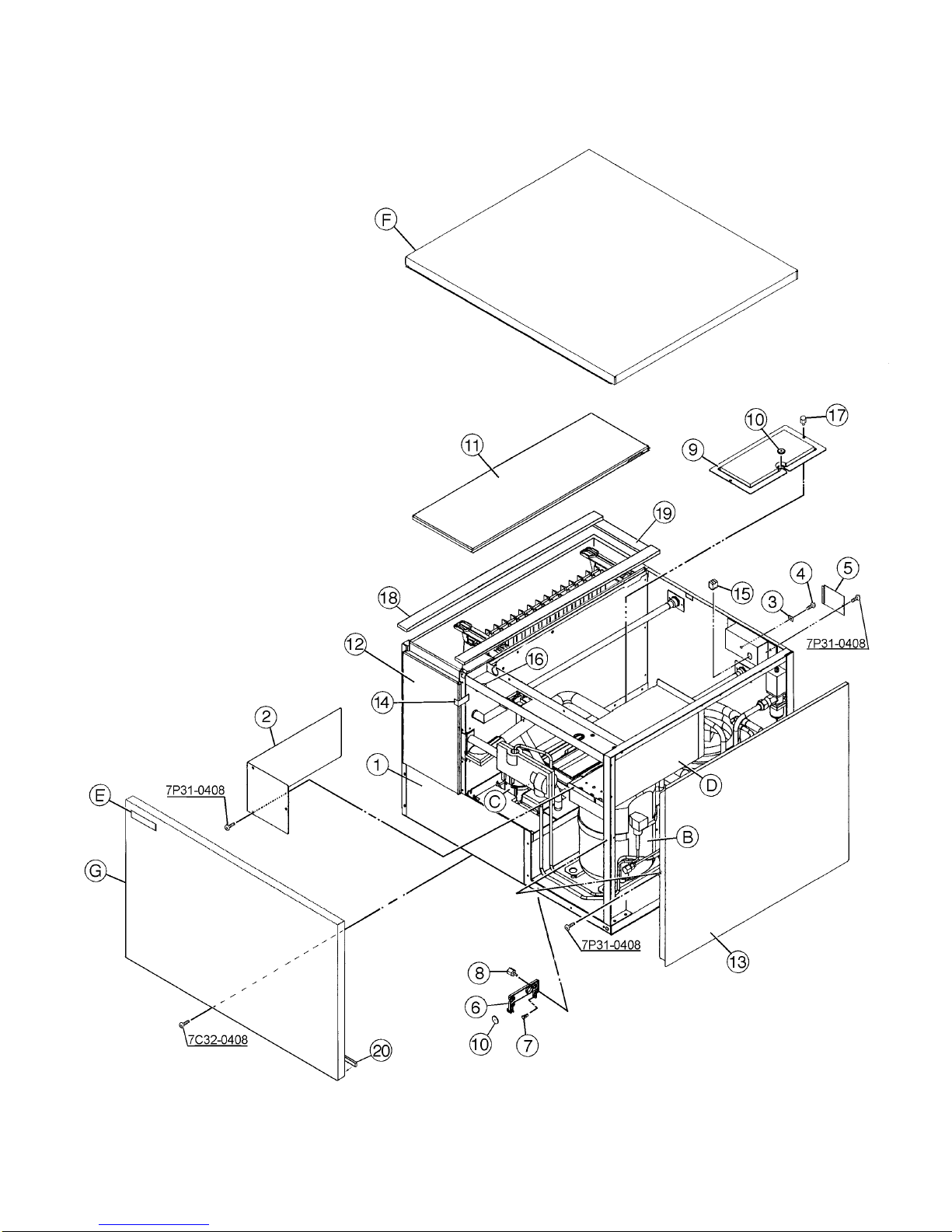

KML-600MRF A. ICE CUBER ASSEMBLY J-0, K-0, L-0
