Hoshizaki KM-280MAH-E Manuel utilisateur

PARTS LISTPARTS LIST

PARTS LIST

MODULAR CRESCENT CUBER

89/33689/336

89/336

73/2373/23

73/23

HOSHIZAKI

NUMBER: 71220

ISSUED: APRIL15,2003

KM-280MAH-EKM-280MAH-E

KM-280MAH-E

Auxiliary CodesAuxiliary Codes

Auxiliary Codes

KM-280MAH-EKM-280MAH-E

KM-280MAH-E L-0 JUNE 2001

M-0 JUNE 2002

M-2 SEPT.,2002

N-0 JAN.,2003

N-1 FEB., 2003

IMPORTANTIMPORTANT

IMPORTANT

IEC standards require that the clamping means of earthing terminals be

adequately secured against accidental loosening and that accessible metal parts

of the icemaker which may become live in the event of an insulation fault be

permanently and reliably connected to an earthing terminal within the icemaker or

to the earthing contact of the icemaker inlet.

This is accomplished in this icemaker through the use of stainless steel toothed

washers, Hoshizaki Part # 7R22-0400.

MATERIAL ABBREVIATIONSMATERIAL ABBREVIATIONS

MATERIAL ABBREVIATIONS

ALUMINUMALUMINUM

ALUMINUM

AL = Aluminum

COPPERCOPPER

COPPER

CU = Copper

PLASTICPLASTIC

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBERRUBBER

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Syntheticrubber

EPH = Epichlorohydrin

STEELSTEEL

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODEAUXILIARY CODE

AUXILIARY CODE

Ex.1 K-0 (Note)(Note)

(Note)(Note)

(Note) - = Part deleted.

x =

Part deleted and replaced

"K" is the tenth in alphabetical order with "I"

by "o" (interchangeable)

skipped. So, "K" indicates "2000".

part.

Ex.2 L-0 o =

New part for "x" in the

"L" is the next in alphabetical

same auxiliary code.

order. So, "L" indicates "2001".

Ex.3 L-1Each time a part is changed non-interchangeably

in a year, this number advances.

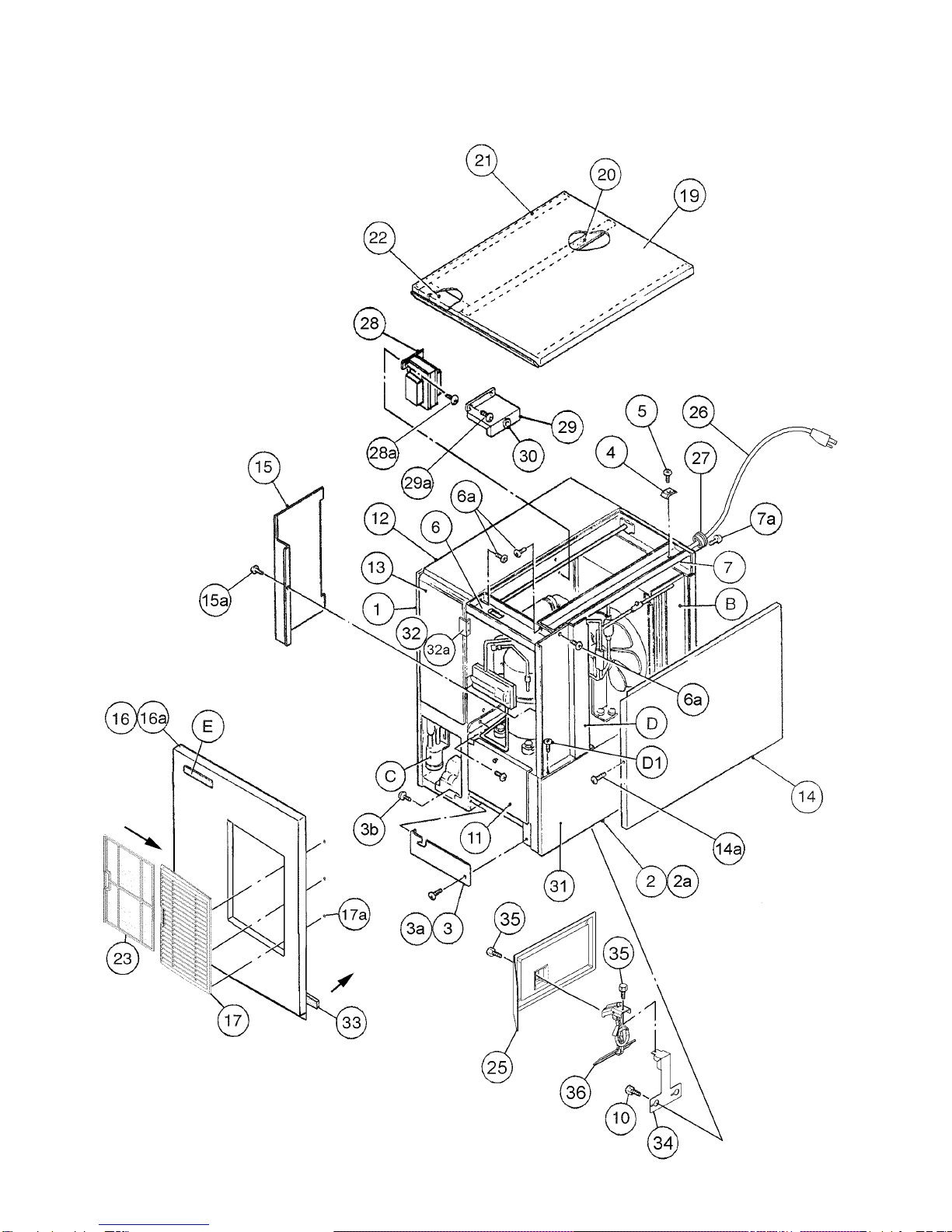

KM-280MAH-E A. ICE CUBER ASSEMBLY L-0, M-0

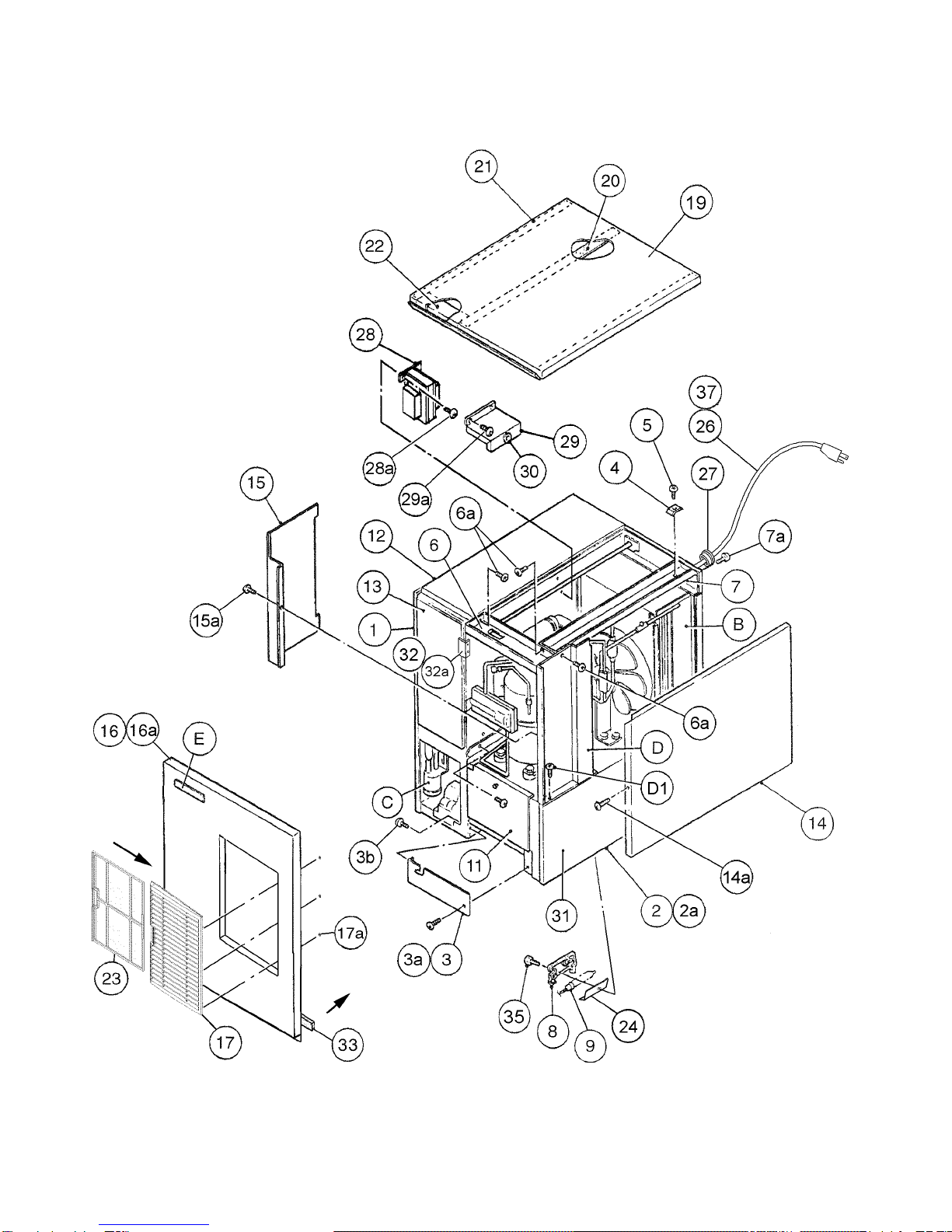

KM-280MAH-E A. ICE CUBER ASSEMBLY M-2,N-0,N-1

MODEL: KM-280MAH-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0

M-0

M-2

N-0

N-1

B REFRIGERATION CIRCUIT - 1A0392A03 1 x1

- 1A0392A05 o1 1

C WATER CIRCUIT - 1A0450A01 1 1 1

D CONTROL BOX ASSEMBLY - 2A2315A01 1 -

- 2A2537A01 1 1

D1 T2 SCREW 4X8 7P31-0408 4 4 4

E LABEL LOCATION - 3A2075A01 1 -

- 3A2408A01 1 1

1 EVAP. CASE HS-1012 1A0579G03 1 1 1

2 BASE - 2A2146G04 1 1 1

2a FT SCREW 4X8, SS 7F32-0408 7 7 7

3 FRAME ABS 3A0217G01 1 -

- 3A2503G01 1 1

3a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1

3b TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2

4 SQUARE WASHER BRASS 433537-02 1 1 1

5 SCREW - GROUNDING BRASS 433304-02 1 1 1

6 TOP FRAME GS 332443-01 1 1 1

6a T2 SCREW 4X8 7P31-0408 4 4 4

7 SIDE FRAME GS 332465G01 1 1 1

7a T2 SCREW 4X8 7P31-0408 2 2 2

8 BULB HOLDER PE 328919-01 1 1

9 SPACER PE 443545-01 2 1

10 THUMBSCREW SS, ABS 415949G09 2 -

11 BASE COVER SS 321525G01 1 1 1

12 TOP INSULATION PP 215730G01 1 1 1

13 FRONT INSULATION PP 215731G01 1 1 1

14 SIDE PANEL (R) SS 2A2117G01 1 1 1

14a T2 SCREW 4X8, SS 7P32-0408 1 1 1

MODEL: KM-280MAH-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0

M-0

M-2

N-0

N-1

15 CONTROL BOX COVER GS 332466-01 1 -

GS 3A2476-01 1 1

15a T2 SCREW 4X8 7P31-0408 1 1 1

16 FRONT PANEL SS 2A2141G01 1 1 1

16a TRUSS HEAD SCREW SS, 4X8 7C32-0408 1 1 1

17 LOUVER (A) ABS 1A0547-01 1 1 1

17a PUSH RETAINER - 4A2414-01 3 3 3

18 - - -

19 TOP PANEL SS

(3A1890A01)

220465-01 1 1 1

20 GASKET (A) (3A1890A01) 324859-03 1 1 1

21 GASKET PVC

(3A1890A01)

427014-04 2 2 2

22 INSULATION PE FOAM

(3A1890A01)

438012-01 1 1 1

23 AIR FILTER (A) - 2A2062G01 2 2 2

24 DEFLECTOR SS 4A1951-01 1 1

25 SHIELD - 3A1438-01 1 -

26 POWER SUPPLY CORD - 452359-02 1 1 1

27 BUSHING CEE SR-6P30 450414-01 1 1 1

28 TRANSFORMER PY12-19204 446202-01 1 1 1

28a PAN HEAD SCREW W/

WASHER (LF)

4x8 7C1230408 4 4 4

29 TRANS COVER GS 446359-01 1 1 1

29a T2 SCREW 4x8 7P31-0408 2 2 2

30 BUSHING OCB-500 428394-02 1 1 1

31 SIDE PANEL (R) – BASE SS 2A2147-01 1 1 1

32 BARRIER – INSULATION - 4A1167-01 1 1 1

32a T2 SCREW 4X8 7P31-0408 2 2 2

MODEL: KM-280MAH-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0

M-0

M-2

N-0

N-1

33 GASKET L=554 4A0808L02 1 1 1

34 BRACKET (M) - 3A1434-01 1 -

35 THUMBSCREW - 415949G04 2 -

- 415949G09 2 2

36 BIN SWITCH - 4A2430-01 1 -

37 CABLE TIE MOUNT - 437618-01 1 1

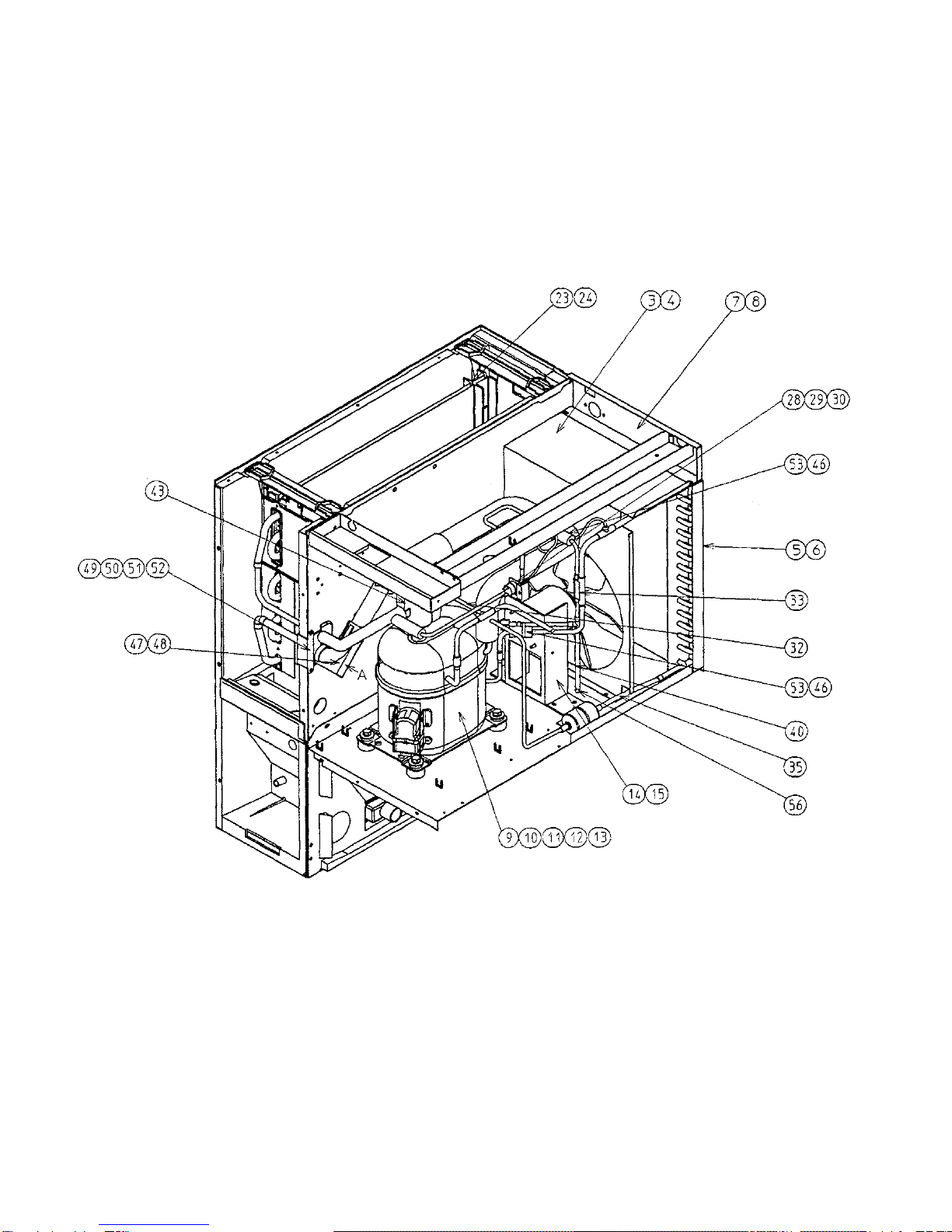

KM-280MAH-E B. REFRIGERATION CIRCUIT (1/2) L-0, M-0, M-2, N-0, N-1

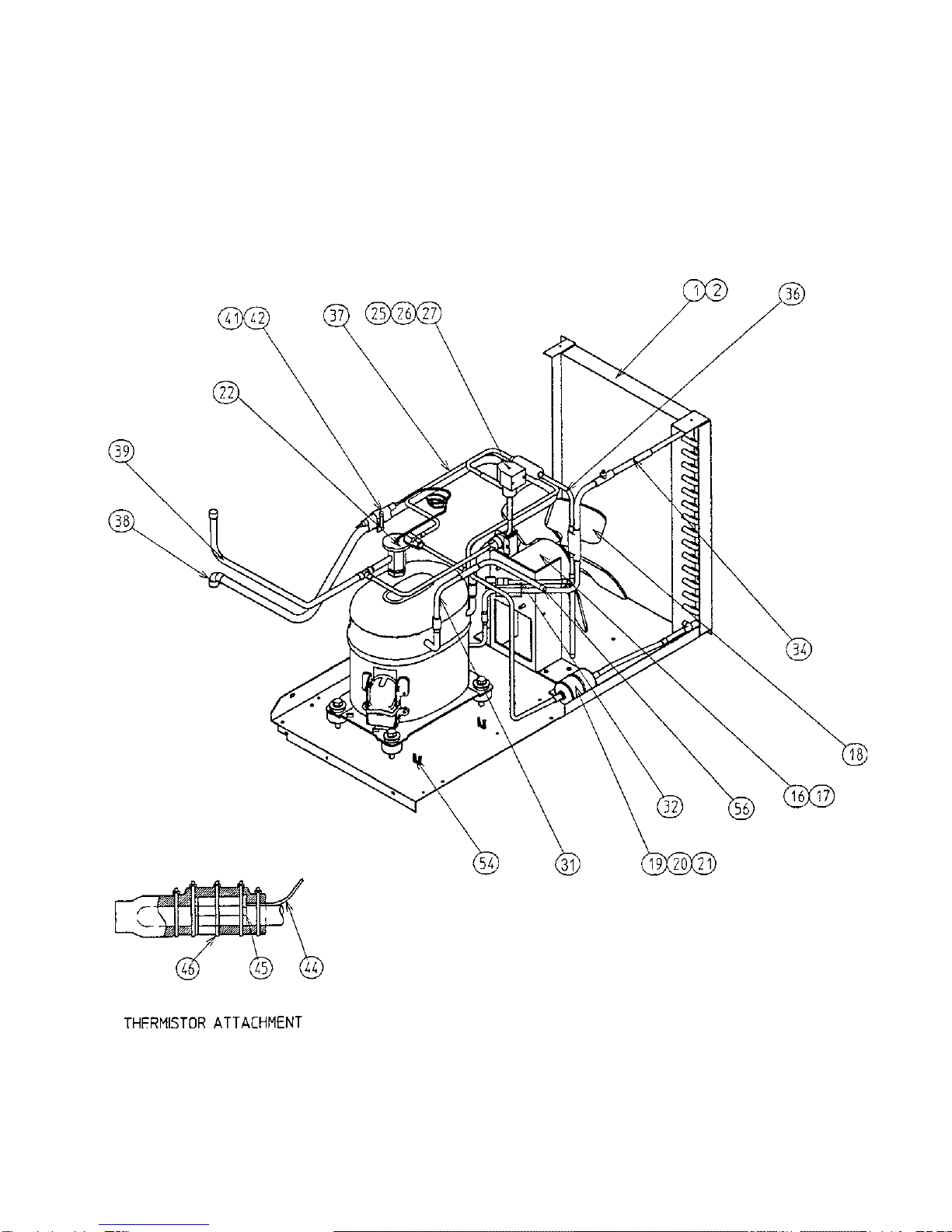

KM-280MAH-E B. REFRIGERATION CIRCUIT (2/2) L-0, M-0, M-2, N-0, N-1
