PARTS LIST

STACKABLE CRESCENT CUBER

89/336

73/23

HOSHIZAKI

KM-1300SAH-E

KM-1300SRH-E

NUMBER: 71217

ISSUED: April 7, 2003

REVISED: December 6, 2004

CONTENTS

Auxiliary Codes .................................................................................................................... 3

Material Abbreviations..........................................................................................................4

A. Ice Cuber Assembly ......................................................................................................... 5

KM-1300SAH-E ............................................................................................................... 5

KM-1300SRH-E ............................................................................................................... 8

B. Refrigeration Circuit ....................................................................................................... 10

KM-1300SAH-E (1/2) ..................................................................................................... 10

KM-1300SAH-E (2/2) ..................................................................................................... 11

KM-1300SRH-E (1/2) ..................................................................................................... 14

KM-1300SRH-E (2/2) ..................................................................................................... 15

C. Water Circuit ................................................................................................................... 18

KM-1300SAH-E, KM-1300SRH-E ................................................................................. 18

D. Control Box Assembly .................................................................................................... 21

KM-1300SAH-E ............................................................................................................. 21

KM-1300SAH-E, KM-1300SRH-E ................................................................................. 22

E. Label Location ................................................................................................................ 24

KM-1300SAH-E ............................................................................................................. 24

KM-1300SRH-E ............................................................................................................. 26

F. Transformer Box Assembly.............................................................................................. 28

KM-1300SAH-E, KM-1300SRH-E ................................................................................. 28

G. Evaporator ..................................................................................................................... 30

KM-1300SAH-E, KM-1300SRH-E ................................................................................. 30

H. Pump Motor Assembly ................................................................................................... 32

KM-1300SAH-E, KM-1300SRH-E ................................................................................. 32

J. Accessories .................................................................................................................... 34

KM-1300SAH-E, KM-1300SRH-E ................................................................................. 34

Auxiliary Codes

KM-1300SAH-E M-0 December 2001

M-1 February 2002

M-2 August 2002

N-0 January 2003

N-1 March 2003

P-0 December 2003

P-1 July 2004

KM-1300SRH-E N-1 April 2003

P-0 September 2004

IMPORTANT

IEC standards require that the clamping means of earthing terminals be adequately

secured against accidental loosening and that accessible metal parts of the

icemaker which may become live in the event of an insulation fault be permanently

and reliably connected to an earthing terminal within the icemaker or to the

earthing contact of the icemaker inlet.

This is accomplished in this icemaker through the use of stainless steel toothed

washers, Hoshizaki Part # 7R22-0400.

Material Abbreviations

Aluminum

AL = Aluminum

Copper

CU = Copper

Plastic

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

Rubber

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

Steel

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

Auxiliary Code

K-0

Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.

"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.

Designates significant part changes within the same year. Base is 0 and this number advances for

each change.

Example: P-1

"P" indicates 2004.

"1" indicates the first significant part change for 2004.

Marks Located Under the Auxiliary Code

- = Part deleted.

= Part deleted and replaced by "o"

part.

= New part in place of "x" part.

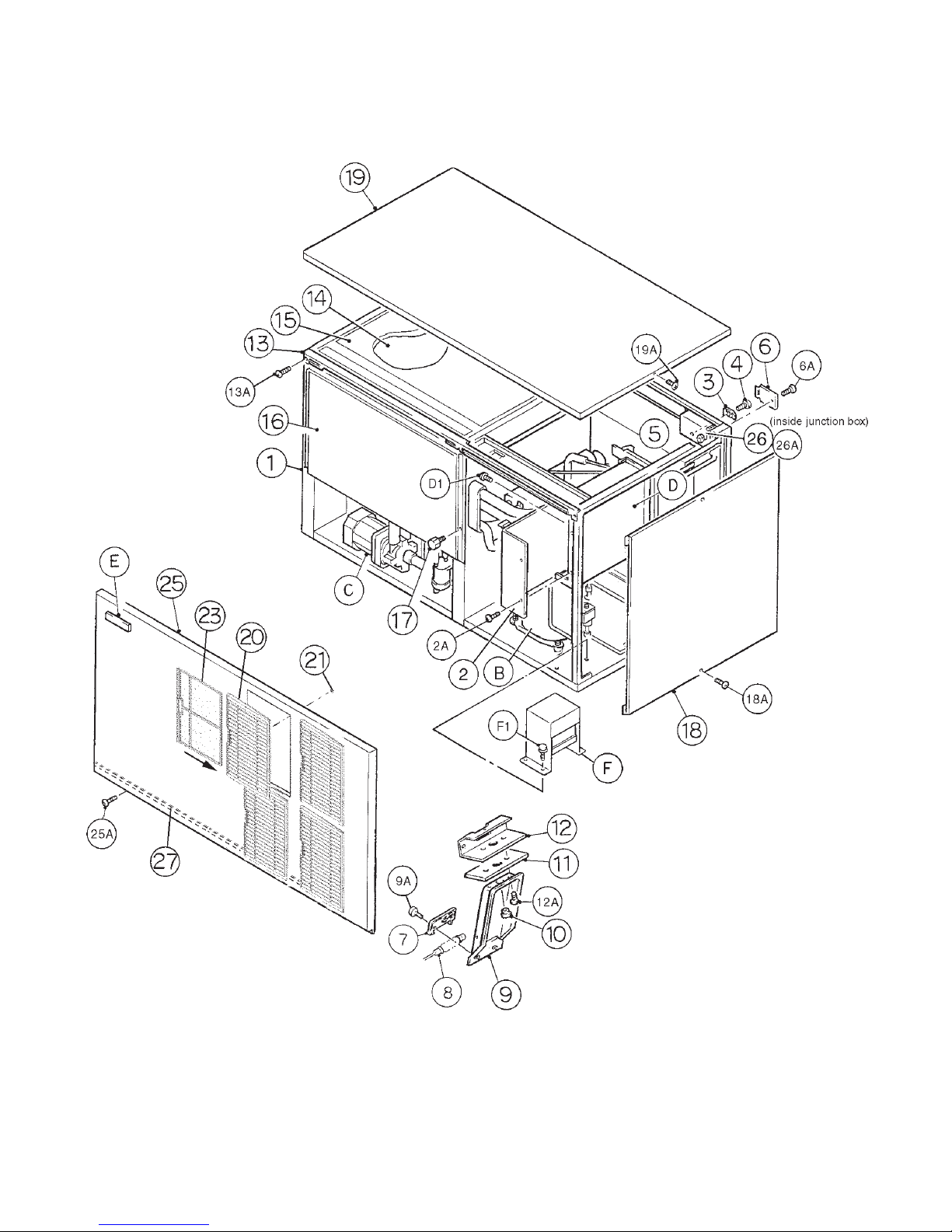

A. Ice Cuber Assembly

KM-1300SAH-E

L-0, M-0, M-1, M-2, N-0, N-1, P-0, P-1

Index

No.

Description Part Number

L-0 M-0 M-1 M-2 N-0

N-1

P-0

P-1

B REFRIGERATION CIRCUIT - 1A0207A03 11x1

-1A0207A07 o1 1 1

C WATER CIRCUIT - 2A0835A02 11111

D CONTROL BOX ASSEMBLY - 2A2347A01 111-

-2A2535A01 11

D1 T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 33333

E LABEL LOCATION - 2A2348A01 111-

-2A2532A01 11

FTRANSFORMER BOX

ASSEMBLY

334324A01 11111

F1 HEX HEAD BOLT W/WASHER 5 X10 7B0130510 44444

1 EVAP. CASE - 1A0603G06 11111

2 CONTROL BOX COVER GS 3A0174-01 111-

GS 3A2386-01 11

2A T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 33333

3 SQUARE WASHER BRASS 433537-02 11111

4 SCREW - GROUNDING BRASS 433304-02 11111

5 BUSHING SR-34-2 420472-05 11111

6 JUNCTION BOX COVER GS 4A1767-01 11111

6A T2 SCREW / WASHER ASSY Zinc, 4X8 7P3120408 11111

7 BULB HOLDER ABS 328919-01 11111

8 SPACER PE 443545-01 11111

9 BULB HOLDER (C) ABS 216340G01 11111

9A TRUSS HEAD SCREW SS, 4X12 7C32-0412 22222

10 CAPILLARY RING EP RUBBER 425307-01 11111

11 SPACER ABS 439727-01 11111

12 BULB HOLDER (D) GS 328742-01 11111

12A T2 SCREW SS, 4X16 7P32-0416 22222

13 FRONT PANEL - BRACKET SS 323903-01 11111

13A T2 SCREW SS 7P32-0412 33333

TOOTH WASHER M4, SS 7R22-0400 22222

14 SPACER ABS 324321-01 11111

15 TOP INSULATION ABS, PE 324216G01 11111

16 FRONT INSULATION ABS, PE 324215G01 11111

17 THUMBSCREW ABS, SS 415949G01 11111

18 SIDE PANEL (R) SS 2A2226G01 11111

18A TRUSS HEAD SCREW SS, 4X8 7C32-0408 11111

19 TOP PANEL SS 2A2255-01 11111

19A TRUSS HEAD SCREW SS, 4X8 7C32-0408 33333

TOOTH WASHER M4, SS 7R22-0400 22222

20 LOUVER (B) ABS 1A0548-01 44444

21 PUSH RETAINER - 4A2414-01 12 12 12 12 12

22 - - -

23 AIR FILTER (B) ABS 2A2063G01 44444

24 - - -

Title: A. Ice Cuber Assembly Model: KM-1300SAH-E

Material or

Model

Number

Required Number

Index

No.

Description Part Number

L-0 M-0 M-1 M-2 N-0

N-1

P-0

P-1

25 FRONT PANEL (A) SS 2A2224-02 11111

25A TRUSS HEAD SCREW SS, 4X16 7C32-0416 22222

TOOTH WASHER M4, SS 7R22-0400 22222

26 TERMINAL BLOCK 4A1026-01 11111

26A PAN HEAD SCREW 3X16 7C11-0316 22222

27 GASKET L=1219 4A0808L02 11111

Title: A. Ice Cuber Assembly Model: KM-1300SAH-E

Material or

Model

Number

Required Number

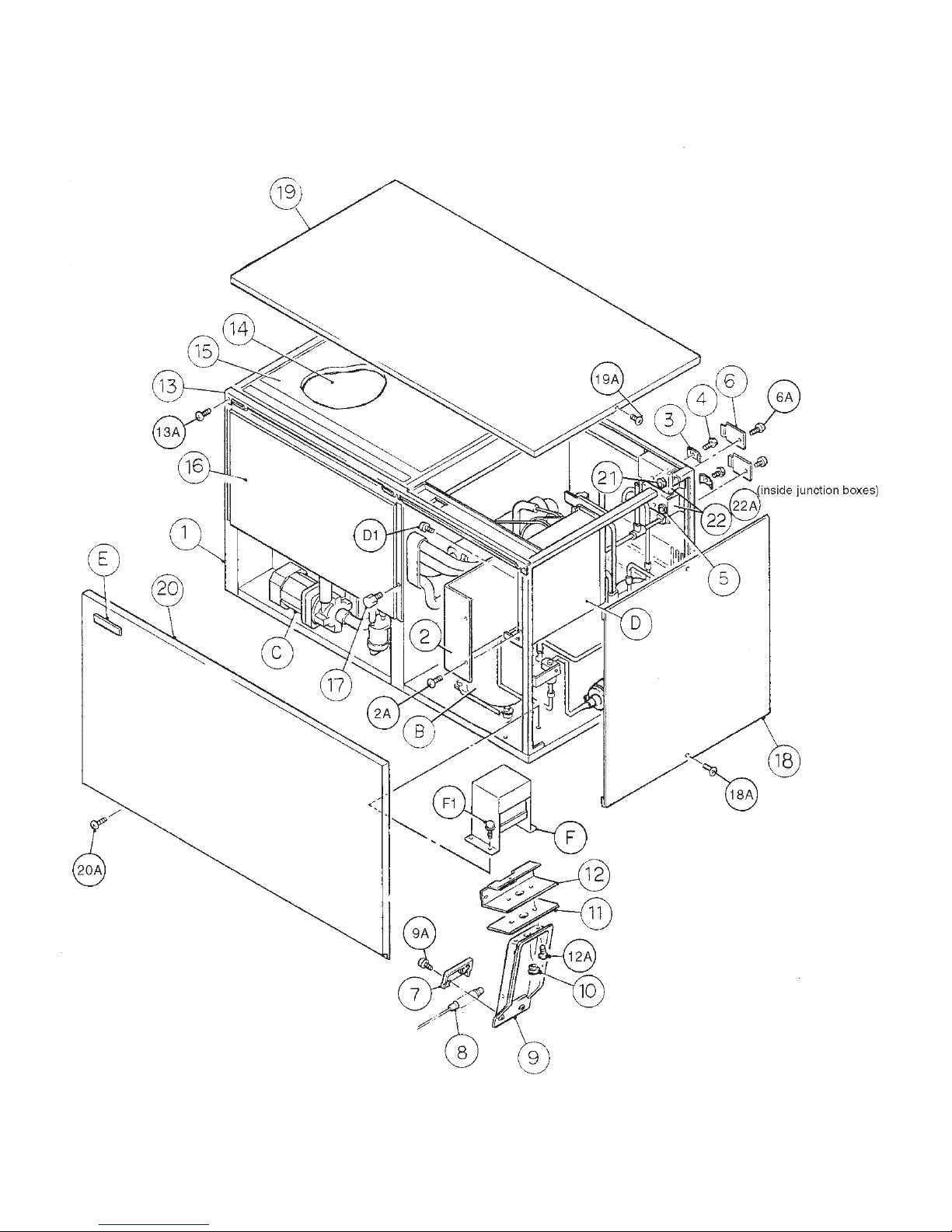

A. Ice Cuber Assembly

KM-1300SRH-E

N-1, P-0

Index

No.

Description Part Number

N-1

P-0

B REFRIGERATION CIRCUIT - 1A0207A07 1

C WATER CIRCUIT - 2A0835A01 1

D CONTROL BOX ASSEMBLY - 2A2535A01 1

D1 T2 SCREW 4X8 7P31-0408 3

E LABEL LOCATION - 2A1331A01 1

FTRANSFORMER BOX

ASSEMBLY

- 334324A01 1

F1 HEX HEAD BOLT W/WASHER 5X10 7B0130510 4

1 EVAP. CASE HS-1002 105860G33 1

2 CONTROL BOX COVER GS 3A2386-01 1

2A T2 SCREW 4X8 7P31-0408 3

3 SQUARE WASHER BRASS 433537-02 2

4 SCREW - GROUNDING BRASS 433304-02 2

5 BUSHING SR-30-1 420472-03 1

6 JUNCTION BOX COVER GS 4A1767-01 2

6A T2 SCREW 4X8 7P31-0408 2

7 BULB HOLDER ABS 328919-01 1

8 SPACER PE 443545-01 1

9 BULB HOLDER (C) ABS 216340G01 1

TRUSS HEAD SCREW 4X12, SS 7C32-0412 2

10 BUSHING EP RUBBER 425307-01 1

11 SPACER ABS 439727-01 1

12 BULB HOLDER (D) GS 328742-01 1

T2 SCREW 4X16, SS 7P32-0416 2

13 FRONT PANEL - BRACKET SS 323903-01 1

T2 SCREW 4X12, SS 7P32-0412 3

14 SPACER ABS 324321-01 1

15 TOP INSULATION ABS, PE 324216G01 1

16 FRONT INSULATION ABS, PE 324215G01 1

17 THUMBSCREW ABS, SS 415949G01 1

18 SIDE PANEL (R) SS 2A2226G01 1

18A TRUSS HEAD SCREW 4X8, SS 7C32-0408 1

19 TOP PANEL SS 2A2255-01 1

19A TRUSS HEAD SCREW 4X16, SS 7C32-0416 3

20 FRONT PANEL (A) SS 2A2224-01 1

20A TRUSS HEAD SCREW 4X16, SS 7C32-0416 2

21 BUSHING SR-34-2 420472-05 1

22 TERMINAL BLOCK 4A1026-01 2

22A PAN HEAD SCREW 3X16 7C11-0316 4

Title: A. Ice Cuber Assembly Model: KM-1300SRH-E

Material or

Model

Number

Required Number

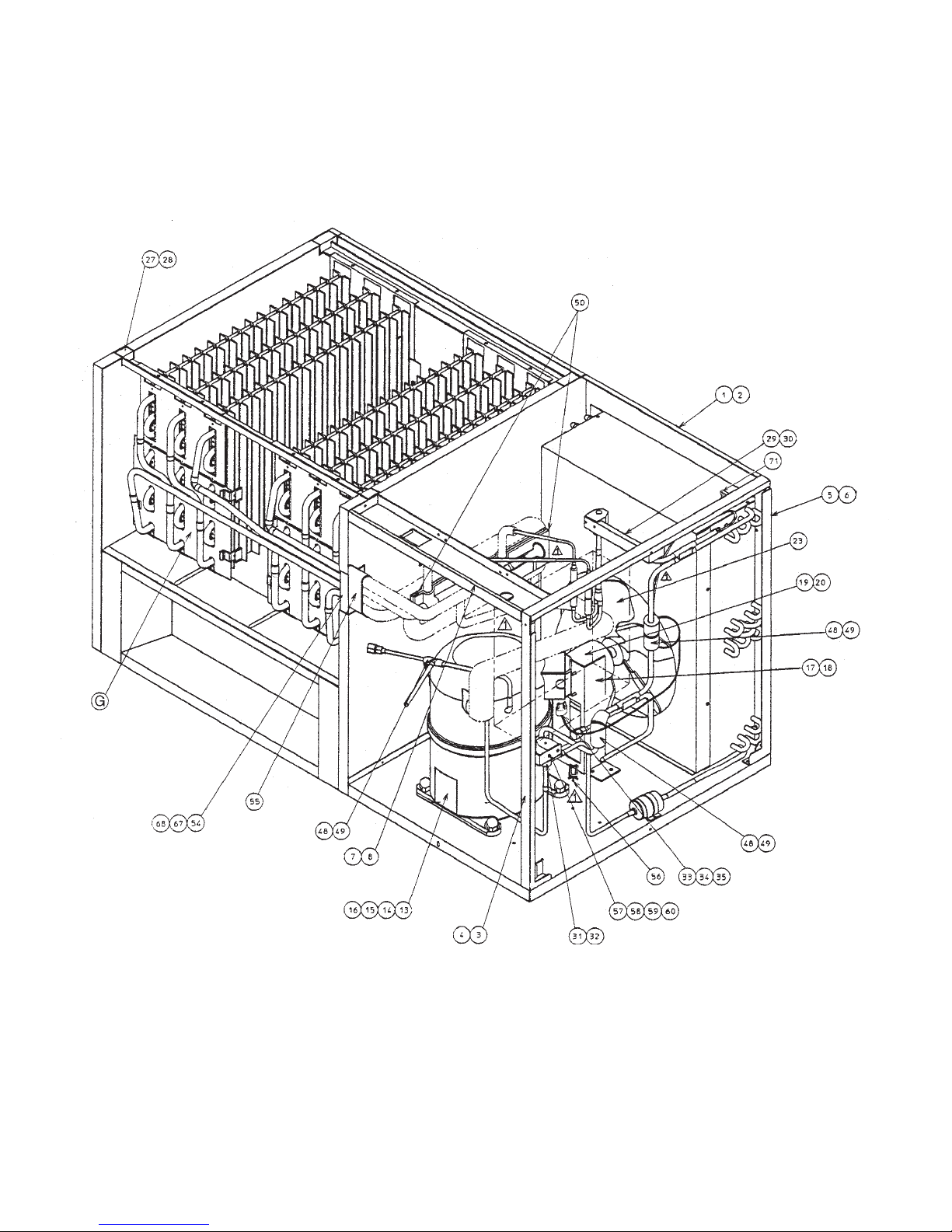

B. Refrigeration Circuit

KM-1300SAH-E (1/2)

M-0, M-1, M-2, N-0, N-1, P-0, P-1
