HOSHIZAKI

MODULAR CRESCENT CUBER

MODELMODEL

MODEL

NO.

(FINAL) PARTS LIST(FINAL) PARTS LIST

(FINAL) PARTS LIST

ISSUED: JAN.28,2000

KM-1300MAF

KM-1300MWF

KM-1300MRF

71164

REVISED: JULY29,2003

KM-1300MAFKM-1300MAF

KM-1300MAF J-0 Aug., 1999

K-0 Dec., 1999

L-0 Dec., 2000

KM-1300MWFKM-1300MWF

KM-1300MWF J-0 Aug., 1999

K-0 Nov.,1999

L-0 Jan., 2001

KM-1300MRFKM-1300MRF

KM-1300MRF J-0 Aug., 1999

K-0 Dec., 1999

L-0 Dec., 2000

HA MATERIALABBREVIATIONSMATERIALABBREVIATIONS

MATERIALABBREVIATIONSMATERIALABBREVIATIONS

MATERIALABBREVIATIONS

ALUMINUMALUMINUM

ALUMINUM

AL = Aluminum

COPPERCOPPER

COPPER

CU = Copper

PLASTICPLASTIC

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate= Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene =Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBERRUBBER

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEELSTEEL

STEEL

G.S = Galvanized steel

S.S = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARYCODEAUXILIARYCODE

AUXILIARYCODE

Ex.1 K-0Parts are the same as in the preceding (Note)(Note)

(Note)(Note)

(Note) - = Part deleted.

year. x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part

skipped. So, "K" indicates "2000". (interchangeable).

Ex.2 L-0 o = New part for "x"

"L" is the next in alphabetical in the same auxiliary code.

order. So, "L" indicates "2001".

Ex.3 L-1Each time a part is changed non-interchangeably

in a year, this number advances.

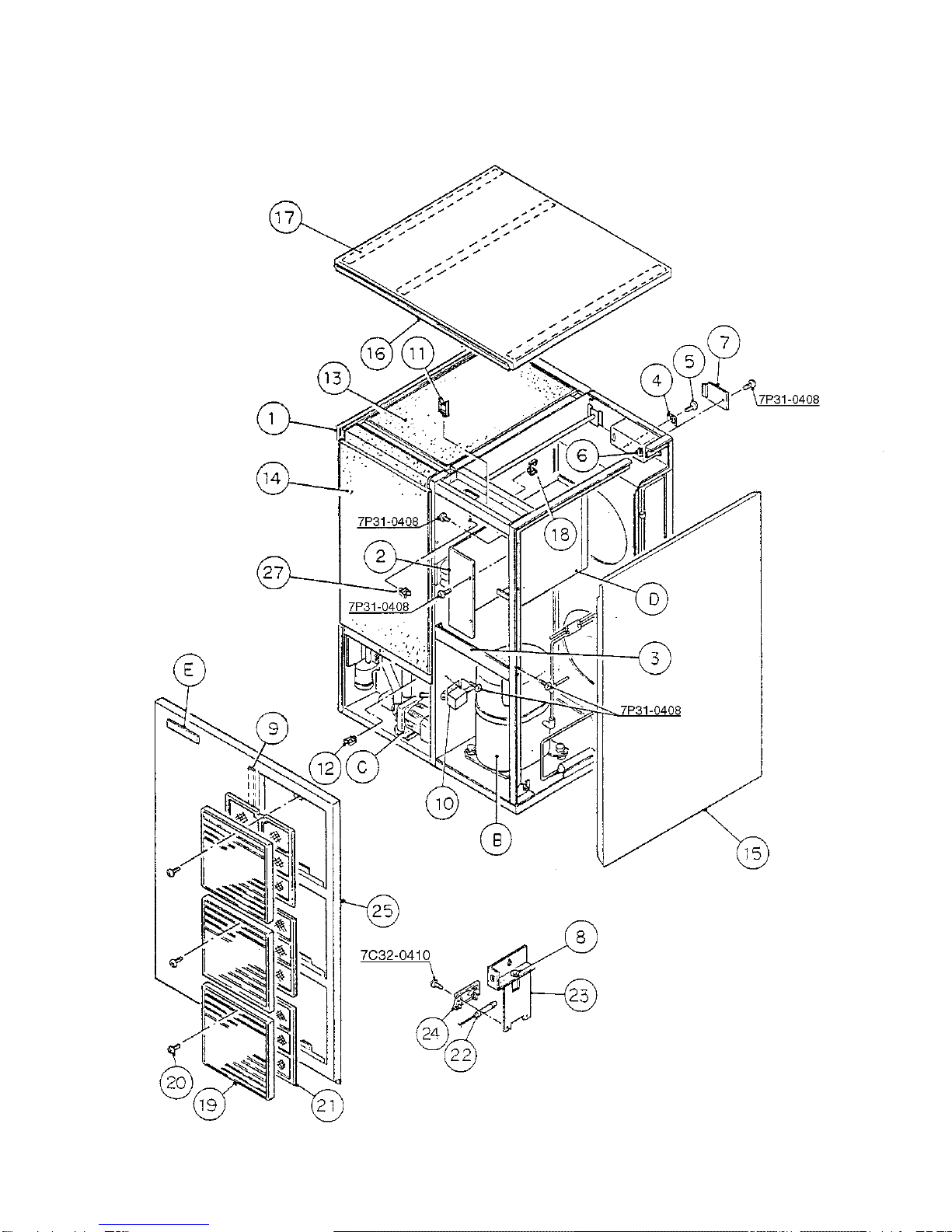

KM-1300MAF A. ICE CUBER ASSEMBLY J-0, K-0

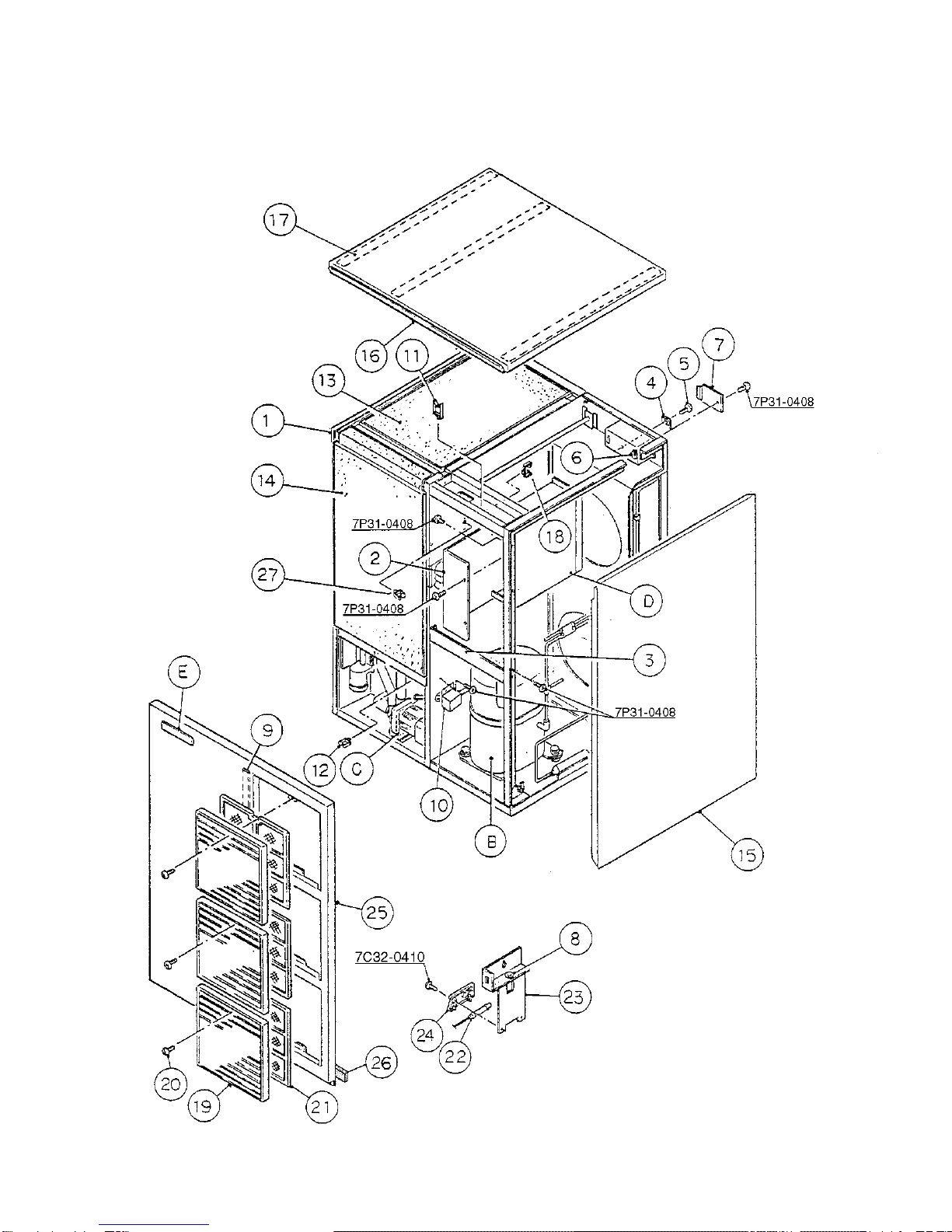

KM-1300MAF A. ICE CUBER ASSEMBLY L-0

MODEL: KM-1300MAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-0 K-0 L-0

B REFRIGERATION CIRCUIT - 1A0462A01 1 1 1

C WATER CIRCUIT HS-1201 1A0094A04 1 1 1

D CONTROL BOX ASSEMBLY HS-1101 2A1081A02 1 1 1

T2 SCREW 4X8 7P31-0408 3 3 3

E LABEL LOCATION - 2A1652A01 1 1 1

1 EVAPORATOR CASE HS-1016 105124G07 1 1 1

2 CONTROL BOX COVER GS 3A0174-01 1 1 1

T2 SCREW 4X8 7P31-0408 2 2 2

3 FRAME (F) 324093-01 1 1 1

T2 SCREW 4X8 7P31-0408 4 4 4

4 SQUARE WASHER BRASS 433537-02 1 1 1

5 SCREW - GROUNDING BRASS 433304-02 1 1 1

6 BUSHING SR-34-2 420472-05 1 1 1

7 JUNCTION BOX COVER GS 433410-01 1 1 1

T2 SCREW 4X8 7P31-0408 1 1 1

8 BUSHING 425307-01 1 1 1

9 FOAM SEAL L=700 4A0661L01 1 1 1

10 BARRIER 3A0235-01 1 1 1

T2 SCREW 4X8 7P31-0408 2 2 2

11 WIRE SADDLE 4A0338-01 2 2 2

12 WIRE SADDLE 4A0338-02 1 1 1

13 TOP INSULATION ABS, PE 322714G01 1 1 1

14 FRONT INSULATION ABS, PE 322711G01 1 1 1

15 SIDE PANEL (R) SS 212688G01 1 1 1

16 TOP PANEL 323836A01, SS 212687-01 1 1 1

17 GASKET 323836A01, PVC 427014-04 3 3 3

18 WIRE SADDLE 4A0338-03 5 5 5

19 LOUVER (B) ABS 103121-03 3 3 3

MODEL: KM-1300MAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-0 K-0 L-0

20 TAPPING SCREW(BLACK) STEEL, 4X8 433954-01 3 3 3

21 AIR FILTER (B) ABS 208283G03 3 3 3

22 SPACER PE 443545-01 1 1 1

TRUSS HEAD SCREW SS, 4X10 7C32-0410 2 2 2

23 BULB HOLDER - 322815G02 1 1 1

24 BULB HOLDER - 328919-01 1 1 1

25 FRONT PANEL SS 212685-01 1 1 1

26 GASKET L=762 4A0808L02 1

27 WIRE SADDLE - 4A0338-02 5 5 5

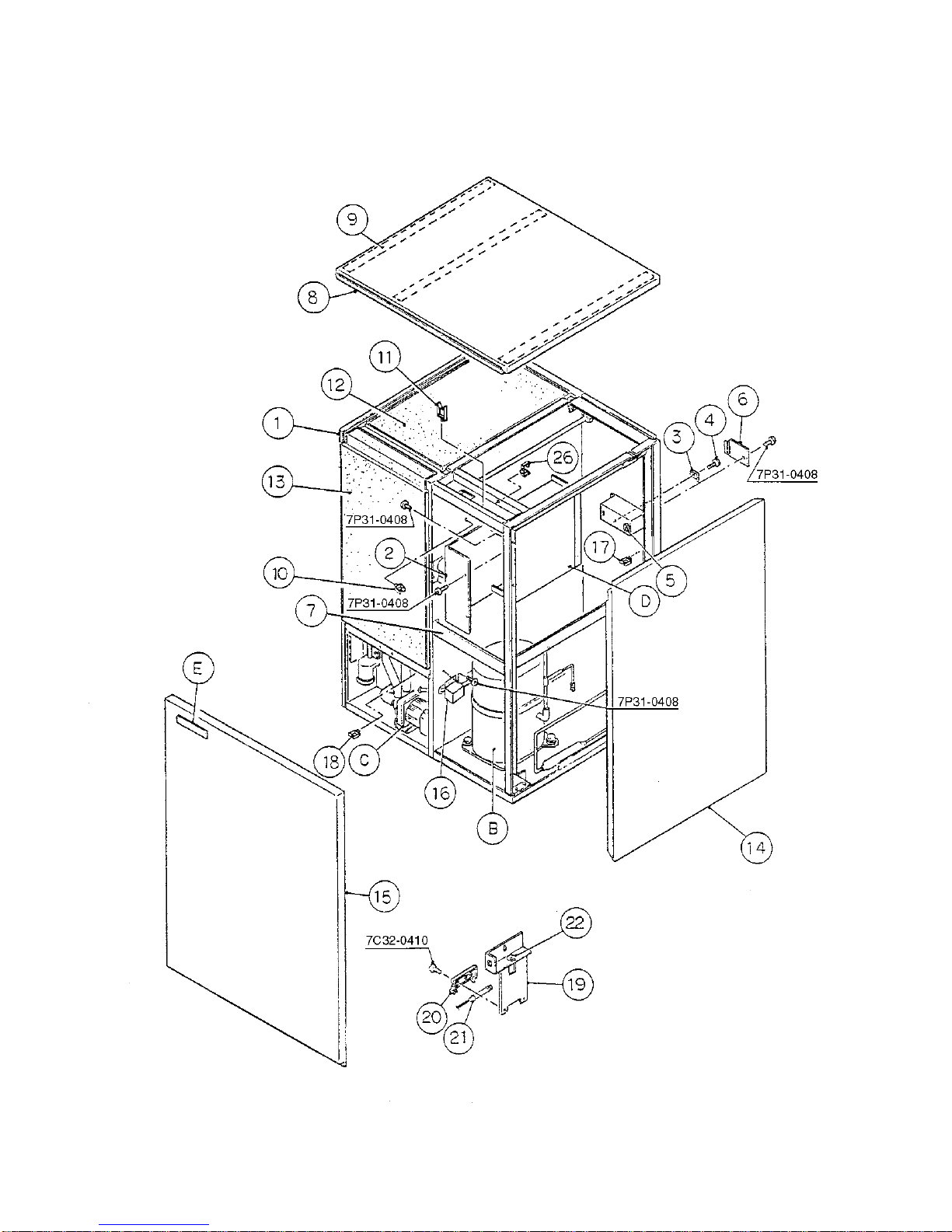

KM-1300MWF A. ICE CUBER ASSEMBLY J-0, K-0

KM-1300MWF A. ICE CUBER ASSEMBLY L-0

HA MODEL: KM-1300MWF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-0 K-0 L-0

B REFRIGERATION CIRCUIT - 1A0463A01 1 1 1

C WATER CIRCUIT HS-1201 1A0094A04 1 1 1

D CONTROL BOX ASSEMBLY HS-1101 2A1081A02 1 1 1

T2 SCREW 4X8 7P31-0408 3 3 3

E LABEL LOCATION - 2A1653A01 1 1 1

1 EVAP. CASE HS-1016 105124G07 1 1 1

2 CONTROL BOX COVER GS 3A0174-01 1 1 1

3 SQUARE WASHER BRASS 433537-02 1 1 1

4 SCREW - GROUNDING BRASS 433304-02 1 1 1

5 BUSHING SR-34-2 420472-05 1 1 1

6 JUNCTION BOX COVER GS 433410-01 1 1 1

T2 SCREW 4X8 7P31-0408 1 1 1

7 FRAME (F) GS 427902-03 1 1 1

T2 SCREW 4X8 7P31-0408 4 4 4

8 TOP PANEL (323836A01), SS 212687-01 1 1 1

9 GASKET PVC 427014-04 3 3 3

10 WIRE SADDLE VWS4274-C 4A0338-03 5 5 5

11 WIRE SADDLE VWS4218-C 4A0338-01 2 2 2

12 TOP INSULATION ABS, PE 322714G01 1 1 1

13 FRONT INSULATION ABS,PE 322711G01 1 1 1

14 SIDE PANEL (R) SS 212688G01 1 1 1

15 FRONT PANEL SS 212686-01 1 1 1

16 BARRIER GS 3A0235-01 1 1 1

17 WIRE SADDLE VWS42105-C 4A0338-04 1 1 1

18 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2

19 BULB HOLDER SS 322815G02 1 1 1

20 BULB HOLDER ABS 328919-01 1 1 1

21 SPACER PE 443545-01 1 1 1

22 BUSHING EPDM 425307-01 1 1 1

TRUSS HEAD SCREW SS,, 4X10 7C32-0410 1 1 1

23 GASKET L=762 4A0808L02 1
