Hoshizaki KM-1340MAH Manuel utilisateur
Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Models
KM-1340MAH
KM-1340MWH
KM-1340MRH
Modular Crescent Cuber
Hoshizaki America, Inc.
PARTS LIST
™
Number: 71251
Issued: 5-1-2006
2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
Material Abbreviations ........................................................................................................... 4
A. Ice Cuber Assembly .......................................................................................................... 5
KM-1340MAH .................................................................................................................... 5
KM-1340MWH ................................................................................................................... 7
KM-1340MRH ................................................................................................................... 9
B. Refrigeration Circuit ......................................................................................................... 11
KM-1340MAH .................................................................................................................. 11
KM-1340MWH ................................................................................................................. 15
KM-1340MRH ................................................................................................................. 19
C. Water Circuit .................................................................................................................... 23
KM-1340MAH, KM-1340MWH, KM-1340MRH ............................................................... 23
D. Control Box Assembly ..................................................................................................... 26
KM-1340MAH, KM-1340MWH, KM-1340MRH ............................................................... 26
E. Label Location ................................................................................................................. 28
KM-1340MAH .................................................................................................................. 28
KM-1340MWH ................................................................................................................. 30
KM-1340MRH ................................................................................................................. 32
F. Pump Motor Assembly ..................................................................................................... 34
KM-1340MAH, KM-1340MWH, KM-1340MRH ............................................................... 34
G. Accessories .................................................................................................................... 35
KM-1340MAH, KM-1340MWH, KM-1340MRH ............................................................... 35
3
Auxiliary Codes
KM-1340MAH Q-0 October 2005
R-0 February 2006
KM-1340MWH Q-0 October 2005
R-0 February 2006
KM-1340MRH Q-0 October 2005
R-0 February 2006
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
4
Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
K-0
Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.
"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.
Designates significant part changes within the same year for this model. Base is 0 and this number
advances for each change.
Example: P-1
"P" indicates 2004.
"1" indicates the first significant part change for 2004.
5

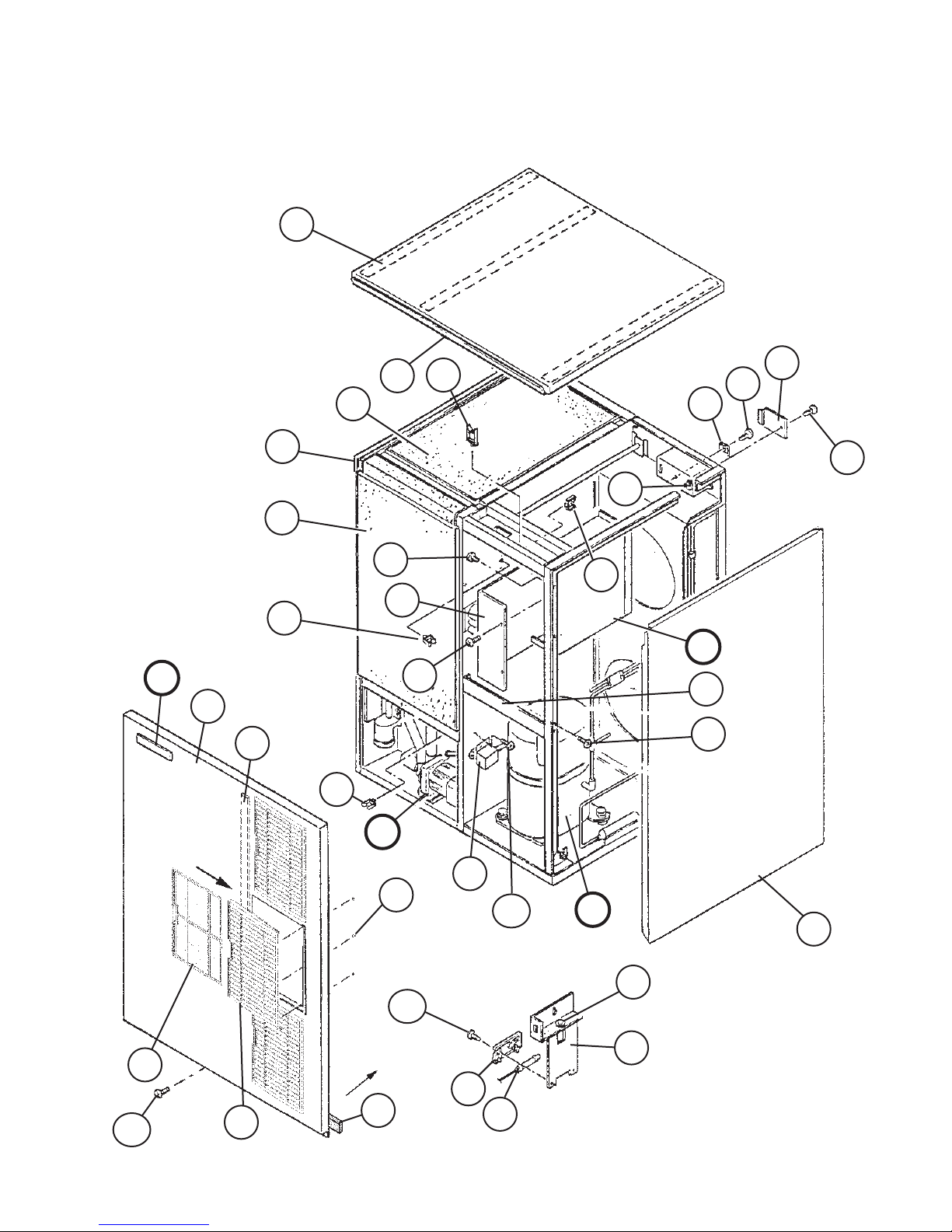

A. Ice Cuber Assembly
KM-1340MAH
Q-0, R-0
2a
2
1
3a
3
4
5
6
7
7a
8
9
10
10a
11
12
13
14
15
16
17
18
19
25a
20
21
22
23
24
24a
25
26
18
B
C
D
D1
E
6
Title: A. Ice Cuber Assembly Model: KM-1340MAH
Index
No. Description
Material or
Model Number Part Number
Required Number
Q-0
R-0
B Refrigeration Circuit - 1A1092A01 1
C Water Circuit - 1A0094A06 1
D Control Box Assembly - 2A2522A01 1
D1 T2 Screw 4×8 7P31-0408 3
E Label Location - 2A3637A01 1
1 Evaporator Case - 1A0602G01 1
2 Control Box Cover GS 3A2386-01 1
2a T2 Screw 4×8 7P31-0408 2
3 Frame (F) - 324093-01 1
3a T2 Screw 4×8 7P31-0408 4
4 Square Washer BRASS 433537-02 1
5 Screw - Grounding BRASS 433304-02 1
6 Bushing SR-34-2 420472-05 1
7 Junction Box Cover GS 433410-01 1
7a T2 Screw 4×8 7P31-0408 1
8 Bushing EPDM 425307-01 1
9 Foam Seal L=700 4A0661L01 1
10 Barrier - 3A0235-01 1
10a T2 Screw 4×8 7P31-0408 2
11 Wire Saddle - 4A0338-01 2
12 Wire Saddle - 4A0338-02 1
13 Top Insulation ABS, PE 322714G01 1
14 Front Insulation ABS, PE 322711G01 1
15 Side Panel (R) SS 2A2165G01 1
16 Top Panel 3A1941A01,
SS
2A2163-01 1
17 Gasket 3A1941A01,
PVC
427014-04 3
18 Wire Saddle - 4A0338-03 5
19 Louver (A) ABS 1A0547-01 3
20 Push Retainer - 4A2414-01 9
21 Air Filter (A) ABS 2A2062G01 3
22 Spacer PE 443545-01 1
23 Bulb Holder 322815G02 1
24 Bulb Holder 328919-01 1
24a FT Screw SS, 4×10 7F32-0410 2
25 Front Panel SS 2A2164-01 1
25a Truss Head Screw 4×8, SS 7C32-0408 1
26 Gasket L=762 4A0808L02 1
7

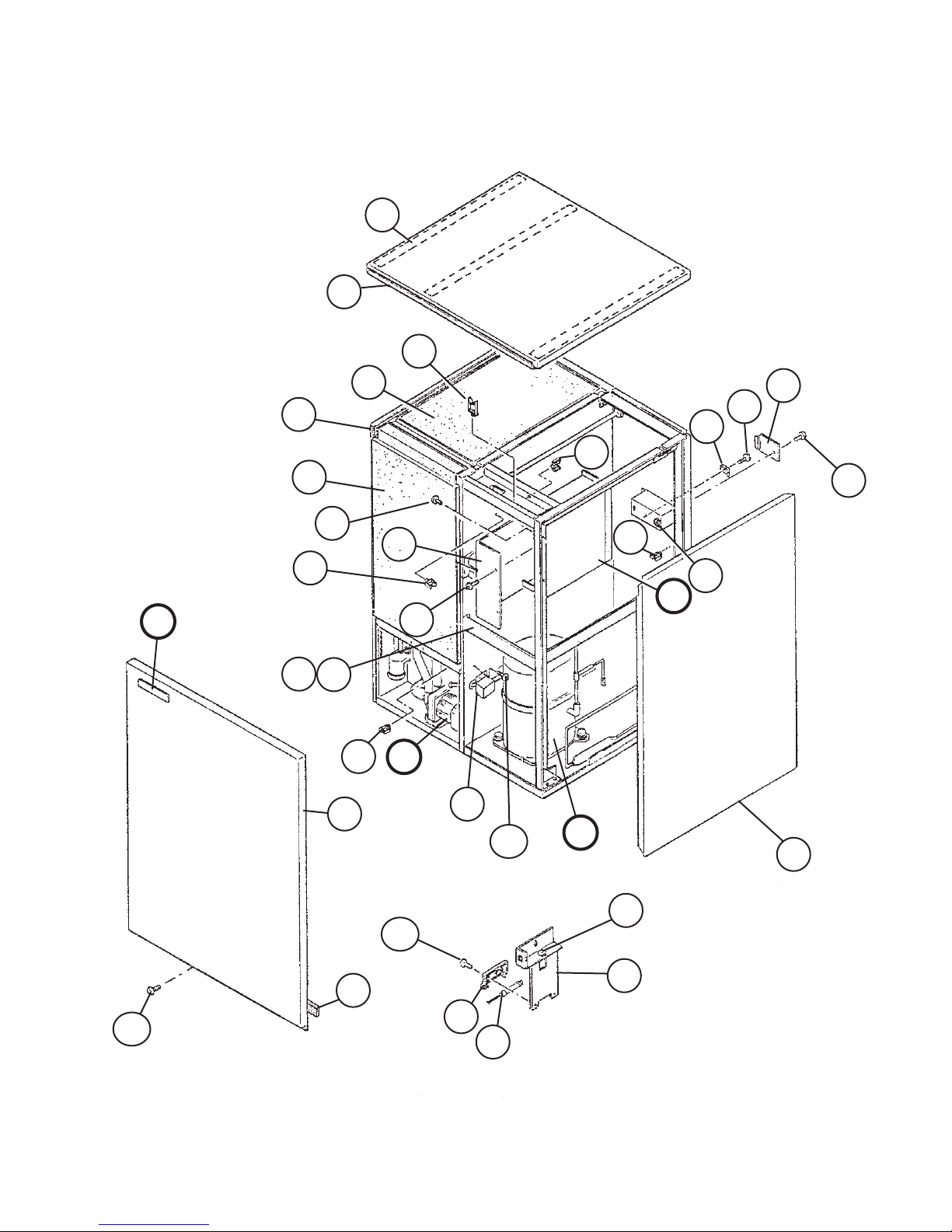

A. Ice Cuber Assembly
KM-1340MWH
Q-0, R-0
2a
2
13
4
5
6
6a
16
16a
11
14
15a 21
19
20
20a
10
B
C
D
D1
E
7a
7
8
9
12
13
15
17
18
22
23
10
8
Title: A. Ice Cuber Assembly Model: KM-1340MWH
Index
No. Description
Material or
Model Number Part Number
Required Number
Q-0
R-0
B Refrigeration Circuit - 1A1096A01 1
C Water Circuit - 1A0094A06 1
D Control Box Assembly - 2A2522A01 1
D1 T2 Screw 4×8 7P31-0408 3
E Label Location - 2A3638A01 1
1 Evap. Case HS-1016 1A0602G01 1
2 Control Box Cover GS 3A2386-01 1
2a T2 Screw 4×8 7P31-0408 2
3 Square Washer BRASS 433537-02 1
4 Screw - Grounding BRASS 433304-02 1
5 Bushing SR-34-2 420472-05 1
6 Junction Box Cover GS 433410-01 1
6a T2 Screw 4×8 7P31-0408 1
7 Frame (F) GS 324093-01 1
7a T2 Screw 4×8 7P31-0408 4
8 Top Panel (3A1941A01),
SS
2A2163-01 1
9 Gasket PVC 427014-04 3
10 Wire Saddle VWS4274-C 4A0338-03 5
11 Wire Saddle VWS4218-C 4A0338-01 1
12 Top Insulation ABS, PE 322714G01 1
13 Front Insulation ABS,PE 322711G01 1
14 Side Panel (R) SS 2A2165G01 1
15 Front Panel (A) SS 2A2164-02 1
15a Truss Head Screw 4×8, SS 7C32-0408 1
16 Barrier GS 3A0235-01 1
16a T2 Screw 4×8 7P31-0408 2
17 Wire Saddle VWS42105-C 4A0338-04 1
18 Wire Saddle VWS4238-C 4A0338-02 2
19 Bulb Holder SS 322815G02 1
20 Bulb Holder ABS 328919-01 1
20a FT Screw 4×10, SS 7F32-0410 2
21 Spacer PE 443545-01 1
22 Bushing EPDM 425307-01 1
23 Gasket L=762 4A0808L02 1
9

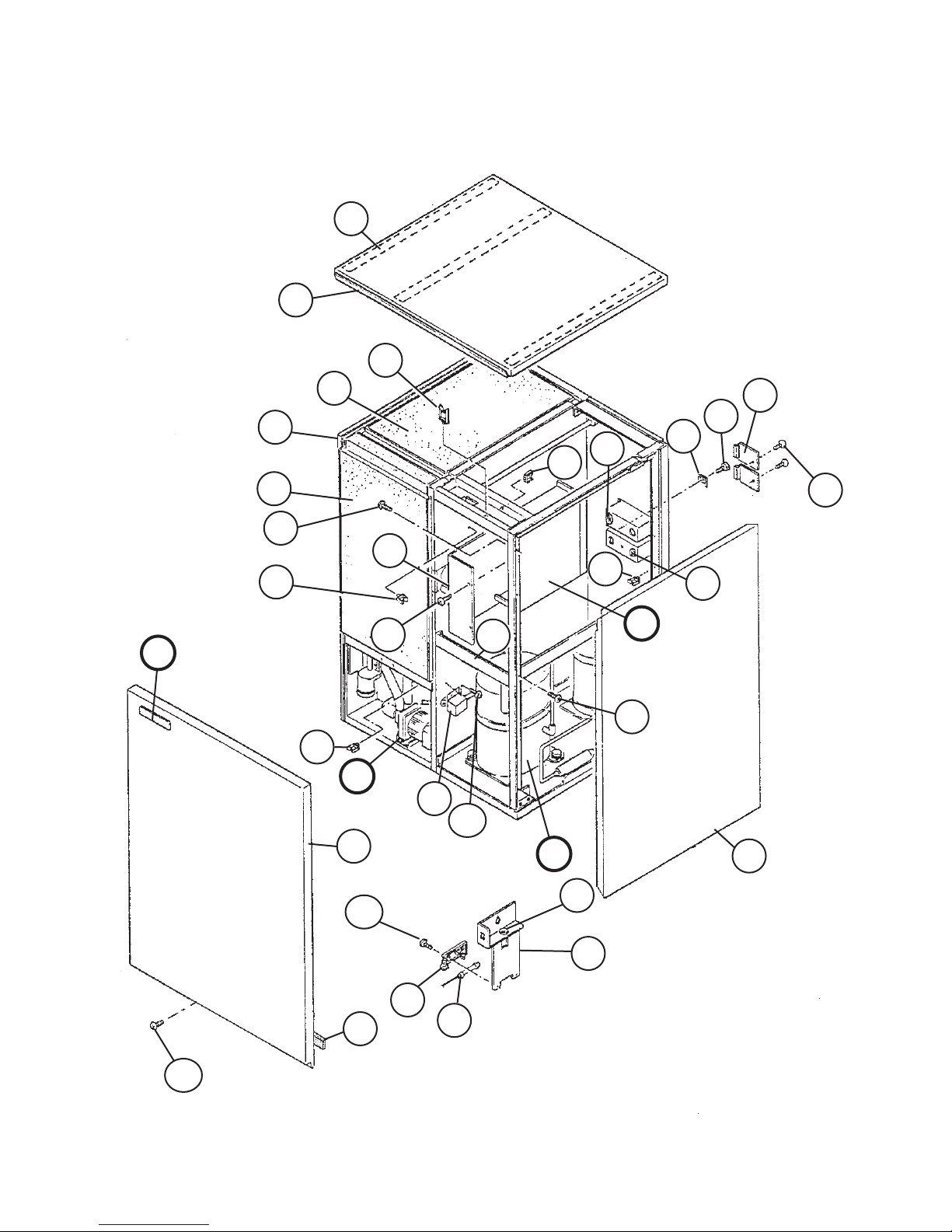

A. Ice Cuber Assembly
KM-1340MRH
Q-0, R-0
2a
2
14
5
7
7a
16
16a
21
22
22a
B
C
D
D1
E
10
3a
3
6
8
9
11
12
13
14
15
17
18
18a
12
19 20
23
24
10
Title: A. Ice Cuber Assembly Model: KM-1340MRH
Index
No. Description
Material or
Model Number Part Number
Required Number
Q-0
R-0
B Refrigeration Circuit - 1A1100A01 1
C Water Circuit - 1A0094A06 1
D Control Box Assembly - 2A2522A01 1
D1 T2 Screw 4×8 7P31-0408 3
E Label Location - 2A3636A01 1
1 Evap. Case - 1A0602G01 1
2 Control Box Cover GS 3A2386-01 1
2a T2 Screw 4×8 7P31-0408 2
3 Frame (F) GS 324093-01 1
3a T2 Screw 4×8 7P31-0408 4
4 Square Washer BRASS 433537-02 2
5 Screw - Grounding BRASS 433304-02 2
6 Bushing SR-34-2 420472-05 1
7 Junction Box Cover GS 433410-01 2
7a T2 Screw 4×8 7P31-0408 2
8 Spacer PE 443545-01 1
9 Bushing EPDM 425307-01 1
10 Top Panel (3A1941A01),
SS
2A2163-01 1
11 Gasket PVC 427014-04 3
12 Wire Saddle VWS4274-C 4A0338-03 5
13 Top Insulation ABS, PE 322714G01 1
14 Front Insulation ABS,PE 322711G01 1
15 Side Panel (R) SS 2A2165G01 1
16 Front Panel (A) SS 2A2164-02 1
16a Truss Head Screw 4×8, SS 7C32-0408 1
17 Wire Saddle VWS4218-C 4A0338-01 1
18 Barrier GS 3A0235-01 1
18a T2 Screw 4×8 7P31-0408 2
19 Wire Saddle VWS42105-C 4A0338-04 1
20 Bushing SR-30-1 420472-03 1
21 Bulb Holder SS 322815G02 1
22 Bulb Holder ABS 328919-01 1
22a FT Screw 4×10, SS 7F32-0410 2
23 Wire Saddle VWS4238-C 4A0338-02 2
24 Gasket L=762 4A0808L02 1
