Hoshizaki DB-130H Manuel utilisateur
NO: 71205
DB-130H
MODEL
PARTS LIST
HOSHIZAKI
ICE DISPENSING BIN
ISSUED: April 12, 2002
REVISED: July 29, 2005
2
CONTENTS
Material Abbreviations ........................................................................................................... 3
Auxiliary Codes ...................................................................................................................... 4
Note About Ordering Parts .................................................................................................... 4
A. Dispensing Bin Assembly .................................................................................................. 5
B. Mechanism Assembly ...................................................................................................... 9
C. Front Panel ...................................................................................................................... 11
D. Solenoid Assembly .......................................................................................................... 13
E. Spout Switch Assembly ................................................................................................... 15
F. Drain Pan Assembly ......................................................................................................... 16
G. Shutter ............................................................................................................................ 17
H. Safety Switch Assembly .................................................................................................. 18
J. Spout ................................................................................................................................ 19
K. Label Location ................................................................................................................. 20
L. Gear Motor Assembly ...................................................................................................... 22
M. Frame .............................................................................................................................. 24
N. Accessories & Packaging ................................................................................................ 25
3
Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
K-0
Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.
"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.
Designates significant part changes within the same year for this model. Base is 5 (0 for auxiliary
codes P-0 and earlier) and this number advances for each change.
Example: P-6
"P" indicates 2004.
"6" indicates the first significant part change for 2004.
4
Auxiliary Codes
L-0 September 2001
M-0 February 2002
N-0 January 2003
P-0 December 2003
P-5 October 2004
Q-5 December 2004
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must
be ordered separately.
5
A. Dispensing Bin Assembly
(1/2)
DB-130H
L-0, M-0, N-0, P-0, P-5, Q-5
C
C1
K
F
F1
F2
2
1
2a
5
6
M
14
14a
15
15a
15b 16
16a
17
19
20 21
23
22
23a
24
24a
25
27
25a
25
27a
28
29
29a
29b
31
31
28
32
1a
25a
6

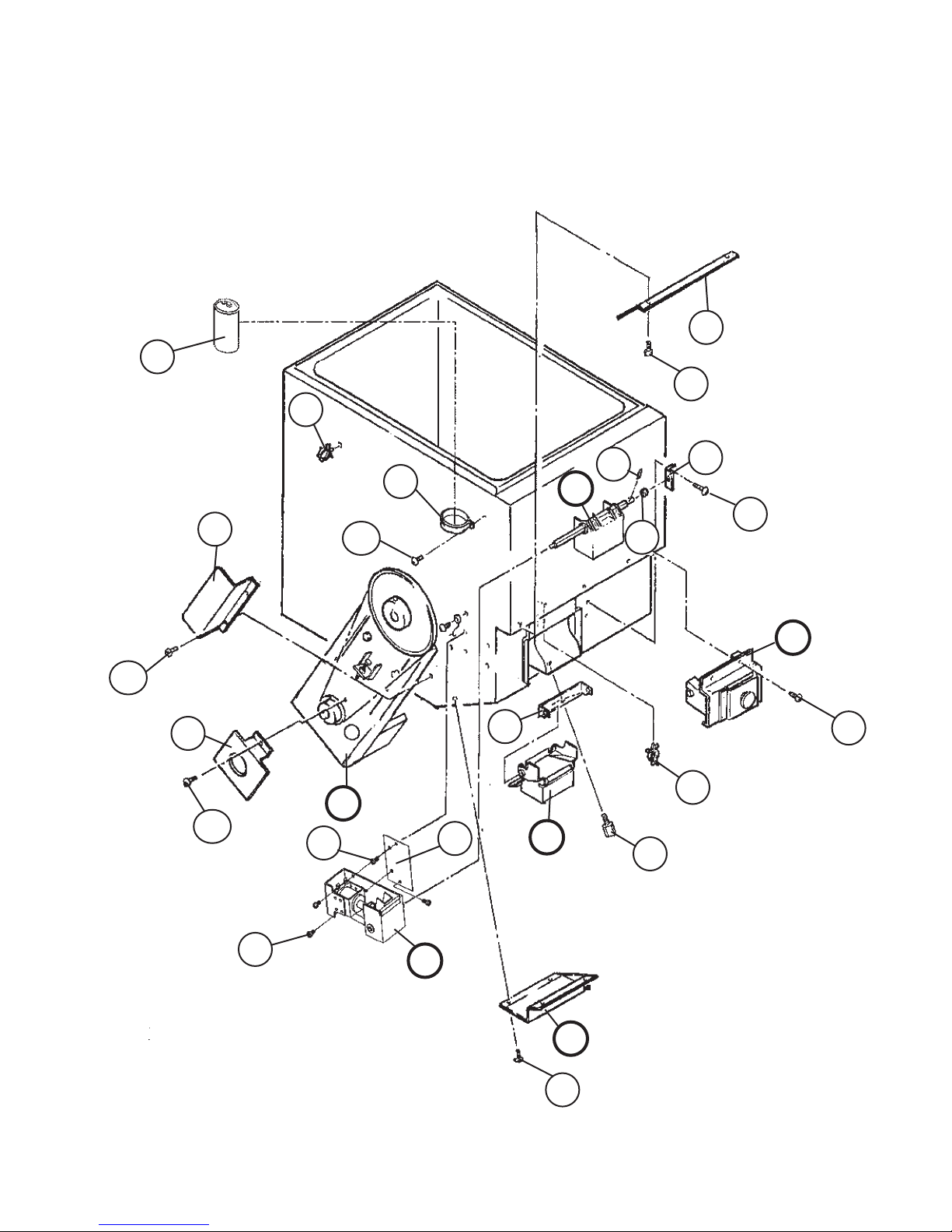

A. Dispensing Bin Assembly
(2/2)
DB-130H
L-0, M-0, N-0, P-0, P-5, Q-5
D
D1
D2
3
H
H1
B
J
E
E1
G
4a
4
7a
7
8
9
10
11
11a
12a
12
13
18
18
26
30
30a
7
Title: A. Dispensing Bin Assembly Model: DB-130H
Index
No. Description
Material or
Model Number Part Number
Required Number
L-0
M-0
N-0
P-0
P-5
Q-5
B Mechanism Assembly - 1A0110A01 1 1 1
C Front Panel - 1A0606A01 1 1 1
C1 Truss Head Screw 4×8, SS 7C32-0408 2 2 2
D Solenoid Assembly - 2A0587A01 1 1 1
D1 Hex Head Bolt w/Washer (LF) 4×10, SS 7B0230410 4 4 4
D2 T2 Screw 4×8 7P31-0408 1 1 1
E Spout Switch Assembly - 4A2465A01 1 1 1
E1 T2 Screw 4×8 7P31-0408 2 2 2
F Drain Pan Assembly - 214616A02 1 1 1
F1 Truss Head Screw 5×12, SS 7C32-0512 2 2 2
F2 T2 Screw 4×8, SS 7P32-0408 1 1 1
G Shutter - 326008A01 1 1 1
H Safety Switch Assembly - 438022A01 1 1 1
H1 T2 Screw 4×8, SS 7P32-0408 4 4 4
J Spout - 326007A01 1 1 1
K Label Location - 2A2235A01 1 -
2A2628A01 1 1
M Frame - 3A0211A01 1 1 1
1 Bin Body - 106185G01 1 1 1
1a Hex Head Bolt w/Washer (LF) 8×20 7B0130820 4 4 4
2 Frame (E) GS 324886-01 1 1 1
2a FT Screw 4×8, SS 7F32-0408 3 3 3
3 Solenoid Assembly Base GS 4A0048-01 1 1 1
4 Barrier (A) GS 324897-01 1 1 1
4a T2 Screw 4×8 7P31-0408 2 2 2
5 Pad ABS 436580-01 1 1 1
6 Supporting Pad PE FOAM 4A0040-01 1 1 1
7 Collar – Bracket GS 439399-01 1 1 1
7a T2 Screw 4×8, SS 7P32-0408 2 2 2
8 Collar – Shutter - 435533-01 1 1 1
9 Snap Pin SSP-6 715S-0006 1 1 1
10 Hook SS 439398-01 1 1 1
11 Chain Cover (A) GS 438282-01 1 1 1
11a T2 Screw 4×8 7P31-0408 2 2 2
12 Chain Cover (B) GS 438283-01 1 1 1
12a FT Screw 4×8, SS 7F32-0408 2 2 2
13 Thumbscrew ABS, SS 415949G01 2 2 -
Thumbscrew – Black 415949G12 2
14 Control Box (B) GS 324901-01 1 1 1
14a T2 Screw 4×8 7P31-0408 3 3 3
15 Control Box (C) GS 324902G01 1 1 1
15a T2 Screw 4×8 7P31-0408 3 3 3
15b FT Screw 4×8, SS 7F32-0408 1 1 1
8
Title: A. Dispensing Bin Assembly Model: DB-130H
Index
No. Description
Material or
Model Number Part Number
Required Number
L-0
M-0
N-0
P-0
P-5
Q-5
16 Control Box (D) GS 323808-01 1 1 1
16a T2 Screw 4×8 7P31-0408 3 3 3
17 Bushing OCB-750 428394-01 1 1 1
18 Clamp NO. 4253 427902-05 6 6 6
19 Cable Tie CV-150 8911-0150 1 1 1
20 Screw – Grounding BRASS 433304-02 1 1 1
21 Square Washer COPPER 433537-02 1 1 1
22 Bushing SR-30-1 420472-03 1 1 1
23 Junction Box Cover GS 433410-01 1 1 1
23a T2 Screw 4×8 7P31-0408 1 1 1
24 Rear Panel GS 324904-01 1 1 1
24a FT Screw 4×8, SS 7F32-0408 2 2 2
25 Side Panel GS 214489-02 2 2 2
25a FT Screw 4×8, SS 7F32-0408 16 16 16
26 Capacitor – Run 25MFD/
370VAC
3A2005-06 1 1 1
27 Bracket – Front Panel (A) SS 324905-01 1 1 1
27a T2 Screw 4×8, SS 7P32-0408 2 2 2
28 Gasket L=418 4A0808L01 2 2 2
29 Control Box (A) GS 214614-01 1 1 1
29a T2 Screw 4×8 7P31-0408 5 5 5
29b FT Screw 4×8, SS 7F32-0408 2 2 2
30 Strap GS 4A0506-01 1 1 1
30a FT Screw 4×12, SS 7F32-0412 1 1 1
31 Gasket L=660 4A0808L01 2 2 2
32 Vinyl Hose L=445 7716-2025 1 1 1
9
B. Mechanism Assembly
DB-130H
L-0, M-0, N-0, P-0, P-5, Q-5
17
7
4a
4d
4d
4c
4b
6
42
3
910
3a
3b
3c
8
5a
5
L
L3
L2
L1
10
Title: B. Mechanism Assembly Model: DB-130H
Index
No. Description
Material or
Model Number Part Number
Required Number
L-0
to
Q-5
L Gear Motor Assembly - 2A0443A02 1
L1 Hex Head Bolt 8×20 7B01-0820 4
L2 Split Lock Washer 8 7L21-0800 4
L3 Washer 8 7W21-0800 4
1 Agitator SS 324892G01 1
2 Drive Shaft SS 437928-01 1
3 Gear Motor Bracket (A) GS 2A0450G01 1
3a Hex Head Bolt 8×20 7B01-0820 4
3b Split Lock Washer 8 7L21-0800 4
3c Washer 8 7W21-0800 4
4 Pillow - 435553-02 1
4a Hex Head Bolt 12×40 7B01-1240 2
4b Hex Nut 12 7N11-1200 2
4c Split Lock Washer 12 7L21-1200 2
4d Washer 12 7W21-1200 4
5 Sprocket (B) NO. 35x65 435554-01 1
5a Socket Set Screw (CP) 6x18 7S11-0618 1
6 Key 6x6x22 437265-01 1
7 Seal (B) EPDM 435558-01 2
8 Chain RK35
130 pitches
435797-01 1
9 Hex Head Bolt 8×45 7B01-0845 1
10 Hex Nut 8 7N11-0800 1
