Owners

Manual

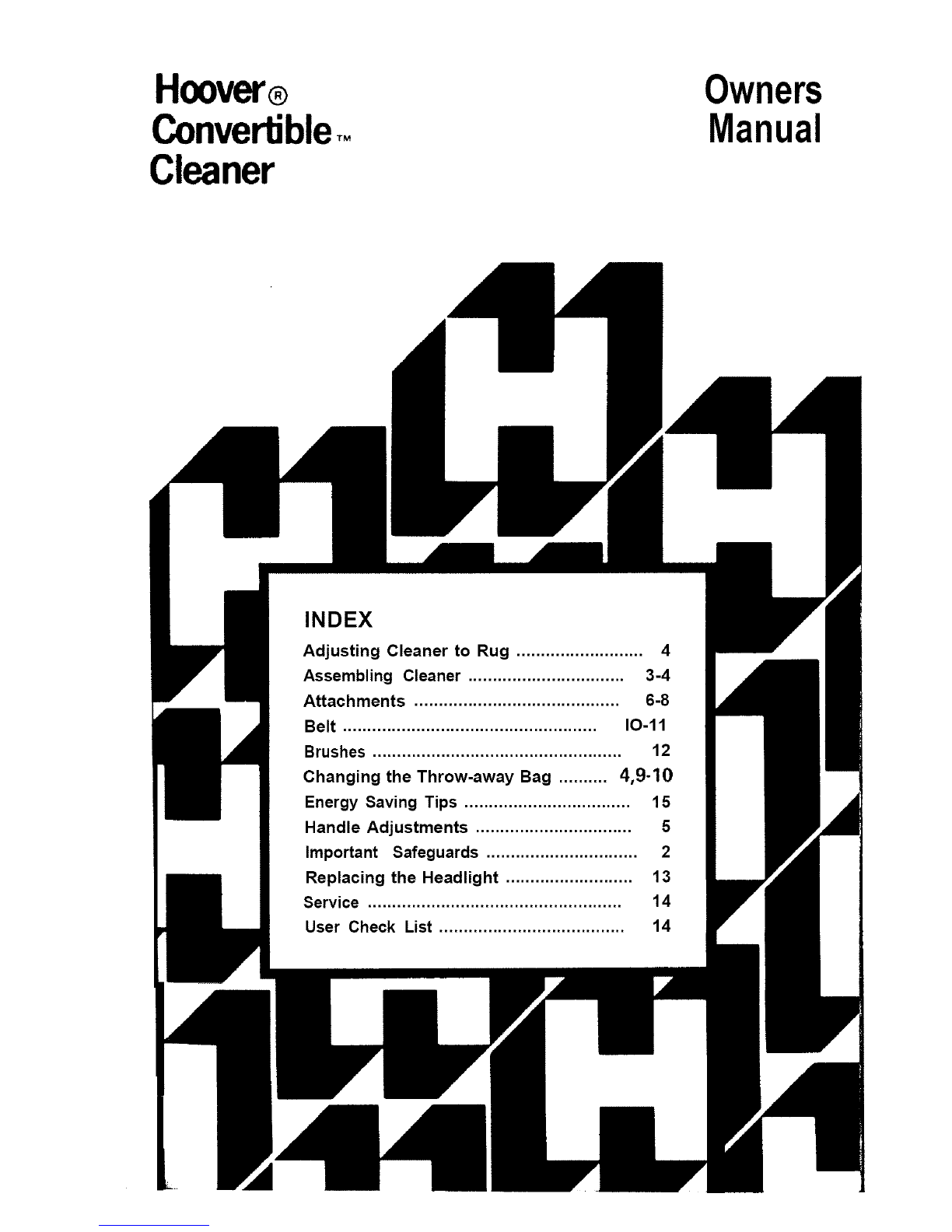

INDEX

Adjusting Cleaner to Rug .......................... 4

Assembling Cleaner ................................ 3-4

Attachments .......................................... 6-8

Belt .................................................... IO-11

Brushes ................................................... 12

Changing the Throw-away Bag .......... 4,9-10

Energy Saving Tips .................................. 15

Handle Adjustments ................................ 5

Important Safeguards ............................... 2

Replacing the Headlight .......................... 13

Service .................................................... 14

User Check List ...................................... 14

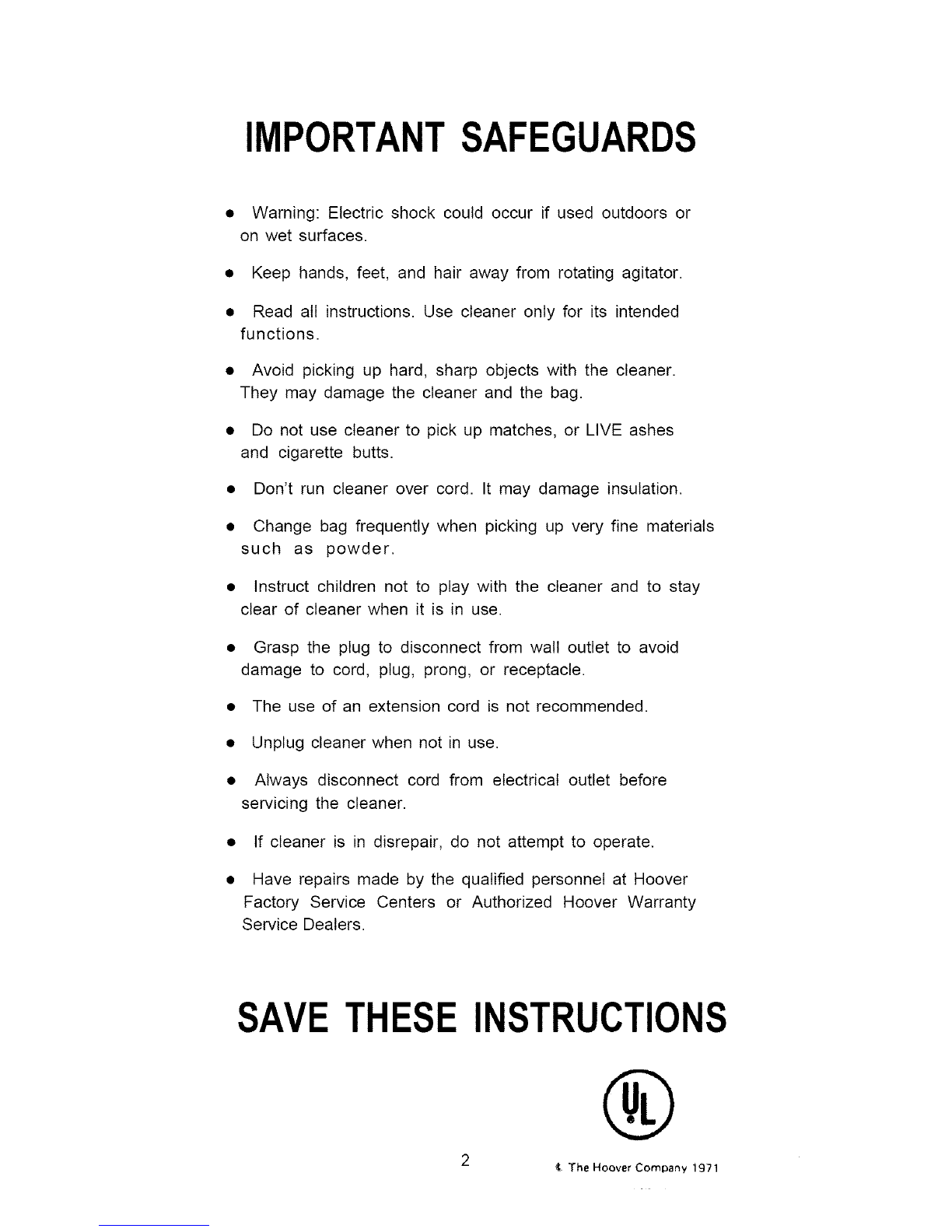

IMPORTANTSAFEGUARDS

•Warning: Electric shock could occur if used outdoors or

on wet surfaces.

• Keep hands, feet, and hair away from rotating agitator.

• Read atl instructions. Use cleaner only for its intended

functions.

• Avoid picking up hard, sharp objects with the cleaner.

They may damage the cleaner and the bag.

• Do not use cleaner to pick up matches, or LIVE ashes

and cigarette butts.

• Don't run cleaner over cord. It may damage insulation.

• Change bag frequently when picking up very fine materials

such as powder.

• Instruct children not to play with the cleaner and to stay

clear of cleaner when it is in use.

• Grasp the plug to disconnect from wall outlet to avoid

damage to cord, plug, prong, or receptacle.

• The use of an extension cord is not recommended.

• Unplug cleaner when not in use.

• Always disconnect cord from electrical outlet before

servicing the cleaner.

• If cleaner is in disrepair, do not attempt to operate.

• Have repairs made by the qualified personnel at Hoover

Factory Service Centers or Authorized Hoover Warranty

Service Dealers.

SAVETHESEINSTRUCTIONS

¢. The Hoover Company i971

,,=O

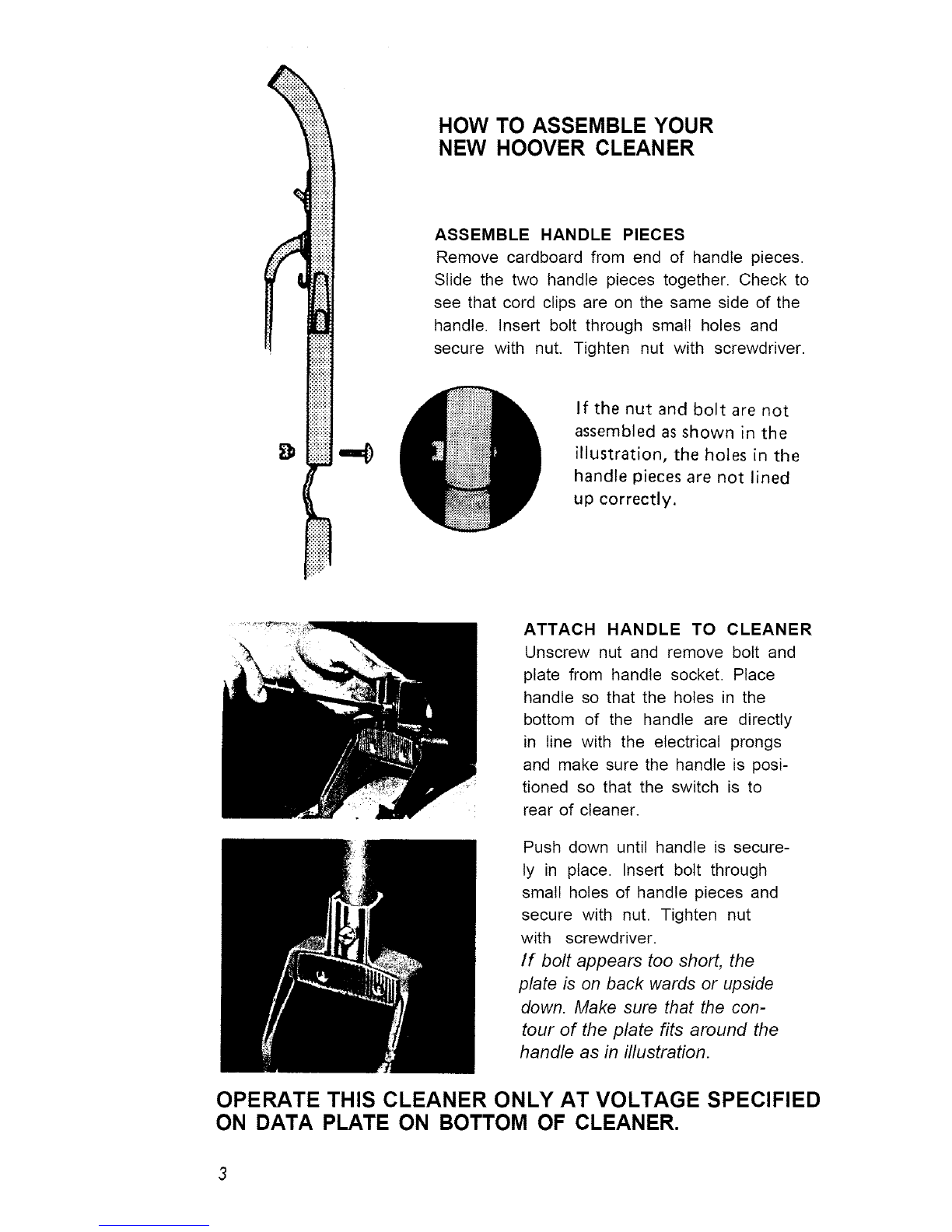

HOW TO ASSEMBLE YOUR

NEW HOOVER CLEANER

ASSEMBLE HANDLE PIECES

Remove cardboard from end of handle pieces.

Slide the two handle pieces together. Check to

see that cord clips are on the same side of the

handle. Insert bolt through small holes and

secure with nut. Tighten nut with screwdriver.

If the nut and bolt are not

assembled as shown in the

illustration, the holes in the

handle pieces are not lined

up correctly.

ATTACH HANDLE TO CLEANER

Unscrew nut and remove bolt and

plate from handle socket. Place

handle so that the holes in the

bottom of the handle are directly

in line with the electrical prongs

and make sure the handle is posi-

tioned so that the switch is to

rear of cleaner.

Push down until handle is secure-

ly in place. Insert bolt through

small holes of handle pieces and

secure with nut. Tighten nut

with screwdriver.

If bolt appears too short, the

plate is on back wards or upside

down. Make sure that the con-

tour of the plate fits around the

handle as in illustration.

OPERATE THIS CLEANER ONLY AT VOLTAGE SPECIFIED

ON DATA PLATE ON BOTTOM OF CLEANER.

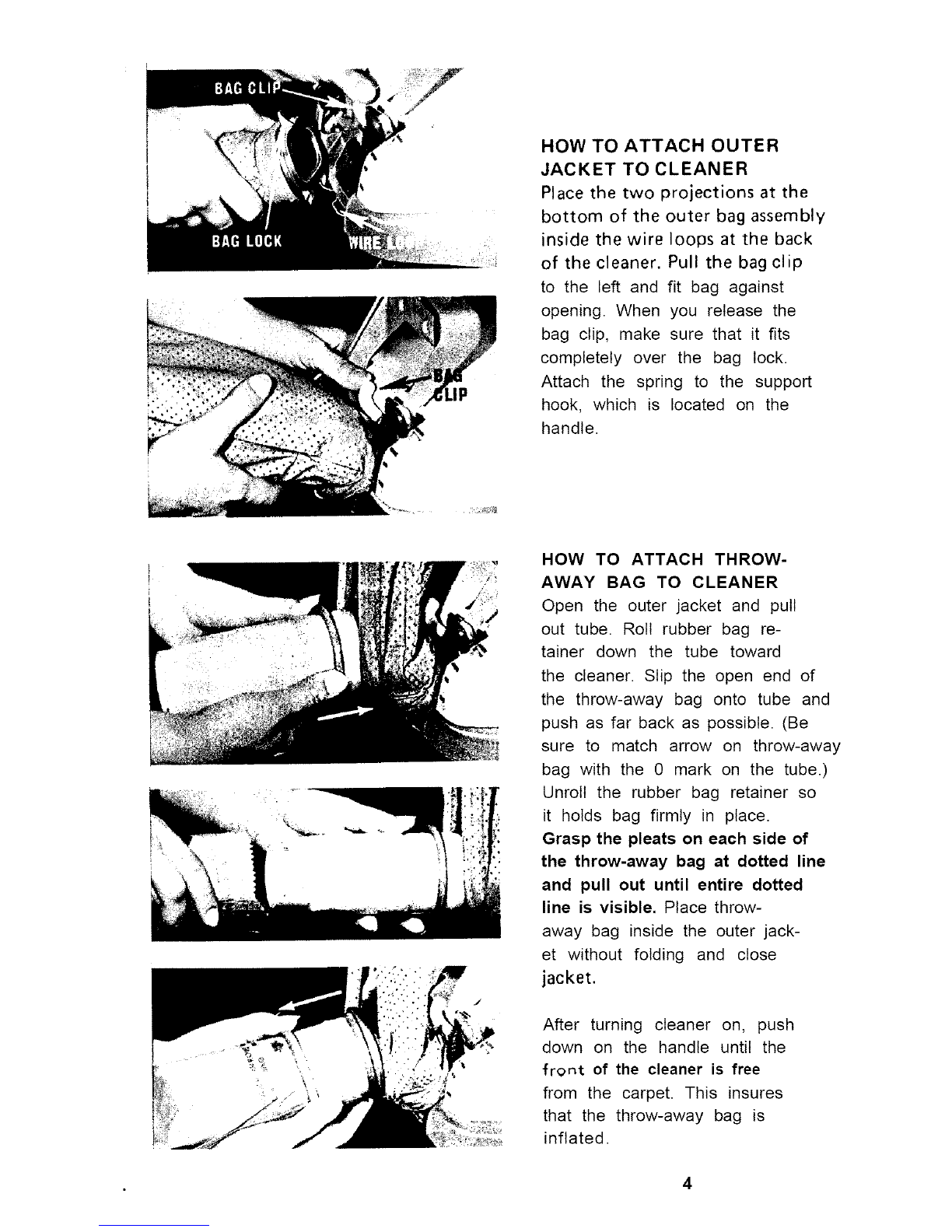

HOW TO ATTACH OUTER

JACKET TO CLEANER

Place the two projections at the

bottom of the outer bag assembly

inside the wire loops at the back

of the cleaner. Pull the bag clip

to the left and fit bag against

opening. When you release the

bag clip, make sure that it fits

completely over the bag lock.

Attach the spring to the support

hook, which is located on the

handle.

HOW TO ATTACH THROW-

AWAY BAG TO CLEANER

Open the outer jacket and pull

out tube. Roll rubber bag re-

tainer down the tube toward

the cleaner. Slip the open end of

the throw-away bag onto tube and

push as far back as possible. (Be

sure to match arrow on throw-away

bag with the 0 mark on the tube.)

Unroll the rubber bag retainer so

it holds bag firmly in place.

Grasp the pleats on each side of

the throw-away bag at dotted line

and pull out until entire dotted

line is visible. Place throw-

away bag inside the outer jack-

et without folding and close

jacket.

After turning cleaner on, push

down on the handle until the

front of the cleaner is free

from the carpet. This insures

that the throw-away bag is

inflated.

To turn

cleaner on,

push switch

down. To

turn cleaner

off, pull the

switch up.

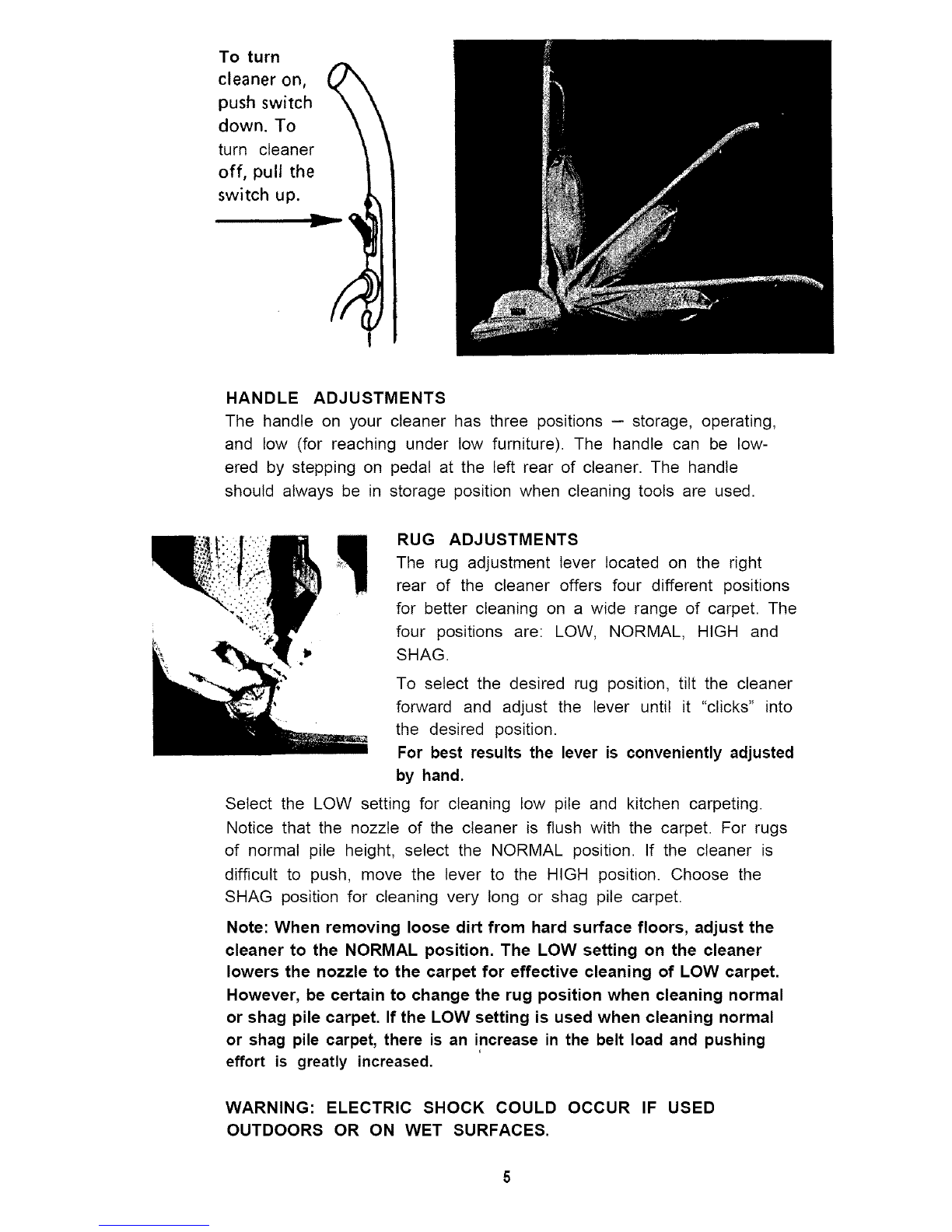

HANDLE ADJUSTMENTS

The handle on your cleaner has three positions -- storage, operating,

and low (for reaching under low furniture). The handle can be low-

ered by stepping on pedal at the left rear of cleaner. The handle

should always be in storage position when cleaning tools are used.

RUG ADJUSTMENTS

The rug adjustment lever located on the right

rear of the cleaner offers four different positions

for better cleaning on a wide range of carpet. The

four positions are: LOW, NORMAL, HIGH and

=' SHAG.

To select the desired rug position, tilt the cleaner

forward and adjust the lever until it "clicks" into

the desired position.

For best results the lever is conveniently adjusted

by hand.

Select the LOW setting for cleaning low pile and kitchen carpeting.

Notice that the nozzle of the cleaner is flush with the carpet. For rugs

of normal pile height, select the NORMAL position. If the cleaner is

difficult to push, move the lever to the HIGH position. Choose the

SHAG position for cleaning very long or shag pile carpet.

Note: When removing loose dirt from hard surface floors, adjust the

cleaner to the NORMAL position. The LOW setting on the cleaner

lowers the nozzle to the carpet for effective cleaning of LOW carpet.

However, be certain to change the rug position when cleaning normal

or shag pile carpet. If the LOW setting is used when cleaning normal

or shag pile carpet, there is an increase in the belt load and pushing

effort is greatly increased.

WARNING: ELECTRIC SHOCK COULD OCCUR IF USED

OUTDOORS OR ON WET SURFACES.

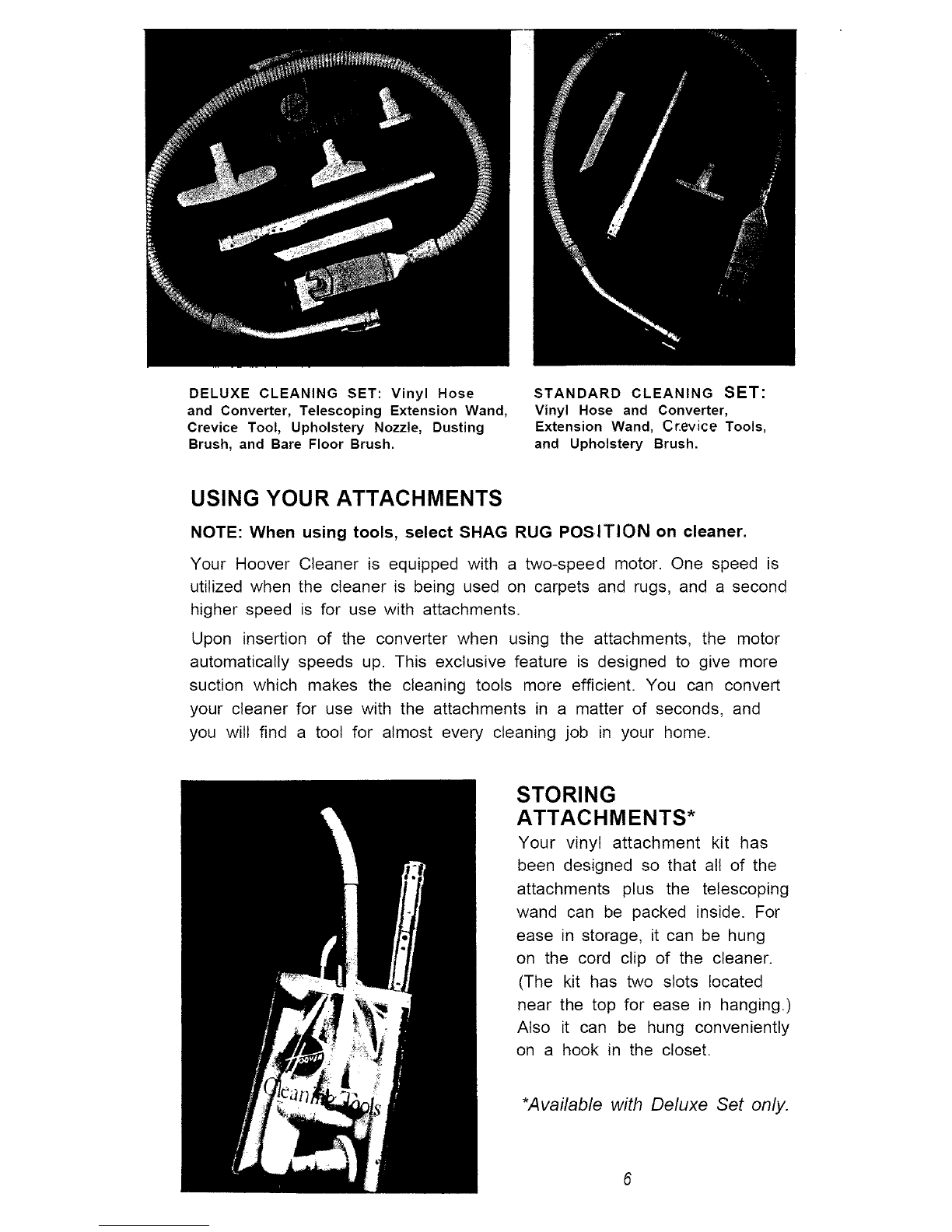

DELUXE CLEANING SET: Vinyl Hose

and Converter, Telescoping Extension Wand,

Crevice Tool, Upholstery Nozzle, Dusting

Brush, and Bare Floor Brush.

STANDARD CLEANING SET:

Vinyl Hose and Converter,

Extension Wand, Cr.evice Tools,

and Upholstery Brush.

USING YOUR ATTACHMENTS

NOTE: When using tools, select SHAG RUG POSITION on cleaner.

Your Hoover Cleaner is equipped with a two-speed motor. One speed is

utilized when the cleaner is being used on carpets and rugs, and a second

higher speed is for use with attachments.

Upon insertion of the converter when using the attachments, the motor

automatically speeds up. This exclusive feature is designed to give more

suction which makes the cleaning tools more efficient. You can convert

your cleaner for use with the attachments in a matter of seconds, and

you will find a toot for almost every cleaning job in your home.

STORING

ATTACHMENTS*

Your vinyl attachment kit has

been designed so that all of the

attachments plus the telescoping

wand can be packed inside. For

ease in storage, it can be hung

on the cord clip of the cleaner.

(The kit has two slots located

near the top for ease in hanging.)

Also it can be hung conveniently

on a hook in the closet.

*Available with Deluxe Set only.

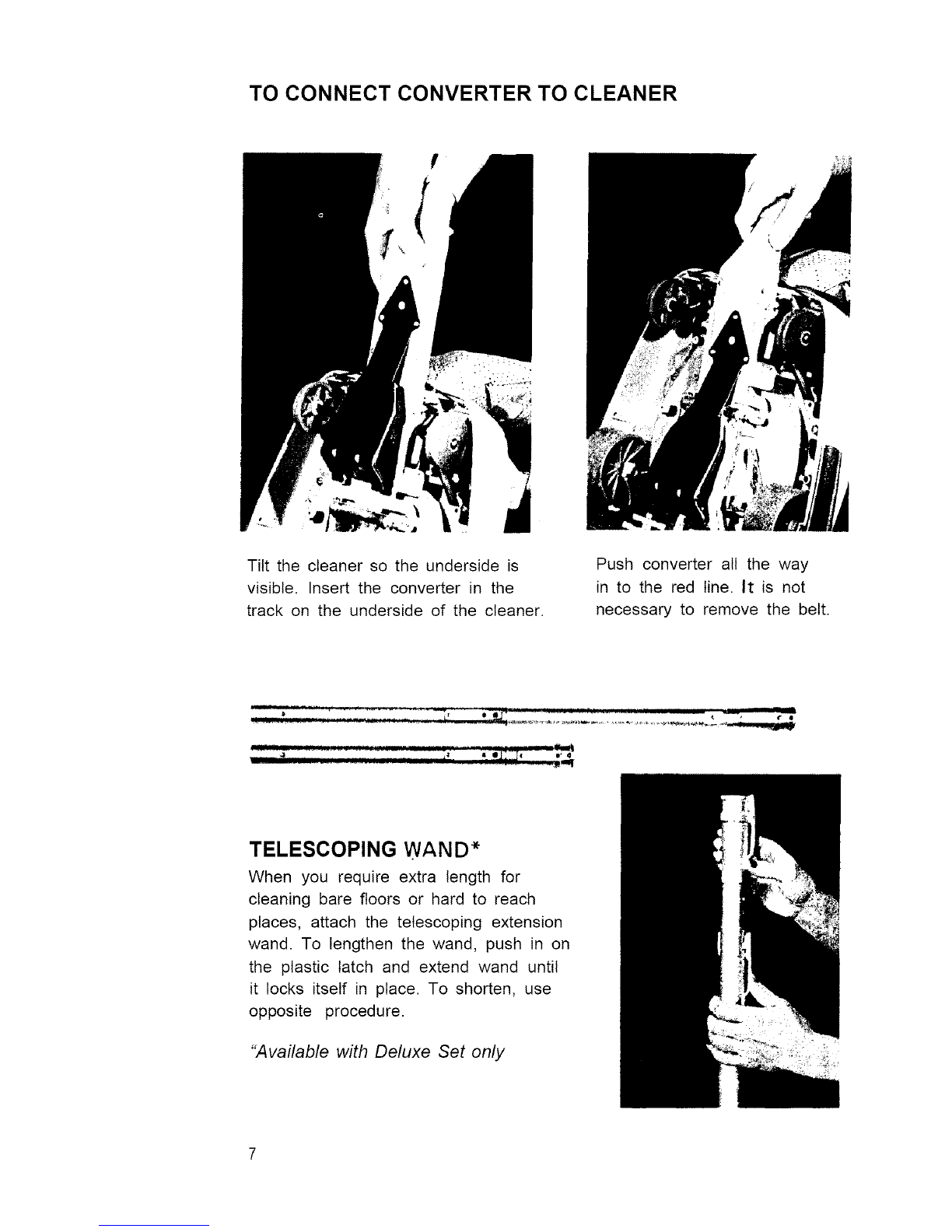

TO CONNECT CONVERTER TO CLEANER

Tilt the cleaner so the underside is

visible. Insert the converter in the

track on the underside of the cleaner.

Push converter all the way

in to the red line. It is not

necessary to remove the belt.

............ .11 . I ..... _ -_ I Ill il I I III ____ --

,_......... ::: : _ . i= • eJ::::[_ r Q

.................. _m_r

TELESCOPING WAND*

When you require extra length for

cleaning bare floors or hard to reach

places, attach the telescoping extension

wand. To lengthen the wand, push in on

the plastic latch and extend wand until

it locks itself in place. To shorten, use

opposite procedure.

"Available with Deluxe Set only

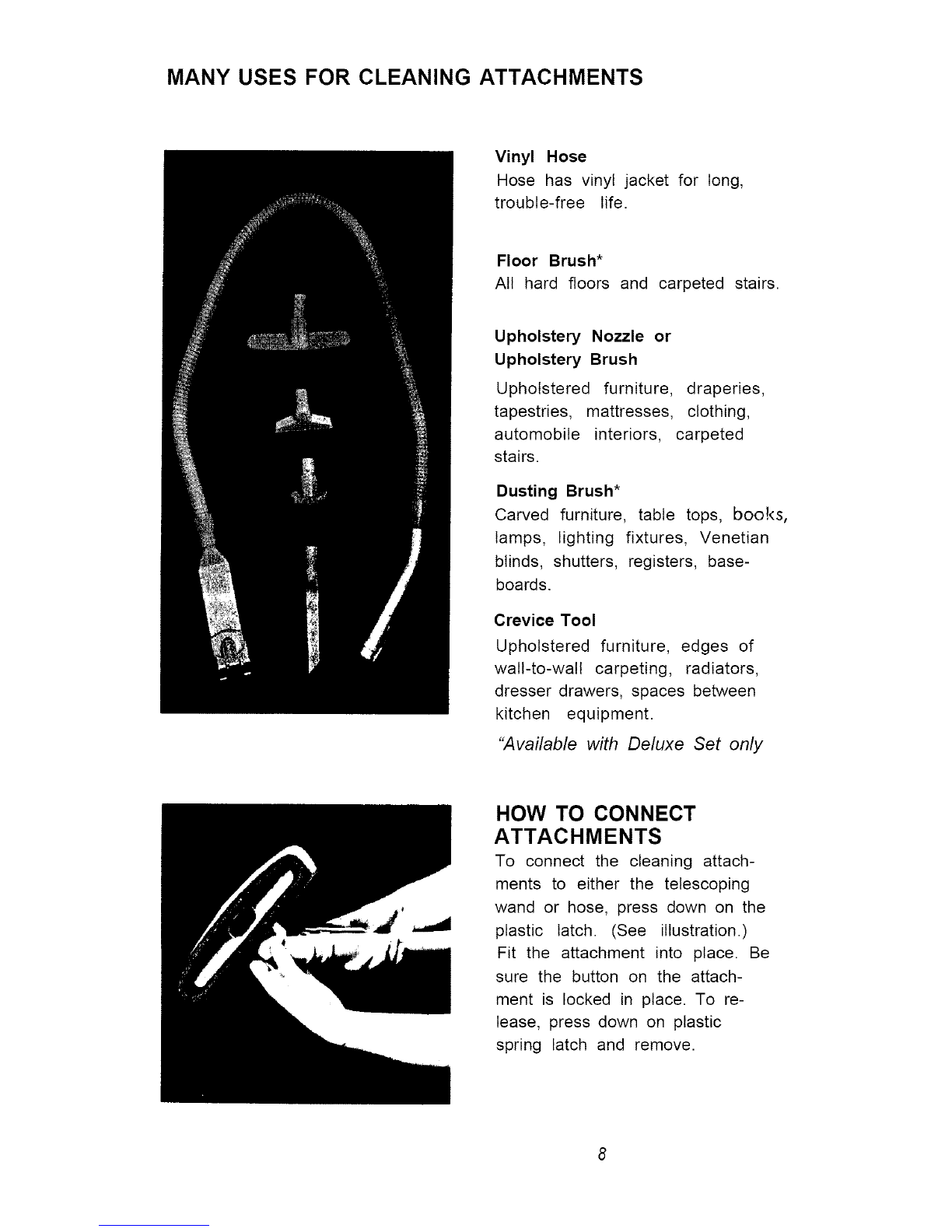

MANY USES FOR CLEANING ATTACHMENTS

Vinyl Hose

Hose has vinyl jacket for long,

trouble-free life.

Floor Brush*

All hard floors and carpeted stairs.

Upholstery Nozzle or

Upholstery Brush

Upholstered furniture, draperies,

tapestries, mattresses, clothing,

automobile interiors, carpeted

stairs.

Dusting Brush*

Carved furniture, table tops, books,

lamps, lighting fixtures, Venetian

blinds, shutters, registers, base-

boards.

Crevice Tool

Upholstered furniture, edges of

wall-to-wall carpeting, radiators,

dresser drawers, spaces between

kitchen equipment.

"Available with Deluxe Set only

HOW TO CONNECT

ATTACHMENTS

To connect the cleaning attach-

ments to either the telescoping

wand or hose, press down on the

plastic latch. (See illustration.)

Fit the attachment into place. Be

sure the button on the attach-

ment is locked in place. To re-

lease, press down on plastic

spring latch and remove.

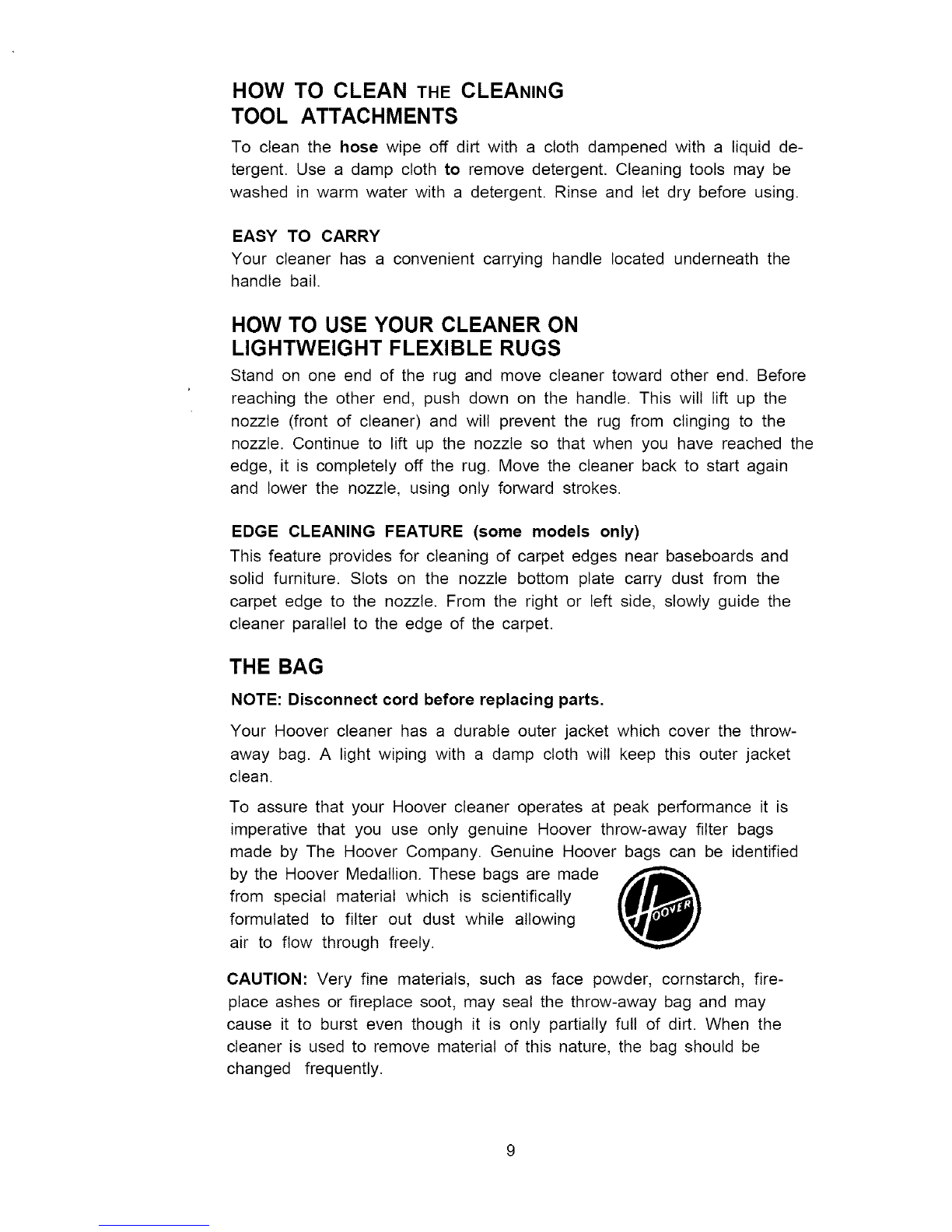

HOW TO CLEAN THE CLEANING

TOOL ATTACHMENTS

To clean the hose wipe off dirt with a cloth dampened with a liquid de-

tergent. Use a damp cloth to remove detergent. Cleaning tools may be

washed in warm water with a detergent. Rinse and let dry before using.

EASY TO CARRY

Your cleaner has a convenient carrying handle located underneath the

handle bait.

HOW TO USE YOUR CLEANER ON

LIGHTWEIGHT FLEXIBLE RUGS

Stand on one end of the rug and move cleaner toward other end. Before

reaching the other end, push down on the handle. This will lift up the

nozzle (front of cleaner) and will prevent the rug from clinging to the

nozzle. Continue to lift up the nozzle so that when you have reached the

edge, it is completely off the rug. Move the cleaner back to start again

and lower the nozzle, using only forward strokes.

EDGE CLEANING FEATURE (some models only)

This feature provides for cleaning of carpet edges near baseboards and

solid furniture. Slots on the nozzle bottom plate carry dust from the

carpet edge to the nozzle. From the right or left side, slowly guide the

cleaner parallel to the edge of the carpet.

THE BAG

NOTE: Disconnect cord before replacing parts.

Your Hoover cleaner has a durable outer jacket which cover the throw-

away bag. A light wiping with a damp cloth will keep this outer jacket

clean.

To assure that your Hoover cleaner operates at peak performance it is

imperative that you use only genuine Hoover throw-away filter bags

made by The Hoover Company. Genuine Hoover bags can be identified

by the Hoover Medallion. These bags are made _,_

from special material which is scientifically

formulated to filter out dust while allowing

air to flow through freely.

CAUTION: Very fine materials, such as face powder, cornstarch, fire-

place ashes or fireplace soot, may seal the throw-away bag and may

cause it to burst even though it is only partially full of dirt. When the

cleaner is used to remove material of this nature, the bag should be

changed frequently.

Check the bag from time to time. It is recommended to change the bag

when the dirt reaches the dotted line on the throw-away bag. If you let

more dirt than this accumulate, your cleaner may not operate efficient-

ly. Discard used bag.

WHERE TO BUY BAGS

Bags may be purchased from your local Authorized Hoover Dealer, or

;ea on tne Dell:. ';_'_.................................

BELT Check from time to time to be sure the

:it is stretched or cut. it should be replaced.

1. Disconnect cleaner

from electrical outlet

before replacing belt.

3ELT

2. Turn cleaner over.

Remove metal plate on

bottom of cleaner by

pushing latches toward

outside of cleaner.

3. Release worn belt

from pulley.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hoover Aspirateur

Hoover

Hoover TurboPOWER Turbo POWER FoldAway Uprigh... Manuel utilisateur

Hoover

Hoover CRUISE Manuel utilisateur

Hoover

Hoover L2310 - GUV 10 Amp Lon Garage Utility Vacuum Manuel utilisateur

Hoover

Hoover UH70015 - Platinum Collection Cyclonic Bagless Upright... Manuel utilisateur

Hoover

Hoover CLEANSLATE Plus Manuel utilisateur

Hoover

Hoover Self-Propelled WindTunnel Cleaner Manuel utilisateur

Hoover

Hoover ONEFI VR81OF01 Manuel utilisateur

Hoover

Hoover XARION Manuel utilisateur

Hoover

Hoover U3721 Manuel utilisateur

Hoover

Hoover Platinum Collection UH30010COM Manuel utilisateur

Hoover

Hoover F|air Cleaner Manuel utilisateur

Hoover

Hoover Dirt FINDER Manuel utilisateur

Hoover

Hoover UH50000 - Self Propelled WindTunnel Anniversary... Manuel utilisateur

Hoover

Hoover UH70085 - Pet Cyclonic Bagless Upright... Manuel utilisateur

Hoover

Hoover Power Max HT87-T2-ME Manuel utilisateur

Hoover

Hoover SE71WR01 Manuel utilisateur

Hoover

Hoover UH70905 Manuel utilisateur

Hoover

Hoover H-FREE 200 Manuel utilisateur

Hoover

Hoover Z 400 Manuel utilisateur

Hoover

Hoover DS22G Manuel utilisateur

Hoover

Hoover QHB10 Quickstick Manuel utilisateur

Hoover

Hoover FoldAway Manuel utilisateur

Hoover

Hoover H-Energy 700 IM ML Manuel utilisateur

Hoover

Hoover DINAMIS Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
