Owner’s Manual

ENGLISH ➜pp. 1-13

ESPAÑOL ➜pág 14-19

FRANÇAIS ➜p. 20-25

Thank You

for choosing

HOOVER !

Important safeguards ......... 3

Cleaner assembly

Carton contents . . . . . . . . . . . . 4

Attach hose................ 4

Attach handle . . . . . . . . . . . . . . 4

Storage - Position tools...... 5

How to use.................5-7

Cleaner description . . . . . . . . . 5

Transporting . . . . . . . . . . . . . . . 6

Cleaning rugs .............. 7

Using tools . . . . . . . . . . . . . . . . 7

Cleaning stairs ............. 7

Maintenance...............8-10

Emptying dirt cup........... 8

Filters..................... 9

Lubrication . . . . . . . . . . . . . . . .11

Clearing blockages . . . . . . 12-13

Agitator brushroll...........11

Agitator brushroll belt . . . . . 9-10

Service................... 12

If you have a problem........ 12

Warranty................... 13

Contents

Vacuum Cleaner

rights reserved. #961138001 ID101480-R1

IMPORTANT: READ CAREFULLY

BEFORE ASSEMBLY AND USE.

Questions or concerns? For assistance, please call

Customer Service at 1-800-944-9200

Mon-Fri 8am-7pm EST. PLEASE DO NOT RETURN

THIS PRODUCT TO THE STORE.

THIS PRODUCT IS INTENDED FOR

HOUSEHOLD USE ONLY.

IF USED COMMERCIALLY WARRANTY

IS VOID.

MMYYXXXXXXXX

SAMPLESAMPLE

19881

15677

SAMPLESAMPLE

HOOVER

NEWTON, IOWA 50208

Made in China

Hecho en China/Fabriqué en Chin

XXXX

CUS

LISTED

HOUSEHOLD TYPE/TYPE MENAGER/TIPO DOMESTICO

SERIAL NO./NUMEROSER./NÚMERO DE SERIE

MODEL/MODÈLE/MODELO

U5180-900

120 V. 60 Hz. 12.0 A.

BELT/COURROIE/CORREA 38528040

FILTERS/FILTROS/FILTRES93001633

www.hoover.com

SERIES/SÉRIE/SERIE ZC12.0

CLEANER/ASPIRATEUR/ASPIRADORA

MMYYXXXXXXXX

SAMPLESAMPLE

19881

15677

SAMPLESAMPLE

HOOVER

NEWTON, IOWA 50208

Made in China

Hecho en China/Fabriqué en Chin

XXXX

CUS

LISTED

HOUSEHOLD TYPE/TYPE MENAGER/TIPO DOMESTICO

SERIAL NO./NUMEROSER./NÚMERO DE SERIE

MODEL/MODÈLE/MODELO

U5180-900

120 V. 60 Hz. 12.0 A.

BELT/COURROIE/CORREA 38528040

FILTERS/FILTROS/FILTRES93001633

www.hoover.com

SERIES/SÉRIE/SERIE ZC12.0

CLEANER/ASPIRATEUR/ASPIRADORA

SERIAL

NUMBER

IMPORTANT SAFEGUARDS!

When using an electrical appliance, always follow basic precautions, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

WARNING:To reduce the risk of fire, electric shock, or injury:

• Do not use outdoors or on wet surfaces.

• Close supervision is necessary when any appliance is used by or near children. Do not allow vacuum cleaner to

be used as a toy or to run unattended at any time.

• Keep hair, loose clothing, fingers, feet and all parts of body away from openings, rotating agitator and other

moving parts.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use to pick up flammable or combustible materials such as gasoline or fine wood sandings or use in

areas where they may be present.

• Always turn off this appliance before connecting or disconnecting hose.

• Do not use without dirt cup or filters in place. Empty cup and clean filter frequently when picking up very fine

materials such as powder.

• Use extra care when cleaning on stairs.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, or any

thing that may reduce air flow.

• Always disconnect cord from electrical outlet before servicing the cleaner.

• Unplug cleaner when not in use. Turn off all controls before unplugging.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. Never handle plug or appliance with

wet hands.

• The use of an extension cord is not recommended.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left

outdoors, or dropped into water, take it to a Hoover Sales and Service Center or Authorized Hoover Warranty

Service Dealer (Depot).

• Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord around sharp edges or

corners. Do not run appliance over cord. Keep cord away from heated surfaces.

• Use vacuum cleaner only for its intended use as described in the instructions. Use only attachments recommend

ed by Hoover; others may cause hazards.

• Do not leave appliance when plugged in.

WARNING:

• This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. Wash hands after

handling.

• Do not operate cleaner in bare feet or when wearing open toe shoes or sandals.

• Avoid picking up hard, sharp objects with the cleaner. They may damage the cleaner.

SAVE THESE INSTRUCTIONS!

Thank you for choosing a HOOVER®product.

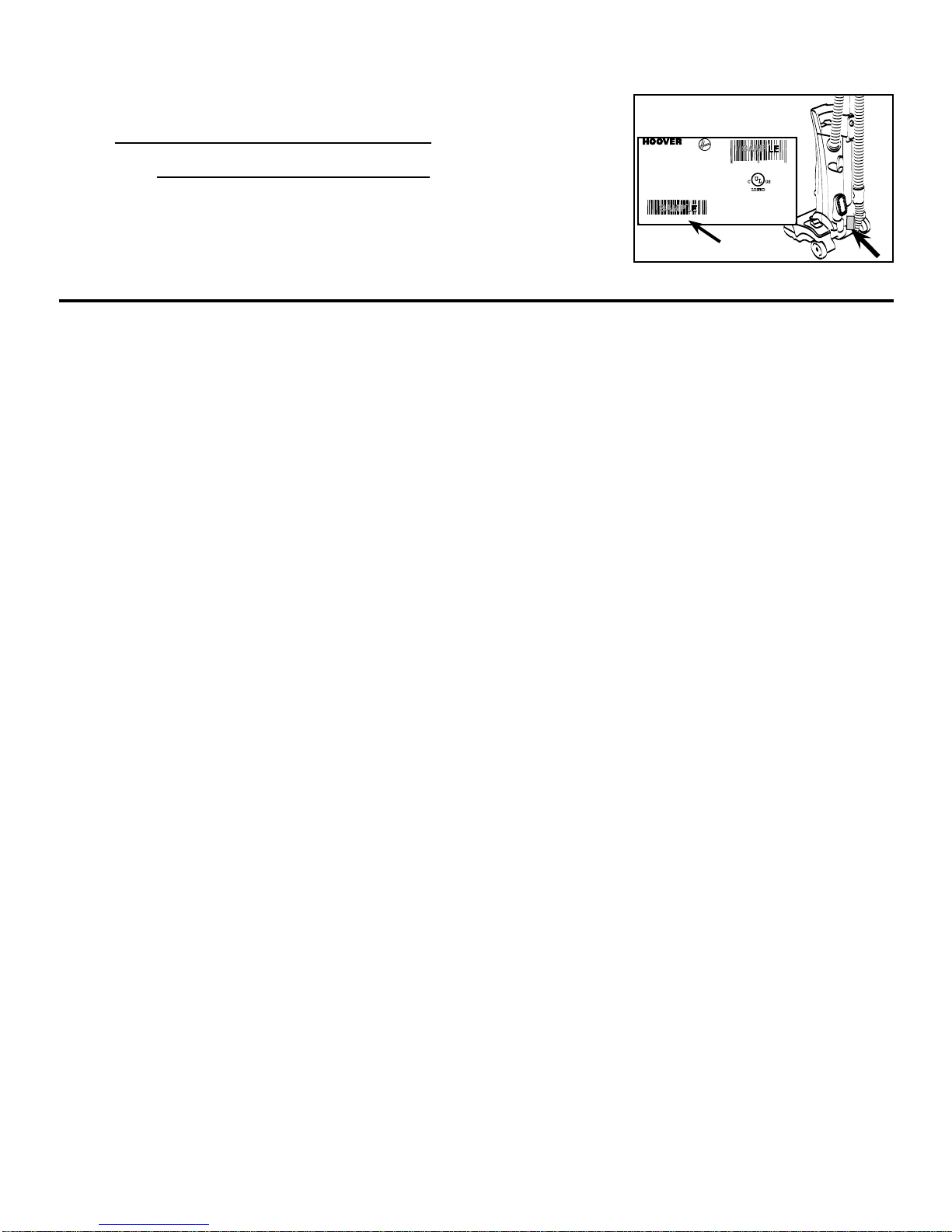

Please enter the complete model and Manufacturing Code in the

spaces provided.

Model

MFG. CODE

Hint: Attach your sales receipt to this owner’s manual. Verification of date of

purchase may be required for warranty service of your HOOVER®product.

Be sure to register your product online at Hoover.com or call 1-800-944-9200

to register by phone.

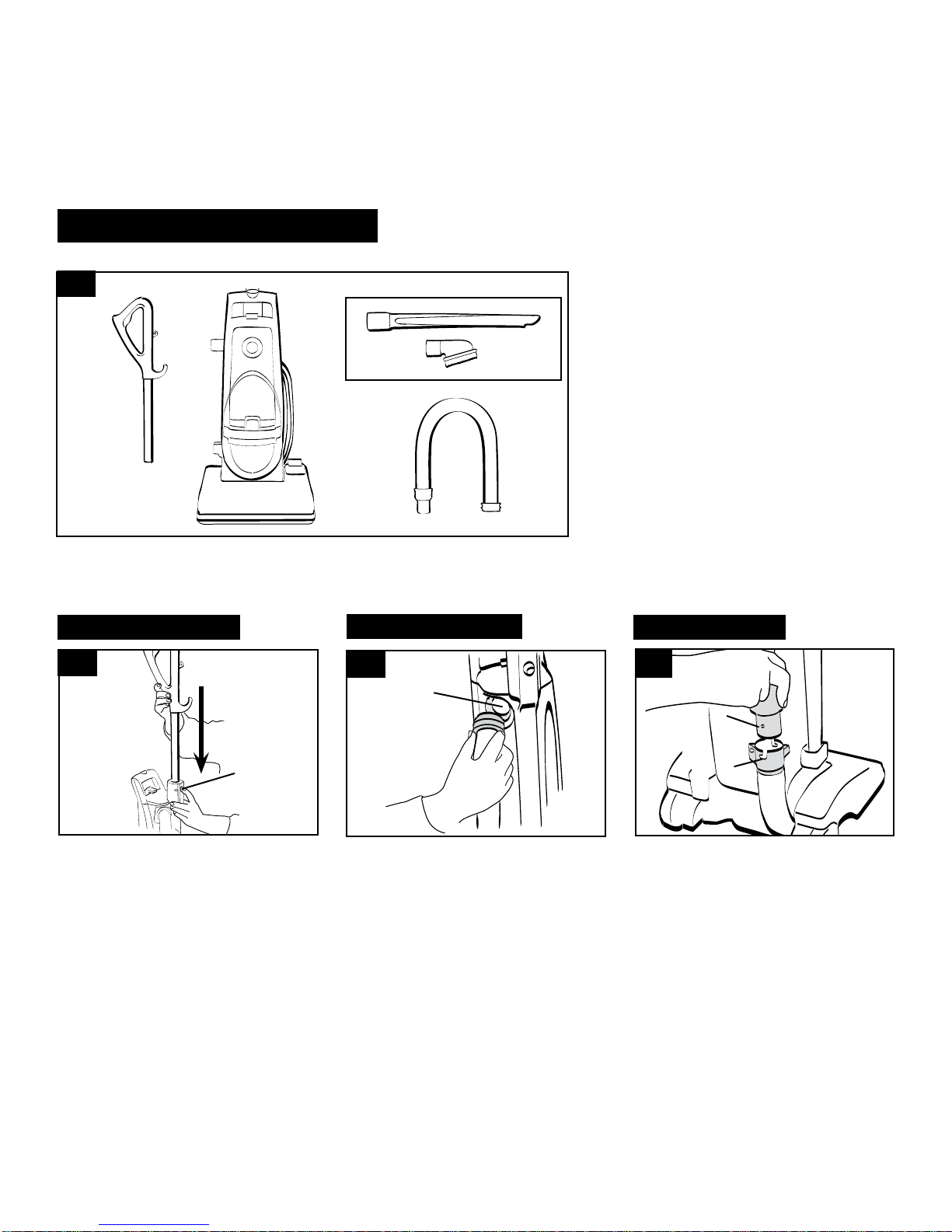

Carton contents

Remove all parts from carton and

identify each item shown.

Make sure all parts are located before

disposing of packing materials.

1. Cleaner assembly

1-1 A. Handle section

B. Cleaner

C. Crevice wand & dusting brush

D. Hose

Attach hose

1-2 1-4

1-3

Align end of hose with projections (C)

over slots on dirt duct (D).

Slide hose into slots and twist hose to

lock it into place (To detach hose,

reverse procedure).

Position hose

The hose is packed in a plastic bag

for shipping. Remove hose from bag

before assembly. Position hose over

rack and into hose tube (B).

NOTE: Hose must be connected at

the hose tube (B) and at the dirt

duct (D) on the back of the cleaner

for carpet or floor cleaning. For

tool use, refer to Fig. 2-11 and 2-13.

Attach handle

Press button (A) on back of handle

base and push handle down until

metal button on handle snaps out.

Press button (A) to raise and lower the

handle.

If you need assistance:

Visit our website at hoover.com. Follow the authorized dealer locator link to find the Hoover®authorized dealer nearest you

or call 1-800-944-9200 for an automated referral of Hoover®authorized dealer locations (U.S. only) or to speak with a

customer service representative; Mon- Fri 8am - 7pm EST.

Please do not return this product to the store.

2. How to use

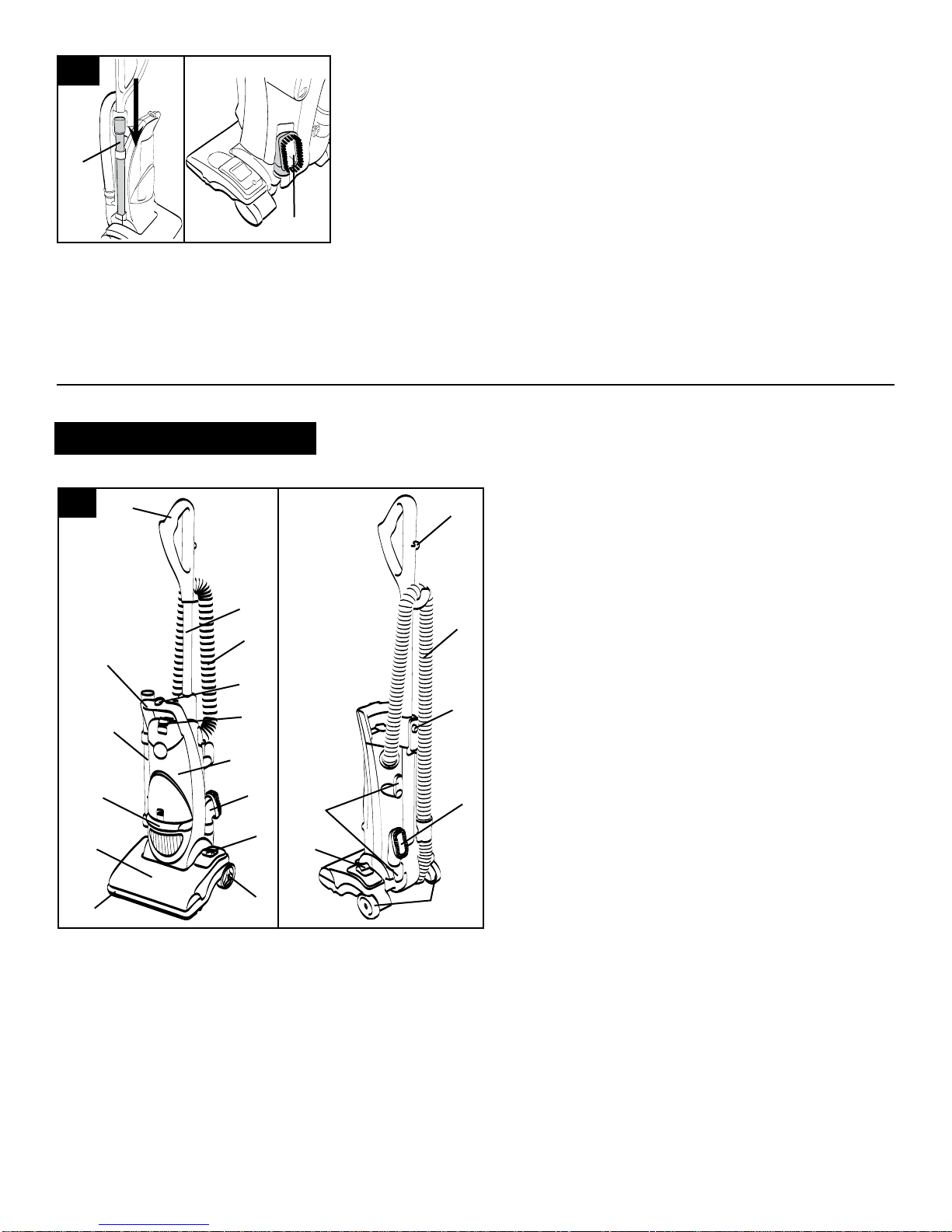

Cleaner description

2-1

Storage - Position tools

Slide the crevice wand (E) down for

storage as shown.

Dusting brush (F) stores on back of

cleaner as shown.

1-5

Continued ➜

Operate cleaner only at voltage specified on data plate on back of cleaner.

This cleaner is intended for household use.

1. Handle grip

2. Retractable handle

3. Hose

4. ON/OFF switch

5. Dirt cup release button

6. Dirt cup assembly

7. Dusting brush

8. Agitator brushroll on-off pedal

9. Wheels

10. Furniture guard: helps prevent cleaner from marking

furniture

11. Hood

12. Stair cleaning handle

13. Crevice wand

14. Carrying handle

15. Cord clip

16. Handle release button

17. Cord hooks: top hook rotates for quick cord release

NOTE: The cleaner is shipped with the

agitator brushroll in the “BARE FLOOR”

position. Before carpet cleaning, step on

the pedal (Fig. 2-1, #8) to turn the agitator

brushroll to “CARPET”.

Polarized plug

To reduce the risk of electric shock, this appliance has a polarized plug (one

blade is wider than the other). This plug will fit in a polarized outlet only one way.

If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit,

contact a qualified electrician to install the proper outlet. Do not change the plug

in any way.

ON-OFF switch

Plug cord into electrical outlet.

To turn cleaner ON (I), push ON/OFF

switch once.

To turn cleaner OFF (O), push switch

again.

2-2 2-3 2-4

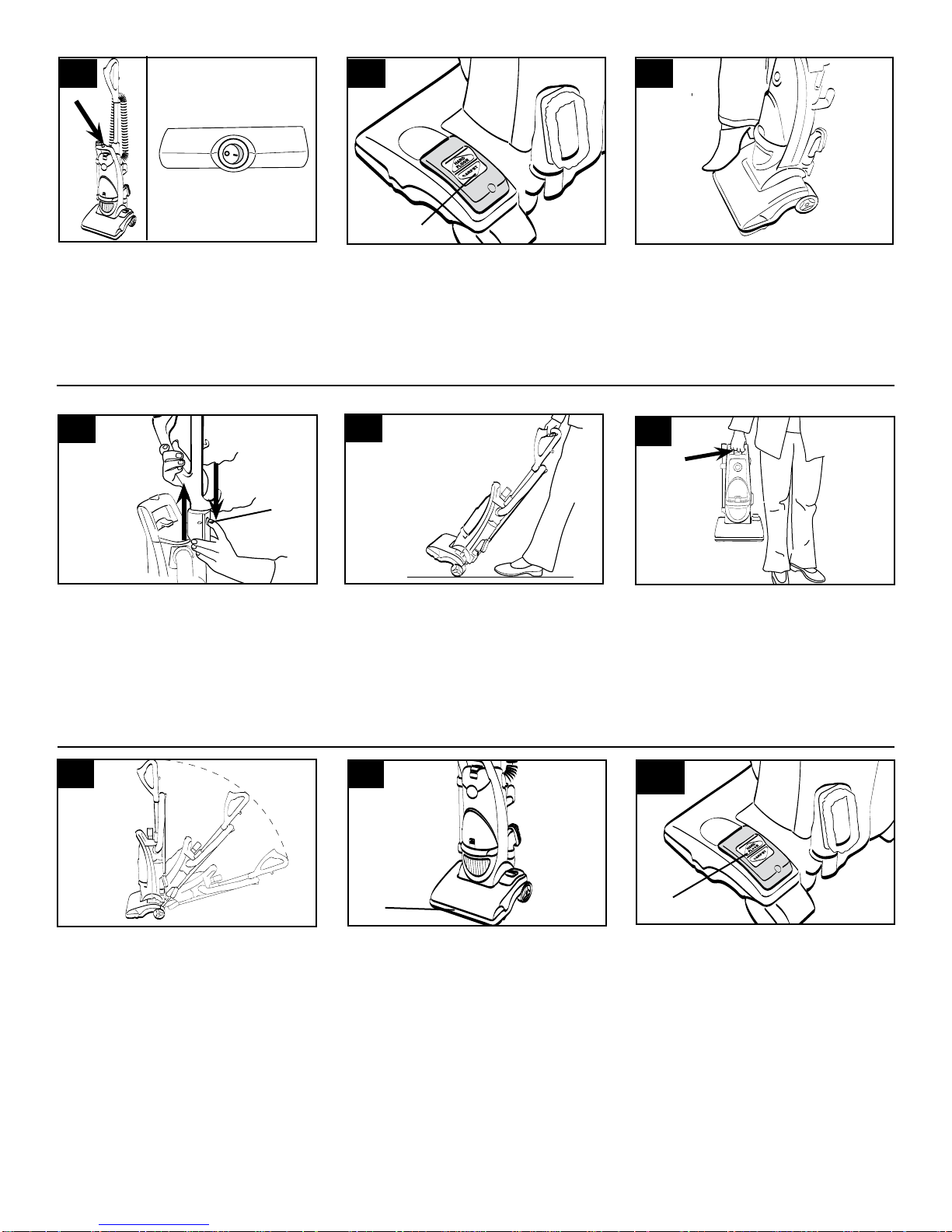

The cleaner is shipped with the agita-

tor brushroll in the BARE FLOOR

position. To turn the agitator brushroll

on for CARPET, step on the pedal (A).

Retractable handle

The handle is designed to retract into

the body of the cleaner for conve-

nience in storing or carrying. To lower

handle: depress button (B) at handle

base and push handle down. To raise

handle: depress button (B) and pull

handle up until it locks into desired

position.

Transporting cleaner

To move your cleaner from room to

room, put handle in upright position,

tilt cleaner back on rear wheels and

push forward.

2-6

2-5

Carrying cleaner

The cleaner can also be moved by

using the carrying handle.

2-7

Handle positions

The handle of your cleaner has three

positions; upright for storage and

when using cleaning tools; operating

position for general operation on

carpet and floors; low for reaching

under low furniture. Step on hood to

lower handle.

2-8 2-9

Floating nozzle

carpet height

adjustment

The cleaning of carpet and rugs takes

place at the nozzle (C).

The nozzle “floats” for adjustment to

various carpet heights and hard

surface floors.

2-10

Agitator brushroll

on-off

To shut the agitator brushroll off for

cleaning hard floors, step on the

pedal (A). To turn the agitator brushroll

on for carpet cleaning, step on the

pedal again.

Handle positions

The handle has two positions: upright

and operating.

To lower handle to operating position,

place your foot firmly on the cleaner

hood and pull handle back.

Attach wand and tools

Attach tool or crevice wand to the

hose by aligning the the tab on the

hose (E) with the slot on the tool and

twisting to secure in place.

To remove tool or wand, twist to

unlock.

Stair cleaning handle

Grasp cleaner by the stair cleaning

handle. Clean stairs from bottom to

top.

CAUTION: To avoid personal inju-

ry or unnecessary wear to carpet,

and to prevent the cleaner from

falling, always place it at bottom

of stairs.

Cleaning lightweight

flexible rugs

Stand on one end of rug and move

cleaner toward other end or edge.

Before reaching edge, push down on

handle. This will lift up the nozzle

(front of cleaner) and will prevent rug

from clinging to cleaner. Continue to

lift up nozzle so that when you have

reached the edge, it is completely off

the rug. Move cleaner back to start

again, lower nozzle, and use only for-

ward strokes.

Cleaning tools

Tools allow for cleaning surfaces

above the floor and for reaching hard

to clean areas.

The cleaner is ready for tool use

when handle is in upright position.

How to clean tools

To clean the hose, wipe off dirt with a

cloth dampened in a mild detergent.

Rinse with a damp cloth.

Cleaning tools may be washed in

warm water with a detergent. Rinse

and air dry before using.

2-11

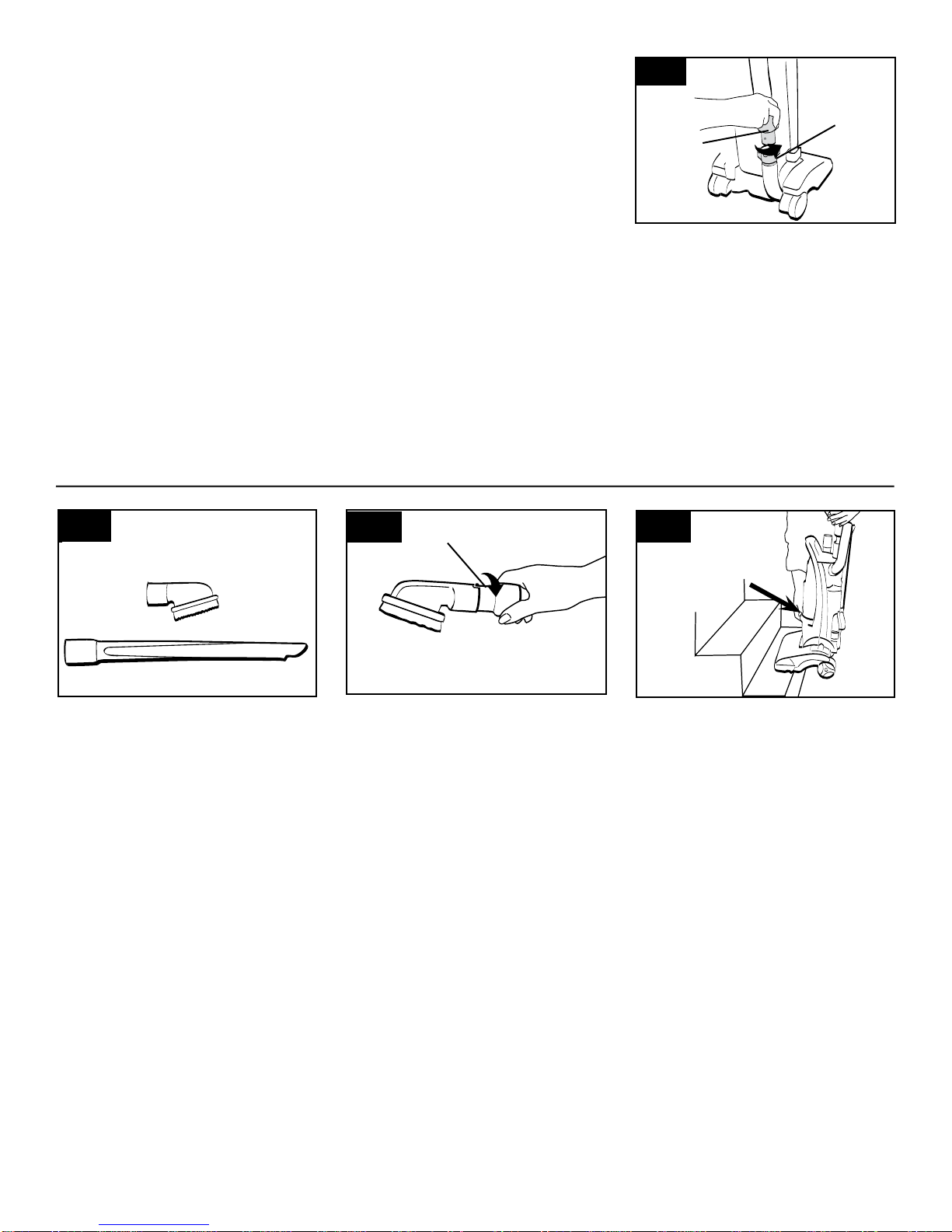

Removing hose

When using cleaning tools, place

cleaner handle in the upright posi-

tion. Turn cleaner OFF before dis-

connecting and connecting hose

to hose tube (A).

Twist hose end (B) to remove hose.

When you are finished cleaning with

the tools, reposition hose end into

tube and twist to secure in place.

Select proper tool

C. Dusting brush use for carved fur-

niture, table tops, books, lamps, light-

ing fixtures, venetian blinds, base-

boards, shutters, and registers.

D. Crevice wand may be used in

tight spaces, corners and along

edges in such places as dresser

drawers, upholstered furniture, stairs

and baseboards.

Attach the dusting brush to the end

of the crevice wand for extra reach.

NOTE: For extended above-floor

tool use, it is recommended to

turn the agitator brushroll OFF.

Step on the agitator brushroll

pedal to turn the agitator to

“BARE FLOOR” setting.

2-12 2-14

Continued ➜

2-13

3-2

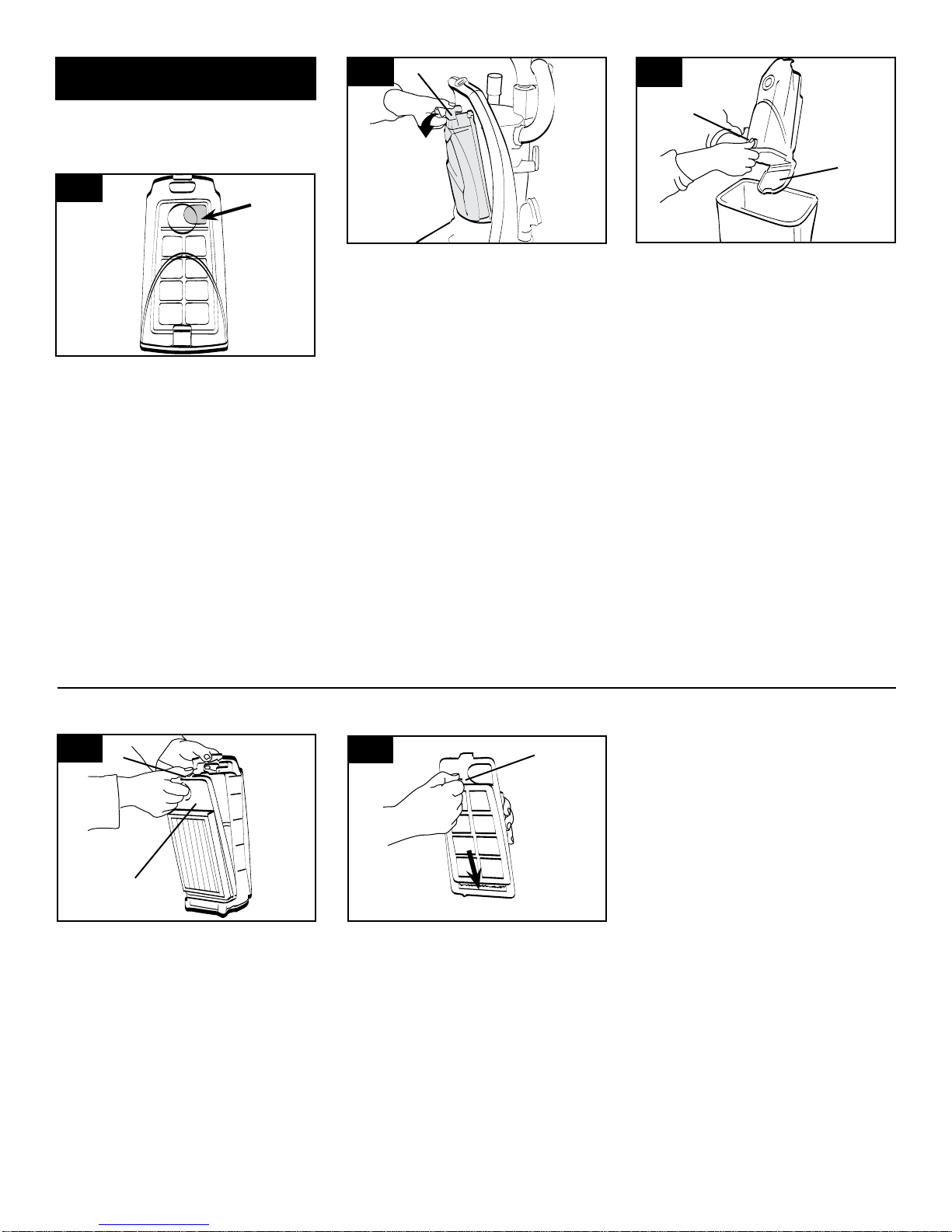

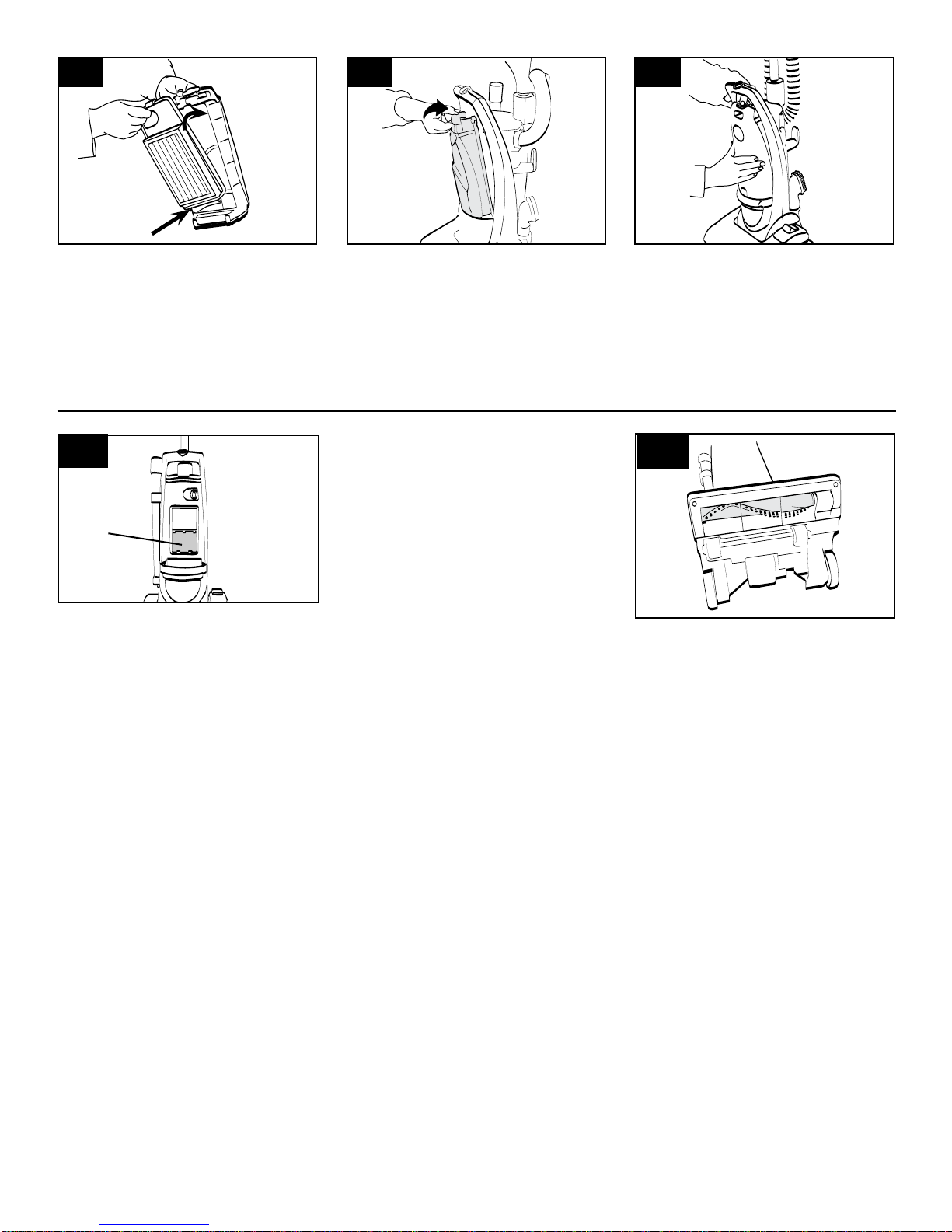

How to empty

Press dirt cup release button (B) and

pivot cup out.

3-1

3. Maintenance

Familiarize yourself with these home

maintenance tasks as proper use and

care of your cleaner will ensure con-

tinued cleaning effectiveness.

When to empty

It is recommended that the dirt cup

be emptied before the dirt reaches

the dirt duct opening (A), or after

every use if preferred. Place the

cleaner in the upright position before

removing the dirt cup.

Disconnect cleaner from electrical

outlet. Do not use cleaner without

dirt cup or filters in place.

CAUTION: Very fine materials,

such as face powder or corn-

starch, may seal the filter and

cause a reduction in performance.

When using the cleaner for this

type of dust, empty the cup and

clean the filters often.

Dirt cup

Allergen (pleated) filter

Cleaning filters

Hold dirt cup over trash receptacle.

Press dirt cup door release button (C)

to open dirt cup door (D). Larger

debris collected in the dirt cup will fall

out.

3-3

3-5

3-4

Disconnect cleaner from electrical

outlet. Do not use cleaner without

dirt cup or filters in place.

Press tab (A) located on back of dirt

cup to remove filter frame assembly

(B).

Pull up on tab (C) on the filter screen

to remove. Brush the screen with the

dusting brush to clean.

Fit hooks on filter screen over ridge at

bottom of frame assembly and press

screen until tab (C) snaps in place.

Belt replacement

The belt is located under the cleaner

hood and should be checked from

time to time to be sure it is in good

condition.

When to replace

Disconnect cleaner from electrical

outlet. WARNING: Agitator brush-

roll can start suddenly. Unplug

cleaner before replacing belt.

To check the belt, remove hood as

shown in Items 3-10 through 3-12.

Replace belt if it is stretched, cut or

broken.

What to buy

To assure effective operation, use only

genuine HOOVER belts with your

cleaner. When purchasing a new belt,

ask for HOOVER belt package No.

40201-280 (belt part No.

2BEB120800300).

3-9

Final filter

Disconnect cleaner from electrical

outlet. Do not operate cleaner

without dirt cup or filters in place.

Remove dirt cup as described in Fig.

3-2.

Press on dirt cup release button while

firmly pressing on dirt cup.

Release button in order for it to return

to proper position and lock the dirt

cup into place.

Do not operate cleaner without

dirt cup or filters in place.

Place bottom of dirt cup into cleaner

body first. Pivot cup into cleaner

body.

3-73-6 3-8

Remove black foam filter (A) from

underneath tabs. Rinse foam filter

under cold water.

Allow filter to air dry for 24 hours

before replacing filter into cleaner.

Reposition filter by inserting under

tabs on back of housing.

What to buy

When purchasing a new final filter, ask

for HOOVER filter package No.

40110-013 (filter part No.

1BEB124710000).

With pleated filter facing outward,

align tabs at bottom of filter frame

assembly with slots in bottom of dirt

cup.

Snap filter frame into place.

Continued ➜

3-10

Replacing flat belt

Disconnect cleaner from electrical

outlet.

Put agitator brushroll in the HARD

FLOOR position.

WARNING: Agitator brushroll can

start suddenly. Unplug cleaner

before replacing belt.

Lay cleaner flat with bottom of cleaner

facing up as shown.

3-19

Reposition agitator cover over

agitator. Replace 2 screws.

3-16

3-11 3-12

3-14

3-13

3-15 D

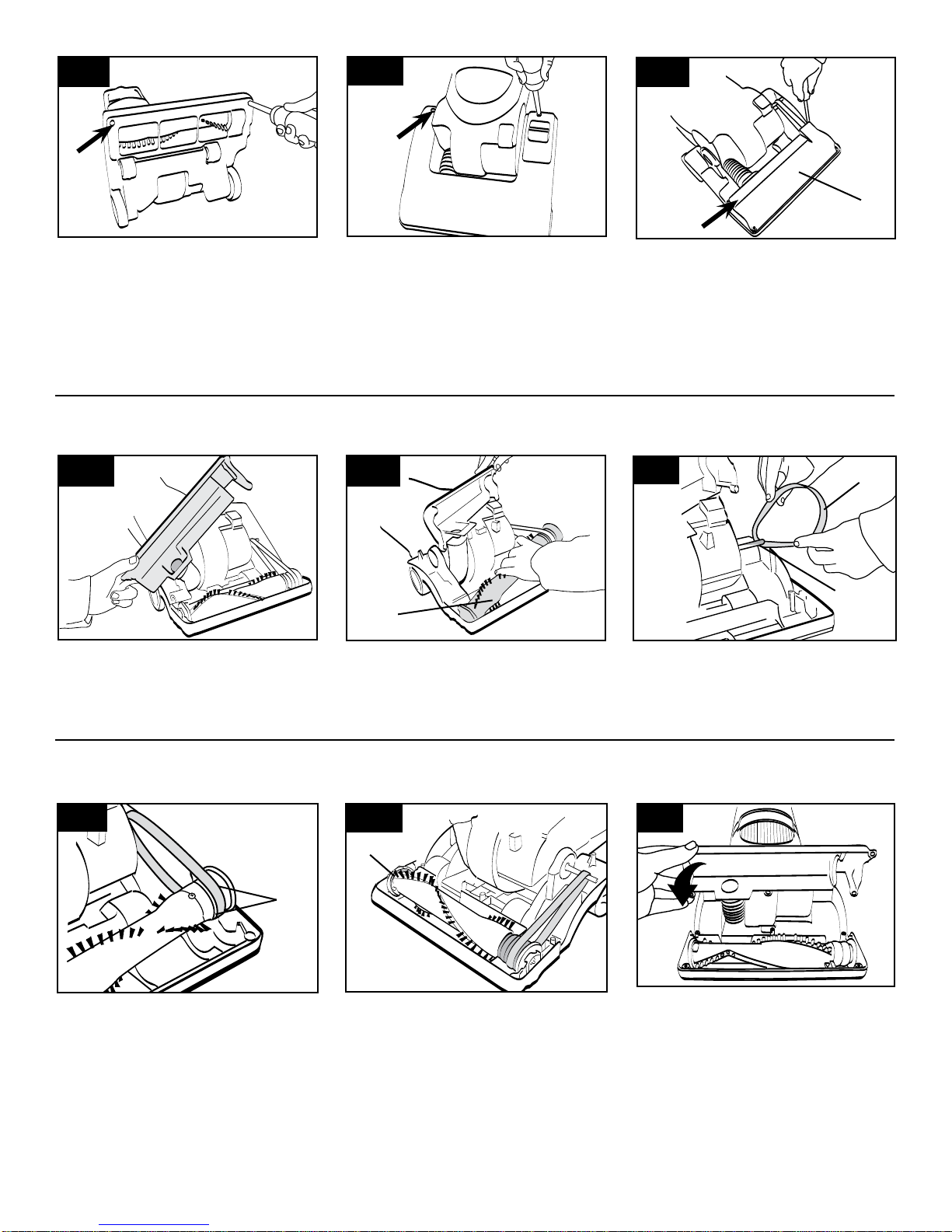

Position new belt on agitator

brushroll

With lettering on outside of belt, insert

agitator brushroll through belt and

position belt in groove (F) on agitator

brushroll.

Installing agitator brushroll

Grasp agitator brushroll firmly and fit it

into position by first sliding end oppo-

site the belt into the rectangular slot

(G) on side of cleaner.

Pull other side of agitator brushroll

into place.

3-17 3-18

Remove 2 screws from bottom plate. Removing hood

Lower cleaner base so it is flat on the

floor.

Remove 2 screws located at back of

hood (A). Lift hood off.

Remove 2 screws on agitator cover

(B).

Grasp agitator (C) and pull up to

remove from agitator cavity. Slide belt (D) off agitator.

Remove belt from motor shaft (E).

Discard used belt.

Lift agitator cover off.

Table des matières

Langues :

Autres manuels Hoover Aspirateur

Hoover

Hoover TS2065 001 Manuel utilisateur

Hoover

Hoover CLEANSLATE Manuel utilisateur

Hoover

Hoover FLOORMATE DELUXE FH40160 Series Manuel utilisateur

Hoover

Hoover VAPORLITE Manuel utilisateur

Hoover

Hoover Synua Plus Manuel utilisateur

Hoover

Hoover Telios TE70TE12 Manuel utilisateur

Hoover

Hoover DUST MANAGER Manuel utilisateur

Hoover

Hoover DS22PTG Manuel utilisateur

Hoover

Hoover Platinum Collection Manuel utilisateur

Hoover

Hoover HandiVac 7.2 Manuel utilisateur

Hoover

Hoover Guardsman C1633 Manuel utilisateur

Hoover

Hoover Commercial WindTunnel Manuel utilisateur

Hoover

Hoover CP70 Manuel utilisateur

Hoover

Hoover FloorMate Deluxe Manuel utilisateur

Hoover

Hoover Space Explorer series Manuel utilisateur

Hoover

Hoover U5415 WT Manuel utilisateur

Hoover

Hoover Vortex Pro 5231 Manuel utilisateur

Hoover

Hoover 5013PH Dog & Cat Manuel utilisateur

Hoover

Hoover Slider Slider Vacuum Cleaner Manuel utilisateur

Hoover

Hoover U5780900 - WindTunnel Cyclonic Bagless Upright Vacuum... Manuel utilisateur

Hoover

Hoover FH50035 - SteamVac Carpet Cleaner Manuel utilisateur

Hoover

Hoover 7011PH Allergy Manuel utilisateur

Hoover

Hoover Sensory Ecobox System Manuel utilisateur

Hoover

Hoover HSV-AC2IN1 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
