Honeywell Magic Stat MS3000 Manuel utilisateur

, DISPLAY WINDOW

See pages 1-3 for

description of keys.

PROGRAM

EACH

DAY DIFFERENTLY

copy

THE FIRST DAYS PROGRAM TO ALL 7 DAYS

,30,

SIMPLE PROGRAMMING

It’s easy to program the thermostat to fit your lifestyle.

1. Move the power switch to ON.

2. Hold MODE key until 12:00 AM shows in display.

3. Use SLOW key to set the time of your first program. Hold to go forward; tap to go back.

4. Use HEAT and COOL keys to set temperatures for your first program. For heat, hold

HEAT key to go higher, tap to go lower. For air conditioning, hold COOL to go lower, tap to go

higher.

5. Set all other programs by repeating steps 3 & 4. Press MODE to lock in for all 7 days.

6. Hold MODE until SET CLOCK shows in display. Use FAST, then SLOW to move to

current time and day. (Clock only accurate to within 10 minutes. ) Tap MODE to lock in (tempera-

ture and set point indicators will appear).

7. To review programs, hold FAST or SLOW key.

—..

TABLE OF CONTENTS

Quick Reference to the Keys . . . . . . . . . . . . . . . . . . . . .. I

Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...4

Programming Your Thermostat . . . . . . . . . . . . . . . ...5

Set the Program Schedule and

Temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...5

Set the Current Day and Time . . . . . . . . . . . . . ...10

Check Your Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

..I2

Option—Adding an Extra Nighttime

Set Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

..l3

Set the Fan Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...14

Changing Your Program

. . . . . . . . . . . . . . . . . . . . . . . . . ...15

Making Permanent Program Changes . ...15

Erasing the Entire Program . . . . . . . . . . . . . . . . . . ...18

Making Temporary Program Changes . ...19

Changing for Daylight-Saving or

Standard Time , . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...25

Maintaining Your Thermostat . . . . . . . . . . . . . . . . ...28

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . ...28

Recalibrating the Thermostat . . . . . . . . . . . . . . . ...29

The “Waiting” Indicator During

Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...30

Your Personal Program . . . . . . . . . . . . . . . . . . . . . . . . . . ...31

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . ...32

index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...36

Relay Ordering Information . . . . . . . . . . . . . . . . . . . . ...37

Limited One-Year Warranty . . . . . . . . . . . . . . . . . . . . . . . 41

Welcome to the world of comfort and energy savings with your new Honeywell Magic

Stat@

electronic thermostat. The Magic

Stat@

name is synonymous with innovation and state-of -the-arl

electronic controls.

Your new thermostat will automatically control the temperature in your home, keeping you

comfortable while saving energy when programmed according to the instructions in this manual.

This thermostat includes the Weather

Monitor@

feature. The operation of your furnace or air

conditioner is started early enough to reach the desired temperature at the times you set. There

is no need for you to guess when the system should turn on to reach the desired temperature.

When the outside temperature drops or rises dramatically, the thermostat activates earlier or

later to meet the next programmed setting,

——

TABLE OF CONTENTS

Quick Reference to the Keys . . . . . . . . . . . . . . . . . . . ...1

Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...4

Programming Your Thermostat . . . . . . . . . . . . . . . ...5

Set the Program Schedule and

Temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...5

Set the Current Day and Time . . . . . . . . . . . . . ...10

Check Your Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...12

Option—Adding an Extra Nighttime

Set Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

..l3

Set the Fan Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...14

Changing

Your Program . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Making Permanent Program Changes . ...15

Erasing the Entire Program . . . . . . . . . . . . . . . . . . . . . 18

Making Temporary Program Changes . ...19

Changing for Daylight-Saving or

Standard Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...25

Maintaining Your Thermostat . . . . . . . . . . . . . . . . ...28

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . ...28

Recalibrating the Thermostat . . . . . . . . . . . . . . . ...29

The “Waiting” Indicator During

Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..3o

Your Personal Program

. . . . . . . . . . . . . . . . . . . . . . . . . . ...31

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . ...32

index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...36

Relay Ordering information . . . . . . . . . . . . . . . . . . . . ...37

Limited One-Year Warrant y . . . . . . . . . . . . . . . . . . . . . . . 41

QUICK REFERENCE TO THE KEYS

Use to program heating temperatures. To raise the temperature by 2° increments,

press and hold the key. To lower the temperature, tap the key.

Heat

Use to program air conditioning temperatures. To lower the temperature by 2°

increments, press and hold the key. To raise the temperature, tap the key.

cool

On Off

allows

for thermostat operation. OFF erases

any

program and disables the

m—l

furnace and air conditioner.

Power

Auto On AUTO sets the fan to turn on and off with the heating or air conditioning system.

m—[

;~i~~~

the fan to run continuously. (Applicable only to systems with more than

Fan

60-8026—2

Before the thermostat is programmed, holding this key sequences through

PROGRAM and SET CLOCK. After the thermostat is programmed, holding this key

Mode sequences through the 4 functions; release when desired function is reached. The

four functions include:

PROGRAM—allows you to program the heating and cooling temperature points,

at 2 to 6 different times per day, for each day of the week.

SET CLOCK—allows you to enter the current time to within 10 minutes.

HOLD—allows you to set and hold one temperature until you choose to change

it. This feature can be used only after the thermostat has been programmed. See

page 20.

HOLD UNTIL—allows you to set and hold one temperature for up to a week; it

will return to your normal schedule at a time and day you set. This feature can be

used only after the thermostat has been programmed. See page 22.

Tapping the Mode key interrupts function sequencing, and returns to display of

present room temperature.

When in SET CLOCK mode, hold key to advance clock time in 4 hour

incre-

Fast

ments. To step the clock backward by 4 hour increments, tap the key.

When in PROGRAM mode, use to review entered programs. Hold key to

advance to next programmed temperature range; tap to back up.

When in SET CLOCK mode, hold key to advance clock time in 10 minute

slow increments. To step the clock backward by 10 minute increments, tap the key.

When in PROGRAM mode, hold key to advance program time in 30 minute

increments. To step the time backward by 30 minute increments, tap the key.

69-8026-2

.LOvbw

r--AM 311V8

3N11V)11V

AH3..LV83H1

9N111V1SNI

PROGRAMMING YOUR THERMOSTAT

You may program this thermostat either before or after installation. See installation manual

form number 69-8025 for installation instructions.

If you are programming the thermostat before installation, be sure the battery is installed (see

page 4). During programming, if you leave the thermostat for a few minutes, it will go blank to

save battery power. This does not affect your program; hold HEAT key to relight the

display.

STEP 1

SET THE PROGRAM SCHEDULE AND TEMPERATURES

Before you begin... The schedule form on page 31 provides an opportunity to plan your

schedule. Please fill it out before you begin.

On Off Open right-hand door of thermostat. Switch to OFF to clear the thermostat.

Power

69-8026—2

On Off

Switch ON. The display shows this test position.

60 70 80 90

1111111111111111111

mmmmmmmm mmmmmmmmmmm

18:80

:y&kyMK

AM PM

~~};~nL

■ ■ ■ ■ ■ ■ ■

SMTWTFS

A few seconds later, the display looks like this.

60 70 80 90

1111111111111111111

■

mmmmn

■ mmmnmm

SMTWTFS

ROOM

TEMPERATURE

OISPLAYEO

-—-

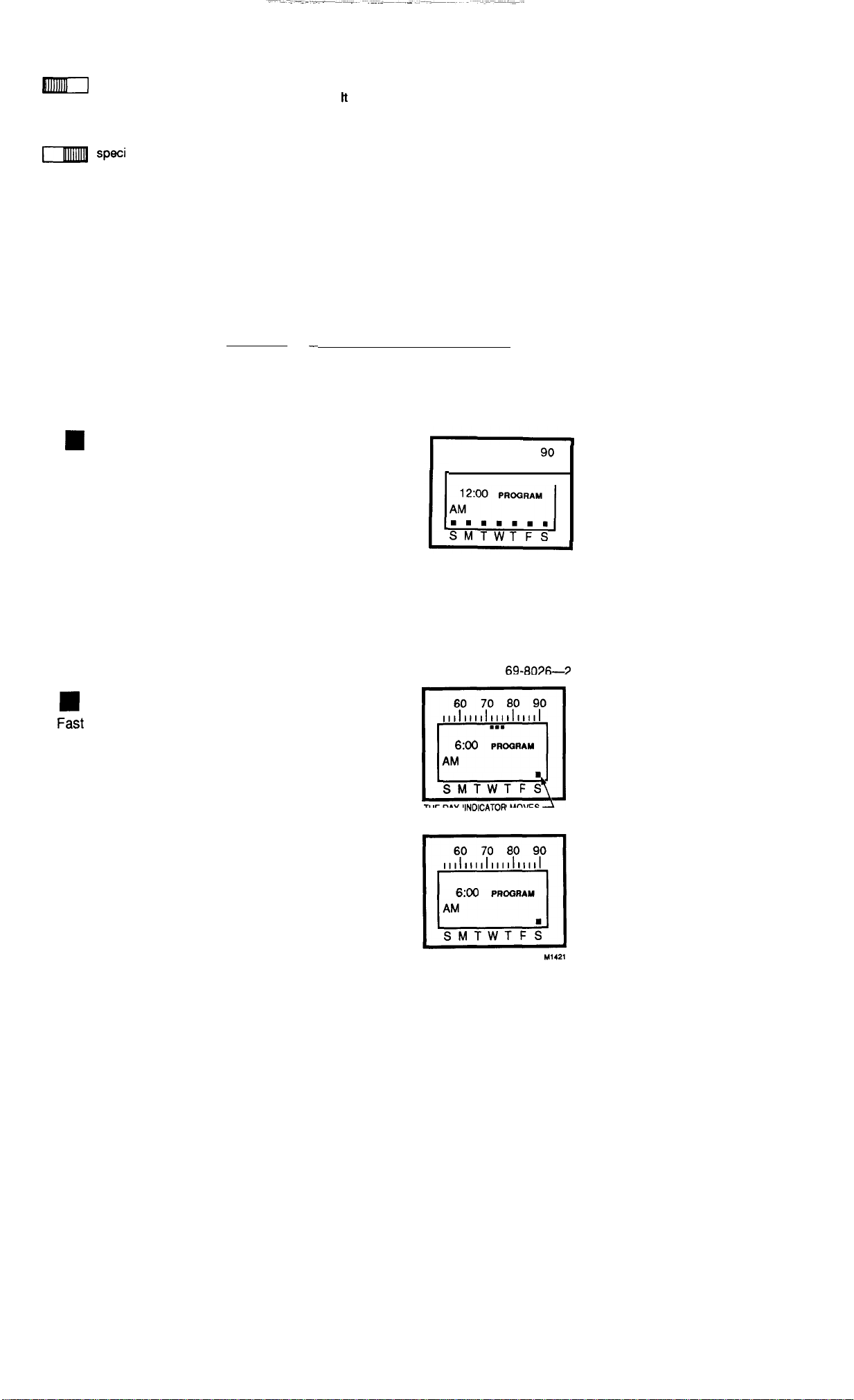

To begin programming, press and hold until the

display looks like this. If you pass this display,

‘ode continue to hold key until this display comes back.

NOTE: All seven day indicators are onto tell you that

you are programming every day of the week the

same. You will be able to change individual days

later.

To set the first time program, press and hold until

the display shows the time you want to wake up

(6:00

“ow AM shown).

The time advances in 30-minute intervals. You can

back up by tapping the key; go forward by holding the

key.

60 70 80 90

~1111

,1111,11,1,11111

12:00

PROGRAM

60 70 80 90

,1,1,,,,1,,,,1,,,,1

6:00

PROGRAM

■ ■ ■ ■ ■ ■ ■

SMTWTFS

69-8026—2

To set the first temperature program, press and

TEMPERATURE SET POINT INDICATORS

hold until the display shows the temperature you want

when you wake up during the heating season (72°

60 70 80 90

Heat shown) .Youcan backup bytapping thekey. 111111111111111 II

¤~~~~~ ■ mw

The LEFT temperature set point indicator should be stopped

6:00

PROGRAM

under the heating temperature you desire when you wake up, with ‘M

a maximum of 80°

■ mmmmnm

SMTWTFS

If you have air conditioning, press and hold until

the display shows the temperature you want when

you wake up during cooling season (76° shown). You

COOi

can backup by tapping the key. You must have a 6°

or greater difference between heat and cool tempera-

ture settings.

TEMPERATURE SET POINT INDICATORS

60 70 80 90

1111111111 1111111

●

PRCGRAM

■ mmmumm

SMTWTFS

The RIGHT temperature set point indicator should be stopped under the cooling temperature

you desire when you wake up, with a minimum of 62° F.

To set additional program times and temperatures, repeat steps starting on lower

half of page 7 through here. First set a time, then enter heating and cooling tem-

peratures desired at that time.

You must set at least one more time/temperature schedule, and may set up to a total of 6 per

day. They must beat least 30 minutes apart.

After programming is complete, hoId to lock in

place. It is now copied into all 7 days of the. week. If

60 70 80 90

Mode YOU

want

different

programs for different days, see1111111

llllllllilll

page

15.

12:30

SET CLOCK

;MTwITFs

69-8026—2

STEP 2

SET THE CURRENT DAY AND TfME

Now you will set the current day and time of day.

Press until the display looks like this.

Mode

Press until you reach the correct day (Wednesday

shown) and approximately the correct time, within 4

‘ast

hours. (Hold the key to advance the time in 4 hour

increments, tap the key to back up. )

60 70 80 90

1111111111111111111

sET CLOCK

12:30

;MTWTFS

60 70 80 90

1111111111111111111

8:00

SET CLOCK

SMTTFS

WEDNESDAY SHOWN’

■

Press until you reach the exact time, within 10

minutes. (Hold the key to advance the time in 10-

“ow minute increments, tap the key to back up. )

Tap to store the time and date in the thermostat’s

Mode memory. The normal room temperature display

will

return.

60 70 80 90

1111111111111111111

8:20

SET CLOCK

SMT;

TFS

60 70 80 90

1111111111111111111

●

.mmmm

SMTWTFS

ROOM TEMPERATURE

DISPLAYED

69-8026—2

STEP 3

CHECK YOUR

SETIINGS

Press until PROGRAM shows in the display.

Mode 60 70 80 90

1111111

lllllllillll

■

6:00

PROQRAM

■ nmnmmm

SMTWTFS

Press to review each program you have set.

Fast

.- —

Press until normal temperature display returns.

Mode

60 70 80 90

1111111111111111111

■

mmmmm

SMTWTFS

ROOM TEMPERATURE

DISPLAYED

STEP 4

OPTION-ADDING AN EXTRA NIGHITIME SET POINT

If you have not used all 6 set points in any given day, consider programming a second

nighttime set point.

For example, if your regular bedtime is 10:30 p.m., put in a 1:00 a.m. set point that is the

same temperature as the 10:30 p.m. set point. The entry of the second set point ensures that

even if

you stay up past

your bedtime and override your program, you won’t have to remember

to set the thermostat back when you go to bed.

69-8026—2

STEP 5

SET THE

FAN SWITCH

Auto On

FAN AUTO: Normal or energy saving setting for most homes. The fan goes on

m—l

and off with the air conditioner in summer. In winter, the fan on most systems starts

Fan a few minutes after the furnace comes on.

stops a few minutes after the furnace

goes off. The fan starts and stops with the furnace in some electric heat systems.

Auto On

FAN ON: The fan runs continuously. Use for improved air circulation during

speci

a occasions or for more efficient electronic air cleaning.

Fan

—

CHANGING YOUR PROGRAM

MAKING PERMANENT PROGRAM CHANGES

Press until display shows PROGRAM.

Mode 60 70 80

1111111111111111111

slvf-rw

TFs

69-8071i-9

Press to review programs; notice the day of the

week indicator position change as you review the

60 70 80 90

Fast programs. When the day and time you want to

1111111111111111111

■ ■ ■

change is displayed, release.

6:00

PROGRAM

SMTWTF;

THE DAY

INOICATOR

MOVES

AS YOU REVIEW

■ ■

To erase a program, hold both buttons

down until set point indicators disappear.

60 70 80 90

1111111111111111111

Heat cool

6:00

PROGRAM

SMTWTF;

M1421

Display new time by holding (to advance) or

tapping (to back up).

9‘ouwant

Hold to set heating and cooling set points

Heat cool

Verify change by holding (to advance) or tapping

~=t

(to back up).

Repeat steps on pages 15-17

until

all changes you

want are made.

60 70 80 90

1111111111111111111

8:00

PROGRAM

sMTWTF;

60 70 80 90

,,,1,,,,1

,111111111

●

mmmmm

8:00

PROGRAM

SMTWTF~

69-8026-2

Tap to store the changes in the thermostat’s

Mode

memory.

60 70 80 90

1111111111111111111

●

mmm. m

SMTWTFS

RCQM

TEMPERATURE

DISPLAYED

ERASING THE ENTIRE PROGRAM

On Off To erase the existing program completely, turn power switch OFF...

pmuuJl

On Off

. ..then ON.

Until you reprogram (see page 5), a factory-installed program will operate the

heating system at 68° F, the cooling system at 78°

MAKING TEMPORARY PROGRAM CHANGES

The “shotl term hold” feature lets you custom-tailor the program for those times when

someone comes home early, or you’re staying up late, or you plan to be out for the evening.

To temporarily raise or lower the temperature for the current period only:

Press to change the heating or cooling

set point (shown with heat setting holding at

60 70 80 90

■

orm

62°).This

change will stay in

eff~

only

~ntil

Heat

1111111111111111111

COOI the next scheduled program change. ● m.......

ROOM TEMPERATURE

DISPLAYED

69-8026-2

The

“long

term hold” feature is particularly useful when you go on vacation or other extended

absence. It

~oes

not cancel your program.

Press and hold until the display shows HOLD.

Mode

Heat

Mode

cool

60 70 80 90

1111111111111111111

■ ■ ■ ■

NOLD

SMTWTFS

Tap or hold until temperature indicators

show the range at which you want the

thermostat to maintain the heating and

cooling temperatures.

60 70 80 90

1111111111111111111

■

mmmmmmwm

HOLD

SMTWTFS

To cancel HOLD, press and hold until HOLD

disappears from display. Continue to hold until you

see the normal room temperature display.

Your regular program will resume at the next

programmed time.

60 70 80 90

,,,1,,,,1,,,,1,,,,1

●

mmmmm

SMTWTFS

ROCJM

TEMPERATURE

DISPLAYED

69-8026—2

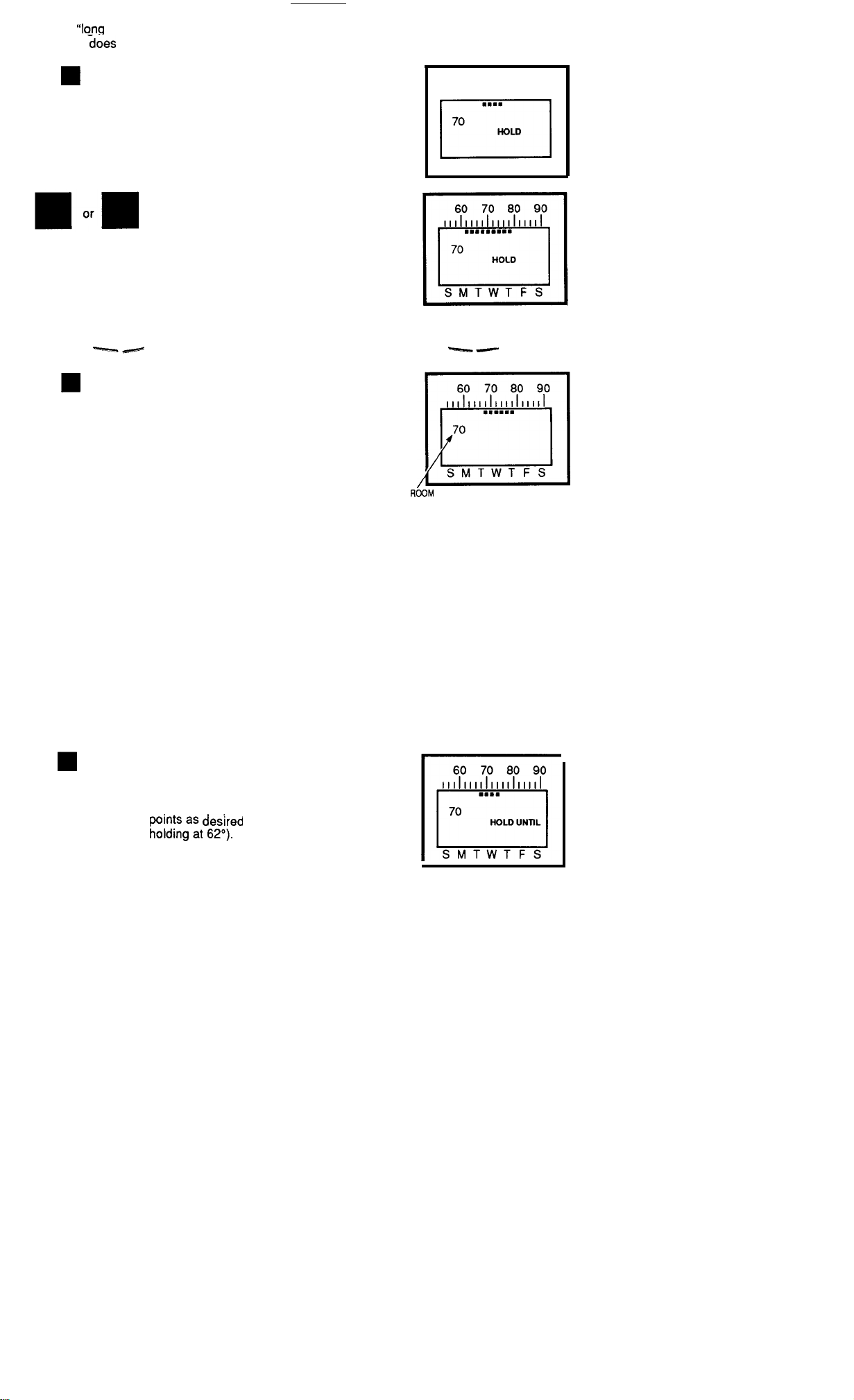

The “HOLD UNTIL” feature holds the temperature range for up to a week, and then cancels

it, returning control to your program so your home is at the comfort level you want when you

ret urn.

Press until HOLD UNTIL is displayed.

Mode

60 70 80 90

1111111111111111111

●

mmm

■ ‘r~

h~dingat~p:).

Use to change heating and cooling set

points as

desred

(shown with heat setting

NOLD UNTIL

Heat cool SMTWTFS

Press and hold to step through your weekly

program until you reach the day and time at which

‘ast

you want the thermostat to resume normal pro-

grammed operation (shown holding until

10:30

PM 011

Sunday).

Press once,

Mode

60 70 80 90

Illlill

llllllllllll

.m.

m.m.

mmm.

60 70 80 90

1111111111111111111

.mam

NOLD UNTIL

SMTWTFS

69-8026—2

To cancel HOLD UNTIL early, hold key until the

display cycles through the various displays. Release

60 70 80 90

Mode the key when it cycles to the normal display of room

11111,,111,,111,,11

temperature.

.mmm.

Your regular program will resume at the

nexl

programmed time.

SMTWTFS

ROOM TEMPERATURE

DISPLAYED

CHANGING FOR DAYLIGHT-SAVING OR STANDARD TIME

To move clock ahead an hour in spring, hold key

60 70 80 90

Mode

until SET CLOCK shows.

1111111111111111111

SET CLOCK

10:30

■

SMTWTFS

Press and hold until clock advances 1 hour.

slow

60 70 80 90

1111111111111111111

SET CLOCK

11:30

SMTWTF;

69-8026-2

Autres manuels pour Magic Stat MS3000

Table des matières

Autres manuels Honeywell Thermostat

Honeywell

Honeywell Y87RF Manuel utilisateur

Honeywell

Honeywell FocusPRO TH5000 Series Manuel utilisateur

Honeywell

Honeywell TB7100A1000 - MultiPro Commercial Thermostat Manuel utilisateur

Honeywell

Honeywell RLV430 Manuel utilisateur

Honeywell

Honeywell T6570 Series Manuel d'utilisation

Honeywell

Honeywell RLV4300 Manuel utilisateur

Honeywell

Honeywell PRO TH4110D Manuel utilisateur

Honeywell

Honeywell MagicStat /28 Manuel utilisateur

Honeywell

Honeywell RTHL2510 series Manuel utilisateur

Honeywell

Honeywell VisionPRO Wi-Fi TH8320WF Manuel utilisateur

Honeywell

Honeywell Y9520Z Sundial RF2 Pack 5 Manuel utilisateur

Honeywell

Honeywell VisionPRO Wi-Fi TH8320WF Manuel utilisateur

Honeywell

Honeywell T8621A Manuel utilisateur

Honeywell

Honeywell THX9000 Prestige HD Guide de l'utilisateur

Honeywell

Honeywell FocusPRO 6000 Series Manuel utilisateur

Honeywell

Honeywell Tradeline T7300F series 2000 Manuel utilisateur

Honeywell

Honeywell T4800A/CT1750A Manuel utilisateur

Honeywell

Honeywell VisionPRO Series Manuel utilisateur

Honeywell

Honeywell 69-1490 Manuel utilisateur

Honeywell

Honeywell ST6300 Manuel utilisateur

Honeywell

Honeywell 7351F Guide de l'utilisateur

Honeywell

Honeywell CM507A Manuel utilisateur

Honeywell

Honeywell TH8321WF1001 Manuel utilisateur

Honeywell

Honeywell TROL-A-TEMP T874A Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur

Aube Technologies

Aube Technologies TH305 Manuel utilisateur

Powtier Controls

Powtier Controls 505MST Manuel utilisateur

Kanmor

Kanmor Zone Control 369e Manuel utilisateur
