INNCOM e528 Thermostat Installation Guide

Overview

INNCOM’s e528.4G*(the e528)

thermostats utilize a CC2520 2.4 Ghz

IEEE 802.15.4 RF transceiver in their

role as part of the Integrated Room

Automation System (IRAS). The

integration of the radio on-board the

PCBA, along with other component

changes, makes for a simpler, more

efficient, and more cost-effective device.

(Note that the legacy e528 and e528.4G

are very similar in look and feel. If in

doubt, check the bottom of the unit—the

4G has a photosensor located there.)

Features

The e528 thermostat provides

•Accurate temperature measurement +/- 1 degree F

•Multiple load actuating options from 24VAC–277VAC

•Motion sensor for occupancy detection

•RF transceiver for wireless 2.4Ghz guestroom and backhaul

network communications

•IR transceiver for guestroom network communications

•RS485 for wired backhaul network communications

•External temperature sensor support

Installation

CAUTION!

Disconnect the power supply before beginning installation to

prevent electrical shock or equipment damage. All wiring must

comply with local codes and ordinances.

1. Read instructions carefully. Failure to follow them could

damage the product or create a hazard.

2. Check the ratings given in the instructions and on the product

to make sure the product is suitable for your application.

3. Installer must be a trained, experienced service technician.

4. After installation is complete, check product operation as

indicated in instructions.

5. For variations of these systems, refer to the installation

instructions of the controlled equipment.

Location

Select a location about 1.5m (5ft.) above the floor with good air

circulation at average temperature. Do not mount thermostat

where it may be affected by

•Drafts or dead spots behind doors or in corners

•Hot or cold air from ducts

•Radiant heat from sun or appliances

•Concealed pipes or chimneys

*“2G,” “3G,” and “4G” are internal INNCOM product designations used for

convenience to differentiate individual hardware configurations. No

difference in device capability or effectiveness is implied. Due to end-of-life

for certain 2G and 3G components, the e528.4G is now the standard

INNCOM install, but 2G and 3G installations are still supported.

•Unheated (un-cooled) areas behind the thermostat

•If RF equipped, do not install near other RF

sources/transmitters

When the thermostat is equipped with PIR, consider view angle,

range characteristics, and mounting position for proper coverage.

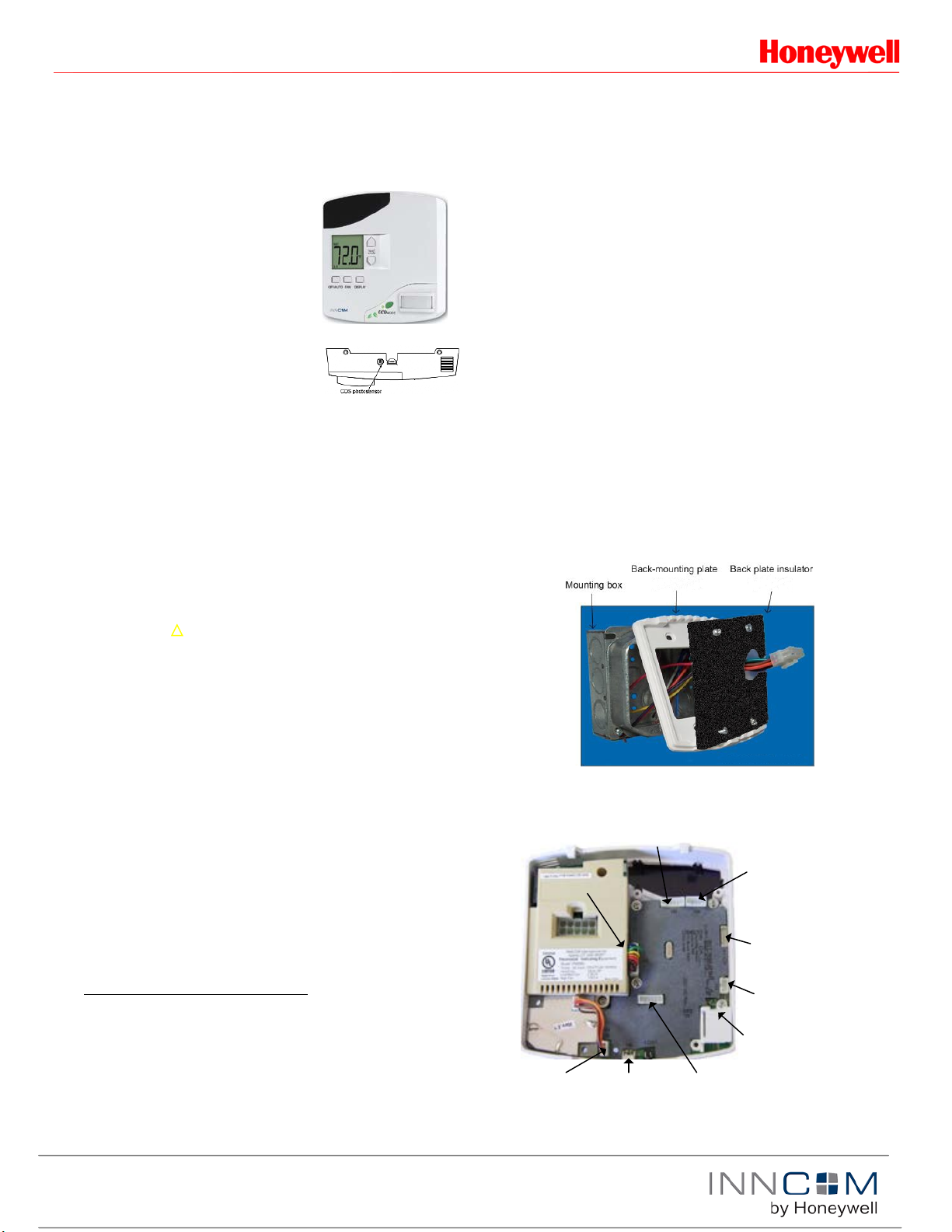

Mounting

INNCOM’s DDC thermostats typically mount on a standard

double-gang (4 x 4) junction box. If mounted on a single-gang

box, the left side (display side) of the e528 overlaps the wall area

to the left of the junction box. A low-voltage mounting plate, mud

ring, or low-voltage caddy may be used for mounting 24 volt

applications.

1. Remove the two small screws at the base of the e528.

2. Pull the bottom of the back-mounting plate slightly away

from the front housing, then pull the back-mounting plate

down.

3. Position the back plate insulator within the mounting plate

as shown in Figure 3 below.

4. Feed wires through the insulator to minimize airflow.

5. Attach the mounting plate to the junction box using the

mounting screws provided. Ensure that the plate is

mounted with the raised arrow pointing UP.

Wiring

Figure 1 E528.4G

Figure 2 E528.4G

Figure 3 E528 Back Assembly

H1 Microprocessor

programming

H7 System 5

header

H8 PIR sensor

H9 IR5

header

H6 ES1 key

H5 RS485 network

header

H4 Power input

H3 Temperature sensor/external

temperature control sensor

H2 Humidity

sensor

Figure 4 E528 Headers

PN 292-100

E528.4G Headers and Connectors

Low-voltage Connections Table

(P/N 62-1467) Pinout

Wire

Color

Female

Connector

Male

Connector

Function

Comment

Brown

Common

Red

12VDC Out/In

12VDC Supply

Orange

S5 Bus Data

Tx/Rx or IN 2

Door,

Window, PIR,

Other

Yellow

IN 1

Door,

Window, PIR,

Other

Green

Blue

Line Voltage Connection Tables

24VAC Harness (INNCOM P/N 62-1464 R) Color Code, Pinout,

and Typical Functions

Color

Typical Function

Green

Ground

Red

24VAC

Black

Common

Blue

High Fan

Brown

Medium Fan or Second Stage Heat

Yellow

Cold Water Valve (FCU) or Compressor

Signal (Heat Pump)

White

Hot Water Valve (FCU) or Reversing Valve

(Heat Pump)

Grey

Valve Power

Violet

Fan Power

Orange

Low Fan

100-277VAC Harness (INNCOM P/N 62-1455) Color Code,

Pinout, and Typical Functions

Color

Typical Function

Green

Ground

Black

Line

White

Neutral

Yellow

High Fan

Orange

Medium Fan or Second Stage Heat

Red

Cold Water Valve (FCU) or Compressor Signal

(Heat Pump)

Brown

Hot Water Valve (FCU) or Reversing Valve

(Heat Pump)

Grey

Valve Power

Violet

Fan Power

Blue

Low Fan

E528.4G Retrofit

Installation

The e528.4G can be used to retrofit an

application where a legacy e528 was

used. Follow the procedure below:

4G to 2G Standalone application:

with/without door switch input (no

backhaul network)

•Using the adapter (P/N 203-013) connect the harness from

the wall box (P/N 62-1462) previously connected to the

thermostat being replaced to H1 of the adapter.

•Connect the harness of 203-013 to H7 on e528.4G

4G to 2G RS485 Networked Application: with or without door

switch input

•Using the adapter (P/N 203-251) connect the harness from

the wall box (P/N 62-1462) previously connected to the

thermostat being replaced) to H1 of the adapter.

•Connect the harness H3 (rainbow) of 203-251 to H7 of the

e528.4G

•Connect the harness H2 (Black) of 203-251 to H5 of the e528.4G

NOTE: Take care to not reverse the connections to the e528.4G!

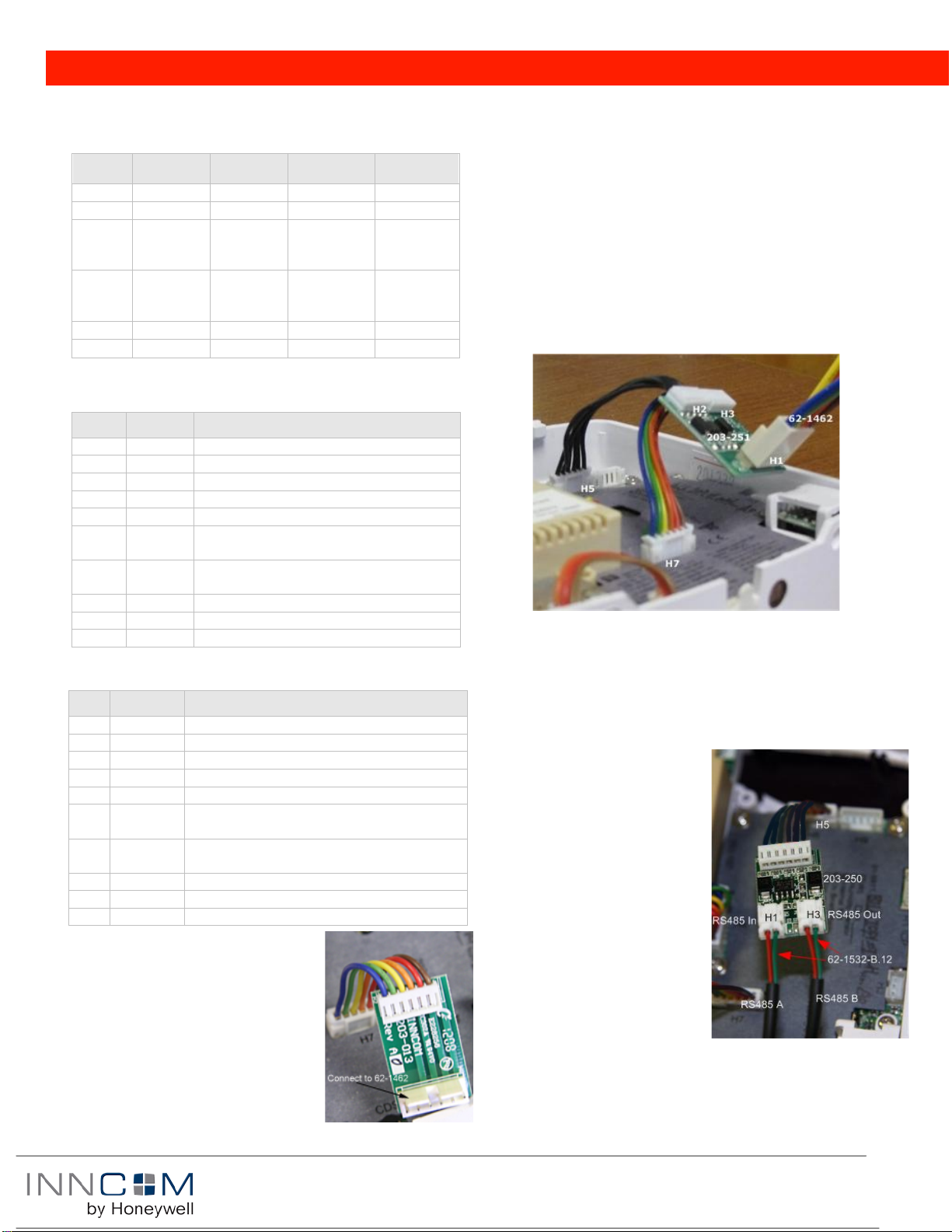

E528 New Installation

Stand alone application with/without door switch input

•Using the harness (P/N 62-1467), make the appropriate wire

connections, then plug the harness into H7 of the e528. Refer

to low-voltage connections diagram.

RS485 Networked Application with/without door switch input

•Using the harness (P/N 62-

1467), make the appropriate

wire connections, then plug

the harness into H7 of the

e528. Refer to low-voltage

connections diagram.

•Using the adapter (P/N 203-

250) and P/N 62-1532-B.12

cables, connect the RS485 in-

coming pair to two pin

header H1 and the out-going

pair going to the next

thermostat to header H3.

•Connect the harness of 203-

250 to H5 of the e528.

Figure 5 4G to 2G RS485 Networked Application

PN 292-100

E528 RF Installation

•Typically only a wired door switch contact would be

required for this application (can also use wireless door

switch contact) or possibly a remote temperature sensor. In

this case, using the harness (P/N 62-1467), refer to low-

voltage communications connections table.

•Connect harness (P/N 62-1467) to H5 of e528.

Power and Actuator Connections

Refer to line voltage connections table

•Use wire nuts to connect the 10-pin Molex wiring harness to

the power and valve/fan control signal wires within the

electrical box. See pre defined commissioning document

which describes the specific wire connections for the

application

•Plug the pre-wired 10-pin connector into the female

receptacle at the back of the e528. Note: this will connect the

unit to the input power and relays to the loads.

Note: When using mixed voltage, voltage separation must be

maintained. Line voltage must reside in the right side of the gang

box. Low voltage must reside in the left side of the gang box.

•Hook the tabs at the top rear of the e528 housing into the

matching depressions at the top of the mounting plate and

rotate the bottom of the housing toward the wall until it

snaps into place on the mounting plate.

•Secure the housing to the mounting plate with the two small

screws removed in Step 1 of the Mounting section.

•Apply power to the e528 by closing the applicable supply

breaker. Verify that the e528 powers up. Values should

begin appearing on the LCD display.

Commissioning

The e528 digital thermostat requires configuration to work

effectively. The most basic configuration is “binding” the room to

the Room ID (usually the room number) to avoid cross

communication between devices. (For commissioning of complex

systems, please refer to the property specific commissioning

document). Room IDs are 5 digit numbers (X YY ZZ, with zeros

as placeholders where needed) ranging from 1 to 65535. To set

Room ID

•Enter Service Mode:

•Press and hold °F/°C

•Press and release OFF/AUTO

•Press and release DISPLAY

•Release °F/°C

•Go to rid (Room ID)

•Press OFF/AUTO. Default Room ID 65535 will scroll

•Set highest digit (0–6) using the UP/DOWN arrows. Press

DISPLAY

•Set middle 2 digits (0–99). Press DISPLAY

•Set lowest 2 digits (0-99). Press DISPLAY. The new number

will scroll across LCD. The e528 will return to the menu list

Technical Specifications

Power Requirements

24 VAC at 50/60 Hz, 2.4 VA (e528-9xx)

100–277 VAC at 50/60 Hz, 2.4 VA (e528-8xx)

Relay Contact Rating

See table below

Triac Relay Contact

Rating

50m at minimum, 250m at maximum (e528-

4xx)

Recommended Wire

Size

18 gauge

Thermostat

Measurement Range

33–99 °F (1–37 °C)

Outdoor Air

Temperature

0–99 °F (-18–37 °C)

Display Resolution

Whole degree F, 0.5 °C (0.1 °F in test mode)

Standard Deadband

2 °F (1 °C) between heating and cooling

°C/°F Display

Toggle Button located on front display

Ambient Operating

41–149 °F (5–65 °C), 0–95% RH noncondensing

Ambient Storage

33–149 °F (1–65 °C)

Dimensions

(HWD) 4.74.71.2in. (12012030mm)

Shipping Weight

0.6lb (0.27kg)

Approvals

UL listed #873, CAN/CSA C22.2 No. 24-93 File

#E202540/Part 15 of the FCC Rules

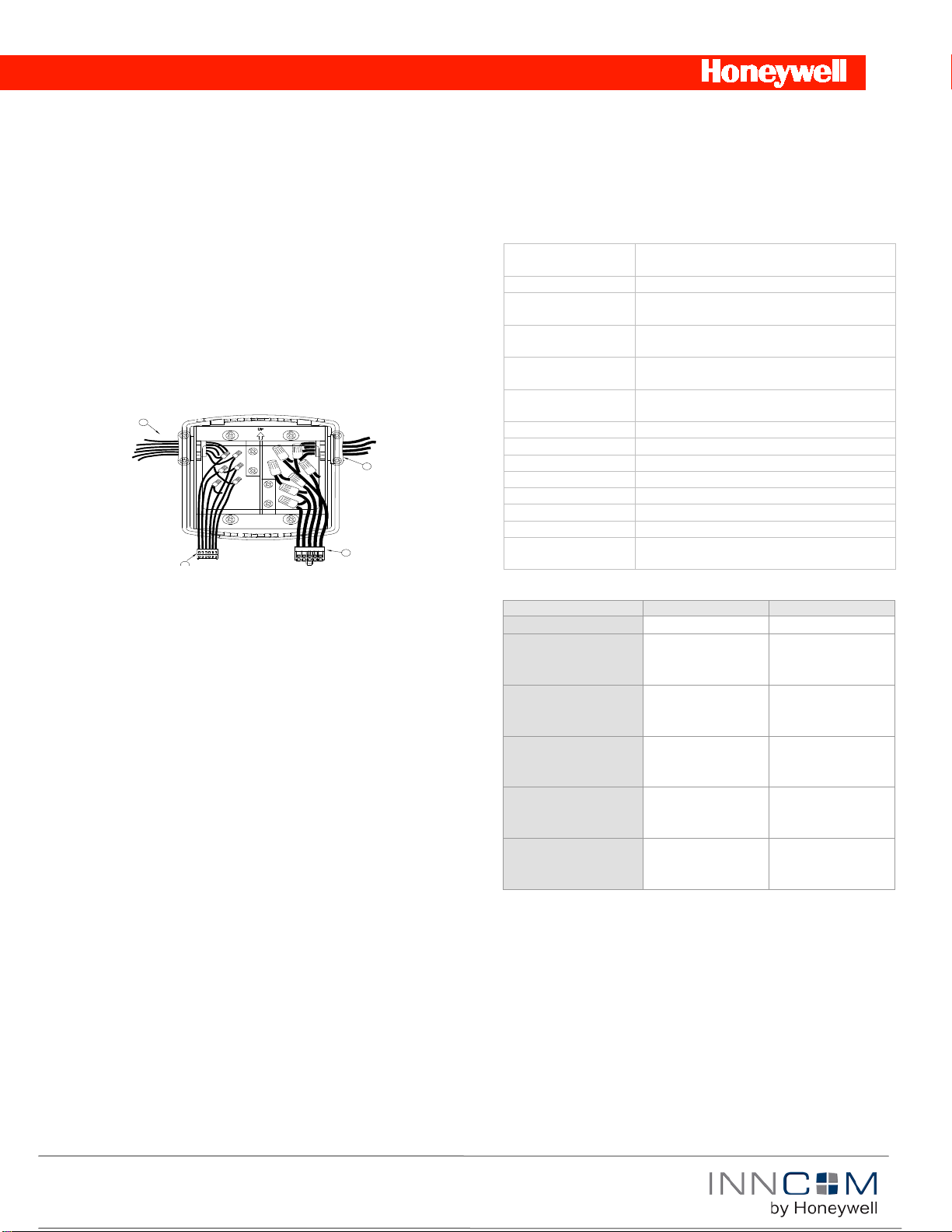

Load Specifications

MODEL

e528-A3L6

e528-B1L6

Voltage

24VAC

100-277VAC

Heat Relay K4-5

3 amps

125

-277VAC

General purpose

240 VA PD

Cool Relay K4-5

3 amps

125

-277VAC

General purpose

240 VA PD

High Fan Relay K1

3 amps

125

-277VAC

General purpose

3.6 FLA

21.6 LRA

Medium Fan Relay K2-3

3 amps

125

-277VAC

General purpose

2.2 FLA

13.2 LRA

Low Fan Relay K2-3

3 amps

125

-277VAC

General purpose

2.2 FLA

13.2 LRA

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

Figure 7 E528.4G Connections

PN 292-100

The followings statements are required in the final product user

manuals:

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the

interference at his own expense.

All Final Products containing the INNCOM TXR 02-9994 should

keep a safe distance of at least 20cm from all persons. The final

product cannot be co-located with any other antenna or

transmitter.

Autres manuels pour INNCOM e528 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Honeywell Thermostat

Honeywell

Honeywell DT92E Manuel utilisateur

Honeywell

Honeywell T6861 Series Mode d’emploi

Honeywell

Honeywell T7200D Manuel utilisateur

Honeywell

Honeywell FocusPRO TH5110D Manuel utilisateur

Honeywell

Honeywell RTH7000 Manuel utilisateur

Honeywell

Honeywell T11A Instructions de montage

Honeywell

Honeywell CT410A Manuel utilisateur

Honeywell

Honeywell T8424C1042 Guide de démarrage rapide

Honeywell

Honeywell T8602A2055 Manuel du système

Honeywell

Honeywell RLV310 Manuel utilisateur

Honeywell

Honeywell TRADELINE T8011R Manuel utilisateur

Honeywell

Honeywell Q539A Manuel utilisateur

Honeywell

Honeywell T8600A-D Manuel utilisateur

Honeywell

Honeywell RTH221 Series Manuel utilisateur

Honeywell

Honeywell THX9000 Prestige HD Guide de l'utilisateur

Honeywell

Honeywell Lyric T5 W Manuel utilisateur

Honeywell

Honeywell B Instructions de montage

Honeywell

Honeywell VisionPRO TH8000 Series Manuel utilisateur

Honeywell

Honeywell TB7200 Series Manuel d'utilisation et d'entretien

Honeywell

Honeywell VTL120 Manuel utilisateur

Honeywell

Honeywell T4360G Manuel d'utilisation

Honeywell

Honeywell Tradeline T8400B1000 Guide de démarrage rapide

Honeywell

Honeywell Round T8700C Manuel utilisateur

Honeywell

Honeywell CM61RF Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur

Aube Technologies

Aube Technologies TH305 Manuel utilisateur

Powtier Controls

Powtier Controls 505MST Manuel utilisateur

Kanmor

Kanmor Zone Control 369e Manuel utilisateur
