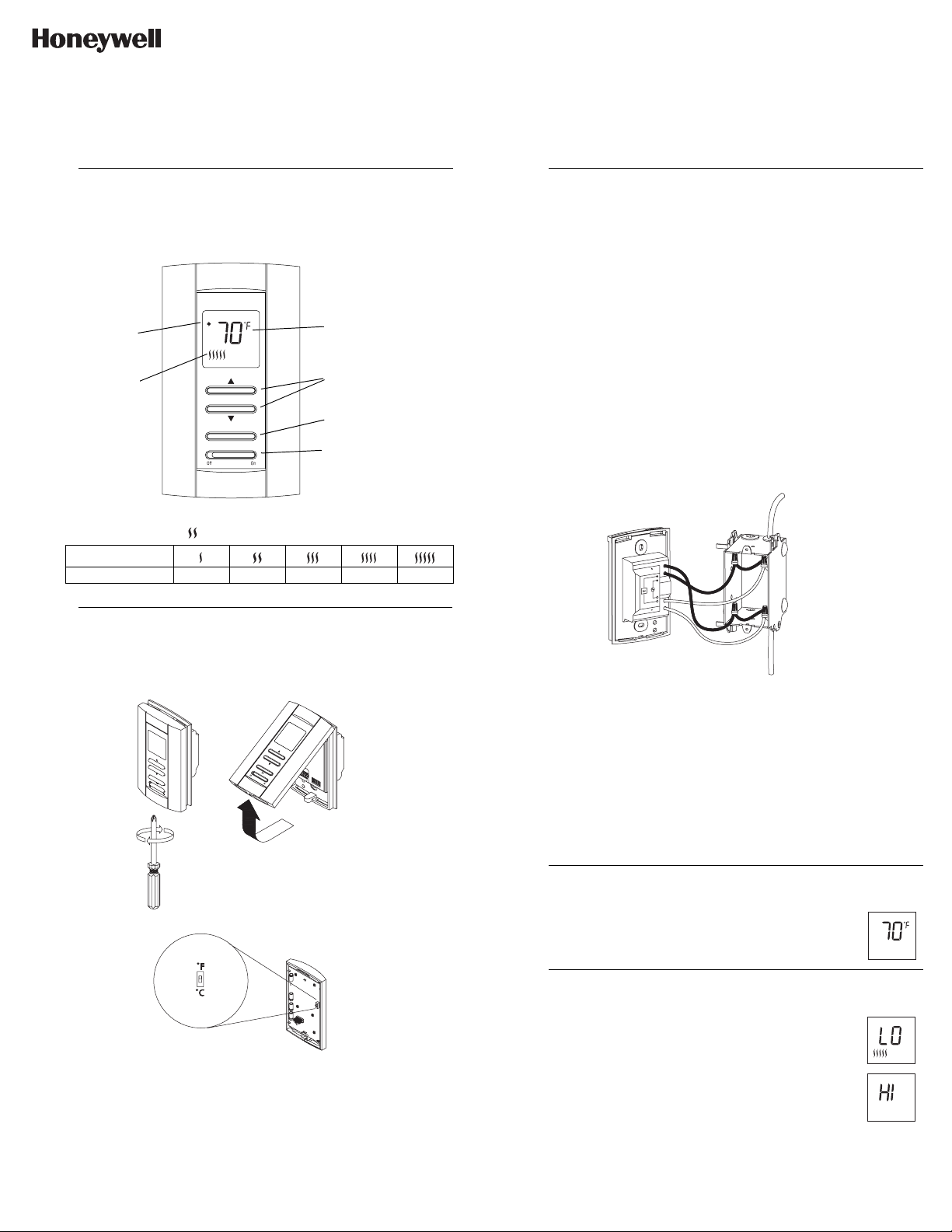

Non-programmable Thermostat - Installation and User Guide

This thermostat can be connected to an electric heater to control the

room temperature.

* The thermostat indicates how much heating is required to maintain the desired

temperature. For example, is displayed when heating is at 40 percent.

The configuration switch is located at the back of the control module

(faceplate). The switch allows you to select between °C and °F

Turn off power to the heating system at the main electrical panel

to avoid electrical shock. The installation should be carried out

by an electrician.

High voltage thermostats must be installed onto an electrical

box.

For a new installation, choose a location about 5 ft. above the

floor and on an inside wall.

The thermostat must be installed on an inside wall facing the

heating system.

Avoid locations where there are air drafts (top of staircase, air

outlet), dead air spots (behind a door), direct sunlight or con-

cealed chimneys or stove pipes.

nConnect the power base wires to the power supply and load

using solderless connectors for copper wires.

oPush the excess length of the high-voltage wires back into the

electrical box.

pSecure the power base to the electrical box using the provided

screws.

qInstall the control module onto the base.

rApply power to heating system.

NOTE: Always keep the thermostat's vents clean and unobstructed.

As soon as the thermostat is powered, it undergoes a

series of tests before displaying the actual temperature.

LO: The measured temperature is below the display

range. Heating is activated.

HI: The measured temperature is above the display

range.

nDescription

Display

% of heating 1 to 24% 25 to 49% 50 to 74% 75 to 99% 100%

oConfiguration

Backlight button

Temperature

adjustment buttons

Set the switch to

Offtocut powerto

the heater

Heating indicator *

Temperature

display

Appearswhen

the setpoint is

displayed

pInstallation

qPower-up

rError Messages

Power

Load

08162

TH114-A-240D

TL7235

400-114-014-B_69-2022-1 (Cadet TL7235) ENG.fm Page 1 Wednesday, October 17, 2007 8:58 AM

08162 / TH114-A-240D / TL7235 69-2022-1 2007-10-17 2/2

Non-programmable Thermostat - Installation and User Guide

The display illuminates for 5 seconds when the backlight button is

pressed. When either of the buttons is pressed, the display illu-

minates for 10 seconds.

The thermostat normally displays the actual temperature. To view the

setpoint, press one of the buttons once. The setpoint will appear

for 5 seconds. To change the setpoint, press one of the buttons

until the desired temperature is displayed. To scroll the setpoint

faster, do not release the button.

Power supply: 208/240 VAC, 50/60 Hz

Maximum load:16 A (resistive only)

3328 W @ 208 VAC

3840 W @ 240 VAC

Setpoint range: 40 °F - 86 °F (5 °C to 30 °C)

Display range: 32 °F - 122 °F (0 °C - 50 °C)

Display resolution: 1 °F (0.5 °C)

Heating cycle length: 15 minutes

Storage: -4 °F to 120 °F (-20 °C to 50 °C)

Remote controller input (ECONO): requires a dry contact

Certifications: CSA/UL

Honeywell warrants this product, excluding battery, to be free from

defects in the workmanship or materials, under normal use and ser-

vice, for a period of one (1) year from the date of purchase by the

consumer. If at any time during the warranty period the product is

determined to be defective or malfunctions, Honeywell shall repair or

replace it (at Honeywell's option).

If the product is defective,

(i) return it, with a bill of sale or other dated proof of purchase, to

the place from which you purchased it, or

(ii) call Honeywell Customer Care at 1-800-468-1502. Customer

Care will make the determination whether the product should be

returned to the following address: Honeywell Return Goods,

Dock 4 MN10-3860, 1885 Douglas Dr N, Golden Valley, MN

55422, or whether a replacement product can be sent to you.

This warranty does not cover removal or reinstallation costs. This

warranty shall not apply if it is shown by Honeywell that the defect or

malfunction was caused by damage which occurred while the prod-

uct was in the possession of a consumer.

Honeywell's sole responsibility shall be to repair or replace the prod-

uct within the terms stated above. HONEYWELL SHALL NOT BE

LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING

ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING,

DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WAR-

RANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF

THIS PRODUCT. Some states do not allow the exclusion or limitation

of incidental or consequential damages, so this limitation may not

apply to you.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEY-

WELL MAKES ON THIS PRODUCT. THE DURATION OF ANY

IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR-

POSE, IS HEREBY LIMITED TO THE ONE-YEAR DURATION OF

THIS WARRANTY. Some states do not allow limitations on how long

an implied warranty lasts, so the above limitation may not apply to

you.

This warranty gives you specific legal rights, and you may have other

rights which vary from state to state.

If you have any questions concerning this warranty, please write Hon-

eywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN

55422 or call 1-800-468-1502. In Canada, write Retail Products

ON15-02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive,

Scarborough, Ontario M1V4Z9.

If you have any questions about the operation of your thermostat,

please go to http://yourhome.honeywell.com, or call Honeywell

Customer Care toll-free at 1-800-468-1502.

sBacklight

tTemperature Setting

uTechnical Specifications

;Warranty

Customer Assistance

10.

400-114-014-B_69-2022-1 (Cadet TL7235) ENG.fm Page 2 Wednesday, October 17, 2007 8:58 AM
