RA-2000 Remote Annunciator

Installation

The optional Model RA-2000 red remote annunciator, shown in

Figure 1, performs the same functions as the on-board

annunciator. Operation is identical. The RA-2000 can be surface

or flush mounted and is available in gray color as

RA-2000GRAY.

Figure 1: Model RA-2000 Remote Annunciator

RA-2000 installation involves the following steps:

1. Make sure power is off at the panel.

2. Mount the RA-2000 in the desired location (see Section

“Mounting the RA-2000” ).

3. Connect the RA-2000 to the panel (see Figure 2).

4. Use the dipswitches on the back of the RA-2000 to assign

an ID# to the RA-2000 (see Section 4.10.1 of Manual P/N

151430).

5. The RA-2000 module must be added to the system through

programming. JumpStart Auto Programming will add the

module automatically (refer to Manual P/N 151430).

Wiring Connections

Wire the RA-2000 to the FACP as Shown in Figure 2.

Figure 2: SBUS Connections

Specifications

Mounting the RA-2000

This section of the manual describes mounting the remote

annunciator. The annunciator can be flush- or surface-mounted.

Flush Mounting

This section of the manual describes flush mounting.

Follow these steps to flush mount the RA-2000

1. The back box dimensions are 9-3/8” w x 8-3/8” h. The

minimum depth 2". The back box can be mounted prior to

the complete installation of the RA-2000 using any of the

mounting holes shown in Figure 3.

Figure 3: Back Box Mounting Holes

2. Remove knockout holes as needed for wires. See Figure 4

Parameter Value

Operating Voltage: 24 VDC

Current Standby: 25 mA

Alarm: 50 mA

Operating Temperature: 0° to 49° C (32° to 120° F)

Dimensions:

Flush

Mount: Overall: 12-1/4” W x 11.5” H x 7/8” D

31.1 cm W x 29.2 cm H x 2.2 cm D

See “Flush Mounting” for back box

dimensions.

Surface

Mount: Including trim ring:

12-1/4” W x 11.5” H x 3” D

31.1 cm W x 29.2 cm H x 7.6 cm D

Mounting Holes

Model RA-2000 Installation Instructions

2P/N 151443 Rev B

for backbox knockout locations

Figure 4: Back Box Knockout Locations

3. Wire the Annunciator board to the main control panel. See

Figure 2.

4. Attach the annunciator and door assembly to back box as

shown in Figure 5 using the supplied screws.

Figure 5: Attaching Annunciator/Door Assembly to

Backbox

Surface Mounting

The Model RA-2000TR red trim ring and RA-2000GRAYTR

gray trim ring kits are available for use when surface mounting.

1. Remove the desired knock out. See Figure 4.

2. To properly mount the back box, insert a single screw into

the key shaped mounting hole. Do not tighten all the way.

See Figure 6.

Place a level on top of the back box, with the back

box level insert the rest of the mounting screws.

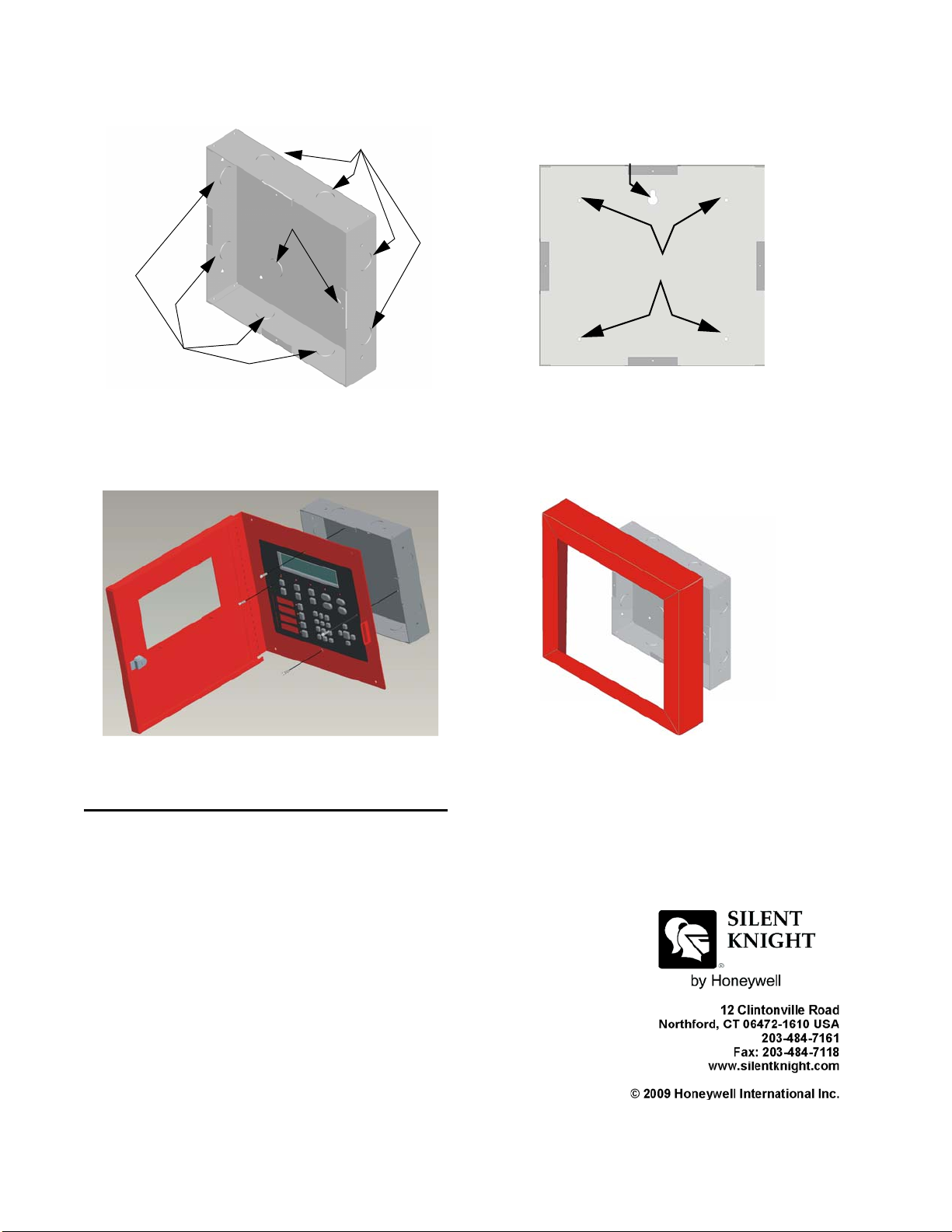

Figure 6: Back Box Surface Mount Holes

3. Run wires to the control panel.

4. Place the trim ring over the back box as shown in Figure 7.

Figure 7: Installing Trim Ring

5. Attach the Door assembly to the back box using screws

provided.

6. After the annunciator wiring to the panel has been

completed, replace the electronic assembly in the back box.

Place the bezel over the back box and tighten the set screws

on the bezel.

Wire Knockouts

Key Shaped

Mounting Hole

Back Box

Mounting Holes
