Honeywell LYNX Touch Security System Manuel utilisateur

LYNX Touch

Security System

User Guide

800-10615V1 12/12 Rev. A LYNX Touch L5100 Series

– 2 –

Your Honeywell security system is designed for use with devices manufactured or approved by

Honeywell for use with your security system. Your Honeywell security system is not designed for

use with any device that may be attached to your security system's control or other

communicating bus if Honeywell has not approved such device for use with your security system.

Use of any such unauthorized device may cause damage or compromise the performance of your

security system and affect the validity of your Honeywell limited warranty. When you purchase

devices that have been manufactured or approved by Honeywell, you acquire the assurance that

these devices have been thoroughly tested to ensure optimum performance when used with your

Honeywell security system.

– 3 –

TABLE OF CONTENTS

TABLE OF CONTENTSTABLE OF CONTENTS

TABLE OF CONTENTS

– 4 –

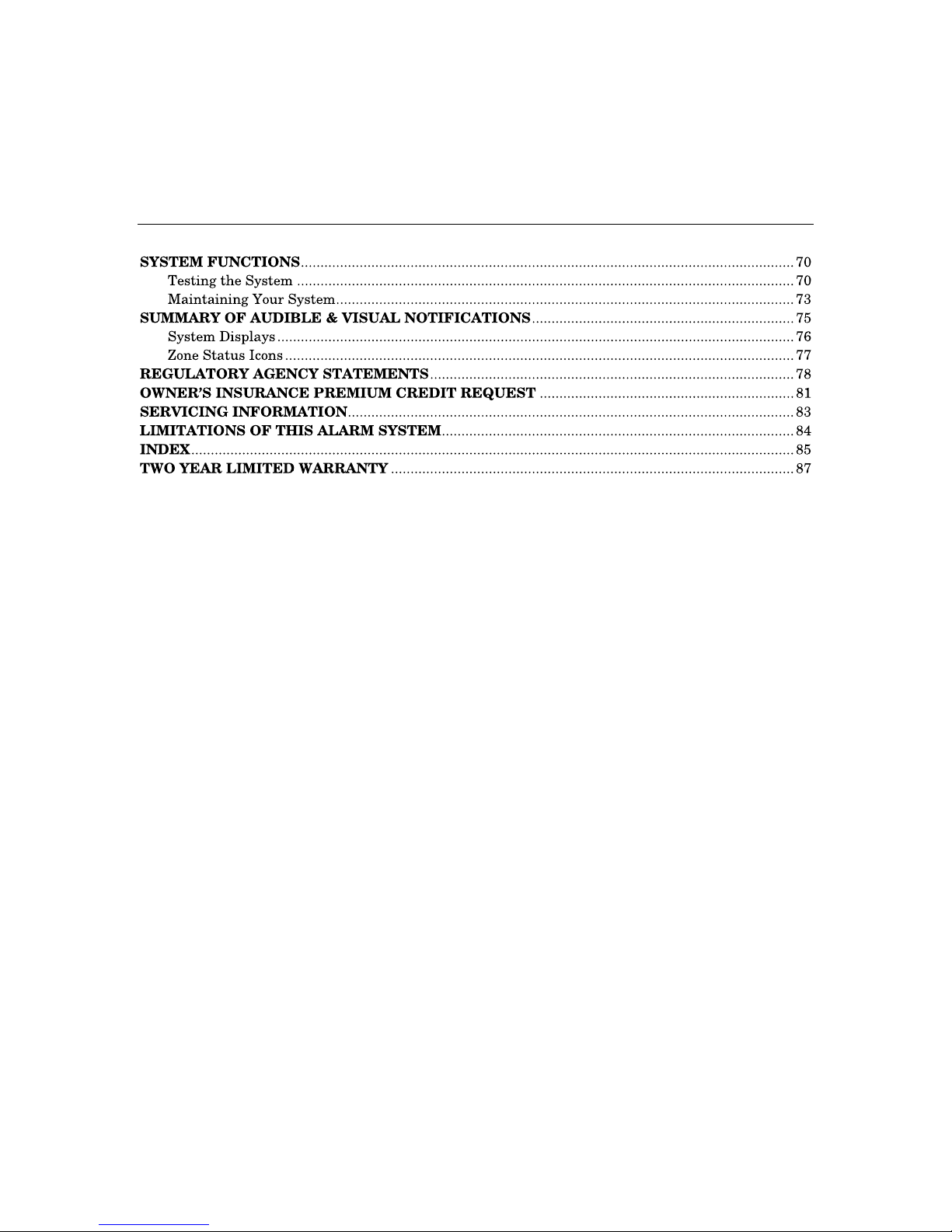

TABLE OF CONTENTS

TABLE OF CONTENTSTABLE OF CONTENTS

TABLE OF CONTENTS

– 5 –

SYSTEM OVERVIEW

SYSTEM OVERVIEWSYSTEM OVERVIEW

SYSTEM OVERVIEW

Features

General Information

IMPORTANT SECURITY NOTICE

Your key fob is similar to your keys or access card. If lost or stolen, another person can compromise your

security system. Immediately notify your Dealer/Installer of a lost or stolen key fob. The Dealer/Installer will

then remove the key fob programming from the security system.

– 6 –

SYSTEM OVERVIEW

SYSTEM OVERVIEWSYSTEM OVERVIEW

SYSTEM OVERVIEW

Features

Zones

Fire Protection

Carbon Monoxide

Burglary Protection

– 7 –

SYSTEM OVERVIEW

SYSTEM OVERVIEWSYSTEM OVERVIEW

SYSTEM OVERVIEW

General Operation

Security Codes

Alarms

Important Note

If your system is equipped to report alarms over the internet via a WiFi Communications module,

your router must remain powered-on at all times. Ask your Installer about this feature for

additional information

Two-Way Voice Feature

– 8 –

SYSTEM OVERVIEW

SYSTEM OVERVIEWSYSTEM OVERVIEW

SYSTEM OVERVIEW

General Operation

– 9 –

SYSTEM OVERVIEW

SYSTEM OVERVIEWSYSTEM OVERVIEW

SYSTEM OVERVIEW

Quick View of System Functions

SECURITY FUNCTIONS

Check System status: ................................................. Select “System” icon.

To arm in STAY mode: .............................................. Select “Arm Stay” icon then enter Code.

To restart exit delay: ................................................... Select “Restart Exit Delay” icon.

To arm in AWAY mode: ............................................. Select “Arm Away” icon or depress “Away” key then

enter Code.

To arm INSTANT: ...................................................... Set “Delay” to ”Instant” . Select “Arm Stay” or “Arm

Away” icon or “Away” key then enter code.

To arm if Quick Arm* is active: .................................... Select “Arm Stay” or “Arm Away” icon or “Away” key

followed by Quick Arm tab on the touch screen.

* User code is not required if Quick Arm is active.

To disarm system and silence alarms:......................... Depress “Off’” key or “Disarm” icon and enter Code*

* During Entry Delay or when an Alarm Condition exists, the LYNX Touch can be disarmed by entering the

User Code. Entering the OFF key is not required

To bypass a zone(s): .................................................. Select “Zones” icon

To turn Chime mode on or off: .................................... Select “Settings” icon

MESSAGE CENTER

To record a message: ................................................. Select “Message” icon

VOLUME ADJUSTMENT

To adjust volume: ....................................................... Select “Settings” icon

To restore/unmute user announcements: .................... Select “Settings” icon

SPEAKER PHONE OPERATION

To enter speaker phone mode:.................................... Select “Phone” icon

To enable/disable (toggle) ringer: ................................ Select “Settings” icon

OTHER FUNCTIONS (accessible to the Master User only)

To set the time and date:............................................. Select “Date Time” icon (on Master User Menu)

To set scheduling:........................................................ Select “Schedules” icon (on Automation Menu)

To activate/deactivate Z-Wave devices: ...................... Select “Rules” icon (on Automation Menu)

To add/delete a user code* (except Master Code): ..... Select “Users” icon (on Master User Menu)

* Only the master code can be used to add or delete another user code.

To turn Test mode On or Off:....................................... Select “Test” icon (on Master User Menu)

To view system events: ............................................... Select “Events” icon (on Master User Menu)

To program or delete “Follow Me” Reminders: ............ Select “Reminders” icon (on Master User Menu)

– 10 –

SYSTEM OVERVIEW

SYSTEM OVERVIEWSYSTEM OVERVIEW

SYSTEM OVERVIEW

About the Touch screen Control

General
