Honeywell IS2535T Manuel utilisateur

•Range: 11 x 12 m

•Global compliance: meets many of

the world motion sensor standards

including the European TS 50131-2-2

Grade 2, Class II

•Selectable Pet immunity: 0, 18 or

36 Kg

•Easy installation: 45oterminal blocks,

EOL terminals and an automatic

walktest

•Selectable sensitivity: 4 settings to

adapt to the environment

•Patented look-down mirror provides

optimum detection directly beneath

the sensor

•Tamper switch: Is activated before

access is possible

•White Light Immunity of minimum

6500 Lux reduces the chance of false

activation

•Bug guard prevents insects to access

the sensor optics which reduces the

chance of false activation

•Silent ray allows it to be used in quiet

environments

•Flexible mountings: wall and

cornermount breakout holes available.

Or use the SMB-10 bracket range

(swivel, ceiling, tampered)

•False alarm immunity: designed to

meet tough false alarm standards. A

microprocessor helps to separate

false alarms from real alarms

•Advanced Dual slope temperature

compensation

•Large wiring channel on back to allow

surface wiring

•Sabotage-resistant lens design

Features:

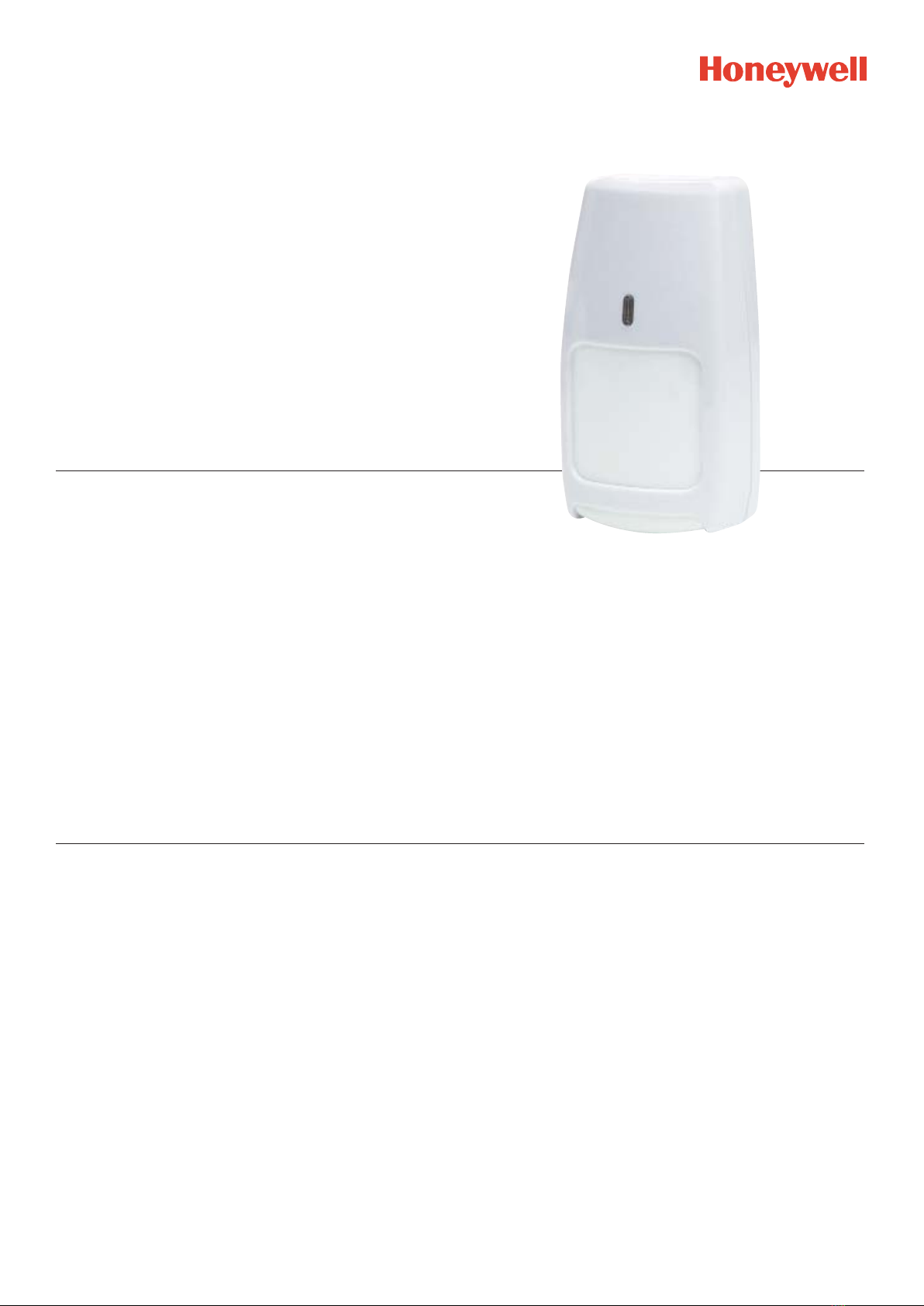

IS2535T

Microcontroller Based PIR Pet Immune Sensor

A reliable PIR for home and office.

Honeywell's new IS2500 series consists of a complete range of

easy-to-install motion sensors featuring reliable detection. The

design of the entire IS2500 series is sleek and attractive, all

sensors share the same family look.

To suit your application, a selection can be made from different

levels of pet immunity or for the high security setting using the

high security fresnel lens.

The IS2535T sensor has an improved detection performance

and false alarm immunity to maximise reliability.

And last but not least: This sensor conforms to European

standards EN 50131-1 and TS 50131-2-2 Grade 2,

Environmental Class II.

HSCE-IS2535T-01-EN(11/05)DS-A

November 2005

Honeywell Security & Custom Electronics

Newhouse Industrial Estate

Motherwell

Lanarkshire

ML1 5SB

Tel: +44 1698 73 8200

Fax: +44 1698 73 8300

www.honeywell.com/security/uk

IS2535T

Microcontroller Based PIR Pet Immune Sensor

Detection method: Dual element passive infrared

Range: 11 x 12 m

PIR sensitivity: Lowest (3-5 steps), Low (2-4 steps),

Medium (1-3 Steps) and High (1-2 steps)

Pet immunity: 0, 18 or 36 Kg

Mounting height: 2.3 m to 2.7 m

Power requirements: 8.5 - 15.4 Vdc, 17 mA @ 12 Vdc

Alarm relay: Form A / 30 mA@24 Vdc;

Max. 40 Ohm protective resistor

Cover tamper switch: 30 mA@24 Vdc

Operating temperature: -10oto +55oC

Temperature compensation: Advanced dual slope

Relative humidity: 5% - 95% non condensing

RF Immunity: 30 V/m from 10 to 1000 MHz

WLI: More than 6500 Lux

Dimensions: 112 x 60 x 40 mm (HxWxD)

Weight: 87 gram

Includes: Mounting hardware

Lens masking

Look down mask

High security / Pet immune lenses

IS2535T 11 m PIR motion sensor with Pet Immunity

Specifications: Detection Patterns:

Ordering:

SMB-10: White swivel mount bracket (5 pack)

SMB-10C: White ceiling mount bracket (5 pack)

SMB-10T: Tampered white swivel mount bracket (5 pack)

Accessories:

•EN50131-1 & TS 50131-2-2 Grade 2, Class II

•CE

Agency Listings:

IS2535T

•Top View

•Side View High security lens

•Side View Pet immune lens

Honeywell reserves the right to alter the specification of products without prior notice.
