IN04004 Sensor_Guide.qxd 7/19/05 12:24 PM Page 2

PIR Motion Sensors ....................................Page 2

DUAL TEC®Motion Sensors ......................Page 7

Glassbreak Detectors ..................................Page 12

Hold-Up Switches ........................................Page 17

Photoelectric Beams ....................................Page 18

Selected Magnetic Contacts ......................Page 19

Other Key Products......................................Page 20

All trademarks are properties of their respective owners

TABLE OF CONTENTS

Competitive Cross Reference Chart...Inside Back Cover

IN04004 Sensor_Guide.qxd 7/19/05 12:25 PM Page 6

IS-2260

Pet Immune PIR

"The only pet immune

PIR with range extended

to 60 ft."

Accessories

• Long Range Lens 100’x20’, 0-900-053-02

• 10’ mtg. height lens 60’x120’, 0-900-053-01

• Swivel Bracket - SMB10

• Ceiling Bracket - SMB10C

• Tampered Swivel Bracket - SMB10T

Features

• 60’ x 120’ coverage, plus lookdown zone

• Pet immunity to 40 lbs.

• ASIC signal processing

• Bi-directional temp comp

• Ultra-low current (<4mA)

• Uniform Sensitivity Optics

• Totally silent relay

• Zero Clearance black bug guard

• 7.5 or 10’ mounting height

• Available with tamper as IS-2260T

Specifications:

• Range: 60’ x 120’

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: Intermediate, Std, Harsh

• Temp comp: Advanced dual-slope

• Alarm relay: Form A

• Input voltage: 8-14VDC

• Standby current: 4mA

• Indicators: Red LED

• Operating temp: 14°F to 122°F

• Dimensions: 4-3/8"L x

2-1/4"W x 1-1/2"D

AURORA

Pet Immune PIR

"Pet immunity with

distinctive styling."

Accessories

• Long Range Lens 75’x10’ - Aurora-LR

Features

• Pet immunity to 40 lbs.

• ASIC signal processing

• Bi-directional temp comp

• Ultra-low current (<4mA)

• Split-Zone Optics

• Totally silent relay

• Bug guard

• 6.5 - 9’ mouting height

• Available with tamper as AURORA-T

• Available in 6-pack as AURORA-PK

Specifications:

• Range: 35’ x 45’

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: Intermediate, Std, Harsh

• Temp comp: Advanced dual-slope

• Alarm relay: Form A

• Input voltage: 8-14VDC

• Standby current: 4mA

• Indicators: Red LED

• Operating temp: 14°F to 122°F

• Dimensions: 2.9"W x 4.1"H x 1.5"D

PIR Motion Sensors

IN04004 Sensor_Guide.qxd 7/19/05 12:26 PM Page 7

IS-215T

Entry Level PIR

“Basic space protection at

an economical price.”

Features

• Selectable pulse count

• Uniform Sensitivity Optics

• Patented lookdown mirror

• Zero Clearance black bug guard

• Tamper switch

Accessories

• Swivel Bracket - SMB10

• Ceiling Bracket - SMB10C

• Tampered Swivel Bracket - SMB10T

Specifications:

• Range: 40’ x 40’

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: High and low sensitivity

• Alarm relay: Form A

• Input voltage: 10-14VDC

• Standby current: 20mA

• Indicators: Red LED

• Operating temp: 14°F to 122°F

• Dimensions: 3.43”H x 2.44”W x 1.57”D

IS-310/IS-320

Request-To-Exit PIR

“Basic and fully-featured

RTEs for every access

control application.”

Features

• Adjustable relay time

• Micro-based signal processing

• Adjustable shutters provide precise

target area

• Advanced features on IS-320 include:

• Piezo sounder

• Door contact input

• Reader/keypad/keyswitch input

• Remote arming and sounder inputs

• Monitor Door and Fail Safe/Secure

modes

• Available in white or black

Specifications:

• Range: From 5.5’ x 2’ up to 8.4’ x 15.8’

depending on mounting height

• Mounting height: 7’ to 15’

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: RTE and Security modes

• Temp comp: Advanced dual-slope

• Alarm relay: Form C

• Input voltage: 12-28 volts AC or DC

• Standby current: 35mA

• Indicators: Green (ready) LED

• Operating temp: 14°F to 122°F

• Dimensions: 7”L x 2”H x 2”D

Accessories

• IS-310WHTP - single gang trim plate for

IS-310/320 white

• IS-310BLTP - single gang trim plate for

IS-310/320 black

PIR Motion Sensors

New

IN04004 Sensor_Guide.qxd 7/19/05 12:29 PM Page 10

997

Ceiling Mount PIR

“Easy installation with a

twist-off cover.”

Features

• Twist off cover for easy removal

• Local and remote control of LED

• Low profile

• Cover tamper

Specifications:

• Range: 23’ diameter @ 8’ mounting

height

• 36’ diameter @ 12’ mounting height

• Mounting height: 12’ maximum

• Detectable walk rate: 0.5’ - 5’/sec

• Signal Proc.: 1- or 2-event

• Alarm relay: Form A

• Input voltage: 12VDC nominal

• Standby current: 17mA

• Indicators: Red LED

• Operating temp: 32°F to 122°F

• Dimensions: 3-1/2”diameter x 1”high

PIR Motion Sensors

995

Flush Mount PIR

“Single gang-box

installation with years of

proven performance.”

Accessories

• Long Range Lens - 70’x8.5’ - 995LR

• Pett alley - 40’x56’ - 995PA

Features

• Fits single gang box

• “Signature Analysis” pulse count

• Horizontal and vertical adjustment

• Optional long range and pet

alley lenses

Specifications:

• Range: 40’ x 56’

• Detectable walk rate: 0.5’ - 5’/sec

• Signal Proc.: 1- or 2-event

• Alarm relay: Form A

• Input voltage: 12VDC nominal

• Standby current: 15mA

• Indicators: Red LED

• Operating temp: 32°F to 122°F

• Dimensions: 2.75”W x 4.53” H x 0.8”D

IN04004 Sensor_Guide.qxd 7/19/05 12:29 PM Page 11

PIR Motion Sensors

IS-280CM

360° Ceiling

Mount PIR

“Commercial features and

performance for overhead

installations.”

Features

• Mounting heights from 8’ to 12’

• Low profile housing

• Microprocessor-based signal

processing

• Sealed optics chamber

• Can be mounted on a single gang-box

• Cover tamper

.• Range: 45’ dia. @ 10’ mounting height

50’ dia. @ 12’ mounting height

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: 1, 2, 3, or 4 pulse count

• Temp comp: Advanced dual-slope

• Alarm relay: Form A

• Input voltage: 9-30VDC

• Standby current: 17mA

• Indicators: Three red LEDs for 360°

viewing

• Operating temp: 14°F to 122°F

• Dimensions: 4.9” Diameter x 1.5”H

IS-290CM-W/IS-290CM-N

Ceiling Mount PIR

“Ideal for commercial

installations where wall

mounting is difficult.”

Features

• Mounting heights from 8’ to 12’

• Fully adjustable mirror optics

• Low profile housing

• Microprocessor-based signal

processing

• Can be mounted on a single gang-box

• Cover tamper

Specifications:

• Range: 40’ x 45’ (IS-290CM-W)

65’ x 7’ (IS-290CM-N)

@ 10’ mounting height

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: 2 or 4 pulse count

• Temp comp: Advanced dual-slope

• Alarm relay: Form A

• Input voltage: 10-30VDC

• Standby current: 25mA

• Indicators: Red (alarm), yellow (alarm

memory) LEDs

• Operating temp: 14°F to 122°F

• Dimensions: 6” Diameter x 1.81”D

IN04004 Sensor_Guide.qxd 7/19/05 12:32 PM Page 14

PIR Motion Sensors

998MX

V-Plex PIR

Motion Sensor

“The V-Plex motion sensor

with both DIP switch and

serial number programming.”

Features

• DIP switch and serial number

addressable

• EZ-Mount features for rapid installation

• Long range and pet alley lenses

included

• Automatic temperature compensation

• 1 mA current with LED disabled

• Tamper

Accessories

• Mounting Bracket - 998SB

Specifications:

• Range: 50’ x 50’

• Detectable walk rate: 0.5’ - 5’/sec

• Signal Proc.: 1-, 2-, or 3-event

• Temp comp: Standard

• Alarm relay: Polling Loop

• Input voltage: 8-11VDC

• Standby current: 1mA

• Indicators: Red LED

• Operating temp: 14°F to 122°F

• Dimensions: 2-5/8” W x 4-3/8” H x 2”D

5894PI

Wireless Pet Immune PIR

for 5800

“End-user replaceable

battery operation.”

Features

• Up to 10 year battery life

• Pet immune to 80 lbs.

• Uniform Sensitivity Optics

• Easy mount/dismount bracket for

end-user replaceable batteries

• Cover and rear tamper

• Patented black bug guard

• Install 5890PI or 5890 until 5894PI

is available.

Specifications:

• Range: 35’ x 45’

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: Intermediate, Std, Harsh

• Temp comp: Standard

• Batteries: Three CR123A or equivalent

• Battery life: Up to 10 years

• Indicators: Red LED

• Operating temp: 32°F to 122°F

• Dimensions: 3.5”W x 5.2”H x 1.75”D

Coming Soon!

IN04004 Sensor_Guide.qxd 7/19/05 12:34 PM Page 15

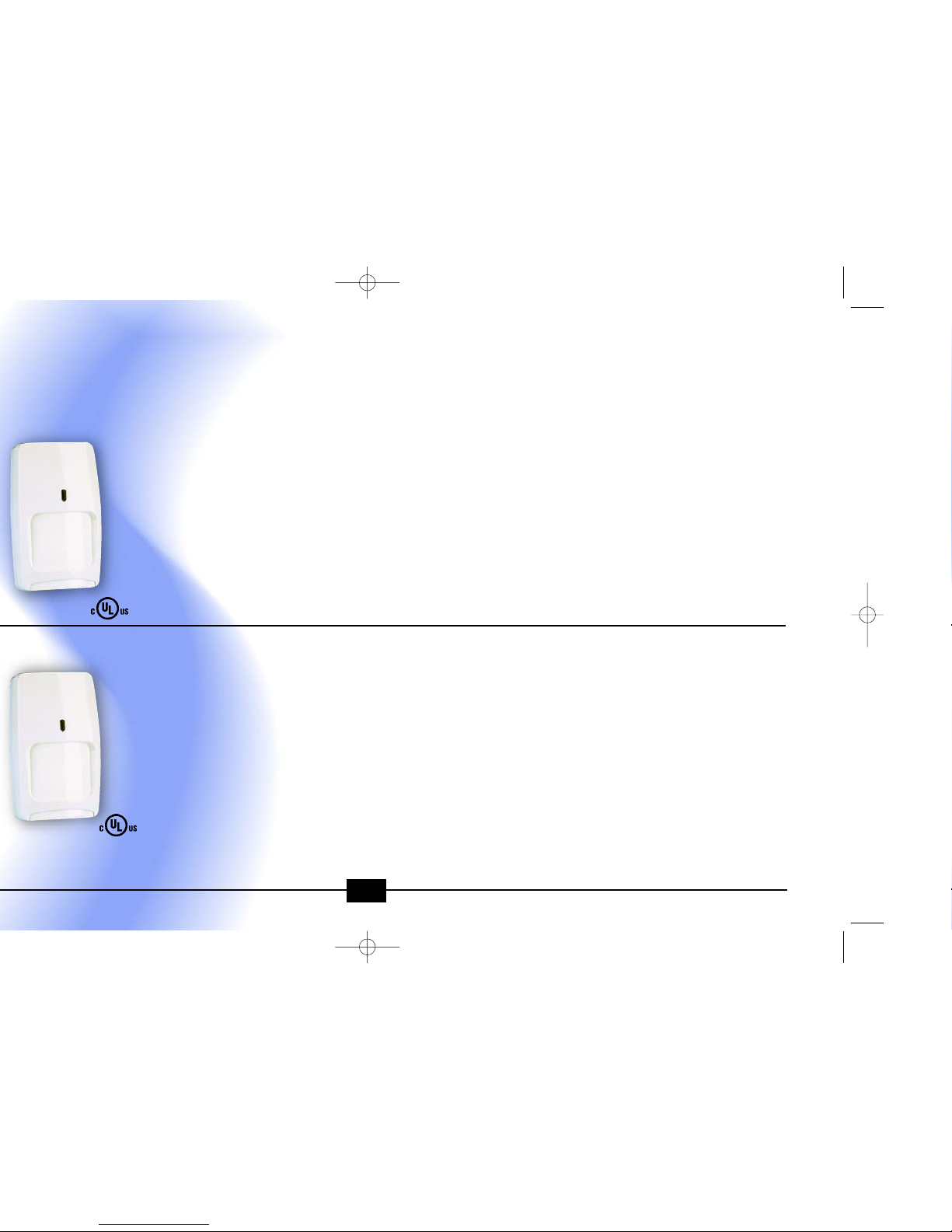

DUAL TEC

Motion Sensors

DT-7235T

DUAL TEC®Motion Sensor

“Economical sensor

combines K-Band, pet

immunity and error-free

installation.”

Accessories

• Swivel Bracket - SMB10

• Ceiling Bracket - SMB10C

• Tampered Swivel Bracket - SMB10T

Features

• Pet immune to 100 lbs.

• Exclusive K-Band microwave

technology

• Fast and simple installation with no

adjustments

• Microwave supervision

• Uniform Sensitivity Optics

• Zero Clearance black bug guard

• Tamper

Specifications:

• Range: 35’ x 35’

• Microwave Freq: K-Band, 24.125GHz

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: No adjustments required

• Temp comp: Standard

• Alarm relay: Form A

• Input voltage: 7.5-16VDC

• Standby current: 25mA

• Indicators: Red LED

• Operating temp: 14°F to 131°F

• Dimensions: 4.685”H x 2.795”W

x 1.654”D

DT-7435

DUAL TEC®Motion Sensor

“Pet immune protection that

incorporates the latest

processing technology.”

Accessories

• Swivel Bracket - SMB10

• Ceiling Bracket - SMB10C

• Tampered Swivel Bracket - SMB10T

Features

• Pet immune to 100 lbs.

• Exclusive K-Band microwave

technology

• DualCore micro-based processing

• Concurrent Diagnostics

• Digital microwave adaptive thresholds

• Digital fluorescent light filter

• Uniform Sensitivity Optics

• Zero Clearance black bug guard

• Tamper

• Also available with Form C

as DT-7435C

Specifications:

• Range: 35’ x 35’

• Microwave Freq: K-Band, 24.125GHz

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: Intermediate, Standard

• Temp comp: Advanced dual-slope

• Alarm relay: Form A

• Input voltage: 7.5-16VDC

• Standby current: 25mA typical

• Indicators: Tri-color LED

• Operating temp: 14°F to 131°F

• Dimensions: 4.685”H x 2.795”W

x 1.654”D

IN04004 Sensor_Guide.qxd 7/19/05 12:35 PM Page 18

DUAL TEC

Motion Sensors

DT-7450

DUAL TEC®Motion Sensor

“Commercial protection

that incorporates the latest

processing technology.”

Accessories

• Swivel Bracket - SMB10

• Ceiling Bracket - SMB10C

• Tampered Swivel Bracket - SMB10T

Features

• Exclusive K-Band microwave

technology

• DualCore micro-based processing

• Concurrent diagnostics

• Digital microwave adaptive threshholds

• Digital fluorescent light filter

• Uniform Sensitivity Optics

• Zero Clearance black bug guard

• Tamper

• Also available with Form C

as DT-7450C

Specifications:

• Range: 50’ x 60’

• Microwave Freq: K-Band, 24.125GHz

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: Intermediate, Standard

• Temp comp: Advanced dual-slope

• Alarm relay: Form A

• Input voltage: 7.5-16VDC

• Standby current: 25mA typical

• Indicators: Tri-Color LED

• Operating temp: 14°F to 131°F

• Dimensions: 4.685”H x 2.795”W x

1.654”D

DT-7550C

DUAL TEC®

with Anti-Mask

“Opens new high

security opportunities.”

Features

• Includes all features of the DT-7450, plus

• MaskAlert processing

• Form C relay

• Trouble output relay

• No rear pattern leakage

• K-Band

• Microprocessor controlled dual slope

temperature comp.

Accessories

• Swivel Bracket - SMB10

• Ceiling Bracket - SMB10C

• Tampered Swivel Bracket - SMB10T

Specifications:

• Range: 50’ x 60’

• Microwave Freq: K-Band, 24.125GHz

• Detectable walk rate: 0.5’ - 10’/sec

• Signal Proc.: Intermediate, Standard

• Temp comp: Advanced dual-slope

• Alarm relay: Form C

• Trouble Relay: Form B

• Input voltage: 7.5-16VDC

• Standby current: 30mA typical

• Indicators: Tri-Color LED

• Operating temp: 14°F to 131°F

• Dimensions: 4.685”H x 2.795”W x

1.654”D

IN04004 Sensor_Guide.qxd 7/19/05 12:37 PM Page 19

DUAL TEC

Motion Sensors

DT-515

MiniTek™

Motion Sensor

“Economic alternative to a

DUAL TEC®that’s more than

just a PIR.”

Features

• ASIC-based PIR with S-Band

microwave

• Versatile mounting options

• Wall, corner or ceiling mount

• Surface or flush mount

• Totally silent relay

• Selectable pulse processing

Specifications:

• Range: 15’ x 15’ or 360° x 15’

• Microwave Freq: S-Band, 2.45GHz

• Detectable walk rate: 0.5’ - 5’/sec

• Signal Proc.: Intermediate, Std, Harsh

• Temp comp: Advanced dual-slope

• Alarm relay: Form A

• Input voltage: 10-14.5VDC

• Standby current: 20mA

• Indicators: Red LED

• Operating temp: 14°F to 122°F

• Dimensions: 4.25”H x 2.125”W

x 1.25”D

DT-7360

Ceiling Mount

DUAL TEC®

“K-Band technology is now

available in a ceiling mount

sensor.”

Features

• Exclusive K-Band microwave

technology

• DualCore micro-based processing

• Concurrent Diagnostics

• Digital microwave adaptive thresholds

• Digital fluorescent light filter

• Trouble output

• Surface mount or flush mount

• Front and rear tamper switches

Specifications:

• Range: 50’ diameter 360° coverage

• Microwave Freq: K-Band, 24.125GHz

• Detectable walk rate: 0.5’ - 5’/sec

• Signal Proc.: Intermediate, Standard

• Temp comp: Advanced dual-slope

• Alarm relay: Form C

• Input voltage: 7.5-16VDC

• Standby current: 30mA typical

• Indicators: Separate red, green,

yellow LEDs

• Operating temp: 14°F to 131°F

• Dimensions: 5.0”H x 5.0”W x 2.5”D

NEW!

IN04004 Sensor_Guide.qxd 7/19/05 12:38 PM Page 22

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Honeywell Capteur de sécurité

Honeywell

Honeywell Fire-Lite Alarms D365PL Manuel utilisateur

Honeywell

Honeywell Vitoject 890 Manuel utilisateur

Honeywell

Honeywell 14506873-001 Manuel utilisateur

Honeywell

Honeywell MDA Scientific MIDAS Manuel utilisateur

Honeywell

Honeywell 5800-OD Manuel utilisateur

Honeywell

Honeywell SiX Series Manuel utilisateur

Honeywell

Honeywell FSL100-IR3 Note de version

Honeywell

Honeywell Ex-Or Digital Gold Series Manuel d'installation et d'exploitation

Honeywell

Honeywell MaxLED Centralized Series Manuel utilisateur

Honeywell

Honeywell MILLER 1032363 Manuel utilisateur

Honeywell

Honeywell Ex-Or MLS2500CDR Manuel d'installation et d'exploitation

Honeywell

Honeywell SC100 Manuel utilisateur

Honeywell

Honeywell ToxiPro CO Manuel utilisateur

Honeywell

Honeywell Ex-Or MLS2500D Manuel d'installation et d'exploitation

Honeywell

Honeywell FIRE-LITE ALARMS W-SD355 Manuel utilisateur

Honeywell

Honeywell 5800FLOOD Manuel utilisateur

Honeywell

Honeywell C7076F Manuel utilisateur

Honeywell

Honeywell Notifier NRX-TFIX58 Manuel utilisateur

Honeywell

Honeywell 5800CO Instructions de montage

Honeywell

Honeywell FIRE-LITE ALARMS SD365CO Manuel utilisateur

Honeywell

Honeywell SC100 Manuel utilisateur

Honeywell

Honeywell BW Solo Manuel utilisateur

Honeywell

Honeywell Searchline Excel Cross-Duct Note de version

Honeywell

Honeywell 5809 Manuel utilisateur

Manuels Capteur de sécurité populaires d'autres marques

THORLABS

THORLABS PDA10JT Manuel utilisateur

Waeco

Waeco UV-DETECT Manuel utilisateur

Intermatic

Intermatic IOS-DSIMF Manuel utilisateur

urmet domus

urmet domus 1083 Manuel utilisateur

Siemens

Siemens AZL66 Series Manuel utilisateur

BTI

BTI Profiline Multi Finder Manuel utilisateur

Challenger

Challenger SL01 Manuel utilisateur

DMP Electronics

DMP Electronics 1122INT Manuel utilisateur

Rielta

Rielta Ladoga MK-RK Manuel utilisateur

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuel utilisateur

Bosch

Bosch DS835 Manuel utilisateur

DBI SALA

DBI SALA EZ Stop Manuel de l'opérateur

Lamptime

Lamptime ST05C Manuel utilisateur

Ubiquiti

Ubiquiti MFI-MSC Manuel utilisateur

Subsite

Subsite 910R Instructions d'installation

Satel

Satel OPAL Pro Manuel utilisateur

Aleph

Aleph XC-1XTEU Manuel utilisateur

Pima

Pima LARIS QUAD Manuel utilisateur
