Honeywell Dolphin CT60 Manuel utilisateur

Dolphin™ CT60

Quick Start Guide

CT60-A7-EN-QS Rev A

11/17

Out of the Box

Make sure that your shipping box contains these items:

• Dolphin CT60 mobile computer (Model CT60L0N)

• Rechargeable 3.6 VDC Li-ion battery

• Product documentation

If you ordered accessories for your mobile computer, verify that

they are also included with the order. Be sure to keep the original

packaging in case you need to return the mobile computer for

service.

Note: CT60L0N models do not include a WWAN radio.

Memory Card Specifications

Honeywell recommends the use of Single Level Cell (SLC)

industrial grade microSD™ or microSDHC™ memory cards with

Dolphin mobile computers for maximum performance and

durability. Contact a Honeywell sales representative for

additional information on qualified memory card options.

Mobile Computer Features

Scan Buttons

Microphone

Power

Button

Battery Status /

Notification LED

Good Read LED

Speaker

Touch Panel

Volume Buttons

Navigation Panel

Note: Hand strap not shown.

Camera Lens

Battery

Camera Button

Battery Latch

Imager

(LED / Laser Aperture)

microSD Card

Door

Laser Safety

Label Location

I/O Connector

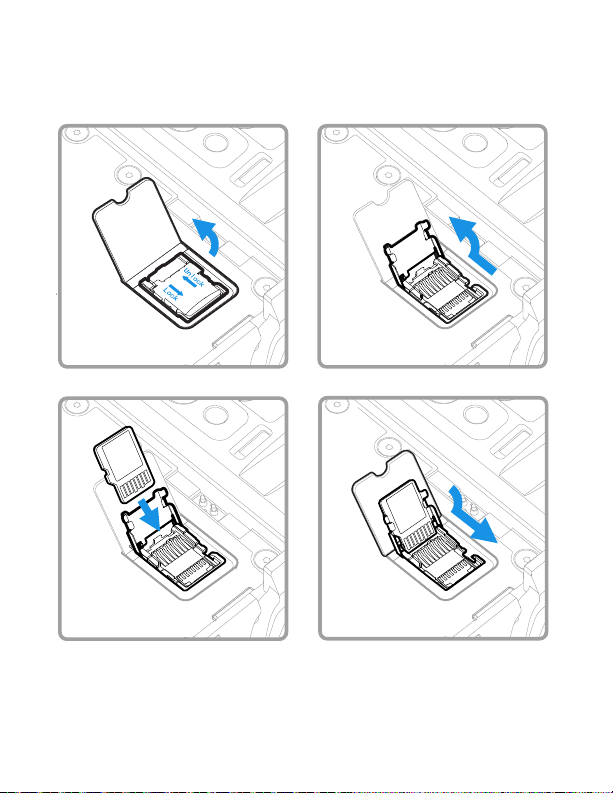

Install a microSD Card

Note: Format the microSD card before initial use.

Note: Always power off the computer and remove the battery before

attempting to install or remove a card.

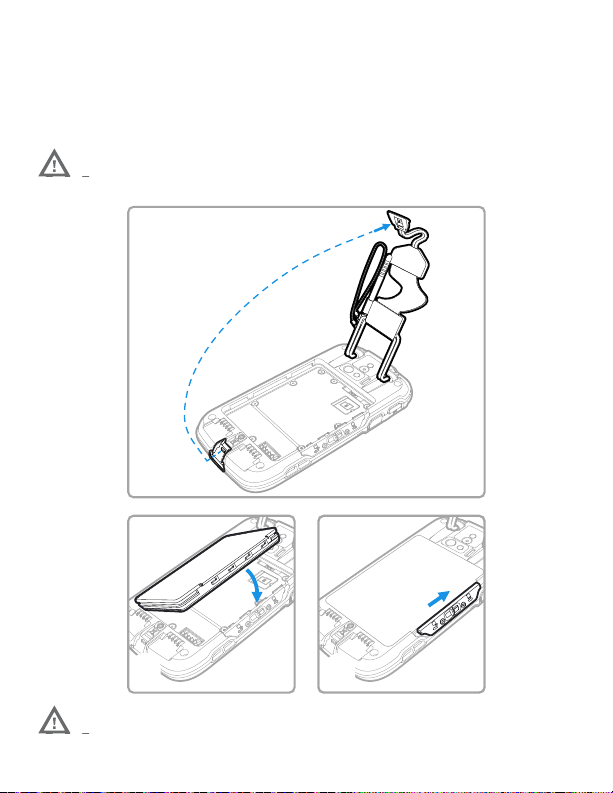

Install the Battery

The CT60 mobile computer ships with a Li-ion 3.6 VDC,

14.6 watt-hour battery manufactured for Honeywell

International Inc.

We recommend use of Honeywell Li-ion battery

packs. Use of any non-Honeywell battery may result

in damage not covered by the warranty.

Ensure all components are dry prior to placing the

battery in the computer. Mating wet components

may cause damage not covered by the warranty.

2 3

Charge the Mobile Computer

The CT60 mobile computer ships with a partially charged

battery. Charge the battery with a CT50 Series charging device

for a minimum of 4 hours. Using the computer while charging

the battery increases the time required to reach a full charge.

CT60 mobile computers are designed for use with the following

CT50 charging accessories: HomeBase, Ethernet HomeBase,

ChargeBase, NetBase, Quad Battery Charger, Vehicle Power

Adapter, Vehicle Dock, and USB Adapter.

We recommend the use of Honeywell accessories and

power adapters. Use of any non-Honeywell

accessories or power adapters may cause damage not

covered by the warranty.

Ensure all components are dry prior to mating the

computers and batteries with peripheral devices.

Mating wet components may cause damage not

covered by the warranty.

Turn Power On/Off

To turn the computer on:

• Press and release the Power button.

To turn the computer off:

1. Press and hold the Power button until the options menu

appears.

2. Touch Power Off.

3. When prompted to shut down the computer, touch OK.

Note: Note: You should always power off the computer before removing

the battery.

Sleep Mode

Sleep mode automatically turns the touch panel display off and

locks the computer to save battery power when the computer is

inactive for a programmed period of time.

1. Press and release the Power button to wake the computer.

2. Drag the toward the top of the display to unlock the

computer.

Adjust the Display Sleep Time

To adjust the amount of time before the display sleeps after

inactivity:

1. Touch > Settings > Display > Sleep.

2. Select the amount of time before the display goes to sleep.

3. Touch to return to the Home screen.

About the Home Screen

To learn how to customize the Home screen, see the user guide.

Notification /

Status Bar

Search Bar

Touch to

initiate a voice

search or

command.

Home Screen

Panel

Touch to

access all apps.

Favorites Tray

Navigation and Function Buttons

To learn more about how to re-map a button, see the user guide.

Button Description

Back Return to the previous screen.

Recent Apps View and switch between

recently used apps.

Home Return to the Home screen.

Search Start a search on the computer

or the Internet.

Volume Raise or lower the volume of the

speaker.

Scan Press right or left scan button to

trigger the scanner.

Camera Press to open the camera app

and take a photo.
