Dolphin®6500 Mobile Computer
with Windows CE
®
5.0
Quick Start Guide
1
Dolphin 6500 Mobile Computer
Out of the Box
Verify that your carton contains the following items:
• Dolphin 6500 mobile computer (the terminal)
• Main battery pack (3.7v, Li-ion)
• AC power supply
• Localized plug adapters
Note: Be sure to keep the original packaging in case you need to return the
Dolphin terminal for service; see page 7.

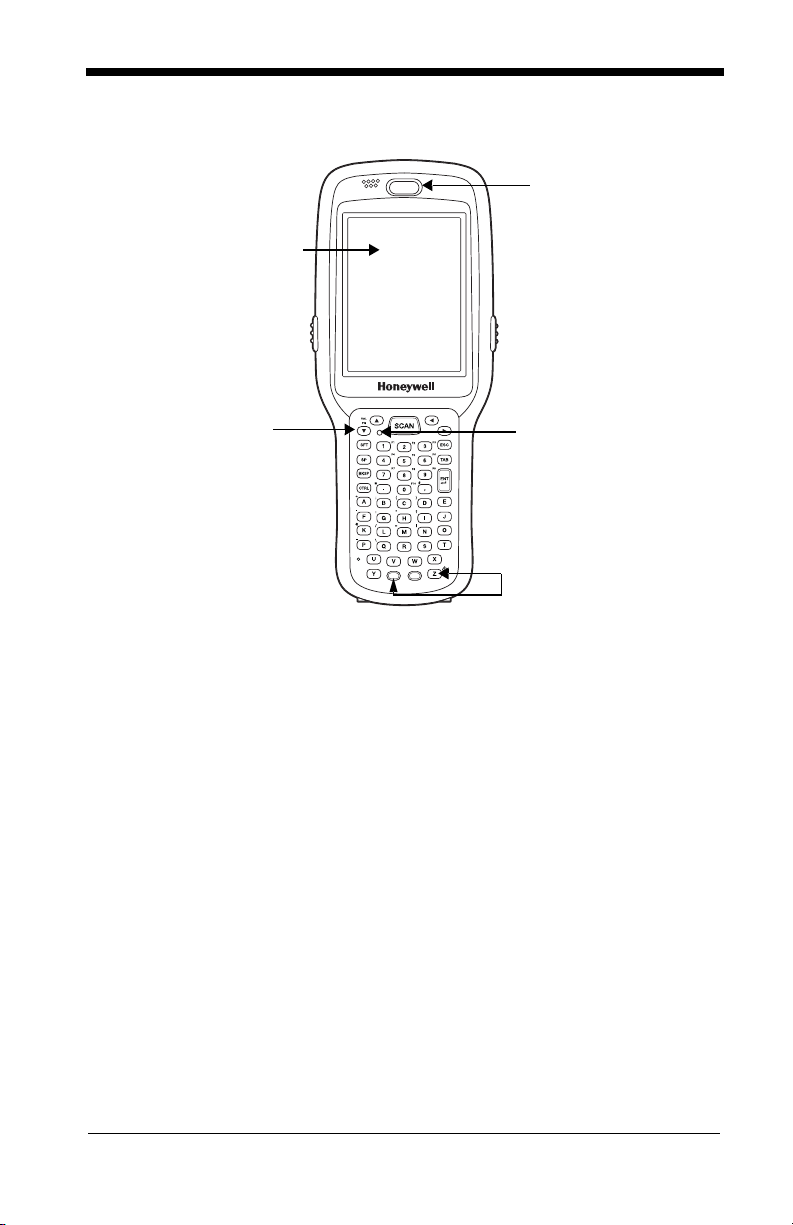

Dolphin 6500 Front Panel
Software
Reset Key
LED
Navigation Keys
Power Key
28-key keypad (numeric)
Touch Screen Display
(screen protector installed
at the factory)
2
Software
Reset Key
LED
Navigation Keys
(arrow keys)
Power Key
52-key keypad (alphanumeric)
Touch Screen Display
(screen protector installed
at the factory)
3

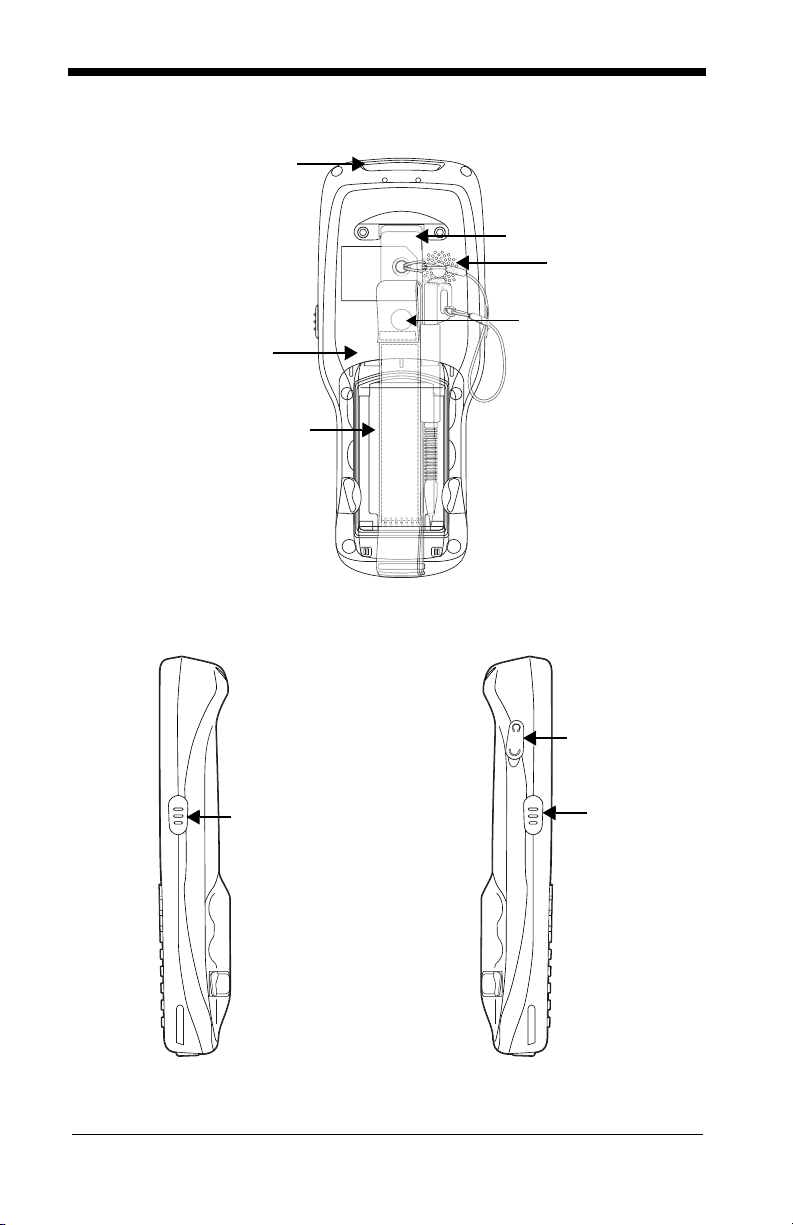

Dolphin 6500 Back Panel
Dolphin 6500 Right and Left-Side Panels
Installed
Battery
Finger
Saddle
Hand Strap (with Stylus)
Image Engine Window
Rear Scan Button
Speaker
Side
Button
Headset
Jack
Side
Button
Right Side Left Side
4
Dolphin 6500 Bottom Connectors
Step 1: Install the Main Battery
The 6500 is shipped with the battery packaged separately from the unit.
To install the battery, release the hand strap, remove the battery door by
turning the locks upward, insert the battery with the labels facing upward,
and replace the battery door.
We recommend use of Honeywell Li-Ion battery packs. Use of any non-Honeywell
battery may result in damage not covered by the warranty.
DC Power Jack
I/O Connector
Cover Locks
Main Battery
!
5
Step 2: Charge the Batteries
Dolphin terminals ship with both the main battery pack and internal
backup battery significantly discharged of power. Charge the main
battery pack with the Dolphin charging cable for a minimum of 5 1/2
hours before initial use.
We recommend use of Honeywell peripherals, power cables, and power adapters. Use
of any non-Honeywell peripherals, cables, or power adapters may cause damage not
covered by the warranty.
Step 3: Boot the Terminal
The terminal begins booting as soon as power is applied and runs by
itself. Do NOT press any keys or interrupt the boot process.
When the boot process is complete, the Desktop appears and the
terminal is ready for use.
Resetting the Device
Soft Reset: Using the stylus, press the Reset button. The screen
turns white and the decode/scan LED flashes blue for
approximately 10 seconds.
Hard Reset: 28-key: Press and hold the Power button and then
using the stylus, press the Reset button.
52-key: Press and hold the Blue and Z(Power)
buttons and then using the stylus, press the Reset
button. The screen turns white and the decode/scan
LED flashes blue for approximately 18 seconds.
1
2
3
!
6
User Documentation
Please refer to the Dolphin 6500 User’s Guide, which is available for
download at www.honeywellaidc.com.
Available Dolphin 6500 Peripherals and Accessories
Dolphin HomeBase™ Device
Dolphin QuadCharger™ Device
Dolphin eBase Device
Dolphin 6500 USB Communication Cable
Technical Assistance
If you need assistance installing or troubleshooting your device, please
call your distributor or the nearest technical support office:
North America/Canada
Telephone: (800) 782-4263
E-mail: [email protected]
Latin America
Telephone: (803) 835-8000
Telephone: (800) 782-4263
E-mail: [email protected]
Brazil
Telephone: +55 (21) 3535-9100
Fax: +55 (21) 3535-9105
E-mail: [email protected]
Mexico
Telephone: (803) 835-8000
E-mail: [email protected]
Europe, Middle East, and Africa
Telephone: +31 (0) 40 7999 393
Fax: +31 (0) 40 2425 672
E-mail: [email protected]
Hong Kong
Telephone: +852-29536436
Fax: +851-2511-3557
E-mail: [email protected]
7
Singapore
Telephone: +65-6842-7155
Fax: +65-6842-7166
E-mail: [email protected]
China
Telephone: +86 800 828 2803
Fax: +86-512-6762-2560
E-mail: [email protected]
Japan
Telephone: +81-3-3839-8511
Fax: +81-3-3839-8519
E-mail: [email protected]
Online Technical Assistance
You can also access technical assistance online at
www.honeywellaidc.com.
Product Service and Repair
Honeywell International Inc. provides service for all its products through
service centers throughout the world. To obtain warranty or non-
warranty service, contact the appropriate location below to obtain a
Return Material Authorization number (RMA #) before returning the
product.
North America
Telephone: (800) 782-4263
E-mail: [email protected]
Latin America
Telephone: (803) 835-8000
Telephone: (800) 782-4263
Fax: (239) 263-9689
E-mail: [email protected]
Brazil
Telephone: +55 (21) 3535-9100
Fax: +55 (21) 3535-9105
E-mail: [email protected]
Mexico
Telephone: +52 (55) 5203-2100
Fax: +52 (55) 5531-3672
E-mail: [email protected]
8
Europe, Middle East, and Africa
Telephone: +31 (0) 40 2901 633
Fax: +31 (0) 40 2901 631
E-mail: [email protected]
Hong Kong
Telephone: +852-29536436
Fax: +851-2511-3557
E-mail: [email protected]
Singapore
Telephone: +65-6842-7155
Fax: +65-6842-7166
E-mail: [email protected]
China
Telephone: +86 800 828 2803
Fax: +86-512-6762-2560
E-mail: [email protected]
Japan
Telephone: +81-3-3839-8511
Fax: +81-3-3839-8519
E-mail: [email protected]
Online Product Service and Repair Assistance
You can also access product service and repair assistance online at
www.honeywellaidc.com.
Limited Warranty
Please refer to www.honeywellaidc.com/warranty_information for the
warranty information.
