Step-by-Step

Tech Support

Updated 11/2/07

- Single 4-Wire Smoke Zone with Sounders -

Objective Equipment List

To activate the sounders on

all smokes after any smoke

detector is activated

Apex Destiny 6100 Control Panel, rev. 8.05 or greater

System Sensor Smokes: 4WTA-B, 4WTAR-B, 4WITAR-B

System Sensor RRS-MOD

Sequence of Operation

When the panel detects an alarm from any fire zone, the panel will activate the on board relay to activate the trigger

wire (purple see wiring diagram below) which in turn with sound ALL sounders.

To Reset:

1. Press Code 1 time

2. Press Code + 6 (Smoke Power Reset)

3. Arm and Disarm the panel (to Clear the Alarm Memory)

Required Programming

Location Value Function

9940 01 (zone #) Zone Type = 006

Zone Options 1 = 080

Zone Options 2 = 001

Device Type = 000 (onboard zones) or 001 (Zone Expander HWB416)

Enter the 2 digit input # (001 in this case)

4097 001 Enable Control Channel 1

4119 008 Assign Control Channel 1 to the on-board relay

0185 001 Assign the “fire” Trigger

4055 006 002 (on – on any fire alarm) + 004 (off – restore action for fire alarm is

disarming the control) = 006

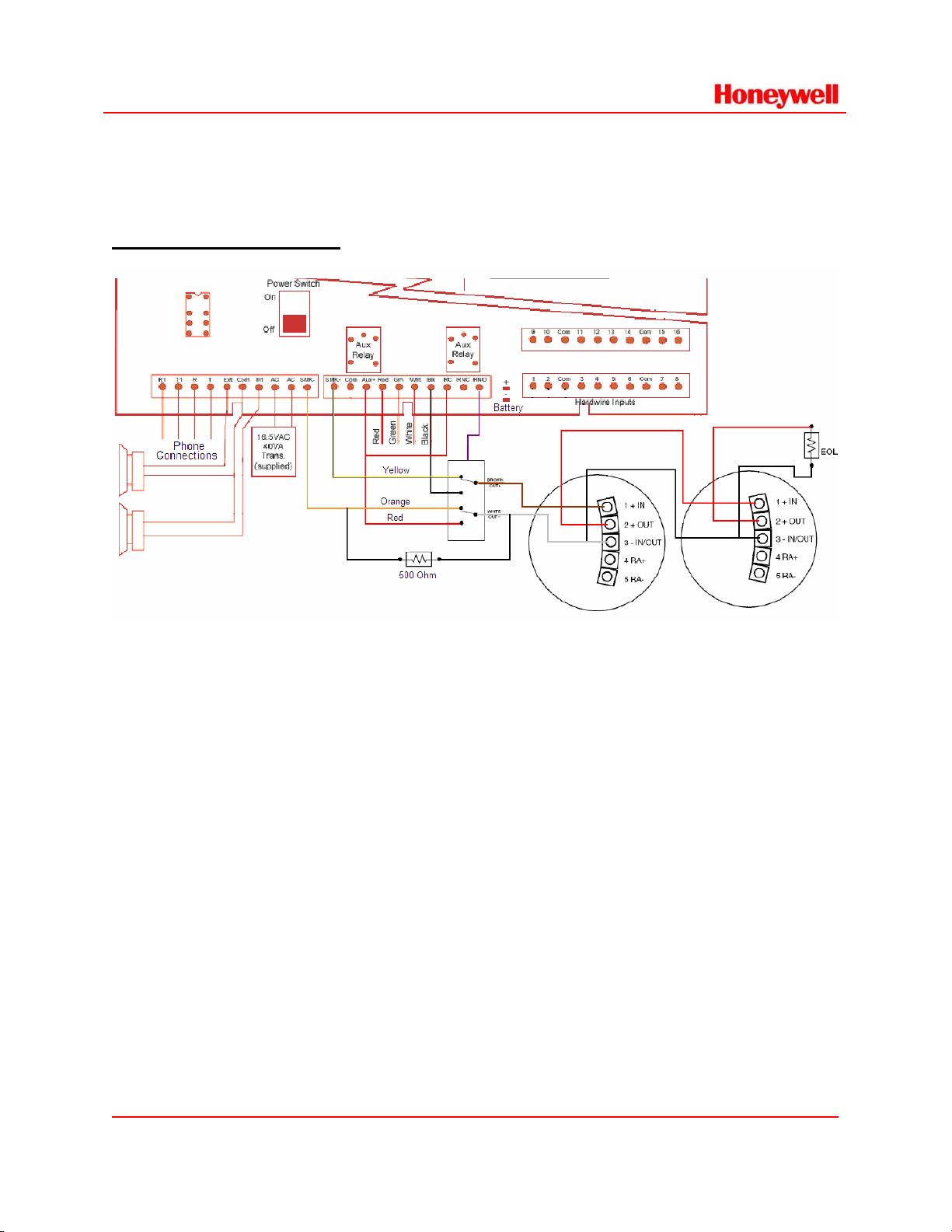

See Below for the wiring Diagram:

- 2 -

Step-by-Step

Tech Support

Updated 11/2/07

- Multiple 4-Wire Smoke Zones with Sounders -

Objective Equipment List

To activate the sounders on

all smokes after any smoke

detector is activated

Apex Destiny 6100 Control Panel, rev. 8.05 or greater

System Sensor Smokes: 4WTA-B, 4WTAR-B, 4WITAR-B

System Sensor RRS-MOD

Sequence of Operation

When the panel detects an alarm from any fire zone, the panel will activate the on board relay to activate the trigger

wire (purple see wiring diagram below) which in turn with sound ALL sounders.

To Reset:

1. Press Code 1 time

2. Press Code + 6 (Smoke Power Reset)

3. Arm and Disarm the panel (to Clear the Alarm Memory)

Required Programming

Location Value Function

9940 01 (zone #) Zone Type = 006

Zone Options 1 = 080

Zone Options 2 = 001

Device Type = 000 (onboard zones) or 001 (Zone Expander HWB416)

Enter the 2 digit input #

9940 02 (zone #) Zone Type = 006

Zone Options 1 = 080

Zone Options 2 = 001

Device Type = 000 (onboard zones) or 001 (Zone Expander HWB416)

Enter the 2 digit input #

4097 001 Enable Control Channel 1

4119 008 Assign Control Channel 1 to the on-board relay

0185 001 Assign the “fire” Trigger

4055 006 002 (on – on any fire alarm) + 004 (off – restore action for fire alarm is

disarming the control) = 006

Multiple 4-wire smoke zones using the RRS-MOD with No EOL Supervision Relay

- 3 -

Step-by-Step

Tech Support

Updated 11/2/07

Multiple 4-wire smoke zones using the RRS-MOD with EOL Supervision Relay

- 2-Wire Smoke Zones with Sounders -

Objective Equipment List

To activate the sounders on

all smokes after any smoke

detector is activated

Apex Destiny 6100 Control Panel, rev. 8.05 or greater

System Sensor Smokes: 2WTA-B, 2WTR-B

System Sensor RRS-MOD

Sequence of Operation

When the panel detects an alarm from any fire zone, the panel will activate the on board relay to activate the trigger

wire (purple see wiring diagram below) which in turn with sound ALL sounders.

To Reset:

1. Press Code 1 time

2. Press Code + 6 (Smoke Power Reset)

3. Arm and Disarm the panel (to Clear the Alarm Memory)

Required Programming

Location Value Function

9940 01 (zone #) Zone Type = 006

Zone Options 1 = 080

Zone Options 2 = 001

Device Type = 002 (2-wire Smoke Loop)

Enter the 2 digit input #

4097 001 Enable Control Channel 1

4119 008 Assign Control Channel 1 to the on-board relay

0185 001 Assign the “fire” Trigger

4055 006 002 (on – on any fire alarm) + 004 (off – restore action for fire alarm is

disarming the control) = 006

4022 006 Toggle Channel 1 Off

3631 024 Enable the F2 Key for output control Channel #1

- 4 -

Step-by-Step

Tech Support

Updated 11/2/07

If any fire alarm occurs, Press F2 to silence smokes. Then enter a valid 4 digit code to silence sounder.

Then enter a valid 4 digit code and 6 to reset smokes.

Note

Pressing F2 with no Fire alarm condition present will cause the sounders to activate and deactivate.

2-wire Smoke loop Wiring

Notes:

Sounders will continue to sound until a valid 4 digit code is entered. Upon doing so the onboard relay will

open back up releasing the voltage from the purple wire. When this is done the relays in the RRS-MOD

will seize to reverse and go back to their Normally Closed position. Sounding on the Smokes will stop.

The LED on the initially activated smoke will remain lit until the smoke is reset.

To reset the smoke enter a valid 4 digit code + 6. You will hear the speaker say “Smoke Power”. This

resets the power to the smoke. The zone will stay in trouble until the panel is Armed and Disarmed.

When calculating total current draw of the control panel, remember to add current consumption (25mA) for

the polarity reversal relay module (RRS-MOD).

If, during power-up, the detector determines there is excessive electrical noise in the system such as those

caused by improper grounding of the system or the conduit, both LEDs will blink for up to 4 minutes

before displaying detector status.

When using the RRS-MOD with model 2WTA-B, do not mix the 2WTA-B with other model smoke

detectors and dry contact closure devices, including mechanical heat detectors, manual pull stations and

waterflow switches. Such mixing can cause a direct short on the auxiliary power terminals, damaging the

control panel’s internal circuitry and/or damage devices connected to the initiating device circuit.

Only one 2WTA-B detector shall be installed on a zone, unless the panel switches the zone to a reverse

polarity, non-current limited power supply. For panels that do not provide this feature, a reversing relay,

System Sensor model RRS-MOD, may be used. When utilized with the 2WTAB, it allows for more than

one detector to be utilized on a loop. Some panels may require the use of programmable outputs. Refer to

System Sensor literature for further information on the RRS-MOD. The 2WTA-B detector shall not be

mixed with other 2-wire detectors on the same zone.
