OWNER’S GUIDE

69-0854

HR230

FRESH AIR

VENTILATION

SYSTEM

WELCOME…

…to the world of efficient ventilation. Engineered and built for long,

trouble-free operation, this Honeywell HR230 Fresh Air Ventilation

System provides proper levels of ventilation with energy savings by

transferring heat between the exhaust and fresh air streams. Your home

will now be better protected from indoor pollutants such as formalde-

hyde, tobacco by-products, radon, moisture, combustion by-products

and carbon monoxide. With the Honeywell Fresh Air Ventilation System,

you can expect to enjoy the benefits of a properly ventilated energy

efficient home for years to come.

Features and benefits:

•Easy-to-clean counterflow core assures years of trouble-free

operation.

•Quiet operation reduces the typical noise levels added by

ventilation products.

• Efficient, low energy consumption saves on utility bills.

•Recovers up to 84% of the difference between indoor and outdoor

temperatures.

169-0854

CONTENTS

PAGE

THE BENEFITS OF THE PERFECT CLIMATE® SYSTEM

AND THE FRESH AIR VENTILATION SYSTEM .............................. 2

CONSIDER THE COMPLETE PACKAGE FOR PERFECT

CLIMATE® FOR YOUR HOME ........................................................ 3

PERFECT CLIMATE® ........................................................................... 4

CONTROLS FOR YOUR FRESH AIR VENTILATION SYSTEM .......... 5

OPERATING YOUR FRESH AIR VENTILATION SYSTEM .................. 6

GETTING THE MOST FROM YOUR FRESH AIR

VENTILATION SYSTEM ................................................................... 8

MAINTENANCE INSTRUCTIONS FOR THE FRESH AIR

VENTILATION SYSTEM ................................................................... 9

LIMITED WARRANTY ................................................ Inside Back Cover

Attention Homeowner:

The HR230 Fresh Air Ventilation System must be maintained on a

regular basis for maximum efficiency. For complete instructions on

maintaining your Fresh Air Ventilation System, refer to the Maintenance

Instructions for the Fresh Air Ventilation System section on page 9.

69-0854 2

THE BENEFITS OF THE PERFECT CLIMATE® SYSTEM AND THE

FRESH AIR VENTILATION SYSTEM

We take it for granted that our homes protect us from the elements.

But, because of tighter, better quality home constructions, our indoor

environments may be exposing us to unacceptable levels of the very

things we are trying to escape—excessive heat, dryness, humidity,

toxic gases, dust and contaminants—sealed neatly in by the

weatherproofing.

So, what’s the weather forecast for indoors?

Today’s indoor forecast is stormy weather for many homeowners. But

rapid clearing and fresh breezes are just around the corner!

Feeling Right at Home

Unlike what the outdoor brings us, you can have control of indoor

conditions. Temperature, humidity levels and air quality all can affect

physical health, mental attitude, general comfort and energy savings.

With today’s technological advances, you can achieve a “perfect

climate” indoors.

After all, people look to their homes as a place to escape the stresses

of work, a busy lifestyle and an increasingly polluted outdoor environ-

ment. Creating a perfect indoor climate is becoming critical to feeling

right at home.

The Honeywell Fresh Air Ventilation System removes stale, unhealthy

inside air and replaces it with a stream of fresh air.

Have you considered the complete package of Perfect Climate controls

for your home?

369-0854

CONSIDER THE COMPLETE PACKAGE FOR PERFECT CLIMATE®

FOR YOUR HOME

CONDITIONED

AIR

CONDITIONED

AIR

RETURN AIR

STALE AIR

EXHAUST

FRESH AIR

INTAKE

HONEYWELL

VENTILATOR

HONEYWELL

ELECTRONIC AIR CLEANER

HONEYWELL

WATER FILTER

OPTIMAL

EFFICIENCY

FORCED AIR

FURNACE

FRESH

AIR TO

HOME

HUMIDIFIER

OPTIMAL

EFFICIENCY AIR

CONDITIONER

OR HEAT PUMP

THE

PERFECT CLIMATE

COMFORT CENTER™ IS ONE

PART OF A PERFECT CLIMATE

AN INDOOR ENVIRONMENT THAT MAKES

YOU FEEL BETTER, ALLOWS YOU TO LIVE AND

WORK MORE COMFORTABLY, MAINTAINS PRECISE

INDOOR TEMPERATURE, HUMIDITY AND PRECISE AIR

QUALITY, AND ACHIEVES MAXIMUM ENERGY SAVINGS.

COLD AIR

RETURN

STALE

AIR FROM

BATHS

M6350

How it works...

HONEYWELL

HOME SECURITY

SYSTEMS

HONEYWELL

PC8900

HONEYWELL

W8900

1. Honeywell PC8900 Perfect Climate Comfort Center™

2. Honeywell F50, the air cleaner of choice

3. Honeywell Dehumidistat

4. Honeywell Fresh Air Ventilation System

5. F76 Water Filter

6. Honeywell Home Security System

69-0854 4

PERFECT CLIMATE®

Describing Perfection

The most convenient, most energy efficient, cleanest, healthiest and

most comfortable indoor environment possible today! Perfect climate is

achieved when the components of a home’s climate system work

together:

•optimal efficiency heating and cooling equipment.

•precise, programmable temperature control.

•high efficiency air cleaning/filtering.

•proper humidity control.

•proper ventilation and air distribution.

• whole house water filter.

•security system.

•lighting control.

•multi-zone temperature control.

Products for a

Perfect Climate®

System

Heating and cooling system: This is the workhorse of your indoor

climate system. Good advice is to have your local heating/cooling

contractor tune up your system annually for comfort, safety and

economy reasons. If your heating plant is old, think about replacing it

with a modern and improved unit. Advances in product technology have

very impressively increased the efficiency of equipment. Sometimes the

improved performance will pay back much of the cost in a few short

years.

For additional information about the Honeywell Perfect Climate®

System, please visit our website at www.honeywell.com/yourhome, or

call the 24-hour automated information line at 1-800-468-1502.

569-0854

CONTROLS FOR YOUR FRESH AIR VENTILATION SYSTEM

Your Fresh Air Ventilation System controls are located on the ventilator

cabinet. See Fig. 1. There are two switches, and an indicator light

(defrost models only). In addition, control of your ventilator may be

enhanced by the use of one or more Honeywell products—Perfect

Climate Comfort Centers™, dehumidistats, timers or wall switches.

1. POWER SWITCH

This switch is located on the ventilator control panel. It is used to

control power to the entire ventilation system. When this switch is in

the Off position, the ventilation system is completely shutdown.

2. Lo-Standby-Hi SWITCH

This switch is also located on the ventilator control panel. It is used to

control the speed of the ventilation system. When the switch is in the

Lo position, the ventilator runs at reduced speed (135 cubic feet per

minute [cfm]). When the switch is in the Hi position, the ventilator

runs at full speed (230 cfm). When the switch is in the Standby

position, the ventilator is powered, but it is not operating. A signal

from a dehumidistat, a timer, or a wall switch will cause the ventilator

to run at full speed. When the signal is removed, the ventilator will

shut off and return to the Standby mode.

3. INDICATOR LIGHT (Defrost Models Only)

The indicator light is located on the ventilator control panel on

ventilators that have built-in defrost capability. The indicator light is

on when the ventilation system is in defrost.

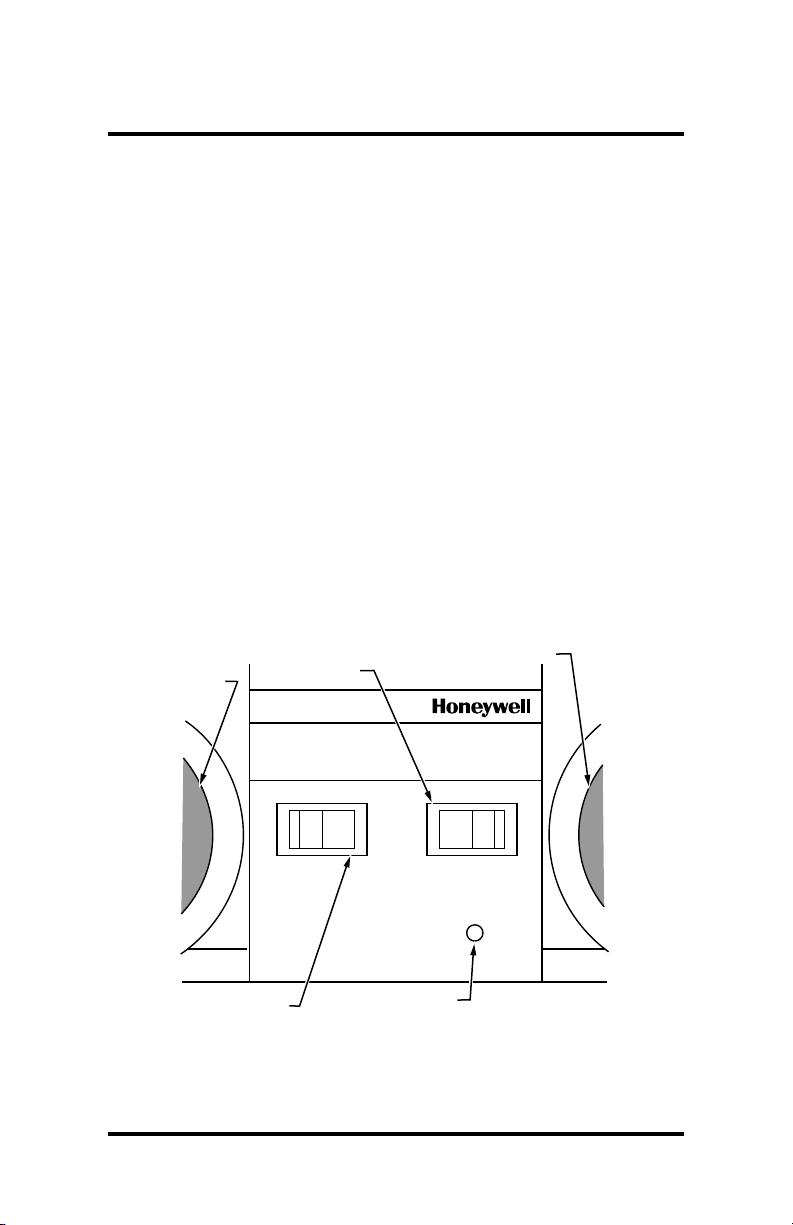

Fig. 1. Fresh Air Ventilation System controls on ventilator cabinet.

M7612

Fresh Air Ventilation System

Système de ventilation à air frais

Off POWER On Lo Standby Hi

A ALIMENATION MBase En attente Haute

Defrost Cycle

Cycle de dégivrage

POWER SWITCH

SUPPLY

INLET

EXHAUST OUTLET

LO-STANDBY-HI

SWITCH

INDICATOR LIGHT

(DEFROST MODELS ONLY)

69-0854 6

OPERATING YOUR FRESH AIR VENTILATION SYSTEM

Step 1

Move the power switch to the On position. With this switch in the Off

position, all power to the system is removed and no system controls will

have any effect.

Step 2

Move the Lo-Standby-Hi switch to the Lo position. This setting will

provide a low ventilation rate suitable for continuous operation. When

you do not want continuous ventilation, move the switch to the Standby

position. Activating a Perfect Climate Comfort Center, a timer, a wall

switch or the sensing of high humidity by the dehumidistat will switch the

ventilator into the high speed from either the Lo or Standby position.

Move the switch to the Hi position when you want maximum ventilation.

Step 3

The Perfect Climate Comfort Center may be used to control your ventila-

tion rate. This can be done automatically by using the programmed times

or manually by pressing the Ventilate button on the keypad. See the

Perfect Climate Comfort Center™ User’s Guide (form 69-0891) for

complete instructions.

Step 4

When one or more dehumidistats are part of the control scheme, set the

dehumidistat at the desired humidity level. Generally, the dehumidistat(s)

should be located in areas, such as a bathroom, that generate excess

moisture. When a shower is used, the local humidity level will go above

the dehumidistat setpoint and the ventilation system will switch to the high

speed (maximum ventilation). The ventilation system will return to the

previous setting when the humidity drops below the setpoint.

NOTE: When there is more moisture in the outside air than the inside

air (summer time), turn off the dehumidistat(s). Moisture laden

outdoor air brought inside will not dry the house.

If your heating system has a powered humidifier, make sure the

dehumidistat is set at least ten percent relative humidity above your

humidistat. It may be necessary to lower the humidistat setting to avoid

condensation in the winter.

769-0854

Step 5

Your Fresh Air Ventilation System may utilize one or more timers. When

a high ventilation rate is desired, turn the timer to the desired number on

minutes. The Ventilator will switch from the Lo or Standby setting to the

high speed. The ventilator will return to the previous setting when the

time runs out.

Step 6

Your Fresh Air Ventilation System may utilize one or more wall switches

to provide manual control of the system. If a high ventilation rate is

desired, move a switch to the maximum position. The ventilator will run

at high speed until the switch is returned to the normal position.

NOTE: The ventilator will run at high speed if any device in the system

(Perfect Climate Comfort Center, dehumidistat, timer or wall

switch) is activated.

GETTING THE MOST FROM YOUR FRESH AIR VENTILATION

SYSTEM

Moisture Control

Continual operation of the ventilation system is recommended for

optimum reduction of indoor air pollution and control of humidity.

Increased moisture removal will always occur at maximum ventilation

rates. Use the Hi switch position when first occupying a newly built

home to remove excess moisture from new wood, plaster, cement and

other moisture absorbing construction materials. If your system is wired

to a dehumidistat, it will switch the ventilator to the high speed setting

whenever the humidity level goes above the setpoint.

NOTE: When the amount of moisture in the outside air is greater than

the amount in the inside air, running the ventilation system will

not dry the home. This will occur most often in the summer

months.

Remote Override Switch Functions

Your Fresh Air Ventilation System may incorporate one or more

remotely mounted Perfect Climate Comfort Centers™, dehumidistats,

timers or wall switches. When any of these devices are activated, the

ventilator will run at the high speed. The ventilator will return to the

previous setting when all the remote devices are deactivated. The

remote override function, in combination with the Standby setting, is

especially useful for intermittent bathroom exhaust where continuous

ventilation is not required. Continuous operation is recommended

except when the home is unoccupied, or when proper ventilation is

provided by other means such as open doors and windows.

Defrost

Ventilators designed for use in cold climates are equipped with an

automatic defrost system. The ventilator automatically detects restricted

airflow in the heat transfer core when ice starts to form and a defrost

cycle is initiated. The ventilator is closed off from the duct system, an

auxiliary heater is turned on and the air inside the ventilator is recircu-

lated continually to melt the ice that has formed. When the airflow

returns to normal, the sequence is reversed and ventilation returns to

normal. When the ventilator is in defrost, the LED indicator light on the

control panel is illuminated. Defrost time is held to a minimum by

Honeywell’s exclusive automatic defrost initiation circuit.

69-0854 8

Table des matières

Autres manuels Honeywell Ventilateur

Honeywell

Honeywell HT-109E Manuel utilisateur

Honeywell

Honeywell CARMEL 50196 Manuel utilisateur

Honeywell

Honeywell HT-70 SERIES Manuel utilisateur

Honeywell

Honeywell W8150 Manuel utilisateur

Honeywell

Honeywell HTF210 Series Manuel utilisateur

Honeywell

Honeywell ST9103A Manuel utilisateur

Honeywell

Honeywell HT-380BP - High Velocity Air Circulator Floor... Manuel utilisateur

Honeywell

Honeywell ESSER 781443 Manuel utilisateur

Honeywell

Honeywell HV-120 Series Instructions d'installation

Honeywell

Honeywell HY254E Manuel utilisateur

Honeywell

Honeywell HY108E Manuel utilisateur

Honeywell

Honeywell 40011 Manuel utilisateur

Honeywell

Honeywell ELSTON Manuel utilisateur

Honeywell

Honeywell RIO Manuel utilisateur

Honeywell

Honeywell HTF337 Series Manuel utilisateur

Honeywell

Honeywell HYF1101E Manuel utilisateur

Honeywell

Honeywell 50616 Manuel utilisateur

Honeywell

Honeywell QUIETSET HT354E Manuel utilisateur

Honeywell

Honeywell 50207 Manuel utilisateur

Honeywell

Honeywell QUIETSET HS1655 Series Manuel utilisateur

Honeywell

Honeywell HY-026 Series Manuel utilisateur

Honeywell

Honeywell HT-908 Series TECH FORCE Manuel utilisateur

Honeywell

Honeywell TURBOFORCE HHF565BE Manuel utilisateur

Honeywell

Honeywell PERFECT WINDOW ER150 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
