Honeywell WICKER PARK Manuel utilisateur

WICKER PARK 48” CEILING FAN

MODEL #10268

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,

8 am - 5 pm, EST.

Español p. 18

WELCOME

PREPARATION

Before beginning the assembly of this product, ensure

that all parts are present. Compare all parts with the

package contents list and hardware contents list. If

any part is missing or damaged, do not attempt to

assemble the product.

After opening the top of the carton, remove the

mounting hardware package from the foam inserts,

then remove the motor from the packaging and

place it on a soft surface, such as a carpet, to avoid

damage to the nish.

Estimated Assembly Time: Under 120 minutes

Tools Required for Assembly (not included): Electrical

Tape, Phillips Screwdriver, Pliers, Safety Glasses,

Step Ladder, and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape

Measure, Wiring Handbook, and Wire Cutters

CARE AND MAINTENANCE

At least twice each year, lower the canopy to check

the downrod assembly, and then tighten all screws

on the fan. Clean the motor housing with only a soft

brush or lint-free cloth to avoid scratching the nish.

Clean the blades with a lint-free cloth.

Important: Shut off the main power supply before you

begin any maintenance tasks. Do not use water or a

damp cloth to clean the ceiling fan.

FAN WEIGHT

The net weight of this fan is: 12.16 lbs. (5,52 kg).

TABLE OF CONTENTS

ATTACH YOUR RECEIPT HERE

Serial Number

Purchase Date

Care and Maintenance ........................2

Package Contents ...........................3

Safety Information ...........................4

Mounting Options ............................5

Mounting Bracket Installation ...................6

Standard or Angle Mounting Instructions . . . . . . . . . .7

Wiring ....................................10

Canopy Installation..........................11

Blade Installation ...........................12

Light Kit Installation .........................13

Operating Instructions .......................14

Replacement Parts List ......................15

Troubleshooting ............................16

Limited Lifetime Warranty.....................17

PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

1. Blade (3)

2. Mounting Bracket

3. Canopy

4. Canopy Cover

5. Yoke Cover

6. Downrod

7. Downrod Clip

8. Downrod Pin

9. Blade Arm (3)

10. Yoke

11. Motor Assembly

12. Fitter Plate

13. Light Kit

14. Light Housing (3)

15. Light Ring (3)

16. Bulb (3)

17. Hardware bag (not shown): Mounting hardware,

blade attachment hardware, pull chain

extensions, wire connectors, etc.

18. Owner’s Manual (not shown)

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate, or install the product.

• Before you begin installing the fan, disconnect the power by removing fuses or turning off the

circuit breakers.

• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical

Code, and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring handbook if

you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 ft. (2,14 m) from the blades

to the oor and at least 30 in. (76 cm) from the end of the blades to any obstruction.

DANGER

WARNING

When using an existing outlet box, make sure

the outlet box is securely attached to the building

structure and can support the full weight of

the fan. Failure to do this can result in serious

injury or death. The stability of the outlet box is

essential in minimizing wobble and noise in the

fan after installation is complete.

To reduce the risk of re or electric shock, do not

use the fan with any solid-state speed-control

device or control the fan speed with a full-range

dimmer switch.

To reduce the risk of re, electric shock, or personal

injury, mount the fan to an outlet box marked

“ACCEPTABLE FOR FAN SUPPORT” and use the

mounting screws provided with the outlet box. Most

outlet boxes commonly used for the support of

lighting xtures are not acceptable for fan support

and may need to be replaced. Consult a qualied

electrician if in doubt. Secure the outlet box directly

to the building structure. The outlet box and its

support must be able to support the moving weight

of the fan, at least 35 lbs. (15,88 kg).

WARNING

CAUTION

To reduce the risk of re, electric shock, or

personal injury, do not bend the blade arms

when installing them, balancing the blades, or

cleaning the fan. Do not insert objects between

the rotating fan blades.

Read all instructions and safety information

before installing your new fan. Review the

accompanying assembly diagrams.

Be sure the outlet box is properly grounded or

that a ground (green or bare) wire is present.

MOUNTING OPTIONS

Fig. 1

Fig. 2

1. Your fan has 2 mounting options:

• Standard (Fig. 1)

• Angle (Fig. 2)

Note: The fans in gures 1 and 2 are not the actual

fan in your package, they are representation of the

2 different mounting options.

Important: If using the angle mount, check to

ensure the ceiling angle is not steeper than 16°.

Standard mounting is best suited for ceilings 8 ft.

or higher. For taller ceilings you may want to use a

longer downrod (sold separately).

Angle mounting is best suited for angled or vaulted

ceilings. A longer downrod is sometimes necessary

to ensure proper blade clearance.

2. Ensure the blades of the fan are at least 30 in.

(76 cm) from any obstruction.

Check the downrod length to ensure the blades will

be at least 7 ft. (2,14 m) above your oor.

4. Loosen all four mounting bracket screws and

completely remove the two mounting bracket

screws from the round holes of canopy. Set aside

for later use. Detach mounting bracket from canopy

(Fig. 4).

Fig. 5

Fig. 4 Mounting

Bracket

Screws

Mounting

Bracket

Canopy

5. Secure the mounting bracket to the outlet box using

screws, spring washers, and at washers provided

with the outlet box (not included) (Fig. 5).

Note: It is very important to use proper hardware

when installing the mounting bracket, as it supports

the fan.

Important: If using angle mount, ensure the open

end of the mounting bracket is installed facing the

peak of the ceiling.

Mounting Bracket

Screw

Fig. 3

3. Turn off the circuit breakers and wall switch leading

to the fan wire leads (Fig. 3).

WARNING

Failure to disconnect the power supply prior to

installation may result in serious injury or death.

! !

MOUNTING BRACKET INSTALLATION

Set Screw

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

7. Remove the downrod clip and downrod pin from

the downrod (Fig. 7).

Downrod

Clip

Downrod

Fig. 7

Fig. 6

Fig. 8

Downrod

Canopy

Yoke

Cover

Motor

Assembly

Downrod Pin

Downrod Clip

8. Feed the wires from the motor assembly through

the yoke cover, canopy, and out the top of the

downrod (Fig. 8).

6. Partially loosen the set screws in the yoke of the

motor assembly (Fig. 6).

Fig. 10

Cut Wires

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

9. Slide the downrod into the yoke of the motor

assembly, align the holes, and reinstall the

downrod pin and downrod clip. Then re-tighten the

set screws with a Phillips screwdriver (Fig. 9).

10. Depending on the length of downrod you use,

you may need to shorten the wires to simplify the

wiring process. Pull the wires all the way through

the top of the downrod and measure 8 in. of lead

wire, and use wire cutters (not included) to remove

the excess wire (Fig. 10).

11. If you cut back the lead wire in Step 9, strip 1/2 in.

of insulation from the end of each wire. Twist the

stripped ends of each strand of wire (Fig. 11).

Note: If you did not cut back the lead wires in Step

10, Step 11 is not necessary and you may proceed

to Step 12 instead.

Downrod

Set Screw

Yoke

Downrod

Clip

Downrod

Fig. 9

Fig. 11

Stripped

Wires

WARNING

Failure to align the slot in the downrod with the tab

on the mounting bracket could cause the fan to fall,

which could result in serious injury or death.

Slot

Tab

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

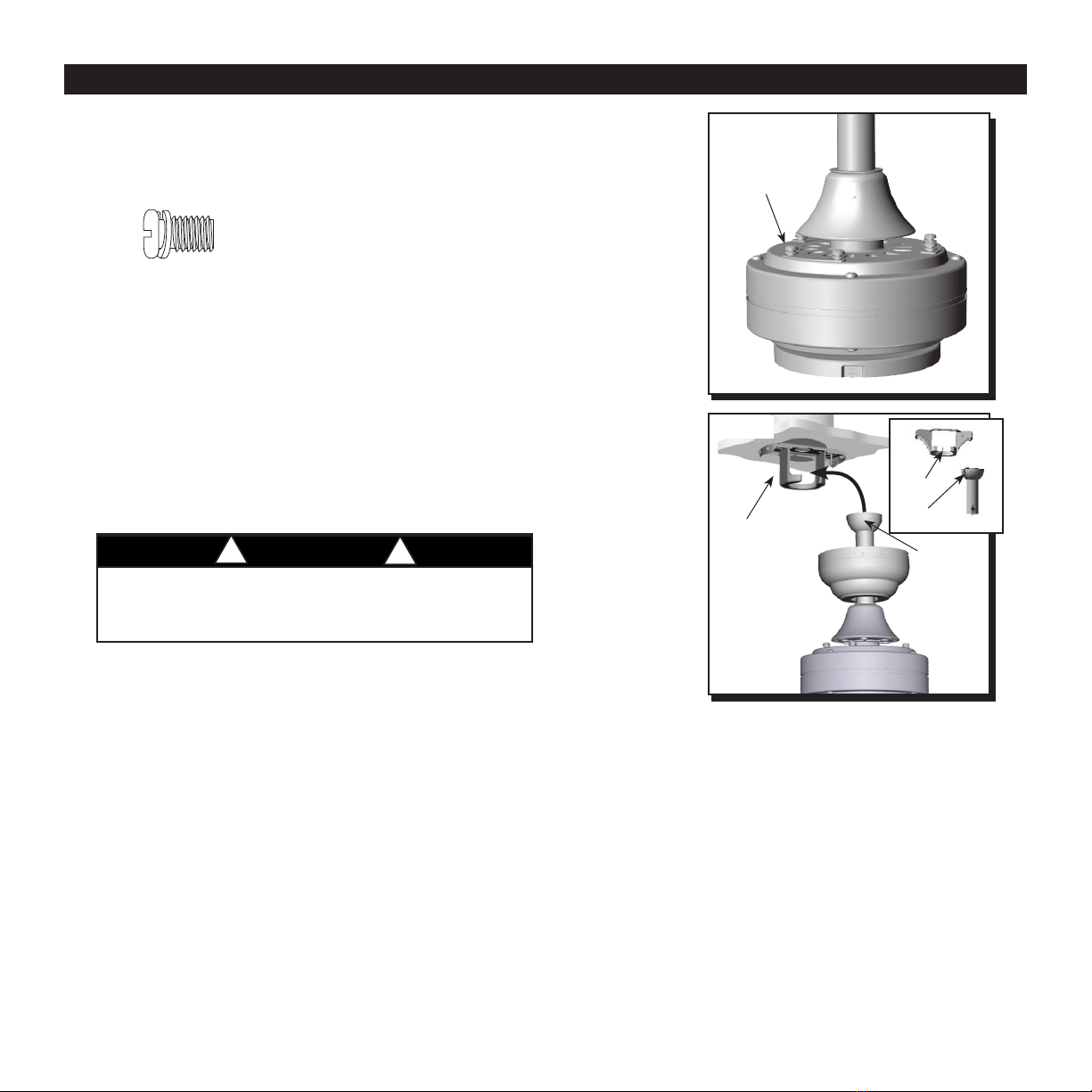

13. Install the ball end of the downrod into the

mounting bracket opening. Align the slot in the ball

with the tab in the mounting bracket. If installed

correctly, the downrod should not rotate in the

mounting bracket (Fig. 13).

12. Remove the six motor screws from the top of the

motor assembly and keep for blade attachment

(Fig. 12).

Mounting

Bracket

Motor Screw

with Washer

Downrod

Ball

Fig. 13

Fig. 12

Motor Screw

with Washer

Wire Connector

14. Connect supply and fan wires according to the

diagram (Fig. 14) and these steps:

• Connect the Green wires from the fan and

mounting bracket to the Bare/Green (ground)

supply wire.

• Connect the Black and Blue wire from the fan to

the Black (hot) supply wire.

• Connect the White wire from the fan to the White

(neutral) supply wire.

Secure all wiring connections with wire connectors

and push all connected wires back into the outlet

box. Important: Ensure black and white wire

connections are on opposite sides of the outlet

box.

Note: The black fan wire is power for fan. The blue

fan wire is power for the light. The white wire from

the fan is common/neutral. The green wires from the

fan and mounting bracket are ground wires.

15. (Optional) If a second hot power wire is available

from outlet box, connect it to the blue (light power)

wire from the fan for separate light and fan control

(Fig. 15).

CAUTION

WARNING

If house wires are different colors than referred to in

the following steps, consult a professional electrician

to determine wiring. Incorrect wire connection can

damage the fan and could cause re or injury.

Be sure outlet box is properly grounded or that a

ground (green or bare) wire is present.

! !

Black (Hot)

White (Neutral)

Bare/Green (Ground)

Black

Blue

White

Green

OFF

Black (live)

Second Wire (live)

White (neutral)

Bare/Green (ground)

Black

Blue

White

Green

OFF OFF

Fig. 14

Fig. 15

WIRING

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Honeywell Ventilateur

Honeywell

Honeywell HS-1650 Series Manuel utilisateur

Honeywell

Honeywell EA122A Manuel utilisateur

Honeywell

Honeywell Turbo Force HYF550 Series Manuel utilisateur

Honeywell

Honeywell Turbo Force HYF500 Series Manuel utilisateur

Honeywell

Honeywell HFS-641PC Manuel utilisateur

Honeywell

Honeywell 50202 Manuel utilisateur

Honeywell

Honeywell HS-0016 Manuel utilisateur

Honeywell

Honeywell Perfect Window HR150B Manuel utilisateur

Honeywell

Honeywell 10288 Manuel utilisateur

Honeywell

Honeywell HSF1640 Series Manuel utilisateur

Honeywell

Honeywell HTF210 Series Manuel utilisateur

Honeywell

Honeywell ELSTON Manuel utilisateur

Honeywell

Honeywell GLEN ALDEN Manuel utilisateur

Honeywell

Honeywell Bonterra Manuel utilisateur

Honeywell

Honeywell HSF600WE Manuel utilisateur

Honeywell

Honeywell POWER TURBO HS-830 Series Manuel utilisateur

Honeywell

Honeywell L4064A-F Manuel utilisateur

Honeywell

Honeywell 50207 Manuel utilisateur

Honeywell

Honeywell HYF290E Manuel utilisateur

Honeywell

Honeywell HT-109E Manuel utilisateur

Honeywell

Honeywell 50616 Manuel utilisateur

Honeywell

Honeywell SABAL PALM Manuel utilisateur

Honeywell

Honeywell QUIETSET HY-105 Series Manuel utilisateur

Honeywell

Honeywell HFT-114B Series Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
