Honeywell SLATE Manuel utilisateur
SL AT E ™
Limit Control Module
R8001L8001
INSTALLATION INSTRUCTIONS
Scan for more information
SLATE™LIMIT CONTROL MODULE 3
R8001L8001
Application
SLATE™ brings configurable safety and programmable logic
together into one single platform. The platform can easily be
customized for almost any requirement or application–offering
virtually limitless development opportunities with far less
complexity.
The R8001L8001 SLATE Limit Control Module is part of the
SLATE Combustions System. The SLATE Limit Control Module
provides the ability to bring in any type of analog signal and
create limits on either pressure or temperature without needing a
UDC Controller.
Features
• 12 limit blocks with each block monitoring any sensor or pair
of sensors
• One limit module for multiple burner controls
• 4 sensors available for Limit Block use (2 sets of redundant
safety inputs)
• Unused Analog Cells available for general purpose I/O
configuration
• Redundant limit relay output
Specifications
Electrical Ratings:
See Table 3–Table 7.
Environmental Ratings
Ambient Temperature:
Operating: -20°F to +150°F (-29°C to +66°C).
Shipping: -40°F to +150°F (-40°C to +66°C).
Humidity: 95% continuous, noncondensing.
Vibration: 0.5G environment
Dimensions: See Fig. 1
Weight: 2 lb 1 oz (0.94 Kg)
432-00007—03
Approvals
Underwriters Laboratories Inc. Listed, File: MP268
IRI Acceptable
Federal Communications Commission: Part 15, Class A
Must be mounted inside a grounded metal enclosure.
Mounting
DIN Rail (See Fig. 2)
Required Components
R8001A1001 SLATE Base Controller
R8001S9001 SLATE Sub-Base Module
R8001B2001 SLATE Burner Control Module
Fig. 1.
M35382
4-19/32 (117)
7-3/32
(181)
2-11/16 (68)
Dimensions in in. (mm).
SLATE™LIMIT CONTROL MODULE 5
R8001L8001
LED Array
There are four LEDs on the front of the Limit Control Module
that provides quick identification of the system status and any
problems that might occur. The status is broadcast to other
modules on the platform bus in case they are affected by the
inoperable modules.
The LEDs on the module are for the sensors, the inputs and
outputs, and for the Reference V.
Terminals 18 and 19 are the limit contacts.
Terminals 20 and 22 are reference voltage terminals to indicate to
the Limit Module what reference voltage it’s operating at.

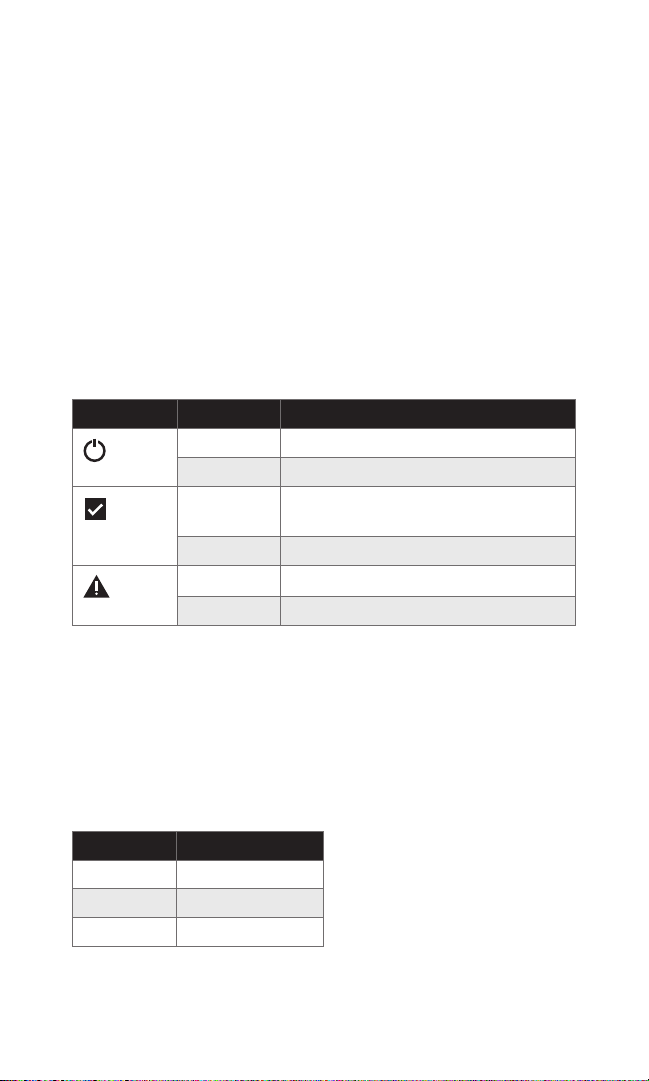

LED Color Description
Power No light System does not have power
Green System has power
CPU Red No wire sheet or problem with the
wire sheet
Green Running
Fault Red Fault
No light Running
Table 1. LED Descriptions.
LED Display
The SLATE system modules have a seven-segment, three-
position LED display used for indicating the module number of
the SLATE system. The LED colors indicate the terminal state as
shown in Table 2.
Color Description
Green Terminal is on
Red Fault
No light Not in use
Table 2. Terminal LED Meanings.
632-00007—03
Select and Reset Buttons
The SLATE system modules have a Select and Reset buttons
located on the front of the module and beneath the segment
display. The Reset button is used to clear a lockout and reset the
module. The Select button is used to scroll through the segment
display information.
Installation
WARNING
Fire or Explosion Hazard
Can cause severe injury, death, or property damage.
Verification of safety requirements must be performed
each time a control is installed on a burner to prevent
possible hazardous burner operation.
When Installing This Product
1. Read these instructions carefully. Failure to follow them could
damage the product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the product
to make sure the product is suitable for your application.
3. After installation is complete, check out the product operation
as provided in these instructions.
4. The SLATE module must be mounted in an electrical
enclosure with adequate clearance for servicing, installation
and removal of modules.
SLATE™LIMIT CONTROL MODULE 7
R8001L8001
WARNING
Electrical Shock Hazard.
Can cause severe injury, death or equipment damage.
1. Disconnect the power supply before beginning installation to
prevent electrical shock and equipment damage. More than
one power supply disconnect can be involved.
Fig. 2.
M35383
Installing the Limit Control Module on the Sub-Base Module.
2. Wiring must comply with all applicable codes, ordinances and
regulations.
3. Wiring must comply with NEC Class 1 (Line Voltage) wiring.
832-00007—03
IMPORTANT
1. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with these instructions, may cause interference for radio
communications. It has been tested and found to comply
with the limits of a Class A computing device of part 15
of FCC rules, which are designed to provide reasonable
protection against such interference when operated in a
commercial environment. Operation of this equipment in a
residential area may cause interference; in which case, the
user, at their own expense, may be required to take whatever
measures are required to correct this interference.
2. This digital apparatus does not exceed the Class A limits for
radio noise, set out in the Radio Interfeence Regulations of
the Canadian Department of Communications.
3. For combination gas-oil burner applications, a double pole,
double throw (dpdt) fuel select switch is required.
4. Cable shield must be terminated to ground at both ends. If
shielded cable is NOT used, use three-wire twisted cable.
Wiring
WARNING
Electrical Shock Hazard.
Can cause severe injury, death, or equipment
damage.
Disconnect the power supply from the main disconnect
before beginning installation to prevent electrical shock
and equipment damage. More than one disconnect can
be required.
SLATE™LIMIT CONTROL MODULE 9
R8001L8001
Fig. 3.
M35285
LIMIT MODULE
4 SENSORS
12 LIMIT BLOCKS
2 DUAL LIMITS
SAFETY RELAY
A
UNIVERSAL
LOW VOLTAGE
CELL
+
_
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
BIAS
VREF+
FROM
POWER
TO
LOADS
SAFETY
RELAY
LOAD
RELAY
+
_
+
_
+
_
B
UNIVERSAL
LOW VOLTAGE
CELL
C
UNIVERSAL
LOW VOLTAGE
CELL
D
UNIVERSAL
LOW VOLTAGE
CELL
VREF–
Wiring diagram for Limit Control Module.
10 32-00007—03
Terminal Description Rating
1Cell A (T1) See Table 4–7 for conguration options
2Cell A (T2) See Table 4–7 for conguration options
3Cell A (T3) See Table 4–7 for conguration options
4Cell A (T4) See Table 4–7 for conguration options
5Cell B (T5) See Table 4–7 for conguration options
6Cell B (T6) See Table 4–7 for conguration options
7Cell B (T7) See Table 4–7 for conguration options
8Cell B (T8) See Table 4–7 for conguration options
9Cell C (T9) See Table 4–7 for conguration options
10 Cell C (T10) See Table 4–7 for conguration options
11 Cell C (T11) See Table 4–7 for conguration options
12 Cell C (T12) See Table 4–7 for conguration options
13 Cell D (T13) See Table 4–7 for conguration options
14 Cell D (T14) See Table 4–7 for conguration options
15 Cell D (T15) See Table 4–7 for conguration options
16 Cell D (T16) See Table 4–7 for conguration options
17 Unused ---
18 Safety Relay
(dry contacts)
9.8 FLA, 58.8 LRA @ 120VAC,
4A (0.5 PF), 20A inrush @ 240VAC,
2A cont, 10A inrush @ 24VDC
19 Safety Relay
(dry contacts)
(see Terminal 18 above)
20 Vref+ 24VDC (0.1mA),
24VAC (0.1mA),
85-264VAC (0.2mA)
21 Unused ---
22 Vref- (see Terminal 20 above)
Table 3. Terminal Ratings.
Note: only one conguration option per cell is allowed for cells
congured as a Limit Block.
