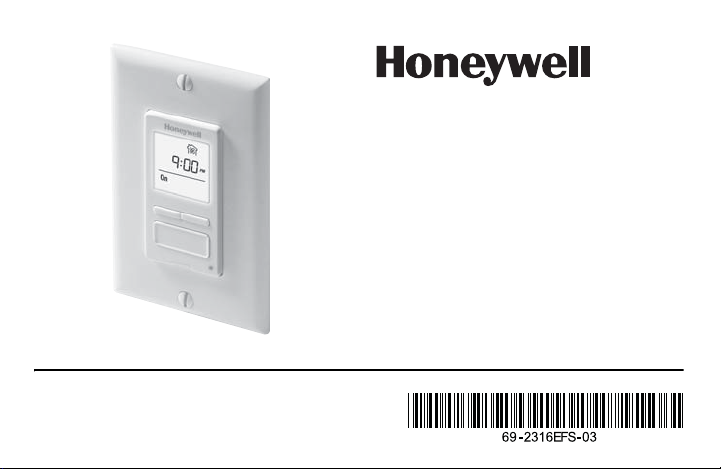

Honeywell HVC0002 Manuel utilisateur

Owner’s Guide

Guide du propriétaire

Guía del usuario

HVC0001 / HVC0002

Programmable Bath Fan Control

Contrôleur de ventilateur programmable

Controlador de ventilador programable

400-305-000-B (69-2316EFS-03).book Page 1 Monday, September 28, 2009 11:06 AM

Read and save these instructions.

® U.S. Registered Trademark. Patents pending.

À lire et conserver en lieu sûr.

® Marque de commerce enregistrée aux États-Unis. Brevets en instance.

Estas instrucciones deben leerse y conservarse

® Marca registrada en los EE. UU. Patentes en trámite.

400-305-000-B (69-2316EFS-03).book Page 2 Monday, September 28, 2009 11:06 AM

Owner’s Guide 400-305-000-EFS

ENGLISH

Overview

About your programmable bath

fan control......................................... 2

Quick reference................................ 3

Installation

2-wire installation.............................. 4

4-wire installation.............................. 5

Setup

Ventilation Mode parameters............ 6

Time and date .................................. 7

Backlight mode................................. 8

Daylight saving time ......................... 9

Modes of Operation

Ventilation mode .............................10

Customized cycle mode..................12

Daily On/Off mode ..........................14

Manual mode ..................................16

Countdown mode ............................ 17

Appendices

Product specifications.....................18

Customer assistance ......................19

5-year limited warranty ...................20

Table of contents

400-305-000-B (69-2316EFS-03).book Page 1 Monday, September 28, 2009 11:06 AM

Owner’s Guide 400-305-000-EFS

ENGLISH

The bath fan control has been designed to control a single-speed bath fan. To suit your lifestyle, it can

be programmed in any of the following modes of operation:

• Ventilation Mode (see page 10)

• Customized Cycle Mode (see page 12)

• Daily On/Off Mode (see page 14)

• Manual Mode (see page 16)

Unlike the four programmable modes mentioned above, the Countdown Mode can easily be

activated by simply pressing a button (see page 17). In this mode, the fan is on until the end of the

programmed countdown time when the controller returns to the programmed mode.

This

controller cannot be used with a load lower than 0.1 A or higher than 2.5 A.

The controller can be used to control a bath fan’s built-in light or a separate light

fixture connected to the bath fan control circuit. However, the light cannot be

independently controlled and will turn On or Off at the same time as the fan.

About your programmable bath fan control

400-305-000-B (69-2316EFS-03).book Page 2 Monday, September 28, 2009 11:06 AM

HVC0001/HVC0002

ENGLISH

Quick reference

The LED illuminates

when the bath fan is On.

Press the Main Button to turn the

bath fan On or Off. (Press for 3

seconds to enter the setup menus.)

Press either button to place in

Countdown Mode. Then press the

left button to decrease the

countdown time or the right button

to increase the time.

Setup menu

Clock

The bath fan is On The bath fan is Off

Programmable modes

Countdown time

If the controller is also used to control

lights, pull out this safety tab before

replacing the light bulb. Push back in

after the light bulb is replaced.

Countdown Mode

(see page 17)

400-305-000-B (69-2316EFS-03).book Page 3 Monday, September 28, 2009 11:06 AM

Owner’s Guide 400-305-000-EFS

ENGLISH

nCut power at the main electrical panel to avoid electric shock.

oRemove the existing switch if applicable.

pInstall the bath fan controller.

qApply power at the circuit breaker.

2-wire installation

black

white

black (LINE)

black (LOAD)

green (GND)

120

VAC

black

white

For installation in wet locations, protect the circuit

with a ground fault circuit interrupter (GFCI).

400-305-000-B (69-2316EFS-03).book Page 4 Monday, September 28, 2009 11:06 AM

HVC0001/HVC0002

ENGLISH

nCut power at the main electrical panel to avoid electric shock.

oRemove the existing switch if applicable.

pInstall the bath fan controller.

qApply power at the circuit breaker.

4-wire installation

120

VAC

black

white

black

white black (LINE)

black (LOAD)

green (GND)

For installation in wet locations, protect the circuit

with a ground fault circuit interrupter (GFCI).

400-305-000-B (69-2316EFS-03).book Page 5 Monday, September 28, 2009 11:06 AM

Owner’s Guide 400-305-000-EFS

ENGLISH

At first power-up, you will be prompted to set the following parameters:

Set the Ventilation Mode parameters

Select Units

(US /Metric)

Set Fan Capacity ***

(CFM or LPS)

ASHRAE 62.2

Pass/Fail ****

Set Floor Size **

(Sq. ft or Sq. M)

Set no. of

Bedrooms *

Normal

Display

* No. of bedrooms (1, 2, ..., 6)

** Floor space (1000, 1100, ..., 5000 sq. ft. or 100, 110, ..., 500 m2)

*** Fan capacity (30, 40, ..., 200 CFM or 15, 20, ..., 100 LPS)

**** The controller shows whether you pass or fail ASHRAE

Standard 62.2 for ventilation and the percentage of time the fan

will run every hour. If the controller indicates Fail; this usually

means the fan capacity is insufficient for your house.

If you press the main button for 3 seconds or do

not press any button for 60 seconds, the

controller will go to normal display. If the

parameters are not set, you will again be

prompted the next time the controller is powered

up, for example, after a power outage. The

parameters can be set at any time (see page 10).

400-305-000-B (69-2316EFS-03).book Page 6 Monday, September 28, 2009 11:06 AM

HVC0001/HVC0002

ENGLISH

Set the time and date

Set Hour Set Minutes

Set Year Set Month Set Day

Select 24H or 12H

The time flashes on the screen when it is

not yet set or after a power outage of

more than 4 hours. To set the clock,

press the main button for 3 seconds to

display the setup menu and proceed as

shown.

Press the main button for 3 seconds at

any time (or do not press any button for

60 seconds) to save any changes you

have made and exit the setup menu.

400-305-000-B (69-2316EFS-03).book Page 7 Monday, September 28, 2009 11:06 AM

Owner’s Guide 400-305-000-EFS

ENGLISH

The controller provides 3 backlight modes. Depending on the mode selected, the screen behaves as

follows:

•Scrn Off: The screen is not lit (the backlight is off).

•Scrn On HI: The screen is lit at high intensity.

•Scrn On LO: The screen is lit at low intensity (default mode).

When you press any button, the screen is lit at high intensity for 8 seconds.

Set the Backlight mode

Set Backlight

(2 times)

Press the main but-

ton for 3 seconds at

any time (or do not

press any button for

60 seconds) to save

any changes you

have made and exit

the setup menu.

To set the backlight

mode, press the

main button for 3

seconds to display

the setup menu and

proceed as shown:

400-305-000-B (69-2316EFS-03).book Page 8 Monday, September 28, 2009 11:06 AM
