INSTALLATION MANUAL FOR THE

FP5000

INTRINSICALLY SAFE TRANSMITTERS,

OPTION CODE 2AR

008-0751-00

Rev. C

mPERSONAL INJURY

WARNING

DO NOT USE these products as safety or

emergency stop devices or in any other

application where failure of the product

could result in personal injury.

Failure to comply with these

instructions could result in death or

serious injury.

mWARNING

The operator of this instrument is

advised that if the equipment is used in a

manner not speciﬁed in this manual, the

protection provided by the equipment may

be impaired.

Failure to comply with these

instructions could result in death or

serious injury.

CAUTION

Only qualiﬁed, service-trained personnel

who are aware of the hazards involved

should connect external wiring to these

products.

CAUTION

Use supply wires suitable for 5 °C above

surrounding ambient.

mWARNING

Explosion Hazard - Do not disconnect

equipment unless power has been

switched off or the area is known as

non-hazardous.

mWARNING

Explosion Hazard - Substitution of

components may impair suitability for

Class I, Division 1.

FP5000 INTRINSICALLY SAFE

TRANSMITTERS 008-0751-00, Rev. C

FP5000 Pressure Transmitter User Manual | sps.honeywell.com/ast 2

DESCRIPTION

The Honeywell Model FP5000 with

option code 2AR is an “Intrinsically

Safe” certiﬁed media-isolated

piezoresistive silicon pressure

transmitter, offering 4 mA to 20 mA

electrical output for reading pressure

over the speciﬁed full-scale pressure

span and temperature range. It is

compensated for sensor offset,

sensitivity, temperature effects,

and non-linearity to offer improved

thermal stability and accuracy.

Hastelloy® C276 and 316L stainless

steel wetted parts provide durability

with abrasive or corrosive media.

NORMAL USE

Although there are variations within

the series of sensors, the nominal

weight

of the assembly is approximately

5.3 oz [150 g]. High surface

temperatures can remain in place

and the unit should be checked

before removing the unit from

service if it was operated at high

temperatures. Suitable gloves are

recommended for handling the unit

under those conditions.

SPECIFIC CONDITIONS OF

USE

The FP5000 Pressure Sensor does

not withstand a 500 Vrms dielectric

strength test between the circuits

and the earth ground. This is due

to presence of transient protection

devices that activate above 33 Vdc

and protect the transmitter from

overvoltage damage. This is intended

behavior and must be taken into

account during installation.

GENERAL REQUIREMENTS

AND CAUTIONS

1. All electrical and pressure

connections should be

compatible with the model

speciﬁcations.

2. Installation should occur only

when input electrical power is off

and line pressure is at zero.

3. All products should be protected

from direct or continued

exposure to ﬂuids at the

electrical connection to eliminate

possible deterioration of the

product’s electrical connection

and corrosion that will impede

product performance.

4. At no time should an object be

inserted into the pressure port or

pressed against the sensing area

to deﬂect the sensor (to test or

simulate pressure), as this may

result in permanent damage to

the sensing diaphragm.

5. Do not remove the transmitter

when it is under pressure, if it

is hot, or if it exposes harmful

gases.

FP5000 Pressure Transmitter User Manual | sps.honeywell.com/ast 3

FP5000 INTRINSICALLY SAFE

TRANSMITTERS 008-0751-00, Rev. C

6. Transmitter case should

be connected to ground to

protect it from electromagnetic

interference.

INSTALLATION

REQUIREMENTS AND

CAUTIONS

1. When using mating parts made

of stainless steel, use a thread

sealant with anti-seize properties

to prevent thread galling. Ensure

the sealant is rated for the

application.

2. Ensure torque speciﬁcations

are determined for the speciﬁc

application. Mating materials

and thread sealants can result

in signiﬁcantly different torque

values from one application to

the next.

3. Ensure that the proper mating

electrical connector with a seal is

used to connect the transmitter.

Improper or damaged seals can

compromise ingress protection,

leading to short circuits.

4. Always hand-start transmitters

into the hole to prevent cross

threading and damage.

5. Use appropriate tools (such

as an open-ended wrench or

deep-well socket) to install

transmitters.

6. Ensure that torque is not applied

to the electrical connector.

7. To ensure proper environmental

sealing and electrical

connections when using a

connector, follow the connector

manufacturer’s installation

guidelines.

8. Prohibit freezing of media in

pressure port. Unit should

be drained (mount in vertical

position with electrical

termination upward) to prevent

possible overpressure damage

from frozen media.

9. Any electrical device may be

susceptible to damage when

exposed to static electrical

charges. To avoid damage to the

product, observe the following:

- Operator/installer should

follow the proper ESD

(electrostatic discharge)

protection procedures

before handling the pressure

transmitter.

- Ground the transmitter’s

body BEFORE making any

electrical connections.

MOUNTING DIMENSIONS

Refer to the FP5000 datasheet for

detailed mounting dimensions.

FP5000 INTRINSICALLY SAFE

TRANSMITTERS 008-0751-00, Rev. C

FP5000 Pressure Transmitter User Manual | sps.honeywell.com/ast 4

TABLE 1. MODEL SPECIFICATIONS

CHARACTERISTIC MEASURE

Input 9 Vdc to 28 Vdc

Output

4 mA to 20 mA

Electrical connector

This product is available in multiple electrical connector

configurations. Refer to the product datasheet for

information regarding the options available

Pressure connection

This product is available in multiple pressure port

configurations. Refer to the product datasheet for

information regarding the options available

Pressure ranges

Pressure ranges from 10 inH2O [0.36 psi] up to 5000 psi.

Refer to the product datasheet for information regarding

the option codes available

Maximum surface

temperature

The product can reach maximum surface temperature

of 135°C [275°F] under fault conditions at ambient

temperature of 85°C [185°F] and maximum surface

temperature of 100°C [212°F] under fault conditions at

ambient temperature of 40°C [104°F]

FP5000 Pressure Transmitter User Manual | sps.honeywell.com/ast 5

FP5000 INTRINSICALLY SAFE

TRANSMITTERS 008-0751-00, Rev. C

INTRINSICALLY SAFE INSTALLATION

The products with option code “2AR” have been certiﬁed for “Intrinsically

Safe”. This insures that a circuit operated under normal and speciﬁed fault

conditions is not capable of causing ignition of the prescribed explosive

atmosphere. The certiﬁcation is valid when the sensor has been installed as

per the installation drawings referenced in this section.

FIGURE 1. WIRING, FP5000 2AR, TWO-WIRE AMP

FP5000 INTRINSICALLY SAFE

TRANSMITTERS 008-0751-00, Rev. C

FP5000 Pressure Transmitter User Manual | sps.honeywell.com/ast 6

ZERO ADJUSTMENT

Zero output of pressure transmitter

can be adjusted through a

potentiometer accessible after

demounting the electrical

connector wherever the connector is

demountable.

Option code 6M (DIN A connector

mounted with locking nut)

1. Disconnect the electrical

connection from the sensor.

2. Remove the locking nut.

3. Pull the connector plate out by

~1 inch.

4. Connect the connector to power

supply and meter as per Figure 1.

5. Adjust the zero-output signal

using the potentiometer.

6. Disconnect the connector from

the power supply and meter.

7. Place the connector plate on

the sensor while gently pushing

internal wires inside. Ensure that

O-ring is clean and correctly

installed between sensor body

and connector plate.

8. Secure the connector plate in

place using the locking nut.

Option code 6A, 6BO, 6Q, 6BJ

(mounted with 4 socket head

screws):

1. Disconnect the electrical

connection from the sensor.

2. Remove the four (4) socket head

screws mounted on connector

plate.

3. Pull the connector plate out by

~1 inch.

4. Connect the connector to power

supply and meter per connection

diagram.

5. Adjust the zero-output signal

using the potentiometer.

6. Disconnect the connector from

the power supply and meter.

7. Place the connector plate on

the sensor while gently pushing

internal wires inside. Ensure that

O-ring is clean and correctly

installed between sensor body

and connector plate.

8. Secure the connector plate in

place using four (4) socket head

screws.

MAINTENANCE

These sensors do not need any

special scheduled maintenance. It

is recommended that the pressure

port and electrical connector be

cleaned from time to time to provide

long life. Protecting the product from

continued exposure to moisture or

ﬂuids at the electrical connection will

eliminate premature internal failure

of the product.

FP5000 Pressure Transmitter User Manual | sps.honeywell.com/ast 7

FP5000 INTRINSICALLY SAFE

TRANSMITTERS 008-0751-00, Rev. C

APPLICABLE NATIONAL

AND INTERNATIONAL

STANDARDS

Electromagnetic Compatibility

• EN 613261

• EN 6132623

Hazardous Location Standards

used for US Approval

• FM3600, FM3610, FM3810

• ANSI/UL 600790

• ANSI/UL 6007911

• UL 610101

Standards used for Canada

Approval

• CAN/CSA C22.2 No. 600790

• CAN/CSA C22.2 No. 6007911

• CAN/CSA C22.2 No. 610101

Standards used for ATEX

Certiﬁcation

• EN IEC 600790

• EN 6007911

Standards used for IECEx

Certiﬁcation

• IEC 600790

• IEC 6007911

LABEL MARKING

The standard product label includes the following:

FP5000 INTRINSICALLY SAFE

TRANSMITTERS 008-0751-00, Rev. C

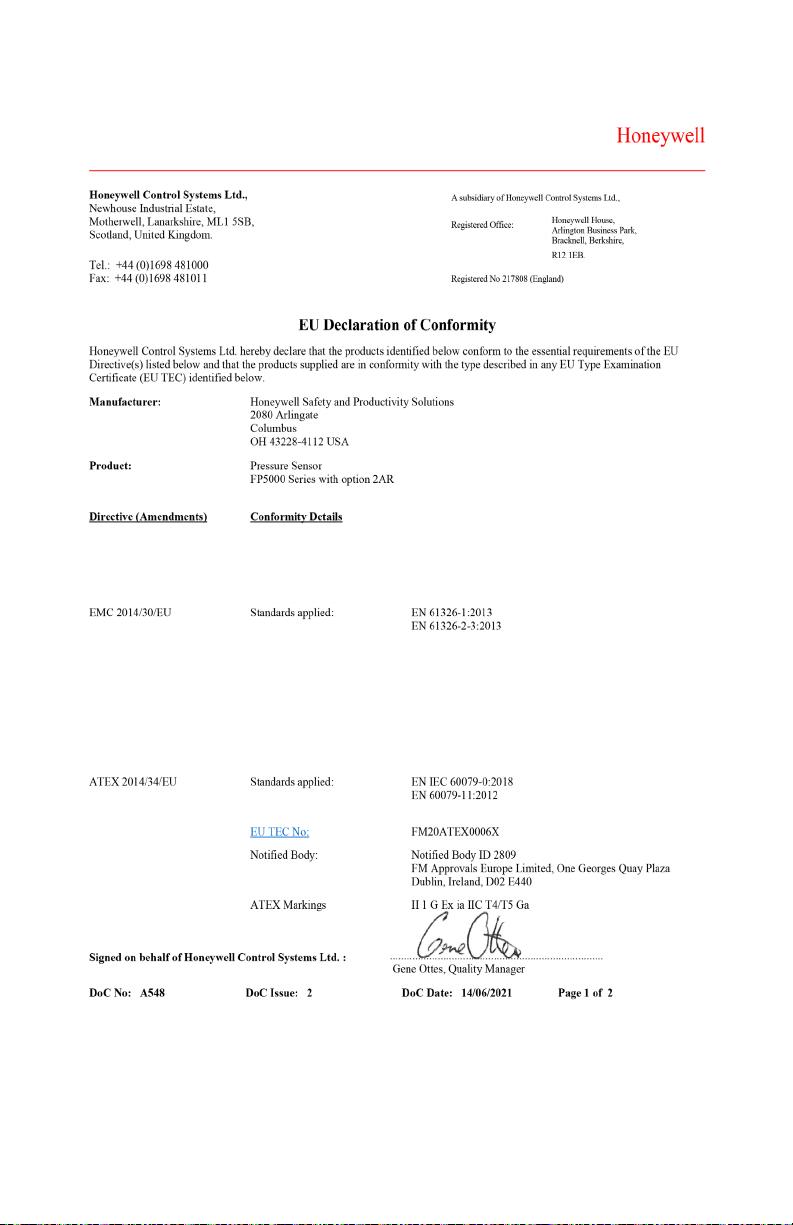

FP5000 Pressure Transmitter User Manual | sps.honeywell.com/ast 8

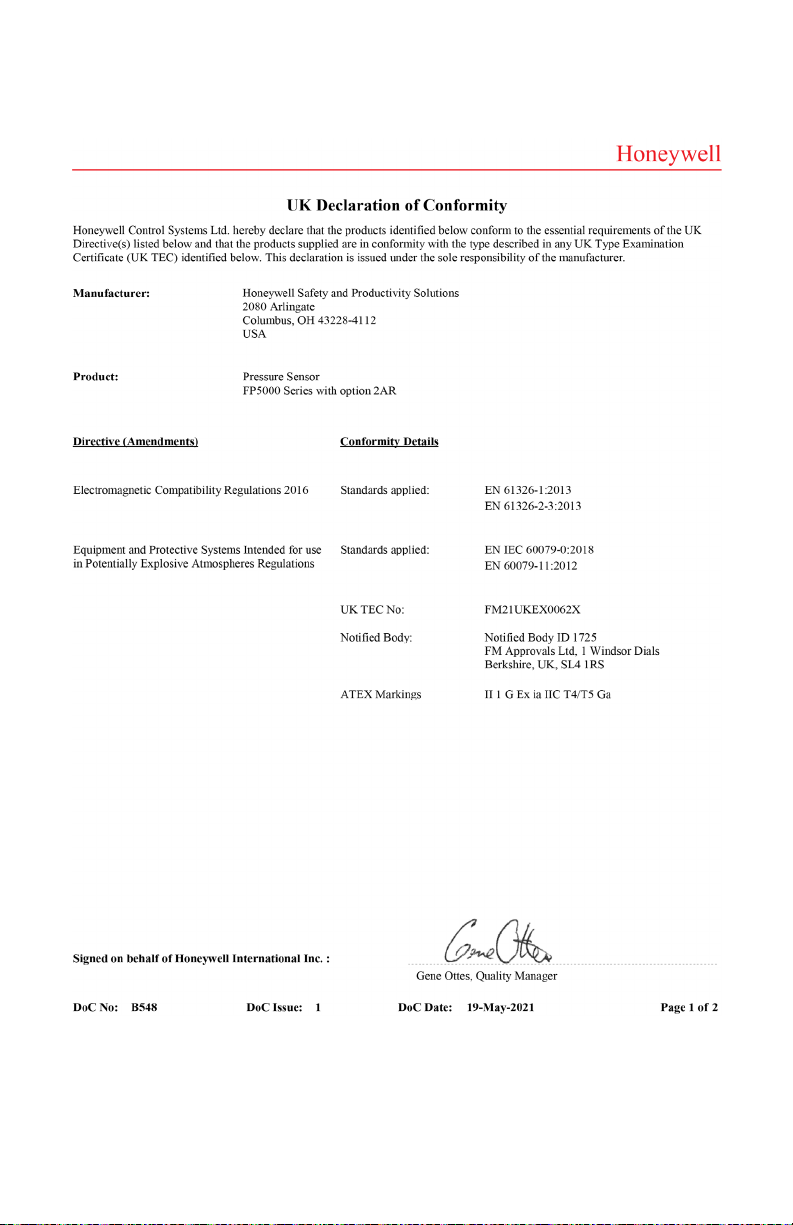

FP5000 Pressure Transmitter User Manual | sps.honeywell.com/ast 9

FP5000 INTRINSICALLY SAFE

TRANSMITTERS 008-0751-00, Rev. C

WARRANTY/REMEDY

Honeywell warrants goods of its manufacture as being free of defective materials

and faulty workmanship during the applicable warranty period. Honeywell’s standard

product warranty applies unless agreed to otherwise by Honeywell in writing; please

refer to your order acknowledgement or consult your local sales ofﬁce for speciﬁc

warranty details. If warranted goods are returned to Honeywell during the period of

coverage, Honeywell will repair or replace, at its option, without charge those items that

Honeywell, in its sole discretion, ﬁnds defective. The foregoing is buyer’s sole remedy

and is in lieu of all other warranties, expressed or implied, including those of

merchantability and ﬁtness for a particular purpose. In no event shall Honeywell

be liable for consequential, special, or indirect damages.

While Honeywell may provide application assistance personally, through our literature

and the Honeywell web site, it is buyer’s sole responsibility to determine the suitability of

the product in the application.

Speciﬁcations may change without notice. The information we supply is believed to be

accurate and reliable as of this writing. However, Honeywell assumes no responsibility

for its use.

Hastelloy® is a registered trade-

mark of Haynes International, Inc

008075100 | C | 01/22

Honeywell

Advanced Sensing Technologies

830 East Arapaho Road

Richardson, TX 75081

www.honeywell.com

FOR MORE INFORMATION

Honeywell Advanced Sensing

Technologies services its customers

through a worldwide network of sales

ofﬁces and distributors. For application

assistance, current speciﬁcations, pricing,

or the nearest Authorized Distributor,

visit sps.honeywell.com/ast or

call +1 302 327 8920.

Table des matières

Autres manuels Honeywell Accessoires

Honeywell

Honeywell CTP-20 Manuel utilisateur

Honeywell

Honeywell TE923WD - Display Unit For Professional Weather Station... Manuel utilisateur

Honeywell

Honeywell RF 20 Manuel utilisateur

Honeywell

Honeywell DW915 Series Mode d'emploi

Honeywell

Honeywell 5800PIR-RES Manuel utilisateur

Honeywell

Honeywell PPMINI Manuel utilisateur

Honeywell

Honeywell HMR4007 Manuel utilisateur

Honeywell

Honeywell 203255AA Manuel utilisateur

Honeywell

Honeywell RCW110 Manuel utilisateur

Honeywell

Honeywell DW311S Manuel utilisateur

Honeywell

Honeywell SK-FIRE-CO-W Manuel utilisateur

Honeywell

Honeywell Farenhyt Series Manuel utilisateur

Honeywell

Honeywell DC915 series Mode d'emploi

Honeywell

Honeywell DC515 Series Manuel utilisateur

Honeywell

Honeywell 40003916 Powerhead Manuel utilisateur

Honeywell

Honeywell 5 series Manuel utilisateur

Honeywell

Honeywell MPD Series Manuel utilisateur

Honeywell

Honeywell E3Point Manuel utilisateur

Honeywell

Honeywell MyChime RCA2200N Manuel utilisateur

Honeywell

Honeywell TC840ME Manuel utilisateur

Honeywell

Honeywell AQS51 Manuel utilisateur

Honeywell

Honeywell FireLite SD355, FireLite SD355T Manuel utilisateur

Honeywell

Honeywell C7110A1010 Manuel utilisateur

Honeywell

Honeywell Dolphin 7850 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
