USE AND CARE GUIDE

DANIEL ISLAND 52-INCH CEILING FAN

Table of Contents ................................................................ 2

Safety Information............................................................... 2

Warranty ............................................................................... 3

Pre-Installation .................................................................... 3

Installation............................................................................ 6

Assembly.............................................................................. 7

Operation ........................................................................... 13

Care and Cleaning............................................................. 15

Troubleshooting................................................................. 15

1. To reduce the risk of electric shock, ensure the electricity has been

turned off at the circuit breaker or fuse box before you begin.

2. All wiring must be in accordance with the National Electrical Code

ANSI/NFPA 70 and local electrical codes. Electrical installation should

be performed by a qualied licensed electrician.

3. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 lbs. (15.9 kg). Use

only UL-listed outlet boxes marked “Acceptable for Fan Support of

35 lbs. (15.9 kg) or less.”

4. The fan must be mounted with a minimum of 7 ft (2.1 m) of

clearance from the trailing edge of the blades to the oor.

5. Do not place objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other items, use

caution when working around or cleaning the fan.

7. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The

wires should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

8. All set screws must be checked and retightened where

necessary before installation.

9. Suitable for use in wet location.

WARNING: To reduce the risk of personal injury,

do not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do

not insert objects in the path of the blades.

WARNING: Electrical diagrams are for reference

only. If you are using a light kit, refer to the light kit

instructions manual to make the electrical

connections. Optional use of any light kit shall be

UL-listed and marked suitable for use with this fan.

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs. (15.9 kg) or

less”, and use screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

WARNING: To reduce the risk of re or electric

shock, this fan should only be used with fan speed

control part no. AP-8RDL, manufactured by Dawnsun

Electronic Co., LTD.

CAUTION: Do NOT use this fan with a dimmer switch

or wall control. Using a dimmer switch or wall control

will damage the fan.

CAUTION: Changes or modications not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the

equipment.

WARNING: To reduce the risk of electric shock, this

fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a

lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date

of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior

model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any

accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,

including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying

weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons

shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,

including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any

implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a

limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by

law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior

warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Size Speed Volts

Fan Power

Consumption

(without lights)

WATT

Airow

CFM

Airow Efciency

(Higher Is Better)

CFM/WATT

Net

Weight

Gross

Weight Cubic Feet

52 in.

Low

120

xx xxxx xxx

xx.xx lbs

(xx.x kg)

xx.xx lbs

(xx kg) x.xxx cu. ft.Medium xx xxxx xxx

High xx xxxx xx

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire cutter

/ Stripper

Step ladder

Part Description Quantity

AA Hanger pin 1

BB Locking pin 1

CC Plastic wire connecting nuts 3

DD Blade bracket screws 1

Pre-Installation (continued)

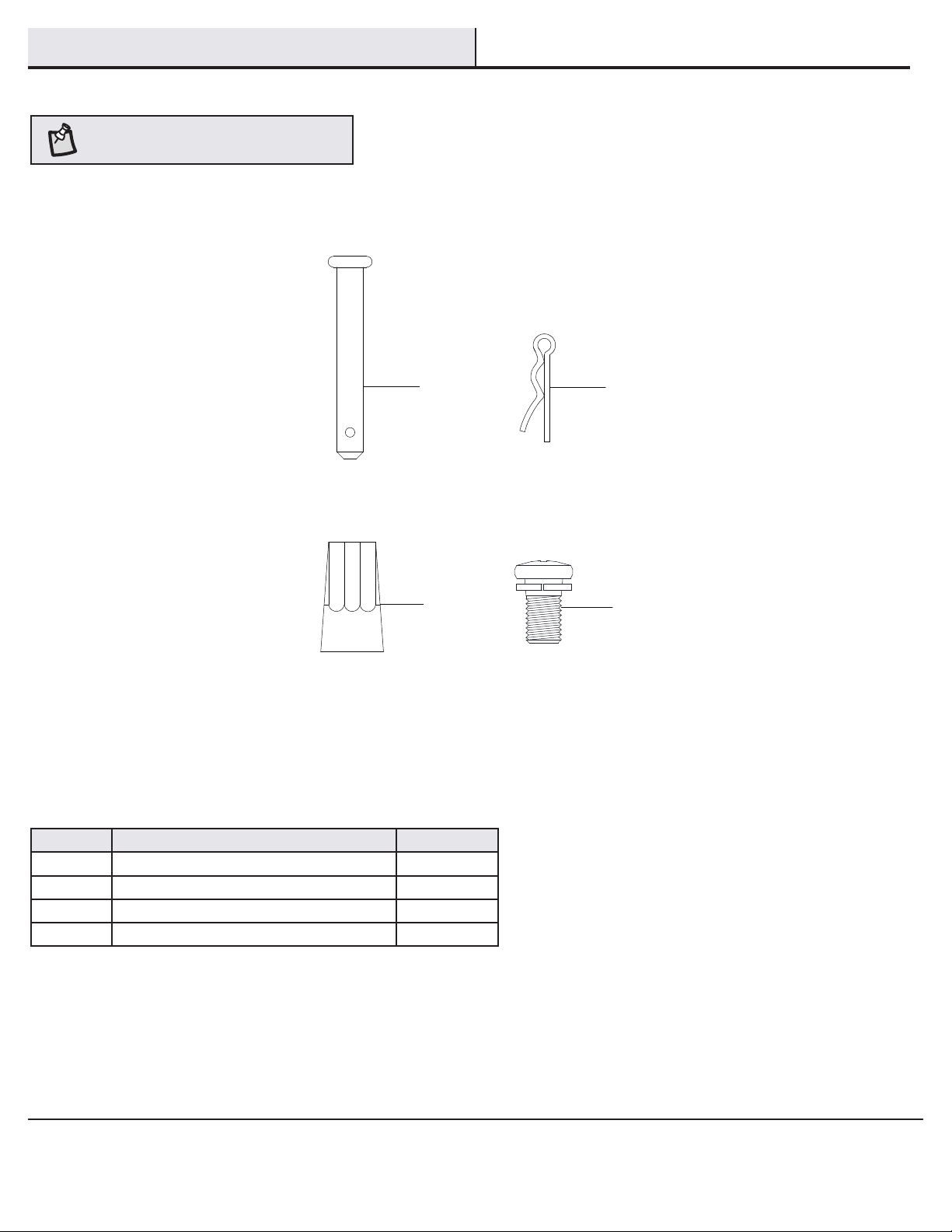

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

AA BB

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Part Description Quantity

ASlide-on mounting bracket

(inside canopy) 1

B Ball/downrod assembly 1

C Canopy 1

D Decorative motor collar cover 1

E Fan-motor assembly 1

F Blade arm 5

Part Description Quantity

G Blade 5

H Light kit pan 1

I Light kit tter assembly 1

J Frosted white glass 1

K Receiver 1

L Remote control 1

M Extension lead wire 1

N Battery 1

IMPORTANT: This product and/or components are governed by

one or more of the following U.S. Patents: 5,947,436; 5,988,580;

6,010,110; 6,046,416; 6,210,117 and other patents pending.

Pre-Installation (continued)

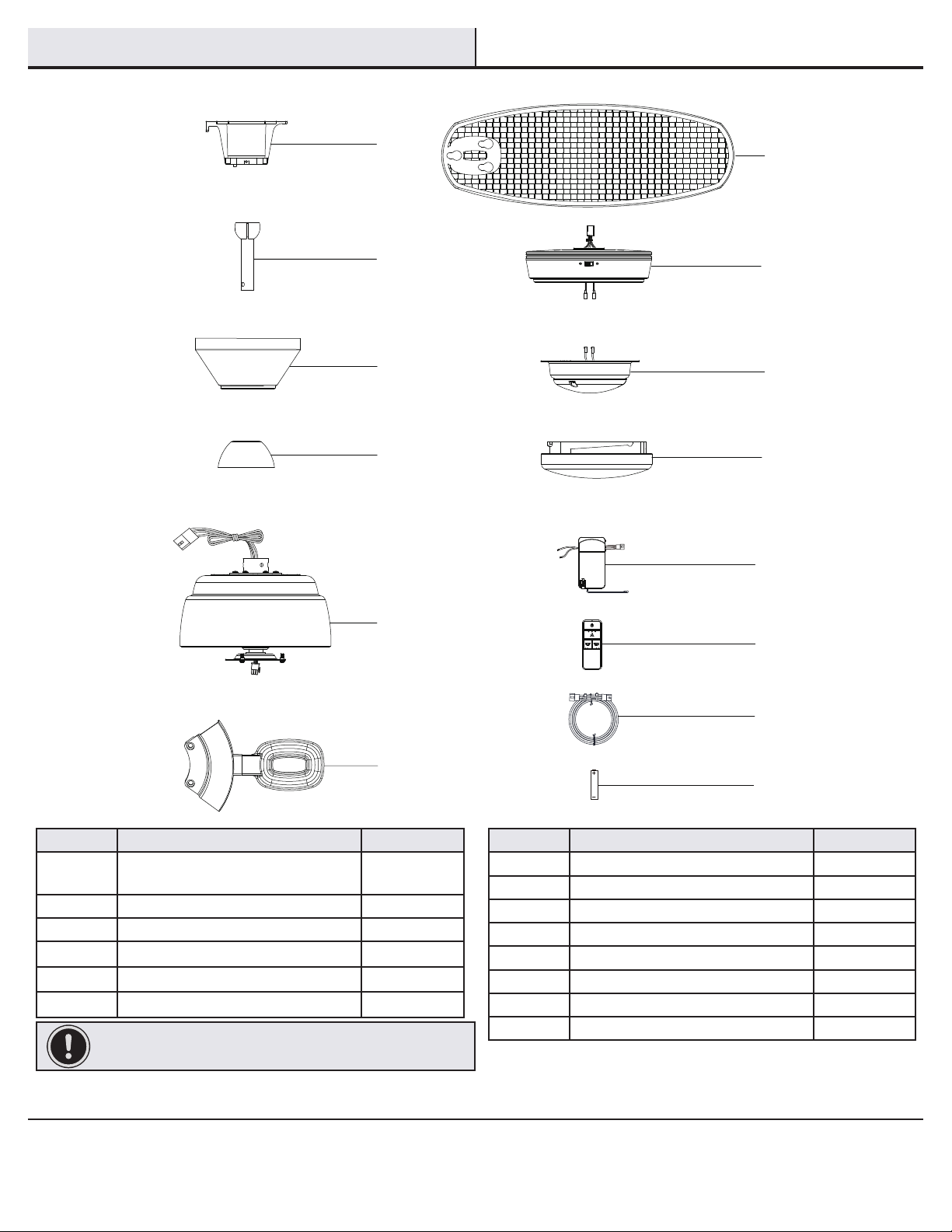

PACKAGE CONTENTS

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock or

personal injury, mount to outlet box marked “Acceptable

for fan support of 35 lbs. (15.9 kg) or less”, and use

screws provided with the outlet box. An outlet box

commonly used for the support of lighting xtures may

not be acceptable for fan support and may need to be

replaced. If in doubt, consult a qualied electrician.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure. Use

the appropriate fasteners and materials. The outlet box and

support structure must be securely mounted and capable of

reliably supporting a minimum of 35 lbs. (15.9 kg). Use only

UL-listed outlet boxes marked “Acceptable for fan support

of 35 lbs. (15.9 kg) or less” Do not use a plastic outlet box.

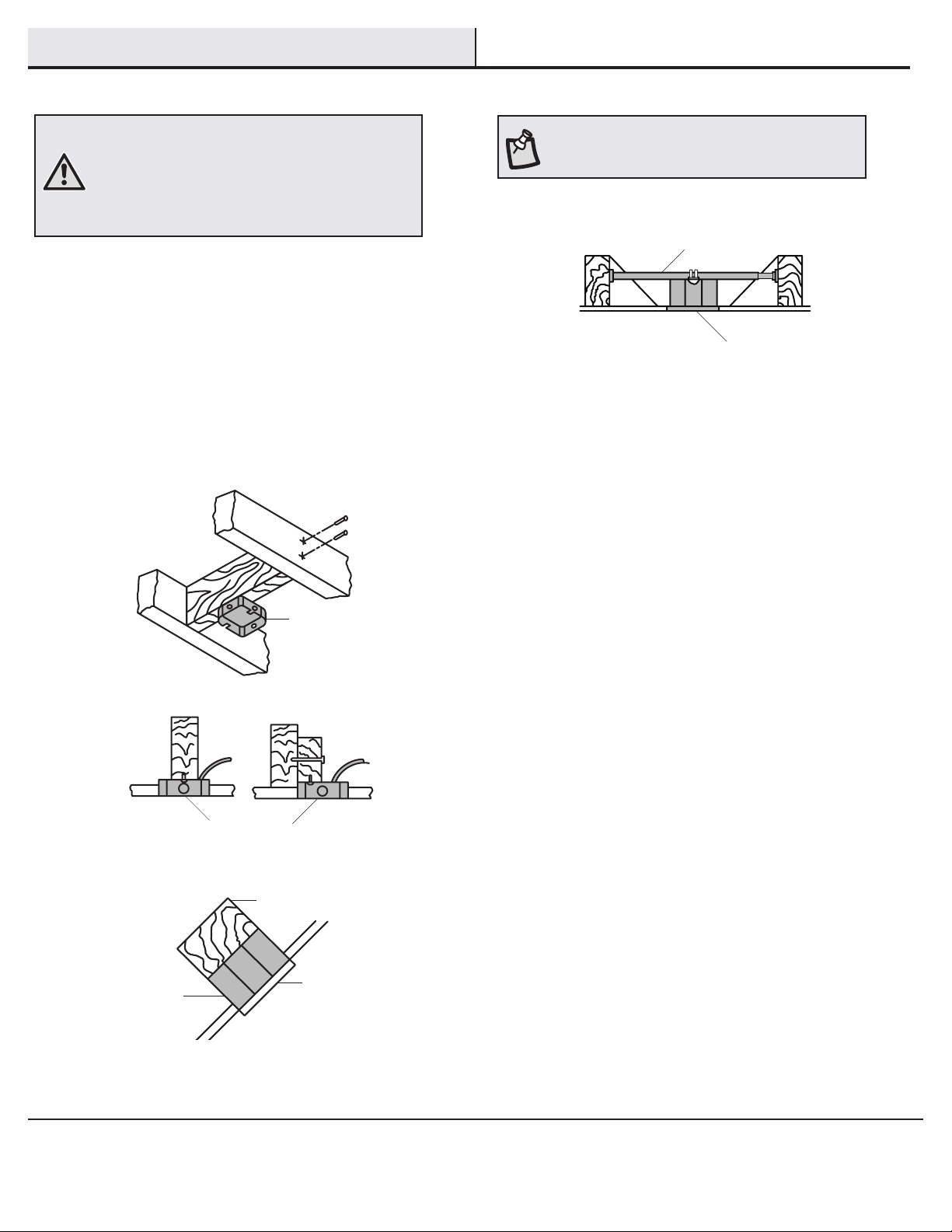

The illustrations below show three different ways to mount the

outlet box.

If the canopy touches the downrod, then remove the decorative canopy

bottom cover, and turn the canopy 180° before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 30° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

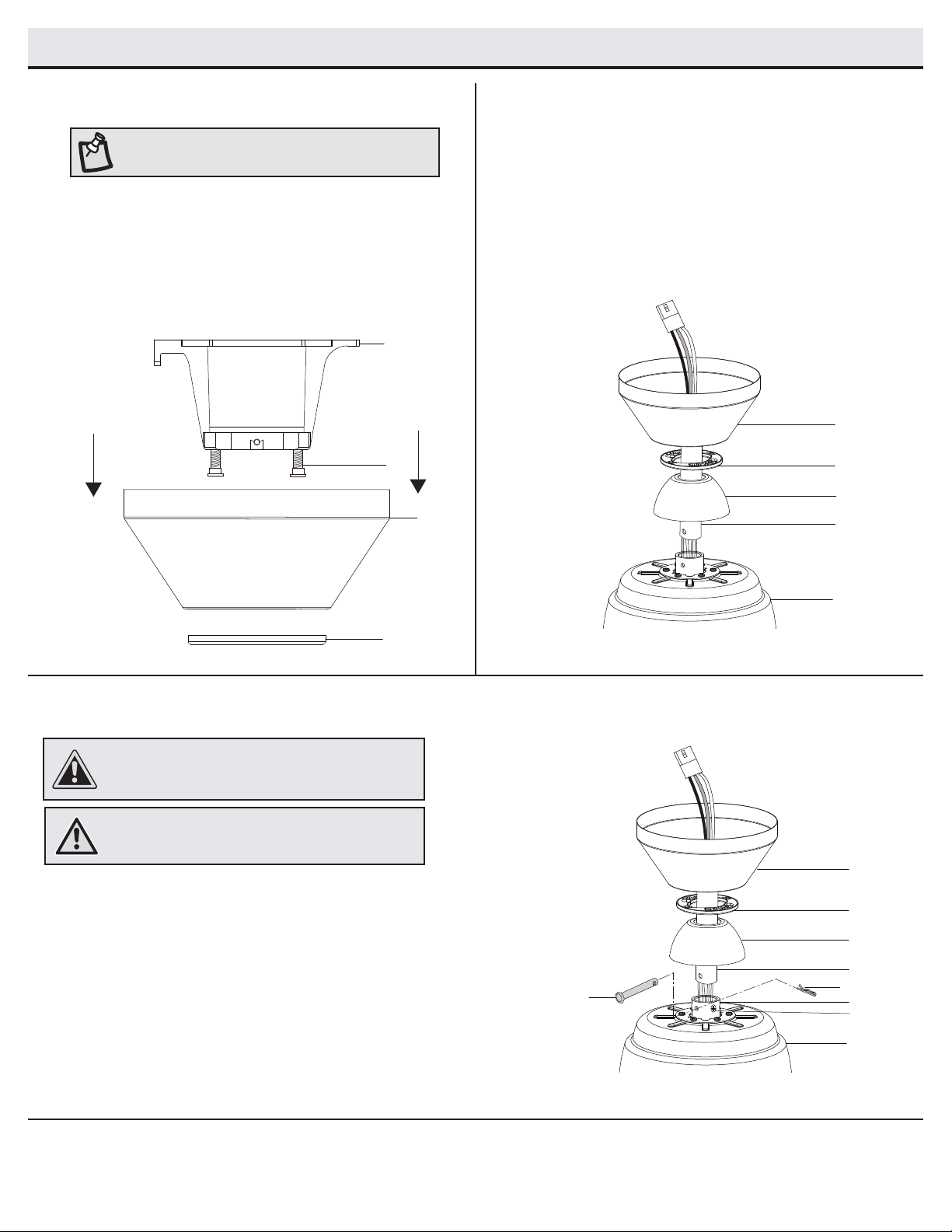

Assembly - Standard Ceiling Mount

Routing the wires

Assembling the fan

Preparing for mounting

□Route the wires exiting the top of the fan motor assembly (E)

through the decorative motor collar cover (D) and then the

center of the canopy bottom cover (FF).

□Make sure the opening of the canopy (C) is on top and insert

the ball/downrod (B) through the canopy (C).

□Route the wires exiting the top of the fan motor assembly (E)

through the downrod as shown.

□Loosen, but do not remove, the setscrew (HH) on the collar (GG) on

top of the fan-motor assembly (E).

□Align the holes at the bottom of the ball/downrod assembly (B) with

the holes in the collar on top of the fan-motor assembly (E).

□Carefully insert the hanger pin (AA) through the holes in the collar

and ball/downrod assembly (B). Be careful not to jam the hanger

pin (AA) against the wiring inside the ball/downrod assembly (B).

□Insert the locking pin (BB) through the hole near the end of the

hanger pin (AA) until it snaps into its locked position.

□Re-tighten the setscrew (HH) on the collar (GG) on top of the fan-

motor assembly (E).

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the downrod (B) and the setscrew (HH)

must be completely tightened.

□Remove the magnetic canopy bottom cover (FF) from the

canopy (C) by pulling it off.

□Loosen the two canopy screws (EE) located in the bottom

of the mounting bracket (A).

□Turn the mounting bracket (A) counterclockwise and lift it

up to remove the mounting bracket from the canopy (C).

NOTE: The magnet is pre-attached on the canopy bottom

cover (FF) for you to remove and install easily.

WARNING: Failure to properly install the locking

pin (BB) could result in the fan becoming loose and

possibly falling.

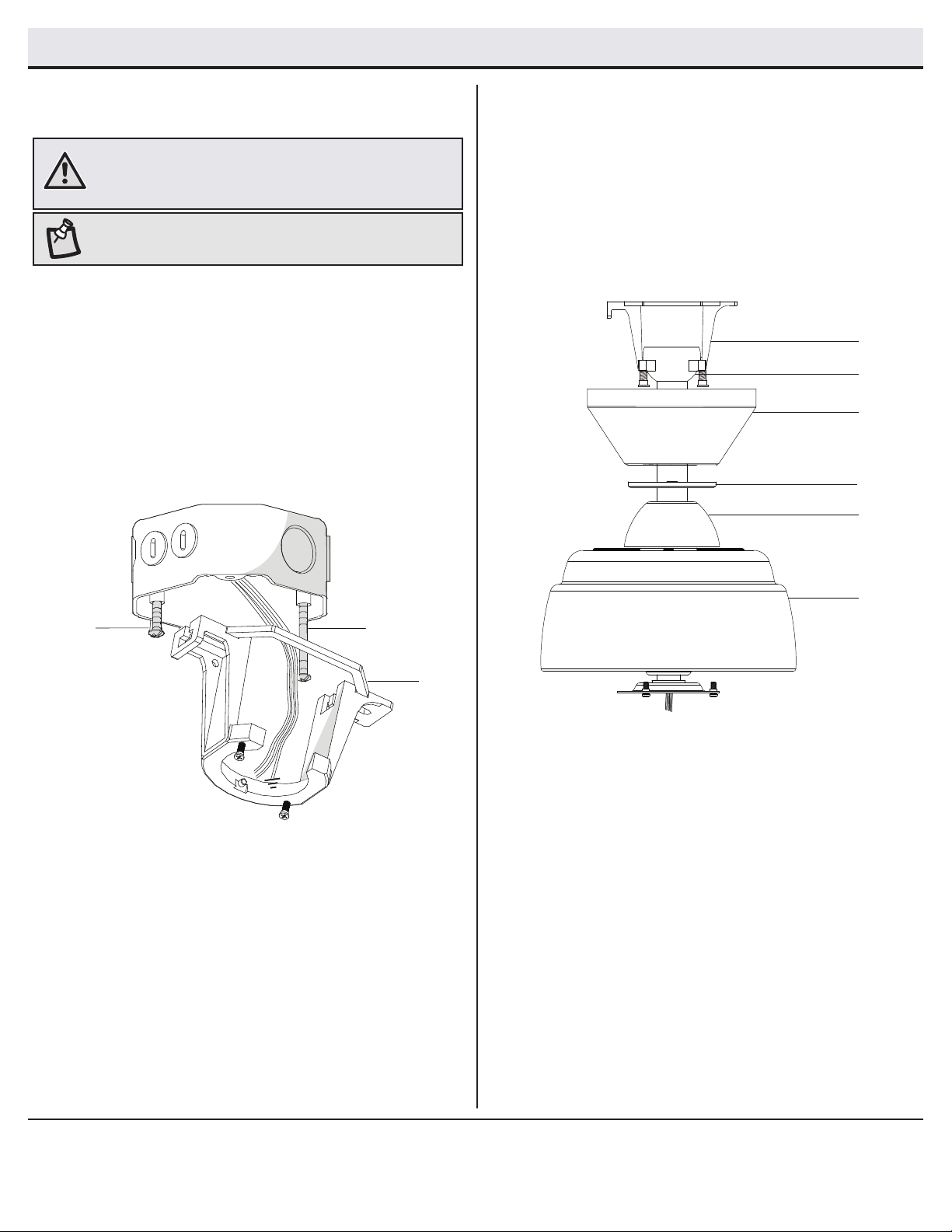

Assembly - Hanging the Fan

Attaching the fan to the electrical

box Hanging the fan

□Loosen the two mounting screws (JJ) in the outlet box.

□Pass the 120-Volt supply wires through the center hole in the

mounting bracket (A).

□Slide the mounting bracket (A) on to the mounting screws (JJ)

and center the mounting bracket (A) in relation to the outlet box.

If necessary, use leveling washers (not included) between the

slide-on mounting bracket (A) and the outlet box. The at side of

the slide-on mounting bracket (A) should face toward the outlet

box, as shown.

□Securely tighten the two mounting screws (JJ).

□Carefully lift the fan-motor assembly (E) up to the slide-on

mounting bracket (A).

□Insert the ball portion of the ball/downrod assembly into

the socket of the slide-on mounting bracket (A).

□Turn the ball/downrod (B) assembly clockwise until it is

seated with the tab of the slide-on mounting bracket (A)

aligned with the slot in the ball.

WARNING: To reduce the risk of re, electric shock or personal

injury, mount to outlet box marked “Acceptable for fan support

of 35 lbs. 15.9 kg) or less”, and use screws provided with the

outlet box.

NOTE: The mounting bracket (A) is designed to slide into place on

an outlet box with the outlet box screws (JJ) installed.

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Hanging the Fan (continued)

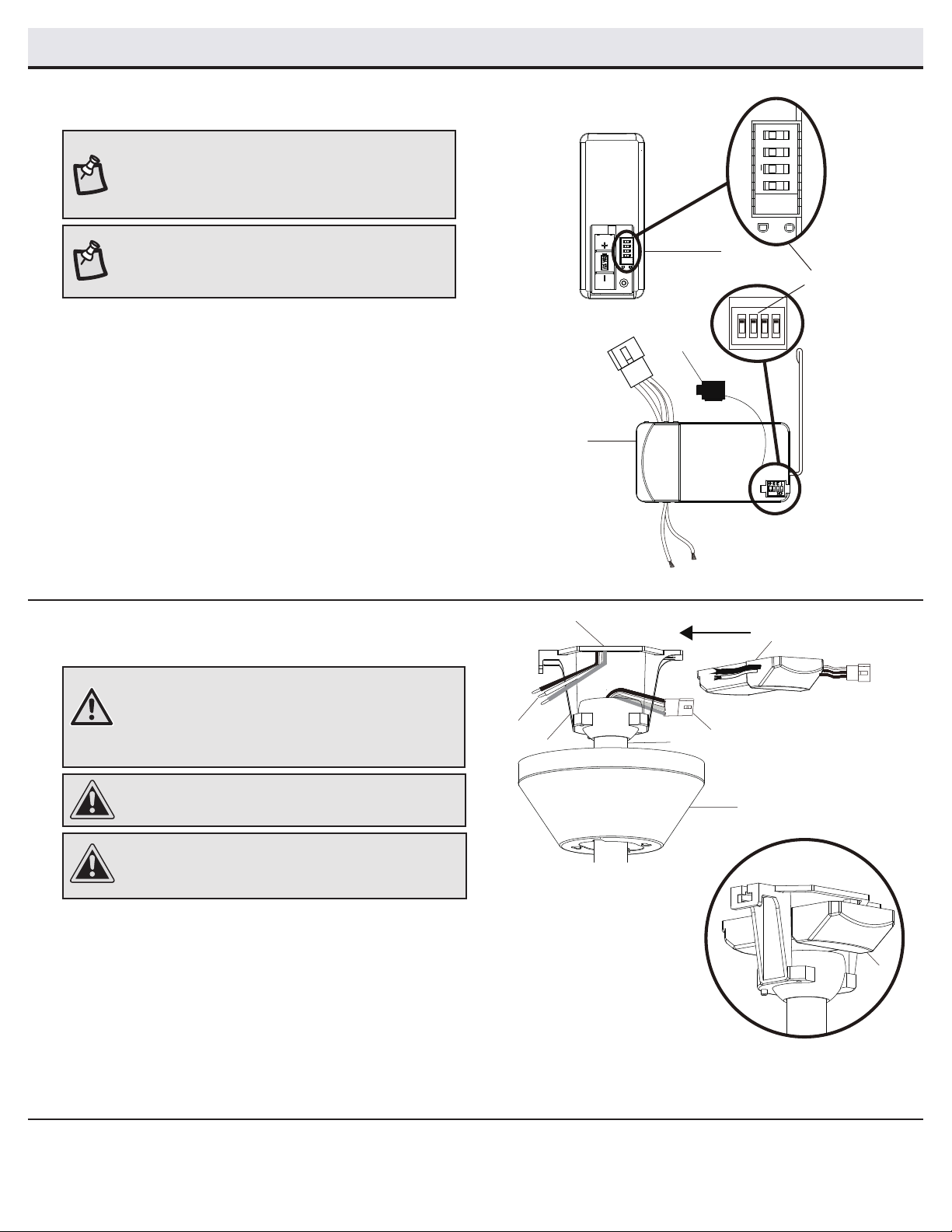

NOTE: The frequencies on your receiver and hand unit have

been preset at the factory. Before installing the receiver,

make sure the dip switches on the receiver and hand unit are

set to the same frequency. The dip switches on the hand unit

are located inside the battery compartment.

Setting the code on the remote

control and receiver

□Remove the remote control (L) battery cover by pressing

rmly on the arrow and sliding the cover off.

□Slide the dip switches (ZZ) to your choice of either up or

down. The factory setting is up.

□Slide the dip switches (ZZ) on the receiver (K) to the same

position as set on the remote control (L).

□Install the A23 12V battery (N).

□Replace the battery cover on the remote control (L).

□Insert the silicone rubber stopper (OO) into the hole on the

receiver (K) to cover the dip switches.

NOTE: The battery will weaken with age and should be

replaced before leaking takes place as this will damage the

hand unit. Dispose of used battery properly and keep the

battery out of the reach of children.

4Installing the receiver

□Position the house supply wires (AAA) to one side of the

slide-on mounting bracket (A); position the fan wires (BBB)

to the opposite side.

□Insert the narrow end of the receiver (K) (as shown, at side

towards the ceiling) into the slide-on mounting bracket until

it rests on top of the ball/downrod assembly.

WARNING: To reduce the risk of re or electric shock,

remember to disconnect power. The electrical wiring must

meet all local and national electrical code requirements.

The electrical source and fan must be 110/120 volt, 60Hz.

Do not use this product in conjunction with any variable wall

control. Incorrect wire connection can damage this receiver.

CAUTION: If other fan wires are a different color, have this

unit installed by a licensed electrician.

CAUTION: Do not install the receiver in a damp location or

immerse in water (For indoor use only). Do not pull on or cut

the receiver leads shorter. Do not drop or bump the unit.

1 2 3 4

1 2 34

ON YKO

1 2 34

ON YKO

Receiver (K) correctly

positioned in the

mounting bracket.

BBB

AAA A

Assembly - Hanging the Fan (continued)

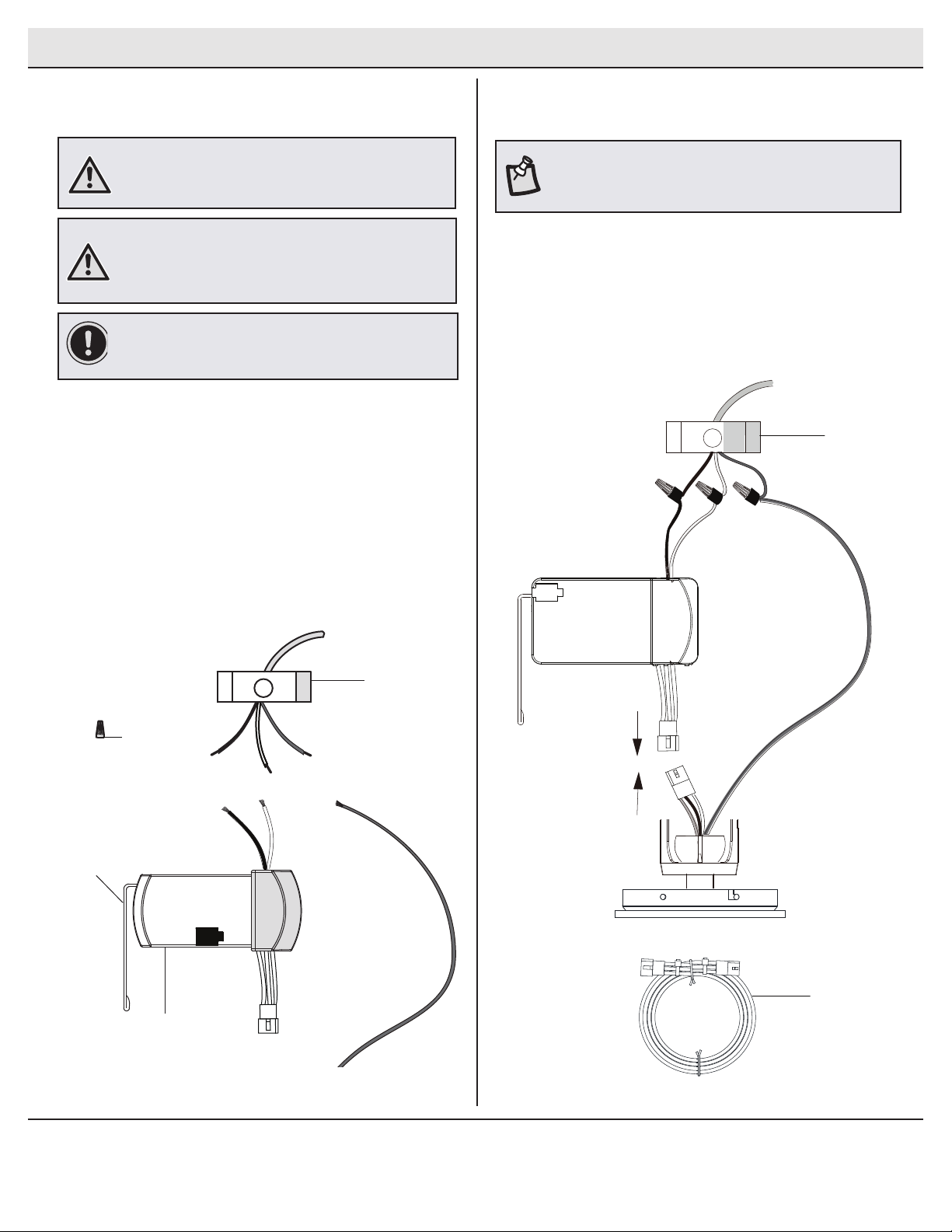

5Wiring the receiver to the

household wiring

IMPORTANT: Use the wire connecting nuts (CC) supplied with

your fan. Secure the connectors with electrical tape and

ensure there are no loose strands or connections.

WARNING: Each wire nut supplied with this fan is designed

to accept up to one 12-gauge house wire and two wires

from the fan. If you have larger than 12-gauge house wiring

or more than one house wire to connect to the fan wiring,

consult an electrician for the proper size wire nuts to use.

□Spread the wires apart so that the green and white wires

are on one side of the outlet box and the black wire is on the

other side.

□Connect the green fan wires to the household ground wire

(this may be a green or bare wire) using a wire connecting

nut (CC).

□Connect the receiver (K) black or red wire to the household

black (hot) wire using a wire connecting nut (CC).

□Connect the receiver (K) white wire to the household white

wire (neutral) using a wire connecting nut (CC).

□Secure each wire connecting nut using electrical tape.

WARNING: To avoid possible electrical shock, turn the

electricity off at the main fuse box before wiring. If you

feel you do not have enough electrical wiring knowledge or

experience, contact a licensed electrician.

Wiring the fan to the receiver

□If using the 4.5 in. ball downrod assembly (B) provided,

wire the receiver to the fan wires by connecting the molded

adaptor plug from receiver (K) with molded adaptor of the

fan motor assembly (E) together.

□If you wish to use longer downrod, you can use the

extension lead wire (42 in.) (M) provided by connecting the

molded adaptor together.

NOTE: The fan comes with 12 in. lead wires for use with the

provided 4.5 in. ball downrod assembly (B). If you wish to use

longer downrod, you can use the extension lead wire (42 in.) (M)

provided.

Black or Red

Black

Green (or Bare)

Green

Outlet Box

Receiver

Antenna

White

Receiver (K)

CC (x3)

1 2 3 4

ON DIP

Outlet box

in the ceiling

(MM)

Green

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Home Decorators Collection Ventilateur

Home Decorators Collection

Home Decorators Collection RAILEY YG446-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection BENTOYGA 51820 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection N609-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection BAXLEY POINT OUTDOOR YG786-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 56047 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection RAINA Series Manuel utilisateur

Home Decorators Collection

Home Decorators Collection PIERSSON Manuel utilisateur

Home Decorators Collection

Home Decorators Collection REINHARDT 59204 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection ARLEIGH Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 91144 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection AVONBROOK 59256 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection MAKENNA Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 51860 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection FAWNDALE 1005 819 911 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 34545-HBUN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection ALTURA 60-ATO Manuel utilisateur

Home Decorators Collection

Home Decorators Collection FOLSOM YG523-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection MONTCLAIRE 51854 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection N383A-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection BENTLEY III AM183W-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection ROYALTY AM590-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection AM909A-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection CONNOR 51847 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 44-CRD Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
