USE AND CARE GUIDE

CORINTH 72-INCH CEILING FAN

To view an instructional video on how to install this product:

1. Go to www.homedepot.com and enter either the Item or Model number, found in the top

right corner of the cover of this instruction manual, in the search eld.

2. Click on your product from the list of search results and click on the video link in the

“Product Overview” section.

Table of Contents ................................................................2

Safety Information...............................................................2

Warranty ............................................................................... 3

Pre-Installation ....................................................................3

Installation............................................................................6

Assembly..............................................................................7

Operation ...........................................................................16

Care and Cleaning.............................................................17

Troubleshooting.................................................................17

1. To reduce the risk of electric shock, ensure the electricity has been

turned off at the circuit breaker or fuse box before you begin.

2. All wiring must be in accordance with the National Electrical Code

ANSI/NFPA 70 and local electrical codes. Electrical installation should

be performed by a qualied licensed electrician.

3. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 50 lb (22.7 kg). Use

only UL Listed outlet boxes marked “Acceptable for Fan Support of

50 lb (22.7 kg) or less.”

4. The fan must be mounted with a minimum of 7 ft. (2.1 m) of

clearance from the trailing edge of the blades to the oor.

5. Do not place objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other items, use

caution when working around or cleaning the fan.

7. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The

wires should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

8. All set screws must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of personal injury, do

not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do

not insert objects in the path of the blades.

WARNING: To reduce the risk of re or electric

shock, do not use this fan with any solid-state

speed control device.

WARNING: Electrical diagrams are for reference

only. If you are using a light kit, refer to the light kit

instructions manual to make the electrical

connections. Optional use of any light kit shall be

UL Listed and marked suitable for use with this fan.

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 50 lb (22.7 kg) or

less”, and use screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

WARNING: To reduce the risk of re or electric

shock, this fan should only be used with fan speed

control part no. DP-5R, manufactured by DawnSun

Electronic Technology Co., Ltd. Zhongshan.

CAUTION: Do NOT use this fan with a dimmer switch

or wall control. Using a dimmer switch or wall

control will damage the fan.

CAUTION: Changes or modications not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the

equipment.

WARNING: To reduce the risk of electric shock, this

fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include the amps and wattage used by the light kit.

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire

cutter/

stripper

Step ladder

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime

after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be

free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the

original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is

returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product

are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by afxing any accessories, is not covered by

this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,

tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of

“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is

no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability

and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to

the time period as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above

limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with

product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential

damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights

which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the

warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

Size Speed Volts

Fan Power

Consumption

(without lights)

WATT

Airow

CFM

Airow Efciency

(higher is better)

CFM/WATT

Net

Weight

Gross

Weight Cubic Feet

72 in.

Low

Medium

High

120

3690

6054

8157

738

403

226

34.17 lb

(15.5 kg)

44.54 lb

(20.2 kg) 4.23 cu.ft.

Part Description Quantity

AA Blade attachment screws 17

BB Wire connecting nut 3

CC Hanger Pin 1

DD Locking pin 1

EE Blade arm screw 33

FF Decorative frame screw 41

GG Center band screw 9

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

AA BB CC DD

EE FF

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Part Description Quantity

ASlide-on mounting bracket

(inside canopy) 1

B Ball/downrod assembly 1

C Canopy 1

D Decorative motor collar cover 1

E Fan motor assembly 1

F Center band 1

G Blade 8

H Blade arm 8

Part Description Quantity

I Decorative frame piece with center

connected part

J Decorative frame piece 4

KDecorative bar A 4

L Decorative bar B 4

M Bottom plate 1

N Support plate nut 1

O Remote control 1

P Receiver 1

Q Lead wire 1

R Battery 2

IMPORTANT: This product and/or components are governed by

one or more of the following U.S. Patents: 5,947,436; 5,988,580;

6,010,110; 6,046,416; 6,210,117 and other patents pending.

Pre-Installation (continued)

PACKAGE CONTENTS

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to an outlet box marked

“Acceptable for fan support of 50 lb (22.7 kg) or less”,

and use screws provided with the outlet box. An outlet

box commonly used for the support of lighting xtures

may not be acceptable for fan support and may need to

be replaced. If in doubt, consult a qualied electrician.

If your ceiling fan does not have an existing UL Listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure. Use

the appropriate fasteners and materials. The outlet box and

support structure must be securely mounted and capable of

reliably supporting a minimum of 50 lb (22.7 kg). Use only UL

Listed outlet boxes marked “Acceptable for fan support of

50 lb (22.7 kg) or less.” Do not use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box.

If the canopy (C) touches the ball/downrod assembly (B), then remove

the decorative motor collar cover (D), and turn the canopy (C) 180°

before attaching the canopy (C) to the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 20° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Standard Ceiling Mount

Routing the wires

Preparing for mounting

□Remove the canopy ring (HH) from the canopy (C) by

turning the ring clockwise until it unlocks.

□Remove the mounting bracket (A) from the canopy (C)

by loosening the two canopy screws (II) located in the “L

shaped” slots.

□Remove and save the two canopy screws (SS) in the

round holes. This will enable you to remove the mounting

bracket (A).

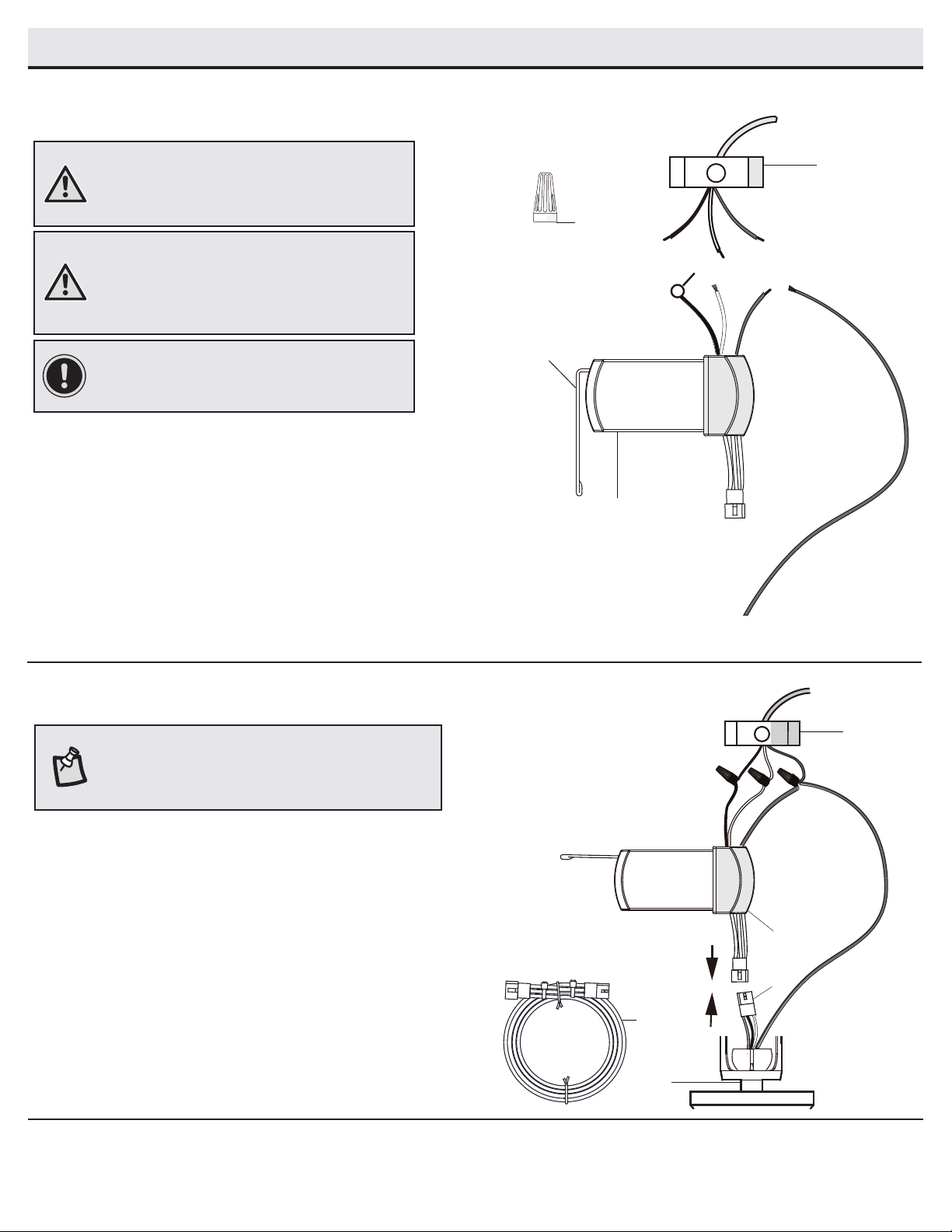

□Route the wires exiting the top of the fan motor assembly (E)

through the center of the canopy ring (HH). Make sure the

slots on the canopy ring (HH) are on top.

□Insert the ball/downrod assembly (B) through the canopy (C)

and slide the decorative motor collar cover (D) onto the end

of the ball/downrod assembly (B). Make sure the slots on the

canopy (C) are on top.

□Route the wires exiting the top of the fan motor assembly (E)

through the downrod (B) as shown.

NOTE: The fan comes with 18 in. lead wires for use with

the provided 12 in. ball/downrod assembly (B). If you

wish to use a longer downrod, attach the lead wire (Q) to

the fan by connecting the molded adaptor plugs from the

extension wires to the adaptor plugs from the fan.

Attaching the fan to the

electrical box

□Loosen the two mounting screws (TT) in the outlet box.

□Pass the 120-volt supply wires through the center hole in the

slide-on mounting bracket (A).

□Slide the slide-on mounting bracket (A) on to the mounting

screws (TT) and center the slide-on mounting bracket (A) in

relation to the outlet box. If necessary, use leveling washers

(not included) between the slide-on mounting bracket (A) and

the outlet box. The at side of the slide-on mounting bracket (A)

should face toward the outlet box, as shown.

□Securely tighten the two mounting screws (TT).

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to an outlet box marked

“Acceptable for fan support of 50 lb (22.7 kg) or less”,

and use screws provided with the outlet box.

NOTE: The slide-on mounting bracket (A) is designed

to slide into place on an outlet box with the outlet box

screws (TT) installed.

Assembly - Standard Ceiling Mount (continued)

Assembling the fan

□Loosen, but do not remove, the set screw (KK) on the collar (PP)

on top of the fan motor assembly (E).

□Install the ball/downrod assembly (B) by inserting it into the

motor collar (PP), and turning it clockwise until the holes at the

bottom of the ball/downrod assembly (B) align with the holes in

the collar on top of the fan motor assembly (E).

□Carefully insert the hanger pin (CC) through the holes in the collar

and ball/downrod assembly (B). Be careful not to jam the hanger

pin (CC) against the wiring inside the ball/downrod assembly (B).

□Insert the locking pin (DD) through the hole near the end of the

hanger pin (CC) until it snaps into its locked position.

□Re-tighten the set screw (KK) on the collar (PP) on top of the fan

motor assembly (E).

WARNING: Failure to properly install the locking

pin (DD) could result in the fan becoming loose and

possibly falling.

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the ball/downrod assembly (B) and the

set screw (KK) must be completely tightened.

Assembly - Hanging the Fan

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Hanging the Fan (continued)

Hanging the fan

□Carefully lift the fan motor assembly (E) up to the slide-on

mounting bracket (A).

□Insert the ball portion of the ball/downrod assembly (B)

into the socket of the slide-on mounting bracket (A).

□Turn the ball/downrod assembly (B) clockwise until it is

seated with the tab of the slide-on mounting bracket (A)

aligned with the slot in the ball.

Installing the receiver

□Position the house supply wires (AAA) to one side of

the slide-on mounting bracket (A); position the fan

wires (BBB) to the opposite side.

□Insert the narrow end of the receiver (P) (as shown,

at side towards the ceiling) into the slide-on

mounting bracket until it rests on top of the ball/

downrod assembly (B).

WARNING: To reduce the risk of re or electric shock,

remember to disconnect power. The electrical wiring

must meet all local and national electrical code

requirements. The electrical source and fan must

be 110/120 volts, 60Hz. Do not use this product in

conjunction with any variable wall control. Incorrect

wire connection can damage this receiver.

CAUTION: If other fan wires are a different color, have

this unit installed by a licensed electrician.

AAA

BBB

Assembly - Hanging the Fan (continued)

Wiring the fan to the receiver

□If using the 12 in. ball/downrod assembly (B) provided, wire

the receiver to the fan wires by connecting the molded adaptor

plug from the receiver (P) with the molded adaptor of the fan

motor assembly (E) together.

□If you wish to use longer downrod, you can use the lead

wire (66 in.) (Q) provided by connecting the molded adaptors

together.

Wiring the receiver to the

household wiring

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

WARNING: Each wire nut supplied with this fan is

designed to accept up to one 12-gauge house wire

and two wires from the fan. If you have larger than

12-gauge house wiring or more than one house wire to

connect to the fan wiring, consult an electrician for the

proper size wire nuts to use.

IMPORTANT: Use the wire connecting nuts (BB)

supplied with your fan. Secure the connectors with

electrical tape and ensure there are no loose strands or

connections.

□Spread the wires apart so that the green and white wires

are on one side of the outlet box and the black wire is on the

other side.

□Connect the green fan wires to the household ground wire

(this may be a green or bare wire) using a wire connecting

nut (BB).

□Connect the receiver (P) black (or red) wire to the household

black (hot) wire using a wire connecting nut (BB).

□Connect the receiver (P) white wire to the household white

wire (neutral) using a wire connecting nut (BB).

□Secure each wire connecting nut using electrical tape.

NOTE: The fan comes with 18 in. lead wires for use with the

provided 12 in. ball/downrod assembly (B). If you wish to use

a longer downrod, attach the 66 in. lead wire (Q) to the fan

by connecting the molded adaptor plugs from the extension

wires to the adaptor plug from the fan.

Black

Green (or Bare)

Green

Outlet Box

Receiver

Antenna

Whi t e

Green

Outlet box

Green

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Home Decorators Collection Ventilateur

Home Decorators Collection

Home Decorators Collection N383B-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection YG768A-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection SANDY COVE 52-GLH Manuel utilisateur

Home Decorators Collection

Home Decorators Collection BRECKENRIDGE YG543-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection CANSON 60-CANS Manuel utilisateur

Home Decorators Collection

Home Decorators Collection TRENTINO II YG475-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection DRAPER YG664-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection AM909A-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection PARKRIDGE YG614-NI Manuel utilisateur

Home Decorators Collection

Home Decorators Collection SHERIDAN 54-SHAN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection TRENTINO II YG475-WH Manuel utilisateur

Home Decorators Collection

Home Decorators Collection FC140-BKRL Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 59202 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection RYLAND AK433A-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection YG612-EB Manuel utilisateur

Home Decorators Collection

Home Decorators Collection KENSGROVE Series Manuel utilisateur

Home Decorators Collection

Home Decorators Collection N609-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection McFARLAND 51472 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection Windward 91165 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection KELBRA YG439-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection EMERY YG641H-NI Manuel utilisateur

Home Decorators Collection

Home Decorators Collection Bentley II 129828 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection GAMALI 56000 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 7982HDCBN Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
