THANK YOU

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive

to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item #xxxx xxx xxx

Model #56052

UL Model #60-SNYD

USE AND CARE GUIDE

DRISKOL 60-INCH CEILING FAN

To view an instructional video on how to install this product:

1. Go to www.homedepot.com and enter either the Item or Model number, found in the top

right corner of the cover of this instruction manual, in the search ﬁeld.

2. Click on your product from the list of search results and click on the video link in the

“Product Overview” section.

Questions, problems, missing parts? Before returning to the store,

call Hubspace Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday

1-877-592-5233

HOMEDEPOT.COM/HUBSPACE

Table of Contents ................................................................ 2

Safety Information............................................................... 2

Warranty ............................................................................... 3

Pre-Installation .................................................................... 3

Installation............................................................................ 6

Assembly.............................................................................. 7

Operation ........................................................................... 15

Care and Cleaning............................................................. 18

Troubleshooting................................................................. 18

1. To reduce the risk of electric shock, ensure the electricity has been

turned off at the circuit breaker or fuse box before you begin.

2. All wiring must be in accordance with the National Electrical Code

ANSI/NFPA 70 and local electrical codes. Electrical installation should

be performed by a qualied licensed electrician.

3. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 lbs (15.9 kg). Use

only UL-listed outlet boxes marked “Acceptable for Fan Support of

35 lbs (15.9 kg) or less.”

4. The fan must be mounted with a minimum of 7 ft. (2.1 m) of

clearance from the trailing edge of the blades to the oor.

5. Do not place objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other items, use

caution when working around or cleaning the fan.

7. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The

wires should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

8. All set screws must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of personal injury, do

not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do

not insert objects in the path of the blades.

WARNING: Electrical diagrams are for reference

only. If you are using a light kit, refer to the light kit

instructions manual to make the electrical

connections. Optional use of any light kit shall be

UL-listed and marked suitable for use with this fan.

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs (15.9 kg) or

less”, and use screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

WARNING: To reduce the risk of re or electric

shock, this fan should only be used with fan speed

control part no. JY1156H-L, manufactured by

Chungear Industrial Co.,Ltd.

WARNING: To reduce the risk of electric shock, this

fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HUBSPACE

Please contact 1-877-592-5233 for further assistance.

Pre-Installation

Warranty

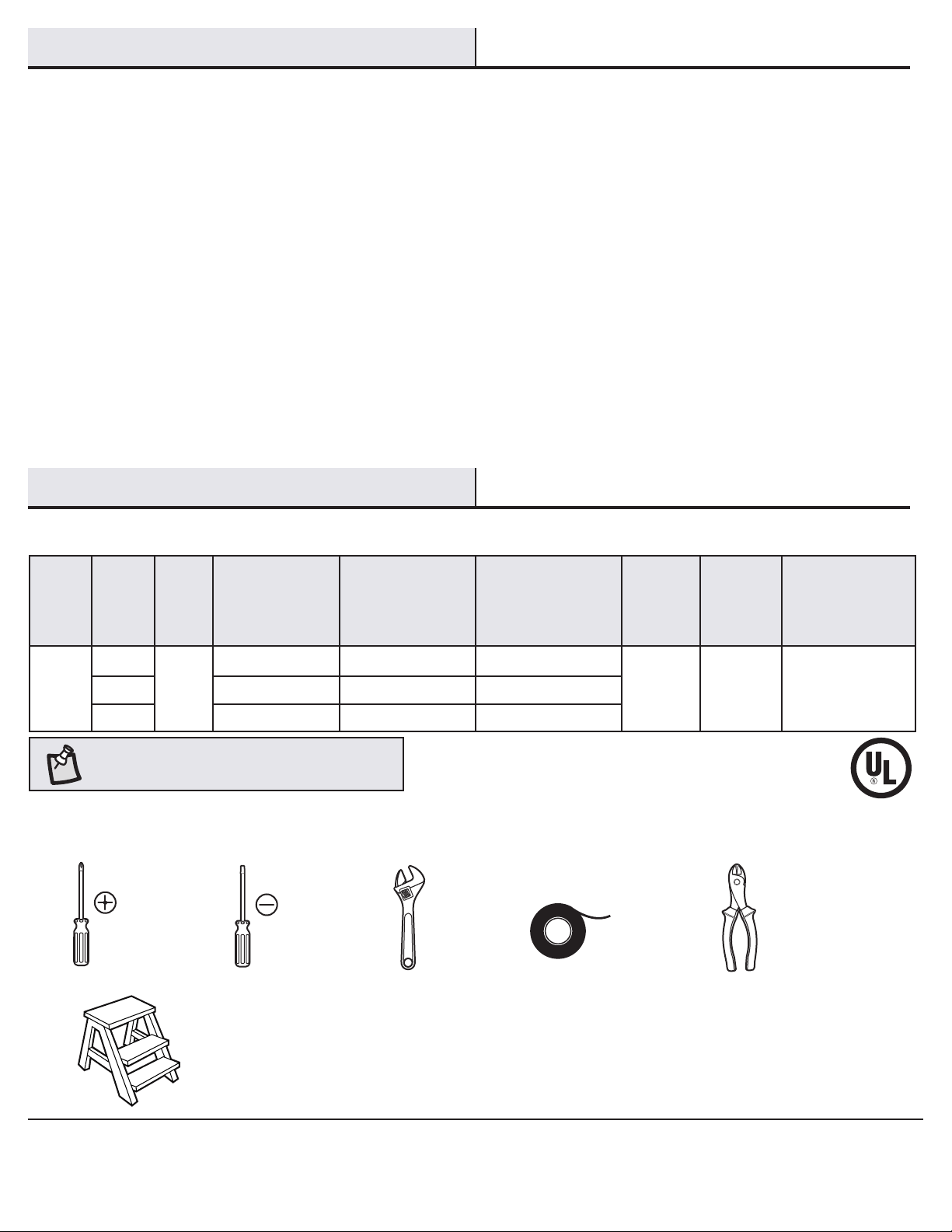

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Size Speed Volts

Fan Power

Consumption

(without lights)

WATT

Airow

CFM

Airow Efciency

(higher is better)

CFM/WATT

Net

Weight

Gross

Weight Cubic Feet

60 in.

Low

120

X 2642 XXX

XX.X lbs

(X.X kg)

XX.XX lbs

(XX.X kg) 1.8 cu. ft.

Medium XX 4646 XXX

High XX 6631 XXX

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire

cutter/

stripper

Step ladder

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a

lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in

workmanship and material at the time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser.

The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the

time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. We agree to correct such defects

without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present

a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by

accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this

warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their

longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Interline hereby disclaims any

and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The

duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not

allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law.

Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This

warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties.

Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-877-592-5233 or visit www.HomeDepot.com/hubspace.

Part Description Quantity

AA Blade attachment screws 16

BB Plastic wire connecting nut 3

CC Hanger pin 1

DD Locking pin 1

Pre-Installation (continued)

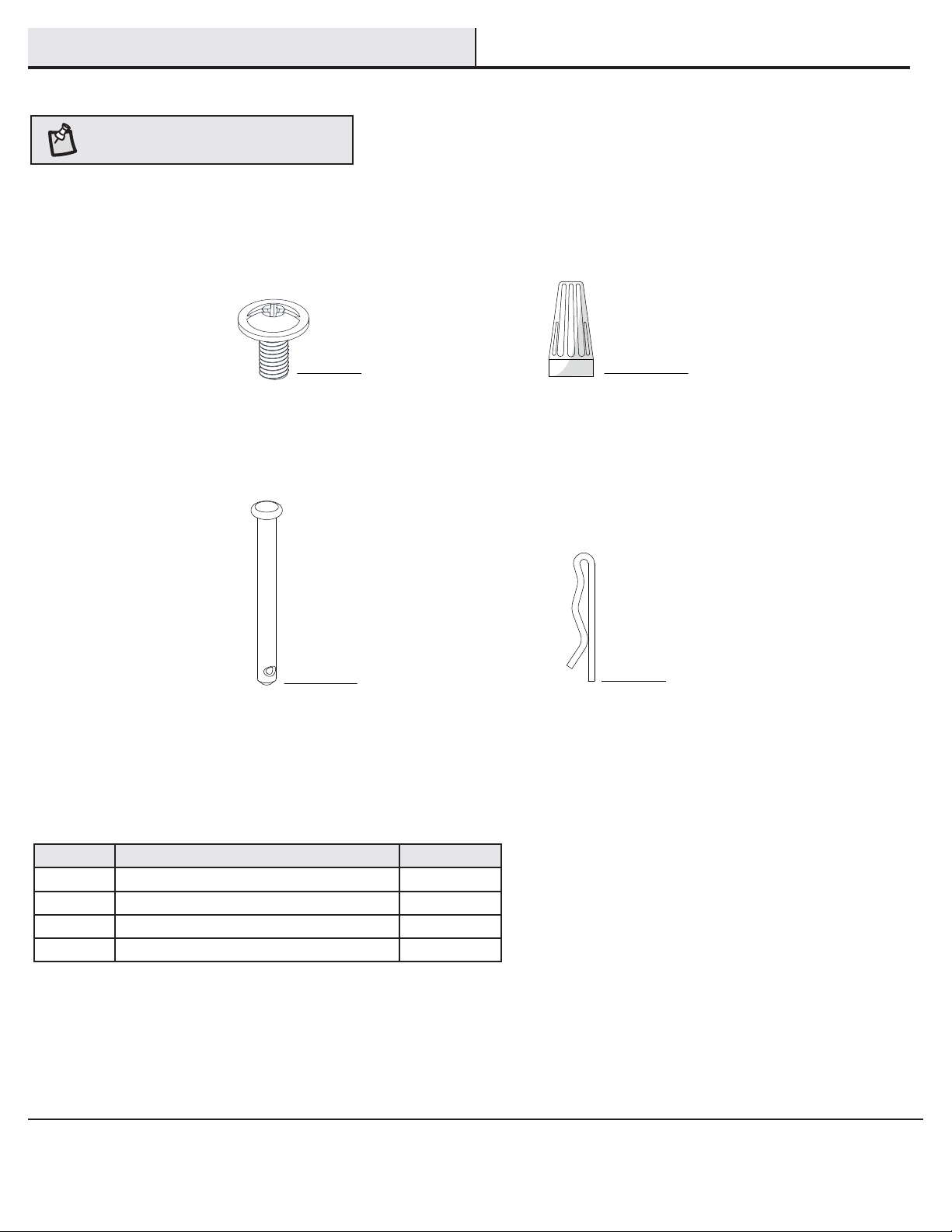

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

CC DD

5HOMEDEPOT.COM/HUBSPACE

Please contact 1-877-592-5233 for further assistance.

Part Description Quantity

ASlide-on mounting bracket

(inside canopy) 1

B Ball/downrod assembly 1

C Canopy with canopy ring attached 1

D Decorative motor collar cover 1

E Fan-motor assembly 1

F Blade 5

G Light kit pan 1

H Light kit tter assembly 1

Part Description Quantity

I Shatter-resistant shade 1

J Receiver 1

K Remote control 1

L 3-pin extension wire (66 in.) 1

M 2-pin extension wire (66 in.) 1

N Battery 2

O Shorter 3-pin extension wire (12 in.) 1

P Shorter 2-pin extension wire (12 in.) 1

IMPORTANT: This product and/or components are governed by

one or more of the following U.S. Patents: 5,947,436; 5,988,580;

6,010,110; 6,046,416; 6,210,117 and other patents pending.

Pre-Installation (continued)

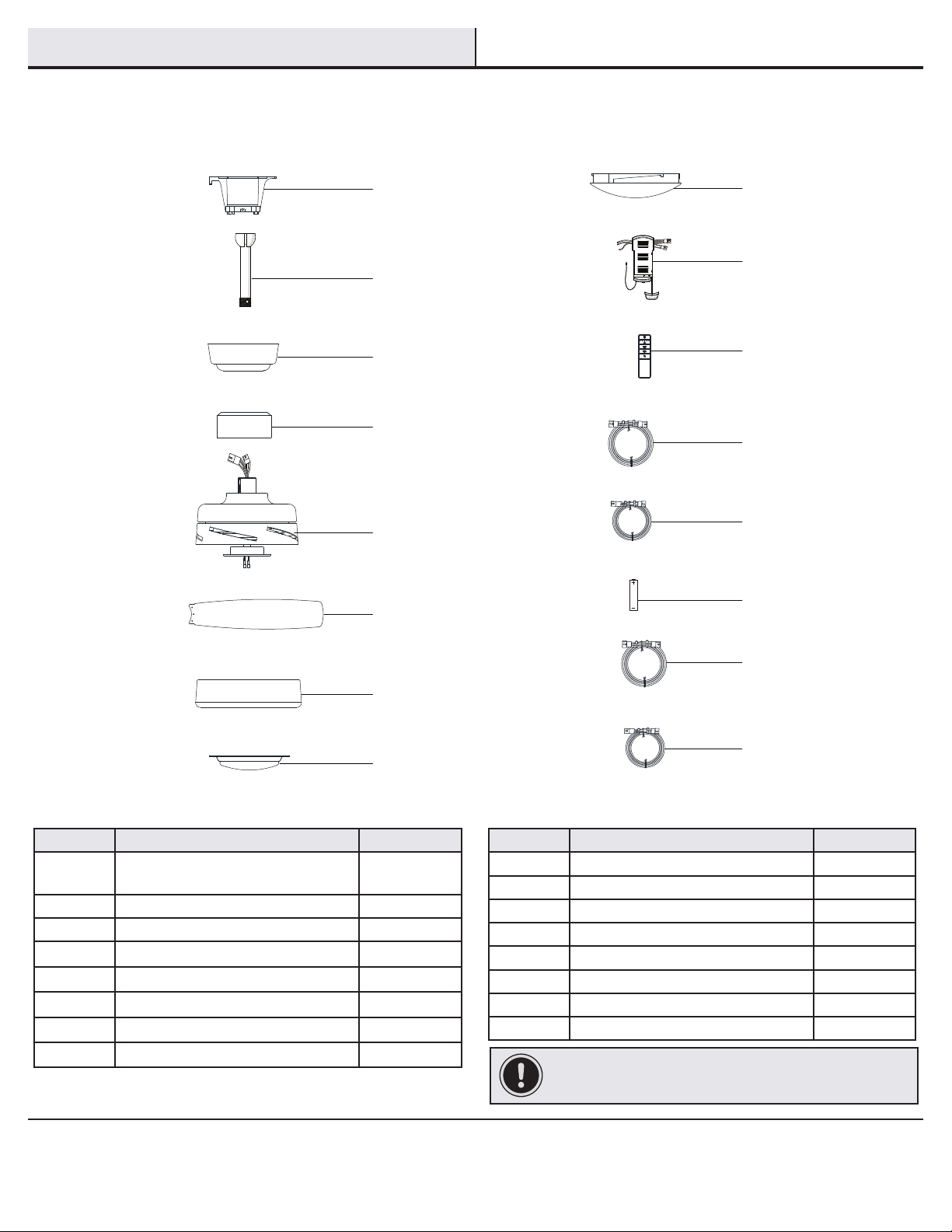

PACKAGE CONTENTS

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock or

personal injury, mount to outlet box marked “Acceptable

for fan support of 35 lbs (15.9 kg) or less”, and use

screws provided with the outlet box. An outlet box

commonly used for the support of lighting xtures may

not be acceptable for fan support and may need to be

replaced. If in doubt, consult a qualied electrician.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure. Use

the appropriate fasteners and materials. The outlet box and

support structure must be securely mounted and capable of

reliably supporting a minimum of 35 lbs (15.9 kg). Use only

UL-listed outlet boxes marked “Acceptable for fan support

of 35 lbs (15.9 kg) or less.” Do not use a plastic outlet box.

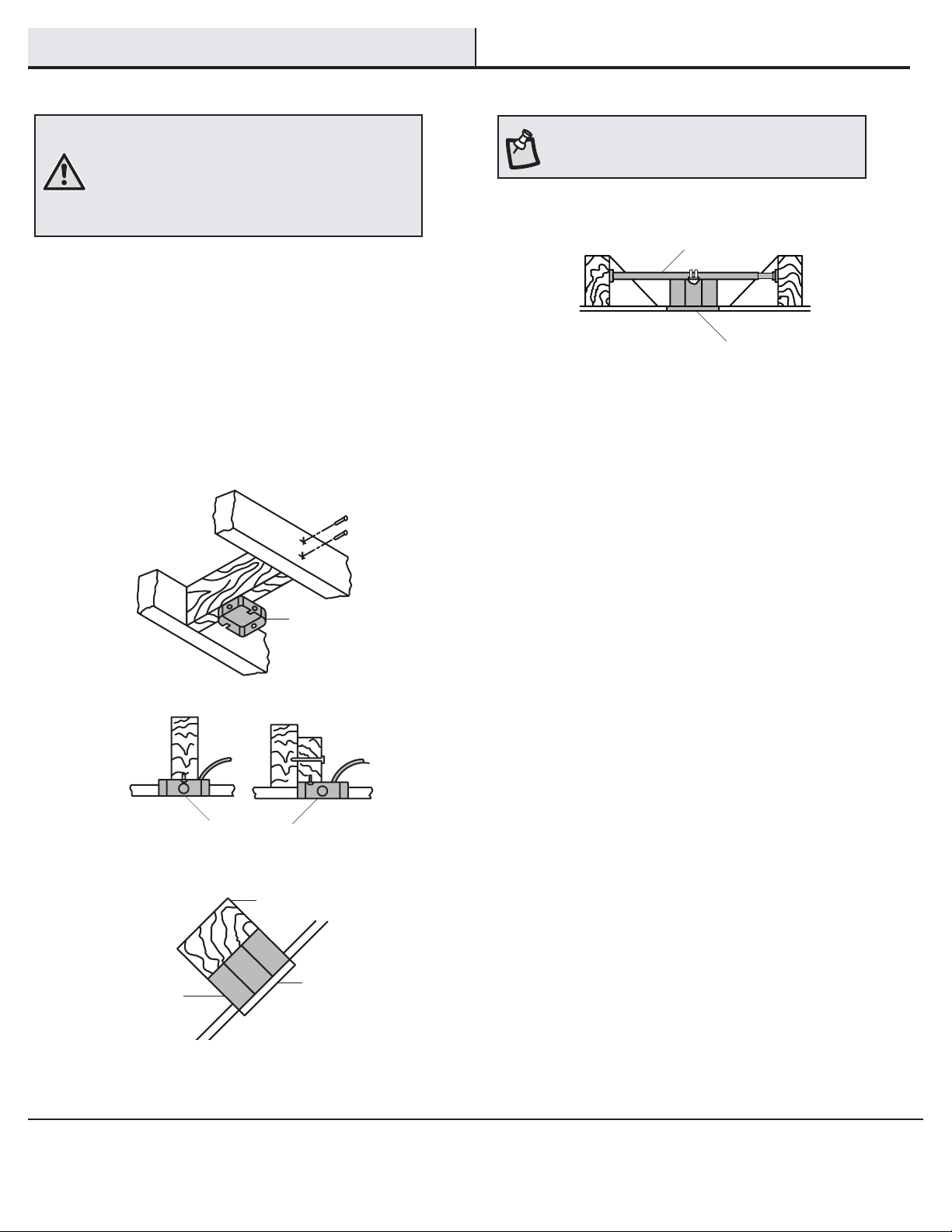

The illustrations below show three different ways to mount the

outlet box.

If the canopy touches the downrod, then remove the decorative canopy

bottom cover, and turn the canopy 180° before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 15° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HUBSPACE

Please contact 1-877-592-5233 for further assistance.

Assembly - Standard Ceiling Mount

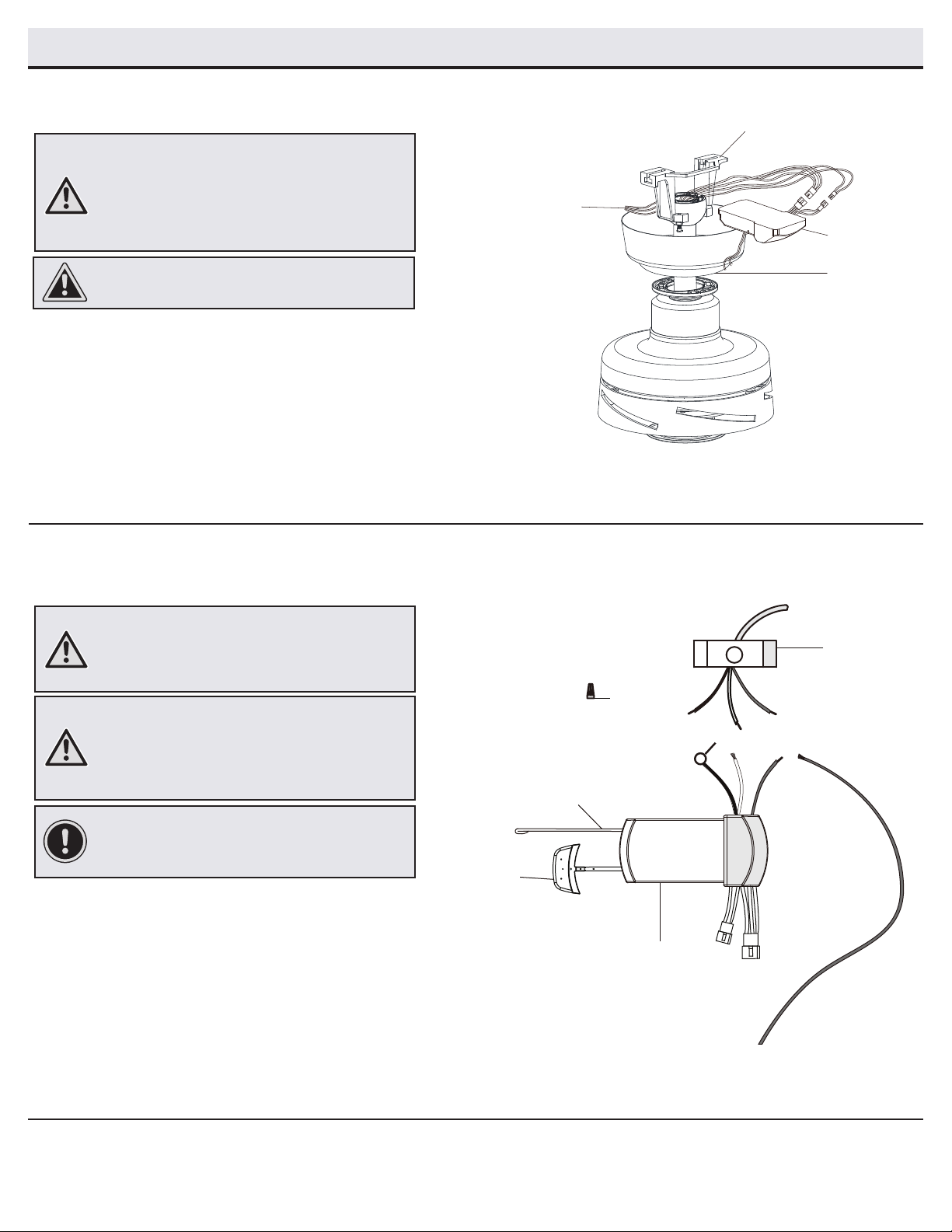

Routing the wires

Preparing for mounting

□Remove the magnetic canopy bottom cover (JJ) from the

canopy (C) by pulling it off.

□Loosen the two canopy screws (EE) located in the bottom of

the mounting bracket (A).

□Turn the mounting bracket (A) counterclockwise and lift it up to

remove the mounting bracket from the canopy (C).

□Attach the shorter lead wires (O) and (P) to the fan by connecting

the wires exiting the top of the fan motor assembly (E). Route the

wires through the decorative motor collar cover (D) and then the

center of the canopy bottom cover (JJ).

□Make sure the opening of canopy (C) is on top and insert the ball/

downrod (B) through the canopy (C).

□Route the wires exiting the top of the fan motor assembly (E)

through the downrod as shown.

NOTE: The fan comes with 12 in. lead wires for use with

the provided 6 in. ball downrod assembly (B). If you wish

to use a longer downrod, attach the 3-pin extension wire

(L) and 2-pin extension wire (M) to the fan by connecting

the molded adaptor plugs from the extension wires to the

3-pin and 2-pin adaptor plugs from the fan.

NOTE: The magnet is pre-attached on the canopy

bottom cover for you to remove and install easily.

Attaching the fan to the electrical

box

□Loosen the two mounting screws (GG) in the outlet box.

□Pass the 120-Volt supply wires through the center hole in the

mounting bracket (A).

□Slide the mounting bracket (A) on to the mounting screws (GG)

and center the mounting bracket (A) in relation to the outlet box.

If necessary, use leveling washers (not included) between the

slide-on mounting bracket (A) and the outlet box. The at side of

the slide-on mounting bracket (A) should face toward the outlet

box, as shown.

□Securely tighten the two mounting screws (GG).

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs 15.9 kg) or less”,

and use screws provided with the outlet box.

NOTE: The mounting bracket (A) is designed to slide

into place on an outlet box with the outlet box screws

(GG) installed.

Assembly - Standard Ceiling Mount (continued)

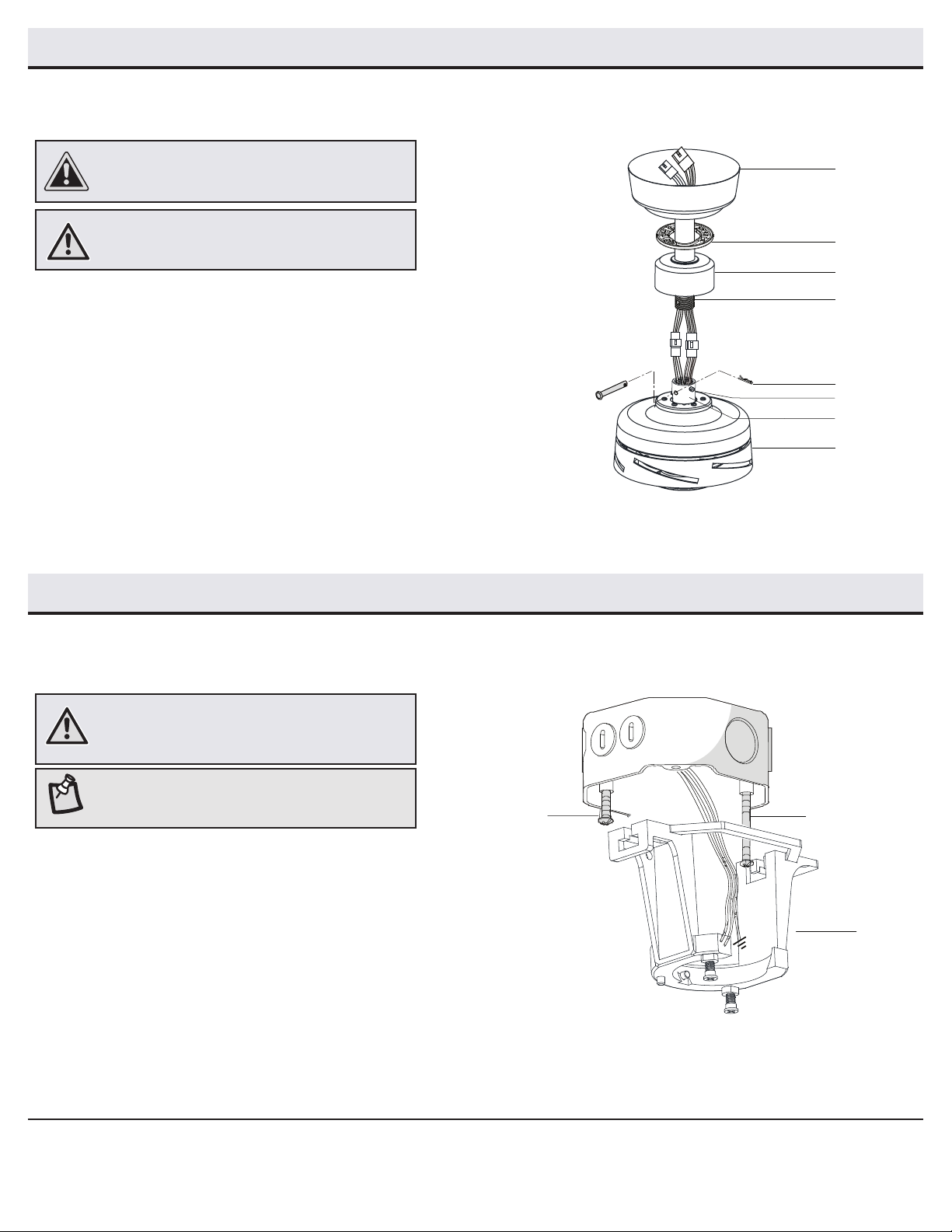

Assembling the fan

□Loosen, but do not remove, the setscrew (KK) on the collar (PP) on

top of the fan-motor assembly (E).

□Install the downrod (B) by inserting it into the motor collar (PP),

and turning it clockwise until the holes at the bottom of the ball/

downrod assembly (B) align with the holes in the collar on top of

the fan-motor assembly (E).

□Carefully insert the hanger pin (CC) through the holes in the collar

and ball/downrod assembly (B). Be careful not to jam the hanger

pin (CC) against the wiring inside the ball/downrod assembly (B).

□Insert the locking pin (DD) through the hole near the end of the

hanger pin (CC) until it snaps into its locked position.

□Re-tighten the setscrew (KK) on the collar (PP) on top of the fan-

motor assembly (E).

WARNING: Failure to properly install the locking

pin (DD) could result in the fan becoming loose and

possibly falling.

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the downrod (B) and the setscrew (KK)

must be completely tightened.

Assembly - Hanging the Fan

9HOMEDEPOT.COM/HUBSPACE

Please contact 1-877-592-5233 for further assistance.

Assembly - Hanging the Fan (continued)

Hanging the fan

□Carefully lift the fan-motor assembly (E) up to the slide-on

mounting bracket (A).

□Insert the ball portion of the ball/downrod assembly (B)

into the socket of the slide-on mounting bracket (A).

□Turn the ball/downrod assembly (B) clockwise until it is

seated with the tab of the slide-on mounting bracket (A)

aligned with the slot in the ball.

Preparing the remote control

□Remove the battery cover by pressing rmly on the arrow and sliding the

cover off.

□Install two 1.5V AAA batteries (N) (included).

□Conrm that the power to the fan is off at either the wall switch or breaker box.

□Return power to the fan at the wall switch or breaker box.

□If the remote control doesn’t work as normal, press then release the “Learn”

button for 1-2 seconds (located in the remote’s battery compartment) within

30 seconds of turning on the power.

□If pairing is successful, the fan’s light kit will ash and the blades will begin

to spin.

□Replace the battery cover on the remote control.

1 to 3 mode

□To use more than one remote control for your fan, press the “Learn” button for 10

seconds and release. Once pairing is successful, the fan’s light kit will ash and the

blades will begin to spin.

□Repeat the above process for the remote controls you want to work with this fan.

□The fan can be only controlled by 3 remote controls maximum at the same time after

“Learning”. If you use a forth remote control to handle the fan, the rst remote control

will be replaced .

1 to 1 mode

□To use only one remote control for your fan, press and release the “Learn” button for

1-2 seconds. The “1 to 3” mode will be cleared and returned back to “1 to 1” mode.

NOTE: The remote control has already been paired to the ceiling

fan for your convenience. If you have two of the same model fans

in your home, please follow the steps below to control each fan

independently.

NOTE: The remote control battery will weaken with age and

should be replaced before leaking takes place, as this will damage

the remote control. Dispose of used battery properly and keep the

battery out of the reach of children.

Assembly - Hanging the Fan (continued)

Installing the receiver

□Position the house supply wires (AAA) to one side of

the slide-on mounting bracket (A); position the fan

wires to the opposite side.

□Insert the narrow end of the receiver (J) (as shown,

at side towards the ceiling) into the slide-on

mounting bracket until it rests on top of the ball/

downrod assembly.

WARNING: To reduce the risk of re or electric shock,

remember to disconnect power. The electrical wiring

must meet all local and national electrical code

requirements. The electrical source and fan must

be 110/120 volts, 60Hz. Do not use this product in

conjunction with any variable wall control. Incorrect

wire connection can damage this receiver.

CAUTION: If other fan wires are a different color, have

this unit installed by a licensed electrician.

Wiring the receiver to the

household wiring

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

WARNING: Each wire nut supplied with this fan is

designed to accept up to one 12-gauge house wire

and two wires from the fan. If you have larger than

12-gauge house wiring or more than one house wire to

connect to the fan wiring, consult an electrician for the

proper size wire nuts to use.

IMPORTANT: Use the wire connecting nuts (BB)

supplied with your fan. Secure the connectors with

electrical tape and ensure there are no loose strands or

connections.

□Spread the wires apart so that the green and white wires

are on one side of the outlet box and the black wire is on the

other side.

□Connect the green fan wires to the household ground wire

(this may be a green or bare wire) using a wire connecting

nut (BB).

□Connect the receiver (J) black (or red) wire to the household

black (hot) wire using a wire connecting nut (BB).

□Connect the receiver (J) white wire to the household white

wire (neutral) using a wire connecting nut (BB).

□Secure each wire connecting nut using electrical tape.

AAA

Black

Green (or Bare)

Green

Outlet Box

Receiver

Antenna

White

Receiver (J)

BB (x3)

Green

WIFI

Antenna

Table des matières

Autres manuels Home Decorators Collection Ventilateur

Home Decorators Collection

Home Decorators Collection BELFORD Manuel utilisateur

Home Decorators Collection

Home Decorators Collection PICCADILLY YG503-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection VENDOME 51884 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection WINDWARD 68000 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection YG583-WH Manuel utilisateur

Home Decorators Collection

Home Decorators Collection KENSGROVE YG493ODC-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection KELBRA YG439-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection CHAMBERLAIN 42-CHAM Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 1004 065 046 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection BRECKENRIDGE YG543-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection SFZ-500-R Manuel utilisateur

Home Decorators Collection

Home Decorators Collection MERCER 54728 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection CARDEN AM852-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection GAINSLEY AM655-GM Manuel utilisateur

Home Decorators Collection

Home Decorators Collection PORTWOOD YG528-NI Manuel utilisateur

Home Decorators Collection

Home Decorators Collection CL11012 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection CANTERBURY SW17B2L BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 51528 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection FENCEHAM YG491A-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection CORINTH Manuel utilisateur

Home Decorators Collection

Home Decorators Collection ASHBY PARK 59600 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 51556 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection STATEWOOD 51770 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection FELDNER 56055 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
