USE AND CARE GUIDE

PINE CREST 60-INCH CEILING FAN

To view an instructional video on how to install this product:

1. Go to www.homedepot.com and enter either the Item or Model number, found in the top

right corner of the cover of this instruction manual, in the search ﬁeld.

2. Click on your product from the list of search results and click on the video link in the

“Product Overview” section.

Table of Contents ................................................................ 2

Safety Information............................................................... 2

Warranty ............................................................................... 3

Pre-Installation .................................................................... 3

Installation............................................................................ 6

Assembly.............................................................................. 7

Operation ........................................................................... 14

Care and Cleaning............................................................. 15

Troubleshooting................................................................. 15

1. To reduce the risk of electric shock, ensure the electricity has been

turned off at the circuit breaker or fuse box before you begin.

2. All wiring must be in accordance with the National Electrical Code

ANSI/NFPA 70 and local electrical codes. Electrical installation should

be performed by a qualied licensed electrician.

3. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 lbs (15.9 kg). Use

only UL-listed outlet boxes marked “Acceptable for Fan Support of

35 lbs (15.9 kg) or less.”

4. The fan must be mounted with a minimum of 7 ft. (2.1 m) of

clearance from the trailing edge of the blades to the oor.

5. Do not place objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other items, use

caution when working around or cleaning the fan.

7. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The

wires should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

8. All set screws must be checked and retightened where

necessary before installation.

9. Use only with light kits marked suitable for damp location.

WARNING: To reduce the risk of personal injury, do

not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do

not insert objects in the path of the blades.

WARNING: To reduce the risk of re or electric

shock, do not use this fan with any solid-state

speed control device.

WARNING: Electrical diagrams are for reference

only. If you are using a light kit, refer to the light kit

instructions manual to make the electrical

connections. Optional use of any light kit shall be

UL-listed and marked suitable for use with this fan.

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs (15.9 kg) or

less”, and use screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

WARNING: To reduce the risk of re or electric

shock, this fan should only be used with fan speed

control part no. XX-XXX, manufactured by Chungear

Industrial Co.,Ltd.

CAUTION: Do NOT use this fan with a dimmer switch

or wall control. Using a dimmer switch or wall

control will damage the fan.

CAUTION: Changes or modications not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the

equipment.

WARNING: To reduce the risk of electric shock, this

fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Size Speed Volts

Fan Power

Consumption

(without lights)

WATT

Airow

CFM

Airow Efciency

(higher is better)

CFM/WATT

Net

Weight

Gross

Weight Cubic Feet

60 in.

Low

120

5 3299 659

17.04 lbs

(7.73 kg)

10.5 lbs

(23.15 kg) 2.45 cu. ft.

Medium 16 4502 281

High 40 7652 191

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire

cutter/

stripper

Step ladder

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime

after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be

free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the

original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is

returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product

are your responsibility. Damage to any part, such as by accident, misuse, improper installation, or by afxing any accessories, is not covered by

this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,

tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of

“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There

is no other express warranty. Interline hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for

a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period

as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not

apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or

performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the

above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be

paid by the customer.

Contact the Customer Service Team at 1-800-986-3460.

Part Description Quantity

AA Blade attachment screws 16

BB Plastic wire connecting nut 3

CC Hanger pin 1

DD Locking pin 1

EE Hex key 1

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Part Description Quantity

ASlide-on mounting bracket

(inside canopy) 1

B Ball/downrod assembly 1

C Canopy with canopy ring attached 1

D Decorative motor collar cover 1

E Fan-motor assembly 1

F Bottom plate 1

Part Description Quantity

G Blade 5

H Remote control 1

I Receiver 1

J Battery 2

K 66 in. lead wire 1

L 12 in. lead wire 1

IMPORTANT: This product and/or components are governed by

one or more of the following U.S. Patents: 5,947,436; 5,988,580;

6,010,110; 6,046,416; 6,210,117 and other patents pending.

Pre-Installation (continued)

PACKAGE CONTENTS

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock or

personal injury, mount to outlet box marked “Acceptable

for fan support of 35 lbs (15.9 kg) or less”, and use

screws provided with the outlet box. An outlet box

commonly used for the support of lighting xtures may

not be acceptable for fan support and may need to be

replaced. If in doubt, consult a qualied electrician.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure. Use

the appropriate fasteners and materials. The outlet box and

support structure must be securely mounted and capable of

reliably supporting a minimum of 35 lbs (15.9 kg). Use only

UL-listed outlet boxes marked “Acceptable for fan support

of 35 lbs (15.9 kg) or less.” Do not use a plastic outlet box.

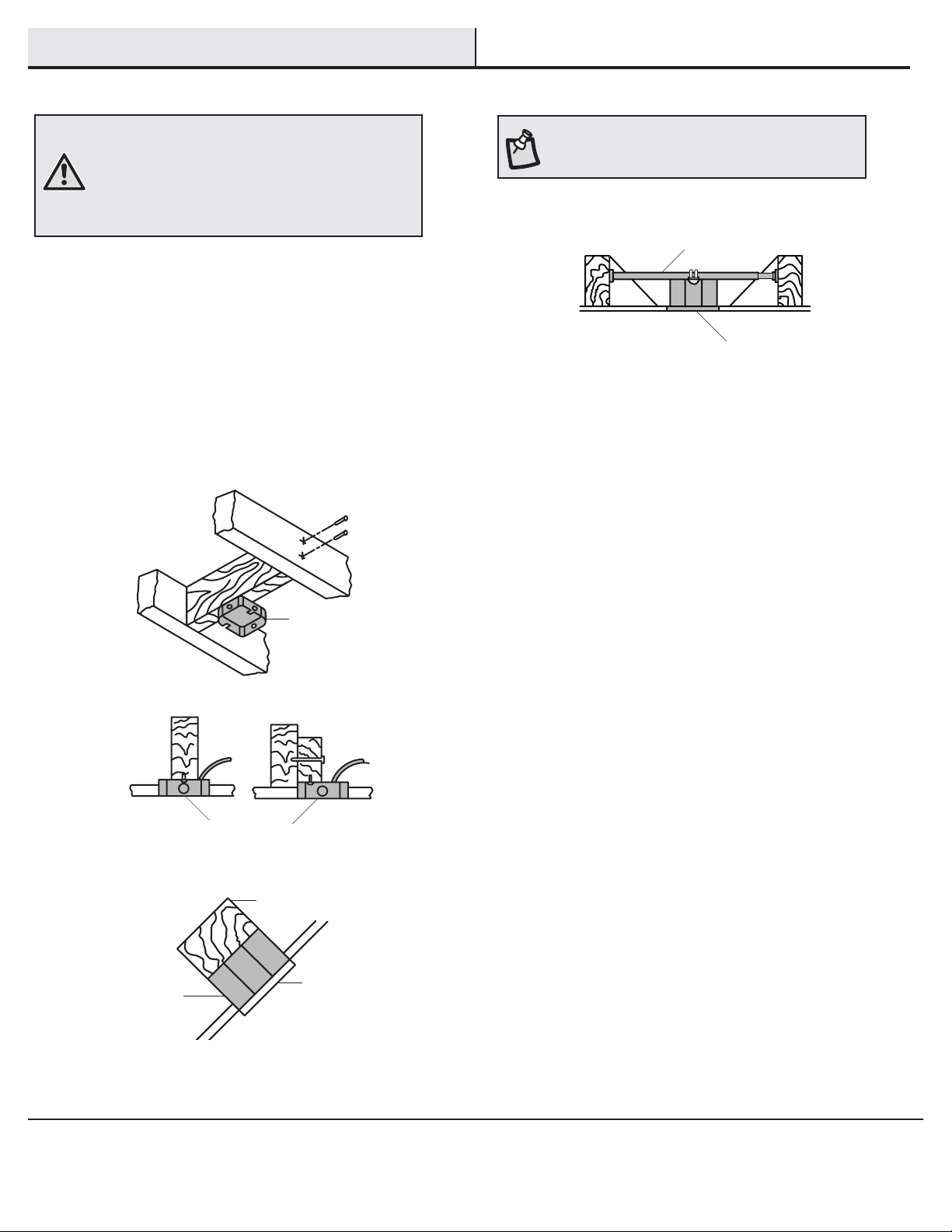

The illustrations below show three different ways to mount the

outlet box.

If the canopy touches the downrod, then remove the decorative canopy

bottom cover, and turn the canopy 180° before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 15° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Standard Ceiling Mount

Routing the wires

Preparing for mounting

□Remove the magnetic canopy bottom cover (JJ) from the canopy

□Loosen the two canopy screws (FF) located in the bottom of the

mounting bracket (A).

□Turn the mounting bracket (A) counterclockwise and lift it up to

remove the mounting bracket from the canopy (C).

□Connect the shorter lead wire (L) to the fan wires exiting the top of

the fan motor assembly (E) by connecting the molded adaptor plugs

together. Route the wires through the decorative motor collar cover

(D) and then the center of the canopy bottom cover (JJ).

□Make sure the opening of canopy (C) is on top and insert the ball/

downrod (B) through the canopy (C).

□Route the wires exiting the top of the fan motor assembly (E)

through the downrod as shown.

NOTE: The fan comes with 12 in. lead wires for use with

the provided 6 in. ball downrod assembly (B). If you wish

to use a longer downrod, attach the extension wire (K) to

the fan by connecting the molded adaptor plugs from the

extension wires to the adaptor plugs from the fan.

Assembling the fan

□Loosen, but do not remove, the setscrew (KK) on the collar (PP) on

top of the fan-motor assembly (E).

□Install the downrod (B) by inserting it into the motor collar (PP),

and turning it clockwise until the holes at the bottom of the ball/

downrod assembly (B) align with the holes in the collar on top of

the fan-motor assembly (E).

□Carefully insert the hanger pin (CC) through the holes in the collar

and ball/downrod assembly (B). Be careful not to jam the hanger

pin (CC) against the wiring inside the ball/downrod assembly (B).

□Insert the locking pin (DD) through the hole near the end of the

hanger pin (CC) until it snaps into its locked position.

□Re-tighten the setscrew (KK) on the collar (PP) on top of the fan-

motor assembly (E).

WARNING: Failure to properly install the locking

pin (DD) could result in the fan becoming loose and

possibly falling.

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the downrod (B) and the setscrew (KK)

must be completely tightened.

NOTE: The magnet is pre-attached on the canopy bottom

cover for you to remove and install easily.

Attaching the fan to the

electrical box

Hanging the fan

□Loosen the two mounting screws (GG) in the outlet box.

□Pass the 120-Volt supply wires through the center hole in the

mounting bracket (A).

□Slide the mounting bracket (A) on to the mounting screws (GG)

and center the mounting bracket (A) in relation to the outlet box.

If necessary, use leveling washers (not included) between the

slide-on mounting bracket (A) and the outlet box. The at side of

the slide-on mounting bracket (A) should face toward the outlet

box, as shown.

□Securely tighten the two mounting screws (GG).

□Carefully lift the fan-motor assembly (E) up to the slide-on

mounting bracket (A).

□Insert the ball portion of the ball/downrod assembly (B)

into the socket of the slide-on mounting bracket (A).

□Turn the ball/downrod assembly (B) clockwise until it is

seated with the tab of the slide-on mounting bracket (A)

aligned with the slot in the ball.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs 15.9 kg) or less”,

and use screws provided with the outlet box.

NOTE: The mounting bracket (A) is designed to slide

into place on an outlet box with the outlet box screws

(GG) installed.

Assembly - Hanging the Fan

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Hanging the Fan (continued)

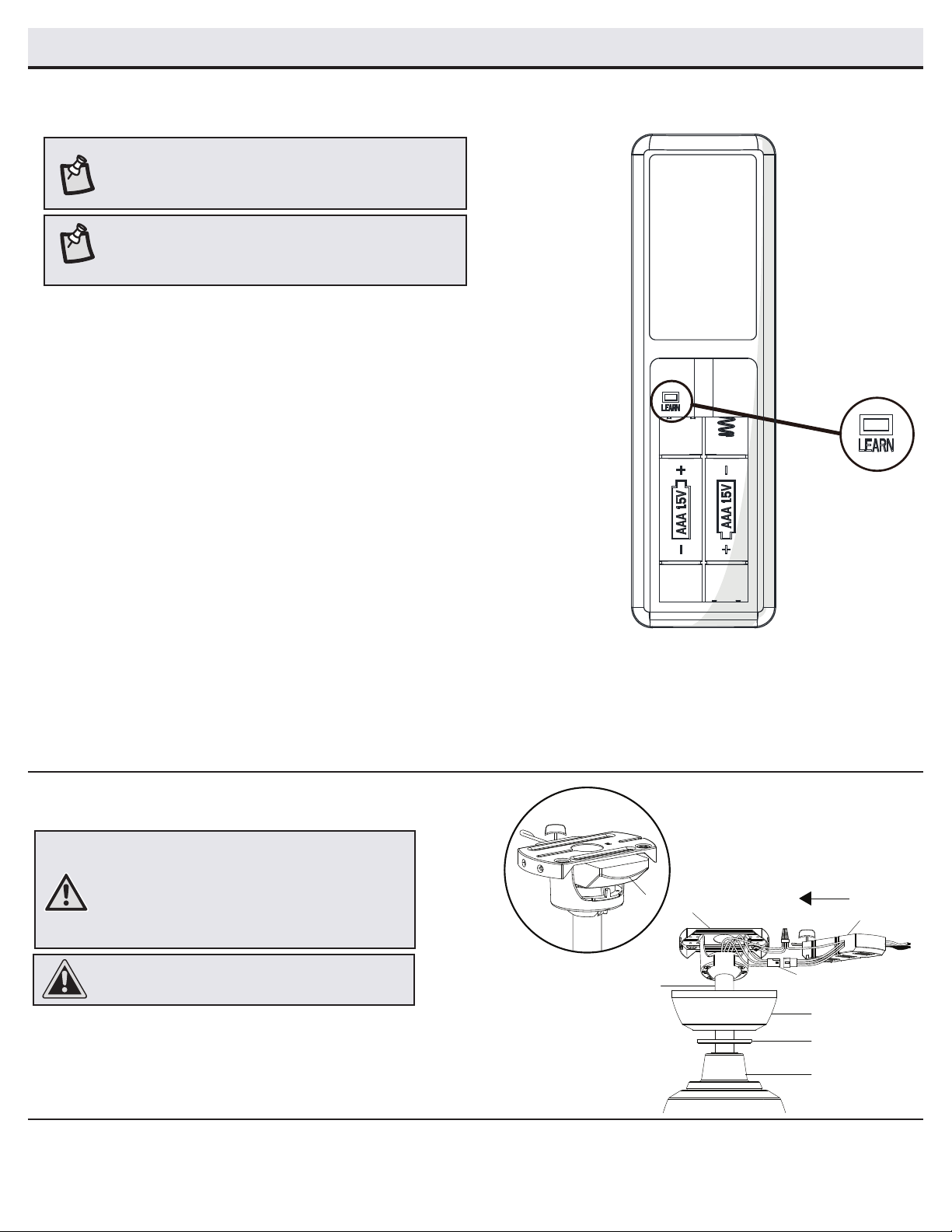

Preparing the remote control

□Remove the battery cover by pressing rmly on the arrow and sliding the cover

off.

□Install two 1.5V AAA batteries (J) (included).

□Conrm that the power to the fan is off at either the wall switch or breaker box.

□Return power to the fan at the wall switch or breaker box.

□If the remote control doesn’t work as normal, press then release the “Learn” button

for 1-2 seconds, located in the remote’s battery compartment, within 30 seconds of

turning on the power.

□If pairing is successful, the blades will begin to spin.

□Replace the battery cover on the remote control.

1 to 3 mode

□To use more than one remote control for your fan, press the “Learn” button for 10

seconds and release. Once pairing is successful, the blades will begin to spin.

□Repeat the above process for the remote controls you want to work with this fan.

□The fan can be only controlled by 3 remote controls maximum at the same time

after “Learning”. If you use a forth remote control to handle the fan, the rst remote

control will be replaced .

1 to 1 mode

□To use only one remote control for your fan, press and release the “Learn” button

for 1-2 seconds. The “1 to 3” mode will be cleared and returned back to “1 to 1”

mode.

NOTE: The remote control has already been paired to the ceiling

fan for your convenience. If you have two of the same model fans

in your home, please follow the steps below to control each fan

independently.

NOTE: The remote control battery will weaken with age and

should be replaced before leaking takes place, as this will damage

the remote control. Dispose of used battery properly and keep the

battery out of the reach of children.

Installing the receiver

□Position the house supply wires (AAA) to one side of the slide-on

mounting bracket (A); position the fan wires to the opposite side.

□Insert the narrow end of the receiver (I) (as shown, at side

towards the ceiling) into the slide-on mounting bracket until it

rests on top of the ball/downrod assembly.

WARNING: To reduce the risk of re or electric shock,

remember to disconnect power. The electrical wiring

must meet all local and national electrical code

requirements. The electrical source and fan must

be 110/120 volts, 60Hz. Do not use this product in

conjunction with any variable wall control. Incorrect

wire connection can damage this receiver.

CAUTION: If other fan wires are a different color, have

this unit installed by a licensed electrician.

AAA

Assembly - Hanging the Fan (continued)

Wiring the fan to the receiver

□If using the 6 in. ball downrod assembly (B) provided, wire the

receiver to the fan wires by connecting the molded adaptor

plug from the receiver (I) with the molded adaptor of the fan

motor assembly (E) together.

□If you wish to use longer downrod, you can use the extension

lead wire (66 in.) (K) provided by connecting the molded

adaptor together.

Wiring the receiver to the

household wiring

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

WARNING: Each wire nut supplied with this fan is

designed to accept up to one 12-gauge house wire

and two wires from the fan. If you have larger than

12-gauge house wiring or more than one house wire to

connect to the fan wiring, consult an electrician for the

proper size wire nuts to use.

IMPORTANT: Use the wire connecting nuts (BB)

supplied with your fan. Secure the connectors with

electrical tape and ensure there are no loose strands or

connections.

□Spread the wires apart so that the green and white wires are on

one side of the outlet box and the black wire is on the other side.

□Connect the green fan wires to the household ground wire (this

may be a green or bare wire) using a wire connecting nut (BB).

□Connect the receiver (I) black (or red) wire to the household

black (hot) wire using a wire connecting nut (BB).

□Connect the receiver (I) white wire to the household white wire

(neutral) using a wire connecting nut (BB).

□Secure each wire connecting nut using electrical tape.

NOTE: The fan comes with 12 in. lead wires for use with

the provided 6 in. ball downrod assembly (B). If you wish

to use a longer downrod, attach the extension wire (K) to

the fan by connecting the molded adaptor plugs from the

extension wires to the adaptor plugs from the fan.

Black

Green (or Bare)

Green

Outlet Box

Receiver

Antenna

White

Receiver (I)

BB (x3)

Antenna

WIFI

Outlet box

in the ceiling

(MM)

Green

1 2 3 4

ON DIP

Autres manuels pour 56049

Table des matières

Autres manuels Home Decorators Collection Ventilateur

Home Decorators Collection

Home Decorators Collection AM183W-NI Manuel utilisateur

Home Decorators Collection

Home Decorators Collection BENSON Manuel utilisateur

Home Decorators Collection

Home Decorators Collection MONTPELIER AM472-GM Manuel utilisateur

Home Decorators Collection

Home Decorators Collection AM909A-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection HAVERBROOK AM634-PN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection ALTURA 56-ATR Manuel utilisateur

Home Decorators Collection

Home Decorators Collection TAGER N383C-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection KENSGROVE II N608-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 34777-HBUG Manuel utilisateur

Home Decorators Collection

Home Decorators Collection ALTURA II 94468 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection GRAMERCY YG513-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection DOWNEY 56043 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection CHAMBERLAIN 42-CHAM Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 52170 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection WESLEY 34776-HBUG Manuel utilisateur

Home Decorators Collection

Home Decorators Collection KENNEDY AM747A-GM Manuel utilisateur

Home Decorators Collection

Home Decorators Collection STONEMILL LED Manuel utilisateur

Home Decorators Collection

Home Decorators Collection JUNEDALE Manuel utilisateur

Home Decorators Collection

Home Decorators Collection BENTLEY III AM183W-BN Manuel utilisateur

Home Decorators Collection

Home Decorators Collection BENSON YG654-MBK Manuel utilisateur

Home Decorators Collection

Home Decorators Collection SANDY COVE 52-GLH Manuel utilisateur

Home Decorators Collection

Home Decorators Collection SARINA CF1004B Manuel utilisateur

Home Decorators Collection

Home Decorators Collection 51576 Manuel utilisateur

Home Decorators Collection

Home Decorators Collection TRUDEAU YG545A-EB Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
