HOMCOM AA1-080 Guide de démarrage rapide
ASSEMBLY INSTRUCTION
INabb010_UK
AA1-080
READ AND SAVAE THIS INSTRUCTION FOR FUTURE USE
Scooter Operational Instructions
~ 1 ~

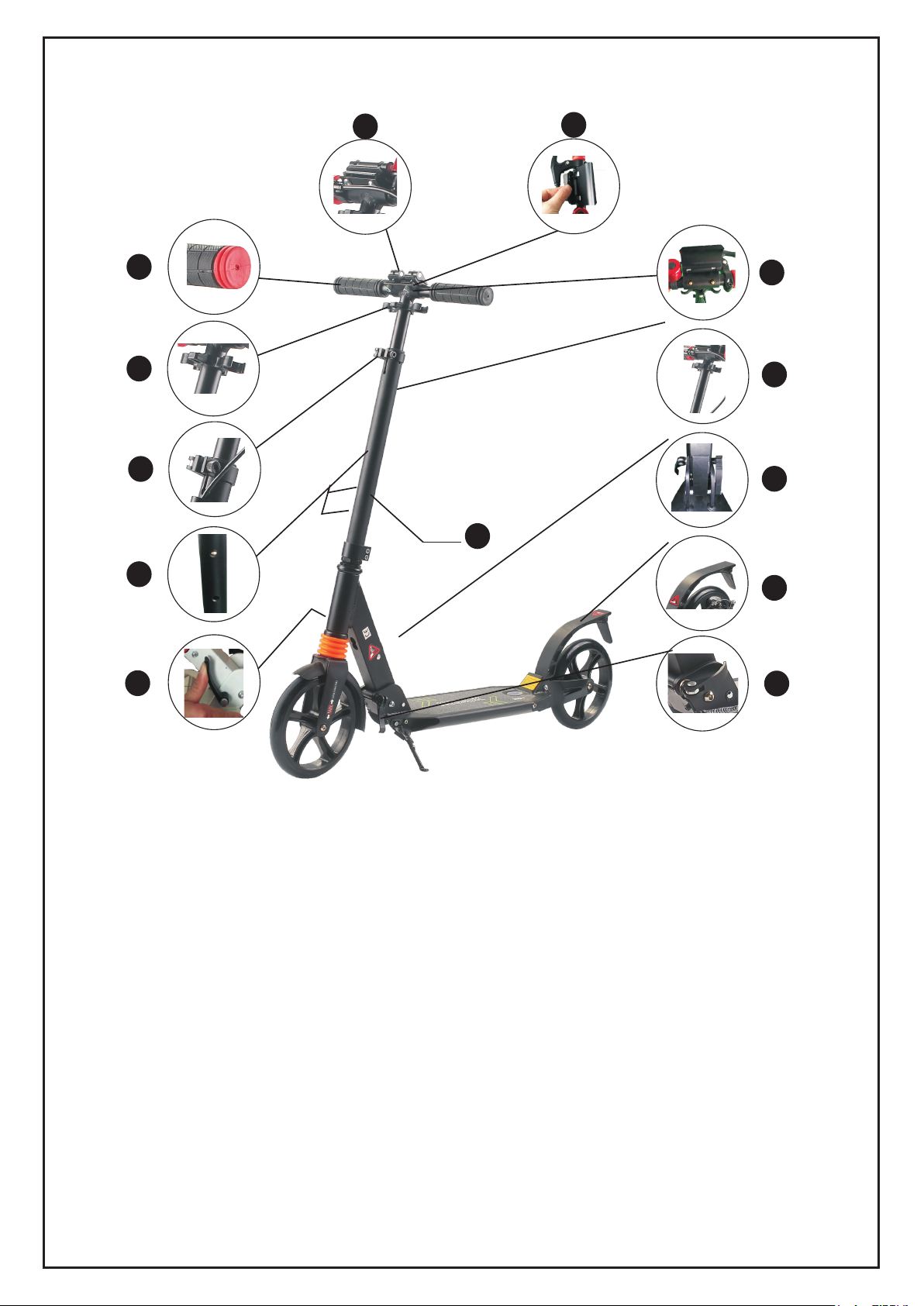

1. Handles
2. Rapid tightening lever for handles
3. Steering column spring button
4. Brake/Mudguard
5. Locking lever for folding mechanism
6. Handle spring button
7. Handlebar stem
8. Rapid tightening lever for steering column
9. Steering column
10. Folding mechanism
11.Rapid tightening lever for folding mechanism
12.Plastic stopper
13.Handle locking mechanism
9
1
3
11
13
6
12
7
10
4
2
8
5
~ 2 ~
Your scooter is easy to handle and practical and can be used Anywhere: fold it and store it
in the blink of an eye. It is quick and green: you will help to protect the environment Without
wasting any time.
Please read and understand the following assembly instructions to avoid all risks of
accidents linked to the folding and unfolding operations of your scooter (e.g., getting your
finger stuck).
SCOOTER ASSEMBLEY
A Remove the plastic plug
With the tools in the accessory bag, remove the plastic stopper (12) so that the
handles (1) can be inserted into Handle locking Mechanism (13).
B-Unfolding the steering column
Open the rapid tightening lever (11) and push the locking Lever forward (5) to unlock
the folding mechanism (10). Lift the steering column (9) until it reaches the Vertical
locking position (you should hear a " click" if engagement correctly), then firmly
tighten the rapid tightening Lever (11).
B
D
A
~ 3 ~
C-Positioning the handles
Take the two handles (1) out of their plastic cover, insert them into the right and left parts of
the stem (7).
For each of the two handles, you should hear a " click", Indicating that the handles are
engaged (1). Check the two spring buttons (6) are effectively out and visible.
For scooters with suspension, open the handle quick- release Lever (2) and follow the
instructions below before tightening it firmly.
D- Adjusting the handlebar height
Open the steering column rapid tightening lever (8), adjust the height of the handlebars until
you hear a " click”, indicating engagement in one of the two indexed positions, then firmly
tighten the steering column rapid Tightening lever (8)
F
E
G
~ 4 ~
Folding the scooter
E-Folding down the handlebars
Open the steering column rapid tightening lever (8), press in the Steering column spring
button (3), lower the handlebars, then tighten the steering column rapid tightening lever (8).
F- Packing away the handles
For each handle (1), press in the spring button (6), take the Handle out (1) from its place in
the stem (7), and put it in its Plastic cover.
G- Folding the steering column
Open the rapid tightening lever (11), then push the locking lever Towards the front (5) to
unlock the folding mechanism (10). It will be easier to unlock if you push the steering
column Forwards (9). Then lower the steering column (9) until you reach the locking
position, then tighten the rapid tightening lever (11).
WARNING! In order to prevent the stepping plate and the steering column from falling
off when the product is strongly shaken or lifted, please connect the pedal and the steering
column with the adhesive hook and loop tape according to the position in the picture after
the product is folded.
VELCRO
~ 5 ~
Recommendations for use
Before each use, check that your scooter is correctly assembled:
There must be a “click “at each moment of Engagement in the vertical locking position of
the steering column, and rapid tightening of the steering column and of the folding
mechanism. Please note: the brake may become hot during use. Do not touch
Advice for use
This product is not a toy; it is for sport and fun.
To brake: use your pushing foot to press on the brake. As most serious accidents take
place during the initial month, please take the time to learn the basics of the sport. For the
safety, we advise you to use this scooter with protective equipment: helmet, elbow pads,
knee pads and gloves. The maximum weight of the user is 100kg (220Lbs). This scooter is
designed for use by one person at any one time. Respect the current Highway Code.
Avoid places with heavy traffic or that are too busy.
Avoid slippery or wet surfaces.
Avoid steep slopes and ensure that the brake is in good working order.
Always wear shoes (for example: training shoes).
Take care to always keep two hands on the handlebars.
Do not change the purpose of this product. This scooter is not made for acrobatic
use. Do not jump over obstacles.
In all situations, take care both of yourself and others. You are advised not to use the
scooter at night.
Maintenance
Regularly check that the various screwed parts are tight, particularly the wheel axles, the
fold axis, the brake shaft, the head tube locking collar and suspension as the self-
tightening screws or other attachments may lose their effectiveness.
~ 6 ~
Always replace used parts with original parts.
Remove any sharp fragments caused by use.
Keep the scooter in a dry, dust- free place.
Do not modify or transform the scooter, specifically the steering column and socket, the
stem, the folding mechanism, and the back brake.
Check the condition of the bearings and wheels regularly and replace them if necessary.
