1. Description
1.1 Introduction
Airconwithme is the perfect IoT solution for AC management. It has been developed under
Mitsubishi Heavy specifications and offers the possibility to control the domestic AC unit from
an app available for Android and iOS.
The Airconwithme system offersfunctionalities like energy saving making the product the best
professional solution for offices, stores, schools, or any other commercial building.
Figure 1.1 Airconwithme integration.
1.2 About this document
This document describes how to configure the Airconwithme device It contains the meaning
of the feedback light from Airconwithme LED during the configuration process and working
mode
1.3 What is needed
To use Airconwithme system is needed, at least, the following:
•Airconwithme device.
Before start using Airconwithme is needed to acquire (if the user hasn’t done yet) an
Airconwithme device
1
. In addition, is necessary be close to it (See Figure 1.2)
1
Airconwithme devices can be purchased in your usual air conditioner or heat pump reseller center.
Device Configuration 1.0
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
URL https://airconwithme.com
5 / 20
Figure 1.2 Get close to the device.
•Make sure Airconwithme device is compatible with the Indoor unit.
Check the compatibility.
•Internet access
2
.
The Airconwithme device must be connected to internet using Wi-Fi, therefore make
sure the Wi-Fi signal reaches the device location (See Figure 1.3).
Figure 1.3 Check Wi-Fi Signal.
•Device with Internet access:
A device with internet access is needed (Smartphone or Tablet).
Make sure the smartphone or tablet used is Android or iOS compatible.
In addition, double check that the data is turned off and Wi-Fi is turned on.
2
Costs related with Internet access are not included in the Airconwithme price. Ask your Internet Service Provider about the associated
costs of your Internet connection.
<2m
OK
Device Configuration 1.0
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
URL https://airconwithme.com
6 / 20
2. Airconwithme Button
Airconwithme devices have one unique button (See Figure 2.1).
Figure 2.1 Airconwithme´ s button
2.1 Reset Wi-Fi settings
To reset the Wi-Fi information in an Airconwithme device is needed to hold the button for 10
seconds (See Figure 2.2), the light of the LED will blink in green after some seconds it will
turn steady green (See Figure 2.3).
Figure 2.2 Reset Wi-Fi procedure.
Figure 2.3 Reset LED feedback.
Green
Blinking
Green
Steady
<10 sec
10 sec
Device Configuration 1.0
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
URL https://airconwithme.com
7 / 20
2.2 WPS mode
Press one time the button to activate the WPS mode in the Airconwithme device (See Figure
2.4), the light of the LED will blink in blue (See Figure 2.5).
Figure 2.4 WPS mode.
Figure 2.5 WPS mode LED feedback.
“Click”
Blue
Blinking
Device Configuration 1.0
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
URL https://airconwithme.com
8 / 20
2.3 Change Wi-Fi channel
Holding the button for 2 seconds to change the channel of the Wi-Fi network (See Figure 2.6),
the light of the LED will blink in green and it will turn steady green (See Figure 2.7). The
process can be repeated until reach the channel wanted.
Figure 2.6 Change Wi-Fi channel procedure.
Figure 2.7 Change Wi-Fi channel LED feedback.
2 sec
<2 sec
Green
Blinking
Green
Steady
Device Configuration 1.0
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
URL https://airconwithme.com
9 / 20
3. Configuration
There are 2 ways to realize the procedure
1. Tap on the white square in the main page (See Figure 3.1).
2. Login, tapping on settings and on the white square (See Figure 3.2).

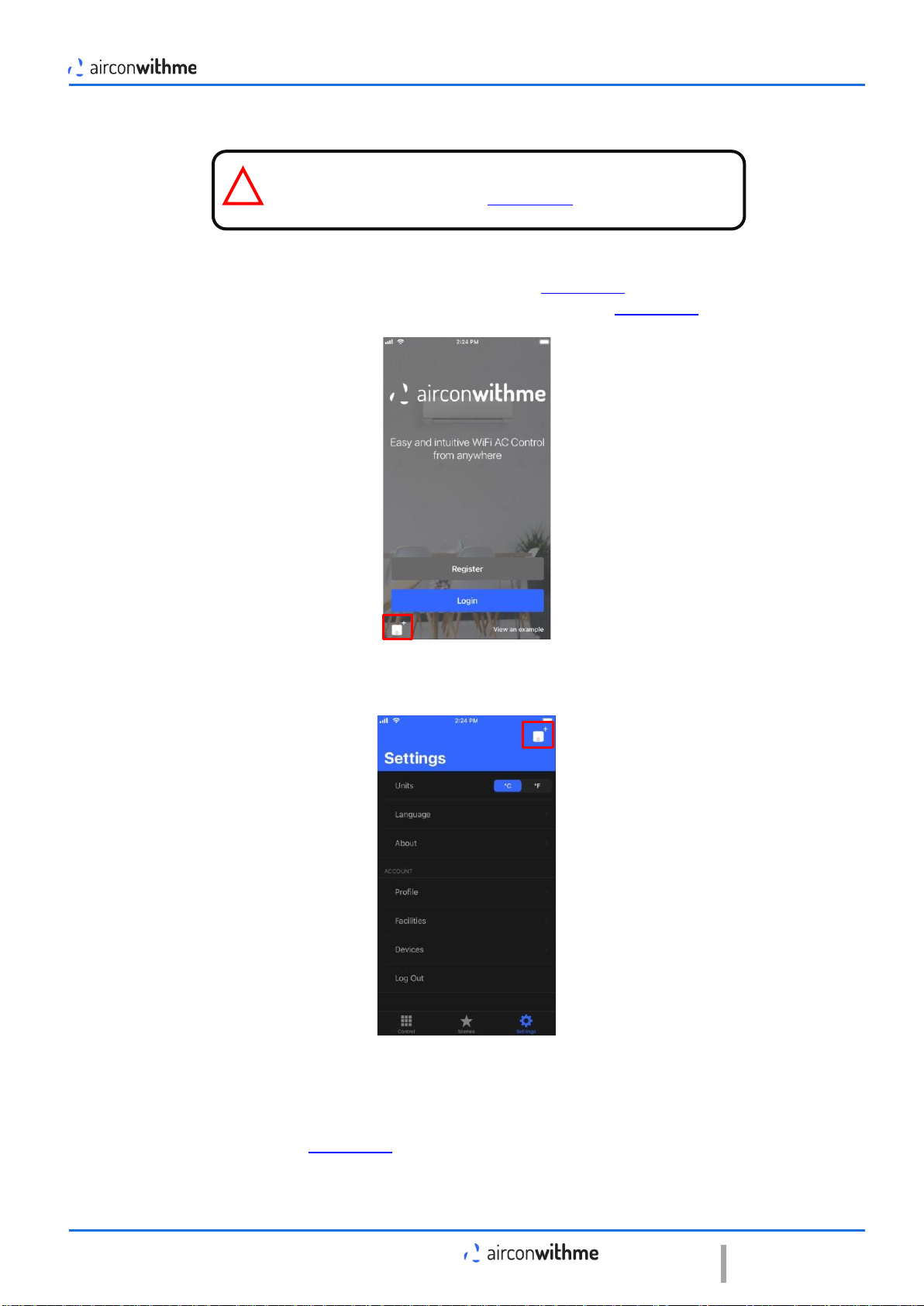

Figure 3.1 Access to Configuration network device without login.
Figure 3.2 Access to Configuration network device from settings login.
Go to Wi-Fi settings of your mobile or Table and select the network generated by
Airconwithme device (See Figure 3.3). Tap on Next.
Note: Make sure to reset the Wi-Fi configuration. Further
information can be found in Section 2.1.
!
Device Configuration 1.0
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
URL https://airconwithme.com
10 / 20
In case the user is not connected to the device network a pop-up window will be shown asking
to connect to it. (See Figure 3.4).
The mode to configure the Wi-Fi network can be selected as preference. Further information
about each mode configurations will be found at Section 3.3, Section 3.4 and Section 3.5.
Figure 3.3 Configuration network procedure.
Figure 3.4 Configuration network warning pop-up window.
If the configuration network has been carried out successfully the light of the LED will follow
a light sequence (See Figure 3.5). Tap on Done.
