Hitachi Travelstar 80GN Manuel utilisateur

Handling precautions

yWear a grounded wrist strap while handling the drive

to prevent damage from Electrostatic Discharge

(ESD).

ySet the drive down gently to prevent damage from

impact or vibration.

yDo not open the ESD bag containing the drive until

needed.

yHandle the drive carefully by the edges. Do not

touch the exposed printed circuit board or any

electronic components.

yDo not press on the top or bottom of the drive.

yDo not cover the drive’s breather hole.

Quick installation

Installation of this Hitachi Travelstar drive in some note-

books may require use of unique hardware (such as

mounting trays, connecting cable, insulating material). If

you are uncertain if hardware is needed, consult your

notebook manufacturer as this operation may require a

qualified technician.

Back up all data before proceeding with installation.

1. Set the jumpers

yMaster drive. No jumper is required if the drive is

the only drive in a system or the Master drive in a

two-drive system.

ySlave drive. If this is the Slave drive in a system,

place a jumper in setting A2. (See the A2 setting in

the illustration.)

yCable Select. Setting A3 in the illustration. Consult

the system manual to see if your computer supports

Cable Select.

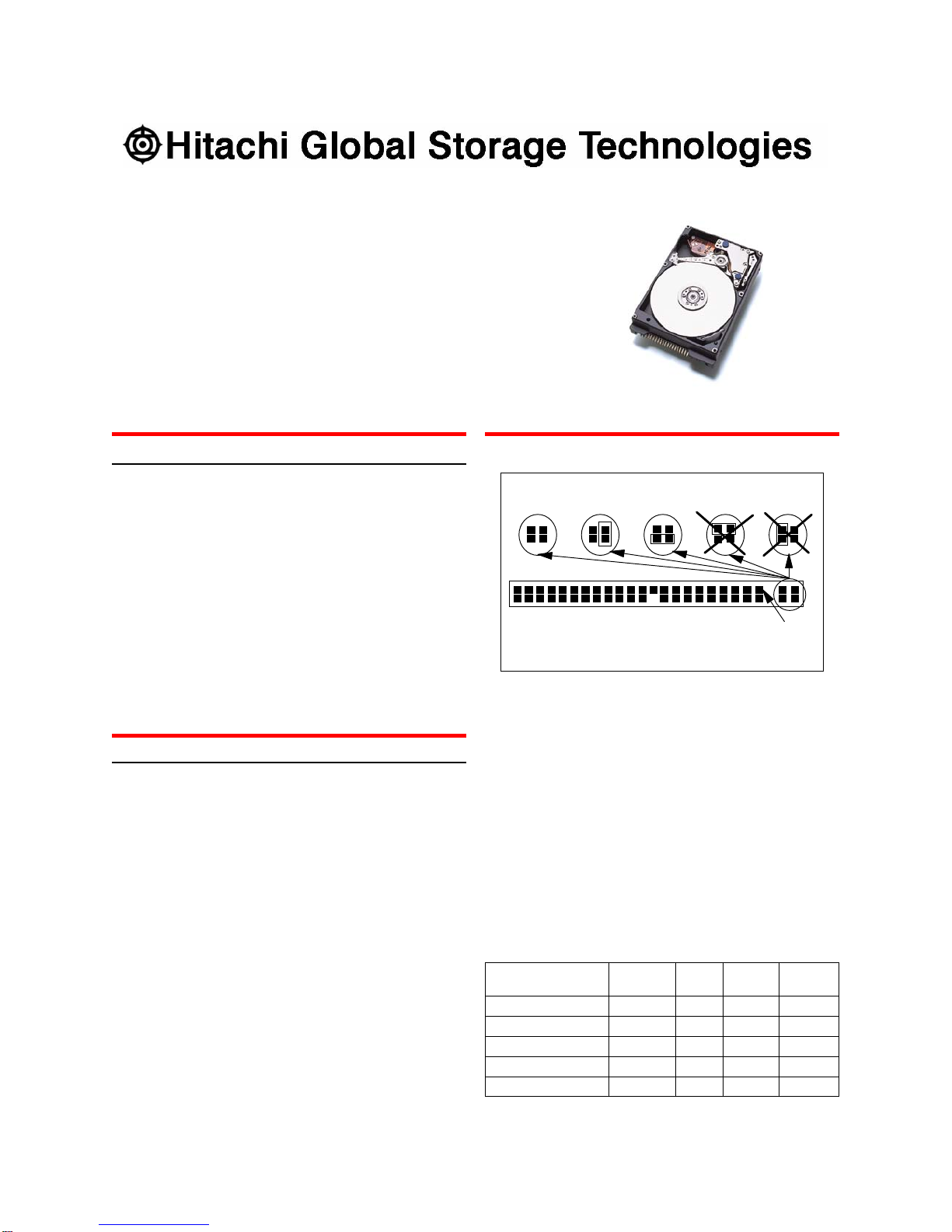

Jumper settings

A1. A2. A3. A4. A5.

Pin 1

A1. Master A2. Slave A3. Cable Select

A4 & A5. Never attach a jumper in these positions!

2. Attach the drive

For assistance on the physical installation of the drive,

consult your system manual.

3. Configure the computer

1. Turn on the computer.

2. Enter Setup.

3. Go to Hard Disk Drive Configuration.

4. Select Autodetect if it is available.

5. If Autodetect is not available, set to User and set to

appropriate parameters from the table below.

6. Save the settings and exit.

7. Reboot the system from a floppy disk.

2063116,383C25T020ATMR04

3063216,383C25T030ATMR04

4063216,383C25T040ATMR04

6063316,383C25T060ATMR04

8063416,383IC25T080ATMR04

Capacity

(GB)

Sectors/

Track

HeadsCylindersModel Number

Quick installation guide

Hitachi Travelstar 80GN

2.5 inch ATA/IDE hard disk drive

IC25N020ATMR04

IC25N030ATMR04

IC25N040ATMR04

IC25N060ATMR04

IC25N080ATMR04

Models:

page 1 version 1.0

4. Partition and format

Partition and format the drive using either of these two

methods:

yDisk Manager 2000

i. Boot the Disk Manager 2000 installation utility

ii. If the Disk Manager 2000 configuration matches

your new system configuration, continue. If the

system configuration is not a match or if you

want to proceed manually, select no. Then

verify the BIOS settings, cabling, and jumpers.

Run Disk Manager 2000 again.

iii. Disk Manager 2000 determines available parti-

tion sizes based on the operating system to be

installed. Select the partition sizes for your

installation.

iv. Click “Finish” to complete the partitioning and

formatting of your drive.

yFDISK.EXE and FORMAT.EXE (or a similar parti-

tioning software from the operating system)

Follow the instructions provided with your operating

system to partition the drive. If FDISK.EXE recog-

nizes only 8.4 GB of a drive, the BIOS may not

support Interrupt 13 Extensions.

Format the drive by following the instructions pro-

vided with FORMAT.EXE. Formatting will verify the

hard disk media and create file allocation tables for

the partition.

5. Boot up the computer

If the system does not boot up after the installation of the

drive, check all the settings. If the system still fails to

boot up, contact the Hitachi Global Storage

Technologies Support Center.

Hitachi Global Storage Technologies

5600 Cottle Road

San Jose, CA 95193

Produced in the United States

3/03

Global Storage Technologies.

Microsoft, Windows XP, and Windows are trademarks

of Microsoft Corporation in the United States, other

countries, or both.

Other product names are trademarks or registered

trademarks of their respective companies.

References in this publication to Hitachi Global Storage

Technologies products, programs or services do not

imply that Hitachi Global Storage Technologies intends

to make these available in all countries in which Hitachi

Global Storage Technologies operates.

Product information is provided for information

purposes only and does not constitute a warranty.

Information is true as of the date of publication and is

subject to change. Actual results may vary.

This publication is for general guidance only.

Photographs may show design models.

12 March 2003

Hitachi Global Storage Technologies

page 2 version 1.0
