Hitachi Travelstar 5K160 Manuel utilisateur

Hitachi Global Storage Technologies

Quick Installation Guide

Hitachi Travelstar™(E)5K160

2.5-inch ATA/IDE & SATA Hard Disk Drive

Models:

HTS(E)541616J9AT00

HTS(E)541612J9AT00

HTS(E)541680J9AT00

HTS(E)541660J9AT00

HTS(E)541640J9AT00

HTS(E)541616J9SA00

HTS(E)541612J9SA00

HTS(E)541680J9SA00

HTS(E)541660J9SA00

HTS(E)541640J9SA00

Handling precautions

__________________________________________

• Wear a grounded wrist strap while handling the

drive to prevent damage from Electrostatic

Discharge (ESD).

• Set the drive down gently to prevent damage

from impact or vibration.

• Do not open the ESD bag containing the drive

until needed.

• Handle the drive carefully by the edges. Do not

touch the exposed printed circuit board or any

electronic components.

• Do not press on the top or bottom of the drive.

• Do not cover the drive’s breather hole.

Quick installation

__________________________________________

Installation of this Hitachi Travelstar drive in

some notebooks may require use of unique

hardware (such as mounting trays, connecting

cable, insulating material). If you are uncertain if

hardware is needed, consult your notebook

manufacturer as this operation may require a

qualified technician.

Back up all data before proceeding with

installation.

1. Set the jumpers (ATA/IDE only)

• Master drive. No jumper is required if the drive

is the only drive in a system or the Master

drive in a two-drive system.

• Slave drive. If this is the Slave drive in a

system, place a jumper in setting A2. (See

the A2 setting in the illustration.)

• Cable Select. Setting A3 in the illustration.

Consult the system manual to see if your

computer supports Cable Select.

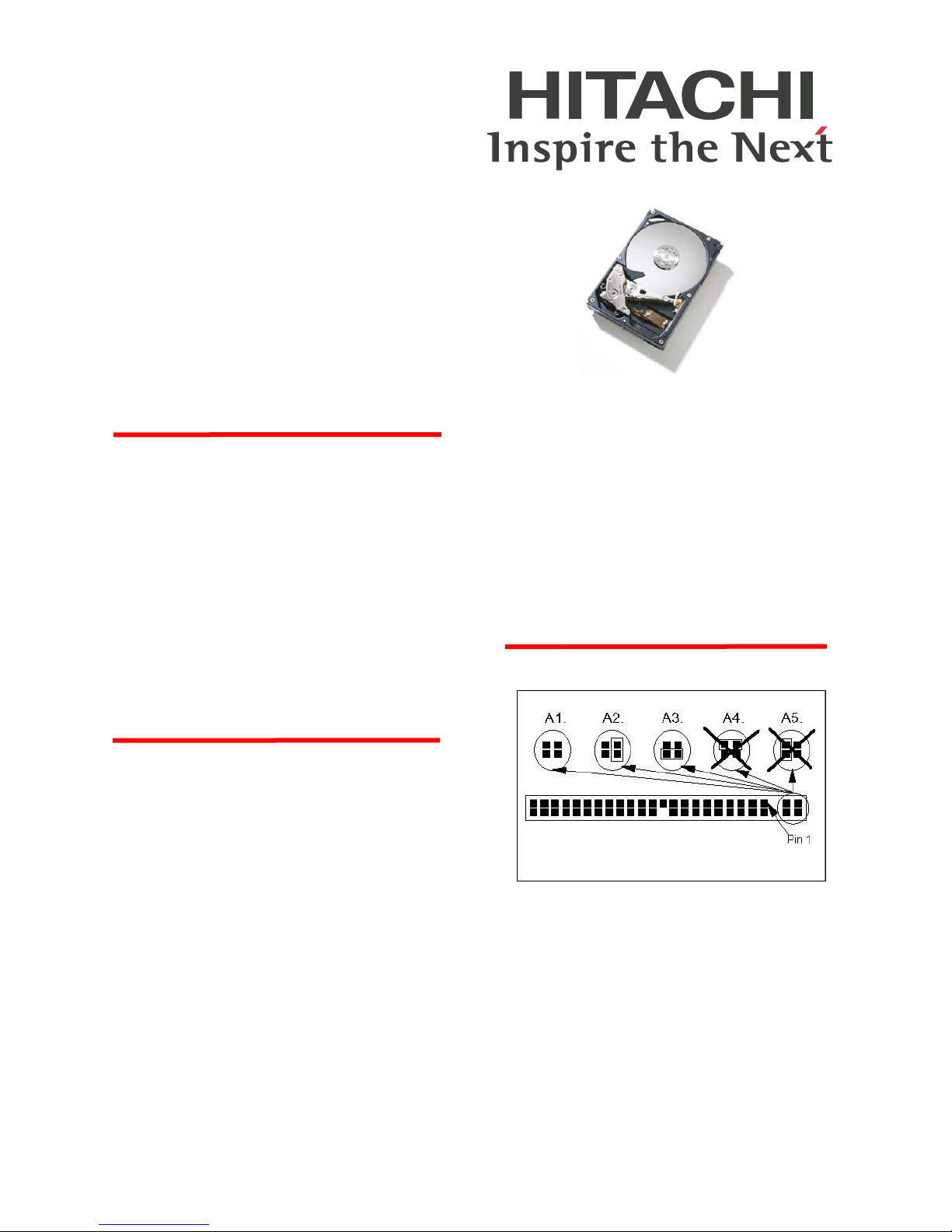

Jumper settings (ATA/IDE only)

2. Attach the drive

For assistance on the physical installation of

the drive, consult your system manual.

3. Configure the computer

1. Turn on the computer.

2. Enter Setup.

Page 1 Travelstar (E)5K160

Hitachi Global Storage Technologies

3. Go to Hard Disk Drive Configuration.

4. Select Autodetect if it is available.

5. If Autodetect is not available, set to User and set to

appropriate parameters from the table below.

6. Save the settings and exit.

7. Reboot the system from a floppy disk.

Model Number Cylinders Heads Sectors/

Track Capacity

(GB)

HTS(E)541616J9AT00 16,383 4 480-1272 160

HTS(E)541612J9AT00 16,383 4 480-1272 120

HTS(E)541680J9AT00 16,383 2 480-1272 80

HTS(E)541660J9AT00 16,383 2 480-1272 60

HTS(E)541640J9AT00 16,383 1 480-1272 40

HTS(E)541616J9SA00 16,383 4 480-1272 160

HTS(E)541612J9SA00 16,383 4 480-1272 120

HTS(E)541680J9SA00 16,383 2 480-1272 80

HTS(E)541660J9SA00 16,383 2 480-1272 60

HTS(E)541640J9SA00 16,383 1 480-1272 40

4. Partition and format

• FDISK.EXE and FORMAT.EXE (or a similar

partitioning software from the operating system)

Follow the instructions provided with your operating

system to partition the drive. If FDISK.EXE recognizes

only 8.4 GB of a drive, the BIOS may not support

Interrupt 13 Extensions.

Format the drive by following the instructions provided

with FORMAT.EXE. Formatting will verify the hard disk

media and create file allocation tables for the partition.

5. Boot up the computer

If the system does not boot up after the installation of

the drive, check all the settings. If the system still fails to

boot up, contact the Hitachi Global Storage

Technologies Support Center at

www.hitachigst.com/support.

Storage Technologies

Hitachi Global Storage Technologies

3403 Yerba Buena Road

San Jose, CA 95135

Produced in the United States.

9/06

trademark of Hitachi Global Storage

Technologies.

Microsoft, Windows XP, and Windows are

trademarks of Microsoft Corporation in the

United States, other countries, or both.

Other product names are trademarks or

registered trademarks of their respective

companies.

References in this publication to Hitachi

Global Storage Technologies products,

programs or services do not imply that Hitachi

Global Storage Technologies intends to make

these available in all countries in which Hitachi

Global Storage Technologies operates.

Product information is provided for information

purposes only and does not constitute a

warranty.

Information is true as of the date of publication

and is subject to change. Actual results may

vary.

This publication is for general guidance only.

Photographs may show design models.

20 September 2006

Page 2 Travelstar (E)5K160
