Thank you for purchasing this projector.

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transmission or use of this document or contents is not permitted without

express written authority.

TRADEMARK ACKNOWLEDGMENT :

• VGA and XGA are registered trademar s of the International Business Machines Corporation.

• Apple and Mac are registered trademar s of Apple Computer, Inc.

• VESA and SVGA are trademar s of the Video Electronics Standard Association.

• Windows is a registered trademar of Microsoft Corporation.

All other trademar s are the property of their respective owners.

NOTE

WARNING Before using, read the "User's Manual - Safety Guide" and

these manuals to ensure correct usage through understanding. After reading,

store them in a safe place for future reference.

Projector

PJ-TX10

PJ-TX10W / PJ-TX10E / PJ-TX10W(AU)

User's Manual - Operating Guide

01PJ-TX10En03.7.1511:18AMページ1

●

Ultra High Brightness

Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly

efficient optical system.

●

Whisper Mode Equipped

Special mode is available for reducing projector noise to achieve quieter operation.

●

User Memory Function

This projector can memorize 4 settings by MY MEMORY function.

●

Optical Lens Shift

The lens of this projector can be shifted horizontally and vertically. When you want to finely adjust the

picture position, use the picture shift dials.

●

Keystone Distortion Correction

Quick correction of distorted images electrically.

Preparation

Please see the “Contents Of Package” of the “User’s Manual – Quick Guide”.

Your projector should come with the items shown there. Contact your dealer

anything is missing.

Projector Features

This multimedia projector is used to project various computer signals as well as

NTSC / PAL / SECAM video signals onto a screen. Little space is required for

installation and large images can easily be realized.

• Keep the original packing material for future reshipment. For moving the projector, be

sure to use the original packing material. Use special caution for the lens part.

NOTE

01PJ-TX10En03.7.1511:18AMページ2

Projector Features ……………………………………2

Preparation ……………………………………………………2

Part Names ……………………………………………………4

The Projector ………………………4

Fastening The Lens Cap …………4

The Remote Control ………………6

Setting Up …………………………………………………………7

Arrangement ………………………7

Adjusting The Projector’s

Elevator ……………………………8

Using The Picture Shift Dials ……8

Connecting Your Devices…………9

Connecting Power Supply ………11

Remote Control…………………………………………12

Putting Batteries …………………12

Operating The Remote Control…13

Power ON/OFF …………………………………………14

Turning On The Power …………14

Selecting An Input Signal ………15

Turning Off The Power …………16

Operating ……………………………………………………17

Adjusting The Volume …………17

Temporarily Muting The Sound…17

Using The Automatic

Adjustment Feature………………18

Correcting Keystone

Distortions…………………………18

Signal Searching…………………19

Selecting The Aspect Ratio ……19

Temporarily Blanking

The Screen ………………………19

Selecting The Gamma Mode……20

Recalling Your Adjustments ……20

Multifunctional Settings ……………………21

Using The Menu Functions ……21

MAIN Menu ………………………22

PICTURE-1 Menu ………………23

PICTURE-2 Menu ………………25

INPUT Menu ……………………26

AUTO Menu………………………28

SCREEN Menu …………………29

OPTION Menu……………………30

Lamp ………………………………………………………………31

Replacing The Lamp ……………32

Air Filter …………………………………………………………33

Caring For The Air Filter…………33

Replacing The Air Filter …………34

Other Care ……………………………………………………35

Caring For The Inside

Of The Projector …………………35

Caring For The Lens ……………35

Caring For The Cabinet

And Remote Control ……………35

Troubleshooting ……………………………………36

Related Messages ………………36

Regarding

The Indicator Lamps ……………38

Phenomena That May Easily Be

Mistaken For Machine Defects …40

Warranty And After-Service ……41

Specifications …………………………………………42

TECHNICAL

Contents

01PJ-TX10En03.7.1511:18AMページ3

Strap Rivet

Strap

hole

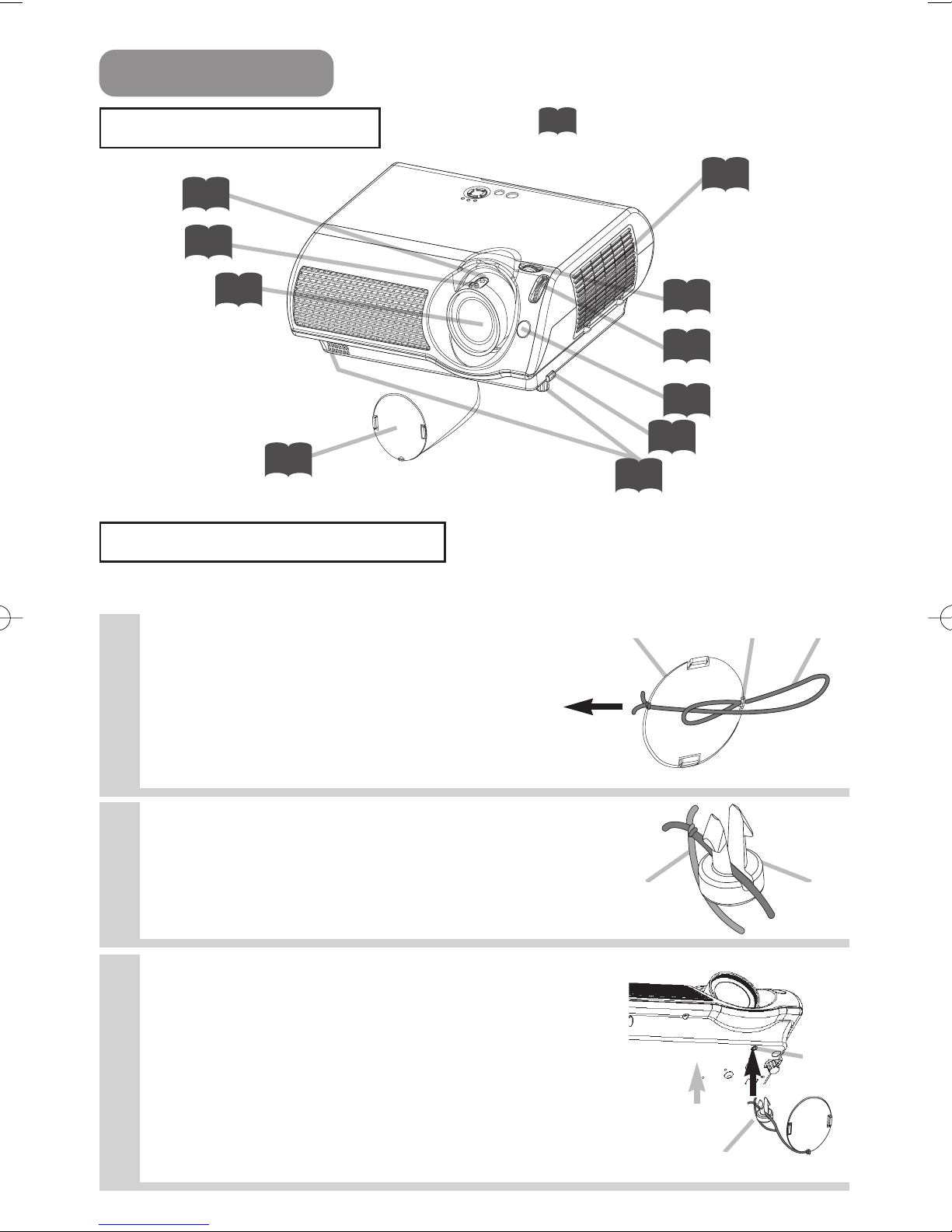

Part Names

The Projector

Zoom ring 15

Focus ring 15

Air filter cover

(An air filter is

inside.)

Elevator button

Elevator feet

Indicates the corresponding

reference page

Lens cap 14

Lens

(The picture is

projected from

here.)

Remote sensor

Picture shift dial

(vertical)

Picture shift dial

(horizontal)

Projector (Front/Right)

Fastening The Lens Cap

To avoid losing, please fasten the lens cap to the projector using the strap.

1Fix the strap to the strap ring of lens

cap, as the right drawing.

2Put one piece of the strap into the

groove on rivet, as the right drawing.

3Push the rivet into the strap hole.

Lens cap Strap ring Strap

Pull

Rivet

Push in

(Bottom side)

01PJ-TX10En03.7.1511:18AMページ4

AC inlet

VIDEO port 10

Ports cover 10

AUDIO port

(from a computer)

S-VIDEO port 10

COMPONENT VIDEO - Y 10

COMPONENT VIDEO - CB/PB10

COMPONENT VIDEO - CR/PR10

AUDIO R port

L port

(from a video equipment)

Power switch

COMPUTER port

CONTROL

port

Projector (Rear/Left)

STANDBY/ON INPUT

POWER LAMP

TEMP

POWER indicator

tells the state of power supply.

Refer to the section “Power

ON/OFF”.

INPUT button

toggles between the signal

ports.

MENU buttons

operate the menu function.

STANDBY/ON

button

prepares for turning the

power on/off. Refer to the

section “Power ON/OFF”.

TEMP indicator

lights or blinks when any

problem about internal

temperature has happened.

LAMP indicator

lights or blinks when any

problem about the lamp has

happened.

COMPUTER VIDEO

S-VIDEO

COMPONENT VIDEO

Part Names (continued)

The Projector (continued)

15 14 38

01PJ-TX10En03.7.1511:18AMページ5

The Remote Control

Part Names (continued)

OFF button

prepares for turning the

power off.

SEARCH button

searches for an input

signal between the

following signal ports of

COMPUTER, VIDEO,

S-VIDEO and

COMPONENT VIDEO.

MENU button

opens/closes the menu.

S-VIDEO button

selects the input signal

of S-VIDEO port.

COMPONENT

button

selects the input signal of

COMPONENT port.

VOLUME button

turns on/off the VOLUME

mode.

In the VOLUME mode,

To adjust the volume,

use the cursor /

buttons.

MUTE button

mutes/restores the sound.

BLANK button

blanks the screen

temporarily.

M1, M2, M3, M4

buttons

call the setting data on

each memory.

VIDEO button

selects the input signal of

VIDEO port.

ON button

prepares for turning the

power on.

COMPUTER button

selects the input signal of

COMPUTER port.

WIDE button

toggles between the

modes for aspect ratio.

AUTO button

executes automatic

adjustment.

CINEMA, DYNAMIC,

NORMAL, CUSTOM

buttons

select each of gamma

mode.

KEYSTONE button

turns on/off the KEYSTONE

mode.

In the KEYSTONE mode,

To adjust the

keystone,

use the cursor /

buttons.

ESC button

returns to the previous

display at the menu

functions.

,,,

(Cursor) buttons

works for adjusting or

menu controlling.

RESET button

cancels the adjustment in

progress.

* The adjustments of the

volume etc. are not reset.

ENTER button

proceeds to the next

operation at the menu

functions.

SRC

VIDEO

VSVC

WIDEAUTO MUTE

BLANK

CUSTOM

CINEMA

CIN

DYNAMIC

DYN

ENT

MYMEMORY

NORMAL

NOR CUS

WID

ENTER

ESC RESET

VOLUME

COMPUTER

COMPONENTS-VIDEO

OFF ON

KEYSTONE

M2 M3 M4

21 21

01PJ-TX10En03.7.1511:18AMページ6

Setting Up

Arrangement

WARNING •Install the projector in a suitable environment according to

instructions of the “User’s Manual –Safety Guide”and this manual.

•The power outlet should be close to the projector and easily accessible.

Refer to the illustrations and tables below to determine the screen size and projection

distance.

The values shown in the table are calculated for a full size screen:854×480

(a):Distance from the projector to the screen (±10%)

(b):Distance from the lens center to the top of the screen (±10%)

Screen Size [inch (m)] (a) [inch (m)] (b)

[inch (cm)]

Min. Max.

30 (0.8) 29(0.7) 60(1.5) 15(37)

40 (1.0) 40(1.0) 81(2.1) 20(50)

50 (1.3) 50(1.3) 102(2.6) 25(62)

60 (1.5) 60(1.5) 122(3.1) 29(75)

70 (1.8) 71(1.8) 143(3.6) 34(87)

80 (2.0) 81(2.1) 163(4.2) 39(100)

90 (2.3) 91(2.3) 184(4.7) 44(112)

100 (2.5) 101(2.6) 205(5.2) 49(125)

120 (3.0) 122(3.1) 246(6.2) 59(149)

150 (3.8) 153(3.9) 308(7.8) 74(187)

200 (5.1) 204(5.2)

411(10.4)

98(249)

250 (6.4) 256(6.5)

513(13.0)

123(311)

300 (7.6) 307(7.8)

616(15.7)

147(374)

(a)

(b)

Screen

Reference for

the 16:9 aspect ratio

Screen Size [inch (m)] (a) [inch (m)] (b)

[inch (cm)]

Min. Max.

30 (0.8) 36(0.9) 74(1.9) 18(46)

40 (1.0) 49(1.2) 99(2.5) 24(61)

50 (1.3) 62(1.6) 125(3.2) 30(76)

60 (1.5) 74(1.9) 150(3.8) 36(91)

70 (1.8) 87(2.2) 175(4.4) 42(107)

80 (2.0) 99(2.5) 200(5.1) 48(122)

90 (2.3) 112(2.8) 225(5.7) 54(137)

100 (2.5) 124(3.2) 251(6.4) 60(152)

120 (3.0) 150(3.8) 301(7.6) 72(183)

150 (3.8) 187(4.8) 377(9.6) 90(229)

200 (5.1) 250(6.4)

503(12.8)

120(305)

250 (6.4) 313(8.0)

629(16.0)

150(381)

300 (7.6) 376(9.5)

755(19.2)

180(457)

(a)

(b)

Screen

Reference for

the 4:3 aspect ratio

Side View

Screen

size

Screen

size

01PJ-TX10En03.7.1511:18AMページ7

•Generally, better quality of a picture is available when the lens shift is set

to the center.

•Do not attach anything other than specified options (such as an optional conversion

lens) to the screw thread. For details, please ask your dealer.

NOTE

Adjusting The Projector's Elevator

Using The Picture Shift Dials

CAUTION •

If you press the elevator buttons without holding the projector, the

projector might crash down, overturn, smash your fingers and possibly result in

malfunction. To prevent damaging the projector and injuring yourself, ALWAYS HOLD

THE PROJECTOR whenever using the elevator buttons to adjust the elevator feet.

You can use the elevator feet to make adjustments if the surface on which you need to set

the projector is uneven or if you otherwise need to adjust the angle of projection. The

adjustment range of the elevator feet is 0 to 9 degrees.

The lens of this projector can be shifted horizontally and vertically. When you want to

finely adjust the picture position, use the picture shift dials.

Using the horizontal picture shift dial shifts the picture to right or left.

Using the vertical picture shift dial shifts the picture upward or downward.

1Press and hold in the elevator buttons.

2Raise or lower the projector to the

desired height and then release the

elevator buttons.

When you release the elevator buttons, the elevator

feet will lock into position.

3As necessary, you can also finely

adjust the height of the projector by

twisting the elevator feet by hand.

Elevator buttons

Elevator feet

Setting Up (continued)

Horizontal picture shift dial 7.5:2.5

2.5:7.5

10:0

0:10

Vertical picture shift dial

01PJ-TX10En03.7.1511:18AMページ8

Connecting Your Devices

WARNING •Incorrect connecting could result in fire or electrical shock.

Whenever attempting to connect other devices to the projector, please thoroughly read

the "User's Manual - Safety Guide", this manual and the manual of each device to be

connected.

CAUTION •TURN OFF ALL DEVICES prior to connecting them to the projector.

Attempting to connect a live device to the projector may generate extremely loud

noises or other abnormalities that may result in malfunction and/or damage to the

device and/or projector.

ATTENTION •Make sure that you connect devices to the correct port. Incorrect

connection may result in malfunction and/or damage to the device and/or projector.

Refer to the section “TECHNICAL”of this manual for the pin assignment of connectors

and RS-232C communication data.

•Some cables have to be used with core set. Use the accessory cable or a

designated-type cable for the connection. For cables that have a core only at one end,

connect the core to the projector.

•Secure the screws on the connectors and tighten.

•Whenever attempting to connect a laptop computer to the projector, be sure to

activate the laptop’s RGB external image output (set the laptop to CRT display or to

simultaneous LCD and CRT display). For details on how this is done, please refer to the

instruction manual of the corresponding laptop computer.

About Plug-and-Play Capability

•This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by

connecting this projector to computers that are VESA DDC (display data channel)

compatible. Please take advantage of this function by connecting the accessory RGB

cable to the COMPUTER port (DDC 1/2B compatible). Plug-and-Play may not work

properly if any other type of connection is attempted.

•Plug-and-Play is a system composed of the computer, its operating system and

peripheral equipment (i.e. display devices).

•Please use the standard drivers in your computer as this projector is a Plug-and-Play

monitor.

NOTE

•Some computers may have multiple display screen modes. Use of some of

these modes will not be possible with this projector.

•For some COMPUTER input modes, the optional Mac adapter is necessary.

•When the image resolution is changed on a computer, depending on an input,

automatic adjust function may take some time and may not be completed. In this case,

you may not be able to see a check box to select “Yes/No”for the new resolution on

Windows. Then the resolution will go back to the original. It might be recommended to

use other CRT or TFT monitors to change the resolution.

NOTE

Setting Up (continued)

01PJ-TX10En03.7.1511:18AMページ9

Please refer to the following for connecting your devices.

See the rear of the projector and open the ports cover.

You can see the ports.

S-VIDEO

AUDIO

COMPONENTVIDEO

CB/PBCR/PR

COMPUTER

CONTROL

S-VIDEO

AUDIO

COMPONENTVIDEO

CB/PBCR/PR

COMPUTER

CONTROL

S-VIDEO

AUDIO

COMPONENTVIDEO

CB/PBCR/PR

COMPUTER

CONTROL

S-VIDEO

AUDIO

COMPONENTVIDEO

CB/PBCR/PR

COMPUTER

CONTROL

S-VIDEO

AUDIO

COMPONENTVIDEO

CB/PBCR/PR

COMPUTER

CONTROL

S-VIDEO

AUDIO

COMPONENTVIDEO

CB/PBCR/PR

COMPUTER

CONTROL

456

789

L-AUDIO-R

VIDEO

L-AUDIO-R

VIDEO

L-AUDIO-R

VIDEO

L-AUDIO-R

VIDEO

L-AUDIO-R

VIDEO

L-AUDIO-R

VIDEO

Connecting to a computer

RGB out RGB cable (D-sub 15 pin)

Audio out Audio cable (Stereo mini)

RS-232C port RS-232C cable

Connecting to a DVD/VCR player

Video out

Audio out (L) Audio/Video cable

Audio out (R)

If using a SCART RGB input,

Video

AUDIO-L

AUDIO-R SCART SCART cable

G out port

If using a S-video input,

S-video out port S-video cable

Audio out (L) Audio cable

Audio out (R)

If using a component input,

Component (Y) out

Component (CB/PB) out Component cable

Component (CR/PR) out

Audio out (L) Audio cable

Audio out (R)

If using a component input from

COMPUTER port,

Component (Y) out

Component (CB/PB) out Component cable

Component (CR/PR) out (with D-sub 15 pin)

Audio out Audio cable(Stereo mini)

Setting Up (continued)

01PJ-TX10En03.7.1511:19AMページ10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hitachi Projecteur

Hitachi

Hitachi CP-W9110 Manuel utilisateur

Hitachi

Hitachi CP-322i Manuel utilisateur

Hitachi

Hitachi CPX251 - 2000 Lumen XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CP-RS56W and Mode d’emploi

Hitachi

Hitachi PJ-TX300E Manuel utilisateur

Hitachi

Hitachi CP-S830W Manuel utilisateur

Hitachi

Hitachi CP-A200 Manuel utilisateur

Hitachi

Hitachi Innovate CP-AW100N Manuel utilisateur

Hitachi

Hitachi X807 - CP XGA LCD Projector Document technique

Hitachi

Hitachi CP-X301 series Document technique

Hitachi

Hitachi CPX960WA Manuel utilisateur

Hitachi

Hitachi CPX265 - XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CP-S370W Manuel utilisateur

Hitachi

Hitachi CP-RX82 Manuel utilisateur

Hitachi

Hitachi MP-EU5002 Manuel utilisateur

Hitachi

Hitachi CP-X807(EDX50WL) Manuel utilisateur

Hitachi

Hitachi Innovate CP-RX93 Manuel utilisateur

Hitachi

Hitachi CP-X9110 Manuel utilisateur

Hitachi

Hitachi CP-AW252WN Manuel utilisateur

Hitachi

Hitachi CP-EX303 Manuel utilisateur

Hitachi

Hitachi CP-L300 Manuel utilisateur

Hitachi

Hitachi CP-WX3014WN Instructions d'installation et d'entretien

Hitachi

Hitachi X807 - CP XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CP-RX60Z Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
