Hitachi CPX5 Manuel utilisateur

Projector

CPX1/CPX5

User's Manual (detailed)

Technical

Example of computer signal

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution

before connecting this projector to a computer.

• Some computers may have multiple display screen modes. Use of some of

these modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution

before being displayed. The best display performance will be achieved if the

resolutions of the input signal and projector panel are identical.

• Automatically adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

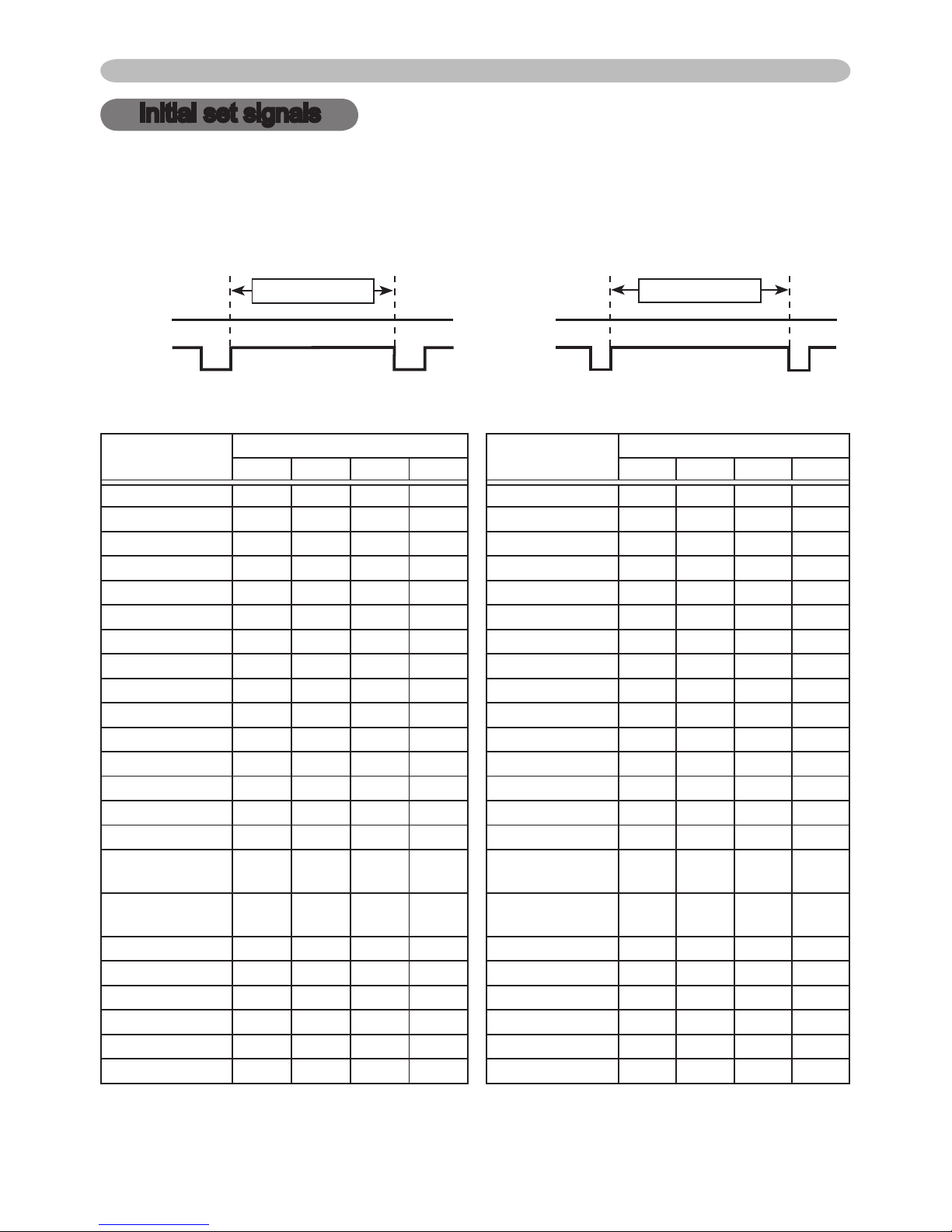

Initial set signals

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the IMAGE menu.

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Display interval (C) Display interval (c)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Computer/

Signal

Horizontal signal timing (μs) Computer/

Signal

Vertical signal timing (lines)

(A) (B) (C) (D) (a) (b) (c) (d)

TEXT 2.0 3.0 20.3 1.0 TEXT 3 42 400 1

VGA (60Hz) 3.8 1.9 25.4 0.6 VGA (60Hz) 2 33 480 10

VGA (72Hz) 1.3 4.1 20.3 0.8 VGA (72Hz) 3 28 480 9

VGA (75Hz) 2.0 3.8 20.3 0.5 VGA (75Hz) 3 16 480 1

VGA (85Hz) 1.6 2.2 17.8 1.6 VGA (85Hz) 3 25 480 1

SVGA (56Hz) 2.0 3.6 22.2 0.7 SVGA (56Hz) 2 22 600 1

SVGA (60Hz) 3.2 2.2 20.0 1.0 SVGA (60Hz) 4 23 600 1

SVGA (72Hz) 2.4 1.3 16.0 1.1 SVGA (72Hz) 6 23 600 37

SVGA (75Hz) 1.6 3.2 16.2 0.3 SVGA (75Hz) 3 21 600 1

SVGA (85Hz) 1.1 2.7 14.2 0.6 SVGA (85Hz) 3 27 600 1

Mac 16" mode 1.1 3.9 14.5 0.6 Mac 16" mode 3 39 624 1

XGA (60Hz) 2.1 2.5 15.8 0.4 XGA (60Hz) 6 29 768 3

XGA (70Hz) 1.8 1.9 13.7 0.3 XGA (70Hz) 6 29 768 3

XGA (75Hz) 1.2 2.2 13.0 0.2 XGA (75Hz) 3 28 768 1

XGA (85Hz) 1.0 2.2 10.8 0.5 XGA (85Hz) 3 36 768 1

1152 x 864

(75Hz) 1.2 2.4 10.7 0.6 1152 x 864

(75Hz) 3 32 864 1

1280 x 960

(60Hz) 1.0 2.9 11.9 0.9 1280 x 960

(60Hz) 3 36 960 1

SXGA (60Hz) 1.0 2.3 11.9 0.4 SXGA(60Hz) 3 38 1024 1

SXGA (75Hz) 1.1 1.8 9.5 0.1 SXGA (75Hz) 3 38 1024 1

SXGA (85Hz) 1.0 1.4 8.1 0.4 SXGA (85Hz) 3 44 1024 1

UXGA (60Hz) 1.2 1.9 9.9 0.4 UXGA (60Hz) 3 46 1200 1

W-XGA (60Hz) 1.7 2.5 16.0 0.8 W-XGA (60Hz) 3 23 768 1

SXGA+ (60Hz) 1.2 2.0 11.4 0.7 SXGA+ (60Hz) 3 33 1050 1

Connection to the ports

ACOMPUTOR IN1, BCOMPUTOR IN2

D-sub 15pin mini shrink jack

(1) for Computor signal

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω

terminated (positive)

• H/V. sync. Signal: TTL level (positive/negative)

• Composite sync. Signal: TTL level

Pin Signal Pin Signal

1Video Red 10 Ground

2Video Green 11 (No connection)

3Video Blue 12 A

: SDA (DDC data)

: (No connection)

4(No connection)

5Ground 13 H. sync / Composite sync.

6Ground Red 14 V. sync.

7Ground Green 15 A

: SCL (DDC clock)

: (No connection)

8Ground Blue

9(No connection) - -

COMPUTER IN1 COMPUTER IN2

USB USB STORAGE

DC 5V 0.5A

AUDIO OUT

AUDIO IN

S-VIDEO

VIDEO

Connection to the ports

109876

54321

14131211

(2) for Component signal

• Y : Component video Y, 1.0±0.1 Vp-p, 75 Ω terminator with composite

• CR/PR: Component video CR/PR, 0.7±0.1 Vp-p, 75 Ω terminator

• CB/PB: Component video CR/PR, 0.7±0.1 Vp-p, 75 Ω terminator

Pin Signal Pin Signal

1CR/PR10 Ground

2Y 11 (No connection)

3CB/PB12 (No connection)

4(No connection) 13 (No connection)

5Ground 14 (No connection)

6Ground CR/PR15 (No connection)

7Ground Y - -

8Ground CB/PB- -

9(No connection) - -

COMPUTER IN1 COMPUTER IN2

USB USB STORAGE

DC 5V 0.5A

AUDIO OUT

AUDIO IN

S-VIDEO

VIDEO

Connection to the ports (continued)

DVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

• 1.0±0.1Vp-p, 75Ω terminator

AUDIO IN

Ø3.5 stereo mini jack

• 200 mVrms 47kΩ terminator

FAUDIO OUT

Ø3.5 stereo mini jack

• 200 mVrms 1kΩ output impedance

CS-VIDEO

Mini DIN 4pin jack

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator

2Brightness signal, 1.0Vp-p, 75Ω terminator

3Ground

4Ground

Connection to the ports (continued)

USB STORAGE

USB A type jack

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

COMPUTER IN1 COMPUTER IN2

USB USB STORAGE

DC 5V 0.5A

AUDIO OUT

AUDIO IN

S-VIDEO

VIDEO

USB

USB B type jack

432 1

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

H G
