Hitachi CPX265 - XGA LCD Projector Manuel utilisateur

Projector

CP-X256/CP-X265

User's Manual – Operating Guide

Technical

Example of computer signal

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution

before connecting this projector to a computer.

• Some computers may have multiple display screen modes. Use of some of

these modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution

before being displayed. The best display performance will be achieved if the

resolutions of the input signal and projector panel are identical.

• Automatically adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

Example of computer signal

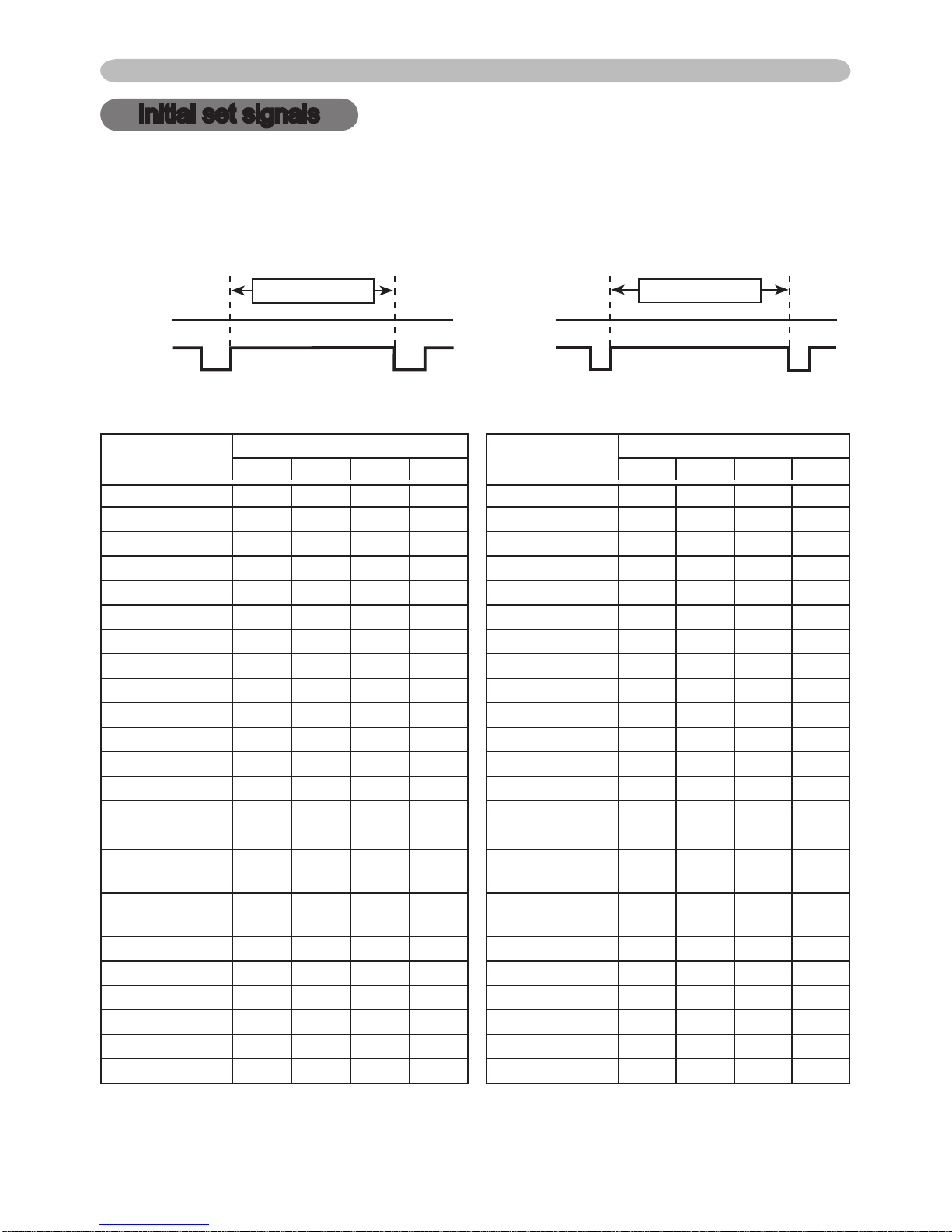

Initial set signals

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the IMAGE menu.

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Displayinterval(C) Displayinterval(c)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Computer/

Signal Horizontal signal timing (μs) Computer/

Signal Vertical signal timing (lines)

(A) (B) (C) (D) (a) (b) (c) (d)

TEXT 2.0 3.0 20.3 1.0 TEXT 3 42 400 1

VGA (60Hz) 3.8 1.9 25.4 0.6 VGA (60Hz) 2 33 480 10

VGA (72Hz) 1.3 4.1 20.3 0.8 VGA (72Hz) 3 28 480 9

VGA (75Hz) 2.0 3.8 20.3 0.5 VGA (75Hz) 3 16 480 1

VGA (85Hz) 1.6 2.2 17.8 1.6 VGA (85Hz) 3 25 480 1

SVGA (56Hz) 2.0 3.6 22.2 0.7 SVGA (56Hz) 2 22 600 1

SVGA (60Hz) 3.2 2.2 20.0 1.0 SVGA (60Hz) 4 23 600 1

SVGA (72Hz) 2.4 1.3 16.0 1.1 SVGA (72Hz) 6 23 600 37

SVGA (75Hz) 1.6 3.2 16.2 0.3 SVGA (75Hz) 3 21 600 1

SVGA (85Hz) 1.1 2.7 14.2 0.6 SVGA (85Hz) 3 27 600 1

Mac 16" mode 1.1 3.9 14.5 0.6 Mac 16" mode 3 39 624 1

XGA (60Hz) 2.1 2.5 15.8 0.4 XGA (60Hz) 6 29 768 3

XGA (70Hz) 1.8 1.9 13.7 0.3 XGA (70Hz) 6 29 768 3

XGA (75Hz) 1.2 2.2 13.0 0.2 XGA (75Hz) 3 28 768 1

XGA (85Hz) 1.0 2.2 10.8 0.5 XGA (85Hz) 3 36 768 1

1152 x 864

(75Hz) 1.2 2.4 10.7 0.6 1152 x 864

(75Hz) 3 32 864 1

1280 x 960

(60Hz) 1.0 2.9 11.9 0.9 1280 x 960

(60Hz) 3 36 960 1

SXGA (60Hz) 1.0 2.3 11.9 0.4 SXGA(60Hz) 3 38 1024 1

SXGA (75Hz) 1.1 1.8 9.5 0.1 SXGA (75Hz) 3 38 1024 1

SXGA (85Hz) 1.0 1.4 8.1 0.4 SXGA (85Hz) 3 44 1024 1

UXGA (60Hz) 1.2 1.9 9.9 0.4 UXGA (60Hz) 3 46 1200 1

W-XGA (60Hz) 1.7 2.5 16.0 0.8 W-XGA (60Hz) 3 23 768 1

SXGA+ (60Hz) 1.2 2.0 11.4 0.7 SXGA+ (60Hz) 3 33 1050 1

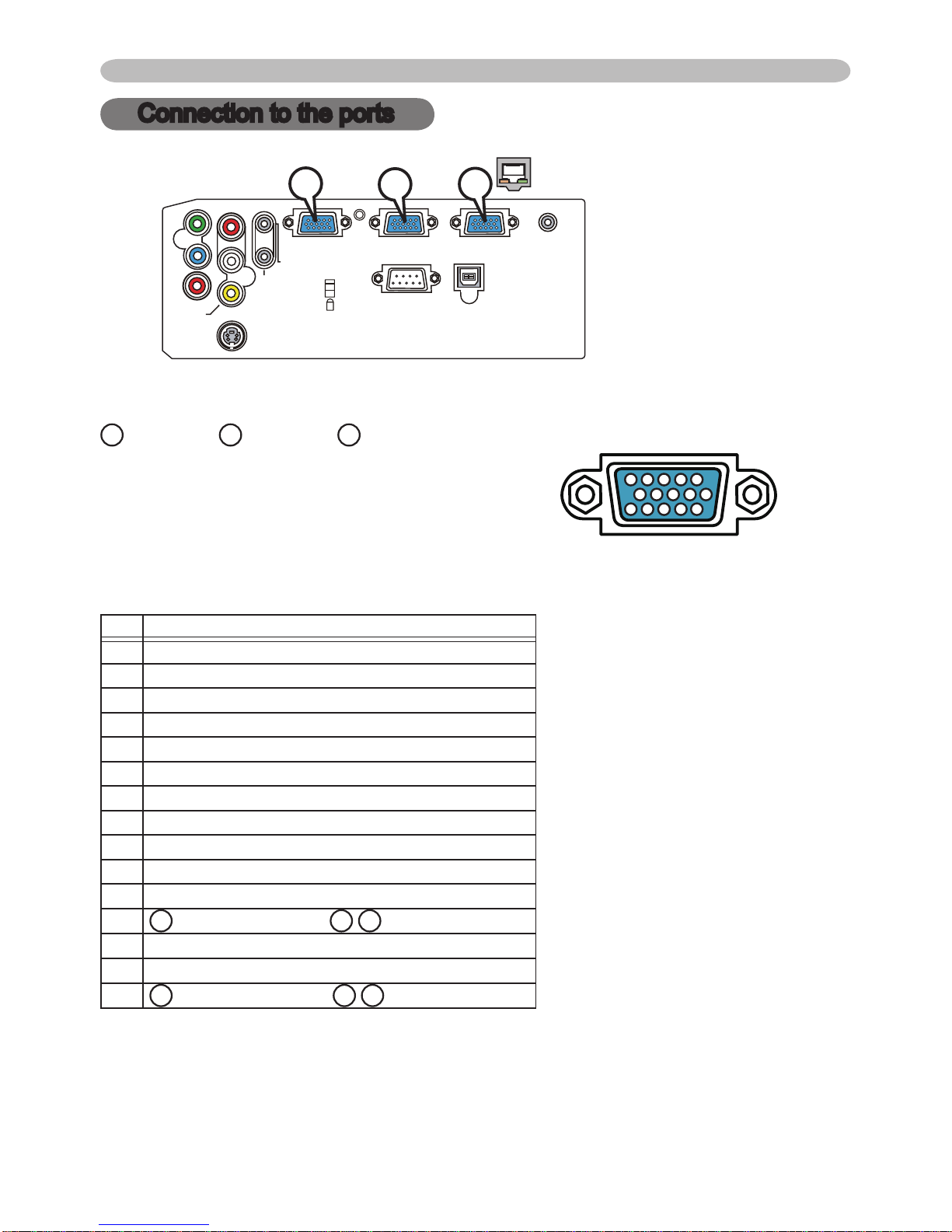

Connection to the ports

ARGB IN1, BRGB IN2, CRGB OUT

D-sub 15pin mini shrink jack

• Video signal: RGB separate, Analog, 0.7Vp-p,

75Ω terminated (positive)

• H/V. sync. Signal: TTL level (positive/negative)

• Composite sync. Signal: TTL level

At RGB signal

Pin Signal

1Video Red

2 Video Green

3 Video Blue

4 (No connection)

5 Ground

6 Ground Red

7 Ground Green

8 Ground Blue

9 (No connection)

10 Ground

11 (No connection)

12 A: SDA (DDC data), B/C: (No connection)

13 H. sync / Composite sync.

14 V. sync.

15 A: SCL (DDC clock), B/C: (No connection)

LAN

Y R

AUDIO IN3

AUDIO IN1

AUDIO OUT

USB

RGB OUT

AUDIO IN2

VIDEO

S-VIDEO

CONTROL

RGB IN2RGB IN1

Connection to the ports

10 9 8 7 6

5 4 3 2 1

15 14 13 12 11

ABC

Connection to the ports

HVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

• 1.0±0.1Vp-p, 75Ω terminator

GS-VIDEO

Mini DIN 4pin jack

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator

2Brightness signal, 1.0Vp-p, 75Ω terminator

3Ground

4Ground

COMPONENT VIDEO DY, ECB/PB, FCR/PR

RCA jack x3

• System: 525i(480i), 525p(480p), 625i(576i), 750p(720p), 1125i(1080i)

Port Signal

YComponent video Y, 1.0±0.1Vp-p, 75Ω terminator with composite

CB/PBComponent video CB/PB, 0.7±0.1Vp-p, 75Ω terminator

CR/PRComponent video CR/PR, 0.7±0.1Vp-p, 75Ω terminator

LAN

Y R

AUDIO IN3

AUDIO IN1

AUDIO OUT

USB

RGB OUT

AUDIO IN2

VIDEO

S-VIDEO

CONTROL

RGB IN2RGB IN1

Connection to the ports

LAN

Y R

AUDIO IN3

AUDIO IN1

AUDIO OUT

USB

RGB OUT

AUDIO IN2

VIDEO

S-VIDEO

CONTROL

RGB IN2RGB IN1

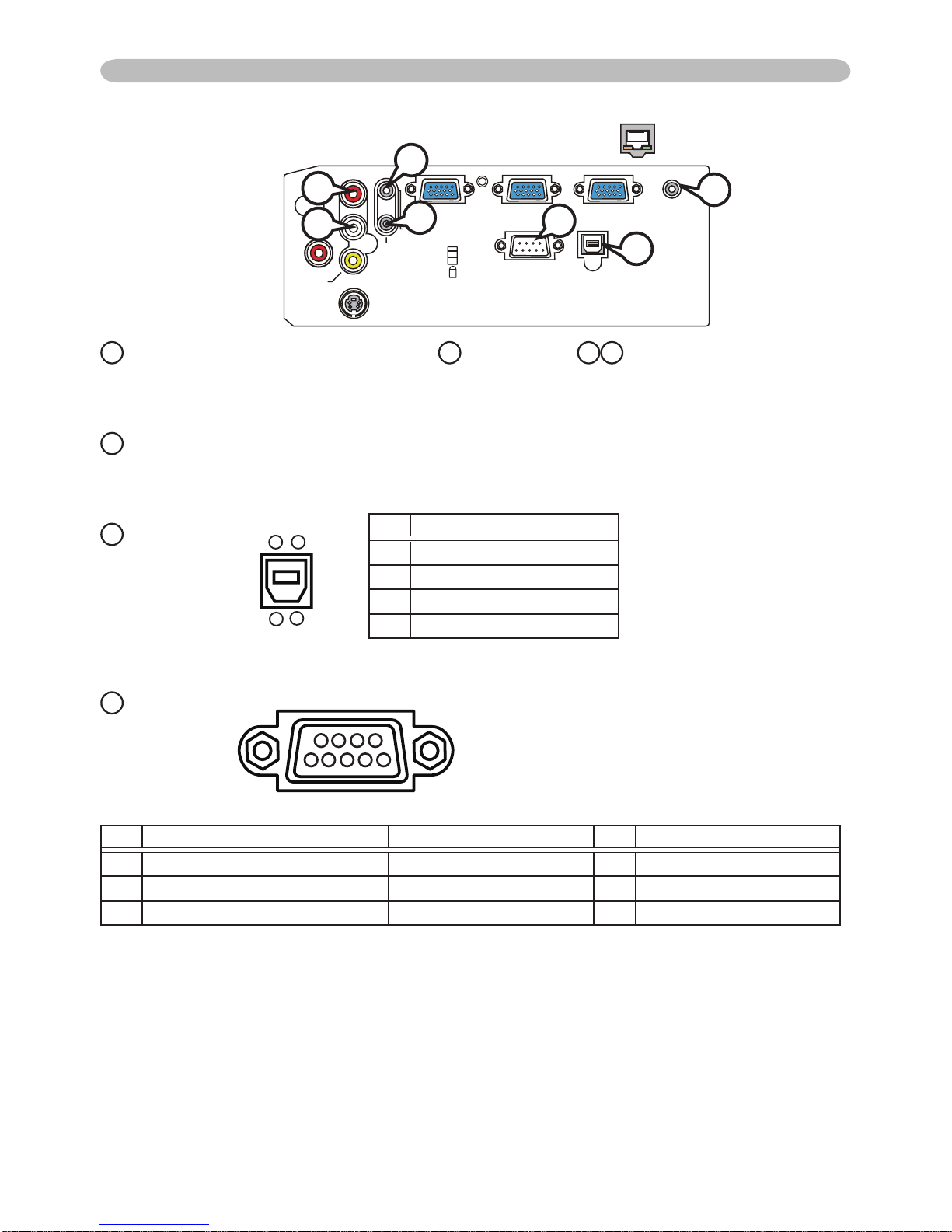

IAUDIO IN-1 (Ø3.5 stereo mini jack), JAUDIO IN-2,K L

AUDIO 3 L/R (RCA jack)

• 200mVrms(max.) 35kΩ termination

MAUDIO OUT (Ø3.5 stereo mini jack)

• 200mVrms(max.) 1kΩ output impedance

NUSB

USB B type jack

OCONTROL

D-sub 9pin plug

• About the details of RS-232C communication, please refer to the following page.

Pin Signal Pin Signal Pin Signal

1 (No connection) 4 (No connection) 7 RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9 (No connection)

9 8 7 6

5 4 3 2 1

34 Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

KJO

Connection to the ports

LAN

Y R

AUDIO IN3

AUDIO IN1

AUDIO OUT

USB

RGB OUT

AUDIO IN2

VIDEO

S-VIDEO

CONTROL

RGB IN2RGB IN1

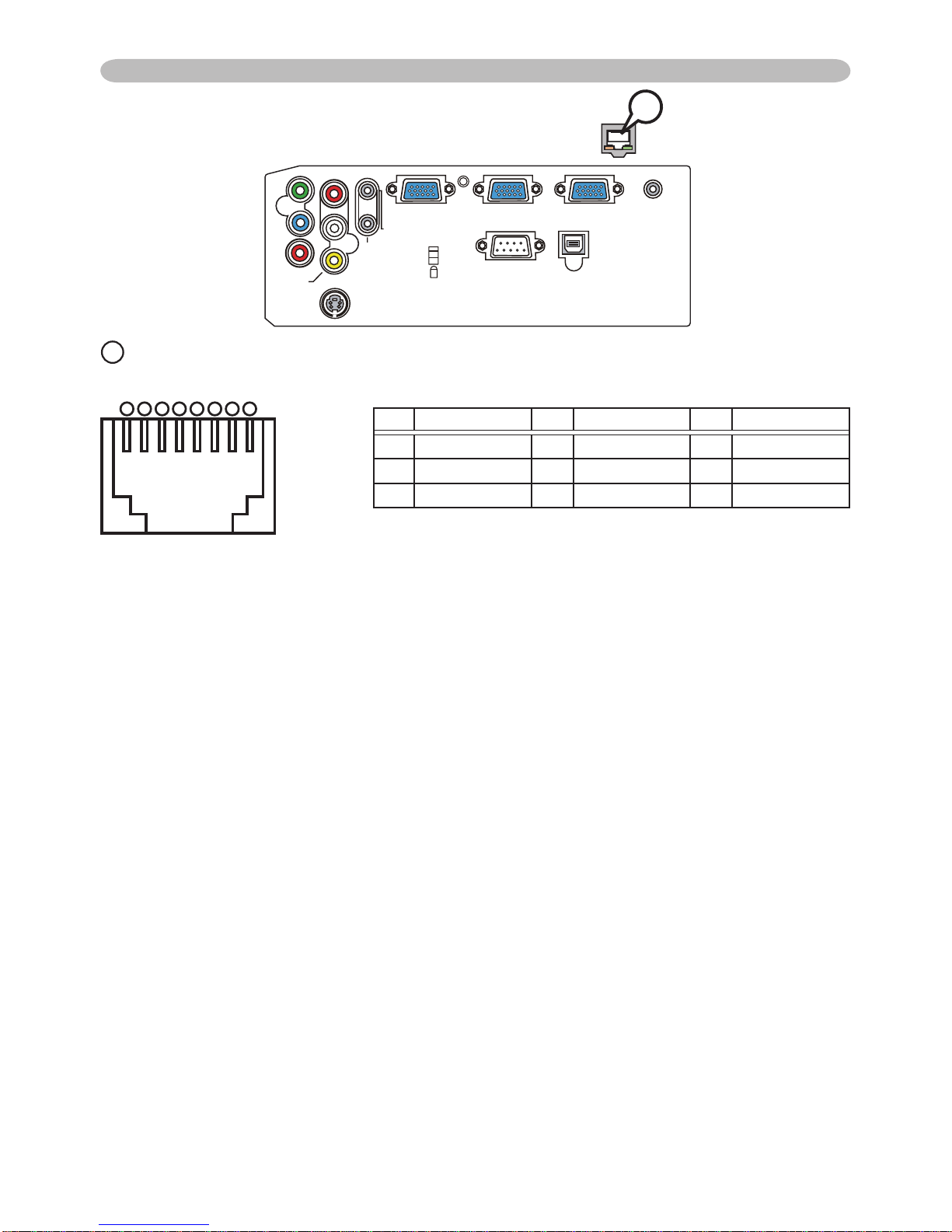

LAN

RJ-45 jack

Pin Signal Pin Signal Pin Signal

1 TX+ 4 - 7 -

2 TX- 5 - 8 -

3 RX+ 6 RX-

876

RS-232C Communication (continued)

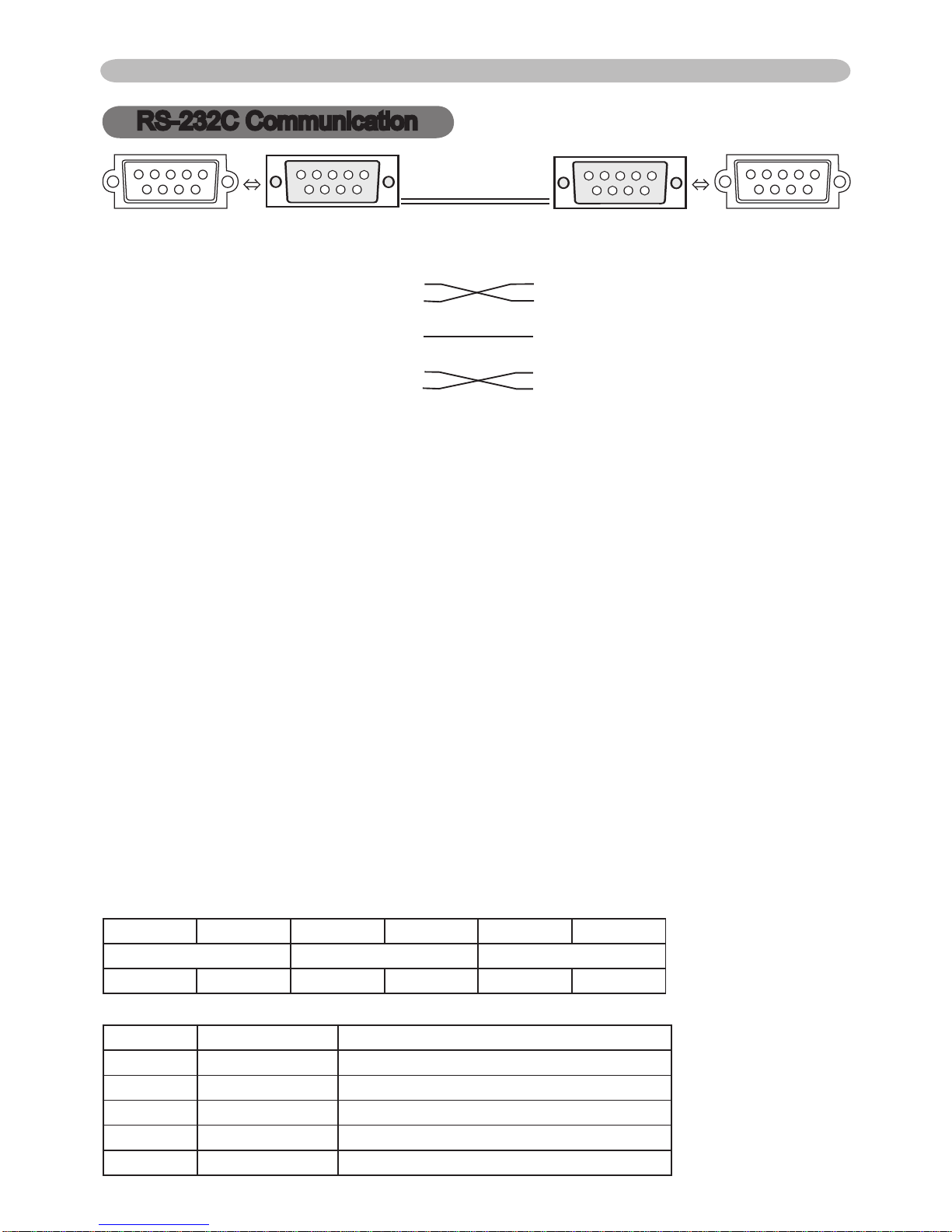

RS-232C Communication

6789

1 2 3 4 5 6789

1 2 3 4 5

CONTROL port RS-232C cable (Cross) RS-232C port

of the projector of the computer

- (1) (1) CD

RD (2) (2) RD

TD (3) (3) TD

- (4) (4) DTR

GND (5) (5) GND

- (6) (6) DSR

RTS (7) (7) RTS

CTS (8) (8) DTS

- (9) (9) RI

Connecting the cable

1. Turn off the projector and the computer.

2. Connect the CONTROL port of the projector with a RS-232C port of

the computer by a RS-232C cable (cross). Use the cable that fulfills the

specication shown in the previous page.

3. Turn the computer on, and after the computer has started up turn the

projector on.

Communications setting

19200bps, 8N1

1. Protocol

Consist of header (7 bytes) + command data (6 bytes).

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high

CRC_low : Lower byte of CRC ag for command data

CRC_high : Upper byte of CRC ag for command data

3. Command data

Command data chart

byte_0 byte_1 byte_2 byte_3 byte_4 byte_5

Action Type Setting code

low high low high low high

Action (byte_0 - 1)

Action Classication Content

1 SET Change setting to desired value.

2 GET Read projector internal setup value.

4 INCREMENT Increment setup value by 1.

5 DECREMENT Decrement setup value by 1.

6 EXECUTE Run a command.

Requesting projector status (Get command)

(1) Send the request code Header + Command data (‘02H’+‘00H’+ type (2 bytes)+

‘00H’ +‘00H’) from the computer to the projector.

(2) The projector returns the response code ‘1DH’+ data (2 bytes) to the computer.

Changing the projector settings (Set command)

(1) Send the setting code Header + Command data (‘01H’+‘00H’+ type (2 bytes) +

setting code (2 bytes)) from the computer to the projector.

(2) The projector changes the setting based on the above setting code.

(3) The projector returns the response code ‘06H’ to the computer.

Using the projector default settings (Reset Command)

(1) The computer sends the default setting code Header + Command data (‘06H’+

‘00H’ + type (2 bytes) +‘00H’+‘00H’) to the projector.

(2) The projector changes the specied setting to the default value.

(3) The projector returns the response code ‘06H’ to the computer.

Increasing the projector setting value (Increment command)

(1) The computer sends the increment code Header + Command data (‘04H’+

‘00H’+ type (2 bytes) +‘00H’+‘00H’) to the projector.

(2) The projector in creases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the computer.

Decreasing the projector setting value (Decrement command)

(1) The computer sends the decrement code Header + Command data (‘05H’+

‘00H’+ type (2 bytes) +‘00H’ + ‘00H’) to the projector.

(2) The projector decreases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the computer.

When the projector cannot understand the received command

When the projector cannot understand the received command, the error code ‘15H’

is sent back to the computer.

Sometimes the projector cannot properly receive the command. In such a

case, the command is not executed and the error code ‘15H’ is sent back to the

computer. If this error code is returned, send the same command again.

When the projector cannot execute the received command.

When the projector cannot execute the received command, the error code ‘1CH’

+ ‘xxxxH’ is sent back to the computer. When the data length is greater than

indicated by the data length code, the projector ignore the excess data code.

Conversely when the data length is shorter than indicated by the data length

code, an error code will be returned to the computer.

NOTE • Operation cannot be guaranteed when the projector receives an undened

command or data.

• Provide an interval of at least 40ms between the response code and any other code.

• The projector outputs test data when the power supply is switched ON, and when the

lamp is lit. Ignore this data.

• Commands are not accepted during warm-up.

RS-232C Communication (continued)

Names Operation Type Header Command Data

CRC Action Type Setting Code

Power Set Turnoff BE EF 03 06 00 2A D3 01 00 00 60 00 00

Turn on BE EF 03 06 00 BA D2 01 00 00 60 01 00

Get BE EF 03 06 00 19 D3 02 00 00 60 00 00

(Example return)

00 00 01 00 02 00

(Off) (On) (Cool down)

Input Source Set RGB IN 1 BE EF 03 06 00 FE D2 01 00 00 20 00 00

RGB IN 2 BE EF 03 06 00 3E D0 01 00 00 20 04 00

VIDEO BE EF 03 06 00 6E D3 01 00 00 20 01 00

S-VIDEO BE EF 03 06 00 9E D3 01 00 00 20 02 00

COMPONENT BE EF 03 06 00 AE D1 01 00 00 20 05 00

Get BE EF 03 06 00 CD D2 02 00 00 20 00 00

Error Status Get BE EF 03 06 00 D9 D8 02 00 20 60 00 00

(Example return)

00 00 01 00 02 00 03 00

(Normal) (Cover error) (Fan error) (Lamp error)

04 00 05 00 06 00 07 00

 (Temperror) (Airowerror) (Lamptimeerror) (Coolerror)

08 00 09 00 10 00

(Filter error) (Filter missing error)(Inner Sencer error)

BRIGHTNESS Get BE EF 03 06 00 89 D2 02 00 03 20 00 00

Increment BE EF 03 06 00 EF D2 04 00 03 20 00 00

Decrement BE EF 03 06 00 3E D3 05 00 03 20 00 00

BRIGHTNESS Reset Execute BE EF 03 06 00 58 D3 06 00 00 70 00 00

CONTRAST Get BE EF 03 06 00 FD D3 02 00 04 20 00 00

Increment BE EF 03 06 00 9B D3 04 00 04 20 00 00

Decrement BE EF 03 06 00 4A D2 05 00 04 20 00 00

CONTRAST Reset Execute BE EF 03 06 00 A4 D2 06 00 01 70 00 00

PICTURE MODE Set NORMAL BE EF 03 06 00 23 F6 01 00 BA 30 00 00

CINEMA BE EF 03 06 00 B3 F7 01 00 BA 30 01 00

DYNAMIC BE EF 03 06 00 E3 F4 01 00 BA 30 04 00

BOARD(BLACK) BE EF 03 06 00 E3 EF 01 00 BA30 20 00

BOARD(GREEN) BE EF 03 06 00 73 EE 01 00 BA30 21 00

WHITEBOARD BE EF 03 06 00 83 EE 01 00 BA 30 22 00

Get BE EF 03 06 00 10 F6 02 00 BA 30 00 00

(Example return)

00 00 01 00 04 00 10 00

(Normal) (Cinema) (Dynamic) (Custom)

20 00 21 00 22 00

BOARD(BLACK) BOARD(GREEN) (WHITEBOARD)

GAMMA Set #1 DEFAULT BE EF 03 06 00 07 E9 01 00 A1 30 20 00

#1 CUSTOM BE EF 03 06 00 07 FD 01 00 A1 30 10 00

#2 DEFAULT BE EF 03 06 00 97 E8 01 00 A1 30 21 00

#2 CUSTOM BE EF 03 06 00 97 FC 01 00 A1 30 11 00

#3 DEFAULT BE EF 03 06 00 67 E8 01 00 A1 30 22 00

#3 CUSTOM BE EF 03 06 00 67 FC 01 00 A1 30 12 00

#4 DEFAULT BE EF 03 06 00 F7 E9 01 00 A1 30 23 00

#4 CUSTOM BE EF 03 06 00 F7 FD 01 00 A1 30 13 00

#5 DEFAULT BE EF 03 06 00 C7 EB 01 00 A1 30 24 00

#5 CUSTOM BE EF 03 06 00 C7 FF 01 00 A1 30 14 00

Get BE EF 03 06 00 F4 F0 02 00 A1 30 00 00

Names Operation Type Header Command Data

CRC Action Type Setting Code

User Gamma Pattern Set Off BE EF 03 06 00 FB FA 01 00 80 30 00 00

9 step gray scale BE EF 03 06 00 6B FB 01 00 80 30 01 00

15 steps gray scale BE EF 03 06 00 9B FB 01 00 80 30 02 00

Ramp BE EF 03 06 00 0B FA 01 00 80 30 03 00

Get BE EF 03 06 00 C8 FA 02 00 80 30 00 00

User Gamma Point 1 Get BE EF 03 06 00 08 FE 02 00 90 30 00 00

Increment BE EF 03 06 00 6E FE 04 00 90 30 00 00

Decrement BE EF 03 06 00 BF FF 05 00 90 30 00 00

User Gamma Point 2 Get BE EF 03 06 00 F4 FF 02 00 91 30 00 00

Increment BE EF 03 06 00 92 FF 04 00 91 30 00 00

Decrement BE EF 03 06 00 43 FE 05 00 91 30 00 00

User Gamma Point 3 Get BE EF 03 06 00 B0 FF 02 00 92 30 00 00

Increment BE EF 03 06 00 D6 FF 04 00 92 30 00 00

Decrement BE EF 03 06 00 07 FE 05 00 92 30 00 00

User Gamma Point 4 Get BE EF 03 06 00 4C FE 02 00 93 30 00 00

Increment BE EF 03 06 00 2A FE 04 00 93 30 00 00

Decrement BE EF 03 06 00 FB FF 05 00 93 30 00 00

User Gamma Point 5 Get BE EF 03 06 00 38 FF 02 00 94 30 00 00

Increment BE EF 03 06 00 5E FF 04 00 94 30 00 00

Decrement BE EF 03 06 00 8F FE 05 00 94 30 00 00

User Gamma Point 6 Get BE EF 03 06 00 C4 FE 02 00 95 30 00 00

Increment BE EF 03 06 00 A2 FE 04 00 95 30 00 00

Decrement BE EF 03 06 00 73 FF 05 00 95 30 00 00

User Gamma Point 7 Get BE EF 03 06 00 80 FE 02 00 96 30 00 00

Increment BE EF 03 06 00 E6 FE 04 00 96 30 00 00

Decrement BE EF 03 06 00 37 FF 05 00 96 30 00 00

User Gamma Point 8 Get BE EF 03 06 00 7C FF 02 00 97 30 00 00

Increment BE EF 03 06 00 1A FF 04 00 97 30 00 00

Decrement BE EF 03 06 00 CB FE 05 00 97 30 00 00

COLOR TEMP Set LOW BE EF 03 06 00 6B F4 01 00 B0 30 01 00

MIDDLE BE EF 03 06 00 9B F4 01 00 B0 30 02 00

HIGH BE EF 03 06 00 0B F5 01 00 B0 30 03 00

Hi-BRIGHT-1 BE EF 03 06 00 3B F2 01 00 B0 30 08 00

Hi-BRIGHT-2 BE EF 03 06 00 AB F3 01 00 B0 30 09 00

CUSTOM-LOW BE EF 03 06 00 AB F9 01 00 B0 30 11 00

CUSTOM-MID BE EF 03 06 00 5B F9 01 00 B0 30 12 00

CUSTOM-HIGH BE EF 03 06 00 CB F8 01 00 B0 30 13 00

CUSTOM-Hi-BRIGHT-1 BE EF 03 06 00 FB FF 01 00 B0 30 18 00

CUSTOM-Hi-BRIGHT-2 BE EF 03 06 00 6B FE 01 00 B0 30 19 00

Get BE EF 03 06 00 C8 F5 02 00 B0 30 00 00

COLOR TEMP GAIN R Get BE EF 03 06 00 34 F4 02 00 B1 30 00 00

Increment BE EF 03 06 00 52 F4 04 00 B1 30 00 00

Decrement BE EF 03 06 00 83 F5 05 00 B1 30 00 00

RS-232C Communication (continued)

Autres manuels pour CPX265 - XGA LCD Projector

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hitachi Projecteur

Hitachi

Hitachi CP-AW3005 Manuel utilisateur

Hitachi

Hitachi CP X206 - XGA LCD Projector Instructions d'installation et d'entretien

Hitachi

Hitachi CP-X417W(C14-30AWL) Manuel utilisateur

Hitachi

Hitachi BZ-1 Manuel utilisateur

Hitachi

Hitachi CP-SX12000 Manuel utilisateur

Hitachi

Hitachi Innovate CP-WX8240 Manuel utilisateur

Hitachi

Hitachi CPX608 - XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CPX1 Series Manuel utilisateur

Hitachi

Hitachi CP-AW3506 Manuel utilisateur

Hitachi

Hitachi CP-EX250N Manuel utilisateur

Hitachi

Hitachi Innovate CP-WX8240 Manuel utilisateur

Hitachi

Hitachi Innovate ED-X26 Manuel utilisateur

Hitachi

Hitachi CP-S335 series Manuel utilisateur

Hitachi

Hitachi CP-X940E Manuel utilisateur

Hitachi

Hitachi CP-X3030WN Guide d'installation

Hitachi

Hitachi CP-X306 Document technique

Hitachi

Hitachi ED-X40 Manuel utilisateur

Hitachi

Hitachi CP-X3511 Manuel utilisateur

Hitachi

Hitachi CP-X9110 Manuel utilisateur

Hitachi

Hitachi CP-S317 Manuel utilisateur

Hitachi

Hitachi CP-X505 series Document technique

Hitachi

Hitachi EDS-3170A Manuel utilisateur

Hitachi

Hitachi CP-S318 series Manuel utilisateur

Hitachi

Hitachi CP-WX3014WN Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
