Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA 1152 x 864 (75Hz)

1280 x 960 60.0 60.0 VESA 1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

*1280 x 1024 91.2 85.0 VESA SXGA (85Hz)

*1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1400 x 1050 65.3 60.0 VESA SXGA+ (60Hz)

1280 x 800 49.7 60.0 VESA 1280 x 800 (60Hz)

1440 x 900 56.0 59.9 VESA WXGA+ (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution before

connecting this projector to a computer.

• Some computers may have multiple display screen modes. Use of some of these

modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution before

being displayed. The best display performance will be achieved if the resolutions

of the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

• The HDMI input does not support the signals marked with *.

Example of computer signal

Initial set signals

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the IMAGE menu.

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Display time (C) Display time (c)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Computer/

Signal

Horizontal signal timing (s) Computer/

Signal

Vertical signal timing (lines)

(A) (B) (C) (D) (a) (b) (c) (d)

TEXT 2.0 3.0 20.3 1.0 TEXT 3 42 400 1

VGA (60Hz) 3.8 1.9 25.4 0.6 VGA (60Hz) 2 33 480 10

VGA (72Hz) 1.3 4.1 20.3 0.8 VGA (72Hz) 3 28 480 9

VGA (75Hz) 2.0 3.8 20.3 0.5 VGA (75Hz) 3 16 480 1

VGA (85Hz) 1.6 2.2 17.8 1.6 VGA (85Hz) 3 25 480 1

SVGA (56Hz) 2.0 3.6 22.2 0.7 SVGA (56Hz) 2 22 600 1

SVGA (60Hz) 3.2 2.2 20.0 1.0 SVGA (60Hz) 4 23 600 1

SVGA (72Hz) 2.4 1.3 16.0 1.1 SVGA (72Hz) 6 23 600 37

SVGA (75Hz) 1.6 3.2 16.2 0.3 SVGA (75Hz) 3 21 600 1

SVGA (85Hz) 1.1 2.7 14.2 0.6 SVGA (85Hz) 3 27 600 1

Mac 16" mode 1.1 3.9 14.5 0.6 Mac 16" mode 3 39 624 1

XGA (60Hz) 2.1 2.5 15.8 0.4 XGA (60Hz) 6 29 768 3

XGA (70Hz) 1.8 1.9 13.7 0.3 XGA (70Hz) 6 29 768 3

XGA (75Hz) 1.2 2.2 13.0 0.2 XGA (75Hz) 3 28 768 1

XGA (85Hz) 1.0 2.2 10.8 0.5 XGA (85Hz) 3 36 768 1

1152 x 864

(75Hz) 1.2 2.4 10.7 0.6 1152 x 864

(75Hz) 3 32 864 1

1280 x 960

(60Hz) 1.0 2.9 11.9 0.9 1280 x 960

(60Hz) 3 36 960 1

SXGA (60Hz) 1.0 2.3 11.9 0.4 SXGA(60Hz) 3 38 1024 1

SXGA (75Hz) 1.1 1.8 9.5 0.1 SXGA (75Hz) 3 38 1024 1

SXGA (85Hz) 1.0 1.4 8.1 0.4 SXGA (85Hz) 3 44 1024 1

UXGA (60Hz) 1.2 1.9 9.9 0.4 UXGA (60Hz) 3 46 1200 1

W-XGA (60Hz) 1.7 2.5 16.0 0.8 W-XGA (60Hz) 3 23 768 1

SXGA+ (60Hz) 1.2 1.9 11.5 0.7 SXGA+ (60Hz) 4 32 1050 3

1280 x

800(60Hz) 1.6 2.4 15.3 0.8 1280 x

800(60Hz) 3 24 800 1

DHDMI

• Type :Digital audio/video connector

• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

Connection to the ports

ARGB 1, BRGB OUT

D-sub 15pin mini shrink jack

• Video signal: RGB separate, Analog, 0.7Vp-p,

75terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

At RGB signal

Pin Signal Pin Signal

1Video Red 9 (No connection)

2 Video Green 10 Ground

3 Video Blue 11 (No connection)

4(No connection) 12 A

: SDA (DDC data),

: (No connection)

5 Ground 13 H. sync / Composite sync.

6 Ground Red 14 V. sync.

7Ground Green 15 A

: SCL (DDC clock),

: (No connection)

8 Ground Blue

Connection to the ports

109876

54321

14131211

LAN

VIDEO

CONTROL

AUDIO IN1

AUDIO IN2

AUDIO OUT

RGB

OUT

RGB1

RGB2

HDMI

R L R L

AUDIO IN3 AUDIO IN4

CB/PB

CR/PR

B/CB/PBR/CR/PR

G/Y

USB

REMOTE

CONTROL

S-VIDEO

A CBD

Pin Signal Pin Signal Pin Signal

1 T.M.D.S. Data2 + 8 T.M.D.S. Data0 Shield 15 SCL

2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA

3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground

4 T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield

+5V Power

5 T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect

6 T.M.D.S. Data1 - 13 CEC

7 T.M.D.S. Data0 + 14 Reserved(N.C. on device)

CRGB 2(G/Y, B/CB/PB, R/CR/PR, H, V)

• BNC jack x 5

• Video : Analog 0.7Vp-p, 75terminator

• H/V, sync, : TTL level (positive/negative)

• Composite sync, : TTL level

19 17 15 13 11 9 7 5 3 1

18 16 14 12 10 8 6 4 2

LAN

VIDEO

CONTROL

AUDIO IN1

AUDIO IN2

AUDIO OUT

RGB

OUT

RGB1

RGB2

HDMI

R L R L

AUDIO IN3 AUDIO IN4

CB/PB

CR/PR

B/CB/PBR/CR/PR

G/Y

USB

REMOTE

CONTROL

S-VIDEO

Connection to the ports

(continued)

IVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

• 1.0±0.1Vp-p, 75terminator

HS-VIDEO

Mini DIN 4pin jack

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75terminator

2Brightness signal, 1.0Vp-p, 75terminator

3Ground

4Ground

COMPONENT VIDEO EY, FCB/PB, GCR/PR

RCA jack x3

• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60,1080p@50/60

Port Signal

Y Component video Y, 1.0±0.1Vp-p, 75terminator with composite sync

CB/PBComponent video CB/PB, 0.7±0.1Vp-p, 75terminator

CR/PRComponent video CR/PR, 0.7±0.1Vp-p, 75terminator

I E F G

LAN

VIDEO

CONTROL

AUDIO IN1

AUDIO IN2

AUDIO OUT

RGB

OUT

RGB1

RGB2

HDMI

R L R L

AUDIO IN3 AUDIO IN4

CB/PB

CR/PR

B/CB/PBR/CR/PR

G/Y

USB

REMOTE

CONTROL

S-VIDEO

AUDIO IN 1,

AUDIO IN 2

Ø3.5 stereo mini jack

• 500 mVrms 47kterminator

AUDIO IN 3

L, AUDIO IN 4

RCA jack x2

• 500 mVrms 47kterminator

PAUDIO OUT

Ø3.5 stereo mini jack

• 500 mVrms 1koutput impedance

QREMOTE CONTROL

Ø3.5 stereo mini jack

• To be connected with the remote control that came with the projector.

RCONTROL

D-sub 9pin plug

• About the details of RS-232C communication, please refer to the following RS-232C

Communication in this manual.

Pin Signal Pin Signal Pin Signal

1 (No connection) 4 (No connection) 7 RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9 (No connection)

Connection to the ports

(continued)

9876

54321

N O P Q R

LAN

VIDEO

CONTROL

AUDIO IN1

AUDIO IN2

AUDIO OUT

RGB

OUT

RGB1

RGB2

HDMI

R L R L

AUDIO IN3 AUDIO IN4

CB/PB

CR/PR

B/CB/PBR/CR/PR

G/Y

USB

REMOTE

CONTROL

S-VIDEO

Connection to the ports

(continued)

LAN

RJ-45 jack

Pin Signal Pin Signal Pin Signal

1 TX+ 4 - 7 -

2 TX- 5 - 8 -

3 RX+ 6 RX-

87654

SUSB

USB B type jack

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

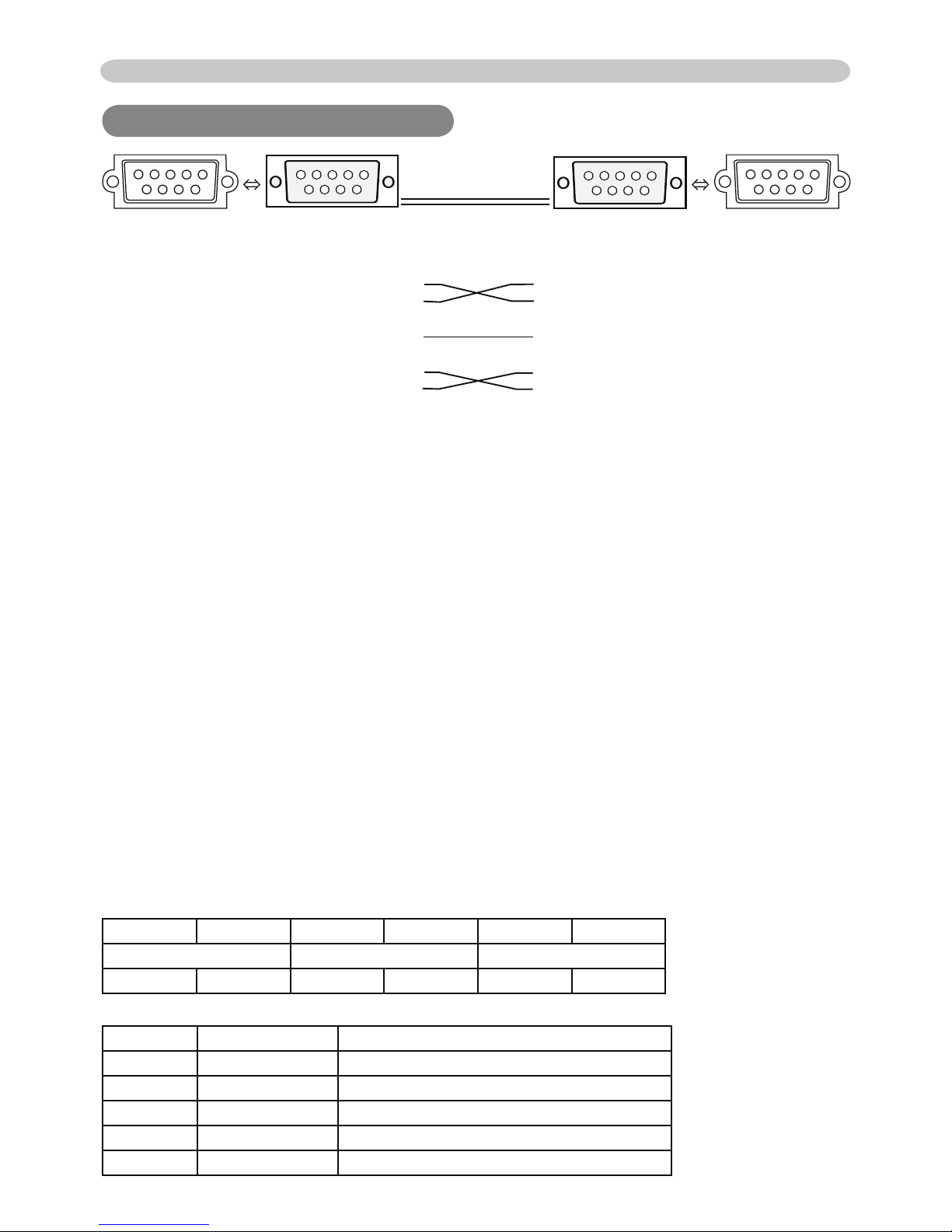

RS-232C Communication

6789

12345 6789

12345

CONTROL port RS-232C cable (Cross) RS-232C port

of the projector of the computer

- (1) (1) CD

RD (2) (2) RD

TD (3) (3) TD

- (4) (4) DTR

GND (5) (5) GND

- (6) (6) DSR

RTS (7) (7) RTS

CTS (8) (8) DTS

- (9) (9) RI

Connecting the cable

1. Turn off the projector and the computer.

2. Connect the CONTROL port of the projector with a RS-232C port of

the computer by a RS-232C cable (cross). Use the cable that fulfills the

speciﬁcation shown in the previous page.

3. Turn the computer on, and after the computer has started up turn the

projector on.

Communications setting

19200bps, 8N1

1. Protocol

Consist of header (7 bytes) + command data (6 bytes).

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high

CRC_low : Lower byte of CRC ﬂag for command data

CRC_high : Upper byte of CRC ﬂag for command data

3. Command data

Command data chart

byte_0 byte_1 byte_2 byte_3 byte_4 byte_5

Action Type Setting code

low high low high low high

Action (byte_0 - 1)

Action Classiﬁcation Content

1 SET Change setting to desired value.

2 GET Read projector internal setup value.

4 INCREMENT Increment setup value by 1.

5 DECREMENT Decrement setup value by 1.

6 EXECUTE Run a command.

RS-232C Communication (continued)

Requesting projector status (Get command)

(1) Send the request code Header + Command data (‘02H’+‘00H’+ type (2

bytes)+‘00H’ +‘00H’) from the computer to the projector.

(2) The projector returns the response code ‘1DH’+ data (2 bytes) to the computer.

Changing the projector settings (Set command)

(1) Send the setting code Header + Command data (‘01H’+‘00H’+ type (2 bytes) +

setting code (2 bytes)) from the computer to the projector.

(2) The projector changes the setting based on the above setting code.

(3) The projector returns the response code ‘06H’ to the computer.

Using the projector default settings (Reset Command)

(1) The computer sends the default setting code Header + Command data

(‘06H’+‘00H’ + type (2 bytes) +‘00H’+‘00H’) to the projector.

(2) The projector changes the speciﬁed setting to the default value.

(3) The projector returns the response code ‘06H’ to the computer.

Increasing the projector setting value (Increment command)

(1) The computer sends the increment code Header + Command data

(‘04H’+‘00H’+ type (2 bytes) +‘00H’+‘00H’) to the projector.

(2) The projector in creases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the computer.

Decreasing the projector setting value (Decrement command)

(1) The computer sends the decrement code Header + Command data

(‘05H’+‘00H’+ type (2 bytes) +‘00H’ + ‘00H’) to the projector.

(2) The projector decreases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the computer.

When the projector cannot understand the received command

When the projector cannot understand the received command, the error code ‘15H’

is sent back to the computer.

Sometimes the projector cannot properly receive the command. In such a

case, the command is not executed and the error code ‘15H’ is sent back to the

computer. If this error code is returned, send the same command again.

When the projector cannot execute the received command.

When the projector cannot execute the received command, the error code ‘1CH’

+ ‘xxxxH’ is sent back to the computer. When the data length is greater than

indicated by the data length code, the projector ignore the excess data code.

Conversely when the data length is shorter than indicated by the data length

code, an error code will be returned to the computer.

NOTE • Operation cannot be guaranteed when the projector receives an

undeﬁned command or data.

• Provide an interval of at least 40ms between the response code and any other code.

• The projector outputs test data when the power supply is switched ON, and when the

lamp is lit. Ignore this data.

• Commands are not accepted during warm-up.

Command Control via the Network

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Command Control Settings

Conﬁgure the following items form a web browser when command control is used.

When the authentication setting is enabled, the following settings are required.

Command Control via the Network

Port Settings

Network Control

Port1 (Port: 23)

Port open

Click the [Enable] check box to open [Network

Control Port1 (Port: 23)] to use TCP #23.

Default setting is “Enable”.

Authentication

Click the [Enable] check box for the

[Authentication] setting when authentication

is required.

Default setting is “Disable”.

Network Control

Port2 (Port: 9715)

Port open

Click the [Enable] check box to open [Network

Control Port2 (Port: 9715)] to use TCP

#9715.

Default setting is “Enable”.

Authentication

Click the [Enable] check box for the

[Authentication] setting when authentication

is required.

Default setting is “Enable”.

Security Settings

Network Control

Authentication

Password Enter the desired authentication password.

This setting will be the same for [Network

Control Port1 (Port: 23)] and [Network

Control Port2 (Port: 9715)].

Default setting is blank.

Re-enter

Authentication

Password

Command Control via the Network

(continued)

Command Format

[TCP #23]

1. Protocol

Consist of header (7 bytes) + command data (6 bytes)

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high

CRC_low: Lower byte of CRC ﬂag for command data

CRC_high: Upper byte of CRC ﬂag for command data

3. Command data

Command data chart

byte_0 byte_1 byte_2 byte_3 byte_4 byte_5

Action Type Setting code

low high low high low high

Action (byte_0 - 1)

Action Classiﬁcation Content

1 Set Change setting to desired value.

2 Get Read projector internal setup value.

4 Increment Increment setup value by 1.

5 Decrement Decrement setup value by 1.

6 Execute Run a command.

Requesting projector status (Get command)

(1) Send the following request code from the PC to the projector.

Header + Command data (‘02H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector returns the response code ‘1DH’ + data (2 bytes) to the PC.

Changing the projector settings (Set command)

(1) Send the following setting code from the PC to the projector.

Header + Command data (‘01H’ + ‘00H’ + type (2 bytes) + setting code (2 bytes))

(2) The projector changes the setting based on the above setting code.

(3) The projector returns the response code ‘06H’ to the PC.

Using the projector default settings (Reset Command)

(1) The PC sends the following default setting code to the projector.

Header + Command data (‘06H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector changes the speciﬁed setting to the default value.

(3) The projector returns the response code ‘06H’ to the PC.

Increasing the projector setting value (Increment command)

(1) The PC sends the following increment code to the projector.

Header + Command data (‘04H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector increases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the PC.

Autres manuels pour CP-SX635 - SXGA+ LCD Projector

Table des matières

Autres manuels Hitachi Projecteur

Hitachi

Hitachi Innovate CP-AW100N Manuel utilisateur

Hitachi

Hitachi Innovate CP-X2021WN Manuel utilisateur

Hitachi

Hitachi LP-TW4001 Manuel utilisateur

Hitachi

Hitachi MP-WU8101W Manuel utilisateur

Hitachi

Hitachi CP-X430W Manuel utilisateur

Hitachi

Hitachi CP-EX252 Manuel utilisateur

Hitachi

Hitachi CP-WU5506M Manuel utilisateur

Hitachi

Hitachi CPX1 Series Manuel utilisateur

Hitachi

Hitachi Innovate ED-X50 Manuel utilisateur

Hitachi

Hitachi CP-X608 Document technique

Hitachi

Hitachi CP-X2 - XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi ED-S3350 and Document technique

Hitachi

Hitachi CP-WX1100 Manuel utilisateur

Hitachi

Hitachi CP-DW10N Manuel utilisateur

Hitachi

Hitachi X807 - CP XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CP-EW300 Manuel utilisateur

Hitachi

Hitachi CP-A100 Series Manuel utilisateur

Hitachi

Hitachi CP-WX625 Document technique

Hitachi

Hitachi CP-X327W Manuel utilisateur

Hitachi

Hitachi CP-WX4022WN Guide d'installation

Hitachi

Hitachi CPX809 - XGA LCD Projector Instructions d'installation et d'entretien

Hitachi

Hitachi Innovate ED-X40Z Manuel utilisateur

Hitachi

Hitachi CP-DX250 guide Manuel utilisateur

Hitachi

Hitachi CP-S220W Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
