Hitachi CP-RX82 Manuel

Projector

CP-RX82

User's Manual (detailed)

Operating Guide – Technical

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1280 x 800 49.7 60.0 VESA

1280 x 800 (60Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution

before connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these

modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution

before being displayed. The best display performance will be achieved if the

resolutions of the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

Example of PC signal

Initial set signals

The following signals are used for the initial settings. The signal timing of some

PC models may be different. In such case, adjust the items V POSITION and H

POSITION in the IMAGE menu.

Resolution

(H x V)

Horizontal signal timing (μs) Vertical signal timing (lines) Signal mode

(A) (B) (C) (D) (a) (b) (c) (d)

720 x 400 2.0 3.0 20.3 1.0 3 42 400 1 TEXT

640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)

640 x 480 1.3 4.1 20.3 0.8 3 28 480 9 VGA (72Hz)

640 x 480 2.0 3.8 20.3 0.5 3 16 480 1 VGA (75Hz)

640 x 480 1.6 2.2 17.8 1.6 3 25 480 1 VGA (85Hz)

800 x 600 2.0 3.6 22.2 0.7 2 22 600 1 SVGA (56Hz)

800 x 600 3.2 2.2 20.0 1.0 4 23 600 1 SVGA (60Hz)

800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)

800 x 600 1.6 3.2 16.2 0.3 3 21 600 1 SVGA (75Hz)

800 x 600 1.1 2.7 14.2 0.6 3 27 600 1 SVGA (85Hz)

832 x 624 1.1 3.9 14.5 0.6 3 39 624 1 Mac 16" mode

1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3 XGA (60Hz)

1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3 XGA (70Hz)

1024 x 768 1.2 2.2 13.0 0.2 3 28 768 1 XGA (75Hz)

1024 x 768 1.0 2.2 10.8 0.5 3 36 768 1 XGA (85Hz)

1152 x 864 1.2 2.4 10.7 0.6 3 32 864 1 1152 x 864 (75Hz)

1280 x 768 1.7 2.5 16.0 0.8 3 23 768 1 W-XGA (60Hz)

1280 x 800 1.6 2.4 15.3 0.8 3 24 800 1 W-XGA (60Hz)

1280 x 960 1.0 2.9 11.9 0.9 3 36 960 1 W-XGA (60Hz)

1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1 SXGA (60Hz)

1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1 SXGA (75Hz)

1280 x 1024 1.0 1.4 8.1 0.4 3 44 1024 1 SXGA (85Hz)

1400 x 1050 1.2 2.0 11.4 0.7 3 33 1050 1 SXGA+ (60Hz)

1600 x 1200 1.2 1.9 9.9 0.4 3 46 1200 1 UXGA (60Hz)

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)

ACOMPUTER IN, BMONITOR OUT

D-sub 15pin mini shrink jack

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

• Video signal:

-Y, Analog, 1.0±0.1Vp-p with composite sync, 75Ω terminated

-Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

-C

, Analog, 0.7±0.1Vp-p 75Ω terminated

System: 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60

Pin Signal Pin Signal

1Video Red, Cr/Pr 9(No connection)

2Video Green, Y 10 Ground

3Video Blue, Cb/Pb 11 (No connection)

4(No connection) 12 A: SDA (DDC data), (No connection)

5 Ground B: (No connection)

6Ground Red, Ground Cr/Pr 13 H. sync / Composite sync., (No connection)

7Ground Green, Ground Y 14 V. sync., (No connection)

8Ground Blue, Ground Cb/Pb 15 A: SCL (DDC clock), (No connection)

B: (No connection)

Connection to the ports

NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the

input ports of the projector are recessed.





 

CS-VIDEO

Mini DIN 4pin jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator

2Brightness signal, 1.0Vp-p, 75Ω terminator

3 Ground

4 Ground

Connection to the ports (continued)

DVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)

• 1.0±0.1Vp-p, 75Ω terminator

Connection to the ports (continued)

EAUDIO IN

Ø3.5 stereo mini jack

• 200 mVrms 47kΩ terminator

AUDIO OUT

Ø3.5 stereo mini jack

• 200 mVrms 1kΩ output impedance

Y CB/PBCR/PR

COMPONENT VIDEO OUT

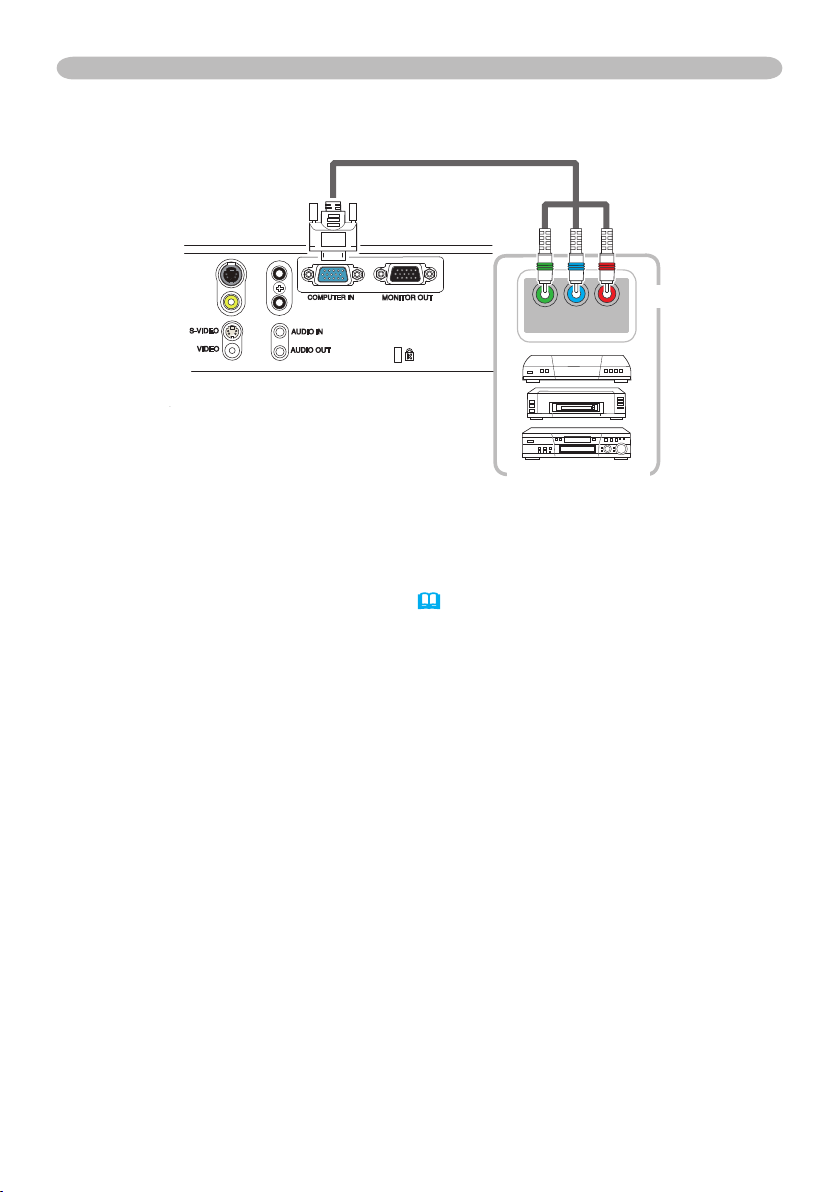

To input component video signal to COMPUTER IN ports

ex.

To input component video signal to the COMPUTER IN port of the projector, use a

RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the

descriptions about COMPUTER IN port (&3).

RCA plugs

D-sub plug

VCR/DVD/Blu-ray

Disc player

RCA connectors

Connection to the ports (continued)
