Hitachi CP-A100 Series Manuel utilisateur

Projector

CP-A100

User's Manual (detailed)

Technical

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution before

connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these

modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution before

being displayed. The best display performance will be achieved if the resolutions

of the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

Example of PC signal

Initial set signals

The following signals are used for the initial settings. The signal timing of some

PC models may be different. In such case, adjust the items V POSITION and H

POSITION in IMAGE Menu.

computer

Signal

Horizontal signal timing (μs) computer

Signal

Vertical signal timing (lines)

(A) (B) (C) (D) (a) (b) (c) (d)

TEXT 2.0 3.0 20.3 1.0 TEXT 3 42 400 1

VGA (60Hz) 3.8 1.9 25.4 0.6 VGA (60Hz) 2 33 480 10

VGA (72Hz) 1.3 4.1 20.3 0.8 VGA (72Hz) 3 28 480 9

VGA (75Hz) 2.0 3.8 20.3 0.5 VGA (75Hz) 3 16 480 1

VGA (85Hz) 1.6 2.2 17.8 1.6 VGA (85Hz) 3 25 480 1

SVGA (56Hz) 2.0 3.6 22.2 0.7 SVGA (56Hz) 2 22 600 1

SVGA (60Hz) 3.2 2.2 20.0 1.0 SVGA (60Hz) 4 23 600 1

SVGA (72Hz) 2.4 1.3 16.0 1.1 SVGA (72Hz) 6 23 600 37

SVGA (75Hz) 1.6 3.2 16.2 0.3 SVGA (75Hz) 3 21 600 1

SVGA (85Hz) 1.1 2.7 14.2 0.6 SVGA (85Hz) 3 27 600 1

Mac 16" mode 1.1 3.9 14.5 0.6 Mac 16" mode 3 39 624 1

XGA (60Hz) 2.1 2.5 15.8 0.4 XGA (60Hz) 6 29 768 3

XGA (70Hz) 1.8 1.9 13.7 0.3 XGA (70Hz) 6 29 768 3

XGA (75Hz) 1.2 2.2 13.0 0.2 XGA (75Hz) 3 28 768 1

XGA (85Hz) 1.0 2.2 10.8 0.5 XGA (85Hz) 3 36 768 1

1152 x 864

(75Hz) 1.2 2.4 10.7 0.6 1152 x 864

(75Hz) 3 32 864 1

1280 x 960

(60Hz) 1.0 2.9 11.9 0.9 1280 x 960

(60Hz) 3 36 960 1

SXGA (60Hz) 1.0 2.3 11.9 0.4 SXGA(60Hz) 3 38 1024 1

SXGA (75Hz) 1.1 1.8 9.5 0.1 SXGA (75Hz) 3 38 1024 1

SXGA (85Hz) 1.0 1.4 8.1 0.4 SXGA (85Hz) 3 44 1024 1

UXGA (60Hz) 1.2 1.9 9.9 0.4 UXGA (60Hz) 3 46 1200 1

W-XGA (60Hz) 1.7 2.5 16.0 0.8 W-XGA (60Hz) 3 23 768 1

SXGA+ (60Hz) 1.2 2.0 11.4 0.7 SXGA+ (60Hz) 3 33 1050 1

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)

MONITOR OUT COMPUTER IN2 COMPUTER IN1

CONTROL

LAN

AUDIO

OUT

S-VIDEO

Y CB/PB CR/PR

VIDEO L R

USB

AUDIO IN3

AUDIO IN

ACOMPUTER IN1, BCOMPUTER IN2, CMONITOR OUT

D-sub 15pin mini shrink jack

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω

terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

Pin Signal Pin Signal

1Video Red 10 Ground

2Video Green 11 (No connection)

3 Video Blue 12 A: SDA (DDC data)

B, C: (No connection)

4 (No connection)

5 Ground 13 H. sync / Composite sync.

6 Ground Red 14 V. sync.

7 Ground Green 15 A: SCL (DDC clock)

B, C: (No connection)

8 Ground Blue

9(No connection) - -

Connection to the ports

 

 

 

Connection to the ports

B DAC

DLAN

RJ-45 jack

Pin Signal Pin Signal Pin Signal

1 TX + 4 - 7 -

2 TX - 5 - 8 -

3 RX + 6 RX - - -

87654

MONITOR OUT COMPUTER IN2 COMPUTER IN1

CONTROL

LAN

AUDIO

OUT

S-VIDEO

Y CB/PB CR/PR

VIDEO L R

USB

AUDIO IN3

AUDIO IN

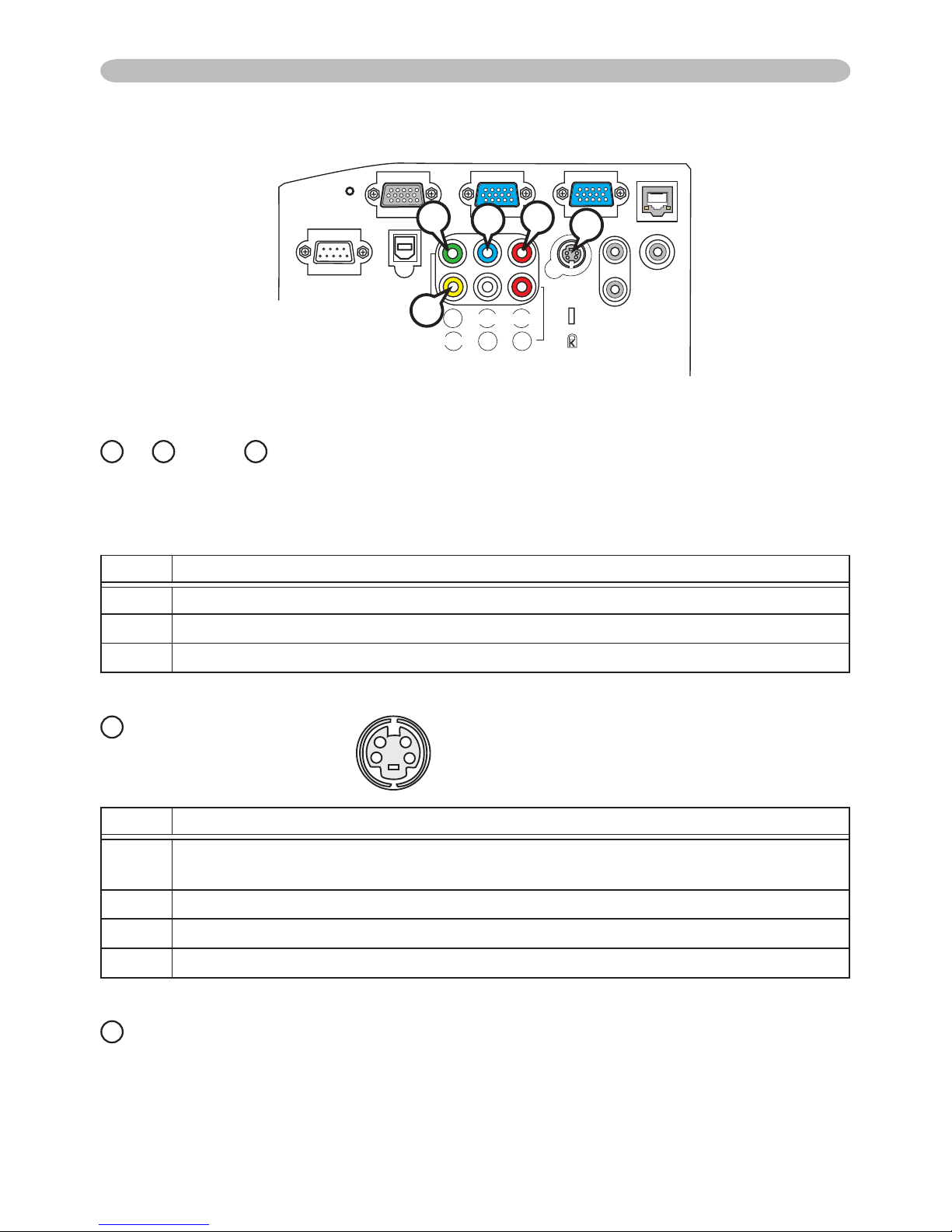

Connection to the ports (continued)

IVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

• 1.0±0.1Vp-p, 75Ω terminator

HS-VIDEO

Mini DIN 4pin jack

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator

2Brightness signal, 1.0Vp-p, 75Ω terminator

3 Ground

4 Ground

EY, FCB/PB, GCR/PR(component video)

RCA jack x3

• System: 525i(480i), 525p(480p), 625i(576i), 750p(720p),1125i(1080i)

Port Signal

YComponent video Y, 1.0±0.1Vp-p, 75Ω terminator with composite sync

CB/PBComponent video CB/PB, 0.7±0.1Vp-p, 75Ω terminator

CR/PRComponent video CR/PR, 0.7±0.1Vp-p, 75Ω terminator

MONITOR OUT COMPUTER IN2 COMPUTER IN1

CONTROL

LAN

AUDIO

OUT

S-VIDEO

Y CB/PB CR/PR

VIDEO L R

USB

AUDIO IN3

AUDIO IN

Connection to the ports (continued)

AUDIO IN1,

AUDIO IN2

Ø3.5 stereo mini jack

• 200 mVrms 47kΩ terminator

AUDIO IN3

RCA jack x2

• 200 mVrms 47kΩ terminator

NAUDIO OUT

Ø3.5 stereo mini jack

• 200 mVrms 1kΩ output impedance

To input SCART RGB signal;

ex.:

To input SCART RGB signal to the projector, use a SCART to RCA cable.

Connect the plugs refer to above ex.. For more reference, please consult your dealer.

SCART connector

(jack)

SCART cable

(plug)

RCA plugs

AUDIO IN3

㪭㫀㪻㪼㫆

㪩

㪙

㪞

㪘㫌㪻㫀㫆㩷㪣

㪘㫌㪻㫀㫆㩷㪩

MONITOR OUT COMPUTER IN2 COMPUTER IN1

CONTROL

LAN

AUDIO

OUT

S-VIDEO

Y CB/PB CR/PR

VIDEO L R

USB

AUDIO IN3

AUDIO IN

Connection to the ports (continued)

USB

USB B type jack

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

CONTROL

D-sub 9pin plug

• About the details of RS-232C communication,

please refer to the following page.

Pin Signal Pin Signal Pin Signal

1 (No connection) 4 (No connection) 7 RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9 (No connection)

12345

678

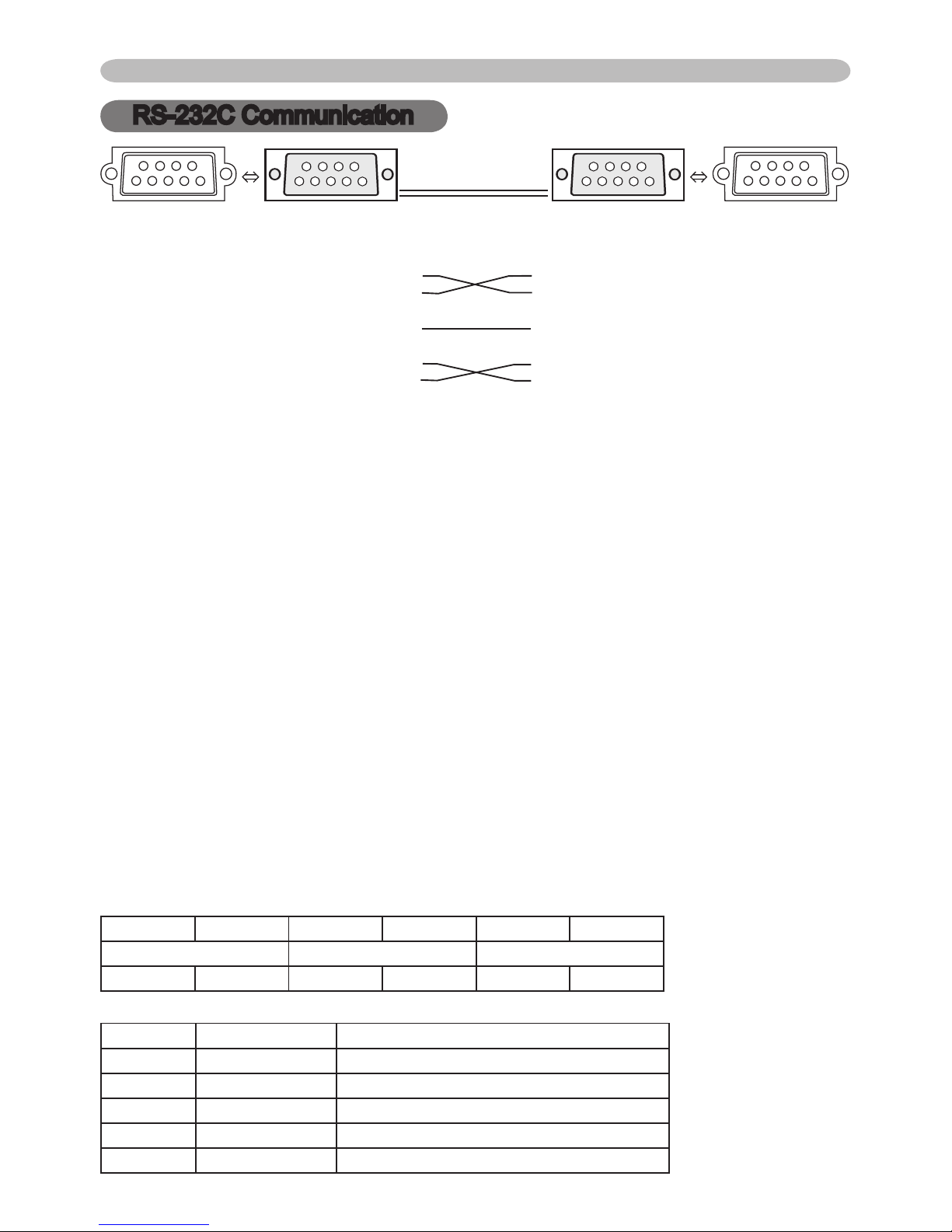

RS-232C Communication

Connecting the cable

1. Turn off the projector and the computer.

2. Connect the CONTROL port of the projector with a RS-232C port of

the computer by a RS-232C cable (cross). Use the cable that fullls the

specication shown in the previous page.

3. Turn the computer on, and after the computer has started up turn the

projector on.

Communications setting

19200bps, 8N1

1. Protocol

Consist of header (7 bytes) + command data (6 bytes)

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high

CRC_low: Lower byte of CRC ag for command data

CRC_high: Upper byte of CRC ag for command data

3. Command data

Command data chart

byte_0 byte_1 byte_2 byte_3 byte_4 byte_5

Action Type Setting code

low high low high low high

Action (byte_0 - 1)

Action Classication Content

1 Set Change setting to desired value.

2 Get Read projector internal setup value.

4 Increment Increment setup value by 1.

5 Decrement Decrement setup value by 1.

6 Execute Run a command.

6789

1234

5 6789

1234

CONTROL port RS-232C cable (cross) RS-232C port

of the projector of the computer

- (1) (1) CD

RD (2) (2) RD

TD (3) (3) TD

- (4) (4) DTR

GND (5) (5) GND

- (6) (6) DSR

RTS (7) (7) RTS

CTS (8) (8) DTS

- (9) (9) RI

RS-232C Communication (continued)

Requesting projector status (Get command)

(1) Send the following request code from the PC to the projector.

Header + Command data (‘02H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector returns the response code ‘1DH’ + data (2 bytes) to the PC.

Changing the projector settings (Set command)

(1) Send the following setting code from the PC to the projector.

Header + Command data (‘01H’ + ‘00H’ + type (2 bytes) + setting code (2 bytes))

(2) The projector changes the setting based on the above setting code.

(3) The projector returns the response code ‘06H’ to the PC.

Using the projector default settings (Reset Command)

(1) The PC sends the following default setting code to the projector.

Header + Command data (‘06H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector changes the specied setting to the default value.

(3) The projector returns the response code ‘06H’ to the PC.

Increasing the projector setting value (Increment command)

(1) The PC sends the following increment code to the projector.

Header + Command data (‘04H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector increases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the PC.

Decreasing the projector setting value (Decrement command)

(1) The PC sends the following decrement code to the projector.

Header + Command data (‘05H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector decreases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the PC.

When the projector cannot understand the received command

When the projector cannot understand the received command, the error code ‘15H’

is sent back to the PC.

Sometimes the projector cannot properly receive the command. In such a case,

the command is not executed and the error code ‘15H’ is sent back to the PC. If

this error code is returned, send the same command again.

When the projector cannot execute the received command.

When the projector cannot execute the received command, the error code ‘1CH’ +

‘xxxxH’ is sent back to the PC.

When the data length is greater than indicated by the data length code, the

projector ignore the excess data code. Conversely when the data length is shorter

than indicated by the data length code, an error code will be returned to the PC.

NOTE • Operation cannot be guaranteed when the projector receives an undened

command or data.

• Provide an interval of at least 40ms between the response code and any other code.

• The projector outputs test data when the power supply is switched ON, and when the

lamp is lit. Ignore this data.

• Commands are not accepted during warm-up.

Command Control via the Network

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Command Control Settings

Congure the following items form a web browser when command control is used.

When the authentication setting is enabled, the following settings are required.

Command Control via the Network

Port Settings

Netowrk Control

Port1 (Port: 23)

Port open

Click the [Enable] check box to open [Network

Control Port1 (Port: 23)] to use TCP #23.

Default setting is “Enable”.

Authentication

Click the [Enable] check box for the

[Authentication] setting when authentication

is required.

Default setting is “Disable”.

Network Control

Port2 (Port: 9715)

Port open

Click the [Enable] check box to open [Network

Control Port2 (Port: 9715)] to use TCP

#9715.

Default setting is “Enable”.

Authentication

Click the [Enable] check box for the

[Authentication] setting when authentication

is required.

Default setting is “Enable”.

Security Settings

Network Control

Authentication

Password Enter the desired authentication password.

This setting will be the same for [Network

Control Port1 (Port: 23)] and [Network

Control Port2 (Port: 9715)].

Default setting is blank.

Re-enter

Authentication

Password

Command Control via the Network (continued)

Command Format

[TCP #23]

1. Protocol

Consist of header (7 bytes) + command data (6 bytes)

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high

CRC_low: Lower byte of CRC ag for command data

CRC_high: Upper byte of CRC ag for command data

3. Command data

Command data chart

byte_0 byte_1 byte_2 byte_3 byte_4 byte_5

Action Type Setting code

low high low high low high

Action (byte_0 - 1)

Action Classication Content

1 Set Change setting to desired value.

2 Get Read projector internal setup value.

4 Increment Increment setup value by 1.

5 Decrement Decrement setup value by 1.

6 Execute Run a command.

Requesting projector status (Get command)

(1) Send the following request code from the PC to the projector.

Header + Command data (‘02H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector returns the response code ‘1DH’ + data (2 bytes) to the PC.

Changing the projector settings (Set command)

(1) Send the following setting code from the PC to the projector.

Header + Command data (‘01H’ + ‘00H’ + type (2 bytes) + setting code (2 bytes))

(2) The projector changes the setting based on the above setting code.

(3) The projector returns the response code ‘06H’ to the PC.

Using the projector default settings (Reset Command)

(1) The PC sends the following default setting code to the projector.

Header + Command data (‘06H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector changes the specied setting to the default value.

(3) The projector returns the response code ‘06H’ to the PC.

Increasing the projector setting value (Increment command)

(1) The PC sends the following increment code to the projector.

Header + Command data (‘04H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector increases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the PC.

Autres manuels pour CP-A100 Series

Table des matières

Autres manuels Hitachi Projecteur

Hitachi

Hitachi Innovate CP-RX94 Manuel utilisateur

Hitachi

Hitachi CP-S833E Manuel utilisateur

Hitachi

Hitachi X308 - CP XGA LCD Projector Document technique

Hitachi

Hitachi CP-AW2503 Manuel utilisateur

Hitachi

Hitachi CP-WU8440 Manuel utilisateur

Hitachi

Hitachi CP-AW312WN guide Manuel utilisateur

Hitachi

Hitachi PJTX10W Manuel utilisateur

Hitachi

Hitachi CP-X2010N Document technique

Hitachi

Hitachi CPX4 series Manuel utilisateur

Hitachi

Hitachi CP-X250 series Mode d’emploi

Hitachi

Hitachi CP-X2 - XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CP-X9110 Manuel utilisateur

Hitachi

Hitachi CP-SX5500W Manuel utilisateur

Hitachi

Hitachi PJ TX100 - LCD Projector - HD 720p Manuel utilisateur

Hitachi

Hitachi CP-WU8450 Manuel utilisateur

Hitachi

Hitachi CP-S245 Manuel utilisateur

Hitachi

Hitachi CP-A52 Series Manuel utilisateur

Hitachi

Hitachi CP-D31N guide Manuel utilisateur

Hitachi

Hitachi CP-X3511 Manuel utilisateur

Hitachi

Hitachi CP-WU8451 Manuel utilisateur

Hitachi

Hitachi BZ-1 Manuel utilisateur

Hitachi

Hitachi Innovate CP-X2521WN Manuel utilisateur

Hitachi

Hitachi CP-SX5600W Manuel utilisateur

Hitachi

Hitachi X995 - CP XGA LCD Projector Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
