Sleipner Motor A/S Sleipner Motor A/S

User manual

Sidepower

Tunnel Cut-out Tool

Art. No. 6 8870 / 6 8871

Ver.1 - 2007

Sleipner Motor A/S Sleipner Motor A/S

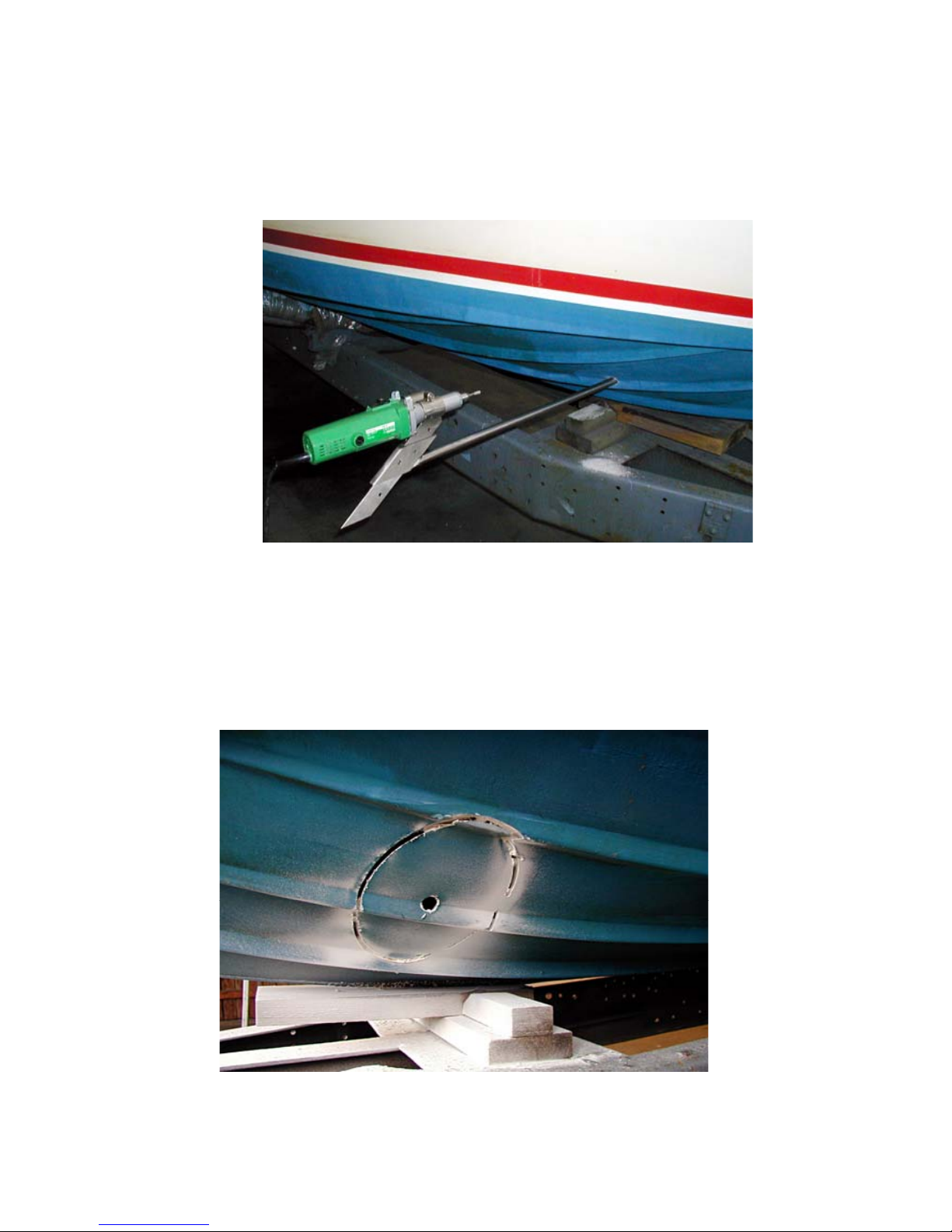

- Insert the cut-out tool through both ø12mm holes.

- Start the grinder and mark the cutting path by frimly rotating

the cut-out tool. Be careful to avoid flexing the rod.

Use eye- and earprotection. Cut out the hole for the tunnel.

NB! Leave 3 small spots to maintain the bearing until you have

cut out the hole on the oposite side of the boat.

Tunnel Cut-out tool adjusted for 300mm tunnel diameter

Sleipner Motor A/S Sleipner Motor A/S

- Assemble the cut-out tool, and adjust it to the right tunnel

diameter. After finger-tightening the two threaded handles,

tighten the adjustment-screw to get the right A-distance

Thruster Position at cut-out tool Distance A

SP35S 125 Min. 74mm

Min. 2 15/16”

SP55S, SP75T, SP95T,

SP100HYD

185 Min. 105mm

Min. 4 1/8”

SP125T, SP155TC,

SP200TC, SP200HYD

250 Min. 140mm

Min. 5 ½”

SP220TC, SP285TC,

SP300HYD

300 Min. 167mm

Min. 6 9/16”

SP550TC HYD 386 Min. 213mm

Min. 8 3/8”

Use the table for selection of position and adjustment of the cut-out tool. Adjustment-screw at Ø125mm tunnel

Adjustment-screw at Ø386mm tunnel

Sleipner Motor A/S Sleipner Motor A/S

- Assemble the cut-out tool, and adjust it to the right tunnel

diameter. After finger-tightening the two threaded handles,

tighten the adjustment-screw to get the right A-distance

Thruster Position at cut-out tool Distance A

SP35S 125 Min. 74mm

Min. 2 15/16”

SP55S, SP75T, SP95T,

SP100HYD

185 Min. 105mm

Min. 4 1/8”

SP125T, SP155TC,

SP200TC, SP200HYD

250 Min. 140mm

Min. 5 ½”

SP220TC, SP285TC,

SP300HYD

300 Min. 167mm

Min. 6 9/16”

SP550TC HYD 386 Min. 213mm

Min. 8 3/8”

Use the table for selection of position and adjustment of the cut-out tool. Adjustment-screw at Ø125mm tunnel

Adjustment-screw at Ø386mm tunnel

Sleipner Motor A/S Sleipner Motor A/S

- Insert the cut-out tool through both ø12mm holes.

- Start the grinder and mark the cutting path by frimly rotating

the cut-out tool. Be careful to avoid flexing the rod.

Use eye- and earprotection. Cut out the hole for the tunnel.

NB! Leave 3 small spots to maintain the bearing until you have

cut out the hole on the oposite side of the boat.

Tunnel Cut-out tool adjusted for 300mm tunnel diameter

Sleipner Motor A/S Sleipner Motor A/S

- Insert the cut-out tool through both ø12mm holes.

- Start the grinder and mark the cutting path by frimly rotating

the cut-out tool. Be careful to avoid flexing the rod.

Use eye- and earprotection. Cut out the hole for the tunnel.

NB! Leave 3 small spots to maintain the bearing until you have

cut out the hole on the oposite side of the boat.

Tunnel Cut-out tool adjusted for 300mm tunnel diameter

Sleipner Motor A/S Sleipner Motor A/S

- Insert the cut-out tool through both ø12mm holes.

- Start the grinder and mark the cutting path by frimly rotating

the cut-out tool. Be careful to avoid flexing the rod.

Use eye- and earprotection. Cut out the hole for the tunnel.

NB! Leave 3 small spots to maintain the bearing until you have

cut out the hole on the oposite side of the boat.

Tunnel Cut-out tool adjusted for 300mm tunnel diameter
