Hitachi SJ300-EL Series Guide de configuration

•Three-phase Input 200V Class

•Three-phase Input 400V Class

NOTE: REFER ALSO TO SJ300 SERIES INSTRUCTION MANUAL NB613X

Hitachi America, Ltd.

After reading this manual,

keep it handy for future reference.

Manual Number:

HAL6114X

February 2005

SJ300-EL Series Inverter for

Elevator Applications

Instruction Manual Supplement

NOTES:

Table of Contents

1. General Description..................................................................................................5

1.1 Functionality ...............................................................................................................5

1.2 Instruction manual......................................................................................................5

1.3 Functionality ...............................................................................................................5

1.4 Added and modified functions vs. standard SJ300.................................................5

1.5 Deleted functions vs. SJ300 ......................................................................................6

2. Explanation of Functions .........................................................................................9

2.1 S-curve acceleration and deceleration for elevator (EL S-curve)...........................9

2.2 Multi-speed and acceleration/deceleration time ....................................................10

2.3 Multi-Speed Gain adjustment...................................................................................13

2.4 Torque bias................................................................................................................15

2.5 Battery backup function...........................................................................................16

2.6 Control mode changeover in case of emergency..................................................19

2.7 Braking control function...........................................................................................19

2.8 Encoder Errors..........................................................................................................21

2.9 Frequency Conversion Function.............................................................................22

2.10 Encoder Phase Configuration..................................................................................23

2.11 Auto-tuning with Elevator Cable Connected to Motor Shaft.................................23

3. Parameter Setting Tables .......................................................................................25

4. Adjustment...............................................................................................................33

4.1 Frequency Source Setting........................................................................................33

4.2 Setting and Adjustment of Motor Constants ..........................................................34

4.3 Adjustment of Speed Response..............................................................................36

4.4 Adjustment of Inertia ................................................................................................37

4.5 Adjustment of Ride Quality, Brake Timing and Acceleration Time.......................38

Appendix A – Auto-tuning Procedure..............................................................41

Appendix B – Jerk Rate Calculator Program............................................................49

Index.............................................................................................................................51

NOTES:

Chapter 1 – General Description

1. General Description

1.1 Functionality

Please be sure to take into account all applicable standards and regulations before applying the

SJ300EL inverter to an elevator system.

1.2 Instruction manual

This supplementary manual for the SJ300EL Elevator AC Inverter is to be used in conjunction with the

SJ300 general purpose inverter manual. Information shown in this manual takes precedence over the

manuals of the SJ300 inverter (and the SJ-FB option card manual, if used), where there are differences.

1.3 Functionality

Differences of functions versus the general purpose SJ300 inverter are shown in the following table. The

settings can be viewed or modified by the standard digital operator or the optional copy unit (SRW-0EX).

Multi-language display however is not supported with the SJ300EL and the SRW-0EX.

1.4 Added and modified functions vs. standard SJ300

# Function name Contents Remark

1 Characteristics of

S-curve acceleration &

deceleration for elevators

Characteristics of each curve portion and linear portion

can be adjusted separately.

2 Acceleration/

deceleration time setting

of multi-stage speed

Acceleration/deceleration time can be set for each

multistage speed (0-7) independently.

3 Gain adjustment

(P-gain, I-gain) P-gain and I-gain can be adjusted for each of up to 8

(eight) preset frequencies.

4 Torque bias gain

adjustment Torque bias setting input can be given via voltage input

or torque bias input.

5 Battery backup function Emergency drive (low speed) can be done by an

external battery in case of main power failure. Note1

6 Control mode

changeover in case of emergency Changes the control mode to V/Hz (V/f) or SLV in case

vector control cannot function due to an encoder failure.

7 Brake control function Brake ON frequency and brake OFF frequency can be

set separately. Brake

ON and OFF wait time can be set

Separately. Additionally, delay time at brake OFF can be

set. Delay time can be set at brake OFF.

8 Encoder Errors If the signal from the encoder doesn’t correspond to the

inverter output for any reason, then the inverter displays

a trip event.

Note 1) Please contact Hitachi with the following information if the battery back-up function is needed.

-Specification of the control power supply

-Specification of the battery power supply

Chapter 1 – General Description

1.5 Deleted functions vs. standard SJ300

# Function name Contents Remark

1 2nd and 3rd motor functions A203/A303 Base frequency,2nd and 3rd motor

A204/A304 Maximum frequency, 2nd and 3rd

motor

A220/A320 Multi-speed 0, 2nd and 3rd motor

A242/A342 Manual torque boost, 2nd and 3rd

motor

A243/A343 Manual torque boost point, 2nd and

rd motor

A344 3rd control

A292/A392 Acceleration time2, 2nd and 3rd

motor

A293/A393 Deceleration time2, 2nd and 3rd

motor

A294 2nd stage adjustable selection(2nd motor)

A295 2nd acceleration frequency(2nd motor)

A296 2nd deceleration frequency (2nd motor)

b212/b312 Electronic thermal level, 2nd and 3rd

b213/b313 2nd and 3rd electronic thermal

characteristicselection

H202 2nd motor constant selection

H203 2nd allowable motor selection

H204 2nd motor pole selection

H205 2nd speed response setting

H206/H306 2nd and 3rd stabilized factor

H220 2nd motor constant R1

H221 2nd motor constant R2

H222 2nd motor constant L

H223 2nd motor constant I0

H224 2nd motor constant J

H230 2nd motor constant R1(Autotuning data)

H231 2nd motor constant R2(Autotuning data)

H232 2nd motor constant L(Autotuning data)

H233 2nd motor constant I0(Autotuning data)

H234 2nd motor constant J(Autotuning data)

H250 2nd PI-control proportion gain setting

H251 2nd PI-control integration gain setting

H252 2nd P-control proportion gain setting

H260 2nd 0Hz-SLV limiter setting

Intelligent input terminal: 08(SET), 17(SET3)

2 Free setting V/f function b100-b113 Free V/f setting function

3 Auto-torque boost

function

A041/A241 Torque boost selection, 1st and 2nd

4 Multi-speed 8 - 15 A028-A035 Multi-speed 8 - 15

Intelligent input terminal: 05 (CF4)

Chapter 1 – General Description

# Function name Contents Remark

5 Jogging operation A038 Jogging frequency

A039 Jogging selection

Intelligent input terminal: 06(JG)

6 energy-saving operation

mode A085 Operation mode selection

A086 Energy-saving response-accuracy

adjustment

7 PID function A071-A076 PID function

C044 PID deviation setting level

Intelligent input terminal: 23(PID), 24(PIDC)

Intelligent output terminal: 04(OD)

8 Up/Down Function,

Up/Down Memory Mode

Selection

C101 UP/DWN selection

Intelligent input terminal: 27(UP), 28(DWN),

29(UDC)

9 Country code for

initialization b085 Country code for initialization

10 Rotational direction

restriction b035 Operation direction restrict

11 Controlled deceleration

and stop at power loss b050 - b054 Stopping of deceleration at power

OFF

12 Restart mode after RESET C103 Restart mode after RESET Only 0Hz start is

available for C103

13 User Selectable Functions,

Function Code Display

Restriction

b037, U001 to U012

Chapter 1 – General Description

NOTES:

Chapter 2 – Explanation of Functions

2. Explanation of Functions

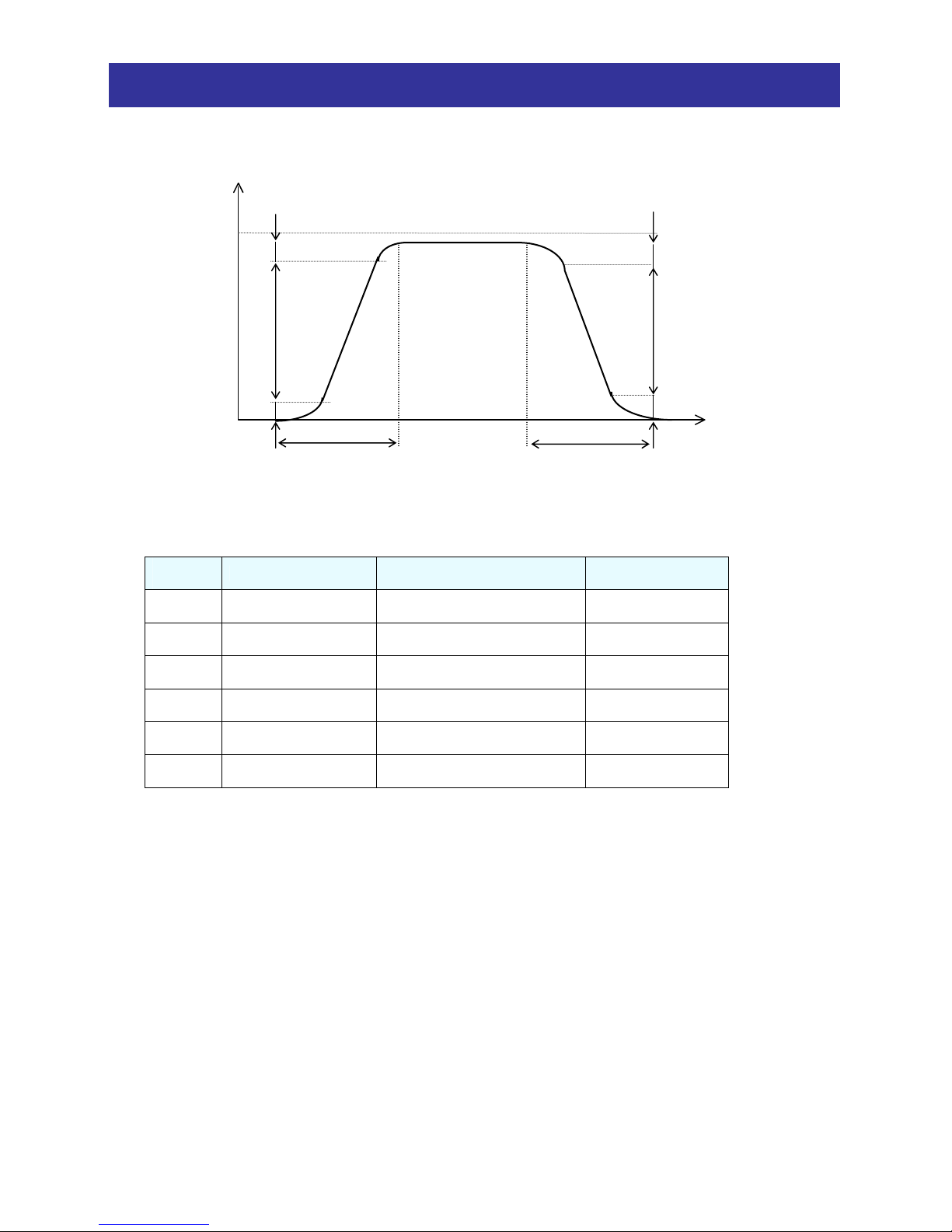

2.1 S-curve acceleration and deceleration for elevator (EL S-curve)

Output

Frequency

(A)

(B)

(C)

(D)

Dec. time

(F003)

Acc.time

(F002) time

f-max

Shape of curve portions (A) to (D) above can be adjusted separately, as shown in the following table.

Setting value is a % of target frequency.

Function

Code Function Name Setting Range Remarks

A097 Acceleration pattern

selection Select “04”

A098 Deceleration pattern

selection Select “04”

P060 Curve ratio 1 during

acceleration 0. – 50 (%) Portion (B)

P061 Curve ratio 2 during

acceleration 0. – 50 (%) Portion (A)

P062 Curve ratio 1 during

deceleration 0. – 50 (%) Portion (C)

P063 Curve ratio 2 during

deceleration 0. – 50 (%) Portion (D)

(Note 1) A linear characteristic will result (A097 = A098=00) if 0% is set for the curve ratio.

(Note 2) A linear characteristic will result if the change of the target speed is less than or equal

to 10% of the maximum frequency.

(Note 3) All of the curve constants are ignored if “04” is selected in A097 and A098. Refer to the

manual for standard S-curve acceleration & deceleration description.

(Note 4) The S-curve will be recalculated if the target speed is changed while accelerating or

decelerating. Therefore do not use analog signals for the target speed.

(Note 5) Curve ratio for acceleration/deceleration must be in the range of 10% up to 50%.

Chapter 2 – Explanation of Functions

2.2 Multi-speed and acceleration/deceleration time

Different acceleration and deceleration times can be set for each multistage speed. The acceleration

time is the one used between the current speed and target speed during acceleration. The deceleration

time is the one used between the current speed and creep speed (speed-7), or between the current

speed and the target speed during deceleration. Therefore use the deceleration time of A027 for creep

speed at stopping. Furthermore, inverter decelerates with the deceleration time that is set on that

multistage speed when the RUN command is removed.

Related parameters are shown in following table.

< Additional setting items>

Function Code Function Name Setting range

A020 Multi-speed 0
