HITACHI INVERTER

SERVICE MANUAL

(ADJUSTMENT AND MAINTENANCE)

Model:

European Version

L100-002NFE to L100-022NFE

L100-004HFE to L100-075HFE

US Version

L100-002NFU to L100-022NFU

L100-004HFU to L100-075HFU

L100-037LFU

L100-002MFU to L100-007MFU

Japanese Version

L100-002LFR to L100-037LFR

L100-004HFR to L100-075HFR

L100-002MFR to L100-007MFR

After reading this manual, keep it at hand for future reference

NBS541X

Hitachi, Ltd.

Tokyo Japan

L100 SERIES

INDEX

1. Pre-operation Check

1-1. Check inverter model and Manufacturing number

1-2. Check inverter parameter and motor specification

2. Measurement of The Internal Voltage Supply

3. Trouble Shoot

3-1. Error messages - Possible Cause and Remedy

3-2. Analysis of Various Operating Problems That Do Not Trigger an Trip Message

3-3. How to Initialize the Data (FACTORY SETTING)

3-4. Error Message Comparison

3-5. Other Displays

4. Ambient Condition of the Frequency Inverter (Temperature, Altitude)

4-1. Required Derating in case of 50deg., 55 deg. of Ambient Temperature

4-2. Required derating toward altitude

5. Level of Each Detection

5-1. DC Bus Voltage Detection Characteristics

5.2. Output Current Detection Characteristics

5.3. Motor Temperature Detection (PTC)

5.4. Over Temperature Detection of the Frequency Inverter

6. Measurement & Replacement of Subassemblies

6-1. Insulation Measurement

6-2. Power Components Measurements

7. Maintenance and Inspection Procedure

7-1. Precautions

7-2. Measurement of Mains Voltage, Current and Power

7-3. Maintenance of Parts

7-4. If you install replacement INV at site

8. Daily Inspection and Periodical Inspection

9. Image block diagram

10. Spare parts list

10-1.

parts list

10-2. I/O board compatibility

10-3. O,OI terminal adjustment procedure

10-4. kW setup procedure

10-5. I/O board schematic(circuit diagram)

1-1

1-2

2-1

3-1

3-6

3-7

3-8

3-9

4-1

4-4

5-1

5-3

5-4

6-1

7-1

7-4

8-1

9-1

10-1

10-16

10-17

10-18

10-19

-ⅰ-

Revisions

Revisionhistorytable

No. Revision contents Date of issue Manual No.

-ⅰⅰ-

1. Pre-Operation Check

Before starting adjustment and maintenance, be sure to check the following specifications of the inverter

and the motor.

1.1 Check Inverter model and Manufacturing number (MFG No).

NE16452-6

MADE IN JAPAN

Hitachi, Ltd.

HITACHI

Model : L100-015NFE

HP/kW : 2 / 1.5

ut/Entree: 16.0 A1Ph200-240V50

60Hz 9.3 A3Ph200-240V50

60Hz

Out

ut/Sortie: 1-360Hz 7.1 A3Ph200-240V

MFG No. 78H T1129670060 Date: 9708

You can find these information from the specification label which attached at the side cover of the unit.

(1) Description of the model name.

(2) Description of MFG No.

Inverter model

MFG No.

T112967 0060H87 Unique number

Production code

Revision of the inverter

Production Month

(1 - 9, 0:October, J:November, K:December)

Production year

(The unit digit of the year of grace. 7:1997, 8:1998, 9:1999, 0:2000)

1-1

EF015 HL100 Version number

E: European version

U: US version

R: Japanese versionSeries name Structure type

F: With operator

Input voltage class

005

004

: 7.5kW

: 5.5kW

: 4.0kW

: 3.7kW

: 3.0kW

: 2.2kW

: 1.5kW

: 1.1kW

: 0.75kW

: 0.55kW

: 0.4kW

: 0.2kW002

Applicable motor kW

L: 3 phase 200V class

N: Single/3 phase 200V class

H: 3 phase 400V class

075

055

040

037

030

022

015

011

007

M: Single phase 100V class

1.2 Check Inverter parameter and motor specification.

[1] Inverter specifications.

(1) Inverter specifications (Monitor mode)

Display Function name Category Screen display Initial Remarks

order Code display EU US JPN

1 Output frequency monitor Monitor d01 - - -

2 Output current monitor Monitor d02 - - -

3 Running direction monitor Monitor d03 - - -

4 Feedback data of PID

control monitor Monitor d04 - - -

5 Intelligent input terminal

condition monitor Monitor d05 - - -

6 Intelligent output terminal

condition monitor Monitor d06 - - -

7 Output frequency

converted value monitor Monitor d07 - - -

8 Trip monitor Monitor d08 - - -

9 Trip history monitor Monitor d09 - - -

(2) Inverter specifications (Basic function mode)

Display Function name Category Screen display Initial Remarks

order Code display EU US JPN

1 Output frequency setting set F01 0.0 0.0 0.0

2 Acceleration time 1 set F02 10 10 10

3 Deceleration time 1 set F03 10 10 10

4 Running direction setting set F04 00 00 00

5 Extended function

A group setting set A--

6 Extended function

B group setting set B--

7 Extended function

C group setting set C--

1-2

(3) Inverter specifications (Extended function mode : A group)

Display Function name Category Screen display Initial Remarks

order Code display EU US JPN

1 Frequency destination set A01 01 01 00

2 Running command

destination set A02 01 01 02

3 Base frequency set A03 50 60 60

4 Maximum frequency set A04 50 60 60

5 External frequency setting

start set A11 000

6 External frequency setting

end set A12 000

7 External frequency setting

start rate set A13 000

8 External frequency setting

end rate set A14 100 100 100

9 External frequency start

pattern set A15 01 01 01

10 Time constant of the filter

of analog input set A16 888

11 Multi-speed 1 to 16 set A20 - A35 0 0 Note 1

12 Jogging frequency set A38 1.0 1.0 1.0

13 Stop mode of jogging set A39 00 00 00

14 Torque boost mode set A41 00 00 00

15 Level of

manual torque boost set A42 11 11 11

16 Manual torque boost

frequency set A43 10.0 10.0 10.0

17 V/f characteristics set A44 00 00 00

18 V-gain set A45 100 100 100

19 Selection of DC braking set A51 00 00 00

20 DC braking frequency set A52 0.5 0.5 0.5

21 DC braking waiting time set A53 0.0 0.0 0.0

22 DC braking force set A54 000

23 DC braking time set A55 0.0 0.0 0.0

24 Frequency upper limiter set A61 0.0 0.0 0.0

25 Frequency lower limiter set A62 0.0 0.0 0.0

26 Jump frequency 1-3 set A63, A65, A67 0.0 0.0 0.0

27 Jump frequency width 1-3 set A64, A66, A68 0.5 0.5 0.5

28 Selection of PID control set A71 00 00 00

29 P gain set A72 1.0 1.0 1.0

30 I gain set A73 1.0 1.0 1.0

31 D gain set A74 0.0 0.0 0.0

32 Scale conversion of

PID control set A75 1.0 1.0 1.0

33 Feedback destination set A76 00 00 00

34 Selection of AVR function set A81 02 02 02

35 AVR voltage set A82 230/400 230/460 200/400

36 Second acceleration time set A92 15.0 15.0 15.0

37 Second deceleration time set A93 15.0 15.0 15.0

38 Method to use 2nd

acceleration / deceleration

(Acc2 / Dec2)

set A94 00 00 00

39 Acc1 to Acc2 changing

frequency set A95 0.0 0.0 0.0

40 Dec1 to Dec2 changing

frequency set A96 0.0 0.0 0.0

41 Acceleration characteristic set A97 00 00 00

42 Deceleration characteristic set A98 00 00 00

Note 1 A20;0, A21;5, A22;10, A23;15,A24;20, A25;30, A26;40, A27;50, A28; 60,A29--A35;0

1-3

(4) Inverter specifications (Extended function mode : B group)

Display Function name Category Screen display Initial Remarks

order Code display EU US JPN

1 Selection of restart mode set b01 00 00 00

2 Allowable UV time set b02 1.0 1.0 1.0

3 Retry waiting time set b03 1.0 1.0 1.0

5 Electronic thermal level set b12 note note note Rated current of

each inverter

6 Electronic thermal

characteristics set b13 01 01 00

7 Overload restriction

operation mode set b21 01 01 01

8 Overload restriction level set b22 note note note Rated current

* 1.25 for each

inverter

9 Deceleration rate while

overload restriction set b23 1.0 1.0 1.0

10 Selection of software lock set b31 01 01 01

11 Reactive current setting set B32 note note Note Rated current

*0.58 for each

inverter

13 Analog meter adjustment set b81 80 80 80

14 Start frequency adjustment set b82 0.5 0.5 0.5

15 Carrier frequency set b83 5 5 12

16 Data initialization or

Trip history clear set b84 00 00 00

17 Initialization mode set b85 01 02 00

18 Frequency converting

value set b86 1.0 1.0 1.0

19 STOP key condition set b87 00 00 00

20 Restart mode after FRS

invalid set b88 00 00 00

21 Monitor contents

for OPE-J set b89 01 01 01

1-4

(5) Inverter specifications (Extended function mode : C group)

Display Function name Category Screen display Initial Remarks

order Code display EU US JPN

1 Input terminal 1 assign set C01 00 00 00

2 Input terminal 2 assign set C02 01 01 01

3 Input terminal 3 assign set C03 02 16 02

4 Input terminal 4 assign set C04 03 13 03

5 Input terminal 5 assign set C05 18 18 18

6 Input terminal 1 condition set C11 00 00 00

7 Input terminal 2 condition set C12 00 00 00

8 Input terminal 3 condition set C13 00 00 00

9 Input terminal 4 condition set C14 00 01 00

10 Input terminal 5 condition set C15 00 00 00

11 Output terminal 11 assign set C21 01 01 01

12 Output terminal 12 assign set C22 00 00 00

13 FM terminal condition set C23 00 00 00

14 Output terminal 11

condition set C31 00 00 00

15 Output terminal 12

condition set C32 00 00 00

16 AL output terminal

condition set C33 01 01 01

17 Level of overload signal set C41 note note note Rated current of

each inverter

18 Arrival frequency

while acceleration set C42 0.0 0.0 0.0

19 Arrival frequency

while deceleration set C43 0.0 0.0 0.0

20 Level of deviation signal

under PID control set C44 3.0 3.0 3.0

1-5

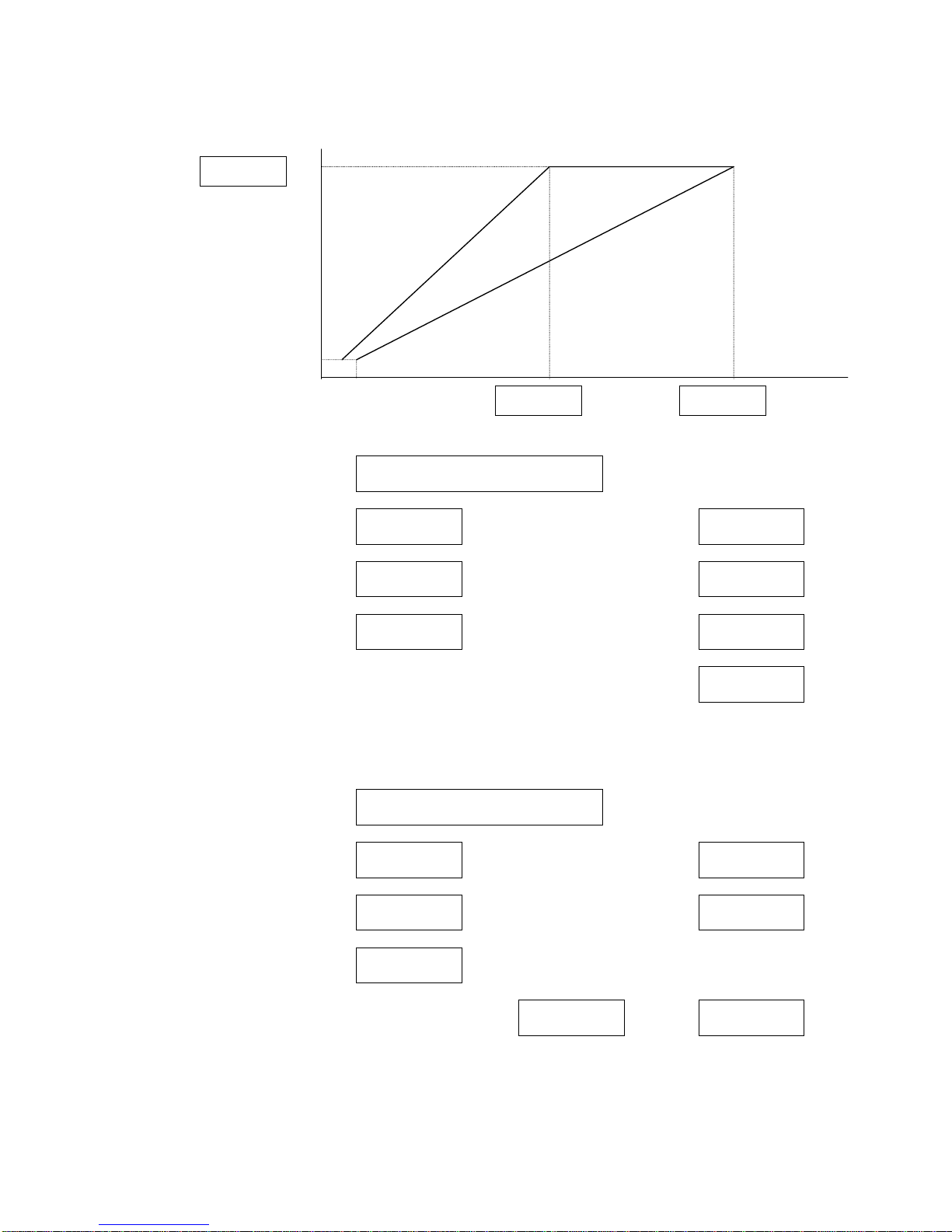

[2] Motor specifications.

[3] Load conditions

Output voltage

Output

frequency

0Hz Hz

Motor MFG number

kWMotor output

pMotor poles

rpmMotor rated rpm

AmpsRated current

VRated voltage

HzRated frequency

AmpsStarting current

Equipment name

Torque characteristics

NmRequired torque

kgm2

Load inertia (J)

secAcceleration time

secDeceleration time

Hz to

Variable speed range

1-6/E

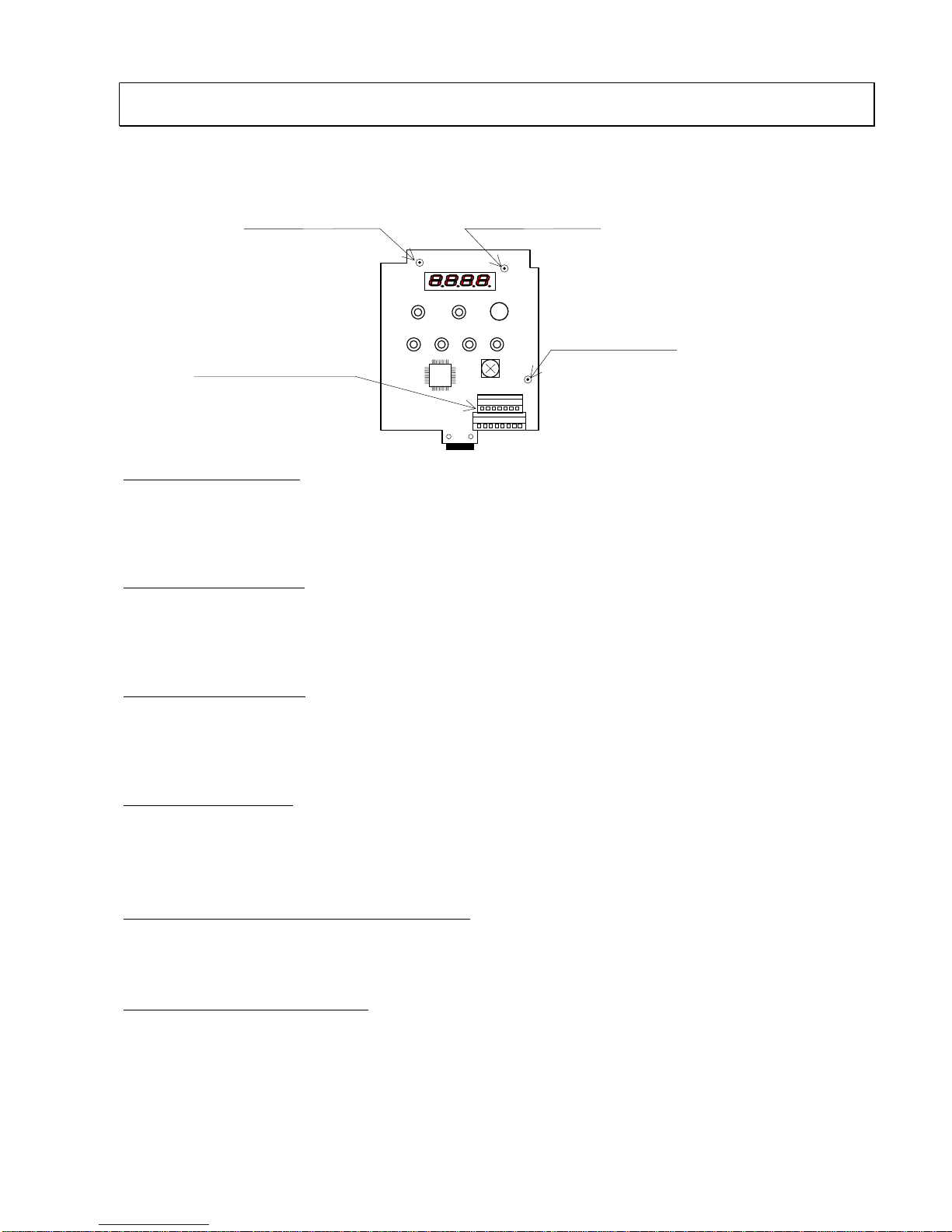

2. Measurement of the Internal Voltage Supply

There are PV5L, PV24L and NV12L internal DC voltage supplies. These supplies are isolated from the

main high voltage portion. And it is not possible to measure DC voltages at the non isolated portion.

Please make measurements for above mentioned voltages for the isolated portion.

PV5L supply voltage

Supplies 5V for I/O board.

Nominal voltage : min. 4.90Vdc to max. 5.20Vdc

Check PV5(address 1C) <- L

PV24L supply voltage

Supplies 24V to interface voltage supply, which is supplied to input terminals.

Nominal voltage : min. 21.60Vdc to max. 26.40Vdc

Check PV24(address 1A) <- L

NV12L supply voltage

Supplies -12Vdc to remote operator (DOP/DRW’s yellow backlight).

Nominal voltage : max. -10.80Vdc to min. -17.5Vdc

Check NV12(address 3A) <- L

“H” terminal voltage

Suppiles 10V to “H” terminal

Nominal voltage : min 9.5Vdc to max 11.5Vdc

Check “H”

<-> “L” with VR (1kohm)

“Potentiometer function on the front case

Set “A01” :”00”

Monitor “F01” display 0 <-> 50(60) with clockwise and anti clockwise.

Cooling FAN voltage (PV24N)

Supplies 24V to cooling FAN .

Nominal voltage min 19.9Vdc to max 27.2Vdc.

Check Red wire <- Black wire with the FAN.

Check the FAN working, check the air direction (from down to top)

Check pad of NV12 Check pad of PV24

Check pad of PV5

1 pin of TM2 is “L”common

2-1/E

Autres manuels pour L100 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hitachi Onduleur

Hitachi

Hitachi L200 Series Manuel utilisateur

Hitachi

Hitachi WJ200-001SF Manuel utilisateur

Hitachi

Hitachi SH1 Series Guide de l'utilisateur

Hitachi

Hitachi L300P Series Manuel utilisateur

Hitachi

Hitachi J100U2 SERIES Manuel utilisateur

Hitachi

Hitachi SJ700-2 Series Manuel utilisateur

Hitachi

Hitachi SJ-LW Manuel utilisateur

Hitachi

Hitachi L100-004 HFE Manuel utilisateur

Hitachi

Hitachi HFC-VWE2 SERIES Manuel utilisateur

Hitachi

Hitachi SJ-DG Manuel utilisateur

Hitachi

Hitachi J300 Series Manuel utilisateur

Hitachi

Hitachi X200 Series Manuel d'instructions

Hitachi

Hitachi L300P Series Manuel utilisateur

Hitachi

Hitachi SJ-DN Manuel utilisateur

Hitachi

Hitachi SJ700 Series Software Manuel utilisateur

Hitachi

Hitachi SJ200 Series Manuel utilisateur

Hitachi

Hitachi L100DN DeviceNet Series Addendum Feuille d'instructions

Hitachi

Hitachi SJ100 Series Manuel utilisateur

Hitachi

Hitachi WJ200 Series Software Manuel utilisateur

Hitachi

Hitachi WJ200 Series Software Manuel utilisateur

Hitachi

Hitachi SJ700-2 Series Manuel utilisateur

Hitachi

Hitachi SJ100DN DeviceNet Series Addendum Manuel utilisateur

Hitachi

Hitachi WJ200 Series Software Manuel utilisateur

Hitachi

Hitachi L200 Series Manuel utilisateur

Manuels Onduleur populaires d'autres marques

Fourgroup

Fourgroup Easy Manuel utilisateur

Velleman

Velleman PI300M Manuel utilisateur

Sungrow

Sungrow SG350HX-US Manuel utilisateur

WilTec

WilTec 61897 Manuel utilisateur

SMA

SMA SUNNY BOY STORAGE 2.5 Manuel utilisateur

Simplicity

Simplicity LANDLORD 316 Manuel utilisateur

Santak

Santak SMAX 3000 Manuel utilisateur

ATON

ATON RA.Store-3 Manuel utilisateur

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuel utilisateur

Tektronix

Tektronix CFG250 Manuel utilisateur

Champion

Champion 200989 Manuel utilisateur

Vanner

Vanner 20-500 Series Manuel utilisateur

GE GEP Manuel utilisateur

Astrel Group

Astrel Group Power Reducer Guide rapide

MULTIQUIP

MULTIQUIP GDP-5H Mode d’emploi

GoWISE

GoWISE PS1007 Manuel utilisateur

Promate

Promate PM13500D ES Manuel utilisateur

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuel utilisateur
