Contents

Safety and warning information...........2

Installing your new appliance...............9

Reversing the door..........................10

Description of the appliance...............14

Display controls................................17

Using your appliance.........................21

Helpful hints and tips.........................24

Cleaning and care..............................25

Troubleshooting...............................26

Disposal of the appliance...................28

Safety and warning information

For your safety and correct usage, before installing and

first using the appliance,read this user manual carefully,

including its hints and warnings.To avoid unnecessary

mistakes and accidents,it is important to make sure that all

people using the appliance are thoroughly familiar with its

operation and safety features. Save these instructions and

be sure that they remain with the appliance if it is moved or

sold,so that anyone using it throughout its life,will be

properly informed on its usage and safety notices.

For the safety of life and property,keep the precautions of

these user's instructions as the manufacturer is not

responsible for damages caused by omission.

Safety for children and others who are vulnerable people

●According to EN standard

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved.Children shall not play with the

appliance.Cleaning and user maintenance shall not be

made by children without supervision.

Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances.

●According to IEC standard

This appliance is not intended for use by persons

(including children) with reduced physical,sensory or

mental capabilities,or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person being

responsible for their safety.

●Children should be supervised to ensure that they do not

play with the appliance.

●Keep all packaging away from children as there is a risk

of suffocation.

●If you are discarding the appliance,pull the plug out of the

socket,cut the connection cable (as close to the appliance

as you can) and remove the door to prevent children

playing from suffering an electric shock or from closing

themselves inside it.

●If this appliance, featuring a magnetic door seals,is to

replace an older appliance having a spring lock (latch) on

the door or lid,be sure to make the spring lock unusable

before you discard the old appliance.This will prevent it

from becoming a death trap for a child.

General safety

●WARNING —This appliance is intended to be used

in household and similar applications such as

-staff kitchen areas in shops,offices and other working

environments;

-farm houses and hotels, motels and other residential type

environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

●WARNING — Do not store explosive substances such as

aerosol cans with a flammable propellant in this appliance.

●WARNING — If the supply cord is damaged,it must be

replaced by the manufacturer,its service agent or similarly

qualified persons in order to avoid a hazard.

●WARNING — Keep ventilation openings,in the appliance

enclosure or in the built-in structure,clear of obstruction.

●WARNING — Do not use mechanical devices or other

means to accelerate the defrosting process,other than

those recommended by the manufacturer.

●WARNING — Do not damage the refrigerant circuit.

●WARNING — Do not use electrical appliances inside the

food storage compartments of the appliance,unless they

are of the type recommended by the manufacturer.

●WARNING — The refrigerant and insulation blowing gas

are flammable. When disposing of the appliance,do so only

at an authorized waste disposal centre.Do not expose to

flame.

●WARNING —When positioning the appliance,ensure the

supply cord is not trapped or damaged.

●WARNING —Do not locate multiple portable socket-

outlets or portable power supplies at the rear of the

appliance.

Replacing the illuminating lamps

●WARNING—The illuminating lamps must not be replaced

by the user! If the illuminating lamps is damaged,contact

the customer helpline for assistance.

This warning is only for refrigerators that contain

illuminating lamps.

Refrigerant

The refrigerant isobutene (R600a) is contained within the

refrigerant circuit of the appliance,a natural gas with a high

level of environmental compatibility,which is nevertheless

flammable.During transportation and installation of the

appliance,ensure that none of the components of the

refrigerant circuit becomes damaged.

The refrigerant (R600a) is flammable.

●WARNING — Refrigerators contain refrigerant and gases

in the insulation.Refrigerant and gases must be disposed

of professionally as they may cause eye injuries or ignition.

Ensure that tubing of the refrigerant circuit is not damage

prior to proper disposal.

The symbol is a warning and indicates the

refrigerant and insulation blowing gas are flammable.

WARNING : Risk of fire / flammable materials

If the refrigerant circuit should be damaged:

-Avoid opening flames and sources of ignition.

-Thoroughly ventilate the room in which the appliance is

situated.

It is dangerous to alter the specifications or modify this

product in any way.

Any damage to the cord may cause a short circuit,fire,

and/or electric shock.

Electrical safety

1.The power cord must not be lengthened.

2. Make sure that the power plug is not crushed or

damaged.

A crushed or damaged power plug may overheat and

cause a fire.

3.Make sure that you can access the main plug of the

appliance.

4. Do not pull the main cable.

5. If the power plug socket is loose, do not insert the power

plug. There is a risk of electric shock or fire.

6.You must not operate the appliance without the interior

lighting lamp cover.

7.The fridge is only applied with power supply of single

phase alternating current of 220~240V/50Hz. If fluctuation

of voltage in the district of user is so large that the voltage

exceeds the above scope,for safety sake, be sure to apply

A.C. Automatic voltage regulator of more than 350W to the

fridge.The fridge must employ a special power socket

instead of common one with other electric appliances. Its

plug must match the socket with ground wire.

Daily use

●Do not store flammable gas or liquids in the appliance,

there is a risk of an explosion.

●Do not operate any electrical appliances in the appliance

(e.g. electric ice cream makers,mixers etc.).

●When unplugging always pull the plug from the mains

socket,do not pull on the cable.

●Do not place hot items near the plastic components of

this appliance.

●Do not place food products directly against the air outlet

on the rear wall.

●Store pre-packed frozen food in accordance with the

frozen food manufacture’s instructions.

●The appliances manufactures storage recommendations

should be strictly adhered to.Refer to relevant instructions

for storage.

●Do not place carbonated or fizzy drinks in the freezer

compartment as it creates pressure on the container,which

may cause it to explode,resulting in damage to the

appliance.

●Frozen food can cause frost burns if consumed straight

from the freezer compartment.

●Do not place the appliance in direct sunlight.

●Keep burning candles,lamps and other items with naked

flames away from the appliance so that do not set the

appliance on fire.

●The appliance is intended for keeping food stuff and/or

beverages in normal household as explained in this

instruction booklet.You should take care when move it as

the appliance is heavy.

●Do not remove or touch items from the freezer

compartment if your hands are damp/wet, as this could

cause skin abrasions or frost/freezer burns.

●Never use the base,drawers,doors etc. to stand on or as

supports.

●Frozen food must not be refrozen once it has been

thawed out.

●Do not consume ice popsicles or ice cubes straight from

the freezer as this can cause freezer burn to the mouth and

lips.

●To avoid items falling and causing injury or damage to the

appliance,do not overload the door racks or put too much

food in the crisper drawers.

caution!

Care and cleaning

●Before maintenance,switch off the appliance and

disconnect the mains plug from the mains socket.

●Do not clean the appliance with metal objects,steam

cleaner,ethereal oils,organic solvents or abrasive

cleansers.

●Do not use a sharp objects instead of a plastic scraper

to remove frost from the appliance.

Installation Important!

●For electrical connection carefully, follow the instructions

given in this manual.Unpack the appliance and check if

there are damages on it.

●Do not connect the appliance if it is damaged. Report

possible damages immediately to the place you bought

it.In this case retain packing.

●It is advisable to wait at least four hours before

connecting the appliance to allow the oil to flow back in the

compressor.

●Adequate air circulation should be around the appliance,

lacking this leads to overheating. To achieve sufficient

ventilation, follow the instructions relevant to installation.

●Wherever possible the back of the product should not be

too close to a wall to avoid touching or catching warm parts

(compressor, ) to prevent the risk of a fire, follow

the instructions relevant to installation.

●The appliance must not be locate close to radiators or

cookers.

●Make sure that the mains plug is accessible after the

installation of the appliance.

Service

●Any electrical work required to do the servicing of the

appliance should be carried out by qualified electrician or

competent person.

●This product must be serviced by an authorized Service

Center, and only genuine spare parts must be used.

1)If the appliance is Frost Free.

2)If the appliance contains freezer compartment.

condenser

Note:

●This appliance performs well within

the climate class from SN to ST

showed in the table below.It may not

work properly if being left at a

temperature above or below the

indicated range for a long period.

●Stand your appliance in a dry place to

avoid high moisture.

●Keep the appliance out of direct

sunlight, rain or frost. Stand the

appliance away from heat sources such

as stoves,fires or heaters.

Leveling of appliance

●For sufficient leveling and air

circulating in the lower rear section of

the appliance, the bottom feet may

need to be adjusted.You can adjust

them manually by hand or by using a

suitable spanner.

●To allow the doors to self-close, tilt the

top backwards by about 10mm .

Installing your new appliance

Before using the appliance for the first

time, you should be informed of the

following tips.

Ventilation of appliance

In order to improve efficiency of

the cooling system and save

energy, it is necessary to

maintain good ventilation around the

appliance for the dissipation of heat.For

this reason,sufficient clear space should

be available around the refrigerator.

Suggest: It is advisable for there to be

50-70mm of space from the back to the

wall,at least 100mm from its top,at least

100mm from its side to the wall and a

clear space upfront to allow the doors to

open 115°. As shown in follow

diagrams.

Climate class

Ambient temperature

+10°C to +32°C

+16°C to +32°C

+16°C to +38°C

831

717

115

Reversing the door

The side at which the door opens

can be changed, from the right side

(as supplied) to the left side, if the

installation site requires.

Warning! When reversing the door,

the appliance must not be connected

to the mains. Ensure that the plug is

removed from the mains socket.

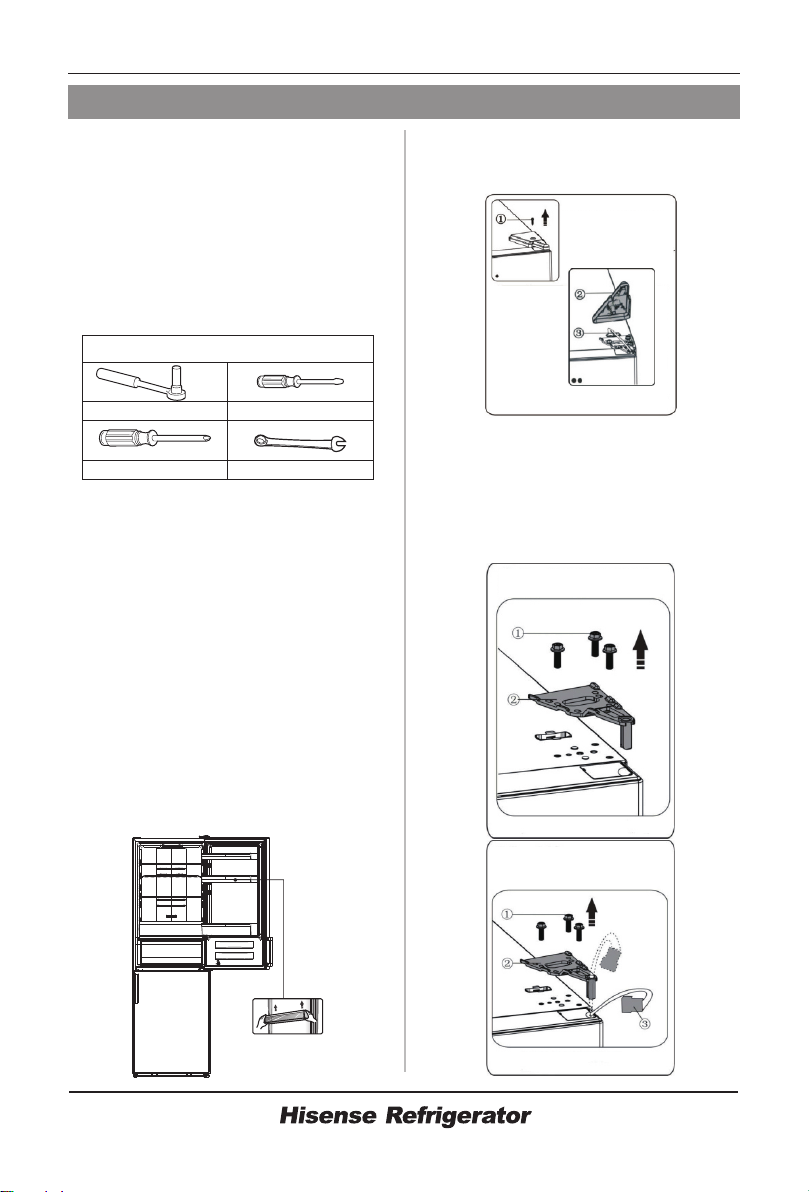

Tools you will need

●When required, tilt the refrigerator

back in order to gain access to the

base, you should rest the appliance

on soft foam packaging or similar

material to avoid damaging the

backboard of the refrigerator. To

reverse the door, the following steps

are generally recommended.

Different models may correspond to

different pictures. Models will be

written in the picture. If some parts

are not shown in the picture, please

ignore the relevant description.

1. Stand the refrigerator upright.

Open the upper door to take out all

door racks (to avoid racks damaged)

and then close the door.

2.Remove part ①,loose part ② from

the top right side of refrigerator.

3.Remove screws ① and hinge

②.When the refrigerator with

display on door, you need to pass

connector ③ through the hole of

hinge②.(Please hold upper door by

hand when installing).

Not provided

8mm socket wrench Thin-blade screwdriver

8mm wrench

Cross-shaped screwdriver

Door racks

MODEL WITHOUT DISPLAY

①screws

Upper hi nge

Special flange

②

MODEL WITH DISPLAY

①screws

Upper hi nge

③ Electrical connector

Special flange

②

MODEL WITHOUT DISPLAY

①screws

Upper hinge co ver

Self-tapping

②

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hisense Congélateur

Hisense

Hisense FCN300AWE1 Instructions de montage

Hisense

Hisense RB395N4WF1 Instructions de montage

Hisense

Hisense HR6CF523 Instructions de montage

Hisense

Hisense FV306N4BC1 Instructions de montage

Hisense

Hisense RB11N6CSE Instructions de montage

Hisense

Hisense FC-13DD4SA1 Manuel utilisateur

Hisense

Hisense RB390N4WCE Instructions de montage

Hisense

Hisense RS-31WC4SAW Instructions de montage

Hisense

Hisense RS677N4AWF Instructions de montage

Hisense

Hisense HBC54D6AS Manuel utilisateur

Hisense

Hisense HR6CF146 Instructions de montage

Hisense

Hisense FD90D6AWD Manuel utilisateur

Hisense

Hisense RB424N4EFC Manuel technique

Hisense

Hisense FV354N4BIE Instructions de montage

Hisense

Hisense HCF07EE8WW00 Instructions de montage

Hisense

Hisense RB435N4WCE Instructions de montage

Hisense

Hisense RQ760N4SBFE Instructions de montage

Hisense

Hisense H130CFS Instructions de montage

Hisense

Hisense HRCF297 Instructions de montage

Hisense

Hisense FUV124D4AW1 Instructions de montage

Hisense

Hisense fc72d6bwe Instructions de montage

Hisense

Hisense RB440N4BCE Instructions de montage

Hisense

Hisense RB390N4WBE Instructions de montage

Hisense

Hisense RB440N4ACA Instructions de montage

Manuels Congélateur populaires d'autres marques

Siemens

Siemens GU..D SERIES Manuel utilisateur

Omcan

Omcan FR-CN-0155 Manuel utilisateur

Beko

Beko FNE290E24W Manuel utilisateur

Electrolux

Electrolux ARCTIS G 8 60 50-6I Manuel utilisateur

Electrolux

Electrolux EUF2042AOX Manuel utilisateur

Dometic

Dometic CoolFreeze CFX95DZ Manuel utilisateur

Electrolux

Electrolux EUF7000W1 Manuel utilisateur

Polar Electro

Polar Electro CT330 Manuel utilisateur

MPM

MPM MPM-145-SK Series Manuel utilisateur

SAF

SAF PRESTOTIG 200AC/DC Guide rapide

Zanussi

Zanussi ZFT11407WA Manuel utilisateur

AEG

AEG A63190GT Manuel utilisateur

AEG

AEG A81000TNW0 Manuel utilisateur

Matsui

Matsui MUC50S15E Manuel utilisateur

NEFF

NEFF G4344X8 Manuel utilisateur

Frigidaire

Frigidaire FV 1246 H Manuel utilisateur

Frigidaire

Frigidaire FFC13K1AW Manuel utilisateur

Electrolux

Electrolux EU 2400C Manuel utilisateur
