HIK VISION UD04829B Manuel utilisateur

TURBO HD TVI

Bullet & Turret & Dome

Camera

User Manual

UD04829B

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the model listed below.

Type

Model

Type I

DS-2CE16D0T-VFIR3F

DS-2CE16C0T-VFIR3F

Type II

DS-2CE56D0T-VFIR3F

DS-2CE56C0T-VFIR3F

Type III

DS-2CE56D0T-VPIR3F

DS-2CE56C0T-VPIR3F

Type IV

DS-2CE56D0T-VFIRF

DS-2CE56C0T-VFIRF

This manual may contain several technically incorrect

places or printing errors, and the content is subject to

change without notice. The updates will be added to the

new version of this manual. We will readily improve or

update the products or procedures described in the

manual.

0100001070320

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against

harmful interference when the equipment is operated in

a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European standards

listed under the EMC Directive 2014/30/EU, the RoHS

Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Warning

This is a class A product. In a domestic environment this

product may cause radio interference in which case the

user may be required to take adequate measures.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”

Warnings: Serious injury or death may occur if any of the

warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of the

nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power adapter

to avoid over-heating or a fire hazard caused by

overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical shock.

Do not touch senor modules with fingers.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Keep the camera away from liquid while in use for non-

water-proof device.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor

conditions, and the application scenarios include road,

warehouse, parking lot, office, campus, etc..

The main features are as follows:

High performance CMOS sensor

1080p/720p resolution

Auto white balance

Auto electronic shutter

Auto gain control (AGC)

Switchable TVI/AHD/CVI/CVBS video output

IR cut filter

3-axis adjustment

Note:

Type IV camera is applicable for indoor condition only.

1.2 Overview

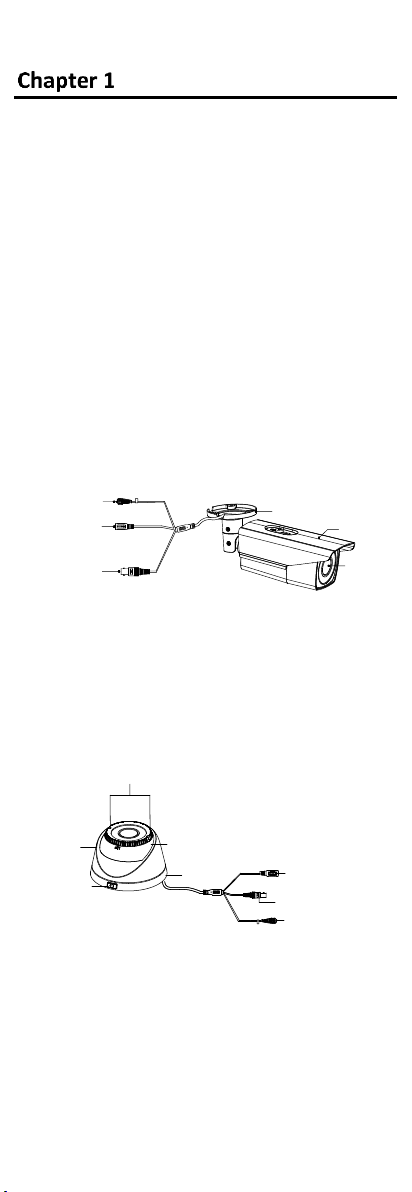

1.2.1 Type I Camera Overview

Video Cable

(TVI)

Power Cord

(12 VDC)

Switch Button Mounting

Bracket

Camera

Lens

Figure 1. 1 Type I Camera Overview

Note:

Press and hold the switch button for 5 seconds to switch

the video output. Four kinds of video outputs are

available: TVI, AHD, CVI, and CVBS.

1.2.2 Type II Camera Overview

Camera

Enclosure

Button

Mounting

Base

Switch Button

Video Cable (TVI)

Power Cord

(12 VDC)

Zoom & Focus

Lever

Figure 1. 2 Type II Camera Overview

Note:

Press and hold the switch button for 5 seconds to switch

the video output. Four kinds of video outputs are

available: TVI, AHD, CVI, and CVBS.

1.2.3 Type III Camera Overview

Black Liner

Bubble

Lens

Back Box

Power Cord

(12 VDC)

Video Cable (TVI)

Switch

Button

Figure 1. 3 Type III Camera Overview

Note:

Press and hold the switch button for 5 seconds to switch

the video output. Four kinds of video outputs are

available: TVI, AHD, CVI, and CVBS.

1.2.4 Type IV Camera Overview

Bubble

Black Liner

Base Plate

Lens Power Cord

(12 VDC)

Video Cable (TVI)

Switch Button

Figure 1. 4 Type IV Camera Overview

Installation

2.1 Installation Preparation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with your

power output to avoid damage.

Make sure the wall is strong enough to withstand three

times the weight of the camera and the mounting

bracket.

If the wall is cement, insert expansion bolts before you

install the camera. If the wall is wooden, use self-

tapping screws to secure the camera.

If the product does not function properly, contact your

dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.2 Installation of Type I Camera

Before you start:

Both wall mounting and ceiling mounting are suitable for

the bullet camera. Ceiling mounting will be taken as an

example in this section. You can take the steps of ceiling

mounting as a reference when adopting wall mounting.

Steps:

1. Paste the drill template (supplied) to the place where

you want to fix the camera.

2. Drill the screw holes and the cable hole in the ceiling

according to the drill template.

Cable

Hole

Screw

Hole

Figure 2. 1 Drill Template

Note:

Cable hole is required when adopting ceiling outlet to

route the cable.

3. Route the cables through the cable hole, or the side

opening.

4. Attach the mounting base to the ceiling and secure

the camera with supplied screws.

Figure 2. 2 Secure the Camera to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall, expansion bolts are required to fix

the camera. For wooden wall, self-tapping screws are

required.

5. Connect the corresponding power cord and video

cable.

6. Power on the camera to check whether the image on

the monitor is gotten from the optimum angle. If not,

adjust the camera according to the figure below to

get an optimum angle.

0°to 90°

0°to 360°

Figure 2. 3 3-Axis Adjustment

1). Loosen the No.1 adjusting screw to adjust the pan

position [0°to 360°].

2). Tighten the No.1 adjusting screw.

3). Loosen the No.2 adjusting screw to adjust the

tilting position [0°to 90°].

4). Tighten the No. 2 adjusting screw.

5). Loosen the No.3 adjusting screw to adjust the

rotation position [0°to 360°].

6). Tighten the No.3 adjusting screw.

2.3 Installation of Type II camera

Before you start:

Both wall mounting and ceiling mounting are suitable for

the turret camera. Ceiling mounting will be taken as an

example in this section. You can take the steps of ceiling

mounting as a reference when adopting wall mounting.

Steps:

1. Paste the drill template (supplied) to the place where

you want to fix the camera.

2. Drill the screw holes according to the drill template

and the cable hole (optional) in the ceiling.

Screw Hole

Cable Hole

Figure 2. 4 Drill Template

Note:

Cable hole is required when adopting ceiling outlet to

route the cable.

3. Press the button to take out the main body.

Press

Figure 2. 5 Disassemble the Camera

4. Fix the mounting base on the ceiling with supplied

screws.

Figure 2. 6 Fix the Mounting Base on the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall, expansion bolts are required to fix

the camera. For wooden wall, self-tapping screws are

required.

5. Route the cables through the cable hole (optional), or

the side opening.

6. Install the main body back to the mounting base.

Figure 2. 7 Secure the Camera with Mounting Base

7. Connect the corresponding cables, such as power

cord, and video cable.

8. Power on the camera to check whether the image on

the monitor is gotten from the optimum angle. If not,

adjust the camera according to the figure below to get

an optimum angle.

Pan Position:

0°to 360°

Tilt Position:

0° to 75°

Rotation Position:

0°to 360°

Figure 2. 8 3-axis Adjustment

1). Hold the camera body and rotate the enclosure to

adjust the pan position [0°to 360°].

2). Move the camera body up and down to adjust the

tilt position [0°to 75°].

3). Rotate the camera body to adjust the rotation

position [0°to 360°].

2.4 Installation of Type III and Type IV Camera

Before you start:

Both wall mounting and ceiling mounting are suitable for

the dome camera. Ceiling mounting will be taken as an

example in this section. You can take the steps of ceiling

mounting as a reference when adopting wall mounting.

Steps:

1. Paste the drill template to the celling.

2. Drill screw holes and the cable hole (optional) on the

ceiling according to the supplied drill template.

Type III Camera

Cable

Hole

Screw

Hole

Type IV Camera

Cable

Hole

Screw

Hole

Figure 2. 9 The Drill Template

Note:

Cable hole is required when adopting ceiling outlet to

Route the cable.

3. Loosen the bubble of the dome camera to remove the

bubble and the black liner.

4. Attach the back box of type III camera/base plate of

type IV camera to the ceiling and secure them with

supplied screws.

Type III Camera

Type IV Camera

Figure 2. 10 Attach the Back Box/Base Plate

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall, expansion bolts are required to fix

the camera. For wooden wall, self-tapping screws are

required.

5. Route the cables through the cable hole (optional), or

the side opening.

6. Align the camera with the back box/base plate, and

secure the camera with the back box/base plate.

Type III Camera

Type IV Camera

Rotate

Figure 2. 11 Fix the Camera to the Ceiling

7. Connect the corresponding cables, such as power

cord, and video cable.

8. Power on the camera to check whether the image on

the monitor is gotten from the optimum angle. If not,

adjust the camera according to the figure below to get

an optimum angle.

Pan Position:

0°to 355°

Rotation Position:

0°to 355°

Tilt Position:

0°to 75°

Type III Camera

Pan Position:

0 °to 355 °

Tilt Position:

0 °to 75 °

Rotation Position:

0 °to 355 °

Type IV Camera

Figure 2. 12 3-axis Adjustment

9. Fit the black liner back to the camera and tighten the

bubble of the dome camera to finish the installation.

Type III Camera

Type IV Camera

Figure 2. 13 Finish the Installation

Table des matières

Autres manuels HIK VISION Caméra de sécurité

HIK VISION

HIK VISION DS-2XS6A25G0-I/CH20S40 Guide de configuration

HIK VISION

HIK VISION TURBO HD U1T Series Manuel utilisateur

HIK VISION

HIK VISION DS-2CC51A7P-VF Manuel utilisateur

HIK VISION

HIK VISION DS-2CE1582N-IR Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2132-I Manuel utilisateur

HIK VISION

HIK VISION DS-2CE71D0T-PIRL Manuel utilisateur

HIK VISION

HIK VISION DS-2CE12D0T-PIRXF Manuel utilisateur

HIK VISION

HIK VISION DSHD21E2 Manuel utilisateur

HIK VISION

HIK VISION UD00543B Manuel utilisateur

HIK VISION

HIK VISION DS-2CD7255F-EIZHS Manuel utilisateur

HIK VISION

HIK VISION DS-2CE16D0T-IRF Manuel utilisateur

HIK VISION

HIK VISION HiWatch Series Guide d'installation et d'utilisation

HIK VISION

HIK VISION DS?2CC5173P?VF Manuel utilisateur

HIK VISION

HIK VISION DS-2CD7126G0-IZS-B Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2012-I Guide de l'utilisateur

HIK VISION

HIK VISION PTZ Ultra Series Manuel utilisateur

HIK VISION

HIK VISION DS-2DE5232W-AE3 Manuel utilisateur

HIK VISION

HIK VISION iDS-2CD8426G0-F-I Manuel utilisateur

HIK VISION

HIK VISION TURBO HD U7T Series Manuel utilisateur

HIK VISION

HIK VISION TURBO HD DS-2CE5AD0T-VPIT3F Manuel utilisateur

HIK VISION

HIK VISION DS-2CV2G46G0-IDW Manuel utilisateur

HIK VISION

HIK VISION EZVIZ Mini Pano Manuel utilisateur

HIK VISION

HIK VISION DS-2CD6D52G0-IHS(2.8mm) Manuel utilisateur

HIK VISION

HIK VISION DS-2CC5181PN-VF Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
