1Introduction

1.1 Product Features

This series of camera adopts high performance sensor

and advanced circuit board design technology. It

features high resolution, low distortion, and low noise,

etc. It is suitable for surveillance system and image

process system.

The main features are as follows:

High performance CMOS sensor and high resolution

bring high-quality image;

Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux

with IR;

IR cut filter with auto switch;

OSD menu, parameters are configurable;

Auto white balance and internal synchronization;

SMART IR mode;

True WDR;

Advanced 3-axis design meets different installation

requirements;

1.2 Overview

This manual applies to two types of turret cameras.

The overviews of each type are shown in the figures below,

please refer to the actual sample.

1.2.1 Overview of Type I Camera

Main Body

Mounting Base

Enclosure

Video Cable

DC 12V

Power Cord

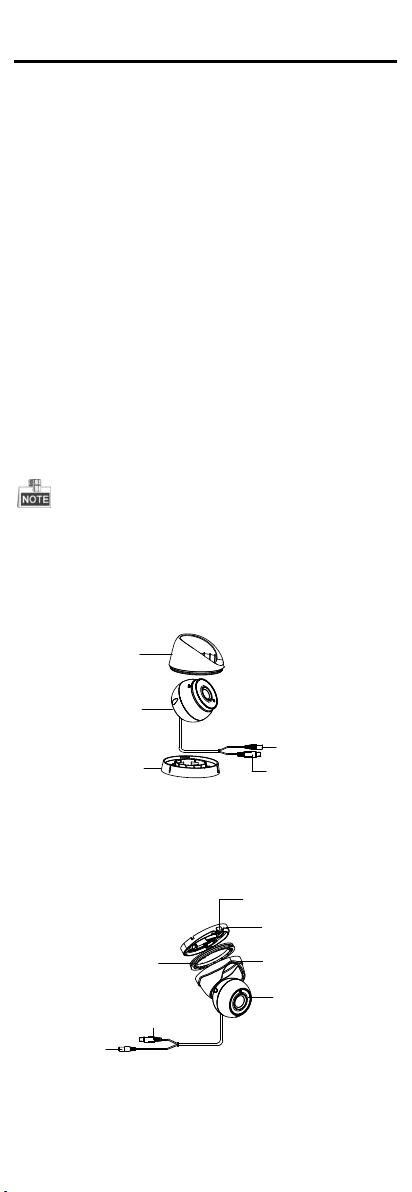

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

Enclosure

Mounting Base

Video Cable

DC 12V

Power Cord

Camera

Trim Ring

Clip Plate

Figure 1-2 Overview of Type II Camera

2Installation

Before you start:

Please make sure that the device in the package is in

good condition and all the assembly parts are

included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your required output to avoid damage.

Please make sure the wall is strong enough to

withstand three times the weight of the camera and

the mounting.

If the wall is the cement wall, you need to insert

expansion screws before you install the camera. If the

wall is the wooden wall, you can use self-tapping

screw to secure the camera.

If the product does not function properly, please

contact your dealer or the nearest service center. Do

not disassemble the camera for repair or

maintenance by yourself.

2.1 Installation of Type I Camera

2.1.1 Ceiling Mounting

Steps:

1. Disassemble the turret camera by rotating the

camera to align the notch to one of the marks, as

shown in Figure 2-1.

Mark

Notch

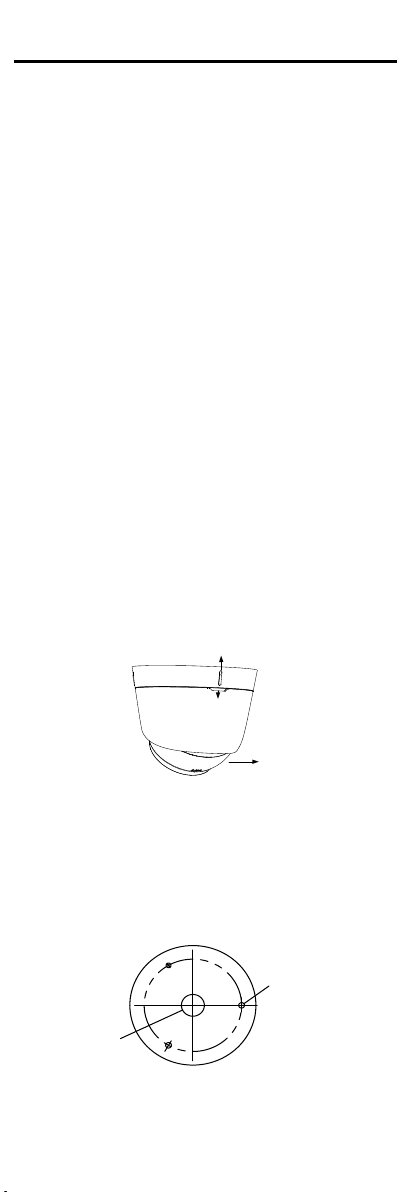

Figure 2-1 Disassemble the Camera

2. Pry the mounting base to remove the mounting

base with the camera body with a flat object, e.g., a

coin.

3. Attach the drill template (supplied) to the place

where you want to fix the camera, and then drill the

screw holes and the cable hole in the ceiling

according to the drill template.

Screw Hole

Cable Hole

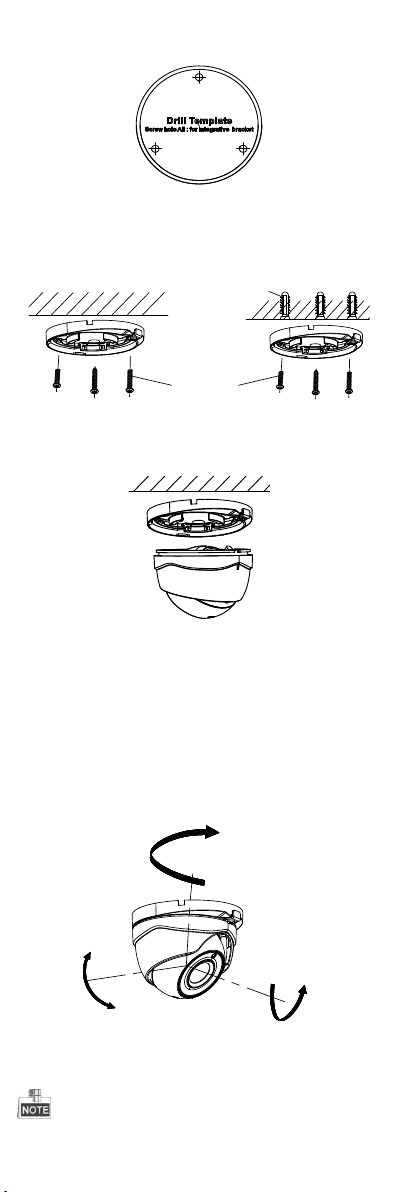

Figure 2-2 Drill Template

4. Fix the mounting base to the ceiling with the screws.

Figure 2-3 Fix the Mounting Base and Camera

5. Route the cables through the cable hole and

connect the video cables and power cord.

6. Secure the camera to the mounting base.

Figure 2-4 Fix the Camera to the Ceiling

7. Adjust the camera according to Figure 2-5 to get an

optimum angle.

1). Hold the camera body and rotate the enclosure

to adjust the pan angle [0° to 360°].

2). Move the camera body up and down to adjust

the tilt angle [0° to 75°].

3). Rotate the camera body to adjust the rotation

angle [0° to 360°].

Tilt Position Range

[0°-75°]

Pan Position Range

[0°-360°]

Rotation Position Range

[0°-360°]

Figure 2-5 3-axis Adjustment

2.2 Installation of Type II Camera

2.2.1 Ceiling Mounting without Gang Box

Steps:

1. Disassemble the turret camera by rotating the

camera to align the notch to the clip plate, as shown

in Figure 2-6.

Notch

Clip Plate

Figure 2-6 Disassemble the Camera

2. Pry the mounting base to remove the mounting

base with the camera body.

3. Attach the drill template (supplied) to the place

where you want to fix the camera, and then drill the

screw holes and the cable hole in the ceiling

according to the drill template.

Figure 2-7 Drill Template

4. Route the cables through the cable hole.

5. Secure the mounting base to the ceiling with the

supplied screws. (You can drill the expansion screws

first or drill the fixing screws directly)

Fixing Screw

Expansion Screw

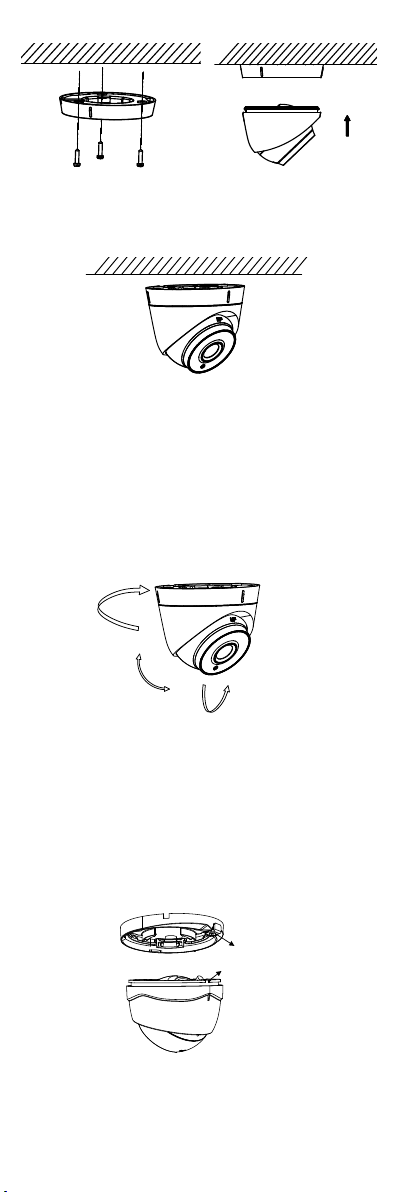

Figure 2-8 Fix the Mounting Base to the Ceiling

6. Route the cables. Connect the power cord and

network cable.

7. Secure the camera to the mounting base.

Figure 2-9 Secure the Camera

8. Adjust the camera according to Figure 2-10 to get an

optimum angle.

1). Hold the camera body and rotate the enclosure

to adjust the pan angle [0° to 360°].

2). Move the camera body up and down to adjust

the tilt angle [0° to 75°].

3). Rotate the camera body to adjust the Loosen

No.3 adjusting azimuth angle [0° to 360°].

Tilt Position Range

[0°-75°]

Pan Position Range

[0°-360°]

Rotation Position Range

[0°-360°]

Figure 2-10 3-axis Adjustment

2.2.2 Ceiling Mounting with Gang Box

You need to purchase a gang box separately if you adopt celling

mounting with gang box.

Steps:

1. Disassemble the gang box from the gang box cover.

2. Attach the drill template (supplied) to the place

where you want to fix the gang box, and then drill

the holes in the ceiling according to the template.

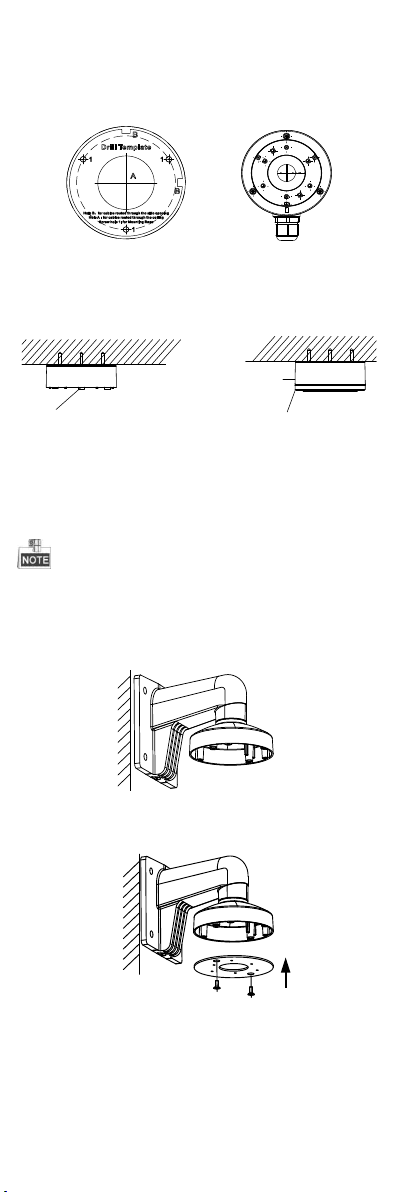

Figure 2-11 Disassemble the Gang Box

3. Fix the gang box body to the ceiling according to the

template with the supplied screws.

4. Fix the gang box cover to the gang box body

Gang Box Body

Gang Box Cover

Figure 2-12 Fix the Gang Box

5. Repeat step 1-8 of 2.2.1 to install the camera to the

gang box.

2.2.3 Wall Mounting with Pendent Cap

You need to purchase a pendent cap separately if you adopt

wall mounting with pendent cap.

Steps:

1. Fix the pendent cap bracket on the wall, as shown in

Figure 2-13.

Figure 2-13 Install the Pendent Cap

2. Fix the adapter to the pendent cap with two screws.

(Optional)

Figure 2-14 Install the Adapter to the Pendent Cap

3. Repeat step 1-8 of 2.2.1 to install the camera to the

pendent cap.

3Menu Description

MAIN MENU

AE WB DAY

&NIGHT

VIDEO

SETTING RESET

SAVE

&EXIT

BRIGHTNESS

EXPOSURE

MODE

GAIN

ATW

MWB

COLOR

B/W

CONTRAST

SHARPNESS

COLOR

GAIN

DNR

MIRROR

SMART

FORMAT

SETUP

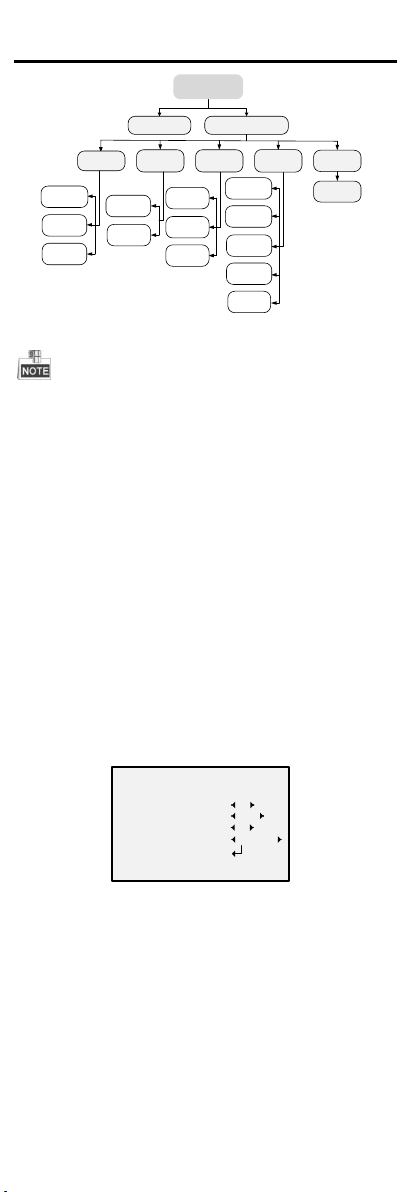

Figure 3-1 Main Menu Overview

With a camera controller (purchased separately) or calling

the preset No. 95 of DVR you can select the menu and

adjust the parameters.

Move the cursor up/down to select the menu item.

Move the cursor left/right to adjust the value of the

selected item.

Press the OK key to confirm a selection.

3.1 Format

Move the cursor to FORMAT, and press the menu

button to enter the FORMAT sub menu. You can set the

format of camera and confirm.

3.2 Main Menu

3.2.2 AE (Auto Exposure)

AE describes the brightness-related parameters. You

can adjust the image brightness by the BRIGHTNESS,

EXPOSURE MODE, and GAIN in different light

conditions.

EXPOSURE

BRIGHTNESS

EXPOSUREMODE

GAIN

RETURN

BLC

MIDDLE

Figure 3-2 AE

BRIGHTNESS

Brightness refers to the brightness of the image. You

can set the brightness value from 1 to 10 to darken or

brighten the image. The higher the value is, the brighter

the image is.

EXPOSURE MODE

You can set AE mode as GLOBAL, BLC, and WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which is

for adjusting the situations including unusual lighting

distribution, variations, non-standard processing, or

other conditions of under exposure to get an optimum

image.

BLC (Backlight Compensation)

BLC (Backlight Compensation) compensate light to the

object in the front to make it clear, but this causes the

over-exposure of the background where the light is

strong.

When BLC is selected as the exposure mode, the BLC

level can be adjusted from 0 to 8.

WDR (Wide Dynamic Range)

The wide dynamic range (WDR) function helps the

camera provide clear images even under back light

circumstances. WDR balances the brightness level of

the whole image and provide clear images with details.

GAIN

It optimizes the clarity of image in poor light scene. The

GAIN level can be set to HIGH, MIDDLE, and LOW.

Select OFF to disable the GAIN function.

The noise will be amplified if the GAIN is on.

3.2.3 WB (White Balance)

White balance is the white rendition function of the

camera to adjust the color temperature according to

the environment. It can remove the unrealistic color

casts in the image. You can set WB mode as ATW, and

MWB.

ATW

In ATW mode, white balance is being adjusted

automatically according to the color temperature of the

scene illumination.

MWB

You can set the R GAIN/B GAIN value from 0 to 255 to

adjust the shades of red/blue color of the image.

MODE

R GAIN

BGAIN

RETURN

MWB

Figure 3-3 MWB Mode

3.2.4 DAY-NIGHT

Color, B/W, and SMART are selectable for DAY and

NIGHT switches.

COLOR

The image is colored in day mode all the time.

B/W

The image is black and white all the time, and the IR

LED turns on in the low-light conditions.

SMART

You can select to turn on/off the INFRARED and set the

value of SMART IR in this menu.

DAY/NIGHT

MODE

INFRARED

SMART IR

RETURN

SMART

OPEN

Figure 3-4 Day & Night

INFRARED

You can select to turn on/off the IR LED to response to

the requirements of different circumstances.

SMART IR

The Smart IR function is used to adjust the light to its

most suitable intensity, and to prevent the image from

over exposure. The SMART IR value can be adjusted

from 0 to 3. The higher the value is, the more obvious

effects are, and it is disabled when the value is 0.

3.2.5 VIDEO SETTING

Move the cursor to VIDEO SETTING and press the

confirm button to enter the submenu. CONTRAST,

SHARPNESS, COLOR GAIN, DNR and MIRROR are

adjustable.

VIDEO SETTING

CONTRAST

SHARPNESS

COLOR GAIN

DNR

MIRROR

RETURN

DEFAULT

Figure 3-5 Video Setting

CONTRAST

This feature enhances the difference in color and light

between parts of an image. You can set the CONTRAST

value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging

system can reproduce. You can set the SHARPNESS

value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturation of the color.

The value ranges from 1 to 10.

DNR (Digital Noise Reduction)

The DNR function can decrease the noise effect,

especially when capturing moving images in low light

conditions and delivering more accurate and sharp

image quality.

You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for mirror.

DEFAULT: The mirror function is disabled.

H: The image flips 180 degree horizontally.

V: The image flips 180 degree vertically.

HV: The image flips 180 degrees both horizontally and

vertically.

3.2.6 RESET

Reset all the settings to the default.

3.2.7 SAVE &EXIT

Move the cursor to SAVE &EXIT and press OK to save

the setting and exit the menu.

Table des matières

Autres manuels HIK VISION Caméra de sécurité

HIK VISION

HIK VISION iDS-2VS435-F840-EY Manuel utilisateur

HIK VISION

HIK VISION DS-2CC11A1P Manuel utilisateur

HIK VISION

HIK VISION DS-2CD7126G0-IZS Manuel de l'opérateur

HIK VISION

HIK VISION DS-2CD2347G1-L Manuel utilisateur

HIK VISION

HIK VISION DS-2XM6825G0/C-IVSM Manuel utilisateur

HIK VISION

HIK VISION DS-2CE16C0T-IT1 Manuel utilisateur

HIK VISION

HIK VISION DS-2XC6745G0-IZHS Manuel utilisateur

HIK VISION

HIK VISION 2T series Manuel utilisateur

HIK VISION

HIK VISION DS-2TD4166T-9 Manuel utilisateur

HIK VISION

HIK VISION TURBO HD DS-2CE56D(F)7T-IT1 Manuel utilisateur

HIK VISION

HIK VISION DS-2CE10DFT-F Manuel utilisateur

HIK VISION

HIK VISION DS-2CD7A26G0/P-IZHSWG Manuel utilisateur

HIK VISION

HIK VISION DS-2CD7353F-EI Manuel utilisateur

HIK VISION

HIK VISION DS-2CD23 Series Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2T85FWD-I5 Manuel utilisateur

HIK VISION

HIK VISION DS-2CD6D24FWD-IZHS Manuel utilisateur

HIK VISION

HIK VISION DS-2CD3D26G2T-IZHSY Manuel utilisateur

HIK VISION

HIK VISION TurboHD DS-2CE38D8T-PIR Manuel utilisateur

HIK VISION

HIK VISION TURBO HD H0T Series Manuel utilisateur

HIK VISION

HIK VISION DS-2DF5220S-DE4/Ww Manuel utilisateur

HIK VISION

HIK VISION iDS-TCM203-A Manuel utilisateur

HIK VISION

HIK VISION DS-2CE16D(F)7T-IT3Z Manuel utilisateur

HIK VISION

HIK VISION EPI-4215-DE3 Manuel utilisateur

HIK VISION

HIK VISION DS-2CD762MF-FBH Series Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
