HIK VISION TURBO HD 5 MP Manuel utilisateur

TURBO HD 5 MP

Bullet & Turret Camera

User Manual

UD03909N

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual may contain technical incorrect places or

printing errors, and the content is subject to change

without notice. The updates will be added to the new

version of this manual. We will readily improve or

update the products or procedures described in the

manual.

0100001061208

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more

information see: www.recyclethis.info.

2006/66/EC (battery directive): This

product contains a battery that cannot be

disposed of as unsorted municipal waste in

the European Union. See the product

documentation for specific battery

information. The battery is marked with

this symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper

recycling, return the battery to your supplier or to a

designated collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the product, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Refer to technical specifications for detailed

information.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 24 V

AC or 12 V DC according to the IEC60950-1 standard.

Refer to technical specifications for detailed

information.

Do not connect several devices to one power adapter

as adapter overload may cause over-heating or a fire

hazard.

Make sure that the plug is firmly connected to the

power socket.

When the product is mounted on wall or ceiling, the

device shall be firmly fixed.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cable, and

then contact the service center.

If the product does not work properly, contact your

dealer or the nearest service center. Never attempt

to disassemble the camera yourself. (We shall not

assume any responsibility for problems caused by

unauthorized repair or maintenance.)

Cautions

Make sure the power supply voltage is correct before

using the camera.

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers. If cleaning

is necessary, use clean cloth with a bit of ethanol and

wipe it gently. If the camera will not be used for an

extended period, replace the lens cap to protect the

sensor from dirt.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

Do not aim the camera at the sun or extra bright

places. Blooming or smearing may occur otherwise

(which is not a malfunction), and affect the

endurance of sensor at the same time.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not place the camera in extremely hot, cold, dusty

or damp locations, and do not expose it to high

electromagnetic radiation.

To avoid heat accumulation, good ventilation is

required for operating environment.

Keep the camera away from liquid while in use.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

1Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor

conditions, and the application scenarios include road,

warehouse, underground parking lot, bar, etc..

The main features are as follows:

High performance CMOS sensor

Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux

with IR

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

internal synchronization

SMART IR mode

3-axis adjustment

1.2 Overview

Note:

The cables of device vary according to different

models. The cables of each type are shown in the

figures below, refer to the actual sample.

You can debug the camera by connecting an

auxiliary HD TVI cable to the auxiliary video output.

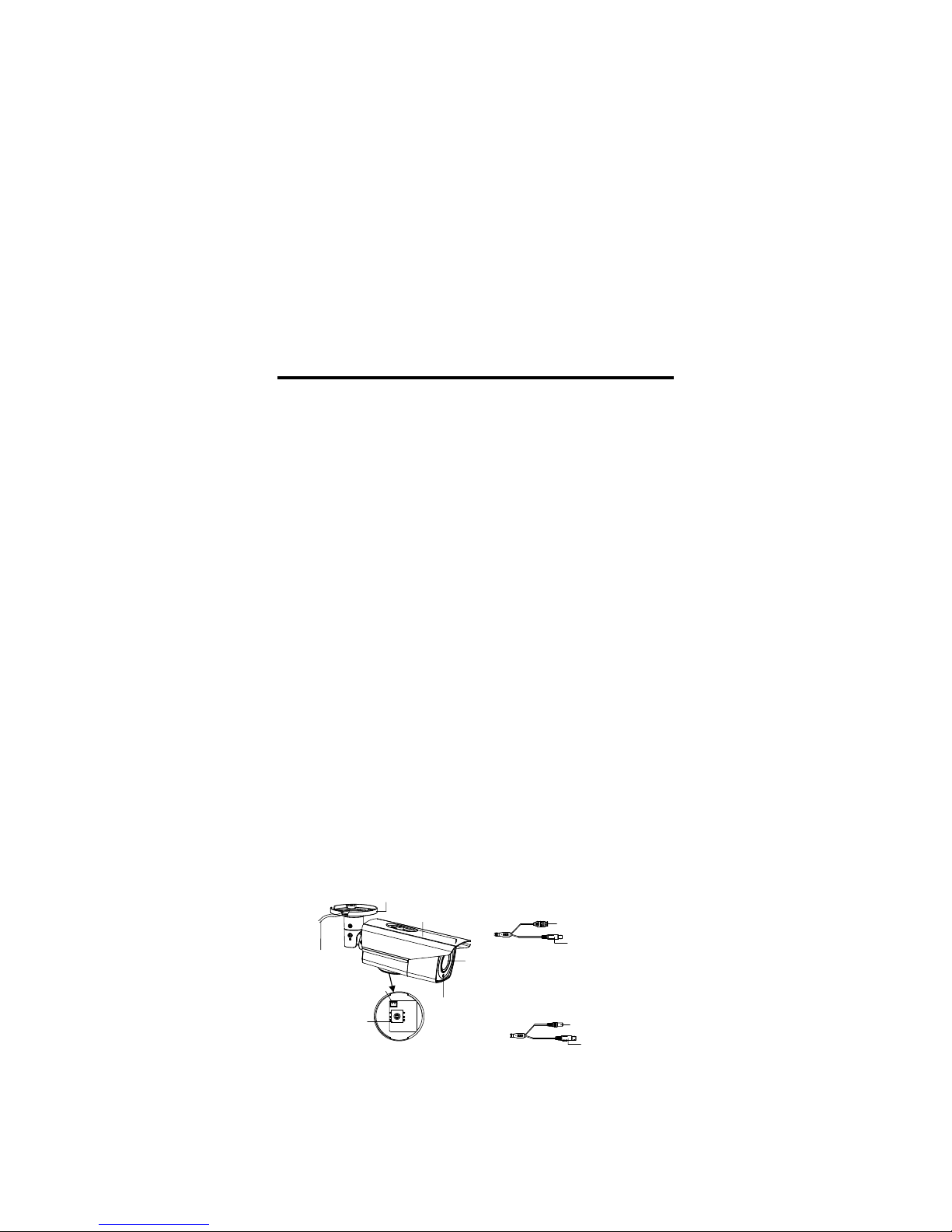

1.2.1 Overview of Type I Camera

Photoresistor

Model I Cables

Video Cable

24 VAC/12 VDC

Power Cord

Video Cable

12 VDC

Power Cord

Model II Cables

Main Body

Lens

Bracket

Cables

Auxiliary Video

Output

Menu Button

Figure 1-1 Overview of Type I Camera

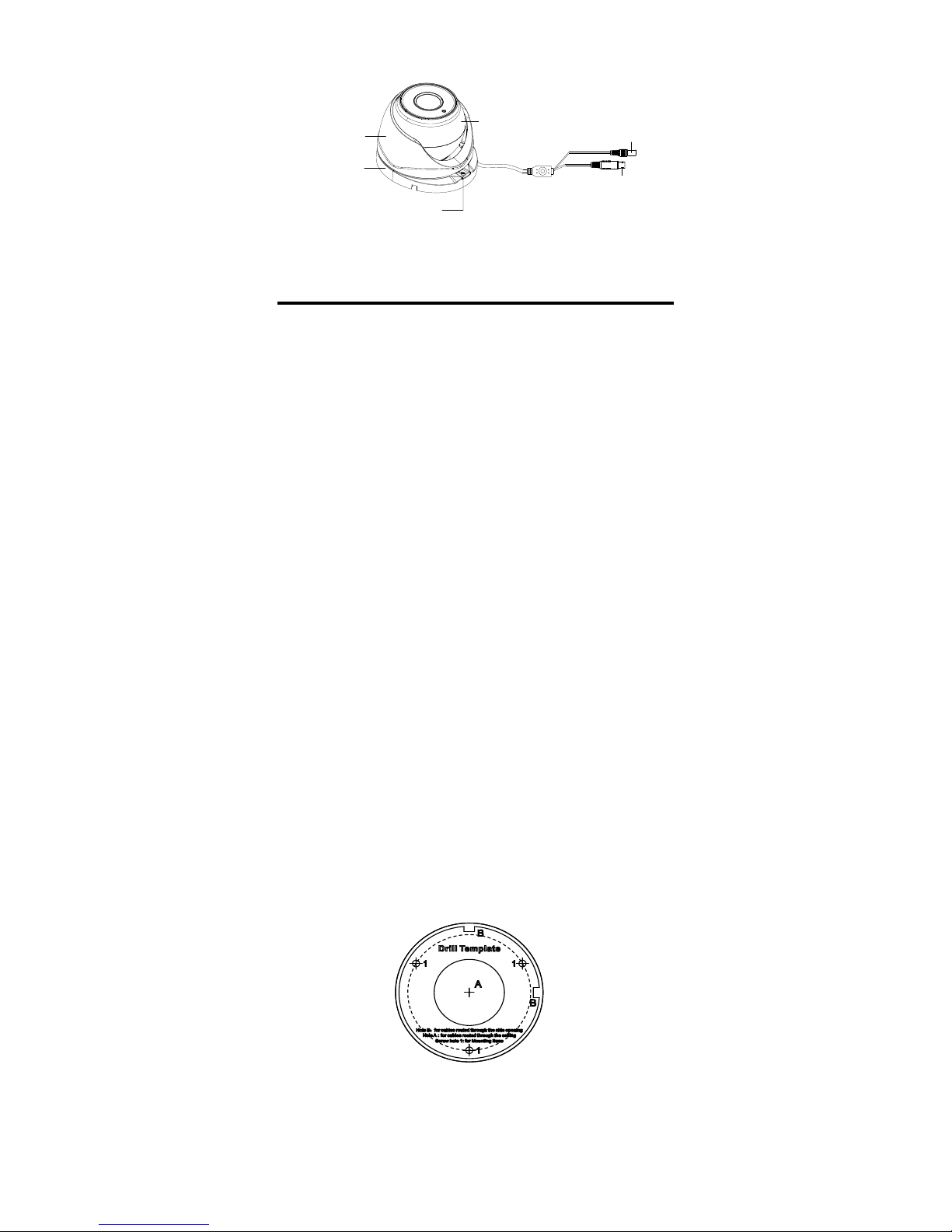

1.2.2 Overview of Type II Camera

Camera

Clip Plate

Enclosure

Video Cable

12 VDC

Power Cord

Mounting

Base

Figure 1-2 Overview of Type II Camera

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your power output to avoid the damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the

bracket.

If the wall is cement, you need to insert expansion

bolts before you install the camera. If the wall is

wooden, you can use self-tapping screws to secure

the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.1 Installation of Type I Camera

2.1.1 Ceiling/Wall Mounting without Junction Box

Steps:

1. Paste the drill template (supplied) to the place

where you want to fix the camera.

2. Drill the screw holes and the cable hole (optional) in

the ceiling/wall according to the drill template.

Note:

Drill the cable hole, when adopting ceiling outlet to

route the cable.

Figure 2-1 Drill Template

3. Route the cables through the cable hole, or the side

opening.

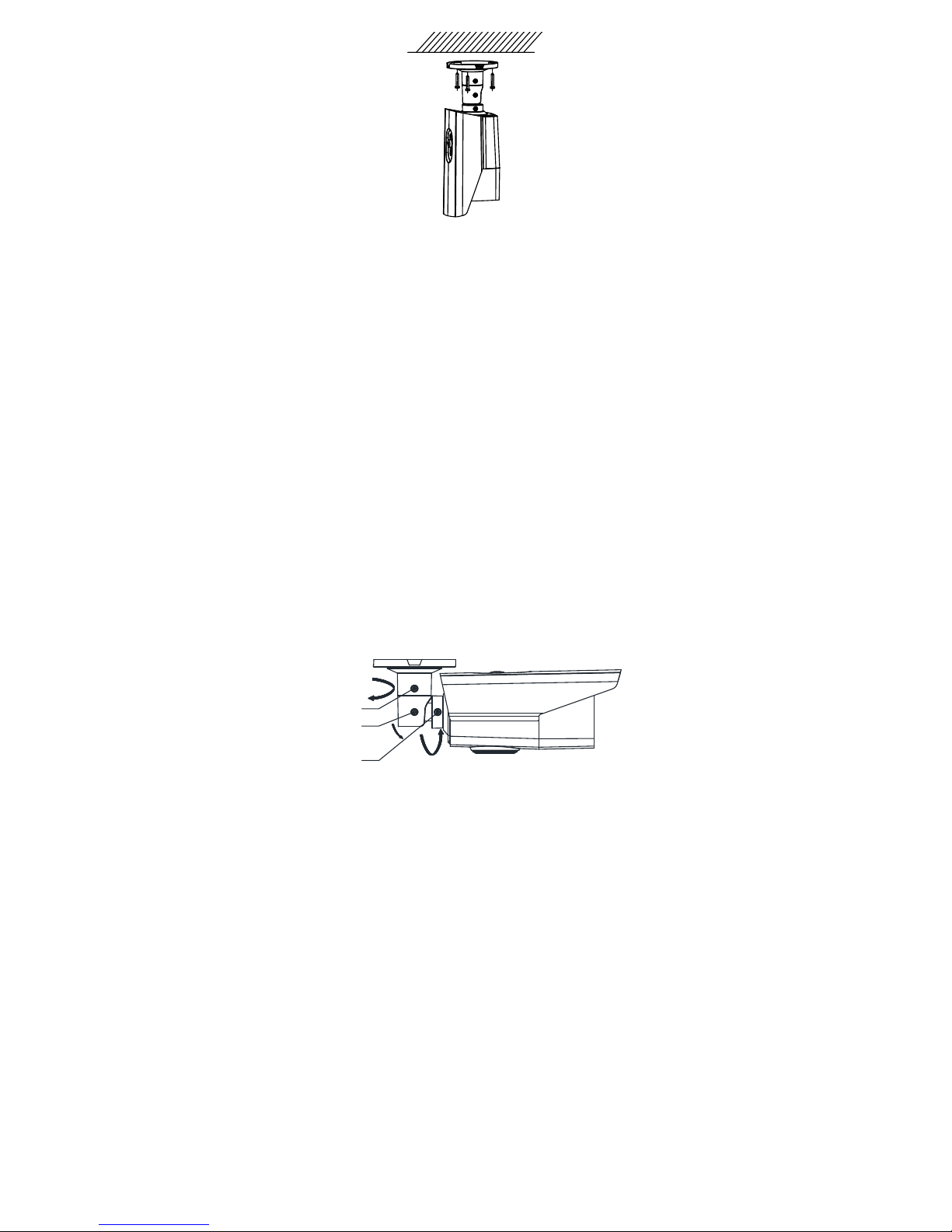

4. Fix the camera to the ceiling/Wall with supplied

screws.

Figure 2-2 Fix the Camera to the Ceiling

Note:

In the supplied screw package, both self-tapping

screws, and expansion blots are contained.

If the ceiling/wall is cement, expansion blots are

required to fix the camera. If the ceiling/wall is

wooden, self-tapping screws are required.

5. Connect the corresponding power cord, and video

cable.

6. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the surveillance angle.

1) Loosen the No.1 adjusting screw to adjust the

pan position [0°to 360°].

2) Tighten the No.1 adjusting screw.

3) Loosen the No.2 adjusting screw to adjust the

tilting position [0°to 90°].

4) Tighten the No. 2 adjusting screw.

5) Loosen the No.3 adjusting screw to adjust the

rotation position [0°to 360°].

6) Tighten the No.3 adjusting screw.

0°to 90°

0°to 360°

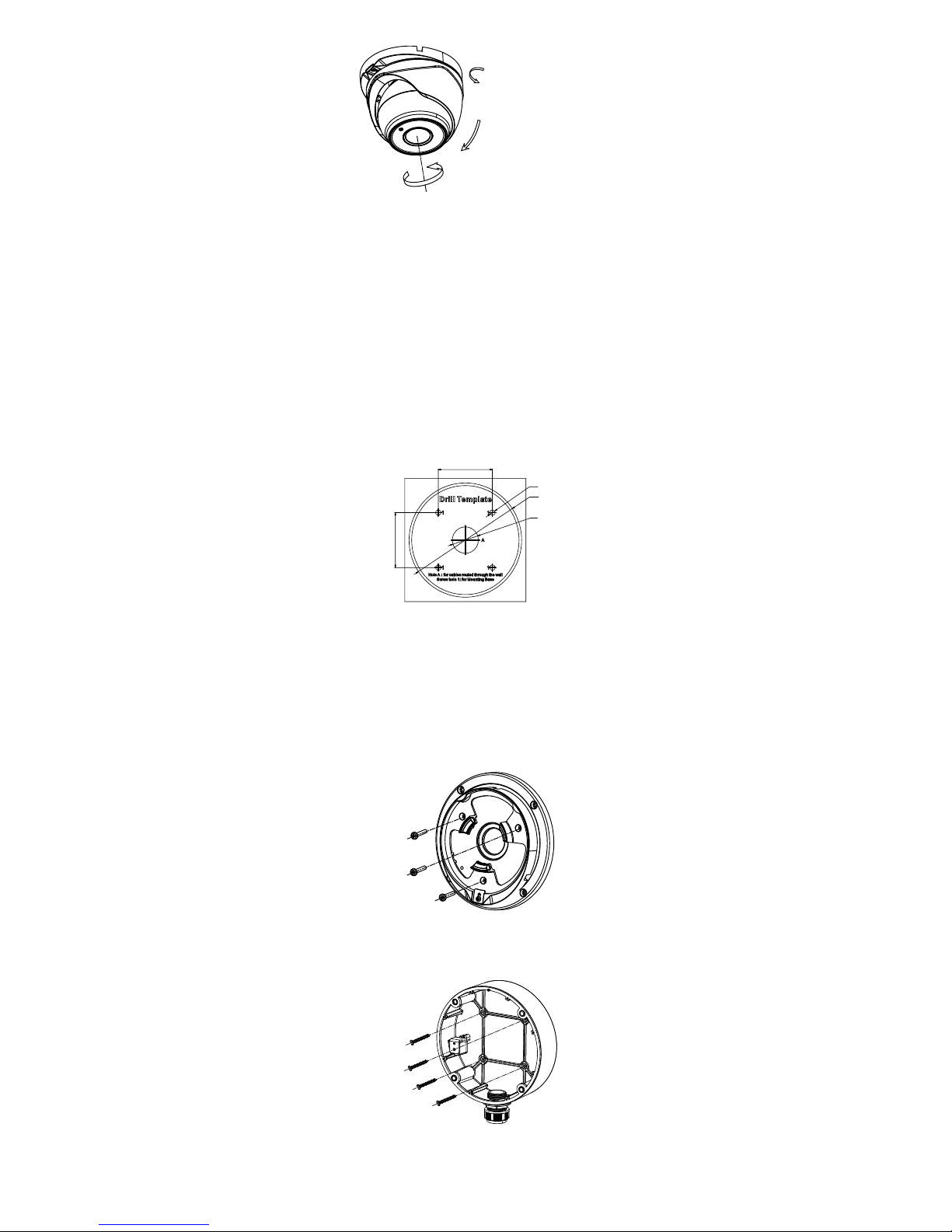

Figure 2-3 3-axis Adjustment

2.1.2 Ceiling/Wall Mounting with Junction Box

Note:

You need to purchase a junction box separately if you

adopt the mounting with a junction box.

Steps:

1. Paste the drill template on the ceiling/wall.

2. Drill screw holes and the cable hole in the

ceiling/wall according to the holes of the drill

template.

3. Take apart the junction box, and align the screw

holes of the bullet camera with those on the

Junction box’ cover.

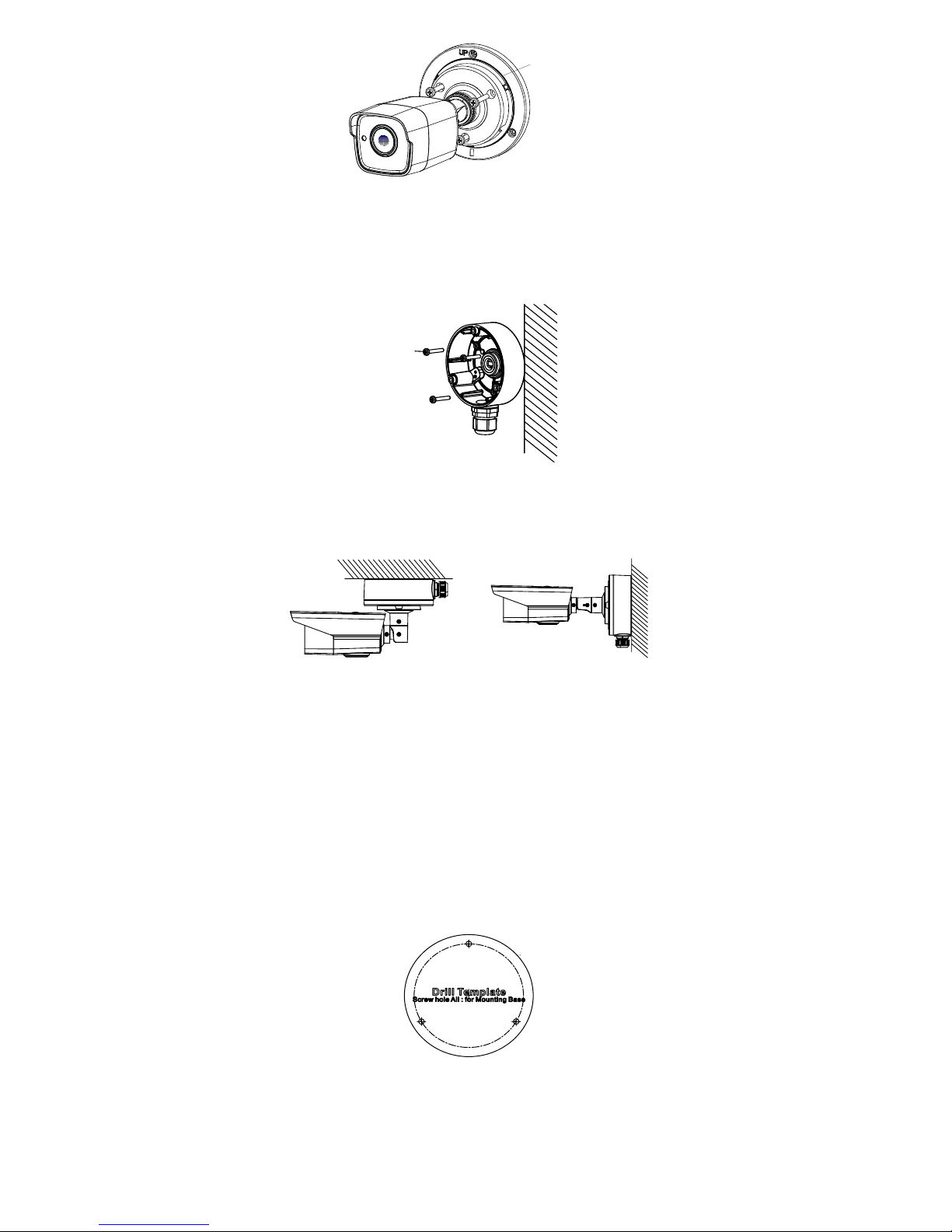

4. Fix the camera on the junction box’s cover.

Junction Box

Cover

Figure 2-4 Fix the Camera with the Gang Box

5. Attach the junction box’s body to the ceiling/wall by

aligning the screw holes of the junction box.

6. Secure the junction box’s body with supplied screws

on the ceiling/wall.

Screw

Figure 2-5 Fix the Camera to the Ceiling

7. Route the cables through the cable hole, or the side

opening of the junction box.

8. Combine the junction box cover with its body.

Figure 2-6 Fix the Junction Box Cover back to its Body

9. Refer to step 6 of 2.1.1 Ceiling/Wall Mounting

without Junction Box to complete the installation.

2.2 Installation of Type II Camera

2.2.1 Ceiling/Wall Mounting without Junction Box

Steps:

1. Paste the drill template (supplied) to the place

where you want to fix the camera,

2. Drill the screw holes according to the drill template

and the cable hole (optional) in the ceiling/wall.

Figure 2-7 Drill Template

Note:

Drill the cable hole when adopting the ceiling outlet to

route the cable.

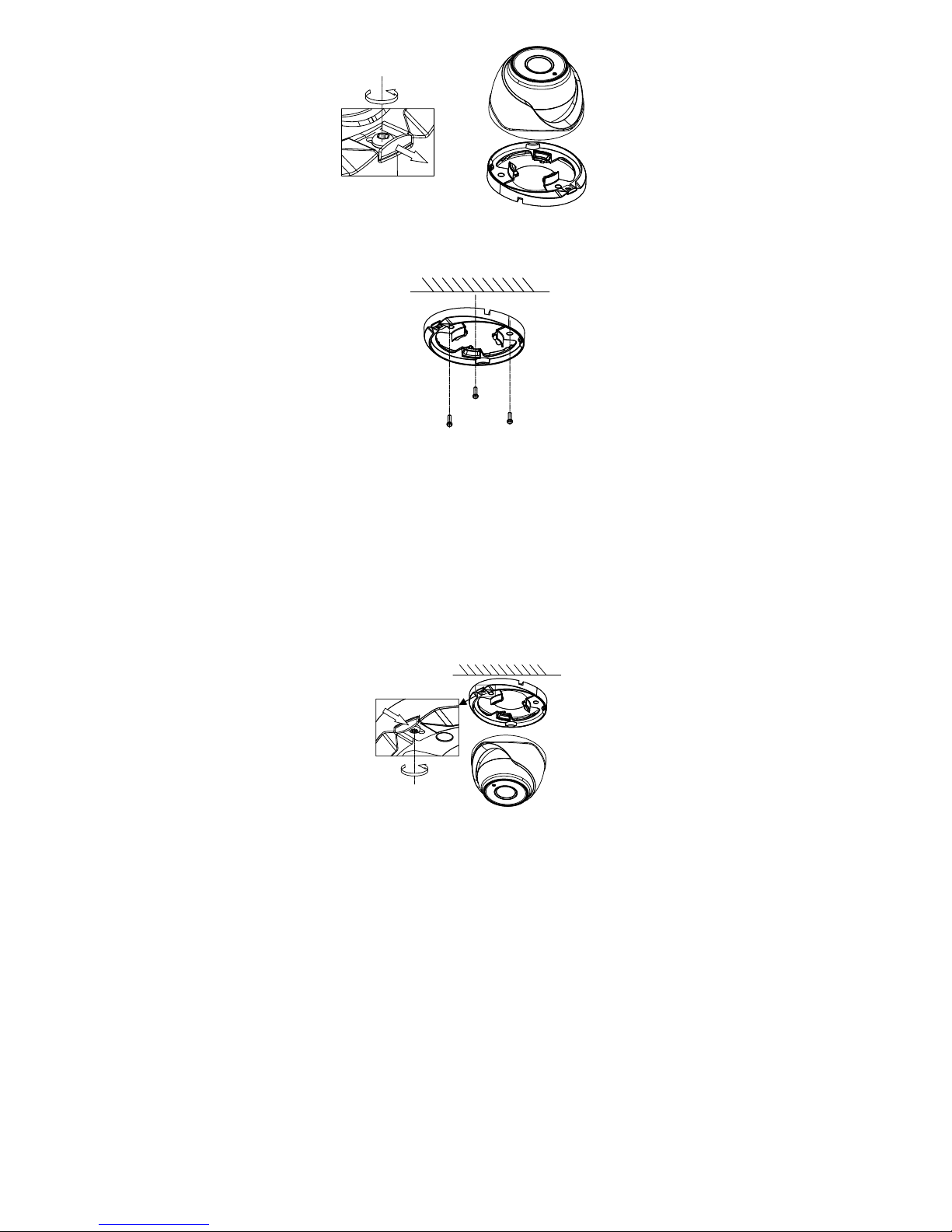

3. Loosen screws to remove the clip plate and take out

the main body.

Clip Plate

Figure 2-8 Remove the Clip Plate

4. Fix the mounting base on the ceiling with screws.

Figure 2-9 Fix the Mounting Base on the Ceiling

Note:

In the supplied screw package, both self-tapping

screws and expansion bolts are contained.

For cement ceiling/wall, expansion bolts are

required to fix the camera. For wooden ceiling/wall,

self-tapping screws are required

5. Route the cables through the cable hole, or the side

opening.

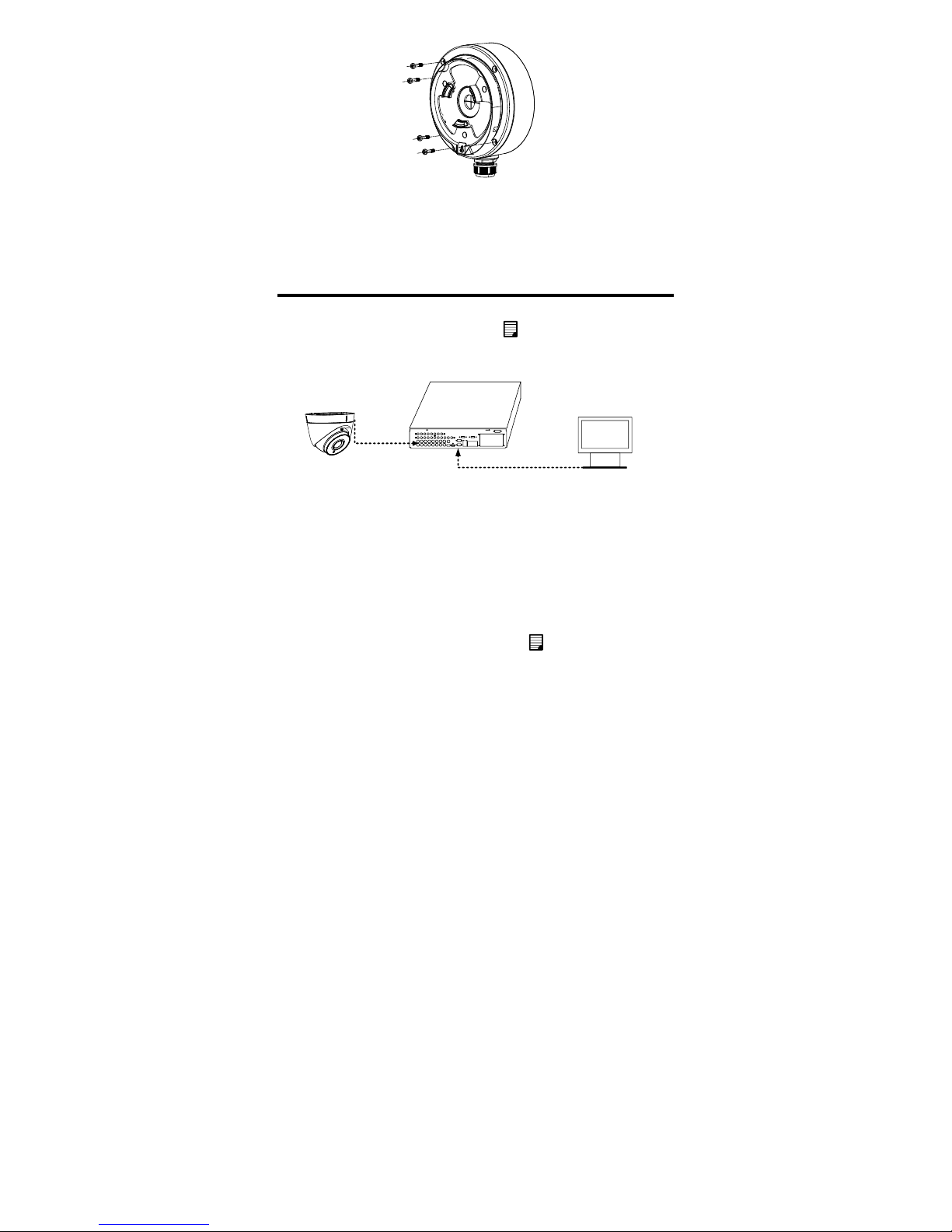

6. Install the main body to the mounting base and

insert the clip plate.

Figure 2-10 Install the Turret Camera

7. Tighten the screws with the wrench.

8. Connect the corresponding cables, such as power

cord, and video cable.

9. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

1). Hold the camera body and rotate the enclosure

to adjust the pan position [0°to 360°].

2). Move the camera body up and down to adjust

the tilt position [0°to 75°].

3). Rotate the camera body to adjust the rotation

position [0°to 360°].

Pan Position Range

[0°to 360°]

Tilt Position Range

[0°to 75°]

Rotation Position Range

[0°to 360°]

Figure 2-11 3-axis Adjustment

2.2.2 Ceiling/Wall Mounting with JunctionBox

Note:

You need to purchase a junction box separately if you

adopt the mounting with a junction box.

Steps:

1. Paste the junction box’s drill template on the

ceiling/wall.

2. Drill screw holes and the cable hole in the

ceiling/wall according to the holes of the drill

template.

Φ130 mm

4-Φ6 mm

Φ30 mm

62.6 mm

Figure 2-12 Drill Template of the Junction Box

3. Refer to step 3 of 2.2.1 Ceiling/Wall Mounting

without Junction Box to take out the camera’s main

body.

4. Take apart the junction box, and align the screw

holes of the camera with those on the Junction box’

cover.

5. Fix the camera on the junction box’s cover with

three PM4 × 10 screws.

Figure 2-13 Secure Screws on Junction Box’s Cover

6. Secure the junction box’s body on the ceiling/wall

with four PA4 × 25 screws.

Figure 2-14 Secure the Junction Box’s Body on Wall or

Ceiling

7. Combine the junction box cover with its body by

tightening four screws on junction box’s cover.

Figure 2-15 Fix the Gang Box

8. Repeat steps 5 to 9 of 2.2.1 Ceiling/Wall Mounting

without Junction Box to complete the installation.

3Menu Description

Purpose:

Call the menu by clicking button on the PTZ interface,

or call preset No.95.

Camera

TVI DVR

Monitor

Figure 3-1 Connection

Steps:

1. Connect the camera with the TVI DVR, and the

monitor shown as the Figure 3-1.

2. Power on the analog camera, TVI DVR, and the

monitor to view the image on the monitor.

3. Click PTZ Control to enter the PTZ Control interface.

4. Call the camera menu by clicking button, or call

preset No. 95.

5. Click the direction arrow to control the camera.

(1) Click up/down direction button to select the

item.

(2) Click Iris + to confirm the selection.

(3) Click left/right direction button to adjust the

value of the selected item.

Table des matières

Autres manuels HIK VISION Caméra de sécurité

HIK VISION

HIK VISION DS-2CD4212F Guide de l'utilisateur

HIK VISION

HIK VISION DS-2DF8836IV-AEL Manuel utilisateur

HIK VISION

HIK VISION DS-2TP21B-6AVFW Manuel utilisateur

HIK VISION

HIK VISION TURBO HD F1T Series Manuel utilisateur

HIK VISION

HIK VISION DS-2CE16D(F)7T-AIT3Z Manuel utilisateur

HIK VISION

HIK VISION DS-2CV2G26G0-IDW Manuel utilisateur

HIK VISION

HIK VISION DS-2XC6646G0/P-IZHS Manuel utilisateur

HIK VISION

HIK VISION TURBO HD DS-2CE56H0T-IT1F Manuel utilisateur

HIK VISION

HIK VISION TURBO HD DS-2CE56D8T-IRS Manuel utilisateur

HIK VISION

HIK VISION DS-2XC6142FWD-IS Manuel utilisateur

HIK VISION

HIK VISION DS-2CD6D44G1H-IZS Manuel utilisateur

HIK VISION

HIK VISION DS-2CD5A46G1-IZHS Manuel utilisateur

HIK VISION

HIK VISION DS-2DP0818Z-D Manuel utilisateur

HIK VISION

HIK VISION DS-2XC6285G0-L Manuel utilisateur

HIK VISION

HIK VISION DS-2TD6567T-50H4LX/W Manuel utilisateur

HIK VISION

HIK VISION iDS-2CD9136-AIS Manuel utilisateur

HIK VISION

HIK VISION DS-2TD4238-7/S2 Manuel utilisateur

HIK VISION

HIK VISION ECI-D64Z2 Manuel utilisateur

HIK VISION

HIK VISION 64 Series Manuel utilisateur

HIK VISION

HIK VISION DS-2DE5425IWG-K/4G Manuel utilisateur

HIK VISION

HIK VISION DS-2TD2667T-15/P Manuel utilisateur

HIK VISION

HIK VISION HiLook Series Manuel utilisateur

HIK VISION

HIK VISION D0T POC C Series Manuel utilisateur

HIK VISION

HIK VISION DS-2CE16C0T-IRF Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
