Quick Guide of Network Mini Dome Camera 1

Network Mini Dome Camera

Quick Guide

V3.0.0

Hangzhou Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

Service Tel：+86-400-700-5998

2010-04

Quick Guide of Network Mini Dome Camera 1

1．Camera Physical Description

Serial NO. Description

1 Back box

2 Set screw

3 Lens

4 P: Power LED indicator, which turns red when power is applied to the unit.

5 Bottom board

6 Bottom board set screw hole

7 Lens set screw

8 S & L: Network status LED indicator.

When the network is connected, the “S” LED turns orange, while the “L” LED

flickers in green.

9 RESET: Reset all paramaters to factory default settings.

NOTE:

When the camera is power up, press the “Reset” button for about 10 seconds, then all

parameters, including user name, password, IP address, port number, etc., will be reset to the

factory default settings.

Quick Guide of Network Mini Dome Camera 2

2．Installation

The steps of installing the camera on the ceiling as following:

Step 1: Loosen the set screws Step 2: Remove the back box

Step 3: Fix the bottom board

Step 4: Loosen the lens set screws

Quick Guide of Network Mini Dome Camera 3

Step 5: Adjust horizontally and vertically the

camera’s pan and tilt for your need Step 6: Tighten thelensset screws

St ep 7: Install the back box

St e p 8 : Do n e

NOTE：

As the lens of camera has already been factory adjusted to the best imaging effect, thus

it only needs to adjust the pan and tilt view angle.

If the image is not clear without the back box, please don’t worry, the back box will

affect the imaging effect, so when you test the imaging effect of lens, the back box must

be installed to the camera

Quick Guide of Network Mini Dome Camera 4

3．Search and Modify IP

SADP (Search Active Devices Protocol) software can automatically search the IP address of

network cameras’ on the same network with connection diagram as follows:

The operation of searching and modifying IP address is described as following:

1. After downloading ‘SADP software’

from http://www.hikvision.com, install

the ‘WinPcap_3_1_beta_3’, and then run

the “sadpdlg.exe”

2. Search IP address.

3. Modify IP address.

Quick Guide of Network Mini Dome Camera 55

Quick Guide of Network Mini Dome Camera

Quick Guide of Network Mini Dome Camera 6

4．Preview via IE browser

Note:

The default IP of network cameras’ is ‘192.0.0.64’ with ‘admin’ as the administrator, ‘12345’ as the

password, and ‘8000’ as the default port.

For monitoring camera images, a comptuer running the Microsoft Windows Operating System

and Internet Explorer (Version 6.0 or later) are required. In this manual, we take Windows XP and

IE 6.0 for example.

This chapter describes how to view the video from the camera via web browser, and operate as

following:

1. Open the IE browser, set the security level to [Medium] in

[Tools/InternetOptions/Security/Custom Level…]

Quick Guide of Network Mini Dome Camera 7

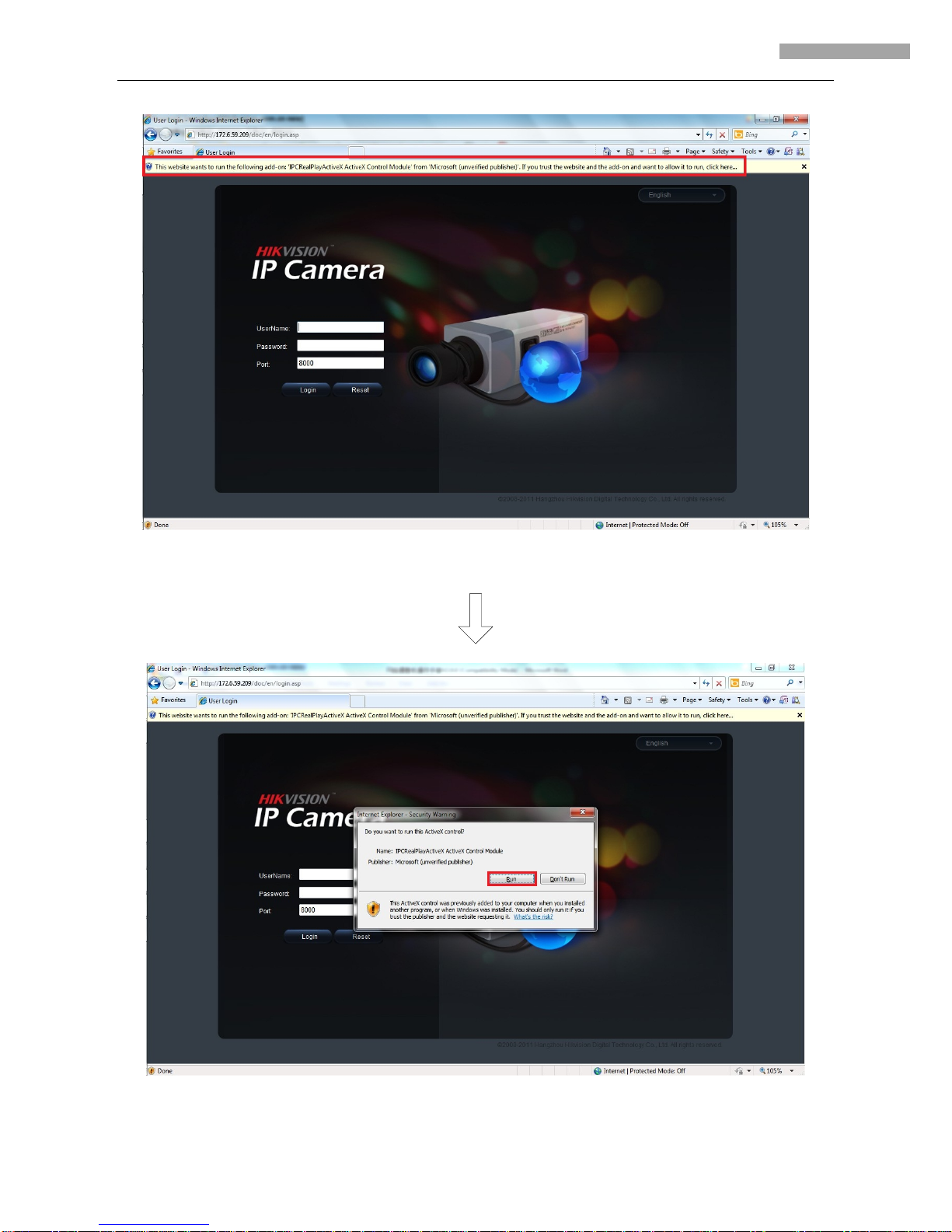

2. Type the IP address of the camera and press [Enter], and

then click the mention box that pop up.

3. Click [Run] to install the ActiveX control.

Quick Guide of Network Mini Dome Camera 8

4. Input “Username” (Default: admin), “Password” (Default: 12345) and “Port” (Default: 8000) of

the camera,

then click [Login]

Quick Guide of Network Mini Dome Camera 9

5. View the image

For detailed instructions of further configuration, please refer to the user manual of network

camera.
