HIK VISION DS-2CD852MF-E Series Manuel utilisateur

Network Camera

Installation Manual

V3.0.0

Hangzhou Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

Installation Manual of Network Camera

Thank you for purchasing our product. If there are any questions, or requests, please do not

hesitate to contact the dealer. This manual applies to

Box camera Ⅰ: DS-2CD852MF-E, DS-2CD862MF-E

Box camera Ⅱ: DS-2CD886BF-E, DS-2CD886MF-E, DS-2CD877BF, DS-2CD876BF, DS-2CD876MF

Box camera Ⅲ: DS-2CD883F-E(W), DS-2CD854F-E(W), DS-2CD853F-E(W), DS-2CD864FWD-E(W),

DS-2CD863PF(NF)-E(W), DS-2CD893PF(NF)-E (W), DS-2CD893PFWD(NFWD)-E(W),

DS-2CD833F-E(W)

Dome camera Ⅰ: DS-2CD752MF-E

Dome camera Ⅱ:DS-2CD752MF-FB(H),DS-2CD752MF-IFB(H), DS-2CD762MF-FB(H),

DS-2CD762MF-IFB(H)

Dome camera Ⅲ: DS-2CD783F-E(I), DS-2CD754F-E(I), DS-2CD764FWD-E(I), DS-2CD754FWD-E(I),

DS-2CD753F-E(I), DS-2CD763PF(NF)-E(I), DS-2CD793PF(NF)-E(I), DS-2CD793PFWD(NFWD)-E(I),

DS-2CD733F-E(I)

Bullet Camera: DS-2CD8264F-E(I), DS-2CD8264F-ES(I),DS-2CD8254F-E(I), DS-2CD8254F-ES(I),

DS-2CD8253F-E(I), DS-2CD8253F-ES(I)，DS-2CD8233F-E(I), DS-2CD8233F-ES(I)

Cube Camera: DS-2CD8153F-E(W)(I), DS-2CD8133F-E(W)(I)

Mini Dome Camera: DS-2CD7164-E,DS-2CD7153-E, DS-2CD7133-E

This manual may contain several technical incorrect places or printing errors, and the content is

subject to change without notice. The updates will be added to the new version of this manual. We

will readily improve or update the products or procedures described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security

or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as

outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the

performance or reliability of the security or signaling aspects of this product. UL MAKES NO

REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE

PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS

PRODUCT.”

Installation Manual of Network Camera

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid

danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material

damage.

Warnings:

1. In the use of the product, you must strictly comply with the electrical safety regulations of the

nation and region.

2. Source with DC 12V or AC24V according to the IEC60950-1 standard. Please refer to technical

specifications for more details.

3. Do not connect several devices to one power adapter as an adapter overload may cause

over-heating and can be a fire hazard.If use the POE as the power supply, please make sure that

the POE Switch have the sufficient power.

4. Please make sure that the plug is firmly inserted into the power socket.

5. When the product is installed on a wall or ceiling, the device should be firmly fixed.

6. If smoke, odor, or noise rise from the device, turn off the power at once and unplug the power

cable, then contact the service center.

7. If the product does not work properly, please contact your dealer or the nearest service center.

Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.)

Installation Manual of Network Camera

Notice:

1. Make sure the power supply voltage is correct before using the camera.

2. Do not drop the camera or subject it to physical shock.

3. Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit

of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put

on the lens cap to protect the sensor from dirt.

4. Do not aim the camera at the sun or extra bright places. A blooming or smear may occur

otherwise (which is not a malfunction however), and affecting the endurance of sensor at the

same time.

5. The sensor may be burned out by a laser beam, so when any laser equipment is being used,

make sure that the surface of the sensor will not be exposed to the laser beam.

6. Do not place the camera in extremely hot or cold temperatures (the operating temperature

should be between -10°C ~+60°C , dusty or damp locations, and do not expose it to high

electromagnetic radiation.

7. To avoid heat accumulation, good ventilation is required for a proper operating environment.

8. While shipping, the camera should be packed in its original packing, or packing of the same

texture.

9. Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment should be

replaced regularly according to their average life time. The average time varies because of

differences between operating environment and usage history, so regular checking is

recommended for all users. Please contact with your dealer for more details.

Installation Manual of Network Camera

Table of Contents

Chapter 1 Introduction ................................................................................................................................................1

1.1 Network camera Functions and Features .............................................................................................1

1.2 Applications .....................................................................................................................................................1

Chapter 2 Physical Description................................................................................................................................3

2.1 Box Camera Physical Description............................................................................................................3

2.1.1 Box Camera Ⅰ...................................................................................................................................3

2.1.2 Box Camera Ⅱ...................................................................................................................................5

2.1.3 Box Camera Ⅲ...................................................................................................................................7

2.2 Dome Camera Physical Description........................................................................................................9

2.2.1 Dome Camera Ⅰ...............................................................................................................................9

2.2.2 Dome Camera Ⅱ............................................................................................................................10

2.2.3 Dome Camera Ⅲ............................................................................................................................11

2.3 Bullet Camera Physical Description.....................................................................................................12

2.4 Cube Camera Physical Description ......................................................................................................13

2.5 Mini Dome Camera Physical Description ..........................................................................................15

Chapter 3 Installation................................................................................................................................................16

3.1 Box Camera Installation............................................................................................................................16

3.2 Dome Camera Installation........................................................................................................................18

3.2.1 Dome Camera Ⅰ............................................................................................................................18

3.2.2 Dome Camera Ⅱ............................................................................................................................20

3.2.3 Dome Camera Ⅲ............................................................................................................................21

3.3 Bullet Camera Installation ........................................................................................................................23

3.4 Cube Camera Installation..........................................................................................................................26

3.5 Mini Dome Camera Installation .............................................................................................................28

Installation Manual of Network Camera

Chapter 1 Introduction

Network camera is a kind of embedded digital surveillance product that combines the features

of both traditional analog camera and net DVS (Digital Video Server). Due to the embedded Linux

operation system and the latest Davinci hardware platform of TI, the system operates with high

scheduling efficiency. Furthermore, the firmware is burned in the flash, which makes the product

small, reliable and highly stable.

1.1 Network camera Functions and Features

Functions:

Advanced compression with high compression ratio.

Heartbeat Function: The server can acquire real time operating performance of the network

camera through the heartbeat function.

Two way audio.

Alarm Function: Motion detection, Video tampering, Network disconnect , IP address conflict,

Storage exception.

Support reset button, dual stream, mobile phone surveillance.

User Management: Support multilevel right management. The administrator can create up to

15 separate users with different right levels, which highly improves the system security.

Build-in WEB browser and support IE browsing.

Software Development Kit (SDK) is available.

Compression Functions:

Support 1 channel video signal and standard H.264 encoding compression, which supports both

variable bit rate and variable frame rate; besides, you can self-define both the video quality and

its compressed bit rate.

Remote Control:

The product offers a 10M/100M self-adaptive Ethernet interface.

Support TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP protocols.

Set the parameters, browse real time videos or check the camera performance through

software or IE, and store the compressed bit rate through network.

Support remote upgrades and maintenance.

1.2 Applications

This camera is ideal for remote control network applications. E.g.:

1. Network surveillance for bank counters, supermarkets and factories.

Installation Manual of Network Camera

2. Remote surveillance for nursing homes, kindergartens and schools.

3. AI janitors.

4. AI building/district management systems.

5. Self-service systems of power plants.

6. Pipelining and warehouse monitoring.

7. Surveillance for airdrome, railway station, bus stop etc.

Installation Manual of Network Camera

Chapter 2 Physical Description

The network cameras can be classified to eight types according to the physical structure: Box

camera Ⅰ, Box camera Ⅱ,Box camera Ⅲ, Dome camera Ⅰ,Dome camera Ⅱ,Bullet Camera, Cube

Camera, Mini Dome Camera.

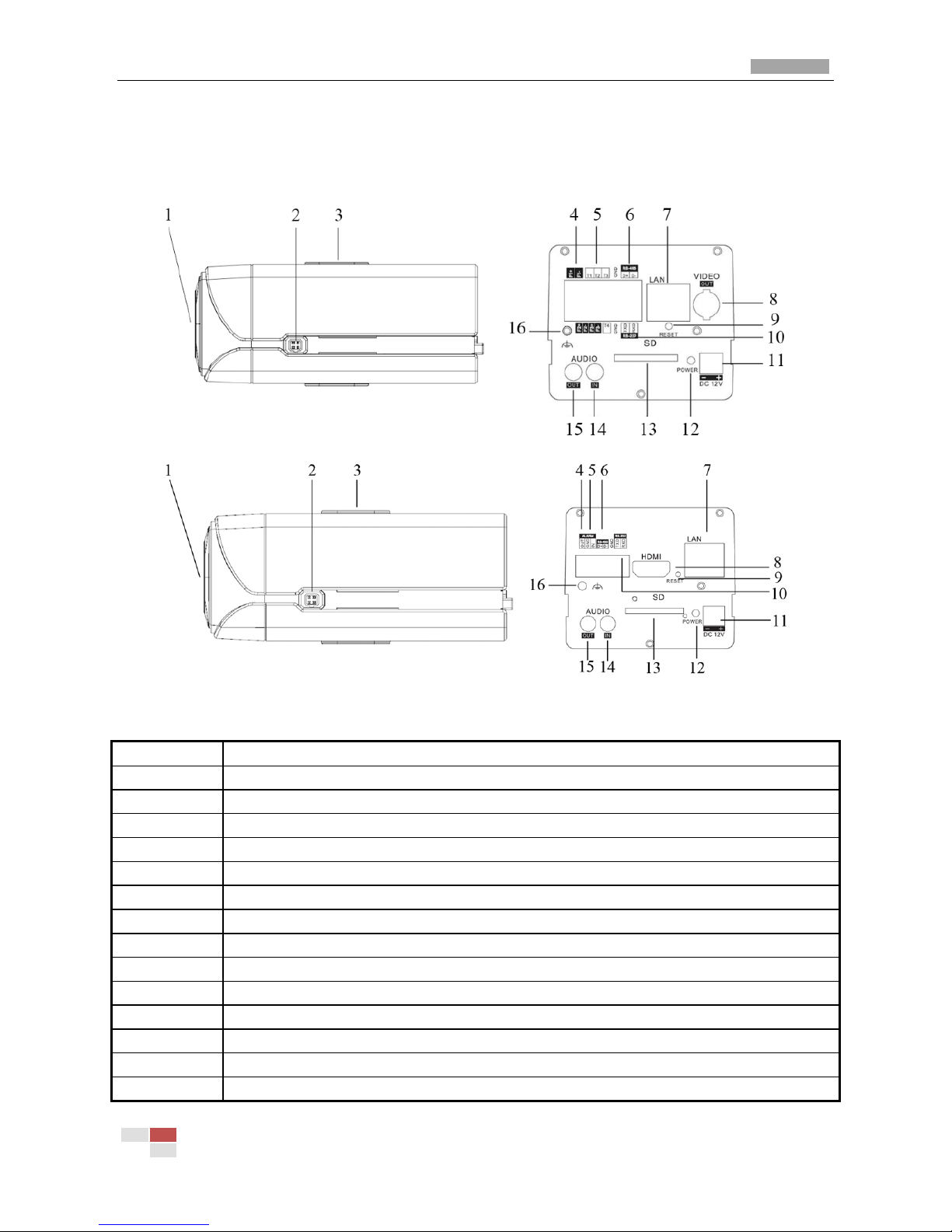

2.1 Box Camera Physical Description

2.1.1 Box Camera Ⅰ

Camera description:

Figure 2.1.1

Serial NO.

Description

CS Lens mount

Back Focus Ring

Auto iris interface

10M/100M self-adaptive Ethernet interface

AUDIO IN: Audio input interface

AUDIO OUT: Audio output interface

SD: SD card slot

VIDEO OUT: Video output interface

Power supply

PWR: Power LED indicator

D+, D-: RS-485 interface

Ground

1A, 1B: Alarm output interface

Installation Manual of Network Camera

Serial NO.

Description

IN, G: Alarm input interface

Back Focus Adjustment:

When it still fails to realize precise focusing after having confirmed the correct lens interface, the

back focus adjustment may be required.

Operate the following steps:

Tighten the lens firstly and then loosen the fixed back focus ring; rotate the lens slowly until the

video image turns to be clear, and finally tighten and lock the back focus ring.

Camera connection:

Figure 2.1.2

Note:

The type of auto-iris interface is square four-hole type,

and the definition of each pin as shown:

Video

Power

Damp-

Damp+

Video

Drive+

GND

Drive-

Auto iris interface with video driving uses three pins:

Power, Video and GND; Auto iris interface with DC driving

uses four pins: Damp+, Damp-, Drive+ and Drive-.

Installation Manual of Network Camera

2.1.2 Box Camera Ⅱ

Camera description:

Figure 2.1.3

Serial NO.

Description

CS Lens mount

Auto iris interface

Bracket mounting holes

F1+ F1-, F2+ F2- ,F3+ F3-: Alarm output interface

T1,T2,T3, T4,GND: Alarm input interface

D+, D-: RS-485 interface

10M/100M self-adaptive Ethernet interface

VIDEO OUT: Video output interface

RESET: Reset the camera

TXD, RXD, GND: RS-232 interface

Power supply

PWR: Power LED indicator

SD: SD card slot

AUDIO IN: Audio input interface

Autres manuels pour DS-2CD852MF-E Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HIK VISION Caméra de sécurité

HIK VISION

HIK VISION DS-2CE17U8T-IT Manuel utilisateur

HIK VISION

HIK VISION TURBO HD Series Manuel utilisateur

HIK VISION

HIK VISION DS-2CC102P-IRA Manuel utilisateur

HIK VISION

HIK VISION DS-2CE16D9T-AIRAZH Manuel utilisateur

HIK VISION

HIK VISION TURBO HD H5T Series Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2412F-I Manuel de l'opérateur

HIK VISION

HIK VISION DS-2CE15F5P(N)-VFIR Manuel utilisateur

HIK VISION

HIK VISION UD06820B Manuel utilisateur

HIK VISION

HIK VISION DS-2CE17U8T-IT Manuel utilisateur

HIK VISION

HIK VISION DS-2CE10DF0T-LFS Manuel utilisateur

HIK VISION

HIK VISION TURBO HD DF7T Series Manuel utilisateur

HIK VISION

HIK VISION DS-2AE7232TI-A Manuel utilisateur

HIK VISION

HIK VISION DS-2CE56D8T-IT3F Manuel utilisateur

HIK VISION

HIK VISION TURBO HD H1T Series Manuel utilisateur

HIK VISION

HIK VISION DS-2DE1A400IW-DE3 Manuel utilisateur

HIK VISION

HIK VISION DS-2CD854F-E series Manuel utilisateur

HIK VISION

HIK VISION DS-2CE10HFT-F Manuel utilisateur

HIK VISION

HIK VISION CMHT1823 Manuel utilisateur

HIK VISION

HIK VISION DS-2DF8C842IXS-AELW Manuel utilisateur

HIK VISION

HIK VISION DS-2CD4A26FWD-IZSP Manuel utilisateur

HIK VISION

HIK VISION DS-2CD7126G0/L-IZS Manuel utilisateur

HIK VISION

HIK VISION UD.6L0201A1681A02 Manuel utilisateur

HIK VISION

HIK VISION PanoVu DS-2PT3306IZ-DE3 Manuel utilisateur

HIK VISION

HIK VISION DS-2DF7C445IXR-AEL(T5) Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
